2AWDJ-BLM5210Bluetooth device

Datasheet iBeacon BLM5210 Suzhou Beelinker Technology Co,.Ltd Website： www.beelinker.com Address：No.399,Linquan Street,SIP,Suzhou,Jiangsu TEL:0512-62997201-8831 1 MODEL NO/DESCRIPTION Product Name iBeacon Product Mode BLM5210 Version 1.0 Release Date 2023.5 Website： www.beelinker.com Address：No.399,Linquan Street,SIP,Suzhou,Jiangsu TEL:0512-62997201-8831 2 LIST 1. PRODUCT DESCRIPTION .............................................................................. 3 2. PRODUCTION FEATURES .............................................................................. 3 3. APPLICATION ............................................................................................. 4 4. CHARACTERISTICS ........................................................................................ 4 5. ELECTRICAL PARAMETERS ........................................................................... 5 6. CONFIGURATION TOOLKIT ........................................................................... 6 7. CERTIFICATION ............................................................................................. 6 8. PACKAGE ...................................................................................................... 6 9. QUALITY ASSURANCE .................................................................................. 7 10. CONTACT ...................................................................................................... 8 11. STATEMENT .................................................................................................. 9 Website： www.beelinker.com Address：No.399,Linquan Street,SIP,Suzhou,Jiangsu TEL:0512-62997201-8831 3 1. Product Description Suzhou Bolian Technology independently developed a new generation of low-power standard Bluetooth beacon products applied to indoor and outdoor scenes, with long standby, waterproof, independent switching, convenient construction and installation, replacement of standard batteries and other characteristics. It uses Texas Instruments (TI) CC26 series low-power Bluetooth chip, low-power Bluetooth BLE 5.1 technology, in line with iBeacon, Beacon, Eddystone protocol specification, high security, reliability, and support for user connection secret key settings. The rounded plastic housing is aesthetically pleasing and features a rotating thread sealing process for IP67 waterproofing and easy battery replacement. Product view Product structure diagram 2. Production Features ★ Ultra-low power consumption with up to 5 years of endurance (0db, 500ms interval) ★ Threaded rotary sealing process, waterproof to IP67 ★ Standard battery holder process for easy battery replacement ★ Support for iBeacon, Beacon, Eddystone multiple protocols ★ Large-scale applications, stable and reliable Website： www.beelinker.com Address：No.399,Linquan Street,SIP,Suzhou,Jiangsu TEL:0512-62997201-8831 4 3. Application Widely used in WeChat's "shake" periphery, such as customer advertising, coupon push and other precision marketing; tourist attractions, museums and other intelligent guide, online interpretation; location-based information push and interaction; nursing homes, hospitals, large shopping centres scene indoor positioning navigation; hospitals, warehousing scenarios, material management; factory punch card, inspection and other scenarios. 4. Characteristics Model BLM5210 Water & Dust Protection IP67 Shell material PC Shell color White、black Overall dimensions Φ54.8×24.17mm Weight 50g(With Battery) Battery ER14250H*2 (Lithium sub batteries) Supply voltage DC3.6V Installation Snap base / 3M adhesive Website： www.beelinker.com Address：No.399,Linquan Street,SIP,Suzhou,Jiangsu TEL:0512-62997201-8831 5 5. Electrical Parameters Model BLM5210 Quiescent Current 1uA Typical value of peak emission current（@0dBm） 6.1mA Receiving peak current typical 5.9mA Battery Model ER14250H*2 Battery Capacity 2400mAh Battery Life 5years（0dBm&500ms） Operation Temperature -40°C～85°C Operation Frequency 2.4 GHz Bluetooth Transmit Power -21~5dBm(Typical 0dBm) Broadcast Period 20ms～2s(Typical 500ms) Signal Range 100m in typical configuration Security Only supports manufacturer app links (with communication key) Application Supported OS IOS 7.0 and above, Android 4.3 and above Website： www.beelinker.com Address：No.399,Linquan Street,SIP,Suzhou,Jiangsu TEL:0512-62997201-8831 6 6. Configuration Toolkit 7. Certification 8. Package Package Open Carton Packing Quantity 60pcs 120pcs Gross 3.5 kg 6.5kg Size 232*284*180mm 465*284*180mm Website： www.beelinker.com Address：No.399,Linquan Street,SIP,Suzhou,Jiangsu TEL:0512-62997201-8831 7 9. Quality Assurance The factory is certified to ISO9001. Every sample will be verified (Transmit power, power consumption, reliable test) before shipping. Website： www.beelinker.com Address：No.399,Linquan Street,SIP,Suzhou,Jiangsu TEL:0512-62997201-8831 8 10. Contact Disclaim: This manual is only for reference. All rights reserved by the Beelinker Technology Co.,Ltd. Website： www.beelinker.com Address：No.399,Linquan Street,SIP,Suzhou,Jiangsu TEL:0512-62997201-8831 9 Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no g…

Text truncated - open the document above for the full version.

(Suzhou BeeLinker Technology Co., Ltd) (Jun. 21, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID:2AWDJ-BLM5210) [Suzhou BeeLinker Technology Co., Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Wei Wang (Suzhou BeeLinker Technology Co., Ltd) (Jun. 21, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID:2AWDJ-BLM5210) [Suzhou BeeLinker Technology Co., Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Wei Wang

Suzhou BeeLinker Technology Co., Ltd (2023.06.21) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Bluetooth device / BLM5210/ FCC ID: 2AWDJ-BLM5210) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☒ Internal Photos ☐ NOTE 1 ☒ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Signature: Name: Wei Wang Title: Manager

Suzhou BeeLinker Technology Co., Ltd (2023.06.21) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Shenzhen CTB Testing Technology Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature: Name: Wei Wang Title: Manager

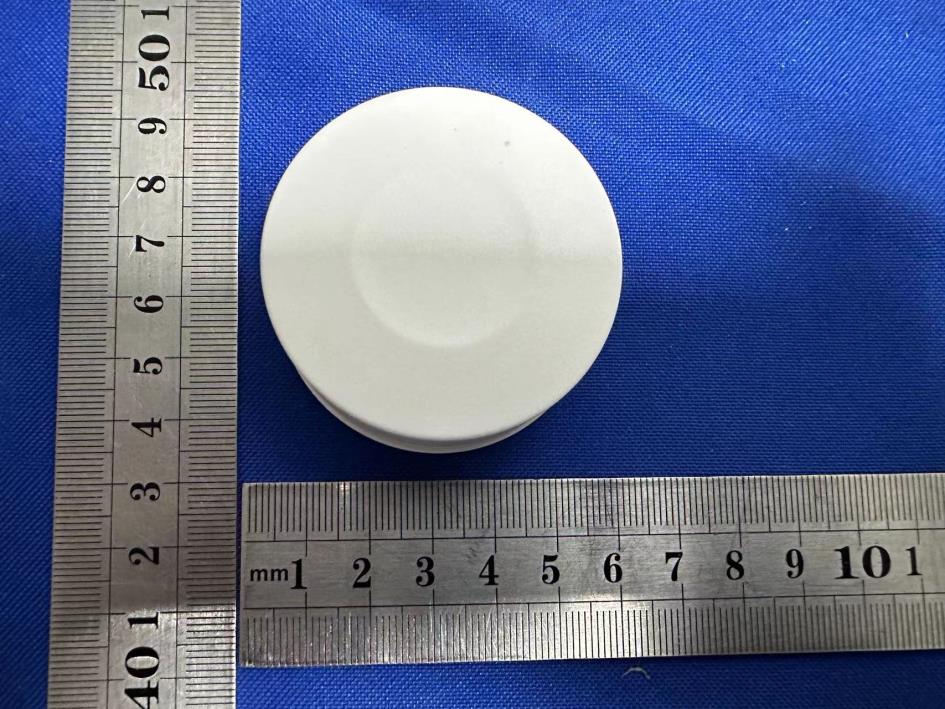

External Photos

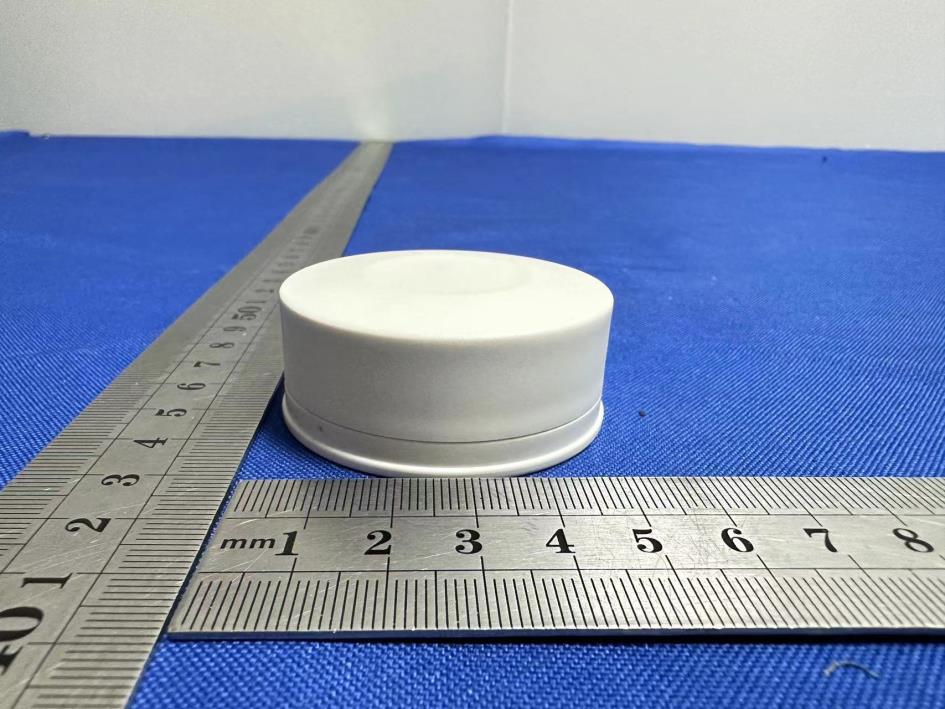

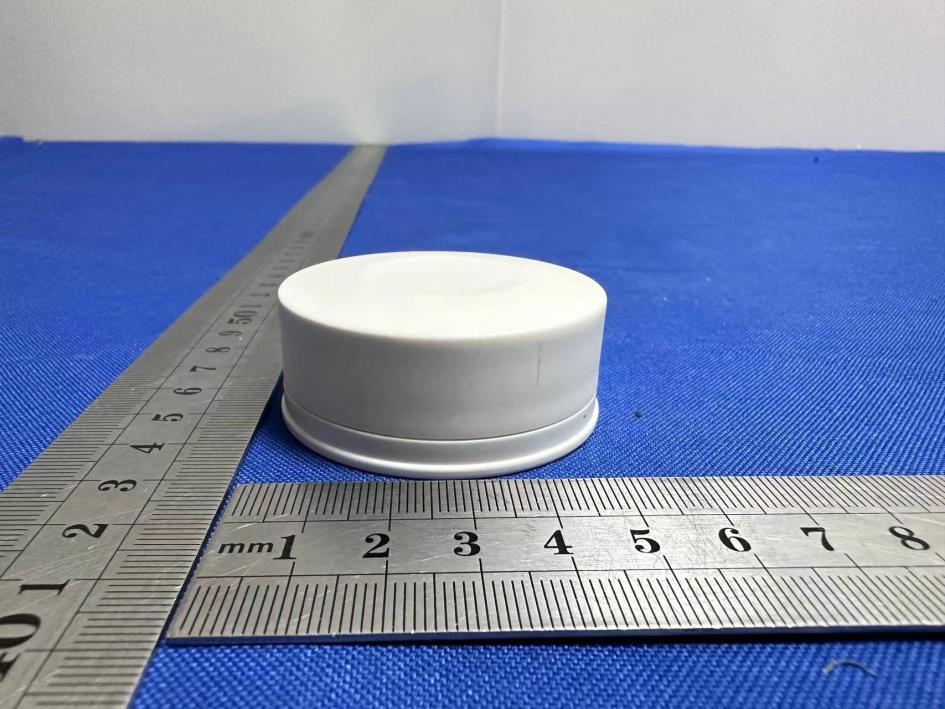

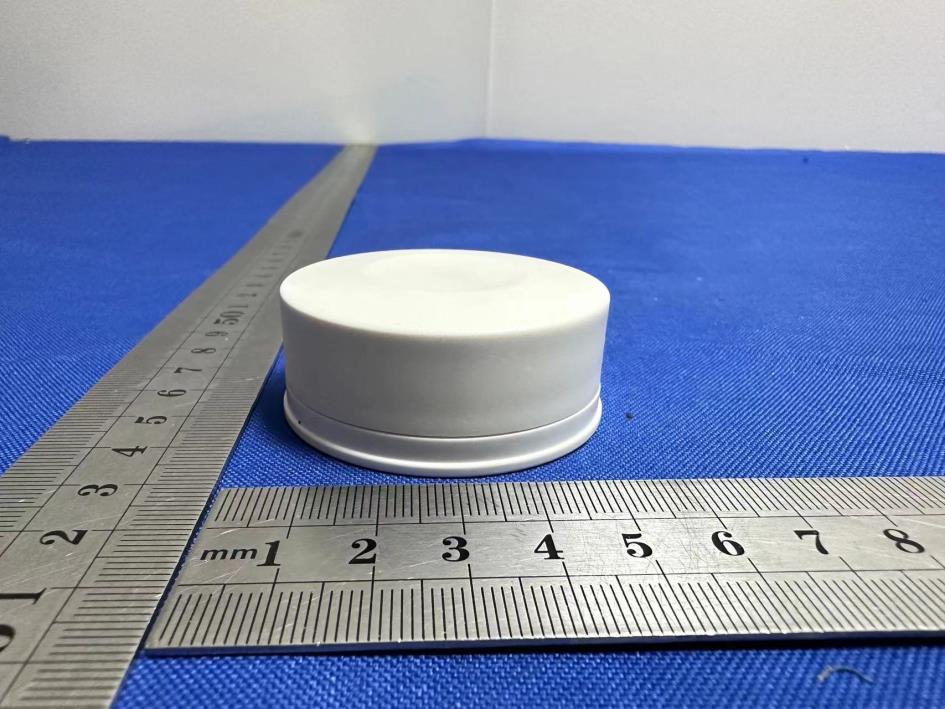

FCC ID LABEL: Label Location: FCC ID: 2AWDJ-BLM5210 Model No.: BLM5210

Internal Photos ANT

Shenzhen CTB Testing Co., Ltd. FCC ID:2AWDJ-BLM5210 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BLE: Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion 2.402 4.748 2.98 4±1 5.00 3.16 <5 0.98020 3.00 YES 2.44 5.053 3.20 5±1 6.00 3.98 <5 1.24373 3.00 YES 2.480 4.341 2.72 4±1 5.00 3.16 <5 0.99599 3.00 YES GFSK Conclusion: For the max result : 1.24373≤ FCC Limit 3.0 for 1g SAR.

PCB Antenna for BLE Chips of WCH 1、Dimension of Antenna 2、Features     3、S parameter Working bandwidth: 157MHz S11：[email protected] Dimension:3 . 0 5*19.41mm Terminal impedance: 50ohm Max Gain: 2.1dBi RF Frequency: 2.4GHz GHz 4、Gain and Radiation pattern Max gain @2.4GHz: 2.08dBi E plane： H plane： Max Gain @2.44GHz: 2.1dBi E plane： H plane： Max Gain @2.48GHz: 2.04dBi E plane： H plane： Applicant: Suzhou BeeLinker Technology Co., LTD Address: Room 104 National University Science Park, Southeast University, 399 Linquan Street,Suzhoulndustrial Park

Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB230617033RFX Report Tel: 4008-707-283Web: http://www.ctb-lab.net Page 1 of 33 TEST REPORT Compiled by: Reviewed by: Approved by: Chen Zheng Arron Liu Bin Mei / Director Note: If there is any objection to the inspection results in this report, please submit a written report to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. “*” indicates the testing items were fulfilled by subcontracted lab. “#” indicates the items are not in CNAS accreditation scope. Product Name: Bluetooth device FCC ID: 2AW DJ-BLM5210 Trademark: Model Number: BLM5210 Prepared For: Suzhou BeeLinker Technology Co., Ltd Address: No.399 Lin Quan Road, Suzhou lndustrial Park, Jiangsu Province , P.R.China Manufacturer: Suzhou BeeLinker Technology Co., Ltd Address: No.399 Lin Quan Road, Suzhou lndustrial Park, Jiangsu Province , P.R.China Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: 1&2/F., Building A, No.26, Xinhe Road, Xinqiao, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: Jun. 15, 2023 Sample tested Date: Jun. 15, 2023 to Jun. 17, 2023 Issue Date: Jun. 17, 2023 Report No.: CTB230617033RFX Test Standards FCC Part15.247 ANSI C63.10:2013 Test Results PASS Remark: This is Bluetooth radio test report. Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB230617033RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 33 TABLE OF CONTENT Test Report Declaration Page 1. VERSION ........................................................................................................................................ 3 2. TEST SUMMARY ........................................................................................................................... 4 3. MEASUREMENT UNCERTAINTY ................................................................................................. 5 4. PRODUCT INFORMATION AND TEST SETUP ............................................................................ 6 4.1 Product Information .......................................................................................................................... 6 4.2 Test Setup Configuration .................................................................................................................. 6 4.3 Support Equipment........................................................................................................................... 6 4.4 Channel List ..................................................................................................................................... 7 4.5 Test Mode ........................................................................................................................................ 7 4.6 Test Environment ............................................................................................................................. 7 5. TEST FACILITY AND TEST INSTRUMENT USED ....................................................................... 8 5.1 Test Facility ...................................................................................................................................... 8 5.2 Test Instrument Used ....................................................................................................................... 8 6. AC POWER LINE CONDUCTED EMISSION ................................................................................ 10 6.1 Block Diagram Of Test Setup ......................................................................................................... 10 6.2 Limit ................................................................................................................................................ 10 6.3 Test procedure ............................................................................................................................... 10 6.4 Test Result ..................................................................................................................................... 12 7. RADIATED SPURIOUS EMISSION ............................................................................................. 13 7.1 Block Diagram Of Test Setup ......................................................................................................... 13 7.2 Limit ................................................................................................................................................ 13 7.3 Test procedure ............................................................................................................................... 14 7.4 Test Result ..................................................................................................................................... 15 8. BAND EDGE AND RF COUNDUCTED SPURIOUS EMISSIONS ............................................... 22 8.1 Block Diagram Of Test Setup ......................................................................................................... 22 8.2 Limit ................................................................................................................................................ 22 8.3 Test procedure ............................................................................................................................... 22 8.4 Test Result ..................................................................................................................................... 23 9. COUDUCTED OUTPUT POWER ................................................................................................. 25 9.1 Block Diagram Of Test Setup .…

Text truncated - open the document above for the full version.

Radiated Emission Below 1G Above 1G
