2AWDP-X40Watch charger

Instructions For Use FAN 3-Speed Adjustment Wireless Charger (Expand) Specifications Input : 30W Output 1 : 15W/5W/5W FAN Output 2 : 5W      Please read the user manual carefully before using this product and keep it properly for future reference FAN WIRELESS CHARGED DESKTOP  * 110mm 正面 背面 110mm 90mm90mm X-40说明书 尺寸：110*180mm 材质：书纸 黑白印刷 Metal Bracket Wireless Charger (Closed) FCC statement: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Radiation Exposure Statement This device complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. During the operation of device a distance of 15 cm surrounding the device and 20 cm above the top surface of thedevice must be respected.

Sincerely, Name/Title： Loic Luo/Manager Company: SHENZHEN XPGTECH Co., Ltd Address: F2, BuildingA, #282, HuanGuan Middle Road GuanLan, Longhua Shenzhen, Guangdong province China Phone: 0755-29057899 Fax: 0755-29057899 E-Mail: [email protected]

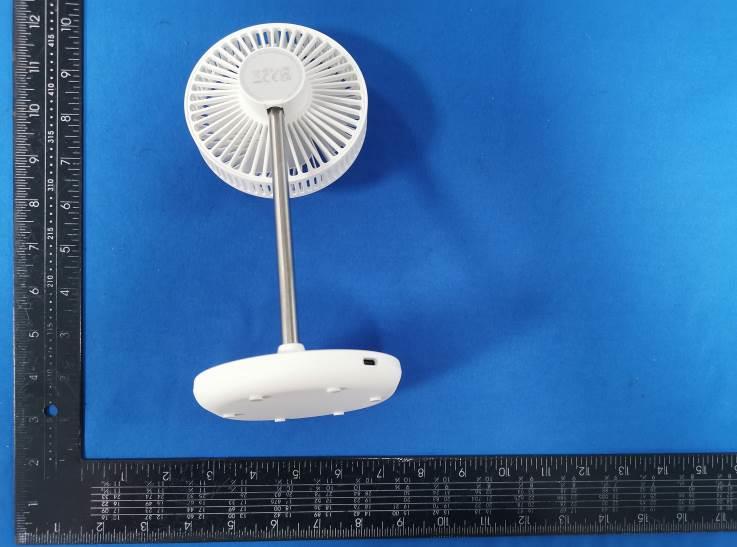

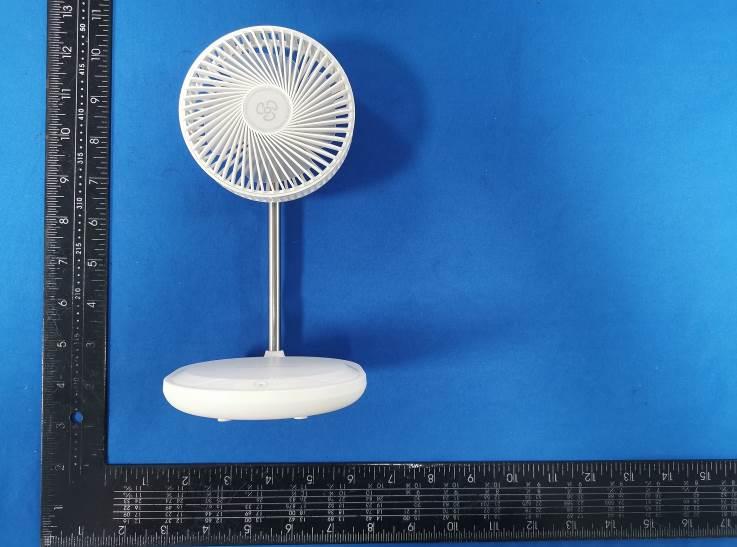

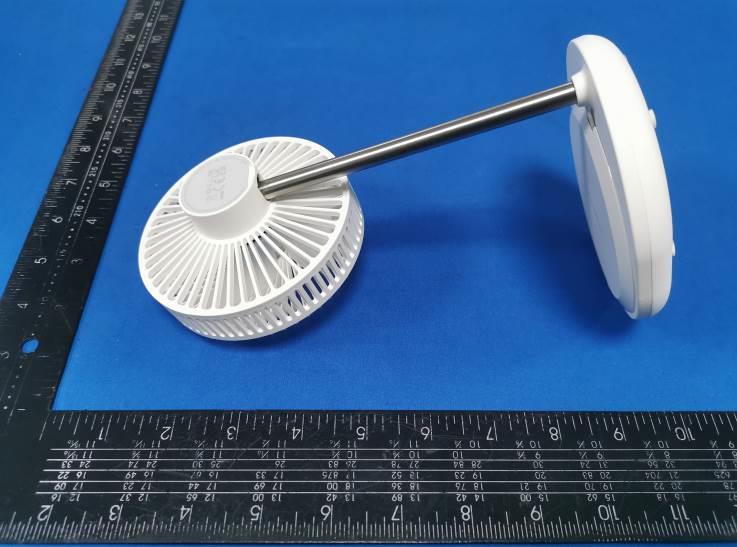

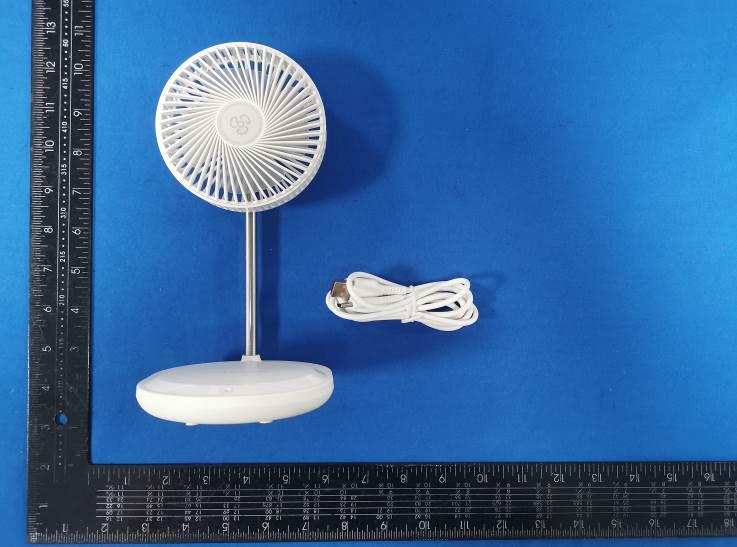

FCC ID: 2AWDP-X40 External Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2AWDP-X40 Photo 4 Photo 5 Photo 6 FCC ID: 2AWDP-X40 Photo 7

Label and Location Size: L: 2.0cm*W: 1.5cm Label and Location Model: X40 FCC ID : 2AWDP-X40

FCC ID: 2AWDP-X40 Internal Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2AWDP-X40 Photo 4 Photo 5 Photo 6 FCC ID: 2AWDP-X40 Photo 7 Photo 8 Photo 9 Loop coil antenna FCC ID: 2AWDP-X40 Photo 10 Photo 11 Photo 12 FCC ID: 2AWDP-X40 Photo 13 Photo 14

Page 1 of 5 RF Exposure Evaluation FCC ID: 2AWDP-X40 1 Measuring Standard KDB 680106 D01 RF Exposure Wireless Charging Apps v03 2 Requirements According to the item 5 of KDB 680106 D01v03: Inductive wireless power transfer applications that meet all of the following requirements are excluded from submitting an RF exposure evaluation. (1) Power transfer frequency is less than 1MHz. (2) Output power from each primary coil is less than or equal to 15 watts. (3) The system may consist of more than one source primary coils, charging one or more clients. If more than one primary coil is present, the coil pairs may be powered on at the same time. (4) Client device is placed directly in contact with the transmitter. (5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). (6) The aggregate H-field strengths anywhere at or beyond 15 cm surrounding the device,and 20 cm away from the surface from all coils that by design can simultaneously transmit,and while those coils are simultaneously energized, are demonstrated to be less than 50% of the applicable MPE limit. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Page 2 of 5 3 Test Setup 4 Test Procedure 1) The RF exposure test was performed in anechoic chamber. 2) The measurement probe was placed at test distance (15 cm from all sides and 20 cm from the top) which is between the edge of the charger and the geometric center of probe. 3) The highest emission level was recorded and compared with limit as soon as measurement of each points (A, B, C, D, E) were completed. 4) The EUT was measured according to the dictates of KDB 680106 D01v03. Remark：The EUT’s test position A, B, C, D and E is valid for the E and H field measurements. 5 Equipment Approval Considerations The EUT does comply with KDB 680106 D01 as follow table. Requirements of KDB 680106 D01 Yes / No Description Power transfer frequency is less than 1 MHz Yes The device operate in the frequency range 110KHz~205KHz Output power from each primary coil is less than 15 watts Yes The maximum output power for each primary coil is 15W. The system may consist of more than one source primary coils, charging one or more clients. If more than one primary coil is present, the coil pairs may be powered on at the same time. Yes The transfer system includes only one primary coils. Client device is placed directly in contact with the transmitter. Yes Client device is placed directly in contact with the transmitter. Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). Yes Mobile exposure conditions only The aggregate H-field strengths anywhere at or beyond 15 cm surrounding the device, and 20 cm away from the surface from all coils that by design can simultaneously transmit, Yes The EUT H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of Page 3 of 5 and while those coils are simultaneously energized, are demonstrated to be less than 50% of the applicable MPE limit. the MPE limit. 6 Description of the test mode Equipment under test was operated during the measurement under the following conditions: Charging and communication mode Test Modes: Mode 1 AC/DC Adapter (9V/2.0A) + EUT + Full Load Record Mode 2 AC/DC Adapter (9V/2.0A) + EUT + Half Load Record Mode 3 AC/DC Adapter (9V/2.0A) + EUT + Empty Load Record Note: All test modes were pre-tested, but we only recorded the worst case in this report. 7 Description of Support Units Follow auxiliary equipment(s) test with EUT that provided by the manufacturer or laboratory is listed as follow: Description Manufacturer Model Technical Parameters Certificate Provided by Adapter / EP-TA20CBC / SDOC Lab. Page 4 of 5 8 Test Instruments list Test Equipment Manufacturer Model No. SN. Cal.Date (mm-dd-yy) Cal.Due date (mm-dd-yy) Exposure Level Tester Narda ELT-400 N-0231 June 27 2022 June 26 2023 Magnetic field probe 100cm 2 Narda ELT probe 100cm 2 M0675 June 27 2022 June 26 2023 9 Test Result H-Field Strength at 15 cm from the edges surrounding the EUT and 15cm from the top surface of the EUT Chargin g Battery Level Unit Frequency Range (MHz) Measured E-Field Strength Values (A/m) FCC H-Field Strength 50% Limits (A/m) FCC H-Field Strength Limits (A/m) Test Position A Test Position B Test Position C Test Position D Test Position E 1% uT 0.147 0.426 0.399 0.390 0.405 0.399 -- -- 1% A/m 0.147 0.341 0.319 0.312 0.324 0.319 0.815 1.63 50% uT 0.147 0.270 0.281 0.284 0.283 0.285 -- -- 50% A/m 0.147 0.216 0.225 0.227 0.226 0.228 0.815 1.63 99% uT 0.147 0.161 0.155 0.151 0.153 0.160 -- -- 99% A/m 0.147 0.129 0.124 0.121 0.122 0.128 0.815 1.63 E-Field Strength at 15 cm from the edges surrounding the EUT and 15cm from the top surface of the EUT Chargin g Battery Level Unit Frequency Range (MHz) Measured E-Field Strength Values (V/m) FCC E-Field Strength 50% Limits (V/m) FCC E-Field Strength Limits (V/m) Test Position A Test Position B Test Position C Test Position D Test Position E 1% V/m 0.147 128.557 120.263 117.624 122.148 120.263 307.0 614.0 50% V/m 0.147 81.432 84.825 85.579 85.202 85.956 307.0 614.0 99% V/m 0.147 48.633 46.748 45.617 45.994 48.256 307.0 614.0 Note: V/m= A/m *377 Page 5 of 5 H-Field Strength at 20cm from the top surface of the EUT Charging Battery Level Unit Frequency Range (MHz) Measured E-Field Strength Values (A/m) FCC H-Field Strength 50% Limits (A/m) FCC H-Field Strength Limits (A/m) Test Position E 1% uT 0.147 0.361 -- -- 1% A/m 0.147 0.289 0.815 1.63 50% uT 0.147 0.256 -- -- 50% A/m 0.147 0.205 0.815 1.63 99% uT 0.147 0.129 -- -- 99% A/m 0.147 0.103 0.815 1.63 Note:A/m=uT/1.25 10 Conclusion A minimum safety distance of 20 cm to the antenna is required when the device is charging a smart…

Text truncated - open the document above for the full version.

1. Antenna Description: Antenna type Loop coil antenna Model X40 Frequency range 110KHz~205KHz Manufacturer GadgeTek (Shanghai) Limited Gain(dBi) 0.00 dBi 2. Antenna Photo: Length:42.38mm diameter:10.89mm

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT Report Reference No. ..................... : FCC ID. ............................................ : CTA22070500701 2AWDP-X40 Compiled by ( position+printed name+signature) .. : File administrators Kevin Liu Supervised by ( position+printed name+signature) .. : Project Engineer Kevin Liu Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Jul. 12, 2022 Testing Laboratory Name ..............: Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................: SHENZHEN XPGTECH Co., Ltd Address ............................................ : F2, BuildingA, #282, HuanGuan Middle Road, GuanLan, Longhua, Shenzhen, Guangdong province, China 518000 Test specification ...........................: Standard ........................................... : FCC Rules and Regulations Part 15 Subpart C (Section 15.209), ANSI C63.10: 2013 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Watch charger Trade Mark ....................................... : N/A Manufacturer .................................... : GadgeTek (Shanghai) Limited Model/Type reference....................... : X40 Listed Models .................................. : X81, X70, X71, X72, X73, X74, X75, X76, X77, X78, X79 Modulation Type ............................... : ASK Operation Frequency ........................ : From 110KHz~205KHz Rating ............................................... : Input: :DC 9V From External circuit Output: Wireless Charging: 15W(Max) Result................................................ : PASS Report No.: CTA22070500701 Page 2 of 25 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Watch charger Model /Type : X40 Listed Models : X81, X70, X71, X72, X73, X74, X75, X76, X77, X78, X79 Applicant : SHENZHEN XPGTECH Co., Ltd Address : F2, BuildingA, #282, HuanGuan Middle Road, GuanLan, Longhua, Shenzhen, Guangdong province, China 518000 Manufacturer : GadgeTek (Shanghai) Limited Address : C17，No. 120，Rongjiang Road, Songjiang Industrial Zone, Shanghai, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA22070500701 Page 3 of 25 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Description of the test mode 5 2.4 Special Accessories 5 2.5 Modifications 5 3 T E S T E N V I R O N M E NT .............................................................. 6 3.1 Address of the test laboratory 6 3.2 Test Facility 6 3.3 Environmental conditions 6 3.4 Summary of measurement results 7 3.5 Statement of the measurement uncertainty 7 3.6 Equipments Used during the Test 8 4 T E S T C O N D I T I O N S A N D R E S U L T S ............................................. 9 4.1 AC Power Conducted Emission 9 4.2 Radiated Emission 12 4.3 The 20dB bandwidth 16 4.4 Antenna Requirement 17 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 18 6 PH O T O S O F T H E E U T ........................................................... 19 Report No.: CTA22070500701 Page 4 of 25 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E ST S T A N D A R D S The tests were performed according to following standards: FCC Rules and Regulations Part 15 Subpart C (Section 15.207): Conducted limits. FCC Rules and Regulations Part 15 Subpart C (Section 15.209): Radiated emission limits; general requirements. ANSI C63.10: 2013: American National Standard for Testing Unlicensed Wireless Devices Report No.: CTA22070500701 Page 5 of 25 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 2 SU M M A RY 2.1 General Remarks Date of receipt of test sample : Jul. 01, 2022 Testing commenced on : Jul. 01, 2022 Testing concluded on : Jul. 12, 2022 2.2 Product Description Product Name: Watch charger Model/Type reference: X40 Hardware version: V1.0 Software version:…
