ShenzhenLeanKioskSystemsCo.,Ltd AgentAuthorization Company:ShenzhenLeanKioskSystemsCo.,Ltd Address:3rdFloor,Building45,DayangtianIndustrialZone,WanfengCommunity, XinqiaoStreet,Bao ’ anDistrict,Shenzhen TradeMark:N/A ModelNumber(s):REEF-US-LKS8345A FCCID:2AWDS-LKS8345A WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date:2020-09-10 Name:LingYang Title:Vice-President Company:ShenzhenLeanKioskSystemsCo.,Ltd

ShenzhenLeanKioskSystemsCo.,Ltd OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:2020-09-10 Subject;RequestforConfidentiality FCCID:2AWDS-LKS8345A ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:LingYang Title:Vice-President

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD. _____________________________________________________________________________________________________ Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd.. Page1of1 LABELANDLOCATION (Size:L3.0mx4.0cm) Material:Tagboard Glue:adhesivesticker Fontcolor:White Labelcolor:Black LabelLocation ModelNo.:PostKiosk FCCID:2AWDS-LKS8345A Input:AC120V,60Hz Output:DC12V/24V/48V,2.7A Thisdevicecomplieswithpart15oftheFCCrules.Operationissubject tothefollowingtwoconditions:(1)thisdevicemaynotcauseharmful interference,and(2)thisdevicemustacceptanyinterferencereceived, includinginterferencethatmaycauseundesiredoperation. MadeInChina

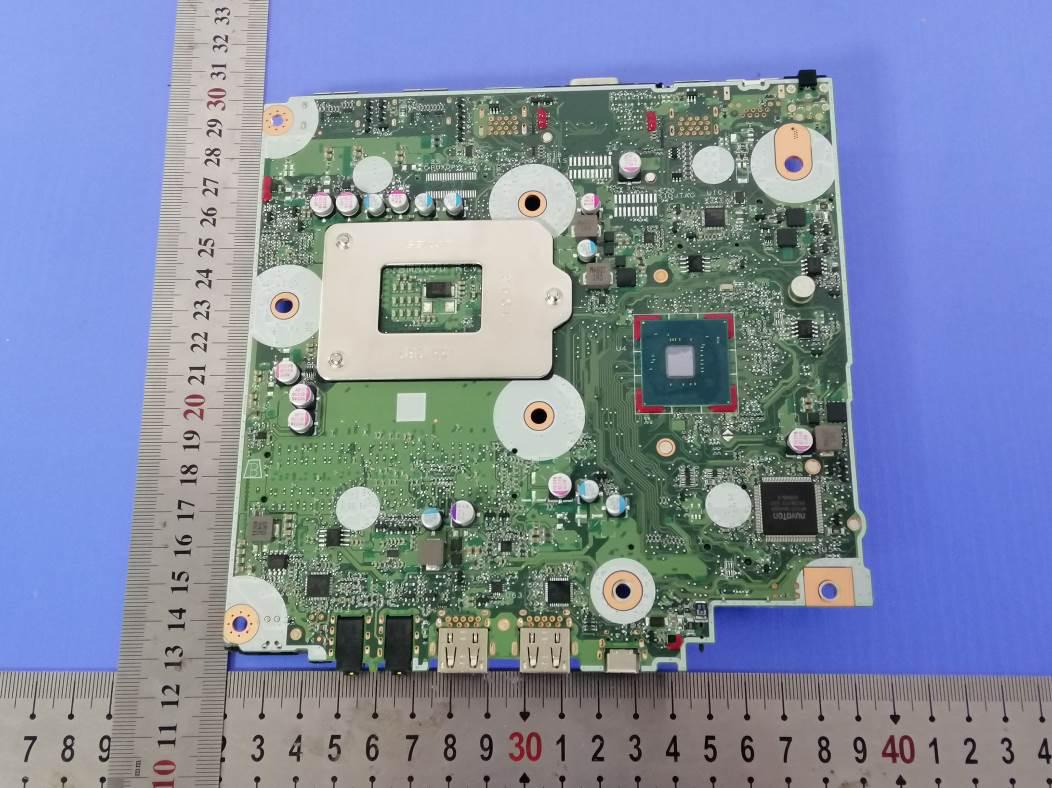

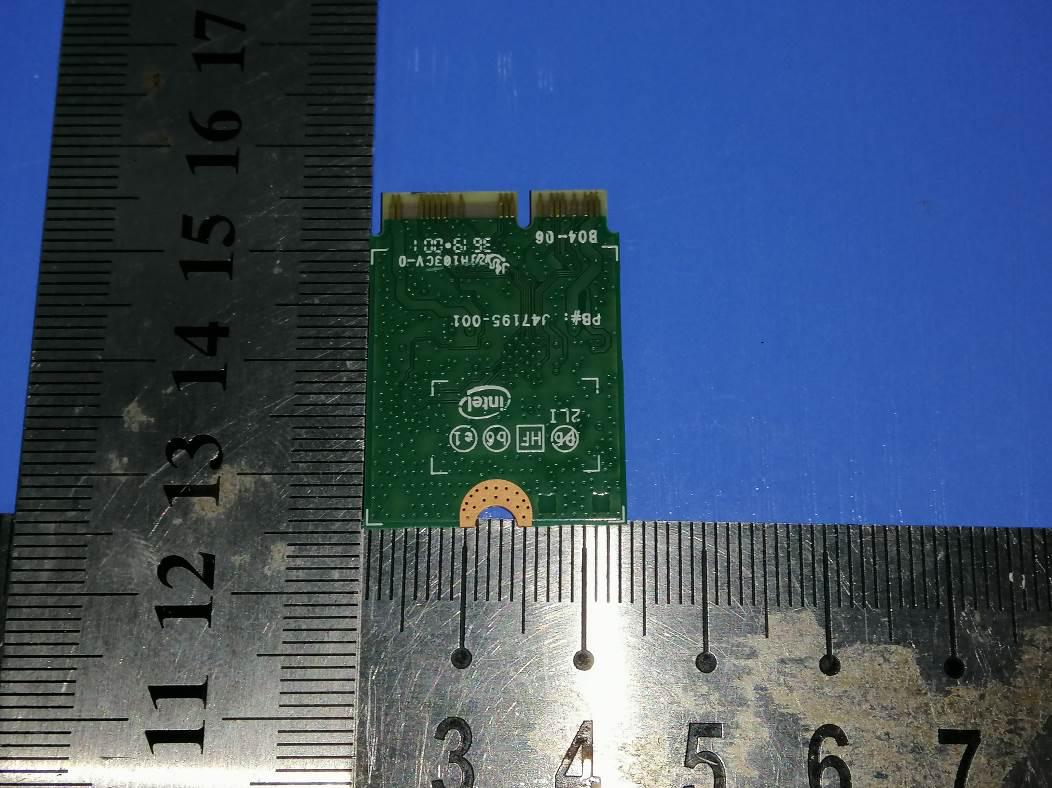

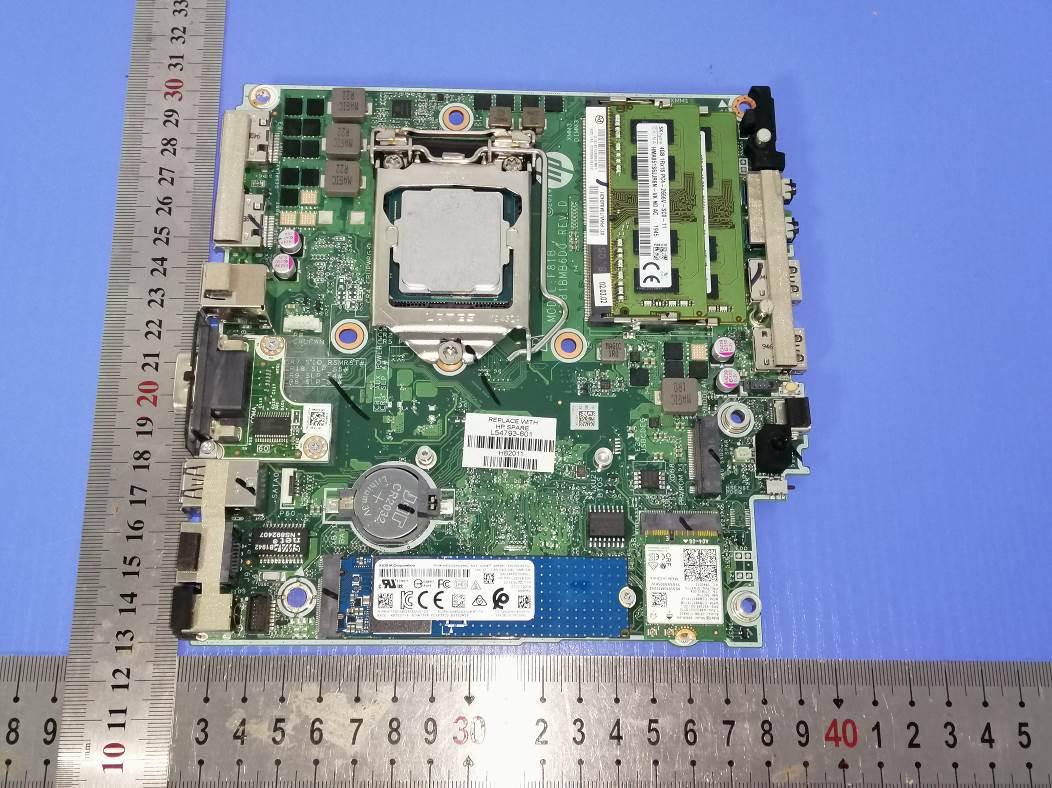

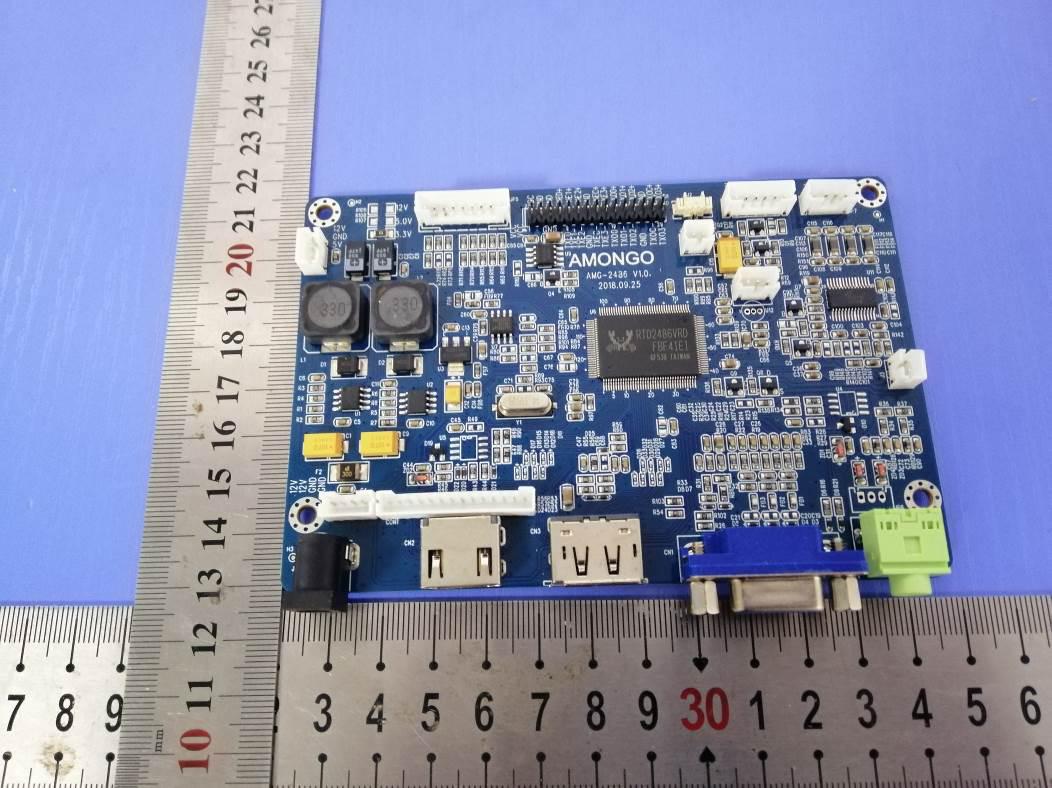

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWDS-LKS8345A Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page1of13 InternalPhotosoftheEUT Fig.1 Fig.2 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWDS-LKS8345A Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page2of13 Fig.3 Fig.4 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWDS-LKS8345A Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page3of13 Fig.5 Fig.6 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWDS-LKS8345A Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page4of13 Fig.7 Fig.8 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWDS-LKS8345A Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page5of13 Fig.9 Fig.10 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWDS-LKS8345A Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page6of13 Fig.11 Fig.12 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWDS-LKS8345A Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page7of13 Fig.13 WIFI_ant1 BT&WIFI_ant0 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWDS-LKS8345A Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page8of13 Fig.14 Fig.15 BT/WIFI_ant0Port WIFI_ant1Port SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWDS-LKS8345A Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page9of13 Fig.16 Fig.17 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWDS-LKS8345A Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page10of13 Fig.18 Fig.19 NFCAntenna SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWDS-LKS8345A Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page11of13 Fig.20 Fig.21 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWDS-LKS8345A Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page12of13 Fig.22 Fig.23 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWDS-LKS8345A Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page13of13 Fig.24

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWDS-LKS8345A Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page1of7 FCCRFExposureEvaluation 1.ProductInformation FCCID : 2AWDS-LKS8345A EUT : PostKiosk TestModel : REEF-US-LKS8345A PowerSupply: Input:AC120V,60Hz Output:DC12V/24V/48V,2.7A HardwareVersion:/ SoftwareVersion:/ Bluetooth : FrequencyRange : 2402MHz~2480MHz ChanelNumber:79channelsforBluetoothV4.1(DSS) 40channelsforBluetoothV4.1(DTS) ChanelSpacing:1MHzforBluetoothV4.1(DSS) 2MHzforBluetoothV4.1(DTS) ModulationType:GFSK, π /4-DQPSK,8-DPSKforBluetoothV4.1(DSS) GFSKforBluetoothV4.1(DTS) BluetothVersion : V4.1 AntennaDescription: InternalAntenna,0dBi(Max.) WIFI(2.4GBand) : FrequencyRange : 2412MHz-2462MHz ChannelSpacing : 5MHz ChannelNumber:11channelsfor20MHzbandwidth(2412MHz~2462MHz) 7channelsfor40MHzbandwidth(2422MHz~2452MHz) ModulationType :IEEE802.11b:DSSS(CCK,DQPSK,DBPSK); IEEE802.11g/n:OFDM(64QAM,16QAM,QPSK,BPSK) AntennaDescription: InternalAntenna,0dBi(Max.) NFCFunction:13.56MHz Extremevol.Limits: Extreme1:10.2VDCto13.8VDC(nominal:12.0VDC) Extreme2:20.4VDCto27.6VDC(nominal:24.0VDC) Extreme3:40.8VDCto55.2VDC(nominal:48.0VDC) ExposurecategoryGeneralpopulation/uncontrolledenvironment EUTTypeProductionUnit DeviceTypefixedDevices SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWDS-LKS8345A Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page2of7 2.EvaluationMethod SystemsoperatingundertheprovisionsofFCC47CFRsectionshallbeoperatedinamannerthatensuresthatthe publicisnotexposedtoradiofrequencyenergylevelinexcessoftheCommission’sguidelines. Inaccordancewith47CFRFCCPart2SubpartJ,section2.1091thisdevicehasbeendefinedasmobiledevicewhereby adistanceof0.2mnormallycanbemaintainedbetweentheuserandthedevice,andbelowRFPermissibleExposure limitshallcomplywith. InaccordancewithKDB447498D01forSimultaneoustransmissionMPEtestexclusionapplieswhenthesumoftheMPE ratiosforallsimultaneoustransmittingantennasincorporatedinahostdevice,basedonthecalculated/estimated, numericallymodelledormeasuredfieldstrengthsorpowerdensity,is≤1.0.TheMPEratioofeachantennais determinedattheminimumtestseparationdistancerequiredbytheoperatingconfigurationsandexposureconditions ofthehostdevice,accordingtotheratiooffieldstrengthsorpowerdensitytoMPElimit,atthetestfrequency.Either themaximumpeakorspatiallyaveragedresultsfrommeasurementsornumericalsimulationsmaybeusedto determinetheMPEratios.SpatialaveragingdoesnotapplywhenMPEisestimatedusingsimplecalculationsbasedon far-fieldplane-waveequivalentconditions.Theantennainstallationandoperatingrequirementsforthehostdevice mustmeettheminimumtestseparationdistancesrequiredbyallantennas,inbothstandaloneandsimultaneous transmissionoperations,tosatisfycompliance. 3.Limit 3.1ReferEvaluationMethod ANSIC95.1–1999:IEEEStandardforSafetyLevelswithRespecttoHumanExposuretoRadioFrequencyElectromagnetic Fields,3kHzto300GHz. FCCKDBpublication447498D01General1RFExposureGuidancev06:MobileandPortableDevicesRFExposure ProceduresandEquipmentAuthorizationPolicies. FCCCFR47part11.1310:Radiofrequencyradiationexposurelimits. FCCCFR47part22.1091:Radiofrequencyradiationexposureevaluation:mobiledevices 3.2Limit LimitsforMaximumPermissibleExposure(MPE)/ControlledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100)* (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 LimitsforMaximumPermissibleExposure(MPE)/UncontrolledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100)* (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequencyinMHz *=Plane-waveequivalentpowerdensity SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWDS-LKS8345A Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page3of7 4.MPECalculationMethod PredicationofMPElimitatagivendistance Equationfrompage18ofOETBulletin65,Edition97-01 S=PG/4πR² Where:S=powerdensity P=powerinputtoantenna G=powergainoftheantennainthedirectionofinterestrelativetoanisotropicradiator R=distancetothecenterofradiationoftheantenna 5.AntennaInformation ArtemisAntennacanonlyuseantennascertificatedasfollowsprovidedbymanufacturer; Internal Identification Antennatypeand antennanumber Operatefrequencyband Maximumantenna gain Note Antenna0InternalAntenna 2402MHz~2480MHz 2412MHz-2462MHz 0dBiBT/WIFIAntenna Antenna1InternalAntenna2412MHz-2462MHz0dBiWIFIAntenna 6.ConductedPower <BTMaxConductedPower> ModeChannel.MaximumPeakOutputPower[dBm]Limit[dBm] GFSK LCH3.56121 MCH2.02621 HCH0.43321 π/4DQPSK LCH2.94021 MCH1.37421 HCH-0.32121 8DPSK LCH3.31721 MCH1.84921 HCH0.22121 <BTLEMaxConductedPower> ModeChannelConductPeakPower[dBm]Limit[dBm] BTLELCH0.52830 BTLEMCH-0.89630 BTLEHCH-2.5730 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWDS-LKS8345A Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page4of7 <2.4GWLANMaxConductedPower> ModeChannel Meas.Level[dBm] Limit[dBm] Ant_0Ant_1Sum 11B LCH11.0210.8/30 MCH11.4511.19/30 HCH10.5411.23/30 11G LCH10.4311.22/30 MCH10.511.23/30 HCH10.0111.4/30 11N20SISO LCH10.5211.2113.8930 MCH10.5811.1713.9030 HCH10.0011.3113.7130 11N40SISO LCH10.7211.614.1930 MCH10.6711.3514.0330 HCH10.5811.6914.1830 7.ManufacturingTolerance <BT> GFSK(Peak) ChannelChannel0Channel39Channel78 Target(dBm)3.02.01.0 Tolerance±(dB)1.01.01.0 π/4DQPSK(Peak) ChannelChannel0Channel39Channel78 Target(dBm)2.01.00.0 Tolerance±(dB)1.01.01.0 8DPSK(Peak) ChannelChannel0Channel39Channel78 Target(dBm)3.01.01.0 Tolerance±(dB)1.01.01.0 <BTLE> GFSK(Peak) Channe…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWDS-LKS8345A Report No.: LCS200508102AEA Page 1 of 47 Appendix A RF Test Data for BT V4.1(BDR/EDR) (Conducted Measurement) Product Name: Post Kiosk Trade Mark: N/A Test Model: REEF-US-LKS8345A Environmental Conditions Temperature: 23.1  C Relative Humidity: 53.3% ATM Pressure: 100.0 kPa Test Engineer: SCOUT WU Supervised by: Li Huan A.1 Maxmum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH 3.561 21 PASS MCH 2.026 21 PASS HCH 0.433 21 PASS π/4DQPSK LCH 2.940 21 PASS MCH 1.374 21 PASS HCH -0.321 21 PASS 8DPSK LCH 3.317 21 PASS MCH 1.849 21 PASS HCH 0.221 21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWDS-LKS8345A Report No.: LCS200508102AEA Page 2 of 47 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWDS-LKS8345A Report No.: LCS200508102AEA Page 3 of 47 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWDS-LKS8345A Report No.: LCS200508102AEA Page 4 of 47 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWDS-LKS8345A Report No.: LCS200508102AEA Page 5 of 47 8DPSK/LCH 8DPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWDS-LKS8345A Report No.: LCS200508102AEA Page 6 of 47 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWDS-LKS8345A Report No.: LCS200508102AEA Page 7 of 47 A.2 20dB Bandwidth Mode Channel. 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 0.9489 Not Specified PASS MCH 0.9480 Not Specified PASS HCH 0.9485 Not Specified PASS π/4DQPSK LCH 1.323 Not Specified PASS MCH 1.323 Not Specified PASS HCH 1.324 Not Specified PASS 8DPSK LCH 1.306 Not Specified PASS MCH 1.308 Not Specified PASS HCH 1.310 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWDS-LKS8345A Report No.: LCS200508102AEA Page 8 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWDS-LKS8345A Report No.: LCS200508102AEA Page 9 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWDS-LKS8345A Report No.: LCS200508102AEA Page 10 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWDS-LKS8345A Report No.: LCS200508102AEA Page 11 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWDS-LKS8345A Report No.: LCS200508102AEA Page 12 of 47 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 0.966 0.633 PASS MCH 1.014 0.632 PASS HCH 0.944 0.632 PASS π/4DQPSK LCH 1.268 0.882 PASS MCH 1.238 0.882 PASS HCH 0.998 0.883 PASS 8DPSK LCH 1.254 0.871 PASS MCH 1.090 0.872 PASS HCH 1.030 0.873 PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWDS-LKS8345A Report No.: LCS200508102AEA Page 13 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWDS-LKS8345A Report No.: LCS200508102AEA Page 14 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWDS-LKS8345A Report No.: LCS200508102AEA Page 15 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWDS-LKS8345A Report No.: LCS200508102AEA Page 16 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWDS-LKS8345A Report No.: LCS200508102AEA Page 17 of 47 A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N] Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS 8DPSK Hop 79 >=15 PASS Test Graphs GFSK/Hop π/4DQPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWDS-LKS8345A Report No.: LCS200508102AEA Page 18 of 47 8DPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWDS-LKS8345A Report No.: LCS200508102AEA Page 19 of 47 A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdict GFSK DH5 LCH 2.9 106.7 0.309 0.4 PASS DH5 MCH 2.9 106.7 0.309 0.4 PASS DH5 HCH 2.9 106.7 0.309 0.4 PASS π/4DQPSK 2DH5 LCH 2.9 106.7 0.309 0.4 PASS 2DH5 MCH 2.9 106.7 0.309 0.4 PASS 2DH5 HCH 2.9 106.7 0.309 0.4 PASS 8DPSK 3DH5 LCH 2.9 106.7 0.309 0.4 PASS 3DH5 MCH 2.9 106.7 0.309 0.4 PASS 3DH5 HCH 2.9 106.7 0.309 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWDS-LKS8345A Report No.: LCS200508102AEA Page 20 of 47 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWDS-LKS8345A Report No.: LCS200508102AEA Page 21 of 47 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWDS-LKS8345A Report No.: LCS200508102AEA Page 22 of 47 π/4DQPSK _2DH5/HCH 8DPSK _3DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWDS-LKS8345A Report No.: LCS200508102AEA Page 23 of 47 8DPSK _3DH5/MCH 8DPSK _3DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWDS-LKS8345A Report No.: LCS200508102AEA Page 24 of 47 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH 3.012 -37.338 -16.988 PASS MCH 1.556 -37.690 -18.444 PASS HCH -0.1 -37.622 -20.100 PASS π/4DQPSK LCH -0.166 -38.151 -20.166 PASS MCH -1.605 -37.351 -21.605 PASS HCH -3.208 -34.611 -23.208 PASS 8DPSK LCH 0.013 -38.178 -19.987 PASS MCH -1.401 -36.979 -21.401 PASS HCH -2.849 -37.980 -22.849 PASS GFSK_LCH_Graphs Pref SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWDS-LKS8345A Report No.: LCS200508102AEA Page 25 of 47 Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWDS-LKS8345A Report No.: LCS200508102AEA Page 26 of 47 GFSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWDS-LKS8345A Report No.: LCS200508102AEA Page 27 of 47 GFSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWDS-LKS8345A Report No.: LCS200508102AEA Page 28 of 47 π/4DQPSK_LCH_G…

Text truncated - open the document above for the full version.

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWDS-LKS8345AReportNo.:LCS200508102AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page1of35 FCCTESTREPORT FOR ShenzhenLeanKioskSystemsCo.,Ltd PostKiosk TestModel:REEF-US-LKS8345A Preparedfor:ShenzhenLeanKioskSystemsCo.,Ltd Address: 3rdFloor,Building45,DayangtianIndustrialZone,Wanfeng Community,XinqiaoStreet,Bao’anDistrict,Shenzhen Preparedby:ShenzhenLCSComplianceTestingLaboratoryLtd. Address: 101,201BldgA&301BldgC,JujiIndustrialParkShajingStreet, BaoanDistrict,Shenzhen,China Tel:(+86)755-82591330 Fax:(+86)755-82591332 Web:www.LCS-cert.com Mail:[email protected] Dateofreceiptoftestsample:May15,2020 Numberoftestedsamples:2 SampleNo. ： 200508146A-1,200508146A-2 Serialnumber:Prototype DateofTest:May15,2020~June30,2020 DateofReport:July03,2020 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWDS-LKS8345AReportNo.:LCS200508102AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page2of35 FCCTESTREPORT FCCCFR47PART15C(15.247) ReportReferenceNo......................:LCS200508102AEA DateofIssue.......................................:July03,2020 TestingLaboratoryName..............:ShenzhenLCSComplianceTestingLaboratoryLtd. Address................................................: 101,201BldgA&301BldgC,JujiIndustrialParkShajingStreet, BaoanDistrict,Shenzhen,China TestingLocation/Procedure............ : FullapplicationofHarmonisedstandards■ PartialapplicationofHarmonisedstandards□ Otherstandardtestingmethod□ Applicant’sName.............................: ShenzhenLeanKioskSystemsCo.,Ltd Address................................................: 3rdFloor,Building45,DayangtianIndustrialZone,Wanfeng Community,XinqiaoStreet,Bao’anDistrict,Shenzhen TestSpecification Standard..............................................:FCCCFR47PART15C(15.247) TestReportFormNo.........................:LCSEMC-1.0 TRFOriginator....................................:ShenzhenLCSComplianceTestingLaboratoryLtd. MasterTRF.........................................:Dated2011-03 ShenzhenLCSComplianceTestingLaboratoryLtd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenLCSComplianceTestingLaboratoryLtd.isacknowledgedascopyrightownerandsourceofthe material.ShenzhenLCSComplianceTestingLaboratoryLtd.takesnoresponsibilityforandwillnot assumeliabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. TestItemDescription.....................:PostKiosk TradeMark..........................................:N/A TestModel...........................................:REEF-US-LKS8345A Ratings.................................................: Input:AC120V,60Hz Output:DC12V/24V/48V,2.7A Result..................................................:Positive Testedby:Compiledby:Approvedby: JackLiu/Administrators JinWang/Techniqueprincipal GavinLiang/Manager SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWDS-LKS8345AReportNo.:LCS200508102AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page3of35 FCC--TESTREPORT TestResult Positive Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetestlaboratory. TestReportNo.:LCS200508102AEA July03,2020 Dateofissue TestModel.............................. : REEF-US-LKS8345A EUT......................................... : PostKiosk Applicant...............................:ShenzhenLeanKioskSystemsCo.,Ltd Address...................................:3rdFloor,Building45,DayangtianIndustrialZone,Wanfeng Community,XinqiaoStreet,Bao’anDistrict,Shenzhen Telephone...............................:/ Fax..........................................:/ Manufacturer.........................: ShenzhenLeanKioskSystemsCo.,Ltd Address...................................: 3rdFloor,Building45,DayangtianIndustrialZone,Wanfeng Community,XinqiaoStreet,Bao’anDistrict,Shenzhen Telephone...............................:/ Fax..........................................:/ Factory...................................: ShenzhenLeanKioskSystemsCo.,Ltd Address...................................: 3rdFloor,Building45,DayangtianIndustrialZone,Wanfeng Community,XinqiaoStreet,Bao’anDistrict,Shenzhen Telephone...............................:/ Fax..........................................:/ SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWDS-LKS8345AReportNo.:LCS200508102AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page4of35 RevisionHistory RevisionIssueDateRevisionsRevisedBy 000July03,2020InitialIssueGavinLiang SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWDS-LKS8345AReportNo.:LCS200508102AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page5of35 TABLEOFCONTENTS DescriptionPage 1.GENERALINFORMATION........................................................................................................6 1.1DescriptionofDevice(EUT).............................................................................................................6 1.2SupportequipmentList.....................................................................................................................7 1.3ExternalI/OCable..............................................................................................................................7 1.4DescriptionofTestFacility...............................................................................................................7 1.5StatementoftheMeasurementUncertainty..................................................................................7 1.6MeasurementUncertainty....................................................................................................…

Text truncated - open the document above for the full version.

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWDS-LKS8345A _______________________________________________________________________________________________ Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 1 of 3 TestSetupPhotosoft…
