2AWFM-MARAPHONES-Z1Smart Phone

1 Contents I. CAUTIONS ON MOBILE PHONE USE ............................................................................................................... 3 1.1 INTERFERENCE ......................................................................................................................................... 3 1.2 REASONABLE USE .................................................................................................................................... 3 1.3 QUALIFIED MAINTENANCE SERVICE .......................................................................................................... 3 1.4 WATER-RESISTANCE ................................................................................................................................. 3 1.5 EMERGENCY CALLS .................................................................................................................................. 3 2 PRECAUTIONS FOR USE OF BATTERY ........................................................................................................... 3 3 CAUTIONS FOR CHILDREN ............................................................................................................................ 3 II. KEYS AND PARTS ........................................................................................................................................ 4 III. START TO USE ........................................................................................................................................... 5 3.1 TO INSERT SIM CARD(S): ......................................................................................................................... 5 3.2 CHARGE THE BATTERY ............................................................................................................................. 6 IV. BASIC FUNCTIONS ..................................................................................................................................... 6 1. LOCK AND UNLOCK THE SCREEN ................................................................................................................ 6 2. MAKE IT YOURS .......................................................................................................................................... 8 3. SWITCH TO RECENTLY USED APPLICATION .............................................................................................. 14 4. MAKE A CALL ........................................................................................................................................... 15 5. CALL LOG ................................................................................................................................................. 16 2 6. ANSWERING PHONE CALLS AND REJECTION ............................................................................................. 17 7. ADD A CONTACT ....................................................................................................................................... 18 8. SEND AND RECEIVE MESSAGE(S) ............................................................................................................. 19 9. BROWSER THE WEB ................................................................................................................................. 21 10. ENJOY MUSIC ......................................................................................................................................... 21 11. DOWNLOAD APPLICATIONS FROM PLAY STORE ...................................................................................... 22 12. MANAGE APPLICATIONS ......................................................................................................................... 23 13. APPLICATIONS & UTILITIES ............................................................................................................ 24 14. SETTINGS ............................................................................................................................................... 24 V. TECHNICAL INFORMATION......................................................................................................................... 30 3 I. Cautions on mobile phone use 1.1 Interference All phones may be interfered, which affect phone calls. 1.2 Reasonable use Use only in the normal position. Do not touch the antenna area unnecessarily. 1.3 Qualified maintenance service Only qualified personnel may install or repair this product. 1.4 Water-resistance Your device is non water-resistant. Keep it dry. 1.5 Emergency calls Ensure the phone is switched on and in service. Enter the emergency number and press the Dialer icon. 2 Precautions for use of battery 2.1 Do not dispose of batteries near or in a fire to avoid dangers. 2.2 Do not dispose of batteries in the garbage. Dispose of batteries to assigned battery recycling center. 3 Cautions for children Keep your device out the reach of children in case of accidental injury caused by incorrect use of the device as toys. 4 II. Keys and parts 5 III. Start to use 3.1 To insert SIM card(S): Insert the SIM card correctly in the card slot(s) (See figure below), suggest switch off the phone when you insert SIM card. Insert the Micro SD card into the slot with the correct direction (See figure below), suggest switch off the phone when you insert SD card. Note: Use only compatible memory cards with this device. Incompatible memory cards may damage the card or the device and corrupt the data stored in the card. 6 3.2 Charge the battery During charging, the battery indicator on the phone is a thunder icon. If the device is switched off during charging, there will still be a charging indication on the screen that shows the phone is being charged. If the device is overused when the battery is low, the charging icon might take some time to appear. When the battery indicator on the screen display 'Battery is full', thunder icon will disappear, which m…

Text truncated - open the document above for the full version.

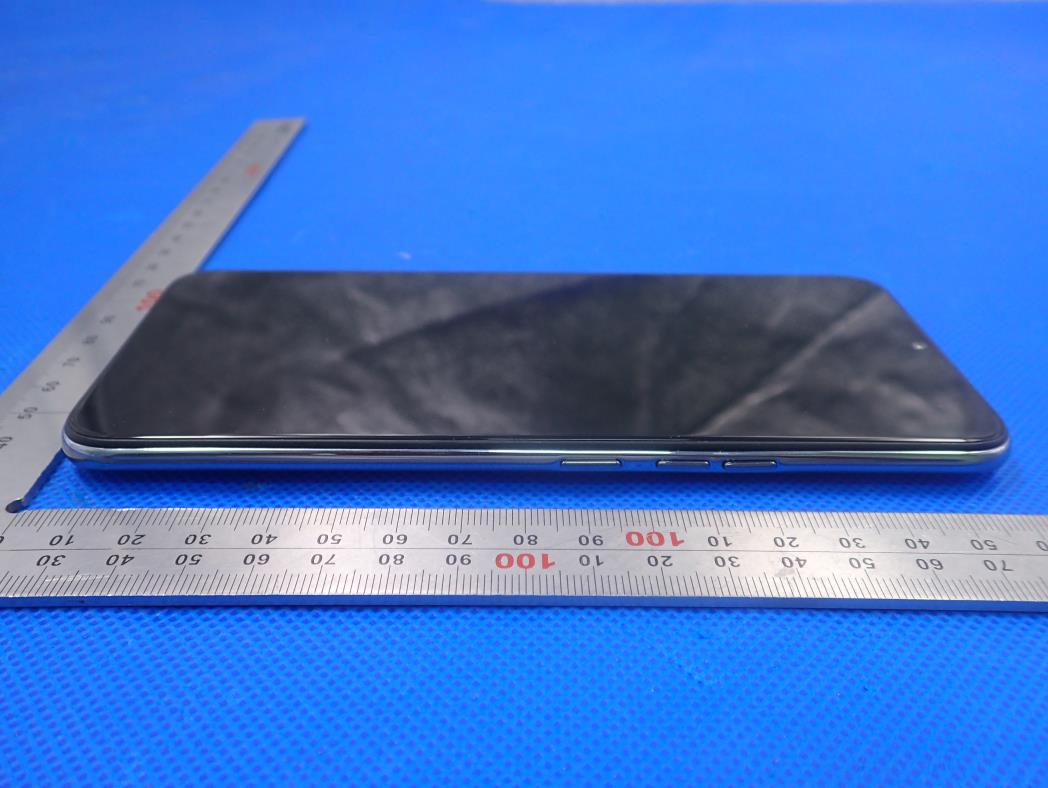

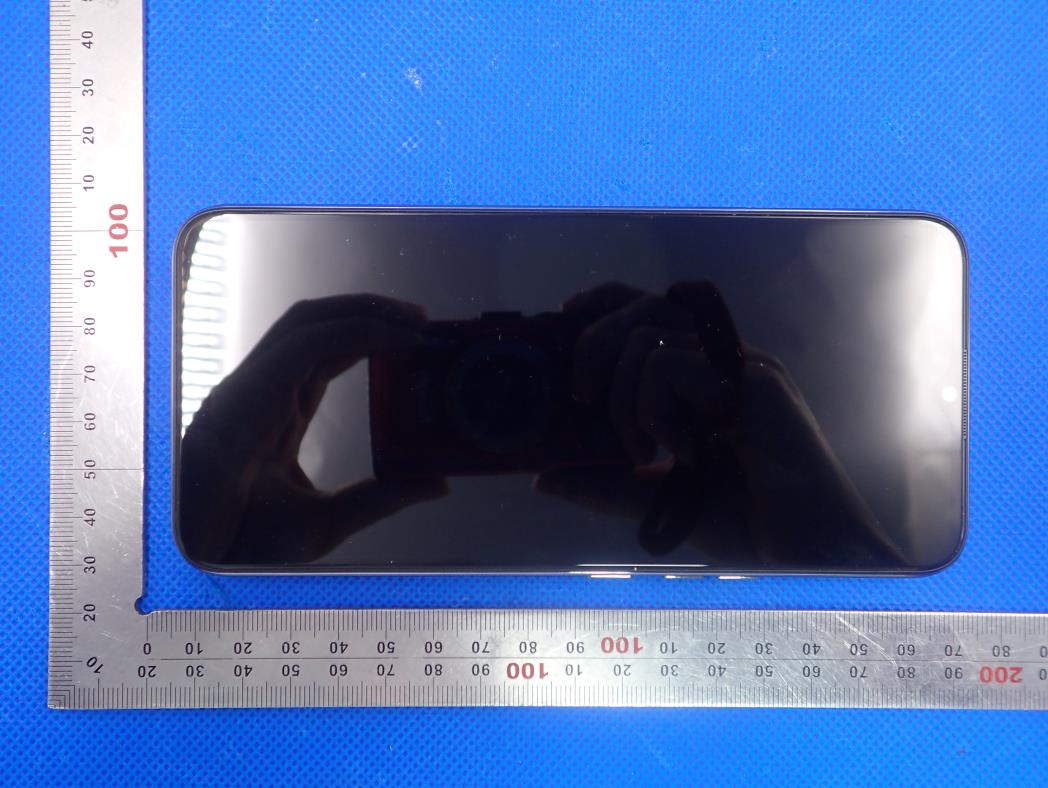

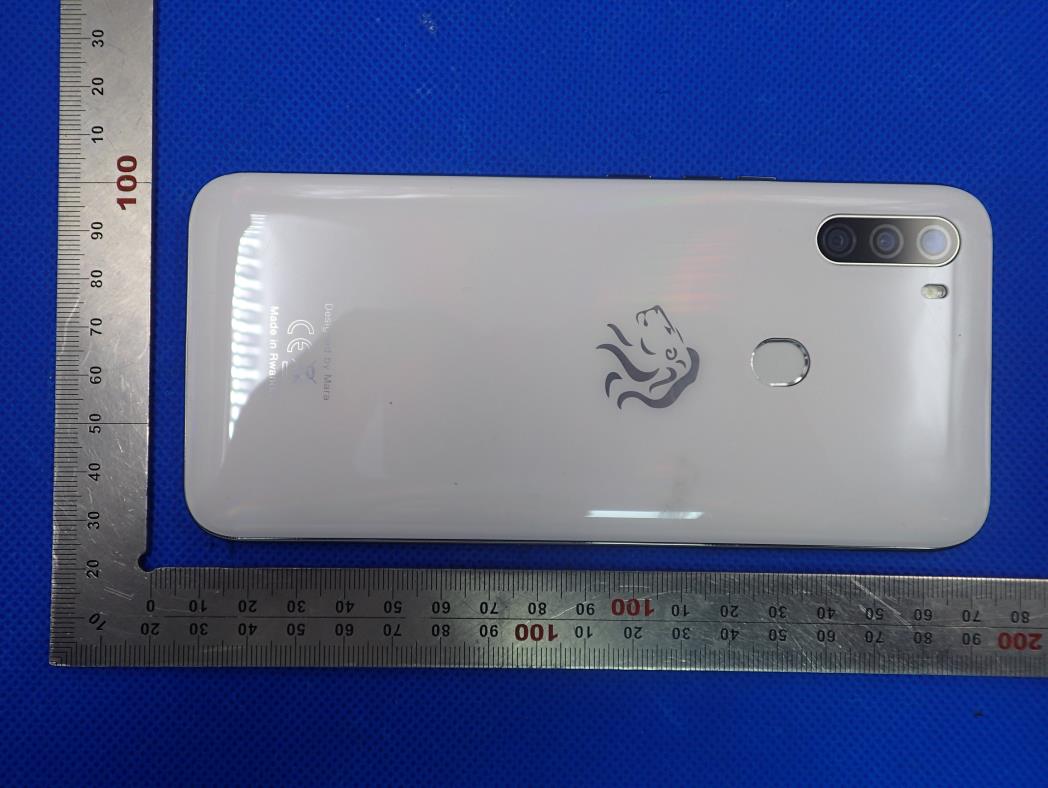

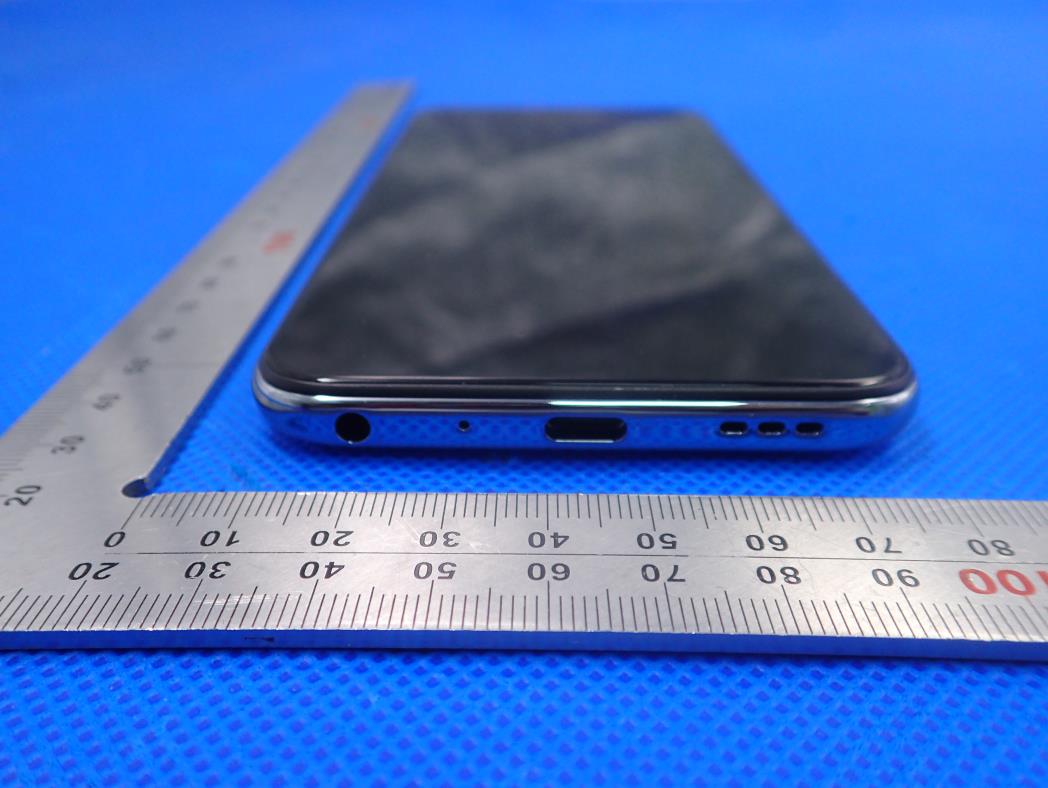

External Photos All VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location FCC ID: 2AWFM-MARAPHONES-Z1

Internal Photos OPEN VIEW OF EUT(FIGURE 1) GSM/WCDMA /LTE Antenna NFC Antenn a BT&WIFI&GPS Antenna Diversity Antenna a OPEN VIEW OF EUT(FIGURE 2) OPEN VIEW OF EUT(FIGURE 3) OPEN VIEW OF EUT(FIGURE 4) GSM&WCDMA&LTE ANTNENA DIVERSITY ANTENNA BT&WIFI&GPS ANTENNA INTERNAL VIEW OF EUT(FIGURE 1) INTERNAL VIEW OF EUT(FIGURE 2) INTERNAL VIEW OF EUT(FIGURE 3) INTERNAL VIEW OF EUT(FIGURE 4) INTERNAL VIEW OF EUT(FIGURE 5) INTERNAL VIEW OF EUT(FIGURE 6) INTERNAL VIEW OF EUT(FIGURE 7) INTERNAL VIEW OF EUT(FIGURE 8) INTERNAL VIEW OF EUT(FIGURE 9) INTERNAL VIEW OF EUT(FIGURE 10) INTERNAL VIEW OF EUT(FIGURE 11) INTERNAL VIEW OF EUT(FIGURE 12) INTERNAL VIEW OF EUT(FIGURE 13) INTERNAL VIEW OF EUT(FIGURE 14) INTERNAL VIEW OF EUT(FIGURE 15) BATTERY VIEW OF EUT

Mara Phones Limited Declaration concerning Antenna Specification It is hereby declared that the product Model No.: Mara Phones Z1 FCC ID: 2AWFM-MARAPHONES-Z1 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type(s) described below: 1. Type of antenna: PIFA Antenna Gain of the antenna: 0 dBi Frequency range: 2412-2462 MHz & 2402-2480 MHz 2. Type of antenna: PIFA Antenna Gain of the antenna: 2.3 dBi Frequency range: 824.2-848.8 MHz Gain of the antenna: 1.85 dBi Frequency range: 1850.2-1909.8 MHz Gain of the antenna: 2.3 dBi Frequency range: 1852.4-1907.6 MHz Gain of the antenna: 1.85 dBi Frequency range: 826.4-846.6 MHz Gain of the antenna: 1.25 dBi Frequency range: 2500-2569.9MHz Gain of the antenna: 1.32 dBi Frequency range: 2570-2619.9 MHz Gain of the antenna: -0.75 dBi Frequency range: 2305-2315MHz Gain of the antenna: -0.75 dBi Frequency range: 2350-2360 MHz Gain of the antenna: 1.24dBi Frequency range: 2560-2650 MHz Mara Phones Limited 3. Type of antenna: Diversity Antenna Gain of the antenna: 1.23 dBi Frequency range: 2500-2569.9MHz Gain of the antenna: 1.30 dBi Frequency range: 2570-2619.9 MHz Gain of the antenna: -0.79 dBi Frequency range: 2305-2315MHz Gain of the antenna: -0.79 dBi Frequency range: 2350-2360 MHz Gain of the antenna: 1.20dBi Frequency range: 2560-2650 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Mara Phones Limited Address: C/O SAFYR UTILIS LTD, 7th Floor, Tower 1, Nexteracom, Cybercity Ebene, 72201, Mauritius Place: Cybercity Ebene Date: 2020-07-03 Signature:

Page 1 of 143 SAR Test Report Report No.: AGC09966200404FH01 FCC ID : 2AWFM-MARAPHONES-Z1 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Smart Phone BRAND NAME : Mara Phones MODEL NAME : Mara Phones Z1 APPLICANT : Mara Phones Limited DATE OF ISSUE : May 19,2020 STANDARD(S) : IEEE Std. 1528:2013 FCC 47 CFR Part 2§2.1093:2013 IEEE Std C95.1 ™-2005 IEC 62209-1: 2016 REPORT VERSION : V1.0 Attestation of Global Compliance(Shenzhen) Co., Ltd. CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC09966200404FH01 Page 2 of 143 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / May 19,2020 Valid Initial Release Report No.: AGC09966200404FH01 Page 3 of 143 Test Report Applicant Name Mara Phones Limited Applicant Address C/O SAFYR UTILIS LTD, 7th Floor, Tower 1, Nexteracom, Cybercity Ebene, 72201, Mauritius Manufacturer Name Mara Phones Rwanda Limited Manufacturer Address Plot No 2166, Kigali Special Economic Zone, Masoro, Ndera, Gasabo District, Kigali, Rwanda Factory Name Mara Phones Rwanda Limited Factory Address Plot no 2166, Kigali Special Economic Zone, Masoro Ndera, Gasabo District, Kigali, Rwanda Factory Name Mara Phones South Africa (PTY) Limited Factory Address Dube Trade Port, No.5 Umkhomazi Drive, ERF 618 La Mercy Durban, KwaZulu-Natal, 4399, South Africa Product Designation Smart Phone Brand Name Mara Phones Model Name Mara Phones Z1 EUT Voltage DC3.85V by battery Applicable Standard IEEE Std. 1528:2013 FCC 47 CFR Part 2§2.1093:2013 IEEE Std C95.1 ™-2005 IEC 62209-1: 2016 Test Date Apr. 13,2020 to Apr. 30,2020 Report Template AGCRT-US-4G/SAR (2018-01-01) Note: The results of testing in this report apply to the product/system which was tested only. Prepared By Jack Gui (Project Engineer) Apr. 30,2020 Reviewed By Angela Li (Reviewer) May 19,2020 Approved By Forrest Lei (Authorized Officer) May 19,2020 Report No.: AGC09966200404FH01 Page 4 of 143 TABLE OF CONTENTS 1. SUMMARY OF MAXIMUM SAR VALUE ....................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................ 6 2.1. EUT DESCRIPTION ...................................................................................................................................... 6 3. SAR MEASUREMENT SYSTEM ..................................................................................................................... 8 3.1. THE SATIMO SYSTEM USED FOR PERFORMING COMPLIANCE TESTS CONSISTS OF FOLLOWING ITEMS .................. 8 3.2. COMOSAR E-FIELD PROBE ....................................................................................................................... 9 3.3. ROBOT ....................................................................................................................................................... 9 3.4. VIDEO POSITIONING SYSTEM ..................................................................................................................... 10 3.5. DEVICE HOLDER ....................................................................................................................................... 10 3.6. SAM TWIN PHANTOM ................................................................................................................................. 11 3.7. ELLI39 PHANTOM ...................................................................................................................................... 11 4. SAR MEASUREMENT PROCEDURE ........................................................................................................... 12 4.1. SPECIFIC ABSORPTION RATE (SAR) ........................................................................................................... 12 4.2. SAR MEASUREMENT PROCEDURE ............................................................................................................. 13 4.3. RF EXPOSURE CONDITIONS ....................................................................................................................... 15 5. TISSUE SIMULATING LIQUID ...................................................................................................................... 17 5.1. THE COMPOSITION OF THE TISSUE SIMULATING LIQUID ................................................................................... 17 5.2. TISSUE DIELECTRIC PARAMETERS FOR HEAD AND BODY PHANTOMS ............................................................. 18 5.3. TISSUE CALIBRATION RESULT ..................................................................................................................... 19 6. SAR SYSTEM CHECK PROCEDURE ......................................................................................................... 21 6.1. SAR SYSTEM CHECK PROCEDURES ........................................................................................................... 21 6.2. SAR SYSTEM CHECK ................................................................................................................................ 22 7. EUT TEST POSITION ................................................................................................................................... 24 7.1. DEFINE TWO IMAGINARY LINES ON THE HANDSET ......................................................................................... 24 7.2. CHEEK POSITION ...................................................................................................................................... 25 7.3. TILT POSITION ........................................................................................................................................... 25 7.4. BODY WORN POSITION .........................................................................…

Text truncated - open the document above for the full version.

Report No.: AGC09966200404FH01 Page 90 of 143 Test Laboratory: AGC Lab Date: Apr. 13,2020 System Check Head 2300 MHz DUT: Dipole 2300 MHz Type: SID 2300 Communication System CW; Communication System Band: D2300 (2300.0 MHz); Duty Cycle: 1:1; Conv.F=4.58 Frequency: 2300 MHz; Medium parameters used: f = 2300 MHz; σ=1.63 mho/m; εr =39.58; ρ= 1000 kg/m³ ; Phantom section: Flat Section; Input Power=18dBm Ambient temperature (°C):21.4, Liquid temperature (°C): 21.2 SATIMO Configuration • Probe: SSE5; Calibrated: Jun. 04,2019; Serial No.: SN 22/16 EP315 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Phantom: ELLI39 Phantom • Measurement SW: OpenSAR V4_02_35 Configuration/System Check 2300MHz Head/Area Scan: Measurement grid: dx=8mm, dy=8mm Configuration/System Check 2300MHz Head/Zoom Scan: Measurement grid: dx=5mm,dy=5mm, dz=5mm SURFACE SAR VOLUME SAR Maximum location: X=-5.00, Y=-1.00 SAR Peak: 7.12 W/kg SAR 10g (W/Kg) 1.338412 SAR 1g (W/Kg) 3.262807 Report No.: AGC09966200404FH01 Page 91 of 143 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 7.2739 3.4861 1.0859 0.3492 0.1168 0.0407 0.0146 3D screen shot Hot spot position Report No.: AGC09966200404FH01 Page 92 of 143 Test Laboratory: AGC Lab Date: Apr. 26,2020 System Check Head 2450 MHz DUT: Dipole 2450 MHz Type: SID 2450 Communication System CW; Communication System Band: D2450 (2450.0 MHz); Duty Cycle: 1:1; Conv.F=4.12 Frequency: 2450 MHz; Medium parameters used: f = 2450 MHz; σ=1.82 mho/m; εr =41.61; ρ= 1000 kg/m³ ; Phantom section: Flat Section; Input Power=18dBm Ambient temperature (°C):21.5, Liquid temperature (°C): 21.3 SATIMO Configuration • Probe: SSE5; Calibrated: Jun. 04,2019; Serial No.: SN 22/16 EP315 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Phantom: ELLI39 Phantom • Measurement SW: OpenSAR V4_02_35 Configuration/System Check 2450MHz Head/Area Scan: Measurement grid: dx=8mm, dy=8mm Configuration/System Check 2450MHz Head/Zoom Scan: Measurement grid: dx=5mm,dy=5mm, dz=5mm SURFACE SAR VOLUME SAR Maximum location: X=0.00, Y=0.00 SAR Peak: 5.89 W/kg SAR 10g (W/Kg) 1.516423 SAR 1g (W/Kg) 3.294398 Report No.: AGC09966200404FH01 Page 93 of 143 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 5.8736 3.5514 1.8182 0.9367 0.4884 0.2531 0.1325 3D screen shot Hot spot position Report No.: AGC09966200404FH01 Page 94 of 143 Test Laboratory: AGC Lab Date: Apr. 17,2020 System Check Head 2600MHz DUT: Dipole 2600 MHz; Type: SID 2600 Communication System: CW; Communication System Band: D2600 (2600.0 MHz); Duty Cycle: 1:1; Conv.F=3.77 Frequency:2600 MHz; Medium parameters used: f = 2600 MHz; σ=1.89 mho/m; εr =38.15; ρ= 1000 kg/m³ ; Phantom section: Flat Section; Input Power=18dBm Ambient temperature (°C): 21.4, Liquid temperature (°C): 21.2 SATIMO Configuration: • Probe: SSE5; Calibrated: Jun. 04,2019; Serial No.: SN 22/16 EP315 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Phantom: ELLI39 Phantom • Measurement SW: OpenSAR V4_02_35 Configuration/System Check 2600 Head/Area Scan: Measurement grid: dx=8mm,dy=8mm Configuration/System Check 2600 Head/Zoom Scan: Measurement grid: dx=8mm,dy=8mm, dz=5mm SURFACE SAR VOLUME SAR Maximum location: X=-5.00, Y=-1.00 SAR Peak: 7.61 W/kg SAR 10g (W/Kg) 1.439415 SAR 1g (W/Kg) 3.470628 Report No.: AGC09966200404FH01 Page 95 of 143 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 7.7828 3.7046 1.1252 0.3531 0.1174 0.0465 0.0181 3D screen shot Hot spot position Report No.: AGC09966200404FH01 Page 96 of 143 APPENDIX B. SAR MEASUREMENT DATA Test Laboratory: AGC Lab Date: Apr. 23,2020 GSM 850 Mid- Touch-Right <SIM 1> DUT: Smart Phone; Type: Mara Phones Z1 Communication System: Generic GSM; Communication System Band: GSM 850; Duty Cycle: 1:8.3; Conv.F=5.05; Frequency: 836.6 MHz; Medium parameters used: f = 835 MHz; σ= 0.90 mho/m; εr =40.79C; ρ= 1000 kg/m³ ; Phantom section: Right Section Ambient temperature (°C): 21.6, Liquid temperature (°C): 21.3 SATIMO Configuration: • Probe: SSE5; Calibrated: Jun. 04,2019; Serial No.: SN 22/16 EP315 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Phantom: SAM twin phantom • Measurement SW: OpenSAR V4_02_35 Configuration/GSM 850 Mid-Touch-Right/Area Scan: Measurement grid: dx=8mm, dy=8mm Configuration/GSM 850 Mid-Touch-Right/Zoom Scan: Measurement grid: dx=8mm,dy=8mm, dz=5mm; Area Scan dx=8mm dy=8mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm,Complete Phantom Right head Device Position Cheek Band GSM 850 Channels Middle Signal TDMA (Crest factor: 8.0) SURFACE SAR VOLUME SAR Maximum location: X=-56.00, Y=-47.00 SAR Peak: 0.40 W/kg SAR 10g (W/Kg) 0.199580 SAR 1g (W/Kg) 0.280435 Report No.: AGC09966200404FH01 Page 97 of 143 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 0.3930 0.2898 0.2088 0.1676 0.1230 0.1081 0.0750 3D screen shot Hot spot position Report No.: AGC09966200404FH01 Page 98 of 143 Test Laboratory: AGC Lab Date: Apr. 23,2020 GSM 850 Mid- Body- Back (MS)<SIM 1> DUT: Smart Phone; Type: Mara Phones Z1 Communication System: Generic GSM; Communication System Band: GSM 850; Duty Cycle: 1:8.3; Conv.F=5.05; Frequency: 836.6 MHz; Medium parameters used: f = 835 MHz; σ=0.90 mho/m; εr = 40.79; ρ= 1000 kg/m³ ; Phantom section: Flat Section Ambient temperature (°C): 21.6, Liquid temperature (°C): 21.3 SATIMO Configuration: • Probe: SSE5; Calibrated: Jun. 04,2019; Serial No.: SN 22/16 EP315 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Phantom: ELLI39 Phantom • Measurement SW: OpenSAR V4_02_35 Configuration/GSM 850 Mid-Body-Back/Area Scan: Measurement grid: dx=8mm, dy=8mm Configuration/GSM 850 Mid-Body-Back/Zoom Scan: Measurement grid: dx=8mm,dy=8mm, dz=5mm; Area Scan dx=8mm dy=8mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm,Complete Phantom ELLI Device Position Body Back Band GSM 850 Channels Middle Signal TDMA (Crest factor: 8.0) SURFACE SAR VOLUME SAR Maximum location: X=-2.00, Y=-72.00 SAR Peak: 0.63 W/kg SAR 10g (W/Kg) 0.221265 SAR 1g (W/Kg) 0.383917 Report No.: AGC09966200404FH01 Page 99 of 143…

Text truncated - open the document above for the full version.

Page 1 of 41 FCC Test Report Report No.: AGC09966200404FE08 FCC ID : 2AWFM-MARAPHONES-Z1 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Smart Phone BRAND NAME : Mara Phones MODEL NAME : Mara Phones Z1 APPLICANT : Mara Phones Limited DATE OF ISSUE : May 18, 2020 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC09966200404FE08 Page 2 of 41 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / May 18, 2020 Valid Initial Release Report No.: AGC09966200404FE08 Page 3 of 41 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE ............................................................................................................... 5 2.GENERAL INFORMATION ............................................................................................................................. 6 2.1PRODUCT DESCRIPTION ........................................................................................................................ 6 2.2. TABLE OF CARRIER FREQUENCYS .................................................................................................... 6 2.3 RELATED SUBMITTAL(S)/GRANT(S) ..................................................................................................... 7 2.4TEST METHODOLOGY ............................................................................................................................ 7 2.5 SPECIAL ACCESSORIES ........................................................................................................................ 7 2.6 EQUIPMENT MODIFICATIONS ............................................................................................................... 7 3. MEASUREMENT UNCERTAINTY ................................................................................................................. 8 4. DESCRIPTION OF TEST MODES ................................................................................................................. 9 5. SYSTEM TEST CONFIGURATION ............................................................................................................. 10 5.1 CONFIGURATION OF TESTED SYSTEM ............................................................................................. 10 5.2 EQUIPMENT USED IN TESTED SYSTEM ............................................................................................ 10 5.3. SUMMARY OF TEST RESULTS ........................................................................................................... 10 6. TEST FACILITY ........................................................................................................................................... 11 7. PEAK OUTPUT POWER ............................................................................................................................. 12 7.1. MEASUREMENT PROCEDURE ........................................................................................................... 12 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................. 12 7.3. LIMITS AND MEASUREMENT RESULT ............................................................................................... 13 8. 6 DB BANDWIDTH ...................................................................................................................................... 15 8.1. MEASUREMENT PROCEDURE ........................................................................................................... 15 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................. 15 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................ 15 9. CONDUCTED SPURIOUS EMISSION ........................................................................................................ 17 9.1. MEASUREMENT PROCEDURE ........................................................................................................... 17 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................. 17 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................. 17 9.4. LIMITS AND MEASUREMENT RESULT ............................................................................................... 17 10. MAXIMUM CONDUCTED OUTPUT POWER SPECTRAL DENSITY ....................................................... 22 10.1 MEASUREMENT PROCEDURE .......................................................................................................... 22 10.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................ 22 10.3 MEASUREMENT EQUIPMENT USED ................................................................................................. 22 10.4 LIMITS AND MEASUREMENT RESULT .............................................................................................. 22 11. RADIATED EMISSION ............................................................................................................................... 24 Report No.: AGC09966200404FE08 Page 4 of 41 11.1. MEASUREMENT PROCEDURE ......................................................................................................... 24 11.2. TEST SETUP ....................................................................................................................................... 25 11.3. LIMITS AND MEASUREMENT RESULT ............................................................................................. 26 11.4. TEST RESULT ....................................................................…

Text truncated - open the document above for the full version.

Page1of 66 Report No.:AGC09966200404FE04 FCC ID : 2AWFM-MARAPHONES-Z1 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Smart Phone BRAND NAME : Mara Phones MODEL NAME : Mara Phones Z1 APPLICANT : Mara Phones Limited DATE OF ISSUE : May 18, 2020 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15.247 KDB 558074 D01 15.247 Meas Guidance v05r01 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. FCC Test Report Report No.:AGC09966200404FE04 Page 2 of 66 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / May 18, 2020 Valid Initial Release Report No.:AGC09966200404FE04 Page 3 of 66 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................ 6 2.1. PRODUCT DESCRIPTION ..................................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS ..................................................................................................... 6 2.3. IEEE 802.11N MODULATION SCHEME .................................................................................................. 7 2.4. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................. 7 2.5. TEST METHODOLOGY .......................................................................................................................... 8 2.6. SPECIAL ACCESSORIES ....................................................................................................................... 8 2.7. EQUIPMENT MODIFICATIONS .............................................................................................................. 8 3. MEASUREMENT UNCERTAINTY ................................................................................................................. 9 4. DESCRIPTION OF TEST MODES ............................................................................................................... 10 5 SYSTEM TEST CONFIGURATION .............................................................................................................. 11 5.1. CONFIGURATION OF EUT SYSTEM .................................................................................................... 11 5.2. EQUIPMENT USED IN EUT SYSTEM .................................................................................................... 11 5.3. SUMMARY OF TEST RESULTS ............................................................................................................. 11 6. TEST FACILITY ........................................................................................................................................... 12 6. OUTPUT POWER ........................................................................................................................................ 13 6.1. MEASUREMENT PROCEDURE ..........................................................................................…

Text truncated - open the document above for the full version.
