2AWGI05181994POWER DOCK

POWER DOCK INSTRUCTION MANUAL WHAT’S INSIDE: 02 A: Power DockB: USB-C Power Cord B A QUICK START: ON / OFF 1 Using the USB-C Power Cord fully charge the Power Dock before first use. The LED indicators will illuminate 4 WHITE dots when fully charged. 03 04 2 To charge an external device, plug directly into the USB-A input port. To charge the Power Dock, plug directly into the USB-C output port. Output power Input power 3 Tilt the Peak Pro forward into the Power Dock and then push down into the base to begin wireless charging. 05 06 4 An indicator will illuminate BLUE on the Power Dock when connection is established. The Peak Pro will also illuminate and pulse while charging. *Tip - Align Peak Pro charging port towards area indicated with arrow for faster charge. 07 5 Remove the Peak Pro in the reverse order shown in step 3 to initiate Ready Mode. Ready Mode is the pre-set bowl temperature of your choosing which can specified in the Peak Pro App. If the Power Dock does not respond once it is powered on, the battery capacity may be low. Follow the instructions for charging the Power Dock and check the WHITE illuminated battery level indicator. Do not charge or operate below 32ºF or above 100ºF. Keep away from moisture and high-humidity. Store in a cool, well-ventilated place when possible. 2020 Puff Corp. All rights reserved, Puffco and Peak Pro are trademarks of Puff Corp., registered in the U.S. and other countries. Printed in China. TIPS AND WARNINGS LEGAL 08 by Puffco Creation Labs - Subject to alterations · All rights reserved 760-00037 Product marketing name: 051894 Responsible party Info: Company: Puff Corporation Address: 1201 W 5th Street Suite T530, Los Angeles 90017 Contact Tel: +1 949 292 7260 Email address/Website: [email protected]

PHOTOGRAPHS OF EUT Report No.: EP061001 Brand Name: PUFFCO / Model Name: 051894 TEL : 886-3-327-3456 Page Number : 1 of 25 FAX : 886-3-328-4978 Issued Date : Jul. 23, 2020 Report Version : 01 1. External Photograph of EUT PHOTOGRAPHS OF EUT Report No.: EP061001 Brand Name: PUFFCO / Model Name: 051894 TEL : 886-3-327-3456 Page Number : 2 of 25 FAX : 886-3-328-4978 Issued Date : Jul. 23, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP061001 Brand Name: PUFFCO / Model Name: 051894 TEL : 886-3-327-3456 Page Number : 3 of 25 FAX : 886-3-328-4978 Issued Date : Jul. 23, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP061001 Brand Name: PUFFCO / Model Name: 051894 TEL : 886-3-327-3456 Page Number : 4 of 25 FAX : 886-3-328-4978 Issued Date : Jul. 23, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP061001 Brand Name: PUFFCO / Model Name: 051894 TEL : 886-3-327-3456 Page Number : 5 of 25 FAX : 886-3-328-4978 Issued Date : Jul. 23, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP061001 Brand Name: PUFFCO / Model Name: 051894 TEL : 886-3-327-3456 Page Number : 6 of 25 FAX : 886-3-328-4978 Issued Date : Jul. 23, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP061001 Brand Name: PUFFCO / Model Name: 051894 TEL : 886-3-327-3456 Page Number : 7 of 25 FAX : 886-3-328-4978 Issued Date : Jul. 23, 2020 Report Version : 01 Specification of Accessory Battery Brand Name Rechargeable Li-ion Polymer Battery Model Name AEC903633-2S2P USB Cable Brand Name USB AM TO TYPE-C Model Name 621N-0003-018W Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory PHOTOGRAPHS OF EUT Report No.: EP061001 Brand Name: PUFFCO / Model Name: 051894 TEL : 886-3-327-3456 Page Number : 8 of 25 FAX : 886-3-328-4978 Issued Date : Jul. 23, 2020 Report Version : 01 720510 PHOTOGRAPHS OF EUT Report No.: EP061001 Brand Name: PUFFCO / Model Name: 051894 TEL : 886-3-327-3456 Page Number : 9 of 25 FAX : 886-3-328-4978 Issued Date : Jul. 23, 2020 Report Version : 01 Battery PHOTOGRAPHS OF EUT Report No.: EP061001 Brand Name: PUFFCO / Model Name: 051894 TEL : 886-3-327-3456 Page Number : 10 of 25 FAX : 886-3-328-4978 Issued Date : Jul. 23, 2020 Report Version : 01 720510

Bottom of the device

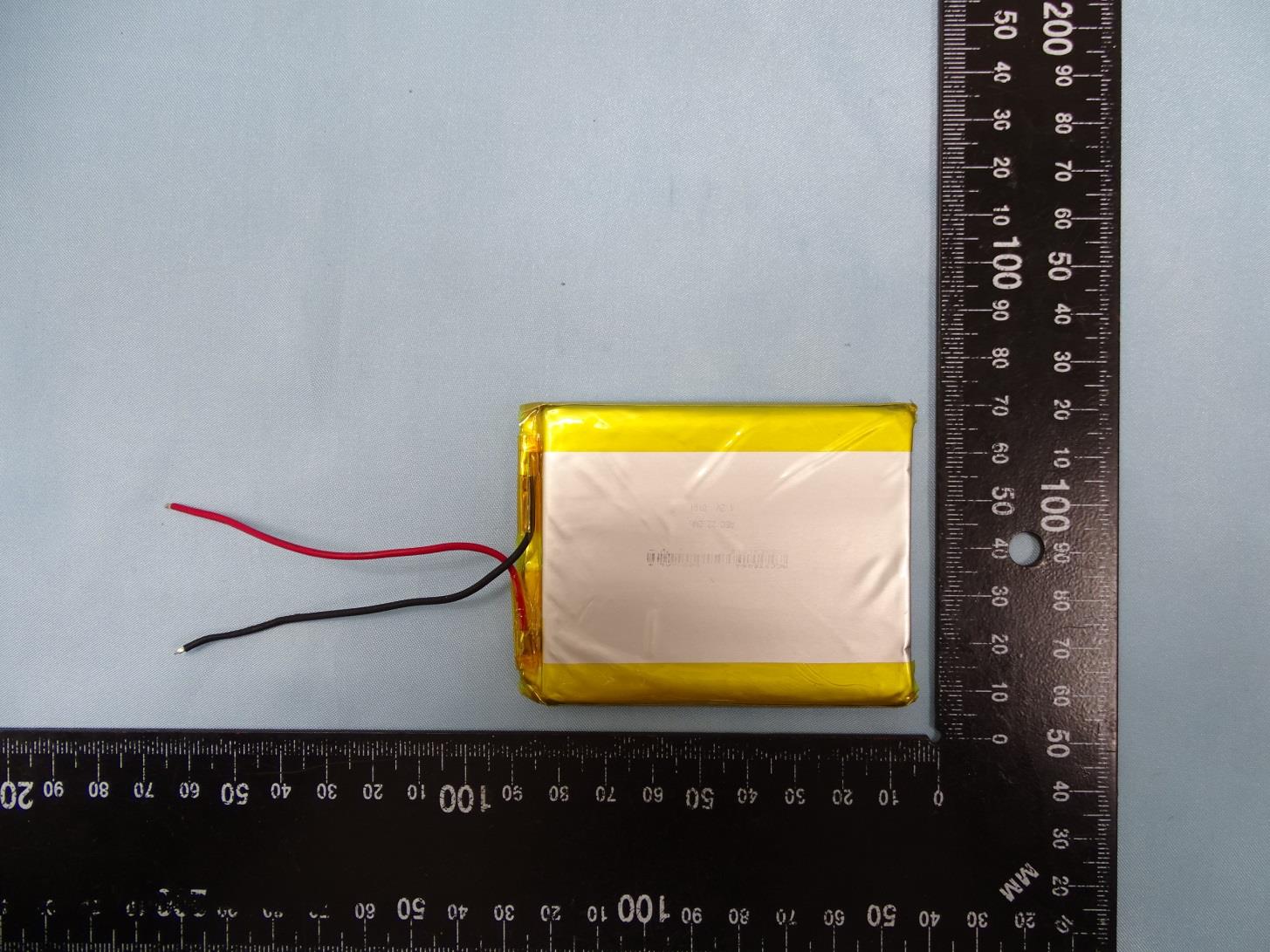

PHOTOGRAPHS OF EUT Report No.: EP061001 Brand Name: PUFFCO / Model Name: 051894 TEL : 886-3-327-3456 Page Number : 11 of 25 FAX : 886-3-328-4978 Issued Date : Jul. 23, 2020 Report Version : 01 3. Internal Photograph of EUT PHOTOGRAPHS OF EUT Report No.: EP061001 Brand Name: PUFFCO / Model Name: 051894 TEL : 886-3-327-3456 Page Number : 12 of 25 FAX : 886-3-328-4978 Issued Date : Jul. 23, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP061001 Brand Name: PUFFCO / Model Name: 051894 TEL : 886-3-327-3456 Page Number : 13 of 25 FAX : 886-3-328-4978 Issued Date : Jul. 23, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP061001 Brand Name: PUFFCO / Model Name: 051894 TEL : 886-3-327-3456 Page Number : 14 of 25 FAX : 886-3-328-4978 Issued Date : Jul. 23, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP061001 Brand Name: PUFFCO / Model Name: 051894 TEL : 886-3-327-3456 Page Number : 15 of 25 FAX : 886-3-328-4978 Issued Date : Jul. 23, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP061001 Brand Name: PUFFCO / Model Name: 051894 TEL : 886-3-327-3456 Page Number : 16 of 25 FAX : 886-3-328-4978 Issued Date : Jul. 23, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP061001 Brand Name: PUFFCO / Model Name: 051894 TEL : 886-3-327-3456 Page Number : 17 of 25 FAX : 886-3-328-4978 Issued Date : Jul. 23, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP061001 Brand Name: PUFFCO / Model Name: 051894 TEL : 886-3-327-3456 Page Number : 18 of 25 FAX : 886-3-328-4978 Issued Date : Jul. 23, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP061001 Brand Name: PUFFCO / Model Name: 051894 TEL : 886-3-327-3456 Page Number : 19 of 25 FAX : 886-3-328-4978 Issued Date : Jul. 23, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP061001 Brand Name: PUFFCO / Model Name: 051894 TEL : 886-3-327-3456 Page Number : 20 of 25 FAX : 886-3-328-4978 Issued Date : Jul. 23, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP061001 Brand Name: PUFFCO / Model Name: 051894 TEL : 886-3-327-3456 Page Number : 21 of 25 FAX : 886-3-328-4978 Issued Date : Jul. 23, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP061001 Brand Name: PUFFCO / Model Name: 051894 TEL : 886-3-327-3456 Page Number : 22 of 25 FAX : 886-3-328-4978 Issued Date : Jul. 23, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP061001 Brand Name: PUFFCO / Model Name: 051894 TEL : 886-3-327-3456 Page Number : 23 of 25 FAX : 886-3-328-4978 Issued Date : Jul. 23, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP061001 Brand Name: PUFFCO / Model Name: 051894 TEL : 886-3-327-3456 Page Number : 24 of 25 FAX : 886-3-328-4978 Issued Date : Jul. 23, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP061001 Brand Name: PUFFCO / Model Name: 051894 TEL : 886-3-327-3456 Page Number : 25 of 25 FAX : 886-3-328-4978 Issued Date : Jul. 23, 2020 Report Version : 01 ─────THE END──── 720510

SPORTON INTERNATIONAL INC. Page Number : 1 of 6 TEL : 886-3-327-3456 Report Issued Date : Jul. 24, 2020 FAX : 886-3-328-4978 FCC RF Exposure Report Report No. : FA061001 WPC Evaluation Report FCC ID : 2AWGI05181994 EQUIPMENT : POWER DOCK BRAND NAME : PUFFCO MODEL NAME : 051894 APPLICANT : Puff Corporation 1201 W 5th Street Suite T530, Los Angeles 90017 STANDARD : FCC CFR 47 part 1, 1.1307(b) and 1.1310 KDB 680106 D01v03 The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Sporton International Inc. No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan Approved by: Cona Huang / Deputy Manager SPORTON INTERNATIONAL INC. Page Number : 2 of 6 TEL : 886-3-327-3456 Report Issued Date : Jul. 24, 2020 FAX : 886-3-328-4978 FCC RF Exposure Report Report No. : FA061001 Table of Contents 1. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ............................................................................. 4 2. RF EXPOSURE LIMIT INTRODUCTION .................................................................................................... 4 3. MEASUREMENT EQUIPMENT ................................................................................................................... 5 4. TEST MODE ................................................................................................................................................ 6 5. RF EXPOSURE EVALUATION ................................................................................................................... 6 Appendix A. Test Setup Photo SPORTON INTERNATIONAL INC. Page Number : 3 of 6 TEL : 886-3-327-3456 Report Issued Date : Jul. 24, 2020 FAX : 886-3-328-4978 FCC RF Exposure Report Report No. : FA061001 Revision History REPORT NO. VERSION DESCRIPTION ISSUED DATE FA061001 Rev. 01 Initial issue of report Jul. 22, 2020 FA061001 Rev. 02 Update section3 and section5 Jul. 24, 2020 SPORTON INTERNATIONAL INC. Page Number : 4 of 6 TEL : 886-3-327-3456 Report Issued Date : Jul. 24, 2020 FAX : 886-3-328-4978 FCC RF Exposure Report Report No. : FA061001 1. Description of Equipment Under Test (EUT) Product Feature & Specification EUT Type POWER DOCK Brand Name PUFFCO Model Name 051894 FCC ID 2AWGI05181994 Frequency Range WPC: 110KHz ~ 205 KHz Moudlation Type WPC: ASK EUT Stage Production Unit Date of Test Jul. 15, 2020 2. RF Exposure Limit Introduction § 1.1310 The criteria listed in table 1 shall be used to evaluate the environmental impact of human exposure to radio frequency(RF) radiation as specified in § 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of § 2.1093 of this chapter. (1) Occupational/controlled exposure limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when a person is transient through a location where occupational/controlled limits apply provided he or she is made aware of the potential for exposure. The phrase fully aware in the context of applying these exposure limits means that an exposed person has received written and/or verbal information fully explaining the potential for RF exposure resulting from his or her employment. With the exception of transient persons, this phrase also means that an exposed person has received appropriate training regarding work practices relating to controlling or mitigating his or her exposure. Such training is not required for transient persons, but they must receive written and/or verbal information and notification (for example, using signs) concerning their exposure potential and appropriate means available to mitigate their exposure. The phrase exercise control means that an exposed person is allowed to and knows how to reduce or avoid exposure by administrative or engineering controls and work practices, such as use of personal protective equipment or time averaging of exposure. (2) General population/uncontrolled exposure limits apply in situations in which the general public may be exposed, or in which persons who are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. SPORTON INTERNATIONAL INC. Page Number : 5 of 6 TEL : 886-3-327-3456 Report Issued Date : Jul. 24, 2020 FAX : 886-3-328-4978 FCC RF Exposure Report Report No. : FA061001 3. Measurement Equipment General Note: 1. The test equipment is a 3-axis isotropic probe and the manufacturer is confirm the anisotropicty is less than 1dB. 2. For the test probe antenna length is less than 11.5cm, list as below spec. Instrument Manufacturer Model No. Serial No. Freq Rang Last Cal. Due Date Electric and Magnetic field Probe-Analyzey Narda S.T.S / PMM EHP 200AC 170WX80309 3KHz~30MHz Aug. 05, 2019 Aug. 04, 2020 SPORTON INTERNATIONAL INC. Page Number : 6 of 6 TEL : 886-3-327-3456 Report Issued Date : Jul. 24, 2020 FAX : 886-3-328-4978 FCC RF Exposure Report Report No. : FA061001 4. Test Mode This device has been tested in the following charging conditions as below: Test Mode Test Setup Configuration Charging Current Condition TM1 Test w/ Client Device installed < 1% Battery status TM2 Test w/ Client Device installed 50% Battery status TM3 Test w/ Client Device installed Near 100% Battery status 5. RF Exposure Evaluation General Note: 1. The device power transfer frequency is less than 1MHz 2. The output power from the coil is less than 15W 3. The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils. 4. Client device is placed directly in contact wi…

Text truncated - open the document above for the full version.

TEL : 886-3-327-3456 Page Number : 1 of 16 FAX : 886-3-328-4978 Issued Date : Jul. 22, 2020 Report Template No.: BU5-FR15CWPC Version 2.4 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR061001 FCC RADIO TEST REPORT FCC ID : 2AWGI05181994 Equipment : POWER DOCK Brand Name : PUFFCO Model Name : 051894 Applicant : Puff Corporation 1201 W 5th Street Suite T530, Los Angeles 90017 Manufacturer : Puff Corp 1201 W 5th Street Suite T530, Los Angeles 90017 Standard : FCC Part 15 Subpart C §15.209 The product was received on Jun. 29, 2020 and testing was started from Jul. 03, 2020 and completed on Jul. 14, 2020. We, SPORTON INTERNATIONAL INC., EMC & Wireless Communications Laboratory, would like to declare that the tested sample has been evaluated in accordance with the test procedures and has been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full. Reviewed by: Louis Wu SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) TEL : 886-3-327-3456 Page Number : 2 of 16 FAX : 886-3-328-4978 Issued Date : Jul. 22, 2020 Report Template No.: BU5-FR15CWPC Version 2.4 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR061001 Table of Contents History of this test report ....................................................................................................................................3 Summary of Test Result......................................................................................................................................4 1. General Description ........................................................................................................................................5 1.1 Product Feature of Equipment Under Test ............................................................................................................. 5 1.2 Modification of EUT ................................................................................................................................................ 5 1.3 Testing Location ..................................................................................................................................................... 5 1.4 Applicable Standards.............................................................................................................................................. 5 2. Test Configuration of Equipment Under Test ...............................................................................................6 2.1 Descriptions of Test Mode ...................................................................................................................................... 6 2.2 Connection Diagram of Test System ...................................................................................................................... 7 2.3 Support Unit used in test configuration and system ............................................................................................... 7 2.4 EUT Operation Test Setup ..................................................................................................................................... 7 3. Test Results .....................................................................................................................................................8 3.1 AC Power Line Conducted Emissions Measurement ............................................................................................. 8 3.2 99% OBW Spectrum Bandwidth Measurement .................................................................................................... 10 3.3 Radiated Emissions Measurement ....................................................................................................................... 11 3.4 Antenna Requirements ......................................................................................................................................... 14 4. List of Measuring Equipment ...................................................................................................................... 15 5. Uncertainty of Evaluation ............................................................................................................................ 16 Appendix A. Test Results of Conducted Emission Test Appendix B. Test Results of Conducted Test Items B1. Test Result of 20dB Spectrum Bandwidth Appendix C. Test Results of Radiated Test Items C1. Test Result of Field Strength of Fundamental Emissions C2. Results of Radiated Emissions (9 kHz~30MHz) C3. Results of Radiated Emissions (30MHz~1GHz) Appendix D. Setup Photographs TEL : 886-3-327-3456 Page Number : 3 of 16 FAX : 886-3-328-4978 Issued Date : Jul. 22, 2020 Report Template No.: BU5-FR15CWPC Version 2.4 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR061001 History of this test report Report No. Version Description Issued Date FR061001 01 Initial issue of report Jul. 22, 2020 TEL : 886-3-327-3456 Page Number : 4 of 16 FAX : 886-3-328-4978 Issued Date : Jul. 22, 2020 Report Template No.: BU5-FR15CWPC Version 2.4 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR061001 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 3.1 15.207 AC Power Line Conducted Emissions Pass Under limit 9.83 dB at 0.161MHz 3.2 2.1049 99% OBW Spectrum Bandwidth Reporting only - 3.3 15.209 Field Strength of Fundamental Emissions Pass Max level 13.25 dBμV/m at 0.150 MHz Radiated Spurious Emissions Pass Under limit 6.38 dB at 39.180MHz 3.4 15.203 Antenna Requirements Pass - Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by m…

Text truncated - open the document above for the full version.

TEL : 886-3-327-3456 Page Number : D1 of D3 FAX : 886-3-328-4978 FCC RADIO TEST REPORT Report No. : FR061001 Appendix D. Setup Photographs <Conducted Emission> Mode 1 Remote View TEL : 886-3-327-3456 Page Number : D2 of D3 FAX : 886-3-328-4978 FCC RADIO TEST REPORT Report No. : FR061001 Rear View TEL : 886-3-327-3456 Page Number : D3 of D3 FAX : 886-3-328-4978 FCC RADIO TEST REPORT Report No. : FR061001 <Radiated Emission> Mode 2 From 9 kHz ~ 30 MHz From 30 MHz ~ 1 GHz ─────THE END─────

SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 / FAX : 886-3-328-4978 Page A1 of A1 Issued Date : Jul. 22, 2020 RF Exposure Evaluation Report Report No. :FA061001 Appendix A. Test Setup Photos <H-field Test Setup Photos> The equipment under test was placed on a wooden desk inside of shield room. The isotropic field probe was used to measure the field strength for 6 EUT surfaces, and during measurement a separation of 10cm is maintained between EUT surface and the center of the field probe. Position A Position B Position C Position D Position E Position F
