2AWGNMCH3368Fast Wireless charging Phone Stand

IMPORTANT: 123 Please read this manual before using the unit to ensure safe and proper use. The unit will generate the magnetic/electric field; never place any medical equipment; watches; credit card; magnetic record card or any magnetic sensitive products close to the unit. Only phones which can support wireless charging can be recharged by this unit. For details, please refer the user’s manual of your phone. The design of the unit is indoor use. Never spill or spray any type of liquid on the product. Do not use this product near water and moisture, for example: near a bathtub, washbowl, kitchen sink or laundry tub; in a wet basement; or near a swimming pool. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. Clean only with dry cloth. Unplug this product from external USB Charging Devices before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a dry cloth for cleaning. Do NOT place any heavy object on the Charging Surface. It may damage the unit. When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer or those that have the same characteristics as the original parts. Unauthorized substitutions may result in fire or electric shock or other hazards. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. Modifications not authorized by the manufacturer may void user’s authority to operate this device. 1. Wireless Charging Surface 2. Blue & Red LED Indicators 3. Micro USB Port(For Charging only) FCC NOTICE:LOCATION OF CONTROLS: FCC WARNING: 1 23 546 4. Place your cell phone onto the center of the charging surface as illustrated below until the Blue LED Indicator illuminate (or the charging icon appears on the cell phone’s display) to start charging. (Note: If the location of the cell phone is incorrect, charging will NOT proceed.) 5. W ait until your cell phone finished charging as usual, the Blue LED Inidcator will turn of f (or the full charging indicators appear on your cell phone’s display) Notes: 1. To charge a cell phone with this Charger, the cell phone must support wireless charging. 2. During charging, if the cell phone has a cover or case, it may disturb or prevent the wireless charging function of the cell phone. 3. The charging transmission distance of the unit is less than 8mm, the thickness of cell phone cover or case can NOT extend 8 mm. 4. T o maximize the charging speed, using a USB Charger (not included) equipped with Quick Charger 3.0 USB port. 5. Back of phone must be void of attachments or accessories to charge wirelessly . 6. To save energy , disconnect the Charger from the USB Charger if not using it for an extended period of time. 1. Connect the Micro USB Plug from the supplied USB connection cable to the Micro USB Port on the unit as illustrated below: 2. Connect the full size USB Plug to the USB Port on your USB Charger (not included) as illustrated below: 3. The Blue & Red Indicators on the unit will illuminate & blink shortly , then Red indicator illuminate. SPECIFICATIONS AND ACCESSORIES ARE SUBJECT TO CHANGE WITHOUT NOTICE Input: Output: transmission Distance: 1 x Owner’s Manual 1 x USB Connection cable (For Charging Only) DC 5V/2A or 9V/1.67A 5W or 10W Up to 8 mm GENERAL SPECIFICATION:OPERATION: ACCESSORIES: MCH3368 IM Size: 144mm x 195mm NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference,…

Text truncated - open the document above for the full version.

Shenzhen TBL industrial Co. Ltd Aug.20, 2020 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Explanation of differences between product types FCC ID : 2AWGNMCH3368 Model Number: MCH3368, CCH3368, NCH3368 To Whom It May Concern: We, The Shenzhen TBL industrial Co. Ltd hereby declare that the model : CCH3368, NCH3368 is identical with the model : MCH3368, except the model name. Except for the different above, no other modification is performed. Sincerely, Signature: Shenzhen TBL industrial Co. Ltd Contact person: Wang Hongbo

Shenzhen TBL industrial Co. Ltd Agent Authorization Company: Shenzhen TBL industrial Co. Ltd Address: 202, 2nd building, 10th Xian Xiang Road, Xin Sheng Community, Long Gang Street, Long Gang District, ShenZhen Product Name: Fast Wireless charging Phone Stand Model Number(s): MCH3368, CCH3368, NCH3368 Product Description: Fast Wireless charging Phone Stand We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-08-15 Name: Wang Hongbo Company: Shenzhen TBL industrial Co. Ltd

Shenzhen TBL industrial Co. Ltd Declaration Letter Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 8/20/2020 FCC ID: 2AWGNMCH3368 Pursuant to KDB 680106 of the Shenzhen TBL industrial Co.Ltd hereby declare our product which is an inductive wireless power transfer applications that meet all of the following requirements are not required to submit a KDB inquiry for devices approved usinga PAG for equipment approved using certification to address RF exposure compliance. 1) Power transfer frequency is 0.110-0.205MHz which is less than1 MHz 2) Output power from each primary coil is 10W which is less than 15 watts 3) The transfer system includes only single primary coils. 4) Client device is placed directly in contact with the transmitter 5) The EUT is a mobile device. 6) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Yours sincerely, Shenzhen TBL industrial Co. Ltd Contact person: Wang Hongbo

Shenzhen TBL industrial Co. Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-06-17 Subject; Request for Confidentiality FCC ID: 2AWGNMCH3368 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Shenzhen TBL industrial Co. Ltd Shenzhen TBL industrial Co. Ltd Contact person: Wang Hongbo

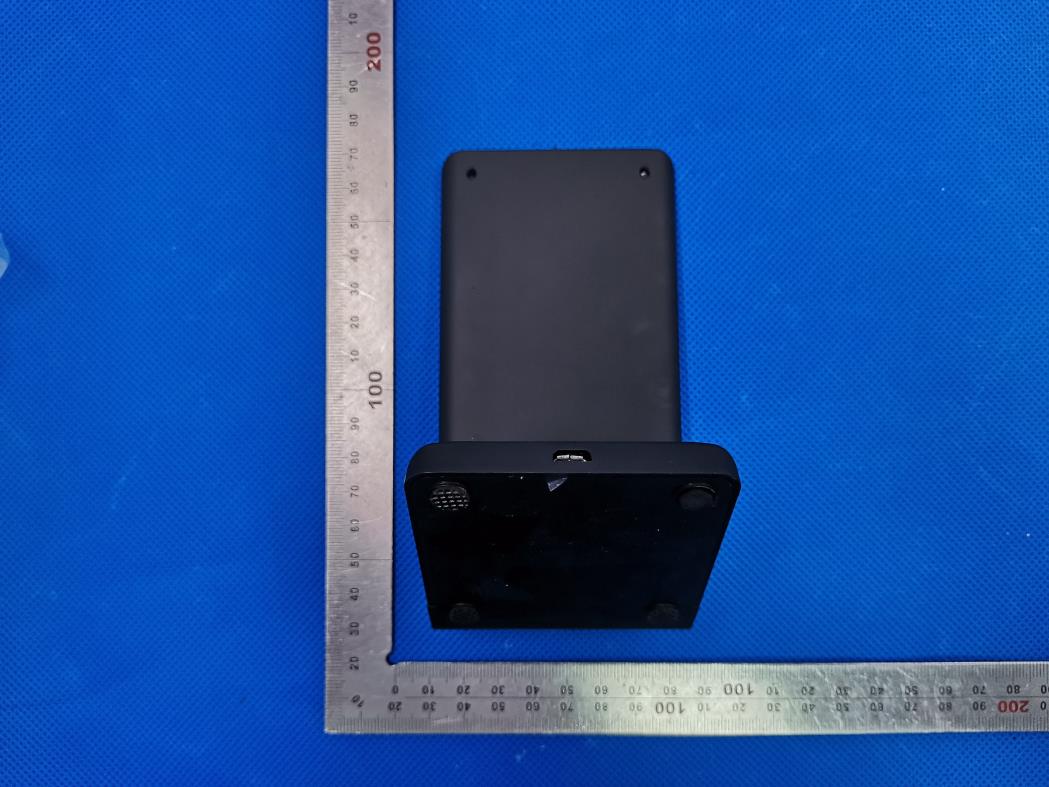

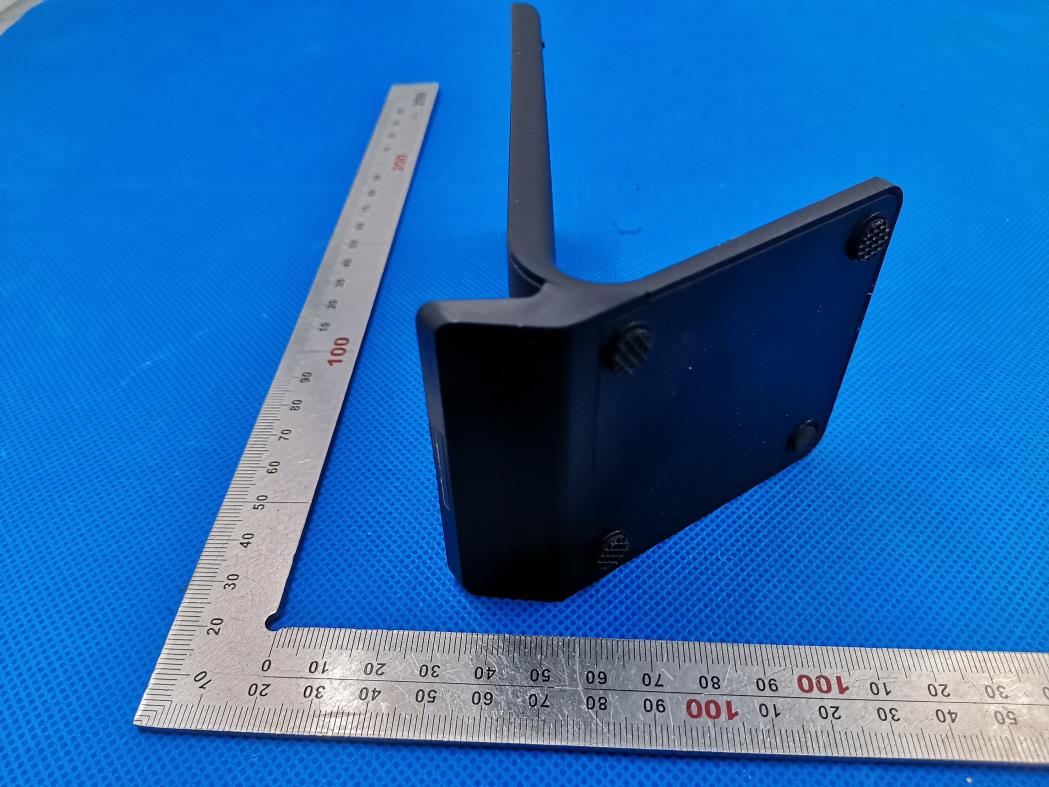

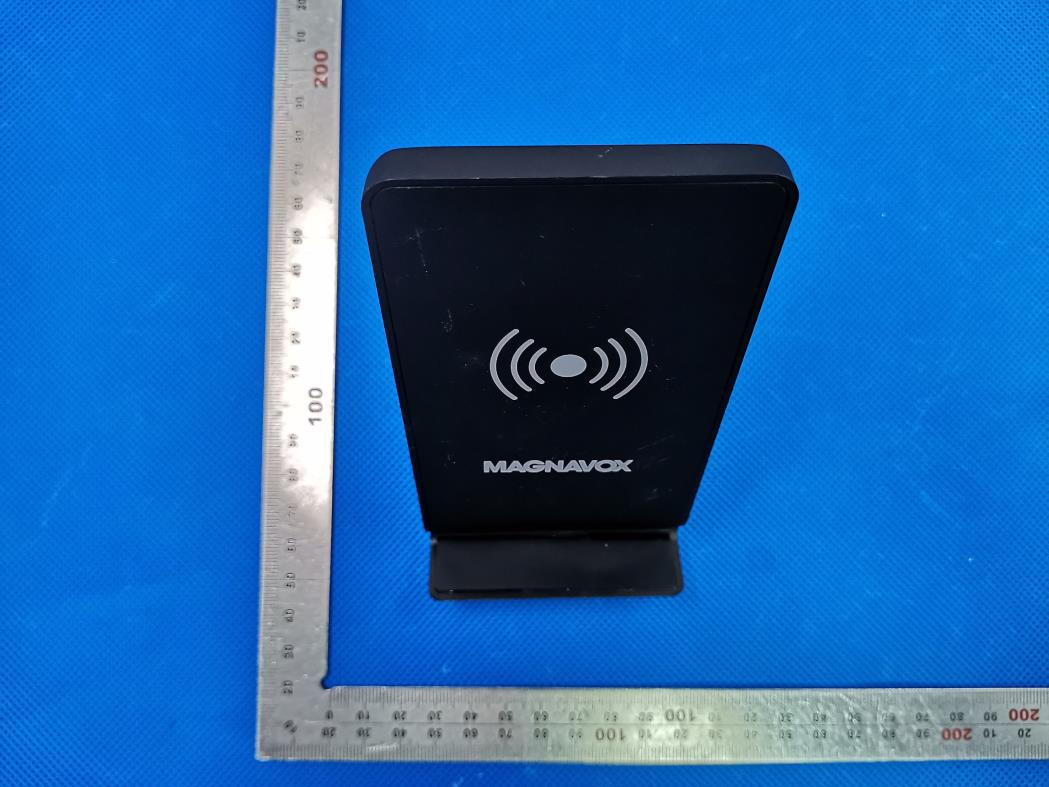

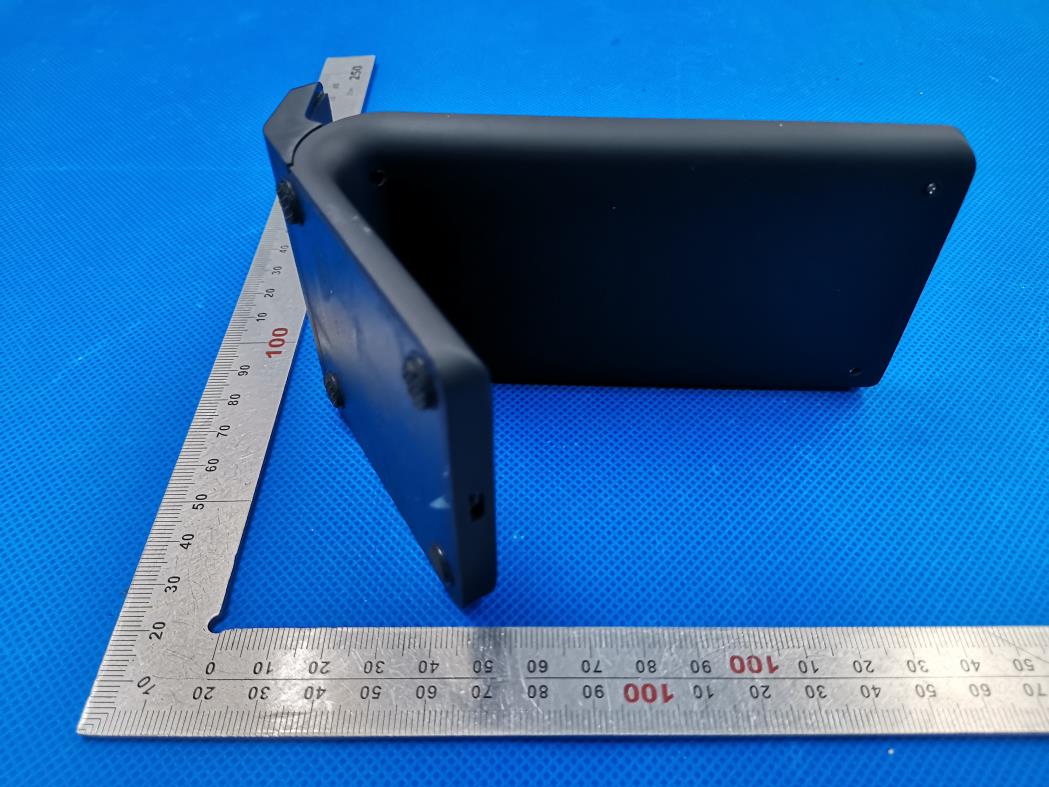

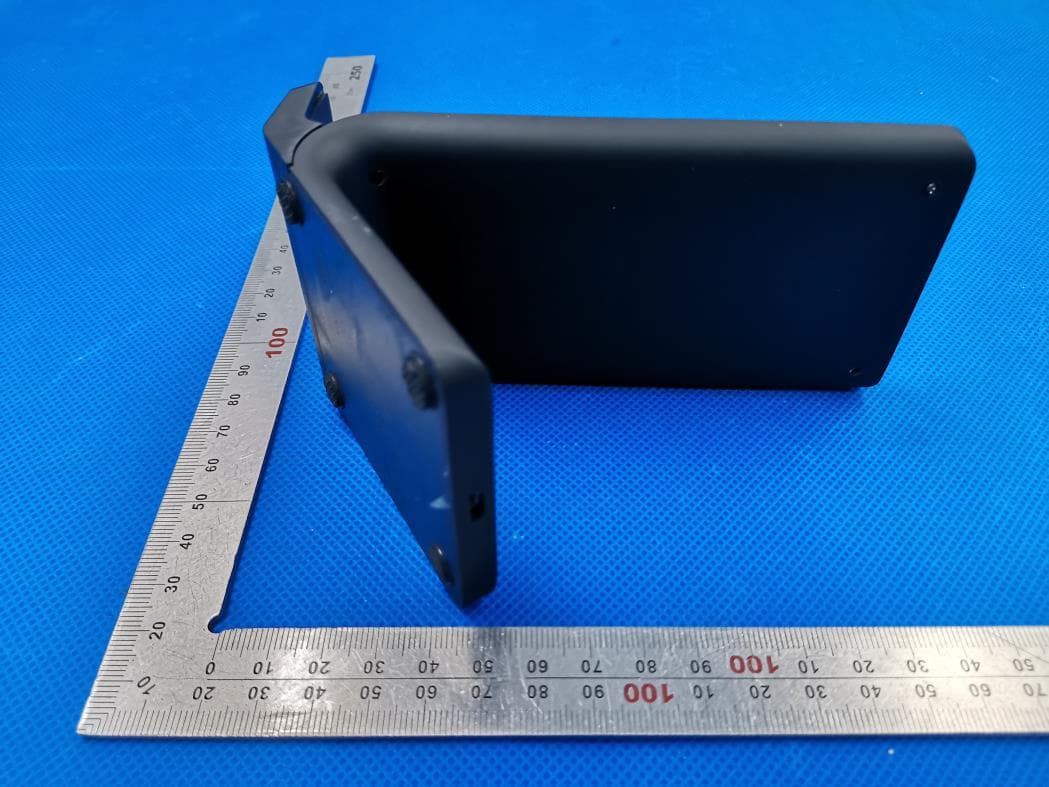

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT(PORT)

FCC ID Label Location FCC ID:2AWGNMCH3368 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 Antenna

Page 1 of 14 RF Exposure Report Report No.: AGC05505200501FH03 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Fast Wireless charging Phone Stand BRAND NAME : MAGNAVOX,CRAIG,NEWTECH MODEL NAME : MCH3368, CCH3368, NCH3368 APPLICANT : Shenzhen TBL industrial Co. Ltd DATE OF ISSUE : Jun. 16, 2020 STANDARD(S) : KDB680106 D01 RF Exposure Wireless Charging Base App v03 REPORT VERSION : V1.0 Attestation of Global Compliance(Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC05505200501FH03 Page 2 of 14 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jun. 16, 2020 Valid Initial Release Report No.: AGC05505200501FH03 Page 3 of 14 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 4 2. GENERAL INFORMATION ............................................................................................................................ 5 2.1. PRODUCT DESCRIPTION ..................................................................................................................... 5 3. DESCRIPTION OF TEST MODES................................................................................................................. 6 4. SYSTEM TEST CONFIGURATION ............................................................................................................... 6 5. TEST FACILITY ............................................................................................................................................. 7 6. RADIO FREQUENCY (RF) EXPOSURE TEST ............................................................................................. 8 6.1. LIMITS ..................................................................................................................................................... 8 6.2. TEST SETUP ........................................................................................................................................... 8 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ......................................................................................... 11 Report No.: AGC05505200501FH03 Page 4 of 14 1. VERIFICATION OF CONFORMITY Applicant Shenzhen TBL industrial Co. Ltd Address 202, 2nd building, 10th Xian Xiang Road, Xin Sheng Community, Long Gang Street, Long Gang District, ShenZhen, China Manufacturer Shenzhen TBL industrial Co. Ltd Address 202, 2nd building, 10th Xian Xiang Road, Xin Sheng Community, Long Gang Street, Long Gang District, ShenZhen, China Factory Shenzhen TBL industrial Co. Ltd Address 202, 2nd building, 10th Xian Xiang Road, Xin Sheng Community, Long Gang Street, Long Gang District, ShenZhen, China Product Designation Fast Wireless charging Phone Stand Brand Name MAGNAVOX, CRAIG, NEWTECH Test Model: MCH3368 Series Model CCH3368, NCH3368 Model Difference All the same except for the model name Date of test Jun. 11, 2020 to Jun. 16, 2020 Deviation No any deviation from the test method Condition of Test Sample Normal Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Attestation of Global Compliance(Shenzhen) Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in KDB680106 D01. The results of testing in this report apply to the product/system which was tested only. Prepared By Sky Dong (Project Engineer) Jun. 16, 2020 Reviewed By Max Zhang (Reviewer) Jun. 16, 2020 Approved By Forrest Lei (Authorized Officer) Jun. 16, 2020 Report No.: AGC05505200501FH03 Page 5 of 14 2. GENERAL INFORMATION 2.1.PRODUCT DESCRIPTION A major technical description of EUT is described as following Operation Frequency 110-205 kHz Test Frequency 145kHz Maximum field strength 55.71dBuV/m(PK)@3m Number of channels 1 Antenna Designation Coil Antenna (Met 15.203 Antenna requirement) Hardware Version KT613AK1 Software Version 2C2B Power Supply DC 5V by adapter Report No.: AGC05505200501FH03 Page 6 of 14 3. DESCRIPTION OF TEST MODES NO. TEST MODE DESCRIPTION 1 Wireless charging Mode(Full load) 2 Wireless charging Mode(Half load) 3 Wireless charging Mode(Null load) Note: 1. The mode 1 was the worst case and only the data of the worst case record in this report. 4. SYSTEM TEST CONFIGURATION Item Equipment Model No. ID or Specification Remark 1 Fast Wireless charging Phone Stand MCH3368 2AWGNMCH3368 EUT 2 Adapter JHD-AP013U-050200BB-B DC 5V AE 3 Wireless Load N/A 10W AE Report No.: AGC05505200501FH03 Page 7 of 14 5. TEST FACILITY TEST EQUIPMENT LIST Description Manufacturer Model S/N Cal. Date Cal. Due Broadband Field Meter Narda Safety Test Solutions GmbH ELT-400 J-0004 Jul.03,2019 Jul.02,2020 Probe FHP Narda Safety Test Solutions GmbH 2300/90.10 J-0015 Jul.03,2019 Jul.02,2020 TestSite Attestation of Global Compliance(Shenzhen) Co., Ltd Location 1-2/F,Building19,JunfengIndustrialPark,ChongqingRoad,HepingCommunity,FuhaiSt reet,Bao'anDistrict,Shenzhen,Guangdong,China Designation Number CN1259 FCC Test Firm Registration Number 975832 A2LA Cert. No. 5054.02 Description Attestation of Global Compliance(Shenzhen) Co., Ltd is accredited by A2LA Report No.: AGC05505200501FH03 Page 8 of 14 6. RADIO FREQUENCY(RF) EXPOSURETEST 6.1. LIMITS For devices designed for typical desktop applications, such a wireless charging pads, RF exposure evaluation should be conducted assuming a user separation distance of 15 cm. E and H field strength measurements or numerical modeling may be used to demonstrate compliance. Measurements should be made from all sides and the top of the primary/client pair, with the 15 cm measured from the center of the probe(s) to the edge of the device. Emissions between 100 kHz to 300 kHz should be assessed versus the limits at 300 kHz in Table…
