2AWHGTK-28WIRELESS PARTY SPEAKER

FCCStatement:ThisdevicecomplieswithPart15oftheFCCRules. Operationissubjecttothefollowingtwoconditions:(1)thisdevicemay notcauseharmfulinterference,and(2)thisdevicemustacceptany interferencereceived,includinginterferencethatmaycause undesiredoperation. FCCWarning:Changesormodificationstothisunitnotexpressly approvedbythepartyresponsibleforcompliancecouldvoidtheuser’s authoritytooperatetheequipment. NOTE:Thisequipmenthasbeentestedandfoundtocomplywiththe limitsforaClassBdigitaldevice,pursuanttoPart15oftheFCCRules. Theselimitsaredesignedtoprovidereasonableprotectionagainst harmfulinterferenceinaresidentialinstallation.Thisequipment generates,usesandcanradiateradiofrequencyenergyand,ifnot installedandusedinaccordancewiththeinstructions,maycause harmfulinterferencetoradiocommunications. However,thereisnoguaranteethatinterferencewillnotoccurina particularinstallation.Ifthisequipmentdoescauseharmfulinterference toradioortelevisionreception,whichcanbedeterminedbyturningthe equipmentoffandon,theuserisencouragedtotrytocorrectthe interferencebyoneormoreofthefollowingmeasures: ●Reorientorrelocatethereceivingantenna. ●Increasetheseparationbetweentheequipmentandreceiver. ●Connecttheequipmentintoanoutletonacircuitdifferentfromthatto whichthereceiverisconnected. ●Consultthedealeroranexperiencedradio/TVtechnicianforhelp. PORTABLEBATTERYSPEAKER UserManual TK-28 ControlPanelFunction 1.Power(OFF/ON)/VOLUME-&+ 2.LEDDisplay 3.MICinput 4.ChargingStatus RED=Charging Lightoff=FullyCharged 5.DCinterface(5V) 6.AUXinput 7.SOURCE/LEDs(Longpresstoturnon/offlight;Lightlypresstoenterinto selectionforBluetooth,FMRadio,AUXInput,USB) 8.Previoustrack 9.Play/Pause/PartyPlus:Presstoplay/pauseatrack.InFMModepressto startauto-searchandsaveallscannedradiostations.Pressandholdfor3 secondstoenterPartyPlusmodewhichwillallowthisspeakertopairwith anotherTK-28speakerforTrueWirelessStereo. LongpresstoPairbluetoothmanually. 10.Nexttrack&TWS(LongpressPrevious/TWSbuttonfortopairinganother TWSspeaker.) 11.USBJACK SPECIFICATIONS PowerOutput:8W FrequencyResponse formainspeaker:50Hz-20KHz PowerSupply:DC5V 1 POWERSOURCE 1.Pleasechargetheunitatleast4hoursbeforefirsttimeusing. 2.Twistthedialclockwise/anticlockwisetoswitchon/offtheunit. CHARGETHEBATTERY Whenthebatteryischarging,theCHARGESTATUSlightsshowsontheLED displayisred.Afterthebatteryhasfullycharged,thelightturnsoff. 1.ConnecttheUSBchargecabletotheDC5Vinterfaceofthespeakerfirmly. 2.Whenthebatteryisfullycharged,pleasedisconnecttheUSBchargecablefrom thespeaker. 3.thespeakercan’tworkwhencharging. POWER/MUS.VOL Twistthedialclockwise/anticlockwisetoincrease/discreasethemusvolume. PREVIOUS/NEXTBUTTON Underplayingstatus,pressPREVIOUS/NEXTbuttontogetbacktoapreviousor nextsong. PAUSE/PLAYBUTTON Tostopplayingthecurrenttrack,pleasepressPAUSE/PLAYbuttononthecontrol panel.Pressitonceagaintocontinueplaying. SOURCE/LEDs Longpresstoturnon/offlight. Lightlypresstoenterintoplayingmodeselection(Bluetooth,FMRadio,AUXInput, USB). AUXINJACK 1.ConnectanaudiocabletotheAUXINJACKofthespeakerandtotheaudio output socketontheexternalaudiodevicessuchasMP3player,discman,etc,thenselect LINEbypressingtheSOURCE/LEDsbuttononthecontrolpanel. 2.Playfromanexternalaudiodevice. MICINJACK Pluginmicrophonedirectlyforplaying. USBJACK InsertUSBcarddirectlyforplaying. FMFUNCTION LightlypressSOURCE/LEDsbuttontoswitchtoFMmode.PressPLAY/PAUSE buttononcontrolpanelforautomaticsearchingandsavingtheradiostations, bypressingPREVIOUSorNEXTyoucanselectapreviousornextradiostation. Bluetooth: LongpressSOURCE/LEDsbuttononcontrolpaneltoselectBluetoothmode. SimultaneouslyopentheBluetoothsettingonyourphone,tabletoranyother bluetoothenabledaudiodeviceandselect"TK-28"(noneedtomatchcode), theunitanddevicewillthenconnectedviaBluetooth.Pressthe"NEXTSONG" and"PREVIOUSSONG"buttononthecontrolpaneltoselectthesong,press "PLAY/PAUSE"buttontocontroltheplayingstatus. 2

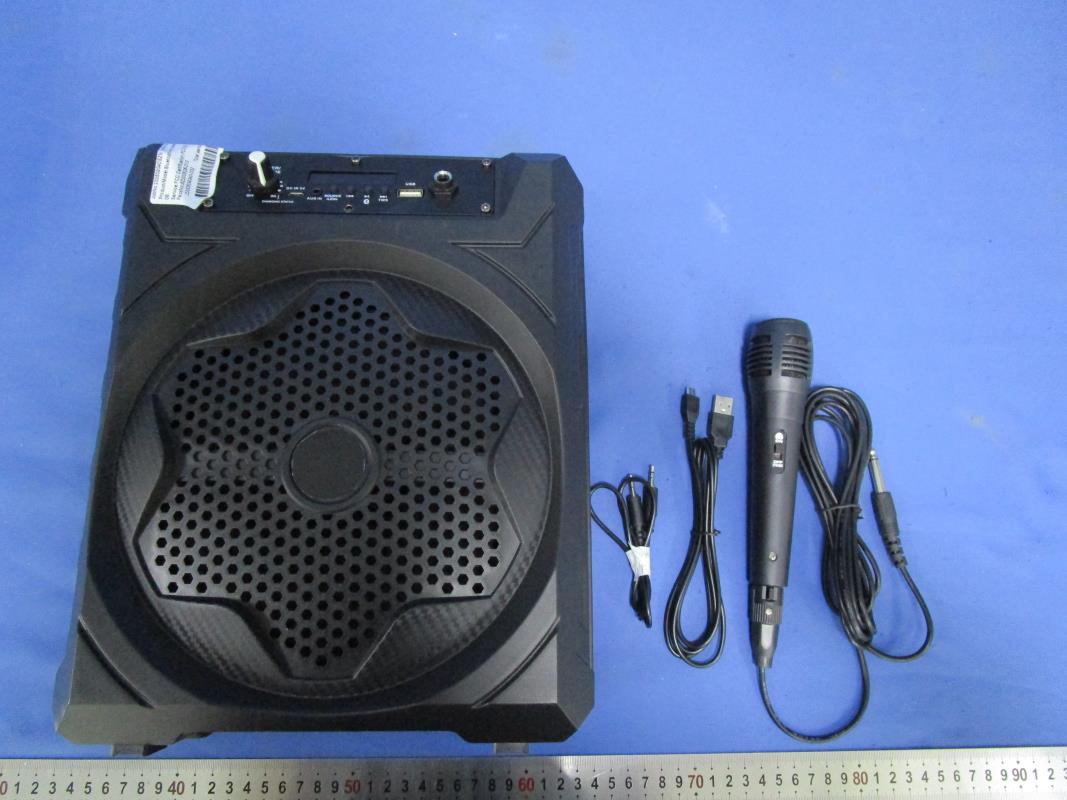

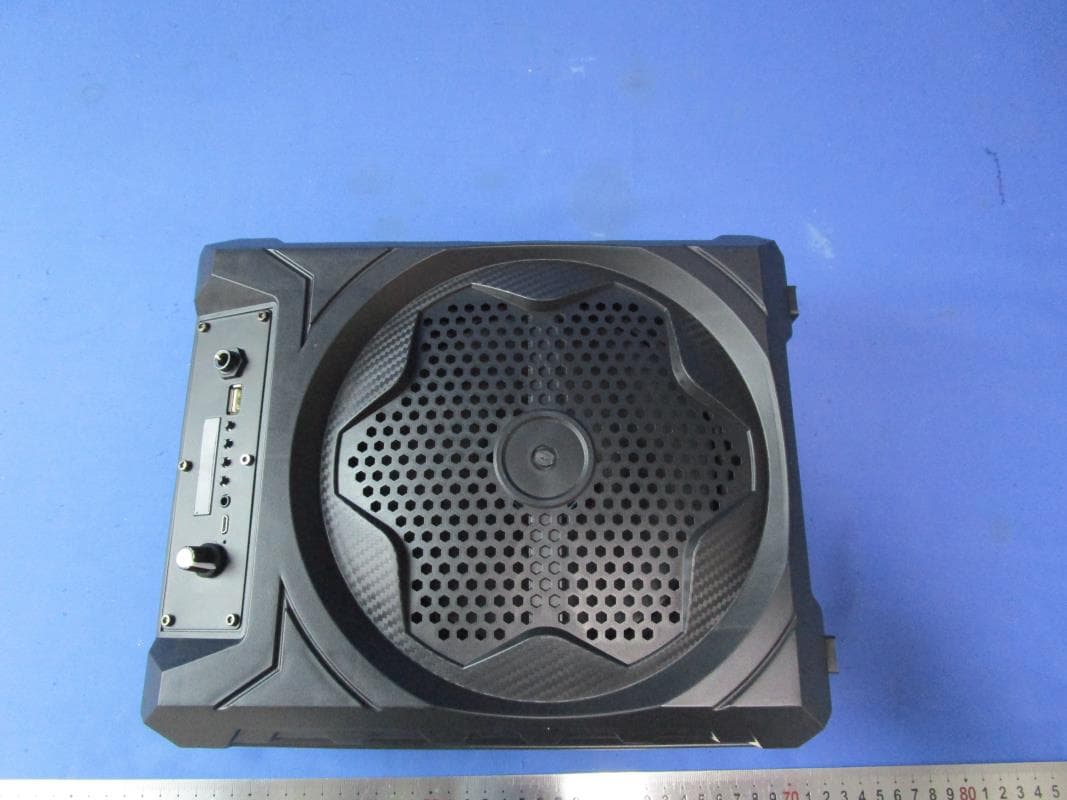

External Photos

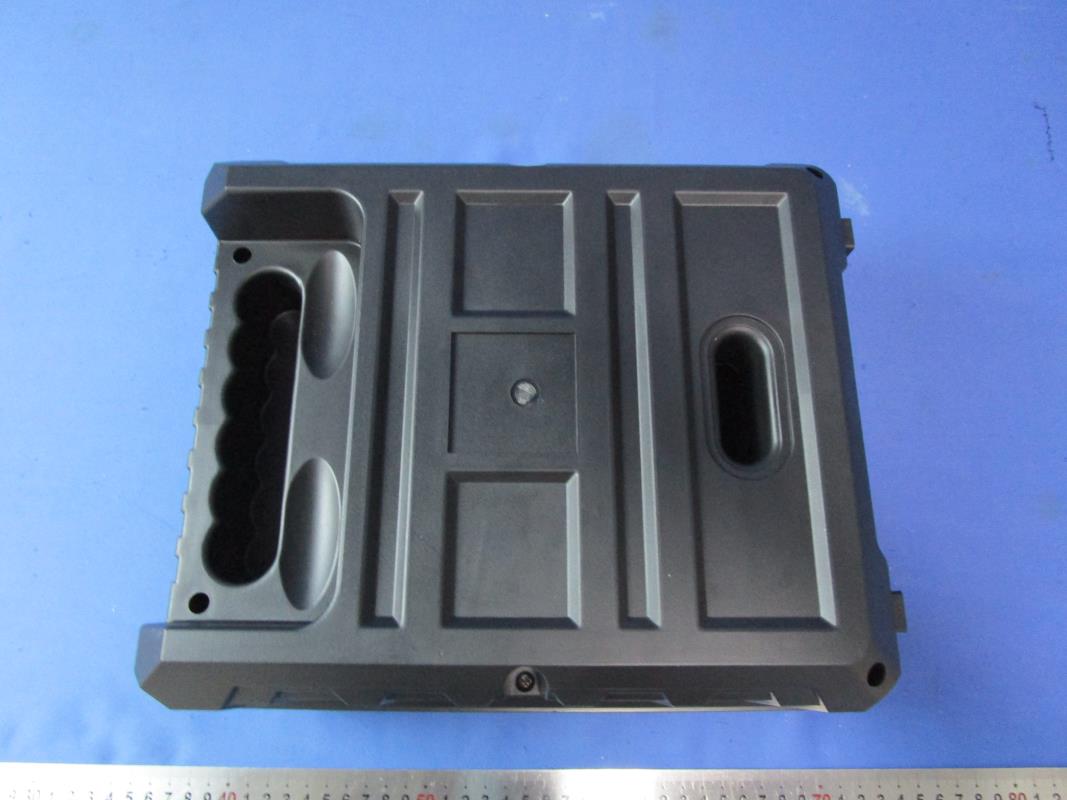

Size: 49 * 49 mm Rear View

Internal Photos

INTERTEK TESTING SERVICES RF Exposure The equipment under test (EUT) is a Wireless Party Speaker with Bluetooth 5.0 (Single Mode EDR) function operating in 2402-2480MHz. The EUT is powered by DC 3.7V by rechargeable battery and the Bluetooth function will be closed while charging. For more detail information pls. refer to the user manual. Modulation Type: GFSK, π/4-DQPSK and 8-DPSK Bluetooth Version: 5.0 (Single Mode EDR) Antenna Type: Integral antenna. Antenna Gain: -0.58 dBi Max The nominal conducted output power specified: -1.0dBm (+/- 2dB). The nominal radiated output power (e.i.r.p) specified: -1.58dBm (+/- 2dB). According to the KDB 447498: The maximun peak radiated emission for the EUT is 94.1dBμV/m at 3m in the frequency 2480MHz The EIRP = [(FS*D) ^2 / 30] mW = -1.13dBm which is within the production variation. The minimum peak radiated emission for the EUT is 92.5dBμV/m at 3m in the frequency 2402MHz The EIRP = [(FS*D) ^2 / 30] mW = -2.73dBm which is within the production variation. The maximun conducted output power specified is 1.0dBm = 1.259mW The source- based time-averaging conducted output power = 1.259 * Duty factor mW (where Duty Factor ≤1) = 1.259mW The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. FCC ID: 2AWHGTK-28

GUANGZHOU RUIMA ELECTRONICS CO., LIMITED TEST REPORT SCOPE OF WORK FCC TESTING–TK-28, ISB200B REPORT NUMBER 200509040SZN-002 ISSUE DATE [REVISED DATE] June 09, 2020 [---------------------] PAGES 24 DOCUMENT CONTROL NUMBER FCC ID 249_C © 2017 INTERTEK Intertek Report No.: 200509040SZN-002 This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, ShenZhen, P.R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Version: 01-November-2017 Page: 1 of 24 FCC ID 249_C Test Report GUANGZHOU RUIMA ELECTRONICS CO., LIMITED Application For Certification FCC ID: 2AWHGTK-28 WIRELESS PARTY SPEAKER Model: TK-28, ISB200B Brand Name: ILIVE 2.4GHz Transceiver Report No.: 200509040SZN-002 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-19] Prepared and Checked by: Approved by: Judy Xu Assistant Engineer Kidd Yang Technical Supervisor Date: June 09, 2020 Intertek Report No.: 200509040SZN-002 Version: 01-November-2017 Page: 2 of 24 FCC ID 249_C Test Report MEASUREMENT/TECHNICAL REPORT This report concerns (check one:) Original Grant X Class II Change Equipment Type: DXX - Part 15 Low Power Communication Device Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [10-1-19 Edition] provision. Report prepared by: Judy Xu Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, ShenZhen, P.R. China Tel / Fax: 86-755-8614 0743/86-755-8601 6680 Intertek Report No.: 200509040SZN-002 Version: 01-November-2017 Page: 3 of 24 FCC ID 249_C Test Report Table of Contents 1.0 Summary of Test Result ................................................................................................. 4 2.0 General Description ...................................................................................................... 5 2.1 Product Description .................................................................................................... 5 2.2 Related Submittal(s) Grants ......................................................................................... 5 2.3 Test Methodology ...................................................................................................... 5 2.4 Test Facility ............................................................................................................... 5 3.0 System Test Configuration ............................................................................................. 6 3.1 Justification ............................................................................................................... 6 3.2 EUT Exercising Software .............................................................................................. 6 3.3 Special Accessories ..................................................................................................... 6 3.4 Equipment Modification .............................................................................................. 6 3.5 Measurement Uncertainty .......................................................................................... 7 3.6 Support Equipment List and Description ........................................................................ 7 4.0 Emission Results ........................................................................................................... 8 4.1 Radiated Test Results .................................................................................................. 8 4.1.1 Field Strength Calculation ......................................................................................... 8 4.1.2 Radiated Emission Configuration Photograph .............................................................. 9 4.1.3 Radiated Emissions .................................................................................................. 9 4.1.4 Transmitter Spurious Emissions ............................................................................... 12 5.0 Equipment Photographs .............................................................................................. 16 6.0 Product Labelling ........................................................................................................ 16 7.0 Technical Specifications ............................................................................................... 16 8.0 Instruction Manual ..................................................................................................... 16 9.0 Miscellaneous Information .......................................................…

Text truncated - open the document above for the full version.

Radiated Emission (Up to 1GHz) (The EUT placed at the center of the turntable) Radiated Emission (Above 1GHz) (The EUT placed at the center of the turntable)
