2AWHJ-MICRO2Bluetooth Speaker

MICRO 2 Bluetooth Speaker 01 Warning To ensure proper use and trouble‐free operation, please carefully read this user manual. For first time use, a full charge is recommended. ∙Please use and store this product at room temperature. ∙Do not expose this product to conditions such as rain, fire, high temperature or direct sunlight. Do not use organic solvents or other chemicals to clean this product. ∙Do not throw or drop this product to avoid damage. Do not allow small particles to get into this product. Please adjust speaker volume accordingly to avoid temporary or permanent hearing loss. ∙Do not disassemble or modify this product. The warranty will be voided. ∙Only charge with a rated voltage charger. Supervise the use of this product with children. Note: 1. Improper battery replacementmaycauseexplosion.Only replace with the same type or equivalent battery. 2. Do not expose the battery to sunlight, fire or excessive heat. 02 Packing Contents MICRO 2 Speaker *1 User Manual *1 Type‐Cchargingcable*1 Lanyard *1 03 Button Functions Power Key:Press and hold for 2 seconds to power on/off. Play / Pause:Short press to pause / play music. Bluetooth connection: Short press twice to disconnect. Short press again to reconnect last‐paired device. Bluetooth hands‐free function: Short press to answer the phone / hang up. Press and hold to reject the call. 04 Ports Function Charging: Charge with a DC5V‐500mA or higher USB adaptor. Built‐in LED Indicatorstays on while charging. When fullycharged the light turns off. 05 Bluetooth Connection Turn on the speaker: Turn on Bluetooth on your mobile device or computer. Find the Bluetooth device “My MICRO 2” and connect it If a password prompt appears, input “0000” and confirm to connection. Next time the speaker will automatically reconnect to the last paired device once your device’s Bluetooth is turned on. 06 True Wireless Stereo Function TWS Connection Turn on two MICRO 2 speakers and make sure neither of them is paired with your device. Choose either one of the speakers and short press the power key twice.You will hear a “Ding Dong” sound while pairing from the main speaker). After the “Ding Dong” sound, the TWS system is set up successfully. Main Speaker Sub‐speaker 1) The TWS system only supports two speakers. 2) Once the two speakers are paired, they will remember the main and sub speaker. Next time,they will reconnect automatically. 3) When TWS is paired successfully, both speakers will have the same functions simultaneously. 07 Specifications Technical Parameters Power supply: Built‐in 500mAh lithium battery Charging time: DC5V‐500mA fully charges within 2 hours Playtime: 4+ hours at mid‐volume Speaker system: 1.5‐inch internal magnetic trumpet Output power: 3W THD=1% Frequency response: 120Hz‐20KHz Bluetooth version: Bluetooth 5.0 External interface: USB Type‐C Dimension Product net weight: 116g （including built‐in lithium battery） Product size: W 56×D56×H35 (mm) 08 FAQ Questions Solutions Cannot connect to your device 1. Restart the speaker 2.If password request is prompted, enter 0000 No voice or intermittently playing 1. Ensure the speaker is within the operating range 2.Check that the speaker and device range are not blocked. No sound when playing 1.Checkandadjustthevolumelevel 2. Check whether speaker is paused or on mute setting Cannot power on 1. Check battery level 2. Ensure power adapter & cables are functioning 3. Charge speaker and try again FCC Statement Changes or modifications not expressly approved by the party responsiblefor compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can bedetermined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

ADX LABS, INC 2020-08-12 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AWHJ-MICRO2 Product Name: Bluetooth Speaker Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: •Schemat ics •Block di agram •Operation description •BOM These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Si gnature> Name: J onathan Neil Title: Manager Company: ADX LABS, INC

ADX LABS, INC 2020-08-12 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen Tongce Testing Lab. / 1B/F., Building 1, Yibaolai Industrial Park, Qiaotou, Fuyong, Baoan District, Shenzhen, Guangdong, China (Name of Agent company name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with ADX LABS, INC / 120 South 6th Street, Suite 1000/10th Floor, Minneapolis, Minnesota,55402 United States (Applicant Name and address) <Signature> Name: Jonathan Neil Title: Manager Applicant Company: ADX LABS, INC

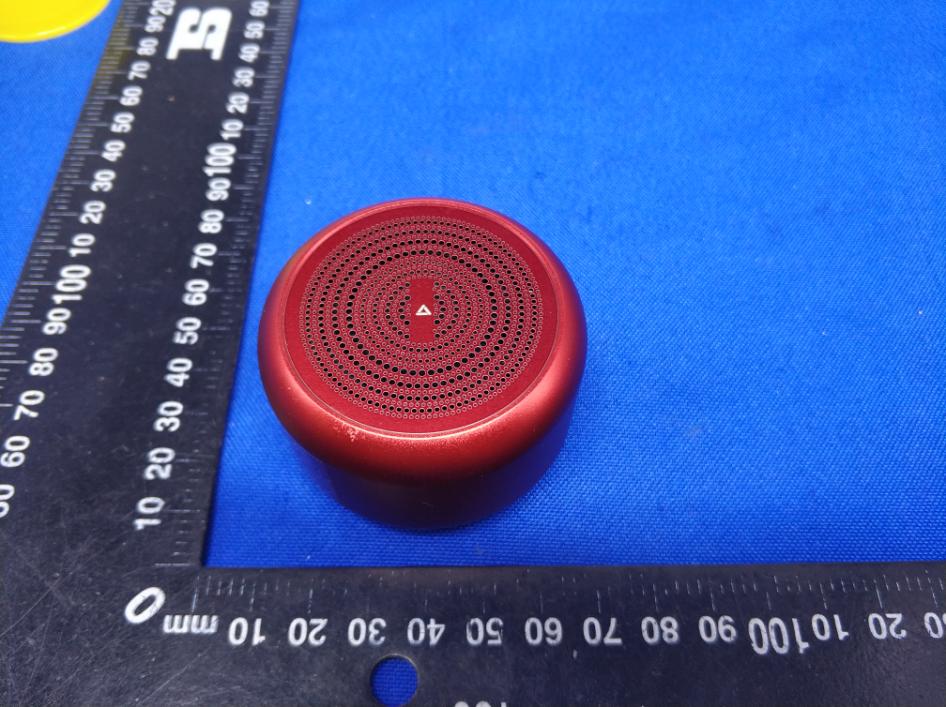

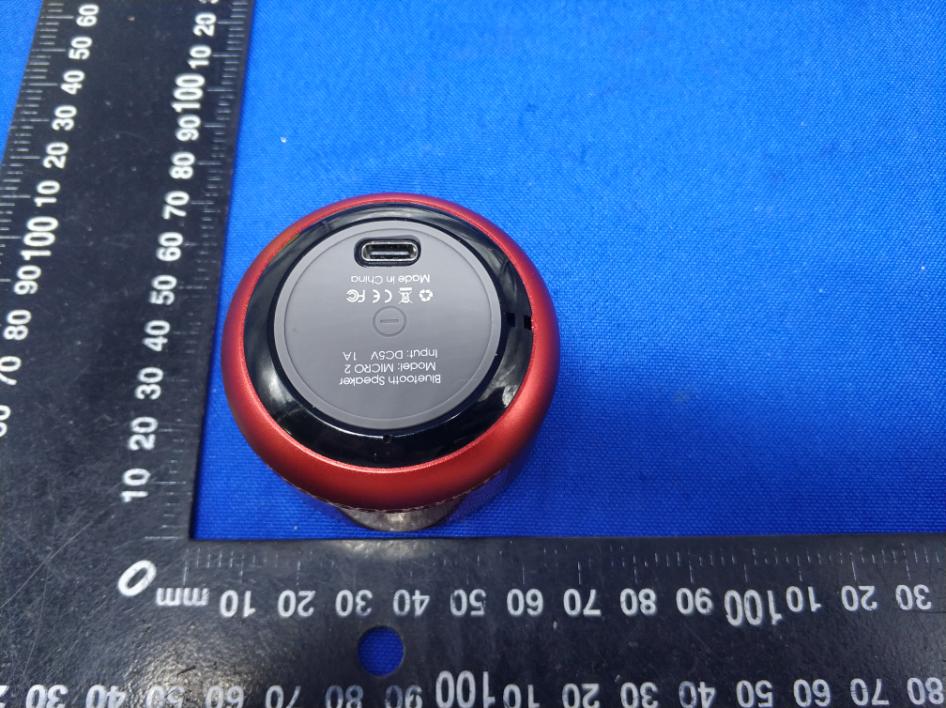

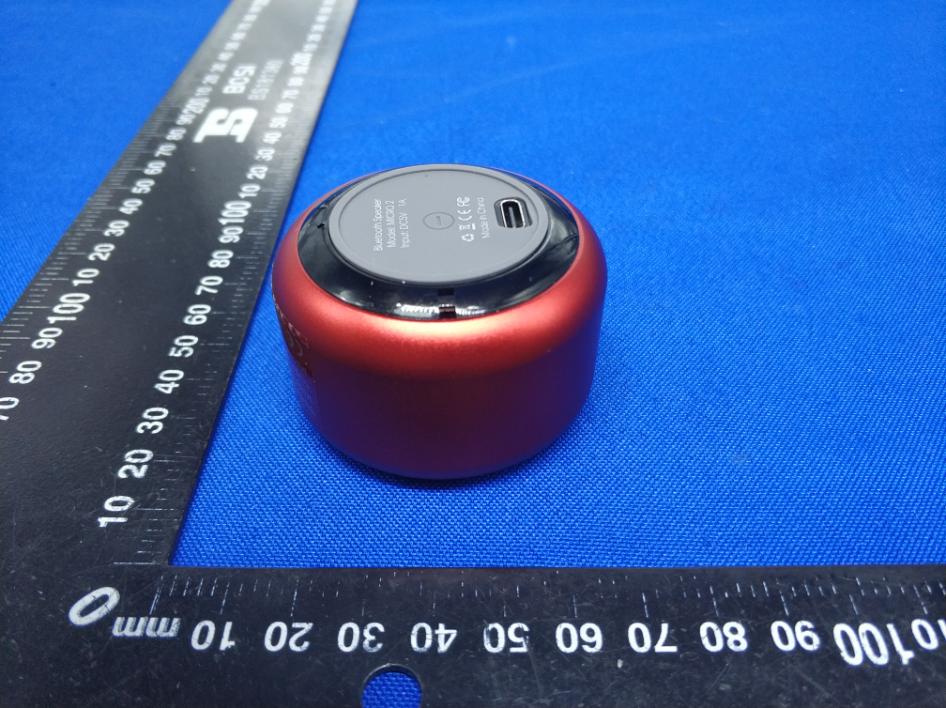

Page 1 of 4 Appendix B: Photographs of EUT Product: Bluetooth Speaker Model: MICRO 2 External Photos Page 2 of 4 Page 3 of 4 Page 4 of 4

Label Artwork and Location Model: MICRO 2 Label: Size: L*W=42*20mm Location 5mm

Page 1 of 4 Appendix B: Photographs of EUT Product: Bluetooth Speaker Model: MICRO 2 Internal Photos Page 2 of 4 Page 3 of 4 Antenna Page 4 of 4

RF exposure evaluation §2.1093 Radiofrequency radiation exposure evaluation: Portable Devices. According to§15.247(i) and§1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidance. The 1-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  When the minimum test separation distance is < 5 mm, a distance of 5 mm according is applied to determine SAR test exclusion.  The result is rounded to one decimal place for comparison  Channel Frequency (GHz) Max. Power (dBm) Tune up Power (dBm) Max. Tune up Power (dBm) Max. Tune up Power (mW) Test distance (mm) Result exclusion thresholds for 1-g SAR CH 78 2.480 6.78 6.5±1 7.5 5.62 5 1.77 3.0 Result: Base on the calculation value, No SAR measurement is required.

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID: 2AWHJ-MICRO2 Product: Bluetooth Speaker Model No.: MICRO 2 Additional Model No.: N/A Trade Mark: MyMy Music Report No.: TCT200715E014 Issued Date: Jul. 31, 2020 Issued for: ADX LABS, INC 120 South 6th Street, Suite 1000/10th Floor, Minneapolis, Minnesota, 55402 United States Issued By: Shenzhen Tongce Testing Lab. 1B/F., Building 1, Yibaolai Industrial Park, Qiaotou, Fuyong, Baoan District, Shenzhen, Guangdong, China TEL: +86-755-27673339 FAX: +86-755-27673332 Note: This report shall not be reproduced except in full, without the written approval of Shenzhen Tongce Testing Lab. This document may be altered or revised by Shenzhen Tongce Testing Lab. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT200715E014 Page 2 of 58 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. Test Certification ..................................................................................... 3 2. Test Result Summary .............................................................................. 4 3. EUT Description ....................................................................................... 5 4. General Information ................................................................................. 6 4.1. Test environment and mode ................................................................................. 6 4.2. Description of Support Units ................................................................................ 6 5. Facilities and Accreditations .................................................................. 7 5.1. Facilities ................................................................................................................. 7 5.2. Location ................................................................................................................. 7 5.3. Measurement Uncertainty ..................................................................................... 7 6. Test Results and Measurement Data ..................................................... 8 6.1. Antenna requirement ............................................................................................ 8 6.2. Conducted Emission ............................................................................................. 9 6.3. Conducted Output Power ................................................................................... 13 6.4. 20dB Occupy Bandwidth .................................................................................... 17 6.5. Carrier Frequencies Separation ......................................................................... 21 6.6. Hopping Channel Number .................................................................................. 25 6.7. Dwell Time ............................................................................................................ 28 6.8. Pseudorandom Frequency Hopping Sequence ................................................ 32 6.9. Conducted Band Edge Measurement ................................................................ 33 6.10. Conducted Spurious Emission Measurement ................................................. 36 6.11. Radiated Spurious Emission Measurement .................................................... 39 Appendix A: Photographs of Test Setup Appendix B: Photographs of EUT Report No.: TCT200715E014 Page 3 of 58 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. Test Certification Product: Bluetooth Speaker Model No.: MICRO 2 Additional Model No.: N/A Trade Mark: MyMy Music Applicant: ADX LABS, INC Address: 120 South 6th Street, Suite 1000/10th Floor, Minneapolis, Minnesota, 55402 United States Manufacturer: ADX LABS, INC Address: 120 South 6th Street, Suite 1000/10th Floor, Minneapolis, Minnesota, 55402 United States Date of Test: Jul. 16, 2020 – Jul. 30, 2020 Applicable Standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 FCC KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10:2013 The above equipment has been tested by Shenzhen Tongce Testing Lab. and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By: Date: Jul. 30, 2020 Aaron Mo Reviewed By: Date: Jul. 31, 2020 Beryl Zhao Approved By: Date: Jul. 31, 2020 Tomsin Report No.: TCT200715E014 Page 4 of 58 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. Test Result Summary Requirement CFR 47 Section Result Antenna Requirement §15.203/§15.247 (c) PASS AC Power Line Conducted Emission §15.207 PASS Conducted Peak Output Power §15.247 (b)(1) PASS 20dB Occupied Bandwidth §15.247 (a)(1) PASS Carrier Frequencies Separation §15.247 (a)(1) PASS Hopping Channel Number §15.247 (a)(1) PASS Dwell Time §15.247 (a)(1) PASS Radiated Emission §15.205/§15.209 PASS Band Edge §15.247(d) PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. Report No.: TCT200715E014 Page 5 of 58 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 3. EUT Description Product: Bluetooth Speaker Model No.: MICRO 2 Additional Model No.: N/A Trade Mark: MyMy Music Hardware Version: V3.0 Software Version: V2.6.3 Bluetooth Version: V5.0 Operation Frequency: 2402MHz~2480MHz Transfer Rate: 1/2 Mbits/s Number of Channel: 79 Modulation Type: GFSK, π/4-DQPSK Modulation Technology: FHSS Anten…

Text truncated - open the document above for the full version.

Page 1 of 2 Appendix A: Photographs of Test Setup Product: Bluetooth Speaker Model: MICRO 2 Radiated Emission Page 2 of 2 Conducted Emission
