2AWHK-R10Selfie Artifact

user's manual Selfie Artifact Model: R10 ,QG LFD WRUOLJKW C a me r a button In structions： 1. Press and hold the device button for 3 seconds, the indicator light flashes blue once, and the device is turned on. 2. Turn on the phone's Bluetooth, search for the device, device name (camera remote control). 3. After pairing and connecting the device, turn on the camera of the phone, and then you can control the phone to take pictures or record videos through the buttons of the device. 4. Press and hold the button for 3 seconds, the blue light flashes 3 times, and the device shuts down. Tips: You don't need to shut down when not in use, the device will automatically enter sleep mode. If you do not use it for a long time, it is recommended to disconnect Bluetooth or shut down. Specification 1.Charger: Input: DC 5V from Adapter For battery: 3.7VDC 2.Maximum power: 1.45mW 3.Operating frequency range: 2402-2480MHz 4.Hardware Version: EF-CRC-V1.0 5.Software Version: V5.1 1.Avoid soaking or splashing. 2.Do not put into fire. 3.Do not disassemble. Attention Warranty certificate Client’s name : Contact number : Username : Correspondence address: Email address: Product information : Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE： This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE： This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. RF exposure compliance statement: This device has been evaluated to meet the general RF exposure requirement After - sales Service Center of Shenzhen E-FORUNE Digital Manufactory Limited. Tel : +86-755-81495228 A ddress: Floor 4, building 4, Jinmeiwei Industrial Park, 12 xingye west road, Shajing Street, Baoan District, Shenzhen, China http://www.efn.cn

Shenzhen E-FORUNE Digital Manufactory Limited Agent Authorization Company: Shenzhen E-FORUNE Digital Manufactory Limited Address: Floor 4, building 4, Jinmeiwei Industrial Park, 12 xingye west road, Shajing Street, Baoan District, Shenzhen, China Product Name: Selfie Artifact Model Number(s): R10, R11, R12, R13, R14, R15 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Date: Jun. 02, 2020Signature: Name: Jinlong Liu Title: manager Company: Shenzhen E-FORUNE Digital Manufactory Limited

Shenzhen E-FORUNE Digital Manufactory Limited Model Confirmation Letter We, Shenzhen E-FORUNE Digital Manufactory Limited , certify the product: Selfie Artifact , Model No.: R10, R11, R12, R13, R14, R15 All models have the same functionality, software and electronics, only the color and model names may differ. Test sample model: R10 Signiture: Grantee Contact: Jinlong Liu Company Name: Shenzhen E-FORUNE Digital Manufactory Limited Date: Jun. 02, 2020

Shenzhen E-FORUNE Digital Manufactory Limited Date: Jun. 02, 2020 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject; Request for Confidentiality FCC ID: 2AWHK-R10 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Jinlong Liu Title: manager

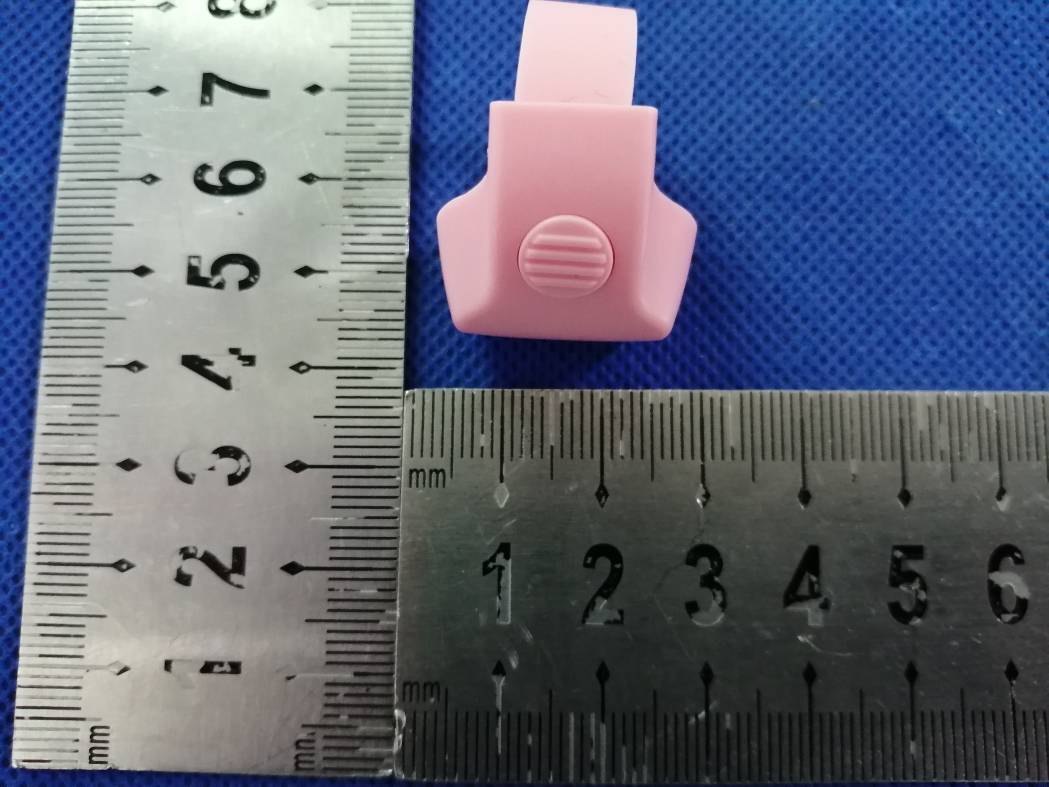

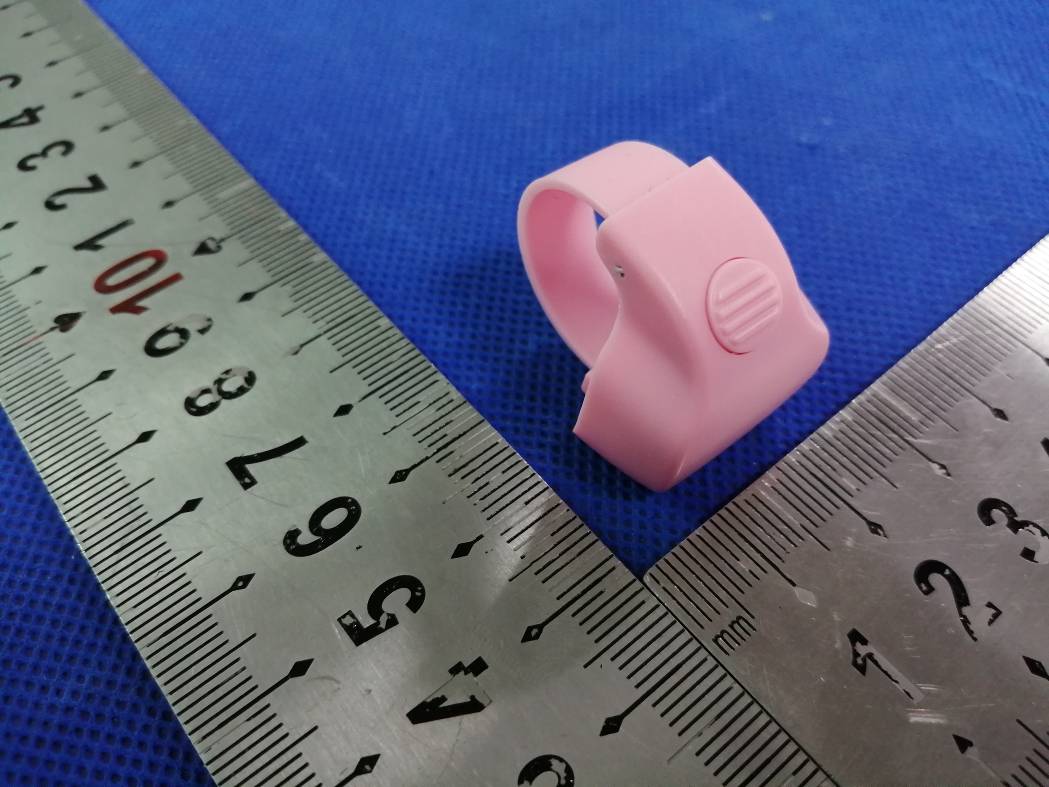

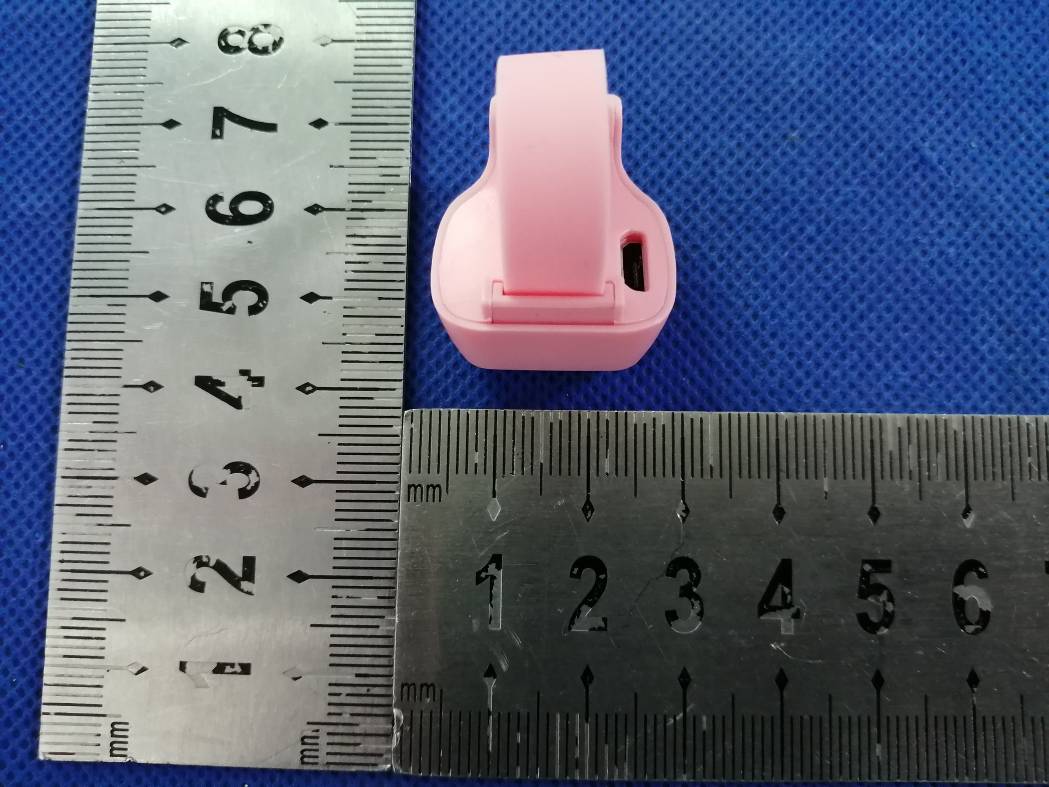

External photos

Selfie Artifact MODEL: R10 FCC ID: 2AWHK‐R10 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. SIZE:15*10mm

Internal photos BT antenna

RF Exposure Evaluation Test report On Behalf of Shenzhen E-FORUNE Digital Manufactory Limited For Selfie Artifact Model No.: R10, R11, R12, R13, R14, R15 FCC ID: 2AWHK-R10 Prepared for : Shenzhen E-FORUNE Digital Manufactory Limited Floor 4, building 4, Jinmeiwei Industrial Park, 12 xingye west road, Shajing Street, Baoan District, Shenzhen, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1F, B2 Building, JunfengZhongchengZhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China Date of Test: May 22, 2020 ~ Jun. 01, 2020 Date of Report: Jun. 01, 2020 1 General Description of EUT Product Name: Selfie Artifact Model/Type reference: R10 Serial Model: R11, R12, R13, R14, R15 Model Difference All models have the same functionality, software and electronics, only the color, front frame shape and model names may differ. Test sample model: R10 Trade Mark N/A FCC ID 2AWHK-R10 Hardware Version: EF-CRC-V1.0 Software Version: V5.1 Version: Supported EDR Modulation: GFSK, π/4DQPSK Operation frequency: 2402MHz~2480MHz Channel number: 79CH Channel separation: 1MHz Antenna type: PCB Antenna Antenna gain: 0 dBi Power supply: DC 3.7V from lithium battery 2 RF Exposure ComplianceRequirement The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]· [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, Wheref(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearsetmW and mm before calcution The results is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mmand for transmission frequencies between 100 MHz and 6 GHz. When the minimum testseparationdistance is < 5 mm, a distance of 5 mm is applied to determine SAR testexclusion 3 EUT RFExposure Antenna Gain: 0dBi Define the minimum distance: 5mm For Bluetooth: GFSK Channel Maximum Peak Conducted Output Power (dBm) Tune up tolerance (dBm) Maximum tune-up Power Calculated value Exclusion threshold (dBm) (mW) Lowest (2402MHz) 0.444 0±1 1 1.259 0.390 3.0 Middle (2441MHz) 0.335 0±1 1 1.259 0.393 Highest (2480MHz) -0.062 0±1 1 1.259 0.397 Conclusion: the calculated value ≤3.0, SAR is exempted. π/4DQPSK Channel Maximum Peak Conducted Output Power (dBm) Tune up tolerance (dBm) Maximum tune-up Power Calculated value Exclusion threshold (dBm) (mW) Lowest (2402MHz) 1.611 1±1 2 1.585 0.491 3.0 Middle (2441MHz) 1.609 1±1 2 1.585 0.495 Highest (2480MHz) 1.080 1±1 2 1.585 0.499 Conclusion: the calculated value ≤3.0, SAR is exempted. Note: For maximum peak conducted output power, please refer to Test report EDR

Page 1 of 54 Report No.: HK2005271157-E Prepared for : Shenzhen E-FORUNE Digital Manufactory Limited Floor 4, building 4, Jinmeiwei Industrial Park, 12 xingye west road, Shajing Street, Baoan District, Shenzhen, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China Date of Test: May 22, 2020 ~ Jun. 01, 2020 Date of Report: Jun. 01, 2020 Report Number: HK2005271157-E TEST REPORT FCC PART 15 SUBPART C 15.247 Test report On Behalf of Shenzhen E-FORUNE Digital Manufactory Limited For Selfie Artifact Model No.: R10, R11, R12, R13, R14, R15 FCC ID: 2AWHK-R10 Page 2 of 54 Report No.: HK2005271157-E TEST RESULT CERTIFICATION Applicant’s name .................. : Shenzhen E-FORUNE Digital Manufactory Limited Address ................................... : Floor 4, building 4, Jinmeiwei Industrial Park, 12 xingye west road, Shajing Street, Baoan District, Shenzhen, China Manufacture's Name............. : Shenzhen E-FORUNE Digital Manufactory Limited Address ................................... : Floor 4, building 4, Jinmeiwei Industrial Park, 12 xingye west road, Shajing Street, Baoan District, Shenzhen, China Product description Trade Mark ................................ : N/A Product name ........................... : Selfie Artifact Model and/or type reference . : R10, R11, R12, R13, R14, R15 Standards............................... : 47 CFR FCC Part 15 Subpart C 15.247 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test .............................................. : Date (s) of performance of tests .............. : May 22, 2020 ~ Jun. 01, 2020 Date of Issue............................................. : Jun. 01, 2020 Test Result ................................................. : Pass Prepared by: Project Engineer Reviewed by: Project Supervisor Approved by: Technical Director Page 3 of 54 Report No.: HK2005271157-E Table of Contents Page 1. SUMMARY .................................................................................................................................................................. 4 1.1. TEST STANDARDS ................................................................................................................................................ 4 1.2. TEST DESCRIPTION ................................................................................................................................................... 4 1.3. TEST FACILITY ......................................................................................................................................................... 5 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ........................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................................ 6 2.1. ENVIRONMENTAL CONDITIONS.................................................................................................................................... 6 2.2. GENERAL DESCRIPTION OF EUT.................................................................................................................................. 6 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY ...................................................................................................... 7 2.4. EQUIPMENTS USED DURING THE TEST .......................................................................................................................... 8 2.5. RELATED SUBMITTAL(S) / GRANT (S)............................................................................................................................ 9 2.6. MODIFICATIONS ...................................................................................................................................................... 9 2.7. DESCRIPTION OF TEST SETUP .............................................................................................................................. 9 2.8. DESCRIPTION OF SUPPORT UNITS ................................................................................................................................ 9 3. TEST CONDITIONS AND RESULTS .............................................................................................................................. 10 3.1. CONDUCTED EMISSIONS TEST .................................................................................................................................. 10 3.2. RADIATED EMISSIONS AND BAND EDGE ...................................................................................................................... 13 3.3. MAXIMUM PEAK CONDUCTED OUTPUT POWER ........................................................................................................... 24 3.4. 20DB BANDWIDTH ................................................................................................................................................ 27 3.5. FREQUENCY SEPARATION ......................................................................................................................................... 30 3.6. NUMBER OF HOPPING FREQUENCY ............................................................................................................................ 32 3.7. TIME OF OCCUPANCY (DWELL TIME) ......................................................................................................................... 34 3.8. OUT-OF-BAND EMI…

Text truncated - open the document above for the full version.

30MHz-1000MHz Above 1000MHz Conducted Emission
