2AWHS-BS0466Wireless Speaker With LED Light

1 RAV‐1/2358 THE PARAMOUNT DOUBLE 8 INCH WIRELESS SPEAKERS WITH LED LIGHTS INSTRUCTION MANUAL PLEASE READ ALL INSTRUCTIONS CAREFULLY AND RETAIN FOR FUTURE REFERENCE Getting Started 2  Remove the product from the packaging.  Please retain all packaging until you have checked and counted all the parts and the contents against the Package Contents list. Package Contents  Double 8 Inch Wireless Speakers With LED Lights  Type‐C Charging Cable  3.5mm Aux Cable  Wired Microphone  Remote Control  Instruction Manual Key Features  Support: Bluetooth, Micro SD, USB Slot, Aux, FM, TWS, Mic Input  Power: 20W  Bluetooth ‐ 5.3  Working distance ‐ 15 meters  Frequency response: 80Hz ‐ 16KHz  Speaker: 8” x 2 SAFETY INSTRUCTIONS  Keep the unit away from heat sources, direct sunlight, humidity, water and any other liquids.  Do not operate the unit if it has been exposed to water, moisture or any other liquids to prevent against electric shock, explosion and/or injury to yourself and damage to the speaker.  Do not use the unit if it has been dropped or damaged in any way.  Repairs to electrical equipment should only be performed by a qualified electrician. Improper repairs may place the user at serious risk.  Do not use the unit with wet hands.  Do not put objects into any of the openings.  Keep the unit free from dust, lint etc.  Do not use this unit for anything other than its intended use.  Keep the unit out of reach of children.  This unit is not a toy. Description of Parts 3 Number Item Function 1 ECHO KNOB Increase/decrease echo level 2 POWER ON/OFF SWITCH Turn On/Off Speaker 3 CHARGING INDICATOR Indicates the charging status 4 PLAY/PAUSE/SCAN/TWS PLAY/PAUSE/scan FM radio stations (only in FM radio mode)/TWS pairing and unpairing 5 VOLUME KNOB Increase/decrease speaker volume 6 MODE/LIGHT BUTTON Short press to change the mode between Bluetooth / USB / TF / AUX / FM radio, Long press to turn on/off the color changing LED light 7 MICRO SD (TF) CARD SLOT Micro SD (TF) card input 8 MIC VOLUME Increases/decrease the microphone volume 9 MIC INPUT Microphone input 10 DC 5V IN Charging port 11 PREVIOUS TRACK/STATION Bluetooth/USB/TF card mode: Skip to previous track, FM radio mode: Skip to the previous already saved radio station 4 12 LED DISPLAY Indicate the present function 13 NEXT TRACK/STATION Skip to the next track in Bluetooth/USB/TF card mode, skip to the next radio station in FM radio 14 AUX IN External audio input 15 USB SLOT USB input (Flash Drive) Remote Control Number Function Operation 1 On/Off Short press to turn on/off the speaker 2 Pause To play/pause the music from Bluetooth/USB/TF card mode playing 3 EQ Short press to choose your favorite EQ: Normal, Pop, Rock, Jazz, Classic or Country from USB/Micro SD (TF) function 4 Mode Short press the button each time to change the mode between Bluetooth / USB / TF / AUX / FM radio 5 Mute Turn output sound on/off 6 Previous track/station Bluetooth/USB/TF card mode: press the button to the previous track, FM radio mode: skip to previous saved radio station 7 Next track/station Bluetooth/USB/TF card mode: press the button to the next track, FM radio mode: skip to next radio station 8 Volume decrease ‐ Press and hold the button will decrease the volume 9 Volume increase + Press and hold the button will increase the volume 5 10 Repeat Repeat one/all songs from USB/Micro SD (TF) mode playing 11 USB/Micro SD (TF) Switching between USB and Micro SD (TF) mod playing 12 Numeric buttons Press numbers and it will move to track/station number from USB/Micro SD (TF)/FM radio function Battery Installation While using for the first time, remove the insulation tab from the battery compartment of the Remote Control. Remote Control includes the battery (1 CR2025/32 Lithium battery); when battery is drained, replace battery as below: 1. Remove the screw at the back. 2. Pull the battery tray out of the battery compartment of Remote Control. 3. Place new CR2025/32 button cell battery in the tray slot, as per the indicated polarity. 4. Close the battery tray and secure back the screw. WARNING This product contains a Button Cell Battery. A swallowed Button Cell Battery can cause internal chemical burns leading to death in as little as two hours. Dispose of used batteries immediately. Keep new and 6 used batteries away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. Do not mix with used or other types of batteries. INSTRUCTIONS FOR USE Charging the Speaker For best results, fully charge the unit before use. 1. Connect the Type‐C charging cable (included) to the DC 5V charging port of the speaker and insert the other end into a port on your computer or similar power source. 2. Red LED turns on indicating that the battery is being charged. Once it is fully charged, the Red LED will turn off. It takes about 3 to 5 hours to fully charge the speaker. Turn On/Off the Speaker Slide the POWER ON/OFF SWITCH to ON position to turn on the unit with color changing LED lights, or OFF position to turn off the unit. Pairing your device with the Speaker – Your Wireless Speakercan stream audio from any Bluetooth enabled device within the range of up to 10 meters. Simply follow the below steps. 1. Rotate the volume knob to your favorite sound level. 2. Turn ON the speaker. 3. LED display will show ‘HIFI’ and then ‘bLUE’ and indication tone would be heard. The speaker is now entering “pairing” mode. 4. Turn on the Bluetooth on your Mobile Phone or Tablet or Computer. 5. It will search for available Bluetooth devices. 6. The Bluetooth Speaker would appear as “SL PARAMOUNT”, in the list of searched devices. Select it from the available list of devices. 7. You might be prompted with “Pair with SL PARAMOUNT?” message on your source device, with “Cancel” and “OK” options. Please click “OK”. 8. If required, enter the password ‘0000’ to confirm pairing. 9. Once paired successfully, another i…

Text truncated - open the document above for the full version.

YOUNGSTAR ELECTRONIC CO., LIMITED 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – EquipmentType Company name: YOUNGSTAR ELECTRONIC CO., LIMITED Address: 7th Floor, HuaYi Building B block, Ping Ji Ave, Nanwan street, Longgang District, Shenzhen, 518114, China Product Name: Wireless Speaker With LED Light FCCID: 2AWHS-BS0466 Model(s): YS-BS0466, RAV-1/2358, YS-BS0437, YS-BS0469 2.911(d)(5)(i) EquipmentType We, [YOUNGSTAR ELECTRONIC CO., LIMITED] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Selina Lu Date: Jan. 09, 2024 Title: General Manage Company name: YOUNGSTAR ELECTRONIC CO., LIMITED Signature: NOTE 1 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

YOUNGSTAR ELECTRONIC CO., LIMITED 2.911 (d)(5)(ii) Applicant Attestation v1.3 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: YOUNGSTAR ELECTRONIC CO., LIMITED Address: 7th Floor, HuaYi Building B block, Ping Ji Ave, Nanwan street, Longgang District, Shenzhen, 518114, China Product Name: Wireless Speaker With LED Light FCCID: 2AWHS-BS0466 Model(s): YS-BS0466, RAV-1/2358, YS-BS0437, YS-BS0469 2.911(d)(5)(ii) Applicant filing We, [YOUNGSTAR ELECTRONIC CO., LIMITED] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is is not identified NOTE 1 on the “Covered List” NOTE 2 ,established pursuant to §1.50002 of this chapter,as an entity producing coveredcommunications equipment. Yours sincerely, Name: Selina Lu Date: Jan. 09, 2024 Title: General Manage Company name: YOUNGSTAR ELECTRONIC CO., LIMITED Signature: NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

YOUNGSTAR ELECTRONIC CO., LIMITED Agent Authorization Company: YOUNGSTAR ELECTRONIC CO., LIMITED Address: 7th Floor, HuaYi Building B block, Ping Ji Ave, Nanwan street, Longgang District, Shenzhen, 518114, China Product Name: Wireless Speaker With LED Light Model Number(s): YS-BS0466, RAV-1/2358, YS-BS0437, YS-BS0469 Product Description: Wireless Speaker With LED Light We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jan. 09, 2024 Name: Selina Lu Title: General Manage Company: YOUNGSTAR ELECTRONIC CO., LIMITED

YOUNGSTAR ELECTRONIC CO., LIMITED Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Jan. 09, 2024 Subject; Request for Confidentiality FCC ID: 2AWHS-BS0466 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Selina Lu Title: General Manage

YOUNGSTAR ELECTRONIC CO., LIMITED Model Difference Declaration To Whom It May Concern, We, YOUNGSTAR ELECTRONIC CO., LIMITED (Wireless Speaker With LED Light); Model Number: YS-BS0466, RAV-1/2358, YS-BS0437, YS-BS0469 Model Difference: All model’s the function, software and electric circuit are the same, only with product model named different. Test sample model: YS-BS0466. Please contact me if you have any question. Signature: Date: Jan. 09, 2024 Name: Selina Lu Title: General Manage

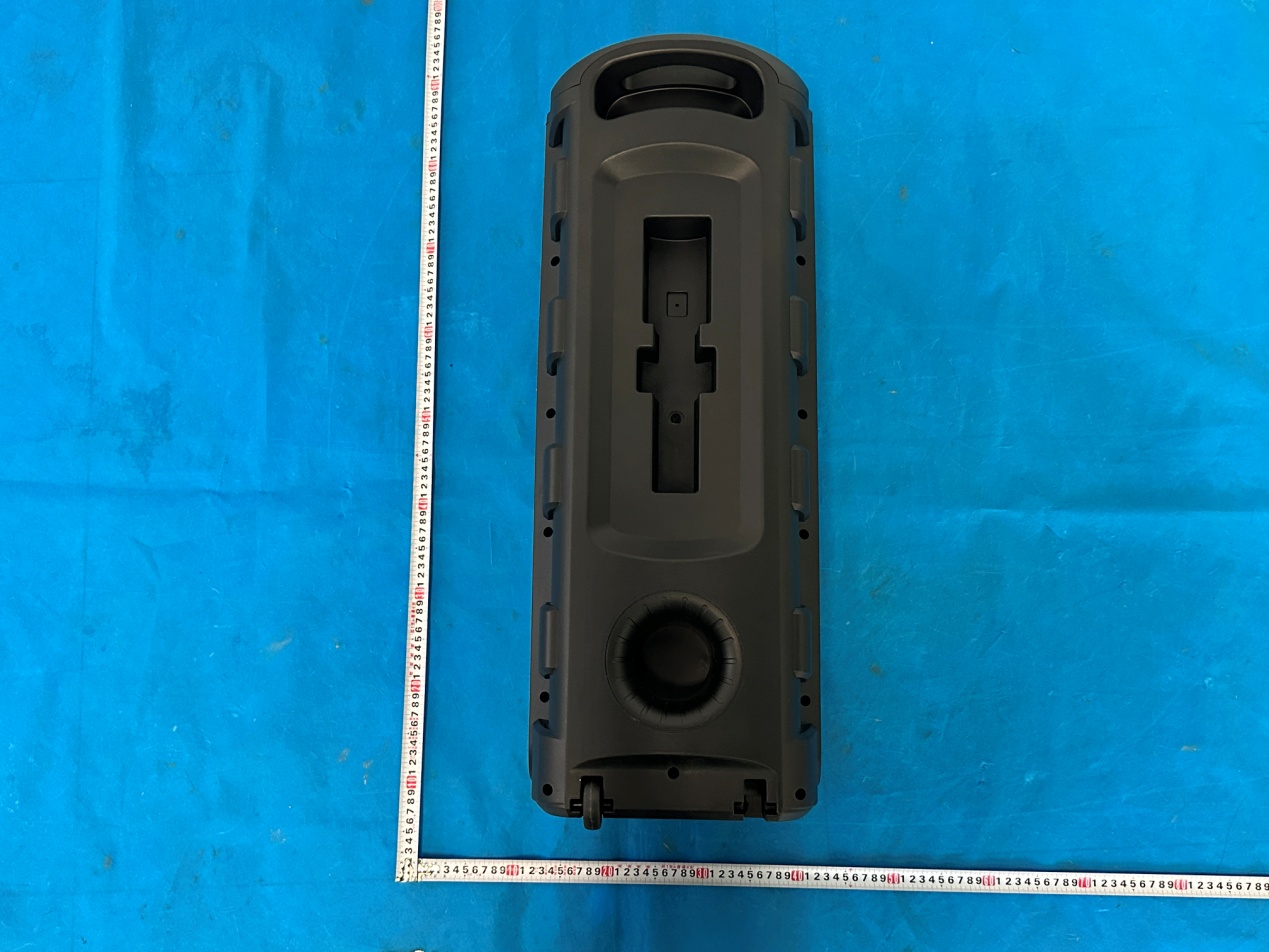

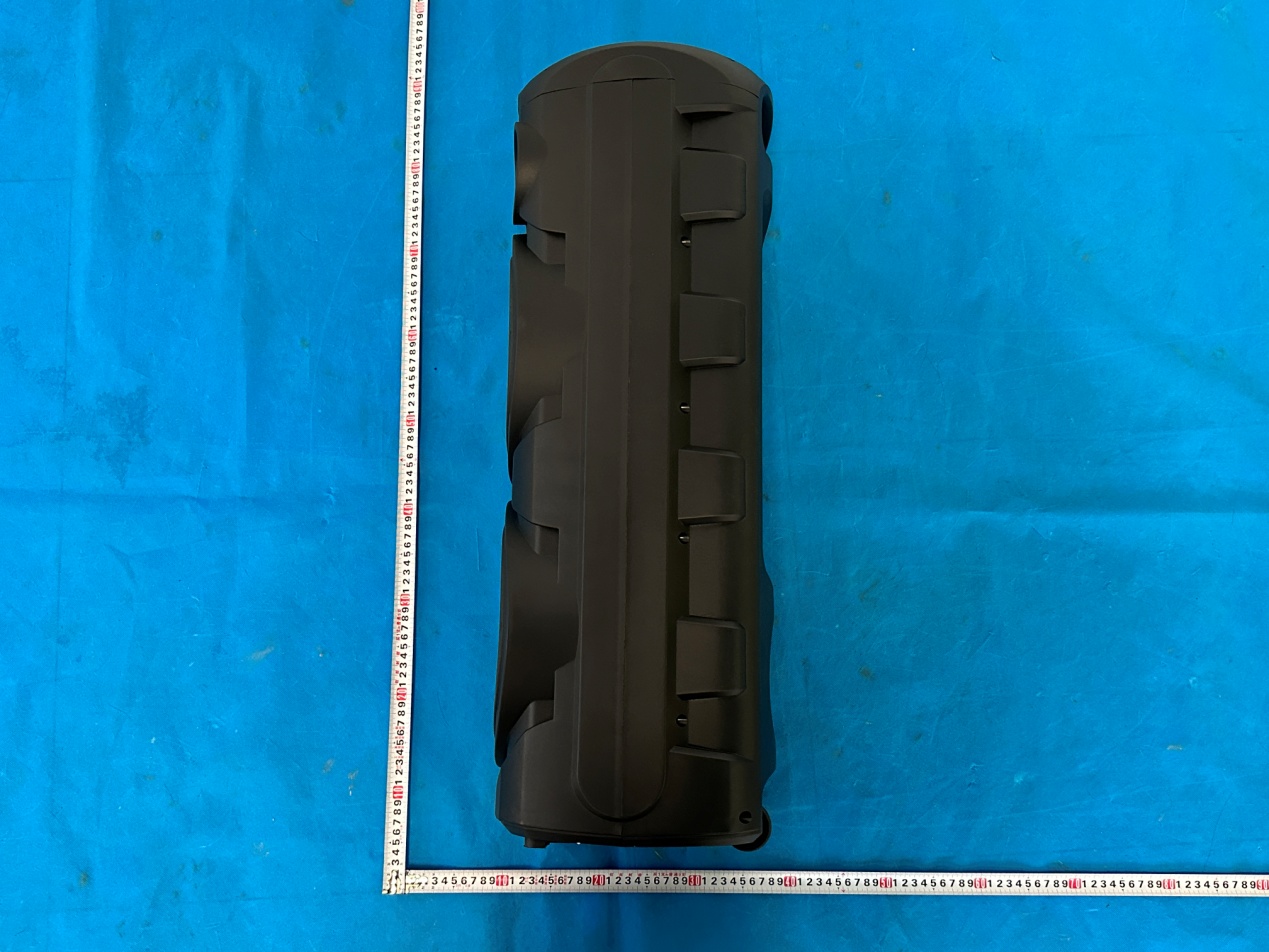

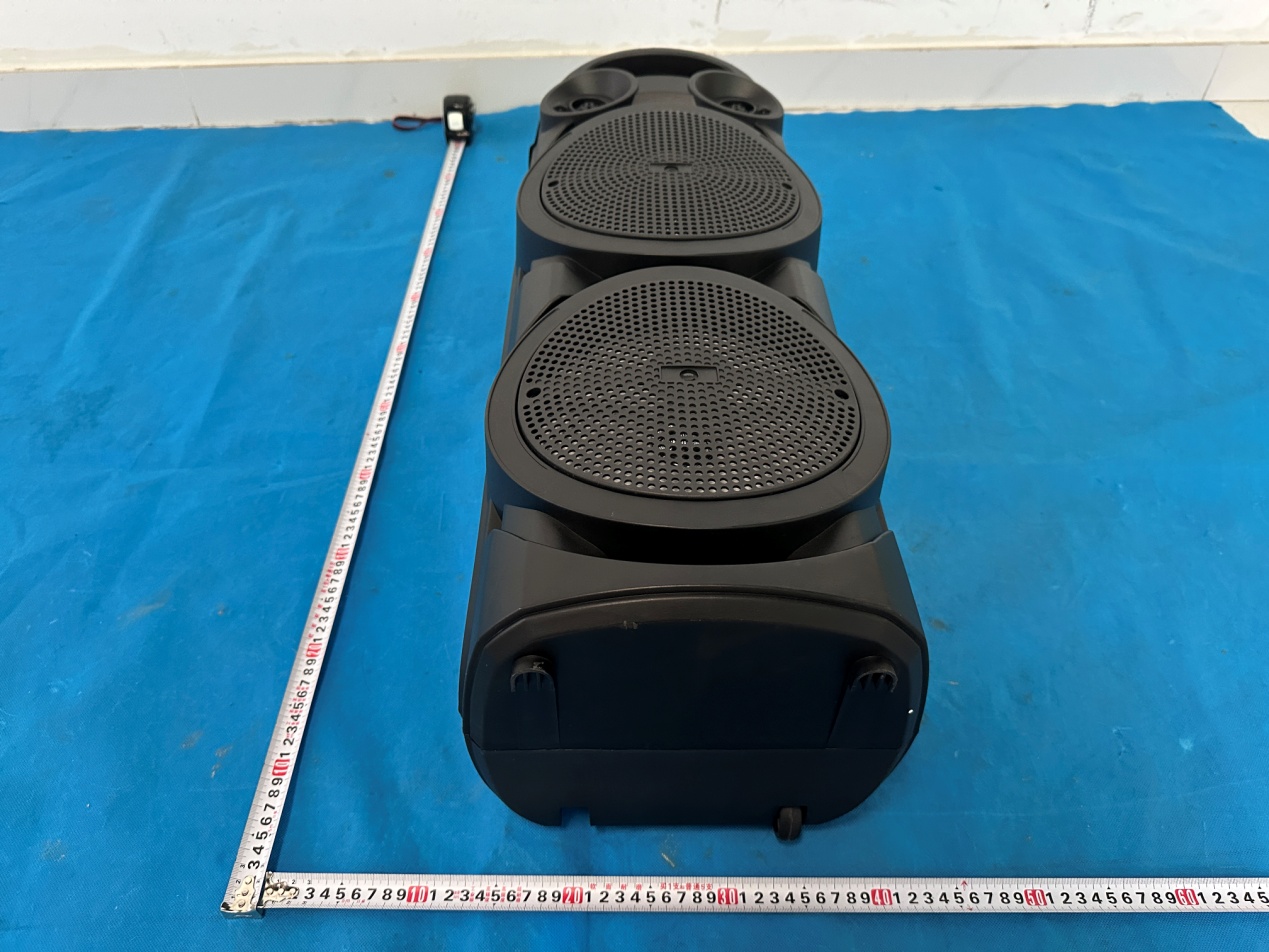

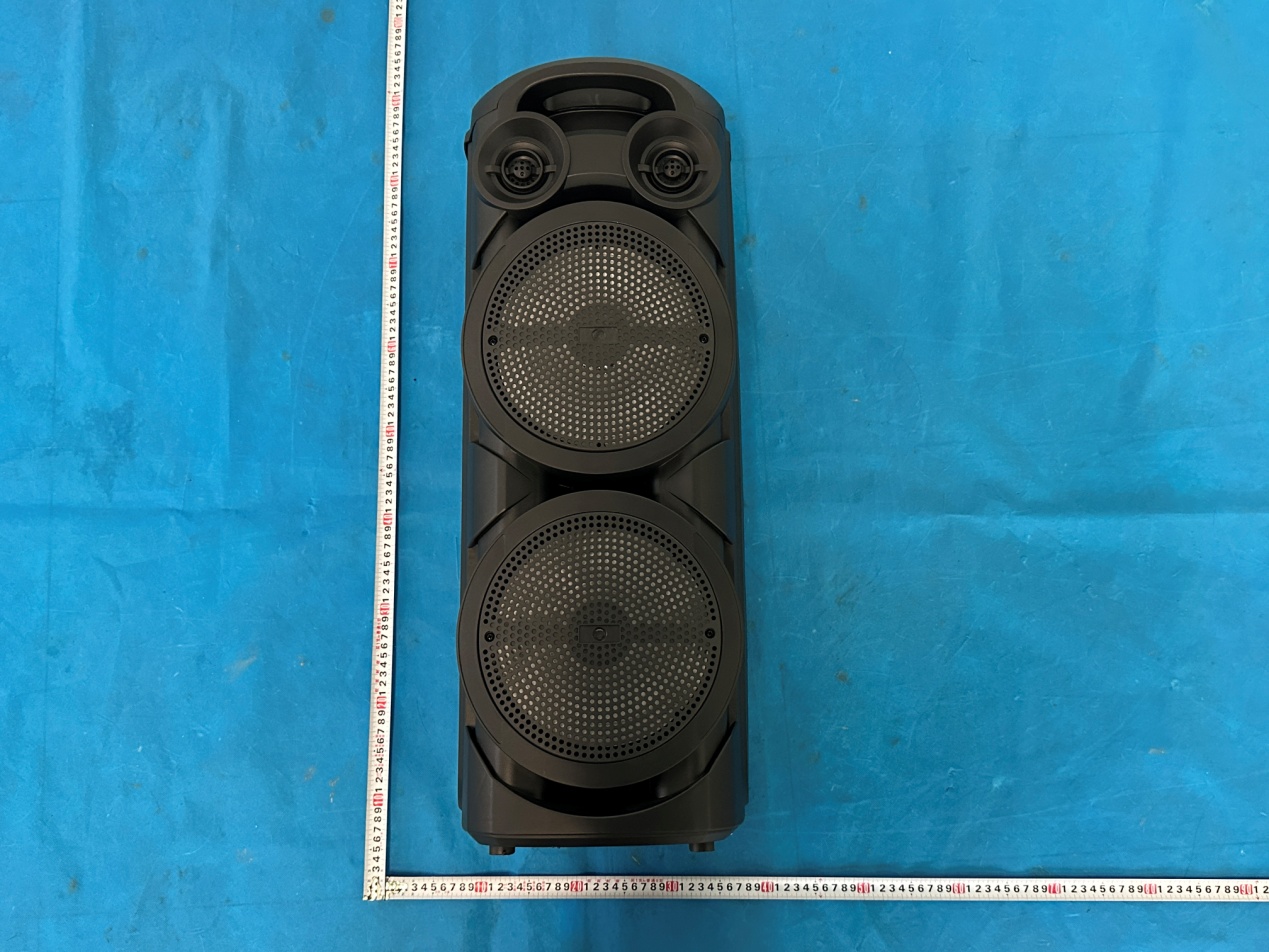

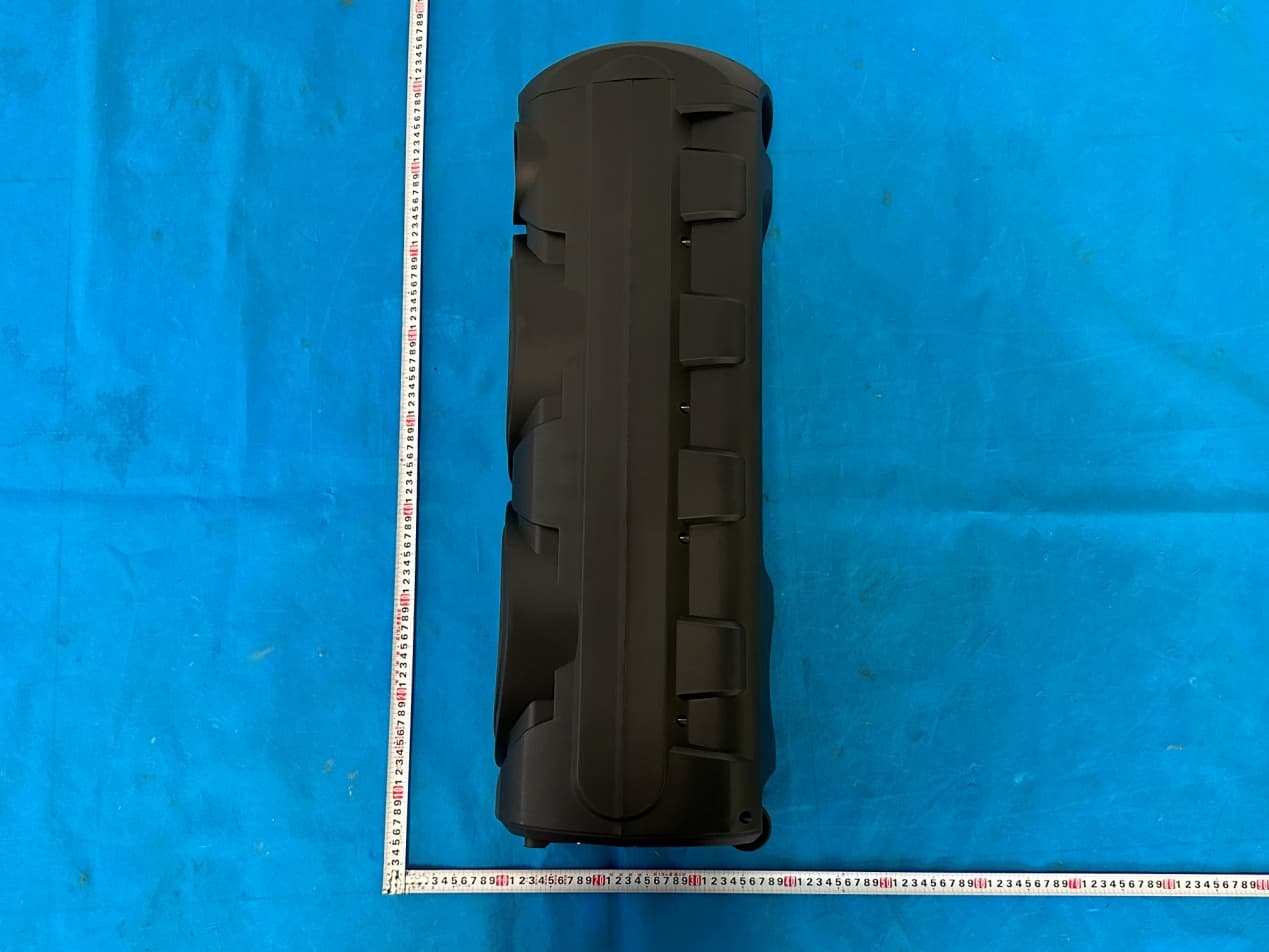

Annex A External Photos Report No.: HK2312296406-E Page 1 of 4 Report No.: HK2312296406-E Page 2 of 4 Report No.: HK2312296406-E Page 3 of 4 Report No.: HK2312296406-E Page 4 of 4

FCC ID LABEL: Ca. 20mm x 30mm label location FCC ID: 2AWHS‐BS0466

Annex B Internal Photo Report No.: HK2312296406-E Page 1 of 4 Report No.: HK2312296406-E Page 2 of 4 Antenna Report No.: HK2312296406-E Page 3 of 4 Report No.: HK2312296406-E Page 4 of 4

FCC RF Exposure EUT Description: Wireless Speaker With LED Light Model No.: YS‐BS0466 FCC ID: 2AWHS‐BS0466 1. Limits According to KDB 447498 D01 General RF Exposure Guidance v06 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)]·[√ f(GHz)]≤3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, Where: Result=P/D*√F F= the RF channel transmit frequency in GHz P=Maximum turn‐up power in mw D=Min. test separation distance in mm 2. Test Result of RF Exposure Evaluation Frequency (MHz) Output power (dBm) Tune Up Power (dBm) Max Tune Up power dBm/mW Min test separatio n distance mm Result Limit (mW/cm 2 ) SAR Test Exclusion 2402 2.5 2±1 3/2 5 0.61847 3.0 Pass Note: PK Output power= conducted power. Conducted power see the test report HK2312296406‐E, antenna gain= ‐0.68dBi Per KDB 447498 D01, when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine RF Exposure test exclusion. The test exclusion threshold is 0.61847 which is<= 3, RF Exposure testing is not required. Note: Exclusion Thresholds Results=[(max. power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] f(GHz) is the RF channel transmit frequency in GHz Distance=5mm

Page 1 of 53 Report No.: HK2312296406-E FCC Test Report FCC PART 15 SUBPART C 15.247 Test report On Behalf of YOUNGSTAR ELECTRONIC CO., LIMITED For Wireless Speaker With LED Light Model No.: YS-BS0466, RAV-1/2358, YS-BS0437, YS-BS0469 FCC ID: 2AWHS-BS0466 Prepared for : YOUNGSTAR ELECTRONIC CO., LIMITED 7th Floor, HuaYi Building B block, Ping Ji Ave, Nanwan street, Longgang District, Shenzhen, 518114, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: Dec. 29, 2023 ~ Jan. 05, 2024 Date of Report: Jan. 05, 2024 Report Number: HK2312296406-E Page 2 of 53 Report No.: HK2312296406-E Test Result Certification Applicant’s Name .................. : YOUNGSTAR ELECTRONIC CO., LIMITED Address .................................. : 7th Floor, HuaYi Building B block, Ping Ji Ave, Nanwan street, Longgang District, Shenzhen, 518114, China Manufacture's Name ............. : YOUNGSTAR ELECTRONIC CO., LIMITED Address .................................. : 7th Floor, HuaYi Building B block, Ping Ji Ave, Nanwan street, Longgang District, Shenzhen, 518114, China Product Description Trade Mark: N/A Product Name ........................... : Wireless Speaker With LED Light Model and/or type reference . : YS-BS0466, RAV-1/2358, YS-BS0437, YS-BS0469 Standards .............................. : 47 CFR FCC Part 15 Subpart C 15.247 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test .................................... . Date (s) of Performance of Tests .... . Dec. 29, 2023 ~ Jan. 05, 2024 Date of Issue .................................... Jan. 05, 2024 Test Result ........................................ Pass Testing Engineer : (Len Liao) Technical Manager : (Sliver Wan) Authorized Signatory : (Jason Zhou) Page 3 of 53 Report No.: HK2312296406-E Table of Contents Page 1. Summary .............................................................................................................................................................. 5 1.1. Test Standards ......................................................................................................................................................... 5 1.2. Test Description ....................................................................................................................................................... 5 1.3. Test Facility .............................................................................................................................................................. 6 1.4. Statement of the Measurement Uncertainty .......................................................................................................... 6 2. General Information ............................................................................................................................................. 7 2.1. Environmental Conditions ....................................................................................................................................... 7 2.2. General Description of EUT ..................................................................................................................................... 7 2.3. Description of Test Modes and Test Frequency ....................................................................................................... 8 2.4. Equipments Used during the Test ............................................................................................................................ 9 2.5. Related Submittal(s) / Grant (s) ............................................................................................................................. 10 2.6. Modifications ........................................................................................................................................................ 10 2.7. Description of Test Setup ....................................................................................................................................... 10 2.8. DESCRIPTION OF SUPPORT UNITS ......................................................................................................................... 11 3. Test Conditions and Results ................................................................................................................................. 12 3.1. Conducted Emissions Test ..................................................................................................................................... 12 3.2. Radiated Emissions and Band Edge ....................................................................................................................... 15 3.3. Maximum Peak Conducted Output Power ............................................................................................................ 26 3.4. 20dB Bandwidth .................................................................................................................................................... 27 3.5. Frequency Separation ........................................................................................................................................... 31 3.6. Number of Hopping Frequency ............................................................................................................................. 33 3.7. Time of Occupancy (Dwell Time) .......................................................................................................................... 35 3.8. Out‐of‐Band Emissions .....…

Text truncated - open the document above for the full version.

Page 31 of 53 Report No.: HK2312296406-E 3.5. Frequency Separation Limit Frequency hopping systems shall have hopping channel carrier frequencies separated by minimum of 25KHz or the 2/3*20dB bandwidth of the hopping channel, whichever is greater. Test Procedure The transmitter output was connected to the spectrum analyzer through an attenuator. The bandwidth of the fundamental frequency was measured by spectrum analyzer with 300 KHz RBW and 1000 KHz VBW. Test Configuration EUT SPECTRUM ANALYZER Test Results Modulation Channel Channel Separation (MHz) Limit(MHz) Result GFSK CH39 1.006 0.634 Pass CH40 π/4DQPSK CH39 0.996 0.916 Pass CH40 8DPSK CH39 1.002 0.892 Pass CH40 Note: We have tested all mode at high, middle and low channel, and recorded worst case at middle Page 32 of 53 Report No.: HK2312296406-E Test plot as follows: Frequency Separation GFSK π/4DQPSK 8DPSK Page 33 of 53 Report No.: HK2312296406-E 3.6. Number of Hopping Frequency Limit Frequency hopping systems in the 2400–2483.5 MHz band shall use at least 15 channels. Test Procedure The transmitter output was connected to the spectrum analyzer through an attenuator. Set spectrum analyzer start 2400MHz to 2483.5MHz. Test Configuration EUT SPECTRUM ANALYZER Test Results Modulation Number of Hopping Channel Limit Result GFSK 79 ≥15 Pass π/4DQPSK 79 8DPSK 79 Test plot as follows: Page 34 of 53 Report No.: HK2312296406-E GFSK Modulation π/4DQPSK Modulation 8DPSK Modulation Page 35 of 53 Report No.: HK2312296406-E 3.7. Time of Occupancy (Dwell Time) Limit The average time of occupancy on any channel shall not be greater than 0.4 seconds within a period of 0.4 seconds multiplied by the number of hopping channels employed. Test Procedure The transmitter output was connected to the spectrum analyzer through an attenuator. Set center frequency of spectrum analyzer=operating frequency with 1MHz RBW and 3MHz VBW, Span 0Hz. Test Configuration EUT SPECTRUM ANALYZER Test Results Modulation Packet Pulse time (ms) Dwell time (second) Limit (second) Result GFSK DH1 0.395 0.126 0.40 Pass DH3 1.652 0.264 DH5 2.899 0.309 π/4DQPSK 2-DH1 0.405 0.130 0.40 Pass 2-DH3 1.657 0.265 2-DH5 2.906 0.310 8DPSK 3-DH1 0.407 0.130 0.40 Pass 3-DH3 1.657 0.265 3-DH5 2.908 0.310 Note: 1. We have tested all mode at high,middle and low channel,and recoreded worst case at middle channel. 2. Dwell time=Pulse time (ms) × (1600 ÷ 2 ÷ 79) ×31.6 Second for DH1, 2-DH1, 3-DH1 Dwell time=Pulse time (ms) × (1600 ÷ 4 ÷ 79) ×31.6 Second for DH3, 2-DH3, 3-DH3 Dwell time=Pulse time (ms) × (1600 ÷ 6 ÷ 79) ×31.6 Second for DH5, 2-DH5, 3-DH5 Test plot as follows: Page 36 of 53 Report No.: HK2312296406-E GFSK Modulation DH1 DH3 DH5 Page 37 of 53 Report No.: HK2312296406-E π/4DQPSK Modulation 2-DH1 2-DH3 2-DH5 Page 38 of 53 Report No.: HK2312296406-E 8DPSK Modulation 3-DH1 3-DH3 3-DH5 Page 39 of 53 Report No.: HK2312296406-E 3.8. Out-of-Band Emissions Limit In any 100 kHz bandwidth outside the frequency band in which the spread spectrum or digitally modulated intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF con-ducted or a radiated measurement, pro-vided the transmitter demonstrates compliance with the peak conducted power limits. If the transmitter com-plies with the conducted power limits based on the use of RMS averaging over a time interval, as permitted under paragraph (b)(3) of this section, the attenuation required under this paragraph shall be 30 dB instead of 20 dB. Attenuation below the general limits specified in §15.209(a) is not required. In any 100 kHz bandwidth outside the frequency band in which the spread spectrum or digitally modulated device is operating, the RF power that is produced shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement, provided that the transmitter demonstrates compliance with the peak conducted power limits. If the transmitter complies with the conducted power limits based on the use of root-mean-square averaging over a time interval, as permitted under Section 5.4(4), the attenuation required shall be 30 dB instead of 20 dB. Attenuation below the general field strength limits specified in RSS-Gen is not required. Test Procedure Connect the transmitter output to spectrum analyzer using a low loss RF cable, and set the spectrum analyzer to RBW=100 kHz, VBW= 300 kHz, peak detector , and max hold. Measurements utilizing these setting are made of the in-band reference level, bandedge and out-of-band emissions. Test Configuration EUT SPECTRUM ANALYZER Test Results Remark: The measurement frequency range is from 30MHz to the 10th harmonic of the fundamental frequency. The lowest, middle and highest channels are tested to verify the spurious emissions and bandage measurement data. We measured all conditions (DH1, DH3, DH5) and recorded worst case at DH5 and 3DH5 Test plot as follows: Page 40 of 53 Report No.: HK2312296406-E GFSK CH00 CH39 Page 41 of 53 Report No.: HK2312296406-E CH78 Page 42 of 53 Report No.: HK2312296406-E Left Band edge hoping off Right Band edge hoping off Left Band edge hoping on Right Band edge hoping on Page 43 of 53 Report No.: HK2312296406-E π/4DQPSK CH00 CH39 Page 44 of 53 Report No.: HK2312296406-E CH78 Page 45 of 53 Report No.: HK2312296406-E Left Band edge hoping off Right Band edge hoping off Left Band edge hoping on Right Band edge hoping on Page 46 of 53 Report No.: HK2312296406-E 8DPSK CH00 CH39 Page 47 of 53 Report No.: HK2312296406-E CH78 Page 48 of 53 Report No.: HK2312296406-E Left Band edge hoping off Right Band edge hoping off Left Band edge hoping on Right Band edge hoping on Page 49 of 53 Report No.: HK2312296406-E 3.9. Pseudorandom Frequency Hopping Sequence Test Applicable Fo…

Text truncated - open the document above for the full version.

Model: YS-BS0466 Radiated Emissions Conducted Emission
