2AWHSYSBS0176LED LIGHT BLUETOOTH SPEAKER

LED LIGHT BLUETOOTH SPEAKER Bluetooth Version: 5.1 Bluetooth Frequency: 2.4ghz-2.48ghz Transmission Distance: 10M Output Power: 5W Frequency Response Range: 50 hz-20 kHz Signal to noise ratio of the whole machine: ＞ 75db Built in Lithium Battery: 3.7V 1200mAh Charging Input: DC5V / 500mA Product Size: 112 * 155mm Product Weight: 390 G Key Function Operation Instructions: 1. Power on: long press the power on button for two seconds to power on Default Bluetooth mode 2.Bluetooth function use: (1). This audio system supports Bluetooth devices with A2DP function.To use it, first power on and enter Bluetooth mode The blue light of the indicator light flashes, accompanied by voice prompt.The audio is in the state of waiting for pairing connection, only in this State.In this mode, you can pair and connect with Bluetooth audio. (2). Mobile phone connection.The first step is to turn on the Bluetooth of mobile phone in the settings of mobile Phone.Set the switch and click the second step of search device, when available,The device displays S609 characters to show that the phone has found Bluetooth audio, Click S609 to enter the pairing mode and pair the phone with the audio. After success, there will be a voice prompt and show that it is connected. 3.TWS connection function (this function is only suitable for Bluetooth mode) (1).When you have two Bluetooth audio, you can communicate with each other through Bluetooth When connected, the two acoustics will automatically change into left and right channels.Produce stereo surround sound effect, realize real wireless standing.Body sound. (2).Prepare two colorful Bluetooth speaker, and select One of them is used as the host to connect with your Bluetooth device row connection Lighting Use 1) Bluetooth speaker with a variety of lighting effects, Warm Light lamp / color lamp / breath lamp / rhythm, touch the top induction key to adjust Lighting Festival 2) When the device is turned on, the default low-grade warm lamp effect is achieved, and touch the top lightly.The first gear is slightly on, the second gear is medium on, and the third gear is high on,Turn off the lights in fourth gear 3) Long press the top sensing key for two seconds to enter the color light mode,The order of the lights: red, dark blue, green, purple,Light blue, yellow, breathing light, rhythm Flashing to the rhythm of Music) 4) In any light mode, long press touch sensitive press Key to turn off all light effects FM Radio Use: Short press the M key to switch to FM function and connect the charging cable to the micro interface of the product acts as a radio antenna, and the other end does not need to be replaced To connect to any device, briefly press the pause key to enter the station Auto search and auto save, search station through "+"-"To make a saved station selection. TF Card / U disk function use: Insert the TF Card / U disk into the card slot, and the corresponding message will appear Sound prompt, the product will automatically read and play the audio file in the card The user can use the "+," - "buttons to control the Sound Music, big and small. FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna.‐‐ Increase the separation between the equipment and receiver.‐‐ Connect the equipment into an outlet on a circuit different from ‐‐ that to which the receiver is connected. Cons‐‐ult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

YOUNGSTAR ELECTRONIC CO., LIMITED 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – EquipmentType Company name: YOUNGSTAR ELECTRONIC CO., LIMITED Address: 7th Floor, HuaYi Building B block, Ping Ji Ave, Nanwan street, Longgang District, Shenzhen, 518114, China Product Name: LED LIGHT BLUETOOTH SPEAKER FCCID: 2AWHSYSBS0176 Model(s): YS-BS0176, 3DPS-6/2053, YS-BS0355, YS-BS0386, YS-BS0388, YS-BS0397, YS-BS0398, YS-BS0407, YS-BS0409, YS-BS0410 2.911(d)(5)(i) EquipmentType We, [YOUNGSTAR ELECTRONIC CO., LIMITED] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Selina Lu Date: May.15, 2023 Title: General Manager Company name: YOUNGSTAR ELECTRONIC CO., LIMITED Signature: NOTE 1 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

YOUNGSTAR ELECTRONIC CO., LIMITED 2.911 (d)(5)(ii) Applicant Attestation v1.3 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: YOUNGSTAR ELECTRONIC CO., LIMITED Address: 7th Floor, HuaYi Building B block, Ping Ji Ave, Nanwan street, Longgang District, Shenzhen, 518114, China Product Name: LED LIGHT BLUETOOTH SPEAKER FCCID: 2AWHSYSBS0176 Model(s): YS-BS0176, 3DPS-6/2053, YS-BS0355, YS-BS0386, YS-BS0388, YS-BS0397, YS-BS0398, YS-BS0407, YS-BS0409, YS-BS0410 2.911(d)(5)(ii) Applicant filing We, [YOUNGSTAR ELECTRONIC CO., LIMITED] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to §1.50002 of this chapter,as an entity producing coveredcommunications equipment. Yours sincerely, Name: Selina Lu Date: May. 15, 2023 Title: General Manager Company name: YOUNGSTAR ELECTRONIC CO., LIMITED Signature: NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

YOUNGSTAR ELECTRONIC CO., LIMITED Agent Authorization Company: YOUNGSTAR ELECTRONIC CO., LIMITED Address: 7th Floor, HuaYi Building B block, Ping Ji Ave, Nanwan street, Longgang District, Shenzhen, 518114, China Product Name: LED LIGHT BLUETOOTH SPEAKER Model Number(s): YS-BS0176, 3DPS-6/2053, YS-BS0355, YS-BS0386, YS-BS0388, YS- BS0397, YS-BS0398, YS-BS0407, YS-BS0409, YS-BS0410 Product Description: LED LIGHT BLUETOOTH SPEAKER We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: May. 15, 2023 Name: Selina Lu Title: General Manager Company: YOUNGSTAR ELECTRONIC CO., LIMITED

YOUNGSTAR ELECTRONIC CO., LIMITED Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: May. 15, 2023 Subject; Request for Confidentiality FCC ID: 2AWHSYSBS0176 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Selina Lu Title: General Manager

YOUNGSTAR ELECTRONIC CO., LIMITED Model Difference Declaration To Whom It May Concern, We, YOUNGSTAR ELECTRONIC CO., LIMITED (LED LIGHT BLUETOOTH SPEAKER); Trade Mark: N/A; Model Number: YS-BS0176, 3DPS-6/2053, YS-BS0355, YS-BS0386, YS-BS0388, YS-BS0397, YS-BS0398, YS-BS0407, YS-BS0409, YS-BS0410; Model Difference: All model’s the function, software and electric circuit are the same, only with a product model named different. Test sample model: YS-BS0176. Please contact me if you have any question. Signature: Date: May. 15, 2023 Name: Selina Lu Title: General Manager Company: YOUNGSTAR ELECTRONIC CO., LIMITED

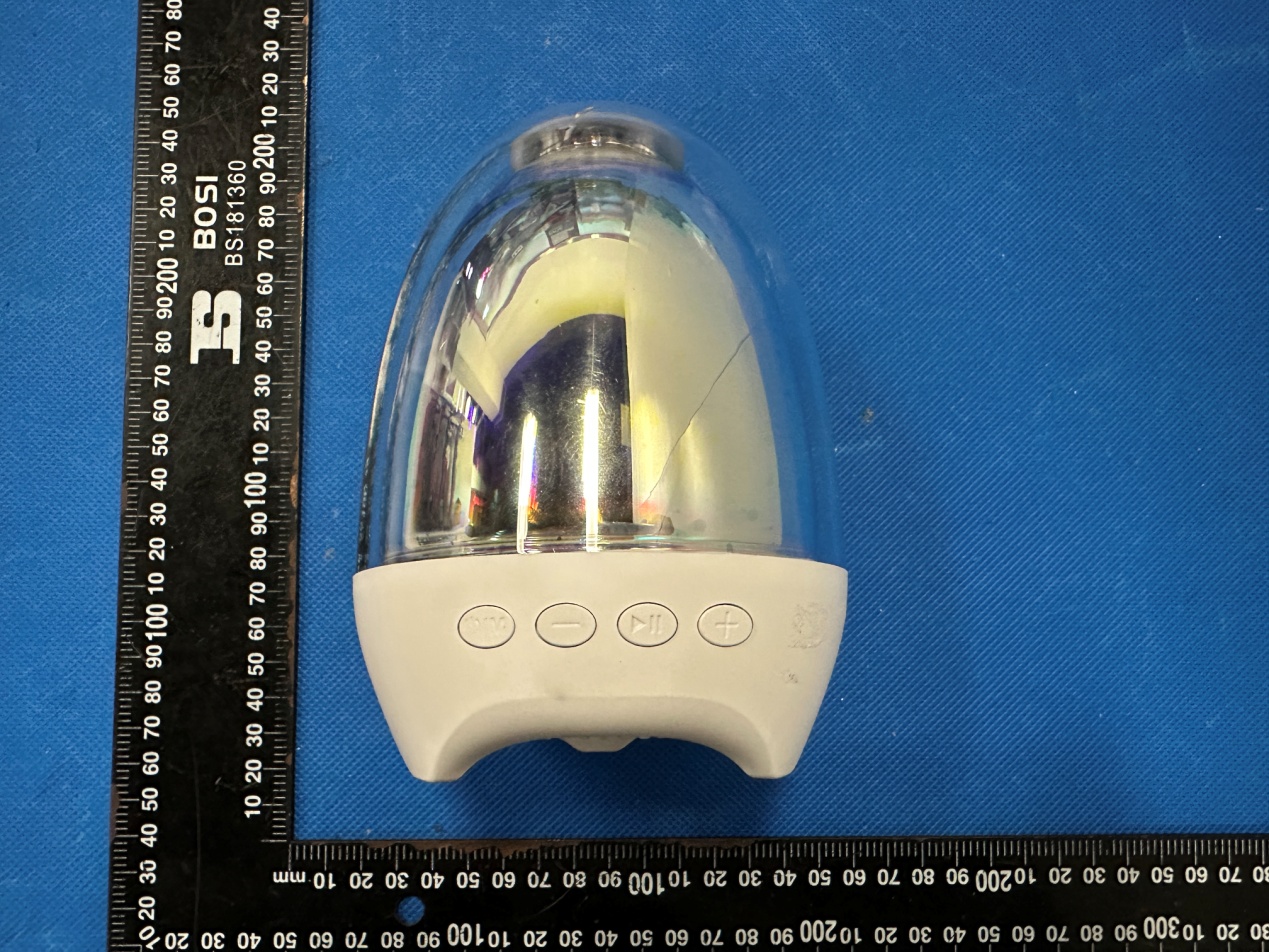

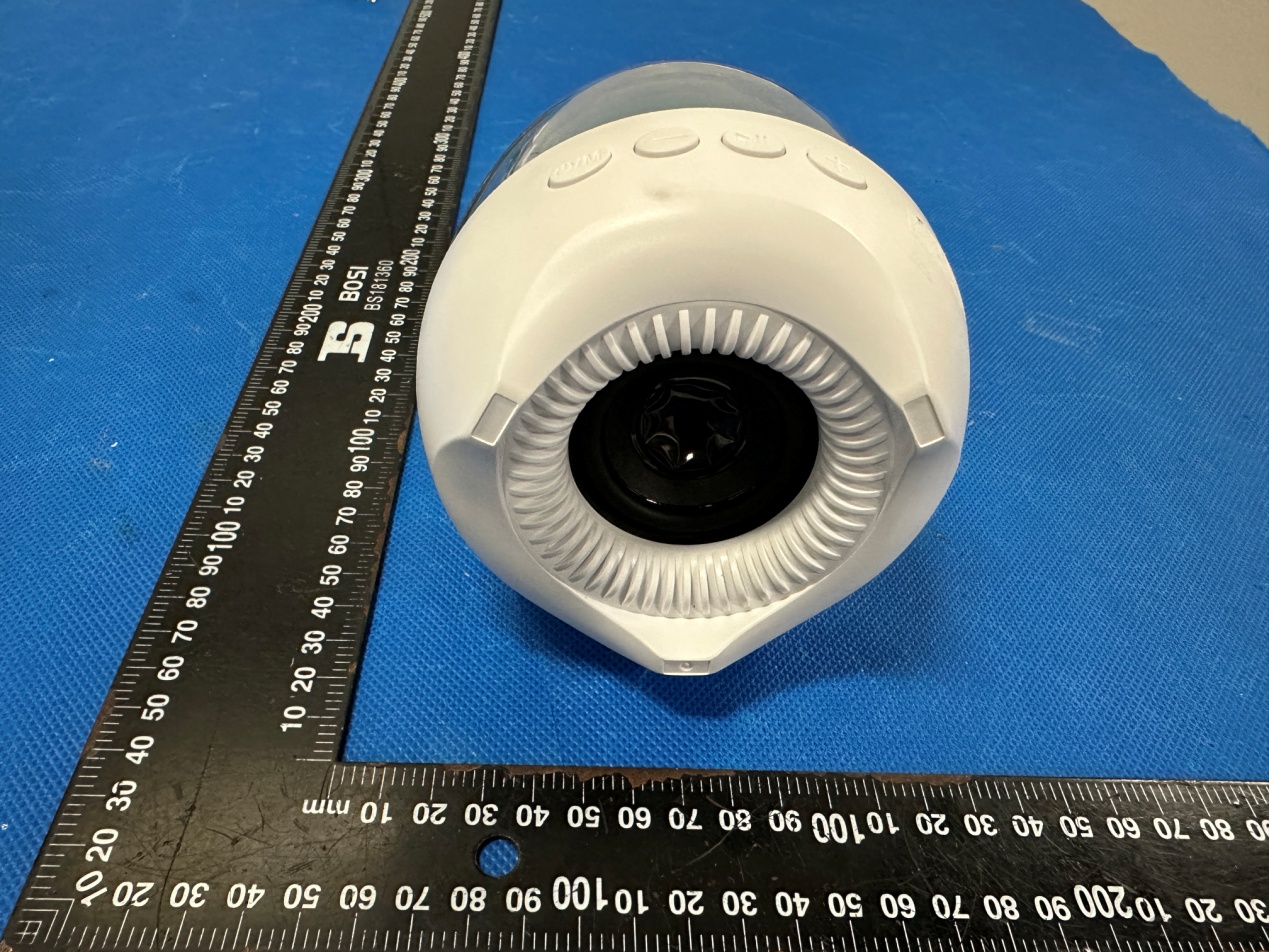

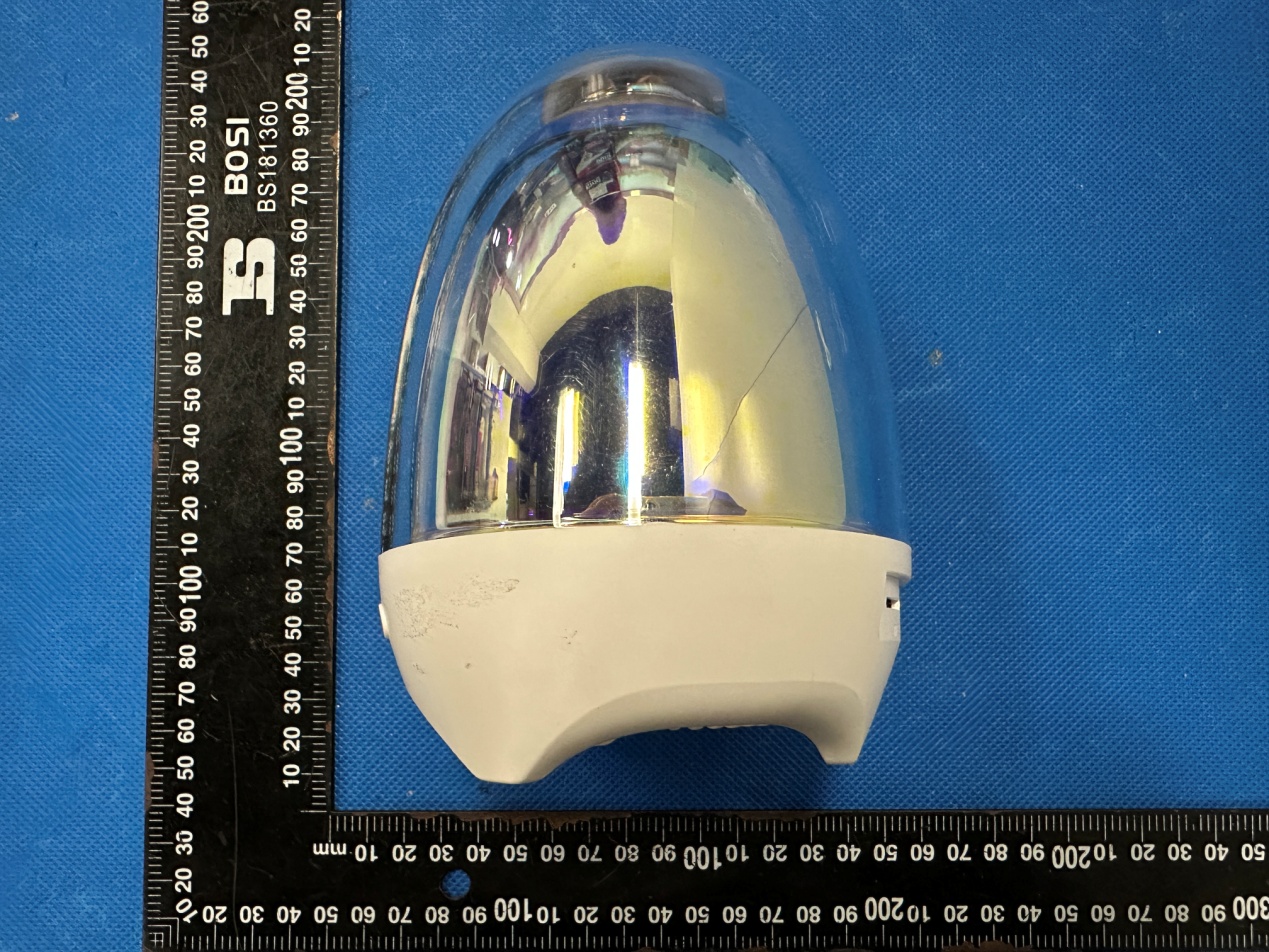

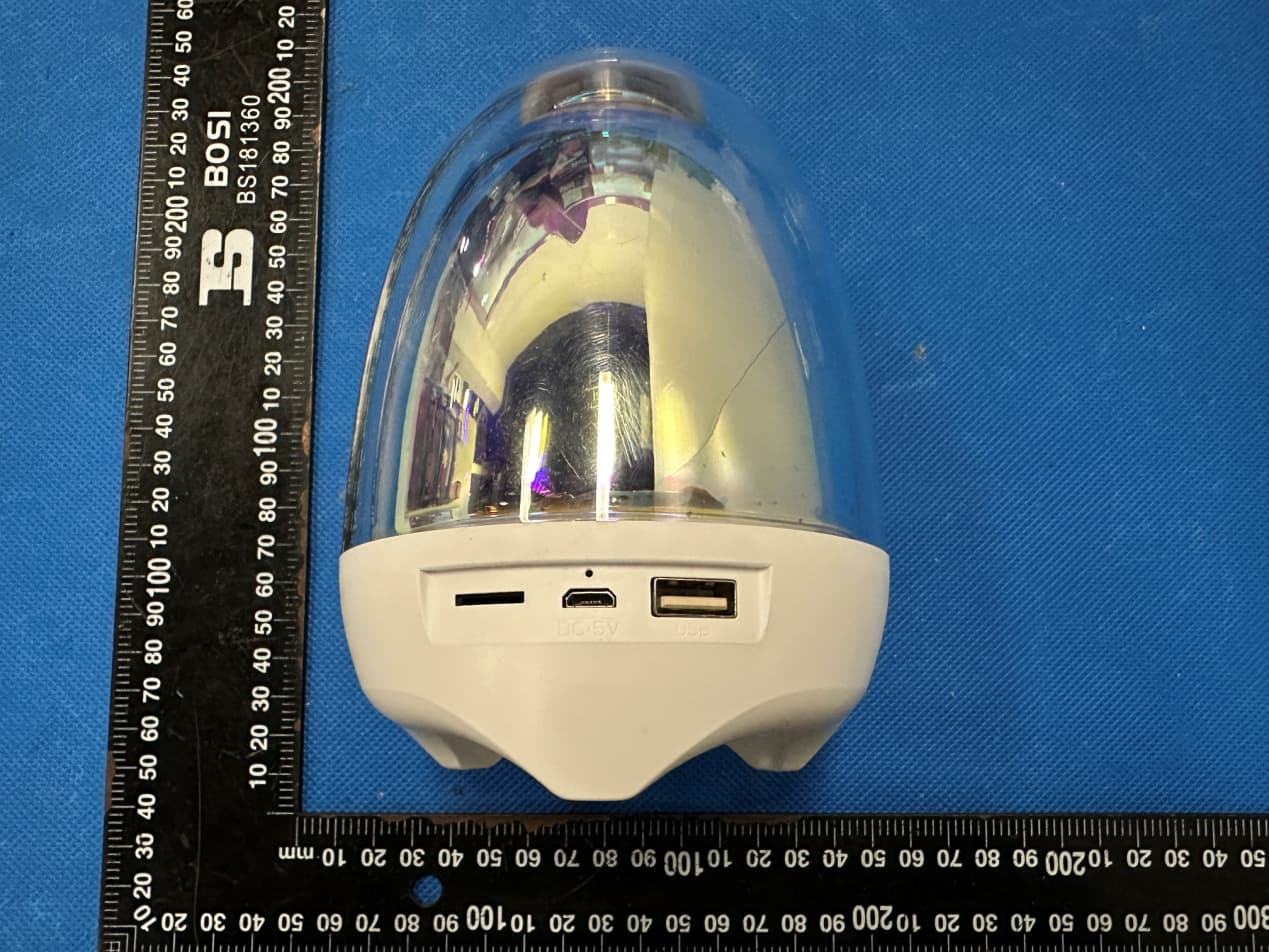

Annex A External Photos Report No.: HK2305061774-E Page 1 of 4 Report No.: HK2305061774-E Page 2 of 4 Report No.: HK2305061774-E Page 3 of 4 Report No.: HK2305061774-E Page 4 of 4

FCC ID LABEL: Ca. 10mm x 20mm label location FCC ID: 2AWHSYSBS0176

Annex B Internal Photo Report No.: HK2305061774-E Page 1 of 3 Report No.: HK2305061774-E Page 2 of 3 Antenna Report No.: HK2305061774-E Page 3 of 3

FCC RF Exposure EUT Description: LED LIGHT BLUETOOTH SPEAKER Model No.: YS-BS0176 FCC ID: 2AWHSYSBS0176 1. Limits According to KDB 447498 D01 General RF Exposure Guidance v01 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHz)]≤3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, Where: Result=P/D*√F F= the RF channel transmit frequency in GHz P=Maximum turn‐up power in mw D=Min. test separation distance in mm 2. Test Result of RF Exposure Evaluation Output power (dBm) Tune Up Power (dBm) Max Tune Up power dBm/mW Min test separati on distance mm Result Limit SAR Test Exclusion EDR -2.66 -3±1(-2) 0.63 5 0.19873 3.0 Pass Note: PK Output power= conducted power. Conducted power see the test report HK2305061774-E, antenna gain=1.9dBi Per KDB 447498 D01, when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. The test exclusion threshold is 0.19873 which is<= 3, SAR testing is not required. Note: Exclusion Thresholds Results=[(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f (GHz)] f(GHz) is the RF channel transmit frequency in GHz Distance=5mm

Product specification Quick Reference Date Antenna module on the system board Frequenc Range 2400 ~ 2500MHz Ant. Port Input Pwr. (dBm) 0 (Typ. BT class 2 output power) Tot. Rad. Pwr. (dBm) -1.2 (Input pwr – loss pwr) Peak EIRP(dBm) 1.2 Directivity (dBi) 1 (all direction antenna) Efficiency (dB) 6 0.2 % Gain (dBi) 1.9 (Avg Gain XY-plane) Maximum Power (dBm) 1.7 (XY-plane) Minimum Power (dBm) -4(XY-plane) Avg. Power (dBm) -0.5(XY-plane) Input Impendence(ohm) 50 Polarization Type V ertical & Horizontal V . S .W . R < 1.4 All the technical data and information contained herein are subject to ch ange without prior notice Antenna Layout & module on the system board Antenna Gain Gain Table Unit in dBi @2.44GHz XY-plane XZ-plane YZ-plane Efficiency Peak Avg. Peak Avg. Peak Avg. Module Board 1.2 -0.5 1.9 -3.6 1.1 -3.0 6 0.2 % Retum Loss The Environment of Antenna Radiation Pattem 3D radiation pattern diagram XY-plane XZ-plane YZ-plane

Page 1 of 47 Report No.: HK2305061774-E FCC Test Report FCC PART 15 SUBPART C 15.247 Test report On Behalf of YOUNGSTAR ELECTRONIC CO., LIMITED For LED LIGHT BLUETOOTH SPEAKER Model No.: YS-BS0176, 3DPS-6/2053, YS-BS0355, YS-BS0386, YS-BS0388, YS-BS0397, YS-BS0398, YS-BS0407, YS-BS0409, YS-BS0410 FCC ID: 2AWHSYSBS0176 Prepared For : YOUNGSTAR ELECTRONIC CO., LIMITED 7th Floor, HuaYi Building B block, Ping Ji Ave, Nanwan street, Longgang District, Shenzhen, 518114, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: May. 06, 2023 ~ May. 12, 2023 Date of Report: May. 12, 2023 Report Number: HK2305061774-E Page 2 of 47 Report No.: HK2305061774-E Test Result Certification Applicant’s Name .................. : YOUNGSTAR ELECTRONIC CO., LIMITED Address .................................. : 7th Floor, HuaYi Building B block, Ping Ji Ave, Nanwan street, Longgang District, Shenzhen, 518114, China Manufacture's Name ............. : YOUNGSTAR ELECTRONIC CO., LIMITED Address .................................. : 7th Floor, HuaYi Building B block, Ping Ji Ave, Nanwan street, Longgang District, Shenzhen, 518114, China Product Description Trade Mark ............................. : N/A Product Name ........................... : LED LIGHT BLUETOOTH SPEAKER Model and/or type reference...: YS-BS0176, 3DPS-6/2053, YS-BS0355, YS-BS0386, YS-BS0388, YS-BS0397, YS-BS0398, YS-BS0407, YS-BS0409, YS-BS0410 Standards .............................. : 47 CFR FCC Part 15 Subpart C 15.247 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test .................................... . Date (s) of Performance of Tests .... . May. 06, 2023 ~ May. 12, 2023 Date of Issue .................................... May. 12, 2023 Test Result ........................................ Pass Prepared by: Project Engineer Reviewed by: Project Supervisor Approved by: Technical Director Page 3 of 47 Report No.: HK2305061774-E Table of Contents Page 1. Summary ................................................................................................................................... 5 1.1. Test Standards ............................................................................................................................ 5 1.2. Test Description .......................................................................................................................... 5 1.3. Information of the Test Laboratory ............................................................................................ 6 1.4. Statement of the Measurement Uncertainty ............................................................................. 6 2. General Information .................................................................................................................. 7 2.1. Environmental Conditions .......................................................................................................... 7 2.2. General Description of EUT ........................................................................................................ 7 2.3. Description of Test Modes and Test Frequency .......................................................................... 8 2.4. Equipments Used during the Test ............................................................................................... 9 2.5. Related Submittal(s) / Grant (s) ................................................................................................ 10 2.6. Modifications ............................................................................................................................ 10 2.7. Description of Test Setup .......................................................................................................... 10 3. Test Conditions and Results ..................................................................................................... 11 3.1. Conducted Emissions Test ........................................................................................................ 11 3.2. Radiated Emissions and Band Edge .......................................................................................... 14 3.3. Maximum Peak Conducted Output Power ............................................................................... 25 3.4. 20dB Bandwidth ....................................................................................................................... 26 3.5. Frequency Separation ............................................................................................................... 29 3.6. Number of Hopping Frequency ................................................................................................ 31 3.7. Time of Occupancy (Dwell Time) ............................................................................................. 33 3.8. Out‐of‐Band Emissions ............................................................................................................. 36 3.9. Pseudorandom Frequency Hopping Sequence ........................................................................ 43 3.10. Antenna Requirement .............................................................................................................. 44 4. Test Setup Photos of the EUT ................................................................................................... 45 5. Photos of the EUT ...................................................................................................…

Text truncated - open the document above for the full version.

Model: YS-BS0176 Radiated Emissions Conducted Emission
