2AWIE-TT15BCobble

Tel：+86-769-81819190 Web：www.soitl.com Manufacturer：Shengyang Acoustics (Guangdong) Co., Ltd Add：NO.5 Minxing Street, Zhongshan East, Shilong Town, Dongguan,China 1. Power on （1）When the earbuds are off, touch the control panel for about 3 seconds, voice prompts “Power on” （2）Open the charging case, the earbuds will switch on automatically, voice prompts“ Power on”. 2. Power off （1）When the earbuds are on, touch the control panel for about 5 seconds, voice prompts “ Power off ”. （2）Put the earbuds back into the charging case and close the lid, voice prompts“ Power off ”. 1. The earbuds have been connected to the mobile phone. In the Bluetooth list of the mobile phone, find "Cobble Wolves Edition", click to enter the settings, and select to forget this device or cancel pairing. 2.The earbuds are in the charging case, open the lid of the case and press the button and press the button on the back of the charging case for 3 seconds. The white indicator light of the charging case will flash twice, it indicates that the earbuds are reset successfully. 1. After power on, earbuds will automatically enter Bluetooth pairing mode and voice prompts "Pairing". 2. Turn on Bluetooth and search "Cobble Wolves Edition" on your phone, click to complete the connection. If the connection fails, put the earbuds back into the charging case and repeat the above operations, Or turn off the Bluetooth on your phone and turn it on again to refresh the Bluetooth list and repeat the above operation. When both earbuds exceed the maximum connection distance of the device at the same time, the voice prompts"Far away from devices" and enters the pairing mode. If the earbud fails to connect the device within 5 minutes, it will automatically power off. After the first connection,the earbuds can automatically connect back to the last paired device(Bluetooth needs to be turned on). How to wear Operation Pairing and connecting Restore the factory settings (Clear pairing record） Battery capacity:450mAh/3.7V Charging case charging cycle for earbuds: about 4 times Pairing name: Cobble Wolves Edition Bluetooth version: 5.0 Battery capacity: 35mAh/3.7V Bluetooth range: ＞10m Earbuds specifications Charging case specifications Charging time: about 2h Charging voltage： 5.0V Play time: about 3h Talk time: about 2.5h Charge time: about 1h Input voltage: 5V 0.2A Package contents Product overview 01020304 (1) Please charge the case with Type-C cable. (2) Put earbuds into charging case and close the case lid, earbuds will be charged automatically. 10 Tap the L/R earbud control panel 2x Voice assistant Tap the L/R earbud control panel 1x Accept/end a call Tap the L/R earbud control panel 1x Play/pause music Tap the L/R earbud control panel for 1s Reject a call Tap the Right earbud control panel for 1-2s Next Tap the Left earbud control panel for 1-2s Previous Touch control FAQ 05 060708 1.Why does only one earbud work?Q: A: put the two earbuds back into the charging case and take them out again to check whether the earbuds are paired with each other, if not, reset the earbuds. Q: 2.how to solve the problem of mobile phone prompt unable to connect? A: delete the pairing record on the mobile phone, and then search signal and connect again. Q: A: 3.Why there is no sound in the call / music? Android phone has a setting icon on the right side of the phone connection record. Click enter to uncheck and reselect the two audio options. Apple phone sets the general auxiliary function to enter the audio call mode. Select auto. If it is auto, change other options, and then select auto. If it is not recovered, delete the matching record and try again. Q: A: 4.Why there is a delay in the video / gameplay? Due to the influence of environment, network and mobile phone encoding and decoding speed, it will cause different degrees of delay when the mobile phone transmits audio data to the earbuds.( When the real-time voice function is enabled in the game, the definition of the game background sound will be affected, so the current game software sets the Bluetooth transmission rate as priority.) Q: A: 5.Why is it stuck / intermittent? If there are a large number of WiFi connections, 4G signals, high-power electrica l appliances and so on when using, it may be stuck or intermittent. It can be solved by changing the environment or repairing and connecting. 1. Please use the original or with safety certification wire harness for charging. 2. When using earbuds, please adjust the volume appropriately to avoid damaging the hearing. 3. Please use the product correctly to avoid falling or heavy extrusion. 4. Children should be accompanied by adults to avoid eating by mistake. 5. Keep away from extreme environment such as high temperature or humidity. 6. Do not disassemble this product. 7.Earbuds can't be charged in charging case if earbuds are equipped with L eartips. Safty instruction Service life As described in this manual, under normal use conditions, the environmental protection service life of this product is 10 years. During this period, the product will not leak any dangerous substances. This product can be recycled and must be disposed according to local regulations. Hazardous substances and their contents in the item Part neme Main battery Battery Eartips Accessories Charging cable This form is made by SJ / T 11364 regulation O: means that hazardous substance content in the homogeneus materials of this part is within the limits of GB / T 26572 regulation X: means that hazardous substance content in , at least one certain homogeneous material of this part is beyond the limits of GB / T 26572 regulation. According to the relevant laws and regulations of consumer electronic products and the actual situation of the industry, the following after-sales service regulations are formulated to provide consumers with satisfactory after-sales services: IWarranty certificate mainly includes: warranty card, holograms on product packaging box to prove authenticity and s…

Text truncated - open the document above for the full version.

(Shengyang Acoustics (Guangdong) Co., Ltd.) Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AWIE-TT15B Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram, Schematics, Operational Description Block Diagram Schematics Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ( Lily Chen) Rev 11/20/07

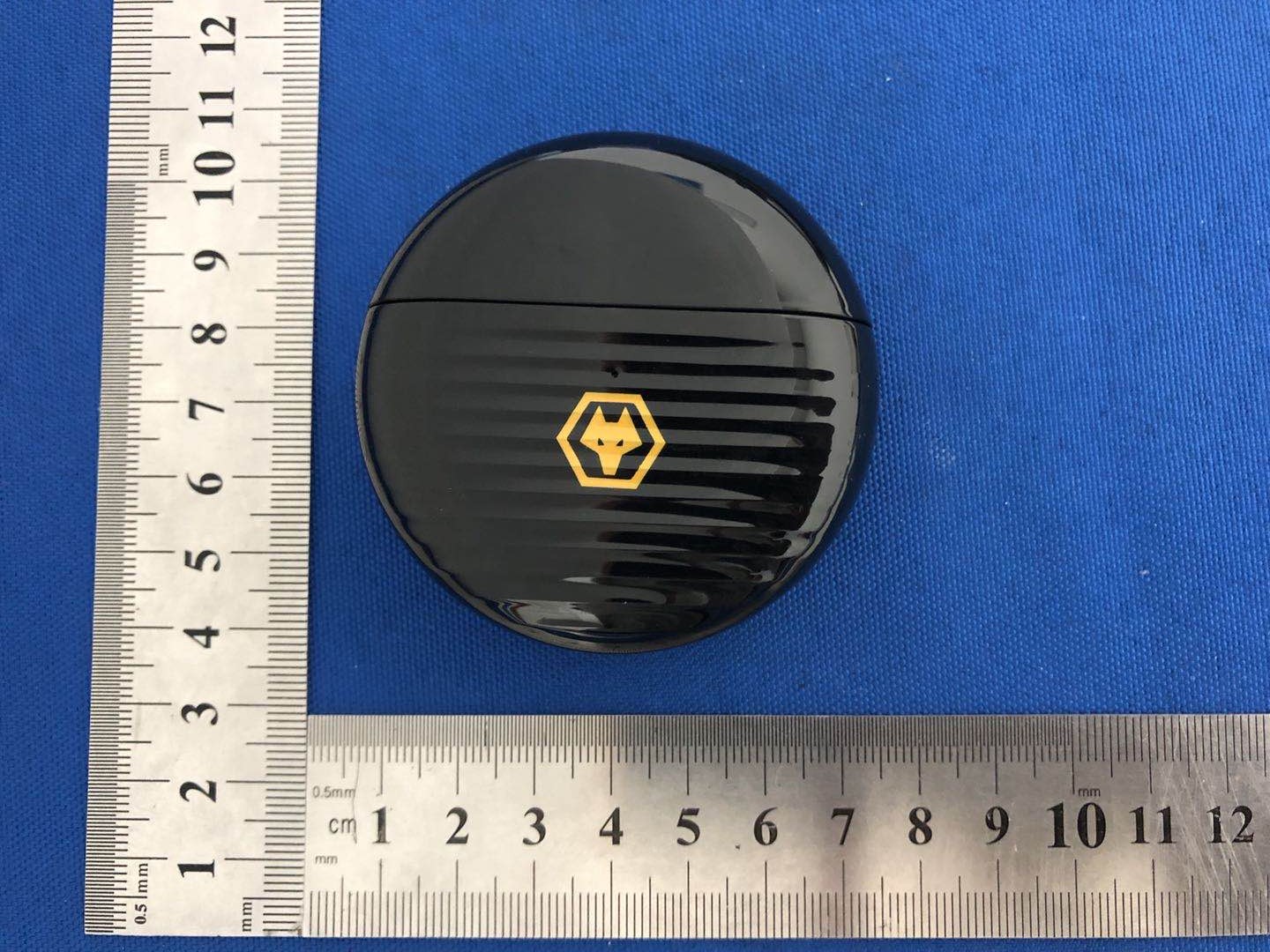

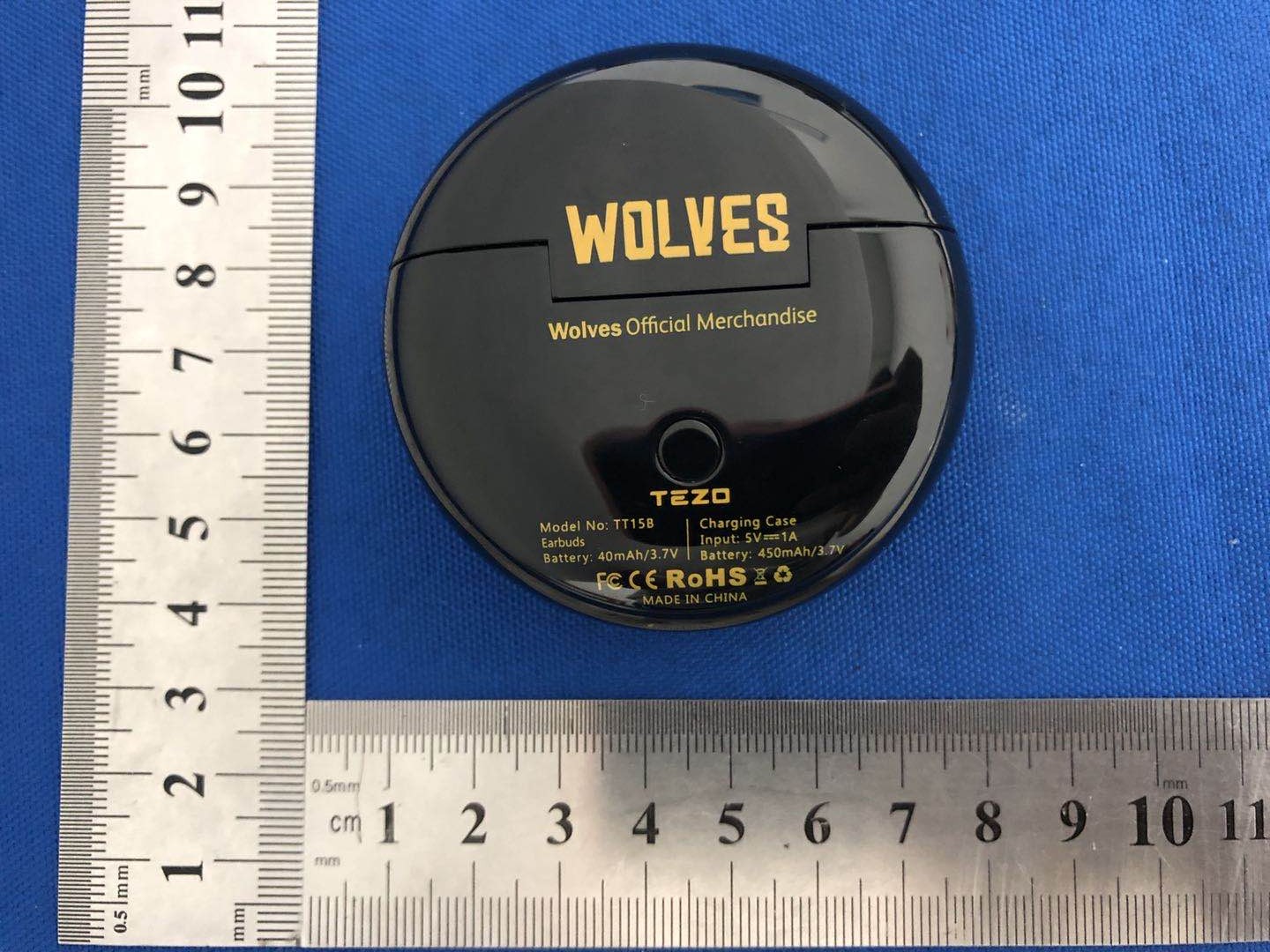

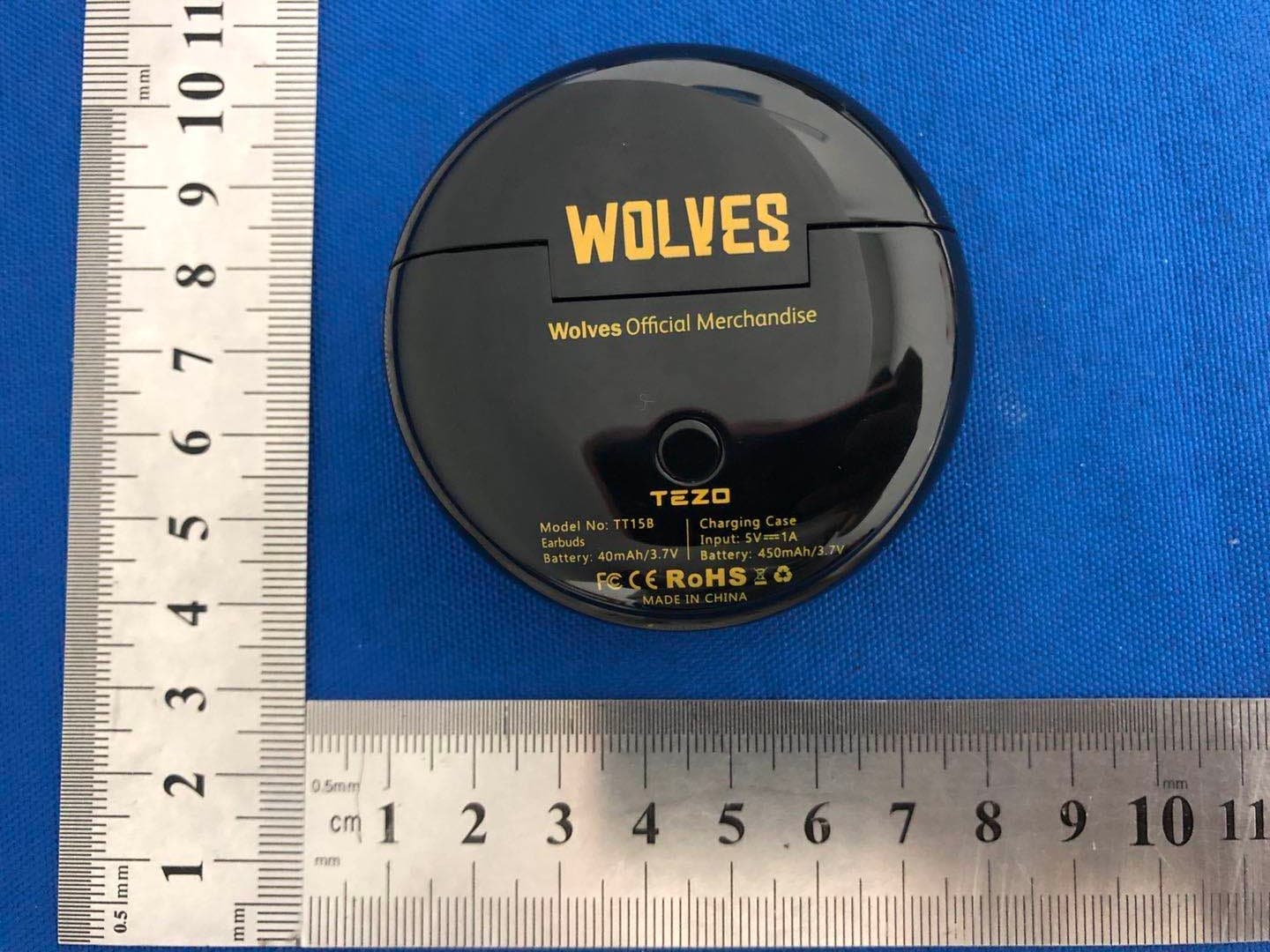

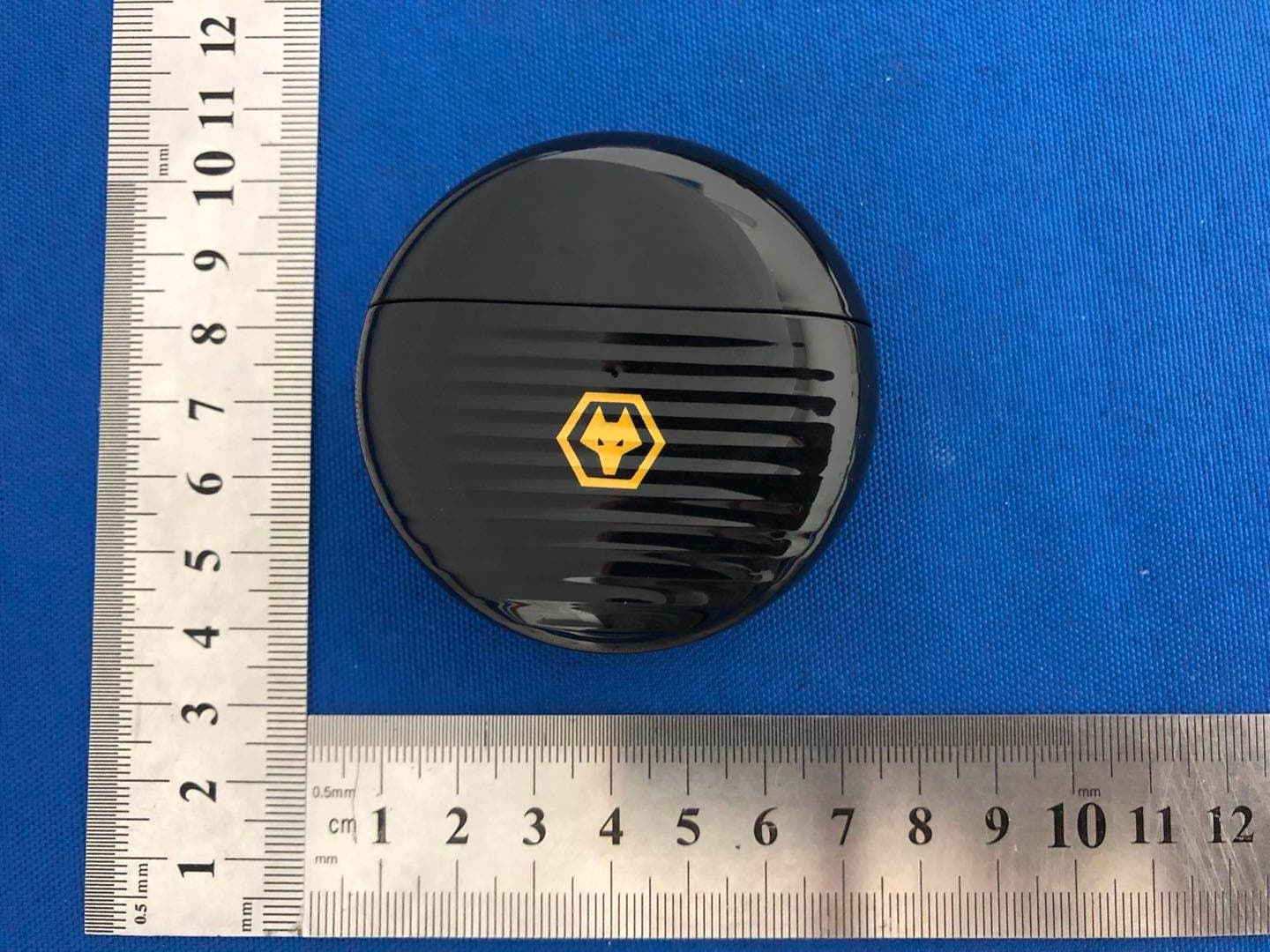

External Photos

Internal Photos Antenna

RF EXPOSURE EVALUATION METHOD FCC ID: 2AWIE-TT15B SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BT-EDR max possible output power (PK,conducted)：-3±1dbm 0dBi logarithmic terms convert to numeric result is nearly 1. -2dbm=0.63mW 2402MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]=0.63/5*√2. 402 =0. 20≤3.0 Threshold at which no SAR required is 10mw and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. Modulation Frequency (MHz) Output Power (dBm) Max Antenna Gain (dBi) GFSK 2402 -3.53 0 GFSK 2441 -3.92 0 GFSK 2480 -4.25 0 Pi/4 DQPSK 2402 -3.58 0 Pi/4 DQPSK 2441 -3.92 0 Pi/4 DQPSK 2480 -4.29 0 8DPSK 2402 -3.41 0 8DPSK 2441 -3.74 0 8DPSK 2480 -4.10 0 2441MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]=0.63/5*√2.441 =0. 20≤3.0 Threshold at which no SAR required is 10mw and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. 2480MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]=0.63/5*√2.48=0. 20≤3.0 Threshold at which no SAR required is 10mw and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. Conclusion: No SAR is required.

Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2007001623E FCC Part 15C Test Report FCC ID: 2AWIE-TT15B Product Name: Cobble Trademark: N/A Model Name : TT15B Prepared For : Shengyang Acoustics (Guangdong) Co., Ltd. Address : No. 5 Minxing street, Zhongshan East Rd, Shilong town, Dongguan, Guangdong province, China Prepared By : Shenzhen BCTC Testing Co., Ltd. Address : BCTC Building & 1-2F, East of B Building, Pengzhou Industrial, Fuyuan 1st Road, Qiaotou Community, Fuyong Street, Bao’an District, Shenzhen, China Test Date: Jul. 23, 2020 to Jul. 29, 2020 Date of Report : Jul. 29, 2020 Report No.: BCTC2007001623E Te s t Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-0 07 Ver.：A.0 Page 1 of 70 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2007001623E TEST RESULT CERTIFICATION Applicant’s name ............. : Shengyang Acoustics (Guangdong) Co., Ltd. Address ............................. : No. 5 Minxing street, Zhongshan East Rd, Shilong town, Dongguan, Guangdong province, China Manufacture's Name ........ : Shengyang Acoustics (Guangdong) Co., Ltd. Address ............................. : No. 5 Minxing street, Zhongshan East Rd, Shilong town, Dongguan, Guangdong province, China Product description Product name .................... : Cobble Trademark ......................... : N/A Model and/or type reference .......................................... : TT15B Standards ......................... : FCC Part15.247 ANSI C63.10:2013 558074 D01 15.247 Meas Guidance v05r02 This device described above has been tested by BCTC, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of BCTC, this document may be altered or revised by BCTC, personal only, and shall be noted in the revision of the document. Prepared by(Engineer): Willem Wang Reviewer(Supervisor): Eric Yang Approved(Manager): Zero Zhou Te s t Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-0 07 Ver.：A.0 Page 2 of 70 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2007001623E Table of Contents Test Report Declaration Page 1. TEST SUMMARY ...................................................... 5 2. TEST FACILITY ....................................................... 6 3. MEASUREMENT UNCERTAINTY........................................ 6 4. GENERAL INFORMATION .............................................. 7 4.1 GENERAL DESCRIPTION OF EUT ...................................... 7 4.2 Test Setup Configuration ................................................ 7 4.3 Support Equipment ..................................................... 8 4.4 Channel List ........................................................... 9 4.5 Test Mode ............................................................ 10 5. TEST FACILITY AND TEST INSTRUMENT USED ........................ 11 5.1 Test Facility ........................................................... 11 5.2 Test Instrument Used .................................................. 11 6. CONDUCTED EMISSIONS ............................................. 13 6.1 Block Diagram Of Test Setup ........................................... 13 6.2 Limit ................................................................. 13 6.3 Test procedure ........................................................ 13 6.4 Test Result ........................................................... 15 7. RADIATED EMISSIONS ............................................... 17 7.1 Block Diagram Of Test Setup ........................................... 17 7.2 Limit ................................................................. 18 7.3 Test procedure ........................................................ 18 7.4 Test Result ........................................................... 20 7.5 RADIATED Band EMISSION MEASUREMENT ............................ 24 8. CONDUCTED EMISSION .............................................. 27 8.1 Block Diagram Of Test Setup ........................................... 27 8.2 Limit ................................................................. 27 8.3 Test procedure ........................................................ 27 8.4 Test Result ........................................................... 28 9. 20 DB BANDWIDTH .................................................. 37 9.1 Block Diagram Of Test Setup ........................................... 37 9.2 Limit ................................................................. 37 9.3 Test procedure ........................................................ 37 9.4 Test Result ........................................................... 38 10. MAXIMUM PEAK OUTPUT POWER .................................... 43 10.1 Block Diagram Of Test Setup .......................................... 43 10.2 Limit ................................................................ 43 10.3 Test procedure ....................................................... 43 10.4 Test Result .......................................................... 44 11. HOPPING CHANNEL SEPARATION .................................... 49 11.1 Block Diagram Of Test Setup .......................................... 49 11.2 Limit ................................................................ 49 Te s t Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-0 07 Ver.：A.0 Page 3 of 70 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2007001623E 11.3 Test procedure ....................................................... 49 11.4 Test Result .......................................................... 50 12. NUMBER OF HOPPING FREQUENCY .................................. 55 12.1 Block Diagram Of Test Setup .......................................... 55 12.2 Limit ................................................................ 55 12.3 Test procedure ..................................…

Text truncated - open the document above for the full version.

Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2007001623E 16. EUT TEST SETUP PHOTOGRAPHS Spurious emissions Te s t Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-0 07 Ver.：A.0 Page 69 of 70 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2007001623E Conducted emissions ※※※※※ END OF REPORT ※※※※※ Te s t Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-0 07 Ver.：A.0 Page 70 of 70
