FCC warning statements: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. IC warning statements: -English Warning Statement: “This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device." The digital apparatus complies with Canadian CAN ICES-3 (B)/NMB-3(B). -French Warning Statement: “Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement." Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that are deemed to comply without testing of specifc absorption ratio (SAR).Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement émet une énergie RF très faible qui est considérée conforme sans évaluation du débit d’absorption spécifque (DAS).

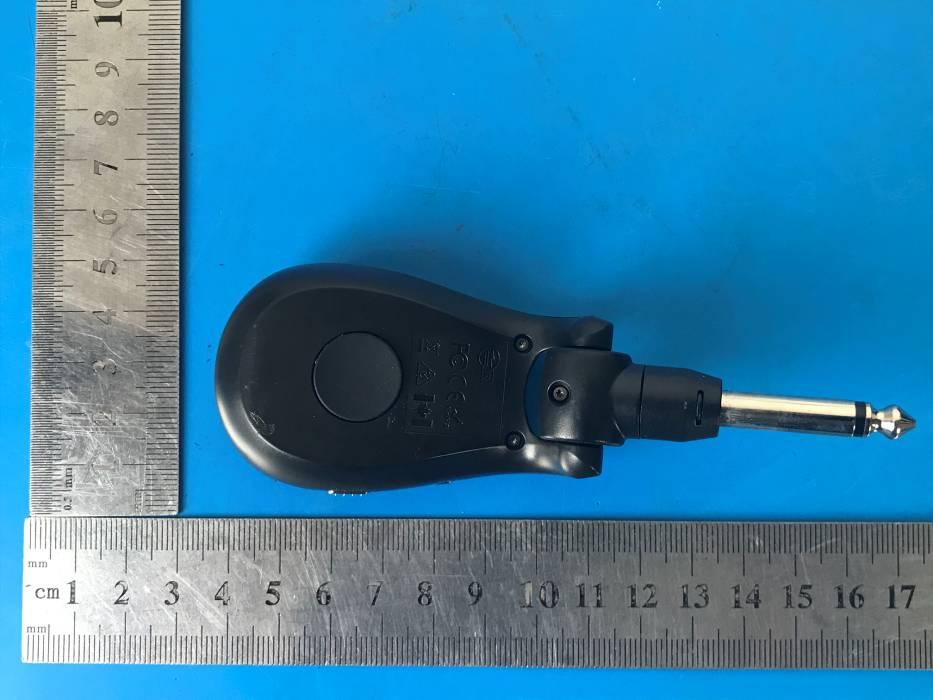

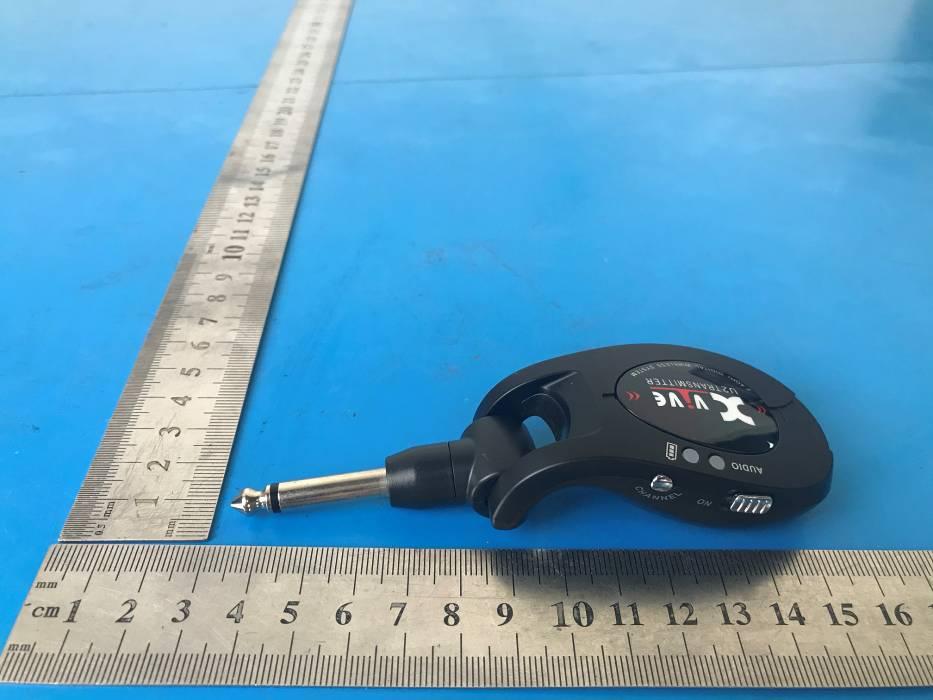

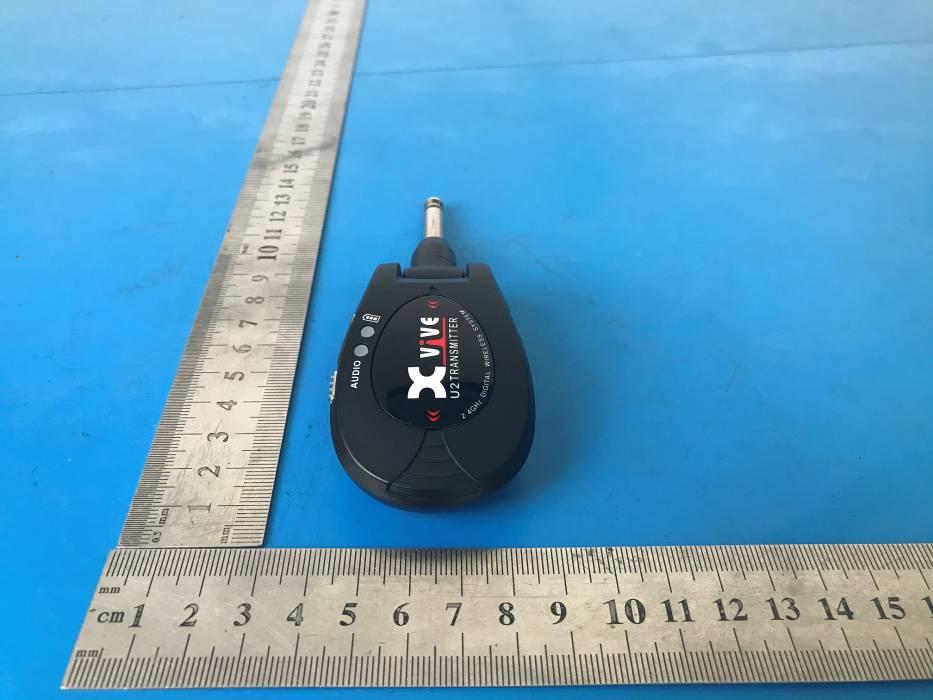

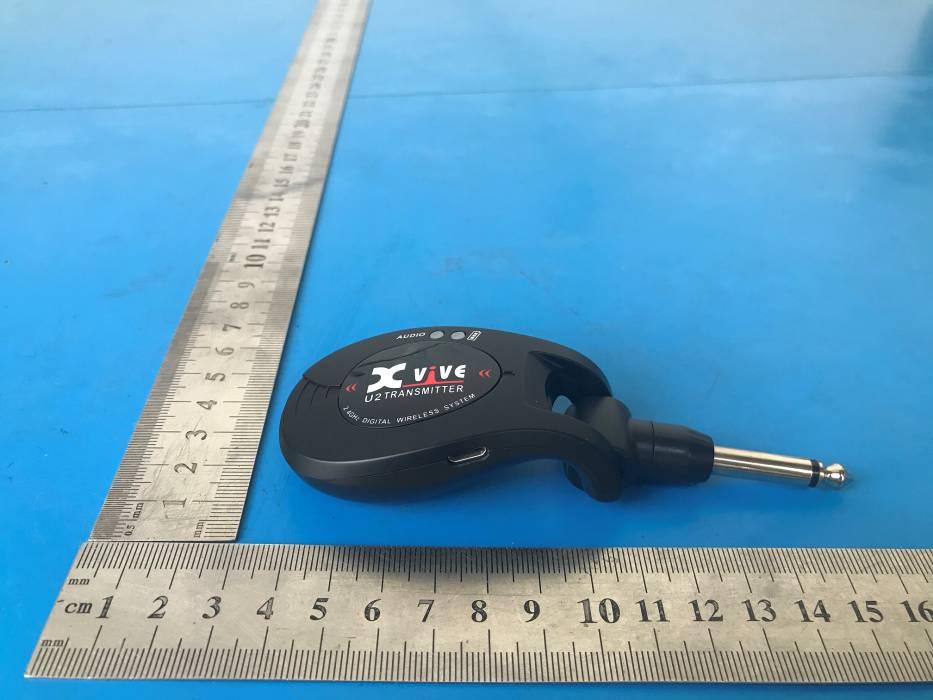

2020.08.05 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AWIJ-RBO Product Name: RockBoard MOD 4 and U2 Transmitter Wireless System and TRS & XLR Patchbay Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: Schematics Long-term confidential Block diagram Long-term confidential Operation description Long-term confidential These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature: 2020.08.05 Signatory Name Hans Peter Wilfer Position CEO Company Name Warwick GmbH&Co Music Equipment KG Address Gewerbepark 46 08258 Markneukirchen Germany Tel +49 37422 555 1100 Fax / Email [email protected] Warwick GmbH&Co Music Equipment KG

FCC ID: 2AWIJ-RBO IC: 26142-RBO

1.0cm 0.4cm Label Location FCC ID: 2AWIJ-RBO IC: 26142-RBO Model No. : RBO B MOD 4 AND RBO B MOD 4 U2

FCC ID: 2AWIJ-RBO IC: 26142-RBO ANT

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v06: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz. Power and distance are rounded to the nearest mW and mm before calculation. The result is rounded to one decimal place for comparison. eirp = p t x g t = (E x d) 2 /30 where: p t = transmitter output power in watts, g t = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 , d = measurement distance in meters (m)--- 3m. So p t = (E x d) 2 /(30 x g t ) Worse case is as below: Field strength = 72.99 dBuV/m @3m Ant gain 1.98 dBi; so Ant numeric gain=1.58 So p t ={[10 (72.99/20) /10 6 x3] 2 /(30x1.58)}x1000mW =0.004mW So (0.004mW/5mm)x √2.482GHz = 0.001<3.0 for 1-g SAR Then SAR evaluation is not required.

FCC TEST REPORT FCC ID: 2AWIJ-RBO On Behalf of Warwick GmbH&Co Music Equipment KG RockBoard MOD 4 and U2 Transmitter Wireless System and TRS & XLR Patchbay Model No.: RBO B MOD 4 AND RBO B MOD 4 U2 Prepared for : Warwick GmbH&Co Music Equipment KG Address : Gewerbepark 46 08258 Markneukirchen Germany Prepared By : Shenzhen Alpha Product Testing Co., Ltd. Address : Building i, No.2, Lixin Road, Fuyong Street, Bao'an District, 518103, Shenzhen, Guangdong, China Report Number : A2005039-C07-R02 Date of Receipt : May 20, 2020 Date of Test : May 20-July 15, 2020 Date of Report : July 15, 2020 Version Number : V0 Page 2 of 37 Report No.: A2005039-C07-R02 TABLE OF CONTENTS Description Page 1. Summary of Standards And Results ................................................................................. 6 1.1. Description of Standards and Results ......................................................................... 6 2. General Information ........................................................................................................... 7 2.1. Description of Device (EUT) ...................................................................................... 7 2.2. Accessories of Device (EUT) ..................................................................................... 8 2.3. Tested Supporting System Details .............................................................................. 8 2.4. Block Diagram of connection between EUT and simulators ...................................... 8 2.5. Test Mode Description ................................................................................................ 8 2.6. Test Conditions ........................................................................................................... 9 2.7. Test Facility ................................................................................................................ 9 2.8. Measurement Uncertainty ........................................................................................... 9 2.9. Test Equipment List .................................................................................................. 10 3. Power Line Conducted Emission Test ............................................................................. 11 3.1. Block Diagram of Test Setup .................................................................................... 11 3.2. Test Limits ................................................................................................................ 11 3.3. Configuration of EUT on Test .................................................................................. 12 3.4. Operating Condition of EUT .................................................................................... 12 3.5. Test Procedure .......................................................................................................... 12 3.6. Test Results ............................................................................................................... 12 4. Radiated Emission Test ..................................................................................................... 14 4.1. Block Diagram of Test Setup .................................................................................... 14 4.2. Test Limit .................................................................................................................. 15 4.3. Configuration of EUT on Test .................................................................................. 16 4.4. Operating Condition of EUT .................................................................................... 16 4.5. Test Procedure .......................................................................................................... 16 4.6. Test Results ............................................................................................................... 17 5. Band Edge Test .................................................................................................................. 22 5.1. Block Diagram of Test Setup .................................................................................... 22 5.2. Test Limit .................................................................................................................. 22 5.3. Configuration of EUT on Test .................................................................................. 23 5.4. Operating Condition of EUT .................................................................................... 23 5.5. Test Procedure .......................................................................................................... 23 5.6. Test Results ............................................................................................................... 25 6. Occupied bandwidth Test ................................................................................................. 27 6.1. Block Diagram of Test Setup .................................................................................... 27 6.2. Test Limit .................................................................................................................. 27 6.3. Test Procedure .......................................................................................................... 27 6.4. Test Results ............................................................................................................... 27 7. Antenna Requirement ....................................................................................................... 29 7.1. Standard Requirement ............................................................................................... 29 7.2. Antenna Connected Construction ............................................................................. 29 Page 3 of 37 Report No.: A2005039-C07-R02 7.3. Results .....................................................................................................…

Text truncated - open the document above for the full version.

Radiated Emission Radiated Emission
