2AWIV-20A061Wifi and RF Back-to-Work badge

_________________________________________________________ www.btwtag.com 1 Ver. 2.0 User Manual _________________________________________________________ www.btwtag.com 2 Ver. 2.0 This product complies with FCC radiation exposure limits set forth for an uncontrolled environment Pursuant to FCC 15.21 of the FCC rules, changes not expressly approved by btwTAG Safety, LLC. might cause harmful interference and void the FCC authorization to operate this product. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any, interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an output on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. _________________________________________________________ www.btwtag.com 3 Ver. 2.0 Contents Description .............................................................................................................................................. 5 Getting Started ........................................................................................................................................ 6 Signing in ............................................................................................................................................. 6 Menu ...................................................................................................................................................... 7 Dashboard ........................................................................................................................................... 7 Today Balance ................................................................................................................................. 9 Active Tags ...................................................................................................................................... 9 Contacts Metrics ............................................................................................................................ 10 Real Time Areas ............................................................................................................................. 10 Real Time Gates ............................................................................................................................. 11 Last Activities ................................................................................................................................. 12 Latest Contact Events .................................................................................................................... 12 Contact Events................................................................................................................................... 12 Contact Tracing ................................................................................................................................. 14 People ................................................................................................................................................... 15 Man -Tags .......................................................................................................................................... 15 Device Configuration ..................................................................................................................... 16 Massive Configuration ................................................................................................................... 19 Creating a Group ........................................................................................................................... 21 Employees ......................................................................................................................................... 23 Environment ......................................................................................................................................... 26 Areas ................................................................................................................................................. 26 Gates ................................................................................................................................................. 29 btwTAG Configuration ........................................................................................................................... 32 Single btwTAGs .................................................................................................................................. 32 Multiple btwTAGs .............................................................................................................................. 40 Programmer Mode ............................................................................................................................ 41 Live Configuration ...................................…

Text truncated - open the document above for the full version.

________________________________________________________www.btwtag.com _____________________________________________________________________________________________________________________________ Rhino Defense, Inc. 1730 Park Street, Suite 123, Naperville, IL 60563 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: June 2, 2020 SUBJECT: FCC Application for (2AWIV-20A061) To Whom It May Concern: We, the undersigned, hereby authorize Joseph Strzelecki at Radiometrics Midwest Corporation on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Joseph Strzelecki of Radiometrics on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, James Huang CTO Rhino Defense, Inc. 1730 Park Street Naperville, IL 60563 USA

Page 1 of 1 RP-9206L 12 Devonwood Ave SOL VING A WAV E OF EMI COMP LIANCE PR OB LE MS Romeoville, IL 60446 Tel: (815) 293-0772 Federal Communications Commission June 24, 2020 Authorization and Evaluation Division 7435 Oakland Mills Rd. Columbia, MD 21046 Reference FCC ID: 2AWIV-20A061 Organization: btwTAG Safety, LLC. 1. Long Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we (btwTAG Safety, LLC.) hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Circuit Schematics 7 btwTAG-Schematics 9296 Block Diagram 8 btwTAG block diagram 9296 EUT description (Operational Description) 10 btwTAG Description of DUT 9296 The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Internal Photos 4 btwTAG Internal Photos 9296.pdf Please hold confidential for 180 days Authorized Signature Joseph Strzelecki Senior EMC Engineer Radiometrics Midwest Corporation Authorized Agent for btwTAG Safety, LLC

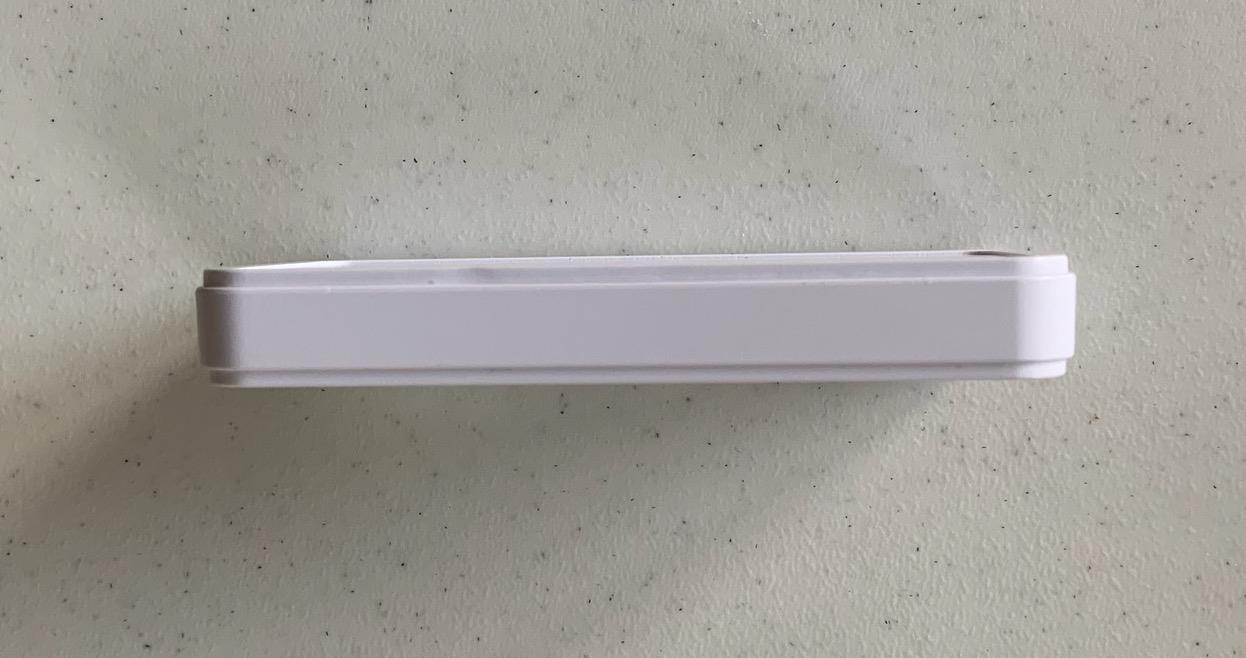

Page 1 of 3 RP-9296 External EUT Photographs The EUT measures 90mm long by 45mm wide by 12mm thick Front of EUT Rear of EUT Bottom of EUT Page 2 of 3 RP-9296 Top of EUT Page 3 of 3 RP-9296 Sides of EUT

Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 ID Label/Location Drawing showing placement of Label The label is on the Rear of the DUT Drawing of label The label measures 50 x 10mm The material is Polyester The adhesive is permanent.

Page 1 of 6 RP-9296 Internal EUT Photographs Main PCB Page 2 of 6 RP-9296 Main PCB Page 3 of 6 RP-9296 Assembled Boards Page 4 of 6 RP-9296 915 MHz Antenna Page 5 of 6 RP-9296 EUT Cover removed Page 6 of 6 RP-9296 Modularly approved Wi-Fi radio PCB

Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 RF Exposure FCC ID: 2AWIV-20A061 1.0 INTRODUCTION These calculations are based on the highest average power from the EUT. The 915 MHz transmitter operates for 6.4 mSec every 528 mS for a duty cycle of 1.21%. The Wi-Fi Module will only be operated at a duty cycle of much less than 10% over any six-minute period. Therefore, 10 % was used in the calculations. For the d For all calculations 1 dB was added to the power for tune up tolerance. 2.0 FCC SAR TESTING EXCLUSION: In accordance with FCC KDB Publication 447498 D01 V05R02 Clause 4.3.1(a), For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)]x[√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR,30 where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation31 • The result is rounded to one decimal place for comparison • The values 3.0 and 7.5 are referred to as numeric thresholds The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm, and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 4.1 f) is applied to determine SAR test exclusion. This table is for devices with a separation less than 50 mm. Freq. (MHz) Max Power (dBm) Duty Cycle % Average Power per channel (mW) Min Sep (mm) SAR Calculation as per 4.3.1 a) SAR Exemption limit 4.3.2 a) Result 2G Wifi 2462 3.0 10.0 0.20 5 0.063 3.0 915 915 -11.5 1.2 8.57E-04 5 1.64E-04 3.0 Total 0.063 3.0 Exempt Judgement: The product is exempt from SAR testing Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 2.1 Calculations for Simultaneous Transmission. In accordance with FCC KDB Publication 447498 D01 V05R02 Clause 7.2 (a) From Clause 4.3.2 (b) For distances</= 50mm [(max. power of Channel, mW) / (min. separation distance, mm)] x [(√Freq(GHz)/7.5)] W/kg Where 7.5 is used for 1-g SAR limit Freq. (MHz) Max Power (dBm) Duty Cycle % Average Power per channel (mW) Min Sep (mm) SAR Calculation as per 4.3.2 b)1 Limit Result 2G Wifi 2462 3.0 10.0 0.20 5 0.0083 0.4 915 915 -11.5 1.2 8.57E-04 5 2.19E-05 0.4 Total 0.0084 0.4 Exempt 3.0 MPE CALCULATION FROM FCC 1.1310 FOR MOBILE DEVICES Band Freq. (MHz) Max Power (dBm) Max Power (mW) Max Ant Gain (dBi) Max Ant Gain Above Isotropic (numeric) Duty Cycle % Max EIRP (mW) Power Density at 20 cm (mW/cm^2) (S) GP Limit (mW/cm^2) MPE Ratio 2G Wifi 2412 3.0 2.00 3.7 2.34 10.0 0.47 0.0015 1.000 0.0015 915 915 -11.5 0.07 0 1.00 1.21 0.00086 1.70E-07 0.610 2.79E-07 Total 0.0015 Notes on the above table: In accordance with OET 65, 97-01, Power Density is calculated by: S = P*G/(4*π*R^2) Where S = power density (mW/cm2) P = power input to the antenna (mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (cm) MPE Ratio = Product Power Density / Power Density limit Since the calculated power density is less than the limit, this product fully meets the OET 65 requirements for the general population.

Electromagnetic Compatibility Test Report Tests Performed on a btwTAG Safety, LLC 915 MHz Transciever Transciever, Model 20A061 Radiometrics Document RP-9296 Product Detail: FCC ID: 2AWIV-20A061 Equipment type: 915 MHz Low power Transceiver Test Standards: US CFR Title 47, Chapter I, FCC Part 15 Subpart C FCC Part 15 CFR Title 47: 2020 This report concerns: Original Grant for Certification FCC Part 15.249 Tests Performed For: Test Facility: btwTAG Safety, LLC 1730 Park Street, Suite 123 Naperville, IL 60563 Radiometrics Midwest Corporation 12 Devonwood Avenue Romeoville, IL 60446-1349 (815) 293-0772 Test Date(s): June 2-4, 2020 Document RP-9296 Revisions: Rev. Issue Date Revised By 0 June 9, 2020 Testing of: btwTAG Safety, LLC, Model 20A061, 915 MHz Transciever RP-9296 Rev. 0 Radiomet.com Page 2 of 19 Table of Contents 1.0 ADMINISTRATIVE DATA ............................................................................................................... 3 2.0 TEST SUMMARY AND RESULTS ................................................................................................. 3 2.1 RF Exposure Compliance Requirements .................................................................................... 4 3.0 EQUIPMENT UNDER TEST (EUT) DETAILS ................................................................................ 4 3.1 EUT Description .......................................................................................................................... 4 3.1.1 FCC Section 15.203 & RSS-GEN Antenna Requirements .................................................... 4 4.0 TESTED SYSTEM DETAILS .......................................................................................................... 4 4.1 Tested System Configuration ...................................................................................................... 4 4.2 EUT Operating Modes ................................................................................................................ 4 4.3 Special Accessories .................................................................................................................... 5 4.4 Equipment Modifications ............................................................................................................. 5 5.0 TEST SPECIFICATIONS ............................................................................................................... 5 6.0 TEST PROCEDURE DOCUMENTS ............................................................................................... 5 7.0 RADIOMETRICS’ TEST FACILITIES ............................................................................................. 5 8.0 DEVIATIONS AND EXCLUSIONS FROM THE TEST SPECIFICATIONS ...................................... 6 9.0 CERTIFICATION ............................................................................................................................ 6 10.0 TEST EQUIPMENT TABLE .......................................................................................................... 6 11.0 TEST SECTIONS ......................................................................................................................... 6 11.1 AC Conducted Emissions ......................................................................................................... 6 11.2 Radiated RF Emissions........................................................................................................... 10 11.2.1 Field Strength Calculation ................................................................................................. 11 11.3 Duty Cycle .............................................................................................................................. 11 11.3.1 Radiated Emissions Test Results ..................................................................................... 13 11.4 Occupied Bandwidth Data ....................................................................................................... 16 11.5 Unintentional Emissions (Receive Mode) ................................................................................ 17 11.5.1 Measurement Instrumentation Uncertainty ....................................................................... 18 12.0 REVISION HISTORY ................................................................................................................. 19 Notice: This report must not be reproduced (except in full) without the written approval of Radiometrics Midwest Corporation. Testing of: btwTAG Safety, LLC, Model 20A061, 915 MHz Transciever RP-9296 Rev. 0 Radiomet.com Page 3 of 19 1.0 ADMINISTRATIVE DATA Equipment Under Test: A btwTAG Safety, LLC, 915 MHz Transciever Model: 20A061 Serial Number: RMC1 This will be referred to as the EUT in this Report Date EUT Received at Radiometrics: Test Date(s): June 2, 2020 June 2-4, 2020 Test Report Written and Authorized By: Test Witnessed By: Joseph Strzelecki Senior EMC Engineer The tests were not witnessed by personnel from btwTAG Safety, LLC. Radiometrics’ Personnel Responsible for Test: EUT Checked By: 06/09/2020 Date Joseph Strzelecki Senior EMC Engineer NARTE EMC-000877-NE Chris D’Alessio EMC Technician Richard L. Tichgelaar EMC Technician Joseph Strzelecki Richard Tichgelaar Chris D’Alessio Radiometrics 2.0 TEST SUMMARY AND RESULTS The EUT (Equipment Under Test) is a 915 MHz Transciever, Model 20A061, manufactured by btwTAG Safety, LLC. The detailed test results are presented in a separate section. The following is a summary of the test results. Emissions Tests Results Environmental Phenomena Frequency Range Basic Standard Test Result RF Radiated Emissions 30-9300 MHz FCC Part 15 Pass Conducted Emissions, AC Mains 0.15 - 30 MHz FCC Part 15 Pass Occupied Bandwidth Test Fundamental Freq. FCC Part 15 Pass IEC 17025 Decision Rule: The declaration of pass or fail is based on the specifications listed above. The declaration of pass or fail did not consider me…

Text truncated - open the document above for the full version.

Page 1 of 4 RP-9296 Test Setup Photographs Photographs of Radiated Emissions Test Setup Page 2 of 4 RP-9296 Page 3 of 4 RP-9296 The EUT was taped to a foam stand to change the axis of rotation. Page 4 of 4 RP-9296 Photographs of Conducted Emissions Test Setup Rhino is a generic name for btwTAG
