2AWJ8-M10-SRDirect drive force-feedback simwheel

UserManual *PD-20-01* WelcometotheDirectDriveRevolution. GT1HUB 1.UserscanvisitSIMAGICglobalwebsitewww.simagic.comtobrowseproductinformationor obtainproductsupport； 2.SimagicofficialwebsiteinformationpublishingsiteUniformname：Simagicofficial YouTube Facebook Twitter 3.China'sinformationchannel *InordertouseGT1steeringwheelofdirectdrivesimulatormoreconvenientlyandquickly,pleasereadthis instructionmanualcarefullybeforeinstallationanduse,whichcontainsimportantproductandsafety information;pleaseensurethatKeepthismanualforyourfuturereference. *Theproductcontainsmanyadvancedtechnologies,includingcustomoverspeedmotor,integrated electronics,wirelessmodule,etc.,andiscompatiblewithPC. *Pd-19-01isatrialversion,simagiccanreservetherighttomodifyaccordingtotheproductanduserfeedback andotherfactorswithoutnotice. *Thisinstructionmanualisageneralinstructionmanualforasingleproduct(includingdifferentconfigurations andcategoriesunderasingleproduct). Gettinginformation Contents AboutSimagic ........................................................................ 2 BeforeUse ................................................................................ 4 ProductProfile ProductIntroduction .............................................. 6 HUBFunction FunctionLever ............................................................ 7 LightingSettings ......................................................... 8 KnobSetting ............................................................... 9 TechnicalHighlights ............................................................. 11 SafetySuggestion ................................................................. 13 PackagingBrief ...................................................................... 15 QuickDismantling ................................................................. 17 AdapterHost ........................................................................... 19 RaceManager ProgramIntroduction ............................................. 21 FirmwareUpdate ................................................................... 23 After-salesInformation ....................................................... 25 AdditionalExplanation ........................................................ 27 SimagicGT1HUBUserManual １ AboutSIMAGIC T Thissectionintroduces SimagicbrandandSimagicTech. SimagicGT1HUBUserManual ２ Simagicbranddirectdrivesimulatoristhefirstthree-phasehybriddirectdrivemotorsimulator designedindependentlyinChina.Thesteeringwheelisdirectlyconnectedwiththemotorshaft, eliminatingthetraditionalbeltandgearsensors,bringingamorepureandimmersivedirect drivingexperience. Simagictakesusersasthecenter,developsthedirectdriverevolutionwithallitsstrengthand strivestobuildtheworld'stopdirectdrivesimulator,andpromotesthedevelopmentofracing E-sportsfromkeyboardEntertainment(1.0)tosimulatorEntertainment(2.0). Thefirstdirectdrivesimulatorhostachievesreal-time,accurateandextremelyaccurate reproductionofdrivingroadconditions,physicalfeedbackoftheactioneffectintheracinggame, andanewhuman-computerinteractionexperience. ShenzhenSimagicTechCo.,Ltdisthefirstcompanybasedonthefieldofsimulationdriving equipmentinChina,adheringtothecompanyconceptof"committedtothedevelopmentofnew cultureofsimulationdriving",tocreatethebestracingequipmentandbestcompetitive experienceforracinggameenthusiasts,andcreateanewapplicationmodeofsimulationdriving forthedrivingindustry. AsanewgenerationteamofChina'sracingE-sportsculture,withtheinitiativeofsimagicbrand directdriveequipment,weareattheforefrontofsimulationracingequipmenttechnology, insistingontheproductconceptofcontinuouslyinnovatingtechnologyandoptimizingproduct design,"leadingthetrendofsimulationdrivingwithinnovativetechnology",andfillingthegapin thefieldofChina'sracingE-sportswiththeadvancedtechnologylevelofinternationalracing simulationdrivingequipment. Fastsimagictechnologyadherestotheenterprisespiritof"technologyleading,extremely intelligentfirst",activelypracticestheconceptofproductdevelopmentthroughscientificand technologicalexploration,integratesunlimitedpossibilitiesintoeveryexperiencedetail,and developsthenewsimulationdrivingcultureofChina'sintelligentmanufacturing. SimagicBrand SimagicTech SimagicGT1HUBUserManual ３ BeforeUse T Thissectiondescribesthecalibration settingsthatthehubneedstoperform beforeuse SimagicGT1HUBUserManual ４ 1 Beforecalibration,flipthetoggleswitchCkeyuptoCgreen(parametersettingcalibration workingmode) 2 PushdowntheVkeytoggleswitchandholditdown(donotletgo),atthesametime,pull eachandeverypaddleABCDtwice(inanyorderseparately),afterwhichreleasetheVtoggle switch. 3 Aftercompletingtheaboveoperations,flipCgreentomiddlepositionCRed(fordualclutch mode)orbottompositionCblue(fordualaxismode). 4 Completethecalibration. *Ifthekeysonthecalibrationpageofthecontrolprogramjumpaftercalibration,Calibrateagain. CalibrationSettings PaddleB PaddleA knob1 knob2 SimagicGT1HUBUserManual ５ ProductProfile Thissectiondescribesthespecific functionsofhubsothatyoucan quicklyunderstandanduseit SimagicGT1HUBUserManual ６ *Themainbodyismadeofhigh-strengthaviationaluminumalloybyhigh-precisionCNC machining. *Thesurfacehasbeensandblasted,oxidizedandotherprocessingprocedurestoimprovethe appearancetouchtexture,elegantblackcoldcolorshowsthecoldtemperament; *Theuniquehubappearancedesign,theYaHeimetaltexturepanelandtheself-designedracing flagintegratethetrack"s"logo,aswellasthesimagicinitiallogohorncoverdecoration,giving astrongerracingelementsense; *Simagicindependentlydesignsmagneticlightsensitiveshiftpaddle,whichhasaveryhighreal carsimulationfeel. *Theouterlayerofthesteeringwheeliswrappedinleather(modelA)andcomfortablesuede (modelB). Introduction TypeB:Dwheel TypeA:roundwheel SimagicGT1HUBUserManual ７ HUBFunction theCtoggleswitchisathreepositionlockswitch,fromtoptobottom, green,redandblue; Representdifferentworkingmodesofhub. 1ToggleswitchatCgreen(top):parametersettingcalibrationworkingmode. ②ToggleswitchtoCRed(middle):doubleclutchmode(onlyforFourpaddleversion,ABCD…

Text truncated - open the document above for the full version.

Shen Zhen Simagic Technology Co.,Limited Agent Authorization Company: Shen Zhen Simagic Technology Co.,Limited Address: No.302, building 7, DCC cultural and creative park, No. 95, Pingxin North Road, shangmugu community, Pinghu street, Longgang District, Shenzhen Product Name: Direct drive force-feedback simwheel Trade Mark: N/A Model Number(s): M10-SR FCC ID: 2AWJ8-M10-SR We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-07-01 Name: Jinquan Li Title: CEO Company: Shen Zhen Simagic Technology Co.,Limited

Shen Zhen Simagic Technology Co.,Limited Add: No.302, building 7, DCC cultural and creative park, No. 95, Pingxin North Road, shangmugu community, Pinghu street, Longgang District, Shenzhen Tel: +86-13424302627 Fax: +86-755-26509289 Date: 2020-07-01 To: MiCOM Labs Inc 575 Boulder Court, Pleasanton, California 94566, USA Dear Sir/Madam, We, Shen Zhen Simagic Technology Co.,Limited Hereby declares the following statement for MiCOM Labs Inc, PCB board, structure and internal of these model(s) are the same, Only model name and shell color is different for these models.. Product name: Direct drive force-feedback simwheel Trade Mark: N/A Model No.: M10-SR, M10-SDC, M10-GT4, M10-GT4C, M10 Sincerely, Client’s name / title : Jinquan Li / CEO Address: No.302, building 7, DCC cultural and creative park, No. 95, Pingxin North Road, shangmugu community, Pinghu street, Longgang District, Shenzhen Tel: +86-13424302627 Fax: +86-755-26509289 E-mail: [email protected]

Shen Zhen Simagic Technology Co.,Limited Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-07-01 Subject; Request for Confidentiality FCC ID: 2AWJ8-M10-SR To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Jinquan Li Title: CEO

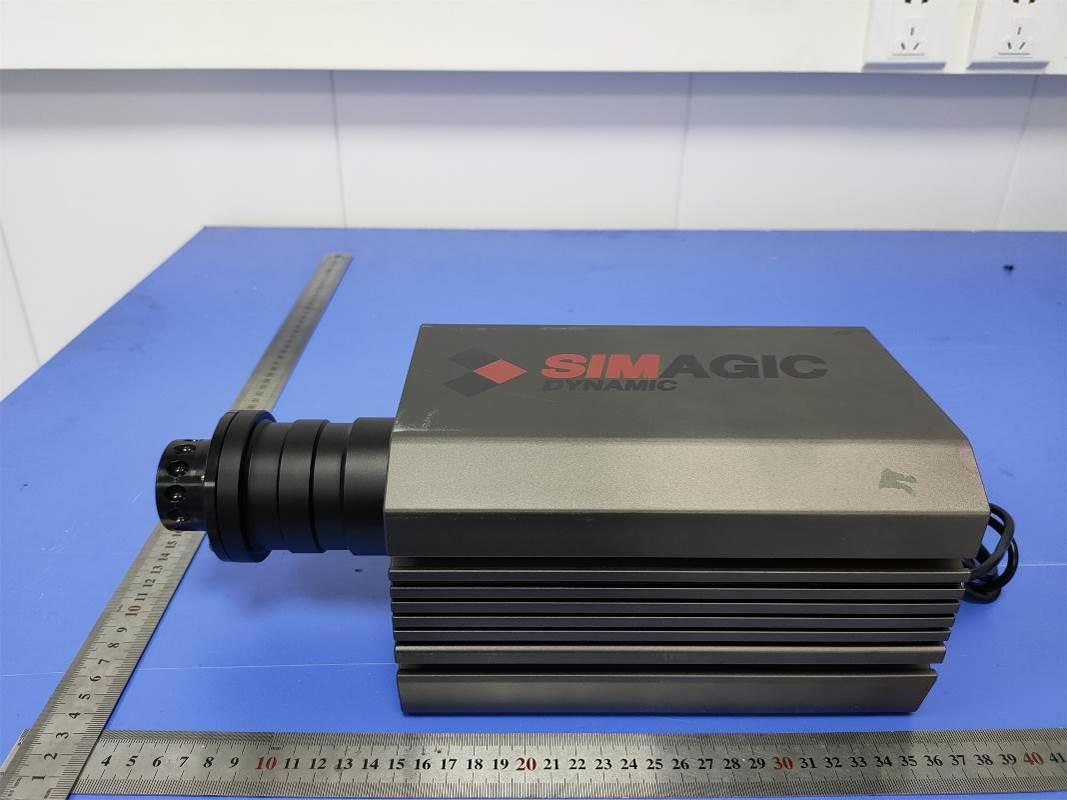

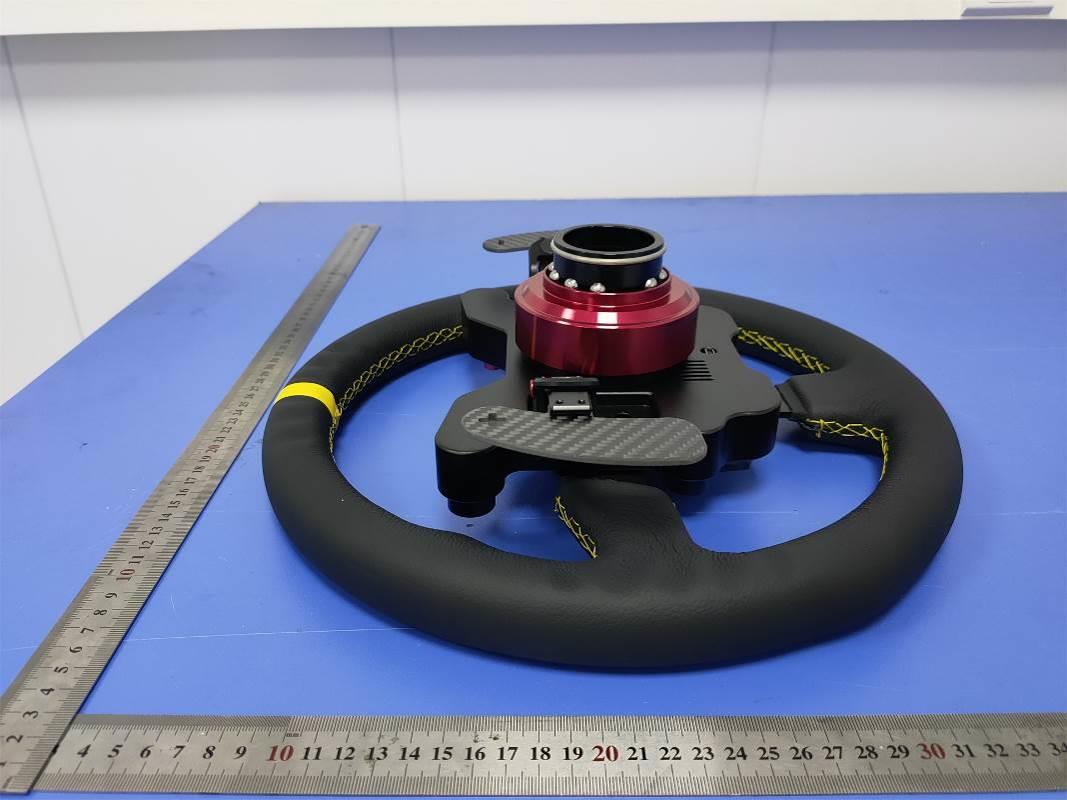

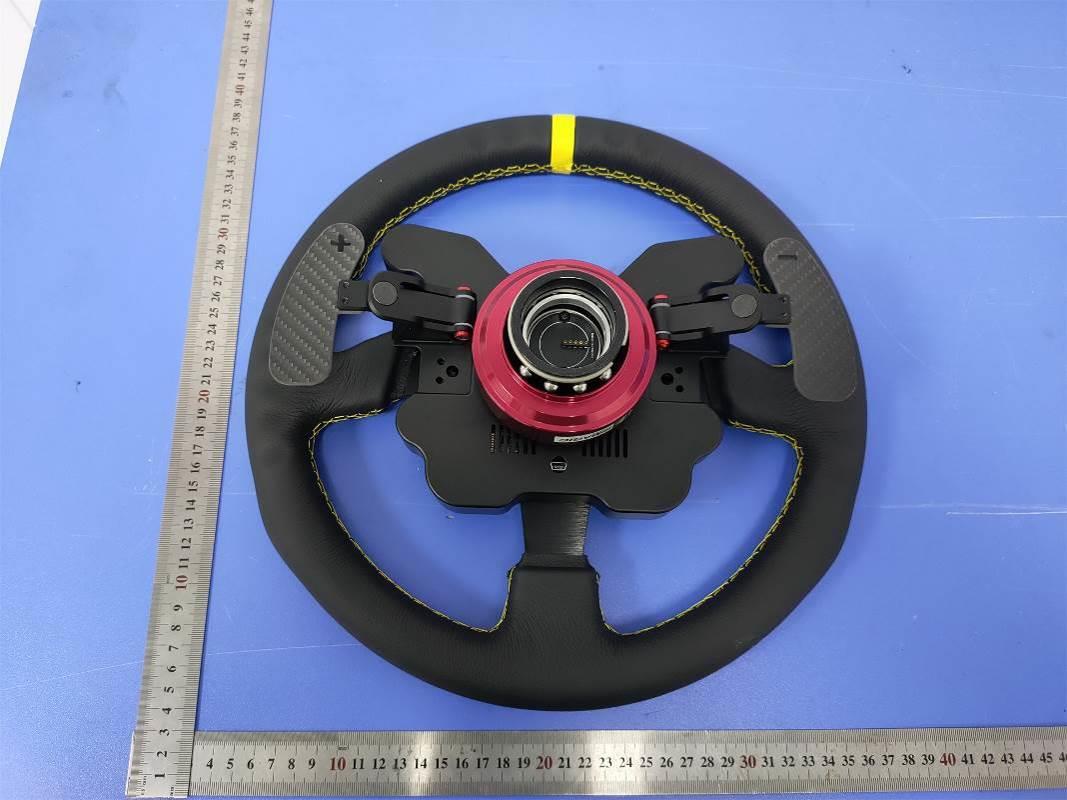

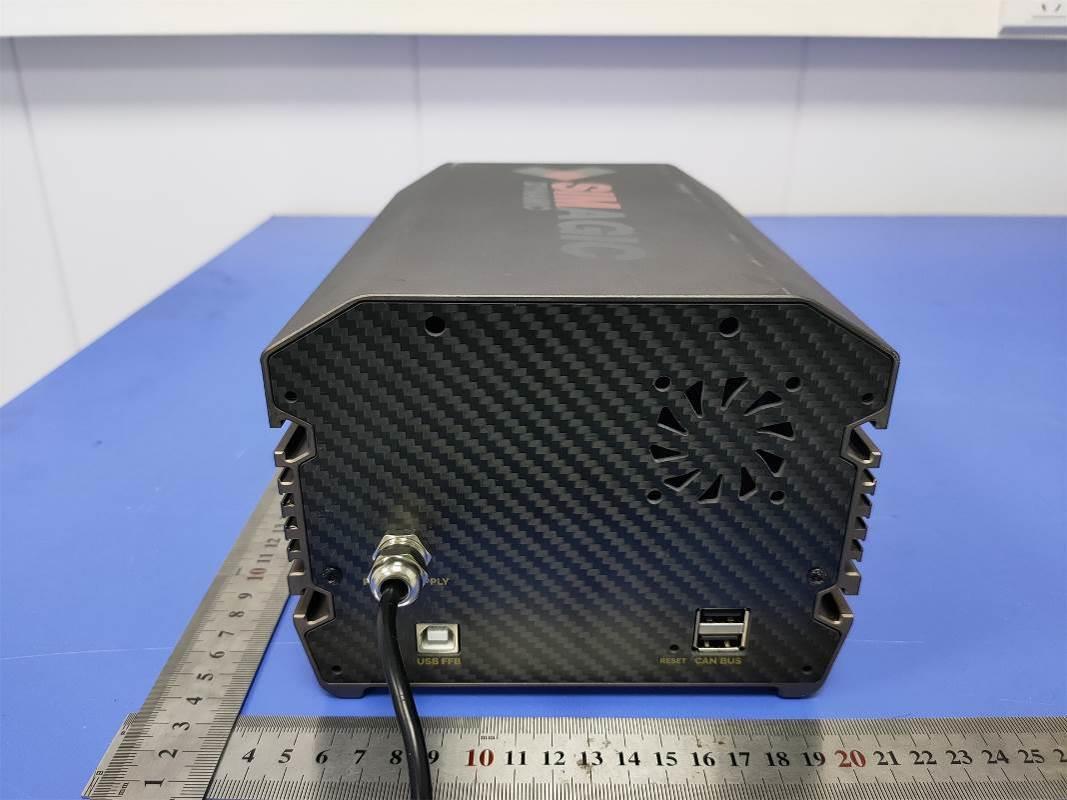

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWJ8-M10-SR This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 7 External Photos of the EUT Fig. 1 Fig. 2 RX TX SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWJ8-M10-SR This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 7 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWJ8-M10-SR This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 7 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWJ8-M10-SR This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 7 Fig. 7 Fig. 8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWJ8-M10-SR This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 7 Fig. 9 Fig. 10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWJ8-M10-SR This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 6 of 7 Fig. 11 Fig. 12 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWJ8-M10-SR This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 7 of 7 Fig. 13

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWJ8-M10-SR This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L: 2.0cm*W: 1.5cm Label Location Direct drive force-feedback simwheel Model No.: M10-SR FCC ID : 2AWJ8-M10-SR Input: AC 100-240V, 50-60Hz, 240W Output : DC 24V, 10A Made In China

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWJ8-M10-SR This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 11 Internal Photos of the EUT Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWJ8-M10-SR This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 11 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWJ8-M10-SR This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 11 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWJ8-M10-SR This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 11 Fig. 7 Fig. 8 WPT Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWJ8-M10-SR This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 11 Fig. 9 Fig. 10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWJ8-M10-SR This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 6 of 11 Fig. 11 Fig. 12 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWJ8-M10-SR This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 7 of 11 Fig. 13 Fig. 14 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWJ8-M10-SR This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 8 of 11 Fig. 15 Fig. 16 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWJ8-M10-SR This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 9 of 11 Fig. 17 Fig. 18 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWJ8-M10-SR This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 10 of 11 Fig. 19 Fig. 20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWJ8-M10-SR This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 11 of 11 Fig. 21 2.4G Antenna

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWJ8-M10-SR ___________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 10 RF Exposure Evaluation Report 1. Product Information FCC ID: 2AWJ8-M10-SR Product Name Direct drive force-feedback simwheel Model Number M10-SR, M10-SDC, M10-GT4, M10-GT4C Model Declaration PCB board, structure and internal of these model(s) are the same, So no additional models were tested. Power Supply Input: AC 100-240V, 50-60Hz, 240W Output : DC 24V, 10A Modulation Type Continuous Wave Frequency Range 110.0~205.0KHz Operation Frequency 128.0 KHz Antenna Type Coil Antenna Hardware version V1.1 Software version 4031 Accessories / Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Device 2. Evaluation Method Per KDB 680106 D01 Section 3. RF Exposure Requirements; 1) Consumer wireless power transfer devices approved under Part 18 in some cases have to demonstrate compliance with RF exposure requirements. The potential for exposure must be assessed according to the operating configurations of the wireless system and the exposure conditions of users and bystanders. RF exposure must be evaluated with the client device(s) being charged by the primary at maximum output power. The RF exposure requirements must be determined in conjunction with the device operating characteristics, according to the mobile and portable exposure requirements in Section 2.1091 and Section 2.1093 of the rules. SAR and MPE limits do not cover the frequency range for wireless power transfer applications which operate below 100 kHz and 300 kHz respectively; therefore, RF exposure compliance needs to be determined with respect to 1.1307 (c) and (d) of the FCC rules. 2) Based on the design and implementation of the power transfer application, it must be clearly identified if mobile or portable RF exposure conditions apply. Devices that are installed to provide separation of at least 20 cm from users and bystanders may qualify for mobile exposure conditions. For some conditions where users and bystanders may be exposed at closer than 20 cm, section 2.1091(d) (4) of the rules may apply. 3) For devices designed for typical desktop applications, such a wireless charging pads, RF exposure evaluation should be conducted assuming a user separation distance of 15 cm. E and H field strength measurements or numerical modeling may be used to demonstrate compliance. Measurements should be made from all sides and the top of the primary/client pair, with the 15 cm measured from the center of the probe(s) to the edge of the device. Emissions between 100 kHz to 300 kHz should be assessed versus the limits at 300 kHz in Table 1 of Section 1.1310: 614 V/m and 1.63 A/m. A KDB inquiry is required to determine the applicable exposure limits below 100 kHz. SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWJ8-M10-SR ___________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 10 4) Portable exposure conditions from 100 kHz to 6 GHz are determined with respect to SAR requirements. Existing SAR systems and test procedures are generally intended for measurements above 100 MHz. While numerical modeling can be an alternative, the constraints of substantial computational resources at low frequencies could introduce further limitations. Under these circumstances, including operations below 100 kHz, the Commission may consider a combination of analytical analysis, field strength, radiated and conducted power measurements, in conjunction with some limited numerical modeling to assess compliance. 5) Depending on the operating frequency, existing SAR and MPE measurement procedures may be adapted to evaluate wireless power transfer devices for compliance with respect to mobile or portable exposure conditions. If the grantee or its test lab have any questions regarding RF exposure evaluation they should contact the FCC Laboratory with sufficient system operating configuration details to determine if RF exposure evaluation is necessary and, if required, how to apply specific test procedures. Below 100 MHz, when SAR testing is required and the device is operating at close proximity to persons, information on device design, implementation, operating configurations, exposure conditions of users and bystanders are needed to determine the evaluation and testing requirements. In addition, the influence of nearby objects may also need consideration according to the wireless power transfer system implementation; for example, the effects of placing the device, its coils or radiating elements on or near metallic surfaces 3. Evaluation Limit 3.1 Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 680106 D01 RF Exposure Wireless Charging Apps v03: RF Exposure Considerations for Low Power Consumer Wireless Power Transfer Applications FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices FCC CFR 47 part 18.107:Indusial, Scientific, and Medical Equipment 3.2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 *100 6 3.0-30 1842/f 4.89/f *900/f 2 6 30-300 61.4 0.163 1.0 6 300-1,500 / / f/300 6 1,500-100,000 / / 5 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWJ8-M10-SR __________________________________________________________…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWJ8-M10-SR Report No.: LCS200509061AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 23 FCC TEST REPORT For Shen Zhen Simagic Technology Co.,Limited Direct drive force-feedback simwheel Test Model: M10-SR Additional Model No.: Please Refer to Page 6 Prepared for : Shen Zhen Simagic Technology Co.,Limited Address : No.302, building 7, DCC cultural and creative park, No. 95, Pingxin North Road, shangmugu community, Pinghu street, Longgang District, Shenzhen Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : May 27, 2020 Number of tested samples : 1 Serial number : Prototype Date of Test : May 27, 2020 ~ June 03, 2020 Date of Report : June 05, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWJ8-M10-SR Report No.: LCS200509061AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 23 FCC TEST REPORT FCC CFR 47 PART 18 Report Reference No. ................. : LCS200509061AEB Date Of Issue ................................. : June 05, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : Shen Zhen Simagic Technology Co.,Limited Address .......................................... : No.302, building 7, DCC cultural and creative park, No. 95, Pingxin North Road, shangmugu community, Pinghu street, Longgang District, Shenzhen Test Specification Standard ......................................... : FCC CFR 47 PART 18 Test Report Form No...................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .................. : Direct drive force-feedback simwheel Trade Mark ..................................... : N/A Test Model ...................................... : M10-SR Power Supply ................................. : Input: AC 100-240V, 50-60Hz, 240W Output : DC 24V, 10A Result ........................................... : Positive Compiled by: Supervised by: Approved by: Jayden Zhuo/ Administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWJ8-M10-SR Report No.: LCS200509061AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 23 FCC TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200509061AEB June 05, 2020 Date of issue Test Model.............................. : M10-SR EUT......................................... : Direct drive force-feedback simwheel Applicant............................... : Shen Zhen Simagic Technology Co.,Limited Address.................................. : No.302, building 7, DCC cultural and creative park, No. 95, Pingxin North Road, shangmugu community, Pinghu street, Longgang District, Shenzhen Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Shen Zhen Simagic Technology Co.,Limited Address................................... : No.302, building 7, DCC cultural and creative park, No. 95, Pingxin North Road, shangmugu community, Pinghu street, Longgang District, Shenzhen Telephone............................... : / Fax.......................................... : / Factory................................... : Shen Zhen Simagic Technology Co.,Limited Address................................... : No.302, building 7, DCC cultural and creative park, No. 95, Pingxin North Road, shangmugu community, Pinghu street, Longgang District, Shenzhen Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWJ8-M10-SR Report No.: LCS200509061AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 23 Revision History Revision Issue Date Revisions Revised By 000 June 05, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWJ8-M10-SR Report No.: LCS200509061AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 23 TABLE OF CONTENTS 1. GENERAL INFORMATION ......................................................................................................... 6 1.1 Description of Device (EUT) ........................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWJ8-M10-SR _______________________________________________________________________________________________ 7. TEST SETUP PHOTOGRAPHS Photo of Radiated Emissions Measurement Below 30MHz Below 1 GHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWJ8-M10-SR _______________________________________________________________________________________________ Above 1 GHz Power Line Conducted Emission
