2AWK5SG9SPlant Growing Appliance by LED Lamp with BLE Function

Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the unit at least 20cm from nearby persons.

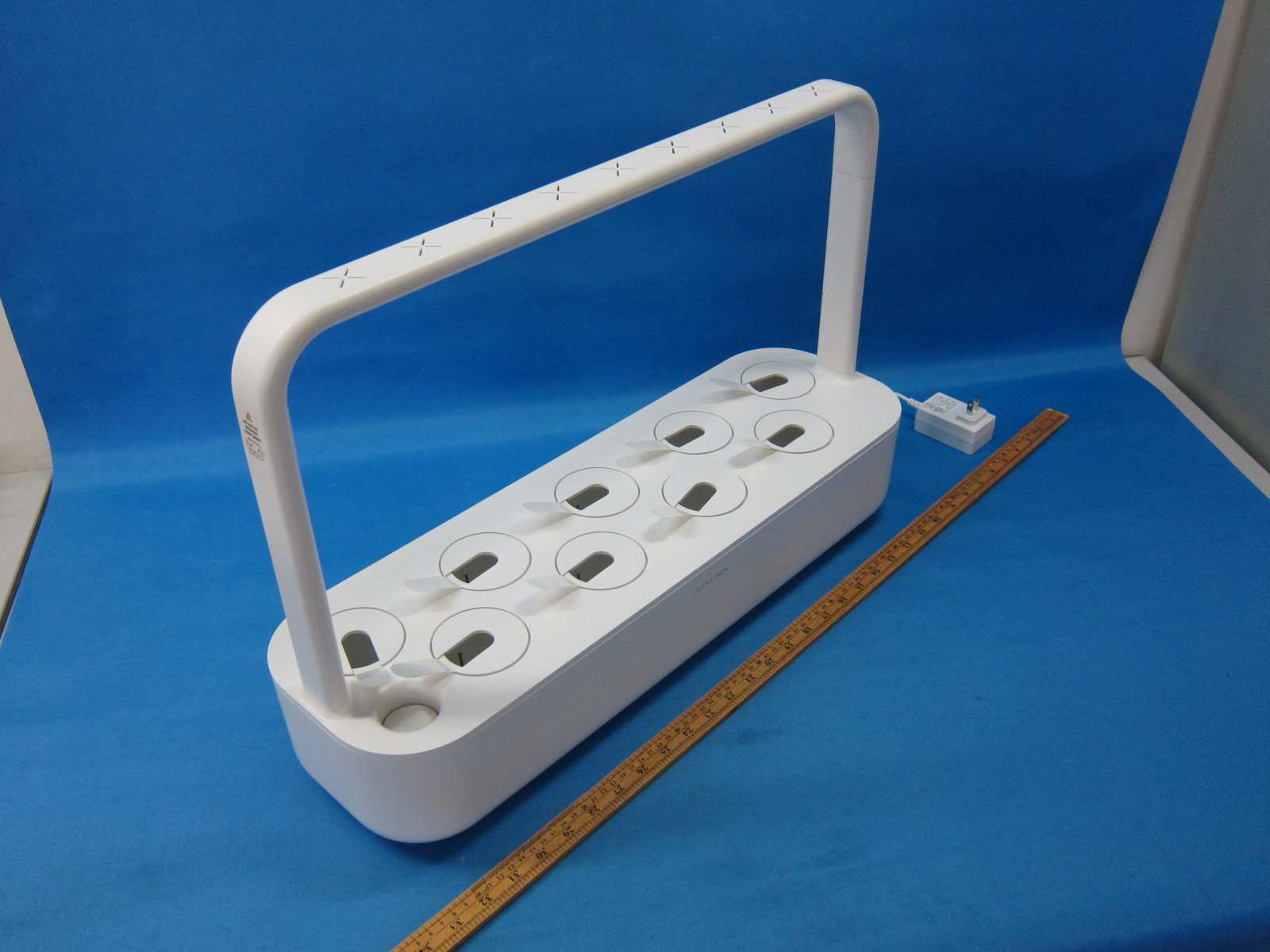

INTERTEK TESTING SERVICE Report No.: HK20030274 Equipment Photographs (External) INTERTEK TESTING SERVICE Report No.: HK20030274 Equipment Photographs (External)

INTERTEK TESTING SERVICE Report No.: HK20030274 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK20030274 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK20030274 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK20030274 Equipment Photographs (Internal)

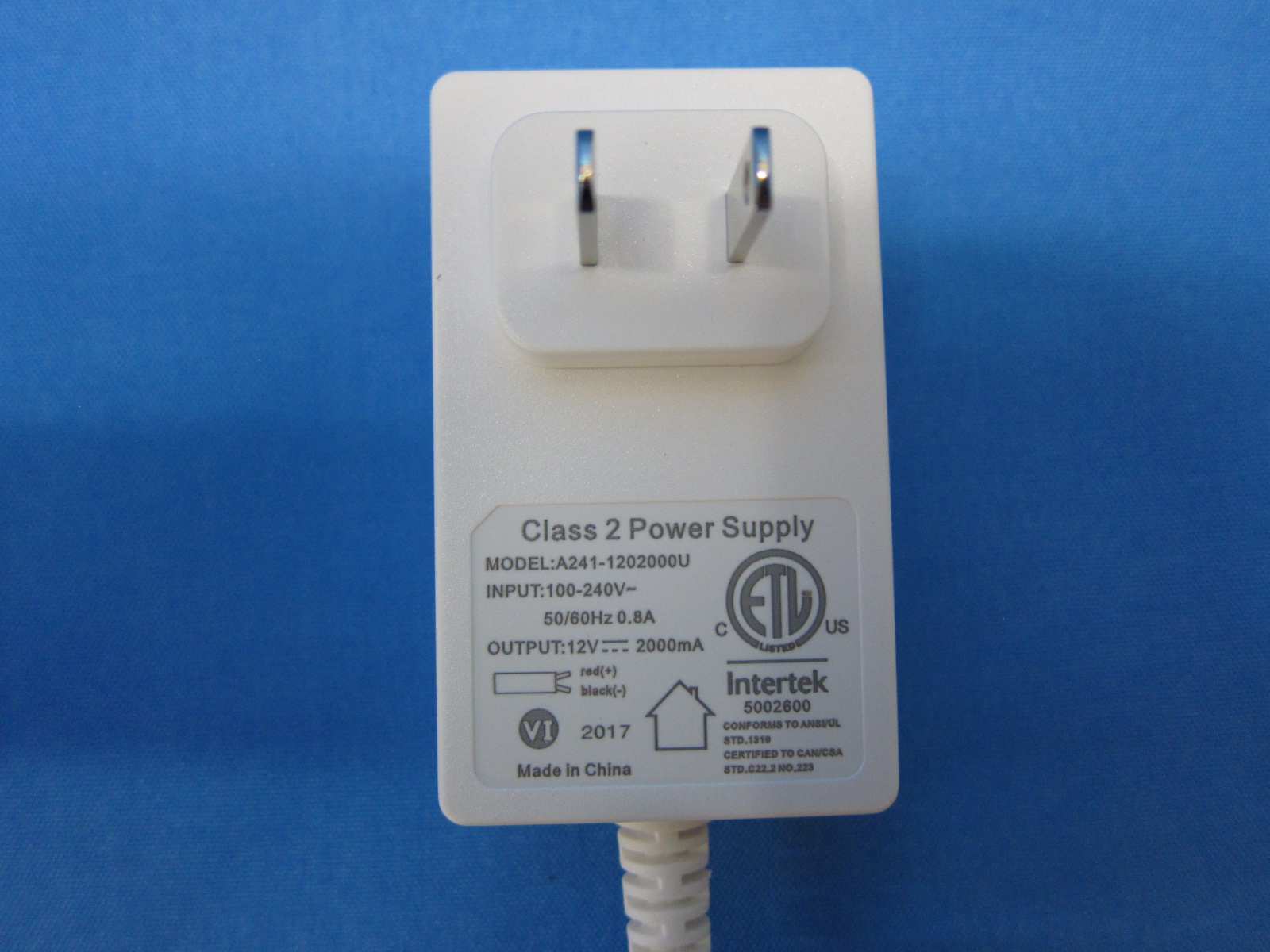

INTERTEK TESTING SERVICE MPE Analysis Report The Equipment Under Test (EUT) is Grow Smart Garden 9 (Model: SG9S) which is a LED lighting device that helps user growing vegetables indoor. The EUT contains a microcontroller with integrated Bluetooth BLE feature which controls the lighting of the device via smartphone. The EUT can supports Bluetooth BLE only. The Bluetooth BLE of the EUT operates at frequency range of 2402MHz to 2480MHz. There are total 40 channels with 2MHz channel spacing. The EUT is powered by an AC/DC adaptor (100-240VAC 50/60Hz 0.8A input; 12VDC 2A output). Antenna Type: Internal, Integral Antenna Gain: 0.5 dBi Operating mode Range of Peak Modulation Conducted Power Type Bluetooth portion BLE -10dBm to +3dBm GFSK For Maximum Permissible Exposure (MPE) evaluation of the unit, the maximum power density at 20 cm from this transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65 and meet the requirement listed in KDB447498. For the Bluetooth BLE portion of the unit, the measured powers among all the measured channels were within its production tolerance. The antenna gain is 0.5 dBi and its maximum source-based time-averaging duty factor is 100%. From these data and its operating configuration, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The EIRP radiated power = conducted power (with maximum tolerance) + antenna gain = 3 dBm + 0.5 dBi = 3.5 dBm (2.24 mW) The radiated (EIRP) source-based time-averaging output power = (2.24 * 1) mW = 2.24 mW The power density at 20 cm from the antenna = EIRP / 4 πR^2 = 0.00045 mW cm-2 INTERTEK TESTING SERVICE In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm-2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the unit at least 20cm from nearby persons.”

2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong SAR, China. Telephone: (852) 2173 8888 Facsimile: (852) 2785 5487 www.intertek.com Intertek’s standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. © 2017 Intertek Page 1 of 25 TEST REPORT Report No.: 20060490HKG-001 Click & Grow OÜ Application For Certification (Original Grant) FCC ID: 2AWK5SG9S Transceiver Prepared and Checked by: Approved by: Signed On File Wong Cheuk Ho, Herbert Lead Engineer Wong Kwok Yeung, Kenneth Senior Lead Engineer Date: July 02, 2020 TEST REPORT Click & Grow OÜ Intertek Report No: 20060490HKG-001 Page 2 of 25 GENERAL INFORMATION Grantee: Click & Grow OÜ Grantee Address: Telliskivi 60-42, 10419 Tallinn, Estonia Contact Person: Kaarel Rand Tel: +372 5341 8784 Fax: n/a e-mail: [email protected] Manufacturer: Click & Grow OÜ Manufacturer Address: Telliskivi 60-42, 10419 Tallinn, Estonia Brand Name: Smart Garden 9 PRO FCC Model: SG9S Type of EUT: Transceiver Description of EUT: Plant Growing Appliance by LED Lamp with BLE Function Serial Number: N/A FCC ID: 2AWK5SG9S Date of Sample Submitted: June 09, 2020 Date of Test: June 09, 2020 to June 30, 2020 Report No.: 20060490HKG-001 Report Date: July 02, 2020 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Conclusion: Test was conducted by client submitted sample. The submitted sample as received complied with the 47 CFR Part 15 Certification. TEST REPORT Click & Grow OÜ Intertek Report No: 20060490HKG-001 Page 3 of 25 SUMMARY OF TEST RESULT Test Specification Reference Results Transmitter Power Line Conducted Emissions 15.207 Pass Radiated Emission Radiated Emission on the Bandedge 15.249, 15.209 Pass Radiated Emission in Restricted Bands 15.205 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2019 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. TEST REPORT Click & Grow OÜ Intertek Report No: 20060490HKG-001 Page 4 of 25 TABLE OF CONTENTS 1.0 GENERAL DESCRIPTION ................................................................................................ 5 1.1 Product Description ................................................................................................... 5 1.2 Related Submittal(s) Grants ....................................................................................... 5 1.3 Test Methodology ...................................................................................................... 5 1.4 Test Facility ................................................................................................................ 5 2.0 SYSTEM TEST CONFIGURATION ..................................................................................... 6 2.1 Justification ................................................................................................................ 6 2.2 EUT Exercising Software ............................................................................................. 6 2.3 Special Accessories .................................................................................................... 6 2.4 Measurement Uncertainty ......................................................................................... 6 2.5 Support Equipment List and Description .................................................................... 6 3.0 EMISSION RESULTS ....................................................................................................... 7 3.1 Field Strength Calculation .......................................................................................... 7 3.2 Radiated Emission Configuration Photograph ............................................................ 8 3.3 Radiated Emission Data ............................................................................................. 8 3.4 Conducted Emission Configuration Photograph ........................................................ 8 3.5 Conducted Emission Data .......................................................................................... 8 4.0 EQUIPMENT PHOTOGRAPHS ...................................................................................... 14 5.0 PRODUCT LABELLING .................................................................................................. 14 6.0 TECHNICAL SPECIFICATIONS ....................................................................................... 14 7.0…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: HK20030274 Configuration Photographs Worst-Case Radiated Emissions (Front View) INTERTEK TESTING SERVICE Report No: HK20030274 Configuration Photographs Worst-Case Radiated Emissions (Rear View)

INTERTEK TESTING SERVICE Report No: HK20030274 Configuration Photographs Worst-Case Radiated Emissions (Front View) INTERTEK TESTING SERVICE Report No: HK20030274 Configuration Photographs Worst-Case Radiated Emissions (Rear View)

INTERTEK TESTING SERVICE Report No: HK20030274 i Configuration Photographs Worst-Case Line-Conducted Emissions (Front View) INTERTEK TESTING SERVICE Report No: HK20030274 ii Configuration Photographs Worst-Case Line-Conducted Emissions (Rear View) INTERTEK TESTING SERVICE Report No: HK20030274 iii Configuration Photographs Worst-Case Line-Conducted Emissions (Side View)
