2AWMXIS-FL-DBT-256datAshur BT-Secure USB Drive

#1 www.istorage-uk.com iStorage datAshur ® BT Personal User Manual – v 1.5 If you are having difficulty please refer to this complete user manual loaded on your datAshur BT Drive and is also available on our website: https://istorage-uk.com/product-documentation/ USER MANUAL Personal #2 iStorage datAshur ® BT Personal User Manual – v 1.5 www.istorage-uk.com iStorage datAshur is developed and manufactured by iStorage Limited and is based on DataLock ® technology licensed from ClevX, LLC. iStorage datAshur BT is manufactured by iStorage Ltd. and is using DataLock® technology licensed from ClevX, LLC. U.S. Patent. www.istorage-uk.com/clevx-patents All trademarks and brand names are the property of their respective owners Copyright © 2020 iStorage Limited. All rights reserved. Windows is a registered trademark of Microsoft Corporation. All other trademarks and copyrights referred to are the property of their respective owners. Distribution of the work or derivative work in any standard (paper) book form for commercial purposes is prohibited unless prior permission is obtained from the copyright holder. DOCUMENTATION IS PROVIDED AS IS AND ALL EXPRESS OR IMPLIED CONDITIONS, REPRESENTATIONS AND WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT, ARE DISCLAIMED, EXCEPT TO THE EXTENT THAT SUCH DISCLAIMERS ARE HELD TO BE LEGALLY INVALID iStorage shall not be liable by virtue of this warranty, or otherwise, for any incidental, special or consequential damage including any loss of data resulting from use or operation of the product, whether or not iStorage was apprised of the possibility of such damages EMI Cautions This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Cautions Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this device. The normal function of the product may be disturbed by strong Electro-Magnetic Interference. If so, simply reset the product to resume normal operation by following the instruction manual. In case the function could not resume, please use the product in other location. This device complies with part 15 of the FCC Rules and with Industr y Canada License-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. RF Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimetres between the radiator and your body. #3 www.istorage-uk.com iStorage datAshur ® BT Personal User Manual – v 1.5 Table of Contents Introduction .................................................................................................................................. 4 Package contents ..........................................................................................................................4 1. datAshur BT Layout ................................................................................................................5 2. Drive LED Indicators and their actions ....................................................................................5 3. App Icons Description .............................................................................................................6 4. Download and Install datAshur BT Personal App ...................................................................6 5. First Time Use .........................................................................................................................7 6. How to change the Password .................................................................................................7 7. How to Unlock datAshur BT ....................................................................................................8 8. How to Lock datAshur BT .......................................................................................................8 9. How to access Drive Settings Menu ............................................................................. ...........8 10. How to Change name of the Drive ...........................................................................................9 11. How to enable 2-Factor Authentication ..................................................................................9 12. Enabling Drive Password Recover y ............................................................................. ............10 13. How to Recover a Forgotten Drive Password ...........................................................................11 14. Remember Password ..............................................................................................................11 15. How to Activate Biometric Unlo…

Text truncated - open the document above for the full version.

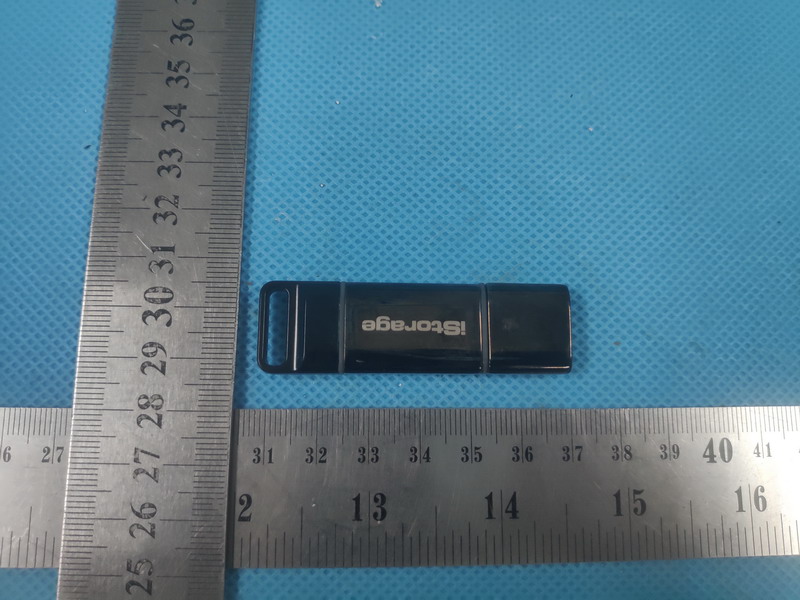

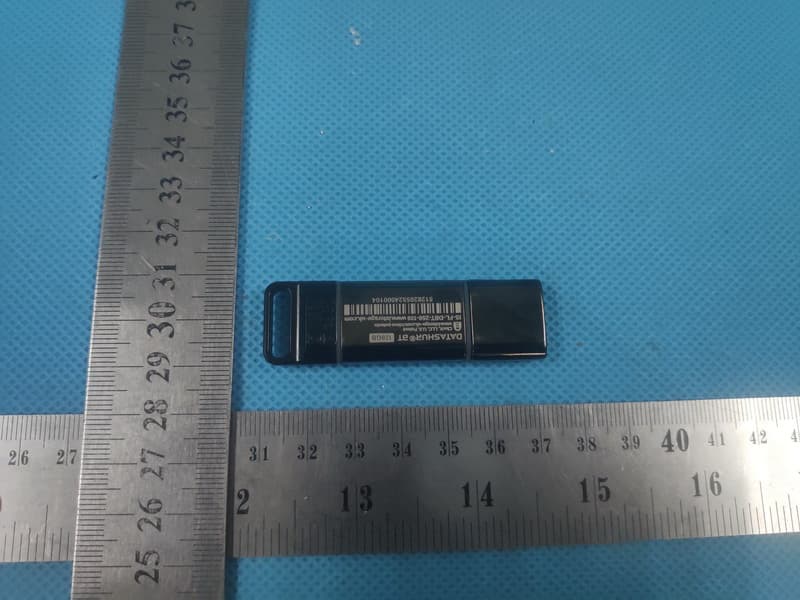

1 External Photo FCC ID: 2AWMXIS-FL-DBT-256 View of The Product View of The Product 2 View of The Product

1 Internal Photo FCC ID: 2AWMXIS-FL-DBT-256 Inner Circuit Top View Inner Circuit Bottom View Antenna

Ultra-Miniature 2.4GHz Chip antenna 0.37mm max ThicknessP/N 2450AT07A0100 Detail Specification:Page 1 of 4 Input Power Storage Temperature Operating Temperature Impedance Part Number Explanation No. BulkEg. 2450AT07A0100S 1 P/N T & R (10000pcs)Eg. 2450AT07A0100T 2 Suffix 100% TinSuffix = NoneEg. 2450AT07A0100 (T or S) 3 4 Mechanical Dimensions Inmm L±± W±± T a b c Mounting Considerations Mount these devices with red mark facing up. *Line width should be designed to provide 50Ω impedance matching characteristics. Units: mm Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2016 Johanson Technology, Inc. All Rights Reserved -40 to +85°C Ver 3.0 "High Frequency Ceramic Solutions" 2W max. (CW) 50 Ω 2/23/2016 Average Gain (dBi typ.) Peak Gain (dBi typ.) Part Number2450AT07A0100 -40 to +125°C 2400~2500 1.0 (XZ-Total) Frequency (MHz) Terminal Configuration 6.5 dB min. Suffix = T -1.5 (XZ-Total) Function Recommended Storage Conditions of unused product on T&R Packaging Style Feed +5 ~ +35 °C, 18 mos max. Humidity 45~75%RH Suffix = S Return Loss Termination Style 0.15 0.0200.004 0.004 0.003 0.014 (max) 0.010 +.004/-.006 0.50 0.08+.004/-.006 +.004/-.0060.006 General Specifications It is recommended that the designer leave available slots for a "pi" (or shunt-series- shunt) network. The antenna matching network values above are used when antenna is mounted on Johanson's evaluation board. The matching values on client’s PCB will be different. Let us help you tune our antenna on your new layout, contact our RF Applications Eng. Team at: www.johansontechnology.com/ask-a-question GND GND +0.1/-0.05 Feed +0.1/-0.05 +0.1/-0.05 0.10 0.37 (max) 1.000.100.039 0.25 Unit : mm 1 2 3 4 L W a b c T 0.9 4.0 0.4 0.3 0.3 0.7 1.2 0.25 1.5 5.0 3 .0 Feed line Matching No Ground (Yellow area) GND Plane * 0.1 1 23 4 Land Solder Ultra-Miniature 2.4GHz Chip antenna 0.37mm max ThicknessP/N 2450AT07A0100 Detail Specification:Page 2 of 4 Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2016 Johanson Technology, Inc. All Rights Reserved "High Frequency Ceramic Solutions" 2/23/2016 Antenna Radiation Pattern Symbol Position Explanation (See page 3 for patterns) Ver 3.0 Layout Guidelines and EVB Specifications To order a pre-tuned evaluation board with SMA connector click here: http://www.johansontechnology.com/request-a-sample Reference p/n: 2450AT07A0100-EB1SMA To request the Gerber files click here: www.johansontechnology.com/component/techquestion Need help designing the antenna in? Use our antenna design services! Click on: www.johansontechnology.com/ipc-antenna-services 2 Free layout reviews and if you need us to tune and characterize the antenna on your design (anechoic chamber) we can do that too (lab fee may apply for the latter). Test Board-Top View (Units in mm) 40 20 Total, no Ground/Ground Clearance (Yellow area) Ground 3 5 40 20 No Ground (Yellow area) Ground Matching circuit: “pi” style recommended EIA 0201 or 0402 1 Feeding line 3 5 Antenna could be fed from the "right" too Test Board-Bottom View (Units in mm) 2450AT07A0100-EB1SMA p/n: 2450AT07A0100-EB1SMA Want the layout file of this? Send us a message at: www.johansontechnology.com/ask-a-question Let us help you design the antenna in you PCB or optimize your layout for best performance and send us a Ultra-Miniature 2.4GHz Chip antenna 0.37mm max ThicknessP/N 2450AT07A0100 Detail Specification:Page 3 of 4 Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2016 Johanson Technology, Inc. All Rights Reserved "High Frequency Ceramic Solutions" 2/23/2016 Ver 3.0 Typical Radiation Patterns @25C ) ) XY cut @2.45GHz Vertical Horizontal 180º 270 º 0º 90º X Z Y XY-cut scanning direction XY-V/XY-H 180º 270º 0º 90º X Z Y XZ-cut scanning direction XZ-V/XZ-H XZ cut @2.45GHz Vertical Horizontal 180º 270º 0º 90º X Z Y YZ-cut scanning direction YZ-V/YZ-H YZ cut @2.45GHz Vertical Horizontal Ultra-Miniature 2.4GHz Chip antenna 0.37mm max ThicknessP/N 2450AT07A0100 Detail Specification:Page 4 of 4 Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2016 Johanson Technology, Inc. All Rights Reserved www.johansontechnology.com/msl-rating The designer should not be highly concerned of the fact that the antenna only demonstrates a -5dB S11 level at the band edges. The antenna has sufficient gain at the band edges to satisfy the applications and uses a high dielectric constant ceramic giving it some detuning resilience to capacitive loading effects. This antenna is designed for close proximity evironment applications. http://www.johansontechnology.com/tape-reel-packaging www.johansontechnology.com/ipcsoldering-profile www.johansontechnology.com/rohs-compliance MSL Info Ver 3.0 "High Frequency Ceramic Solutions" 2/23/2016 Typical Electrical Performance (T=25°C) Packaging information Soldering Information Antenna layout and tuning techniques (How to obtain the new antenna matching values) www.johansontechnology.com/tuning Antenna layout review, tuning, and characterization services www.johansontechnology.com/ipcantennaservices RoHS Compliance Return Loss / Without Matching Circuits 2.12.22.32.42.52.62.72.82.92.03.0 -20 -15 -10 -5 -25 0 freq, GHz dB(S(1,1)) m1 m2 m3 m1…

Text truncated - open the document above for the full version.

Test Report Date : 2020-06-12 Page 1 of 26 No. : HMD20060003 The Hong Kong Standards and Testing Centre Limited 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. Applicant : iStorage Limited iStorage House, 13 Alperton Lane, Perivale, Middlesex, UB6 8DH, England Supplier / Manufacturer : Chase Glory Industrial Limited Flat B-D, 15/F., Haribest Ind. Bldg., 45-47 Au Pui Wan St., Fotan, Shatin, N.T., Hong Kong Description of Sample(s) : Submitted sample(s) said to be Product: datAshur BT-Secure USB Drive Brand Name: iStorage Model No.: IS-FL-DBT-256-128 FCC ID: 2AWMXIS-FL-DBT-256 Date Samples Received : 2020-06-01 Date Tested : 2020-06-01 to 2020-06-10 Investigation Requested : Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.10: 2013 for FCC Certification. Conclusions : The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks : For additional model(s) details, please see page 3. _______________________________ LEUNG Kwun Hang, Joey Authorized Signatory Test Report Date : 2020-06-12 Page 2 of 26 No. : HMD20060003 The Hong Kong Standards and Testing Centre Limited 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. CONTENT: Cover Page 1 of 26 Content Page 2 of 26 1.0 General Details 1.1 Equipment Under Test [EUT] Page 3 of 26 Description of EUT operation 1.2 RF Module Details Page 3 of 26 1.3 Antenna Details Page 3 of 26 1.4 Date of Order Page 3 of 26 1.5 Submitted Sample(s) Page 3 of 26 1.6 Test Duration Page 3 of 26 1.7 Country of Origin Page 3 of 26 2.0 Technical Details 2.1 Investigations Requested Page 4 of 26 2.2 Test Standards and Results Summary Page 4 of 26 3.0 Test Results 3.1 Emission Page 5-22 of 26 Appendix A List of Measurement Equipment Page 23 of 26 Appendix B Photograph(s) of Product Page 24-26 of 26 Test Report Date : 2020-06-12 Page 3 of 26 No. : HMD20060003 The Hong Kong Standards and Testing Centre Limited 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. 1.0 General Details 1.1 Equipment Under Test [EUT] Description of Sample(s) Product: datAshur BT-Secure USB Drive Manufacturer: Chase Glory Industrial Limited Flat B-D, 15/F., Haribest Ind. Bldg., 45-47 Au Pui Wan St., Fotan, Shatin, N.T., Hong Kong Brand Name: iStorage Model Number: IS-FL-DBT-256-128 Additional Model Number: IS-FL-DBT-256-XXX(Where XXX denote memory size) Rating: 5Vd.c. by USB port 1.1.1 Description of EUT Operation The Equipment Under Test (EUT) is a datAshur BT-Secure USB Drive. It is a transceiver operating at 2402MHz~2480MHz and the RF signal was modulated by IC. 1.2 RF Module Details Module Model Number: N/A Module FCC ID: N/A Modulation: GFSK Frequency Range: 2402-2480MHz 1.3 Antenna Details Antenna Type: 2.4G chip antenna Antenna Gain: 1dBi 1.4 Date of Order 2020-06-01 1.5 Submitted Sample(s): 1 Sample 1.6 Test Duration 2020-06-01 to 2020-06-10 1.7 Country of Origin China Test Report Date : 2020-06-12 Page 4 of 26 No. : HMD20060003 The Hong Kong Standards and Testing Centre Limited 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. 2.0 Technical Details 2.1 Investigations Requested Perform Electromagnetic Interference measurements in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 Regulations and ANSI C63.10: 2013 for FCC Certification. The device was realized by test software. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed N/A Field Strength of Fundamental & Harmonics Emissions FCC 47CFR 15.249 ANSI C63.10: 2013 N/A Radiated Emissions FCC 47CFR 15.209 ANSI C63.10: 2013 N/A AC Mains Conducted Emissions FCC 47CFR 15.207 ANSI C63.10: 2013 N/A Antenna requirement FCC 47CFR 15.203 N/A N/A Note: N/A - Not Applicable Test Report Date : 2020-06-12 Page 5 of 26 No. : HMD20060003 The Hong Kong Standards and Testing Centre Limited 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. 3.0 Test Results 3.1 Emission 3.1.1 Radiated Emissions Ambient temperature 25°C Rel…

Text truncated - open the document above for the full version.

1 Test Photo FCC ID: 2AWMXIS-FL-DBT-256 Measurement of Radiated Emission Test Set Up Measurement of Radiated Emission Test Set Up 2 Measurement of Radiated Emission Test Set Up
