Installation Guide Celona Indoor Access Point AP 22 Enabling cellular wireless connectivity for enterprise environments, within private spectrum options © Copyright 2023 Celona Inc. All rights reserved. About the AP 3 Power input 3 Package Contents 3 GPS 3 Ethernet ports 3 Status LEDs and Interfaces 3 Mounting 4 Installation Overview 4 Install on silhouette and interlude T-bar 7 Mounting the Access Point 4 Install on wall 10 Install on Prelude and Suprafine T-bar 5 Powering the Access Point 12 Access Point Discovery and Provisioning 12 Configuring the Access Point 12 Solution Architecture 13 Celona AP 22 capabilities 13 Operations and Maintenance 14 Security 14 Supported frequency band 15 Phase and time synchronization 14 Seamless session mobility 15 Data and voice connectivity 14 Coverage area 15 Power save mode 14 Transmit power 15 Radio access technology 15 Supported system bandwidth 15 Troubleshooting 16 Contacting Support 16 Warranty 16 Contents Introduction Installation Guide Celona Indoor Access Point AP 22 3 © Copyright 2023 Celona Inc. All rights reserved. This document provides the necessary guidance to help the user enable services on the Celona Indoor Access Point AP 22 capable of private 5G connectivity. About the AP Celona AP 22 is an indoor 5G NR access point as a part of Celona’s 5G LAN solution portfolio, supporting Sub-6 Ghz frequency bands(3.3–4.2 GHz). AP 22 offers highly deterministic performance over the air including up to 1 Gbps aggregate throughput, less than 10ms latency and exceptional coverage. With an enterprise-ready operational model, Celona AP 22 access point is designed for mission-critical use cases in indoor and semi-ruggedized environments. Like all Celona access points, the AP 22 supports plug-and-play deployment, remote provisioning, centralized cloud-based management, and seamlessly integrates into the enterprise network. Celona AP 22 is 3GPP Release 15 compliant 5G NR access point that supports 2x2 MIMO, up to 256 QAM modulation, subcarrier space of 30 KHz and can be ceiling or wall mounted. Package Contents Verify that you have received the items below. If any item is missing or damaged, contact your Celona partner or reseller for instructions. • The Access Point • Mounting bracket and screws • PoE++ injector Ethernet ports The Celona AP 22 has 1/2.5 Gigabit Ethernet port. Power input Celona AP 22 supports IEEE 802.3bt Type 3 (PoE++) connectivity. PoE++ can be provided by a PoE++ injector (AC to PoE power, included in the AP) or a PoE++ capable switch. The drawn power is ≤ 51 W. GPS A Subminiature Version A (SMA) coaxial RF connector port is available for GPS. If obtaining GPS lock is difficult, connecting a GPS puck to the Celona AP 22 may help achieve lock. The GPS puck is typically placed closer to a window where there is line of sight visibility to the sky and a cable is extended from the GPS puck to the SMA connector port for GPS on the Celona AP 22. Status LEDs and Interfaces The Celona AP 22 has 2 LEDs providing the following visual statuses for System, 5G Identity Color Status Description System Blue Steady on Power is on OFF No power supply 5G Blue Steady on Radios are up and transmitting OFF Radios are non-operational Mounting Installation Guide Celona Indoor Access Point AP 22 4 © Copyright 2023 Celona Inc. All rights reserved. Installation Overview The Celona AP 22 can be wall or ceiling mounted and has two omni- directional internal antennas. Internal antennas are down-tilt toward the front of the AP. Before you mount and deploy your access point, we recommend that you perform a wireless design to determine the best location to install your access point. The AP requires an operational Celona Edge for discovery and network service. Celona recommends installation and deployment of the Celona Edge prior to installation of access points. Have the following information about your wireless network design available: • Locations for access point installation • Mounting requirements for each location: suspended from a drop-ceiling, surface mount on a hard ceiling, or on a flat horizontal surface Installing the access point involves the following steps: 1. Mounting the Access Point 2. Powering the Access Point 3. Access Point Discovery and Provisioning 4. Configuring the Access Point Mounting the Access Point The Celona mount kit supports several mounting methods, including from a suspended drop-ceiling, hard surface ceiling, and flat horizontal surfaces such as a wall. The standard mounting hardware included with the AP supports these mounting methods. Main parts of mounting kit assembly Active grid bracket Pay attention to install mark Mounting kit Bracket block x2 Fixed grid bracket Mounting Installation Guide Celona Indoor Access Point AP 22 5 © Copyright 2023 Celona Inc. All rights reserved. Install on Prelude and Suprafine T-bar Step 2: Push the active grid bracket to hold the T-bar Step 1: Loosen two screws and pull out the active grid bracket. Put the fixed grid bracket to hold one side of T bar Push the active grid bracket in the arrow direction to clamp onto the other side of the T-bar Step 3: Fix the active grid bracket and fasten the two screws to prevent the mounting kit from slipping. Tighten the two screws M4*10 to fix the active grid bracket Pull out the active grid bracket in the arrow direction 1 Loosen these two M4*10 screws Screws M4*10 Fasten these two screws Mounting Installation Guide Celona Indoor Access Point AP 22 6 © Copyright 2023 Celona Inc. All rights reserved. Step 4: Slide device to mounting kit, aligning the four screws and the slot. Before slide the device Slide device by arrow direction to hold on mounting kit. Step 5: Fasten one M3*9 screw to fix device and mounting kit. M3*9 screw Mounting Installation Guide Celona Indoor Access Point AP 22 7 © Copyright 2023 Celona Inc. All rights reserved. Install on silhouette and interlude T-bar Step 1: Fix two bracket blocks onto the two grid brackets. Step 2: Loosen tw…

Text truncated - open the document above for the full version.

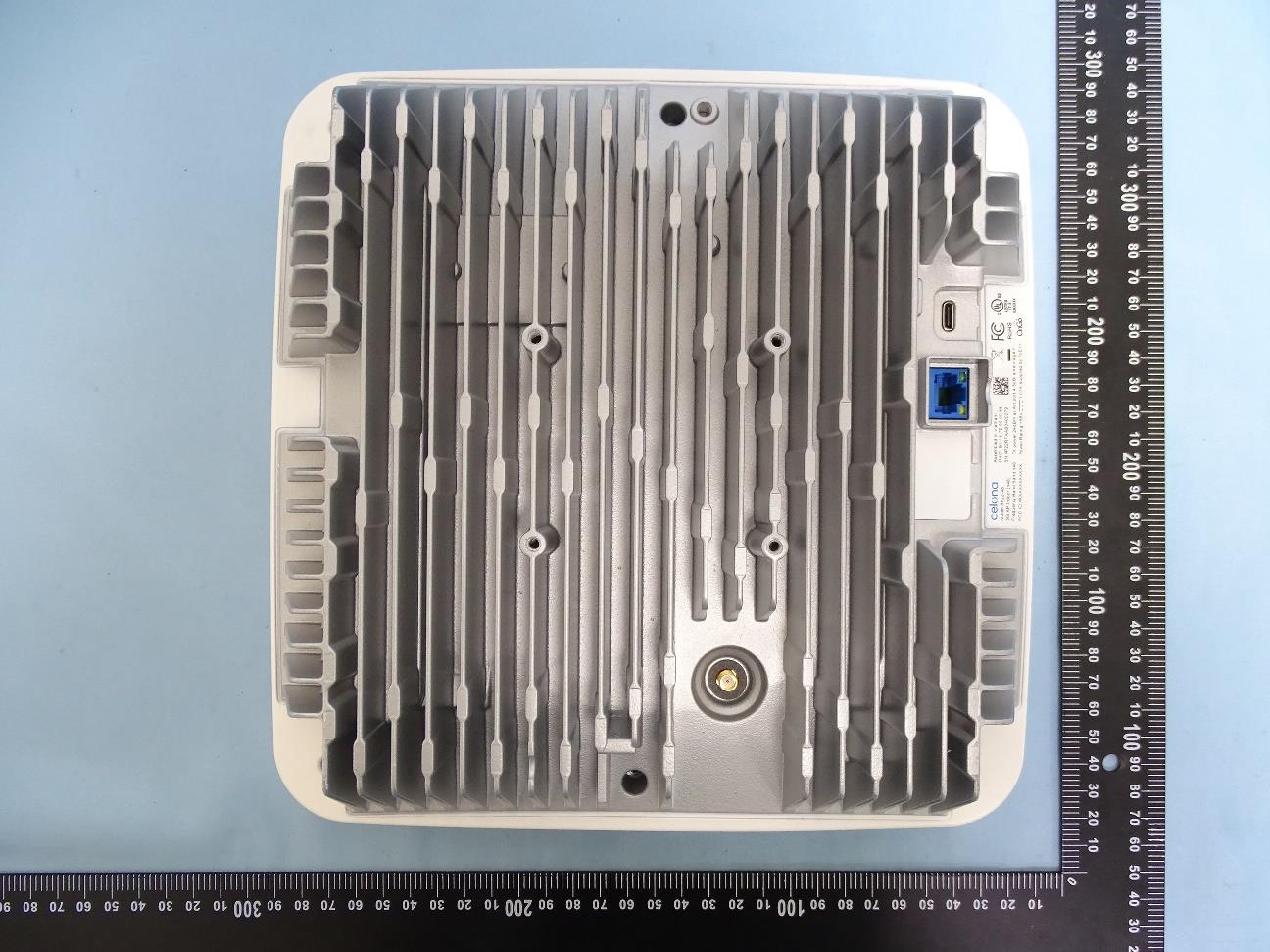

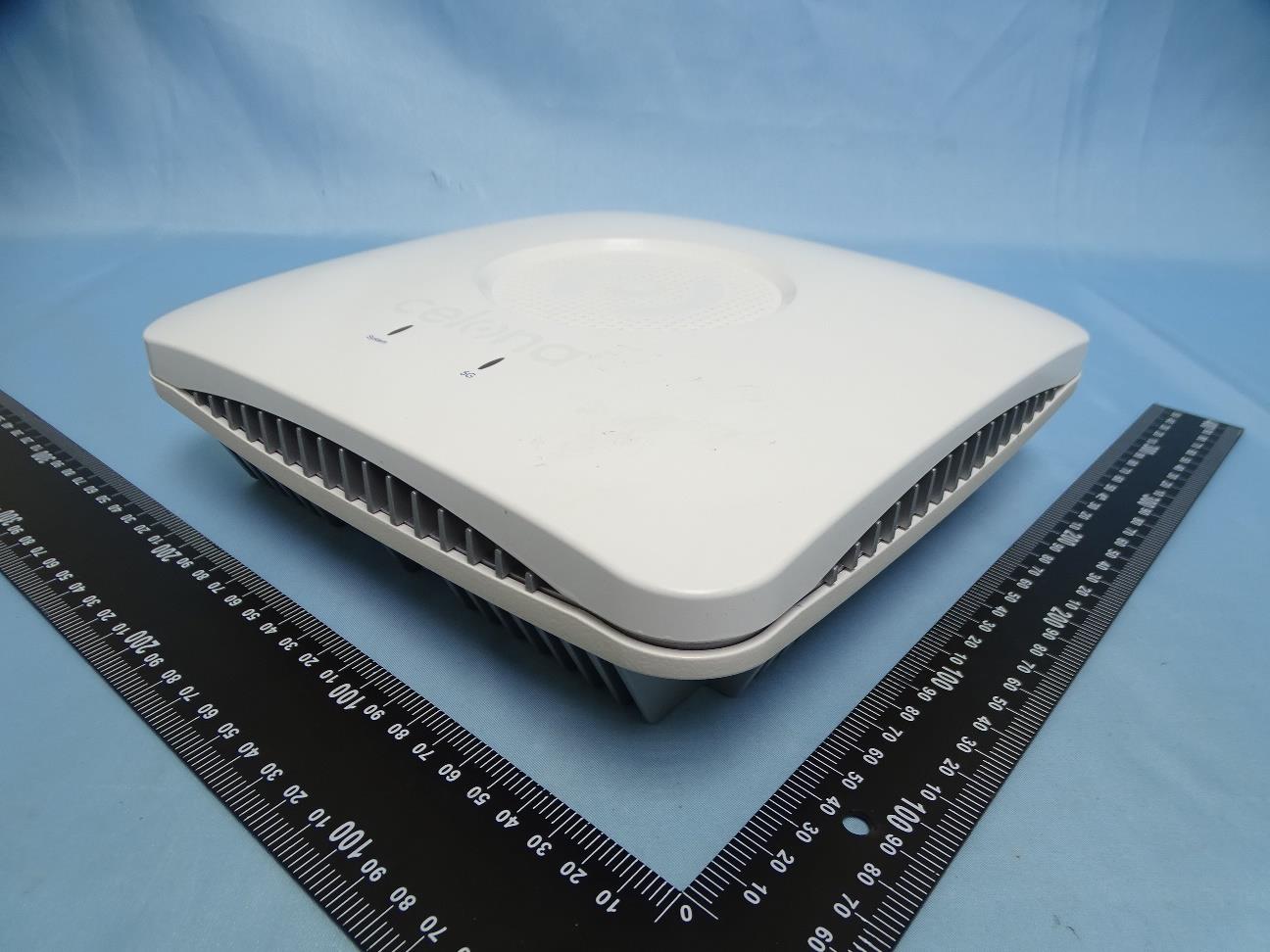

PHOTOGRAPHS OF EUT Report No.: EP310635 TEL : 886-3-327-3456 Page Number : 1 of 39 FAX : 886-3-328-4978 Issue Date : Jun. 01, 2023 Report Version : 01 1. External Photograph of EUT Brand Name: Celona / Model Name: AP22-48 PHOTOGRAPHS OF EUT Report No.: EP310635 TEL : 886-3-327-3456 Page Number : 2 of 39 FAX : 886-3-328-4978 Issue Date : Jun. 01, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP310635 TEL : 886-3-327-3456 Page Number : 3 of 39 FAX : 886-3-328-4978 Issue Date : Jun. 01, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP310635 TEL : 886-3-327-3456 Page Number : 4 of 39 FAX : 886-3-328-4978 Issue Date : Jun. 01, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP310635 TEL : 886-3-327-3456 Page Number : 5 of 39 FAX : 886-3-328-4978 Issue Date : Jun. 01, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP310635 TEL : 886-3-327-3456 Page Number : 6 of 39 FAX : 886-3-328-4978 Issue Date : Jun. 01, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP310635 TEL : 886-3-327-3456 Page Number : 7 of 39 FAX : 886-3-328-4978 Issue Date : Jun. 01, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP310635 TEL : 886-3-327-3456 Page Number : 8 of 39 FAX : 886-3-328-4978 Issue Date : Jun. 01, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP310635 TEL : 886-3-327-3456 Page Number : 9 of 39 FAX : 886-3-328-4978 Issue Date : Jun. 01, 2023 Report Version : 01 2. Photograph of Accessory Brand Name: Celona / Model Name: AP22-48 Specification of Accessory AC Adapter Brand Name Phihong Model Name POE60U-BTA Remark: For accessories equipped with this EUT, please refer to the following photos. PHOTOGRAPHS OF EUT Report No.: EP310635 TEL : 886-3-327-3456 Page Number : 10 of 39 FAX : 886-3-328-4978 Issue Date : Jun. 01, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP310635 TEL : 886-3-327-3456 Page Number : 11 of 39 FAX : 886-3-328-4978 Issue Date : Jun. 01, 2023 Report Version : 01 AC Adapter

Back of the device Label location

label location 5G Indoor AP(n48) Model:AP22-48 FCC ID:2AWNP-AP22-48 MAC1:B4:15:7E:00:00:01 SN:AP22RFXMMYYXXXXX Designed in California,Assembled in Vietnam Max Tx Power:2x24dBm(5G) Input Power:+56V 1.07A,PoE++ E199598 Factory ID:FY label location MAC1:B4:15:7E:00:00:01 SN:AP20RFXAF0300001 4G+5G Indoor AP(B48+n48) Model:AP20-48 Max Tx Power:4x24dBm(4G);2x24dBm(5G) FCC ID:2AWNP-AP20-48 Designed in California,Assembled in Vietnam Input Power:+56V 1.6A,PoE++ E199598Factory ID:FY 5G Indoor AP(n48) Model:AP22-48 FCC ID:2AWNP-AP22-48 MAC1:B4:15:7E:00:00:01 SN:AP22RFXMMYYXXXXX Designed in California,Assembled in Vietnam Max Tx Power:2x24dBm(5G) Input Power:+56V 1.1A,PoE++ E199598 Factory ID:FY MAC1:B4:15:7E:00:00:01 SN:AP20RFXAF0300001 4G+5G Indoor AP(B48+n48) Model:AP20-48 Max Tx Power:2CA 2x24dBm(4G);2x24dBm(5G) FCC ID:2AWNP-AP20-48 Designed in California,Assembled in Vietnam Input Power:+56V 1.6A,PoE++ E199598Factory ID:FY

PHOTOGRAPHS OF EUT Report No.: EP310635 TEL : 886-3-327-3456 Page Number : 31 of 39 FAX : 886-3-328-4978 Issue Date : Jun. 01, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP310635 TEL : 886-3-327-3456 Page Number : 32 of 39 FAX : 886-3-328-4978 Issue Date : Jun. 01, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP310635 TEL : 886-3-327-3456 Page Number : 33 of 39 FAX : 886-3-328-4978 Issue Date : Jun. 01, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP310635 TEL : 886-3-327-3456 Page Number : 34 of 39 FAX : 886-3-328-4978 Issue Date : Jun. 01, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP310635 TEL : 886-3-327-3456 Page Number : 35 of 39 FAX : 886-3-328-4978 Issue Date : Jun. 01, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP310635 TEL : 886-3-327-3456 Page Number : 36 of 39 FAX : 886-3-328-4978 Issue Date : Jun. 01, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP310635 TEL : 886-3-327-3456 Page Number : 37 of 39 FAX : 886-3-328-4978 Issue Date : Jun. 01, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP310635 TEL : 886-3-327-3456 Page Number : 38 of 39 FAX : 886-3-328-4978 Issue Date : Jun. 01, 2023 Report Version : 01 5G Antenna 1 PHOTOGRAPHS OF EUT Report No.: EP310635 TEL : 886-3-327-3456 Page Number : 39 of 39 FAX : 886-3-328-4978 Issue Date : Jun. 01, 2023 Report Version : 01 ─────THE END──── 5G Antenna 2

PHOTOGRAPHS OF EUT Report No.: EP310635 TEL : 886-3-327-3456 Page Number : 12 of 39 FAX : 886-3-328-4978 Issue Date : Jun. 01, 2023 Report Version : 01 3. Internal Photograph of EUT Brand Name: Celona / Model Name: AP22-48 PHOTOGRAPHS OF EUT Report No.: EP310635 TEL : 886-3-327-3456 Page Number : 13 of 39 FAX : 886-3-328-4978 Issue Date : Jun. 01, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP310635 TEL : 886-3-327-3456 Page Number : 14 of 39 FAX : 886-3-328-4978 Issue Date : Jun. 01, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP310635 TEL : 886-3-327-3456 Page Number : 15 of 39 FAX : 886-3-328-4978 Issue Date : Jun. 01, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP310635 TEL : 886-3-327-3456 Page Number : 16 of 39 FAX : 886-3-328-4978 Issue Date : Jun. 01, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP310635 TEL : 886-3-327-3456 Page Number : 17 of 39 FAX : 886-3-328-4978 Issue Date : Jun. 01, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP310635 TEL : 886-3-327-3456 Page Number : 18 of 39 FAX : 886-3-328-4978 Issue Date : Jun. 01, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP310635 TEL : 886-3-327-3456 Page Number : 19 of 39 FAX : 886-3-328-4978 Issue Date : Jun. 01, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP310635 TEL : 886-3-327-3456 Page Number : 20 of 39 FAX : 886-3-328-4978 Issue Date : Jun. 01, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP310635 TEL : 886-3-327-3456 Page Number : 21 of 39 FAX : 886-3-328-4978 Issue Date : Jun. 01, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP310635 TEL : 886-3-327-3456 Page Number : 22 of 39 FAX : 886-3-328-4978 Issue Date : Jun. 01, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP310635 TEL : 886-3-327-3456 Page Number : 23 of 39 FAX : 886-3-328-4978 Issue Date : Jun. 01, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP310635 TEL : 886-3-327-3456 Page Number : 24 of 39 FAX : 886-3-328-4978 Issue Date : Jun. 01, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP310635 TEL : 886-3-327-3456 Page Number : 25 of 39 FAX : 886-3-328-4978 Issue Date : Jun. 01, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP310635 TEL : 886-3-327-3456 Page Number : 26 of 39 FAX : 886-3-328-4978 Issue Date : Jun. 01, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP310635 TEL : 886-3-327-3456 Page Number : 27 of 39 FAX : 886-3-328-4978 Issue Date : Jun. 01, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP310635 TEL : 886-3-327-3456 Page Number : 28 of 39 FAX : 886-3-328-4978 Issue Date : Jun. 01, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP310635 TEL : 886-3-327-3456 Page Number : 29 of 39 FAX : 886-3-328-4978 Issue Date : Jun. 01, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP310635 TEL : 886-3-327-3456 Page Number : 30 of 39 FAX : 886-3-328-4978 Issue Date : Jun. 01, 2023 Report Version : 01

TEL : 886-3-327-3456 Page : 1 of 6 FAX : 886-3-328-4978 Issued Date : May 31, 2023 Form version: 220617 RF EXPOSURE EVALUATION REPORT Report No. : FA310635 RF EXPOSURE EVALUATION REPORT FCC ID : 2AWNP-AP22-48 Equipment : 5G AP-Indoor (n48) Brand Name : Celona Model Name : AP22-48 Applicant : Celona Inc. 900 E. Hamilton Avenue, Suite 200,CAMPBELL,CA 95008. United States. Manufacturer : Celona Inc. 900 E. Hamilton Avenue, Suite 200,CAMPBELL,CA 95008. United States. Standard : 47 CFR Part 2.1091 We, SPORTON INTERNATIONAL INC has been evaluated this product in accordance with 47 CFR Part2.1091 and it complies with applicable limit. Sporton Lab is accredited to ISO 17025 by Taiwan Accreditation Foundation (TAF code: 1190) and the FCC designation No. TW1190 under the FCC 2.948(e) by Mutual Recognition Agreement (MRA) in FCC evaluation. The results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. Laboratory, the test report shall not be reproduced except in full SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) Approved by: Cona Huang / Deputy Manager TEL : 886-3-327-3456 Page : 2 of 6 FAX : 886-3-328-4978 Issued Date : May 31, 2023 Form version: 220617 RF EXPOSURE EVALUATION REPORT Report No. : FA310635 Table of Contents 1. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ............................................................................. 4 2. MAXIMUM RF AVERAGE OUTPUT POWER AMONG PRODUCTION UNITS ........................................ 4 3. DETERMINATION OF EXEMPTION ........................................................................................................... 5 4. RF EXPOSURE EVALUATION ................................................................................................................... 6 4.1. Standalone assessment .................................................................................................................... 6 TEL : 886-3-327-3456 Page : 3 of 6 FAX : 886-3-328-4978 Issued Date : May 31, 2023 Form version: 220617 RF EXPOSURE EVALUATION REPORT Report No. : FA310635 History of this test report Report No. Version Description Issued Date FA310635 Rev. 01 Initial issue of report May 31, 2023 TEL : 886-3-327-3456 Page : 4 of 6 FAX : 886-3-328-4978 Issued Date : May 31, 2023 Form version: 220617 RF EXPOSURE EVALUATION REPORT Report No. : FA310635 1. Description of Equipment Under Test (EUT) Product Feature & Specification EUT Type 5G AP-Indoor (n48) Brand Name Celona Model Name AP22-48 FCC ID 2AWNP-AP22-48 Wireless Technology and Frequency Range 5G NR n48 : 3550 MHz ~ 3700 MHz Mode 5G NR: DFT-s-OFDM/CP-OFDM, Pi/2 BPSK/QPSK/16QAM/64QAM/256QAM EUT Stage Identical Prototype Reviewed by: Jason Wang Report Producer: Daisy Peng 2. Maximum RF average output power among production units Radio Tech Band Number Antenna name Tune-up limit NR n48 Ant 0 23.50 NR n48 Ant 1 23.50 NR n48 Ant 0+1 26.50 TEL : 886-3-327-3456 Page : 5 of 6 FAX : 886-3-328-4978 Issued Date : May 31, 2023 Form version: 220617 RF EXPOSURE EVALUATION REPORT Report No. : FA310635 3. Determination of exemption Per 1.1307(b)(3), (i) For single RF sources (i.e., any single fixed RF source, mobile device, or portable device, as defined in paragraph (b)(2) of this section): A single RF source is exempt if: (A) The available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption may not be used in conjunction with other exemption criteria other than those in paragraph (b)(3)(ii)(A) of this section. Medical implant devices may only use this exemption and that in paragraph (b)(3)(ii)(A); (B) Or the available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold Pth (mW) described in the following formula. This method shall only be used at separation distances (cm) from 0.5 centimeters to 40 centimeters and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by: (C) Or using Table 1 and the minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. For the exemption in Table 1 to apply, R must be at least λ/2π, where λ is the free-space operating wavelength in meters. If the ERP of a single RF source is not easily obtained, then the available maximum time- averaged power may be used in lieu of ERP if the physical dimensions of the radiating structure(s) do not exceed the electrical length of λ/4 or if the antenna gain is less than that of a half-wave dipole (1.64 linear value). Table 1 to § 1.1307(b)(3)(i)(C) - Single RF Sources Subject to Routine Environmental Evaluation TEL : 886-3-327-3456 Page : 6 of 6 FAX : 886-3-328-4978 Issued Date : May 31, 2023 Form version: 220617 RF EXPOSURE EVALUATION REPORT Report No. : FA310635 4. RF Exposure Evaluation 4.1. Standalone assessment General Note: 1. Pi is mean the available maximum time-averaged power or the ERP, whichever is greater, for fixed, mobile, or portable RF source i at a distance between 0.5 cm and 40 cm 2. Pth is mean the exemption threshold power (Pth) according to the § 1.1307(b)(3)(i)(B) formula for fixed, mobile, or portable RF source i. 3. In this report was used Part1.1307(b)(3)(i)(B) perfrom RF Exposure evaluation 4. The distance of 20cm is for this device Band Antenna Gain (dBi) Maximum Conducted Power (dBm) Maximum EIRP (dBm) Maximum ERP (dBm) Maximum EIRP (mW) Maximum ERP (mW) Pi (dBm) Pi (mW) Part1.1307 option(b) Threshold (mW) 5G NR n48_Ant0 4.18 23.50 27.68 25.53 586.14 357.27 25.53 357.27 3060.000 5G NR n48_Ant1 4.18 23.50 27.68 25.53 586.14 357.27 25.53 357.27 3060.000 5G NR n48_Ant0+1 4.18 26.50 30.68 28.53 1169.50 712.85 28.53 712.85 3060.000 Conclusion: According to 47 CFR §1.1307, the RF exp…

Text truncated - open the document above for the full version.

Item Page 1. 1~2 2. 2~3 3. 4~24 Contents Description .................. 規格表 .................. .................. 成品圖 .................. .................. 測試報告 .................. Specification 1. Electrical Properties : With housing/With Cable loss(Ant.1) 1.1Frequency Range....................................... 1.2 Impedance .................................................. 1.3VSWR ....................................................... 1.4Return Loss..................................................... 1.5Radiation ................................................... 1.6Peak Gain.................................>5dBi 1.70.34 Max. 1.8 Polarization.................................................Linear, Horizontal 1.9Cable................................................1.37 Low loss Coaxial Cable ; Color Black 1.10Connector....................................I-PEX MHF Connector 1.11Core...................................................N/A 2. Physical Properties : 2.1 Operating Temp. .............................................-10°C ~ +60°C 2.2Storage Temp. ...............................................-10°C ~ +70°C Cable Loss....................................................... RF Antenna Assembly Omni-Directional 3.55~3.70 GHz 50Ω Nominal 2.0：1 Max. 9.5 dB Min. Specification 1. Electrical Properties : With housing/With Cable loss(Ant.2) 1.1Frequency Range....................................... 1.2 Impedance .................................................. 1.3VSWR ....................................................... 1.4Return Loss..................................................... 1.5Radiation ................................................... 1.6Peak Gain.................................>5dBi 1.70.87 Max. 1.8 Polarization.................................................Linear, Horizontal 1.9Cable................................................1.37 Low loss Coaxial Cable ; Color White 1.10Connector....................................I-PEX MHF Connector 1.11Core...................................................N/A 2. Physical Properties : 2.1 Operating Temp. .............................................-10°C ~ +60°C 2.2Storage Temp. ...............................................-10°C ~ +70°C 2.0：1 Max. 9.5 dB Min. Omni-Directional Cable Loss....................................................... RF Antenna Assembly 3.55~3.70 GHz 50Ω Nominal FILE : 6 5 4 3 2 .X ±0.2 ±0.5 ±1.0 ±3.0 ±5.0 .X XX. XXX. NO DRAWING CHECKED APPROVED 1 SHEET : 1/1 UNIT REV mmX4 DESCRIPTION CUSTOMER: PART NO : W.Y P/NO : PART NAME: 1 A BCDE 5 6 Q'TY REMARK 2 3 4 1 F REV DATE DESCRIPTION G CUSTOMER'S SINGATURE WITHOUT THE WRITTEN CONSENT OF WHA YU. BE COPIED, REPRODUCED, OR GIVEN TO THIRD PARTIES ARE THE PROPERTY OF WHA YU AND AS SUCH MAY NOT THIS DRAWING, AND IT'S INHERANT DESIGN CONCEPTS, Wha Yu Group .XX X1 11/30-2022 New Issue 2 3 4 5 6 鋁載盤 AL5052; T=1.5mm 1 2 1 2 鴻海 RF Antenna Assembly C107-692075-A CG- 1 7 8 6 2 2 SRF20221979 PCB 1 LNB33; (∅)47.29*T=0.8mm Cable 1 Φ1.37mm low loss;L=255±5mm;White[白色] Cable 2 Φ1.37mm low loss;L=100±5mm;Black[黑色] Connector MHF Plug for Φ1.37(20351-112R-37) 間格柱 Φ4.4*17.7mm; Nylon 66(UL) 線扣 (L)9*(W)4.5*(H)3.6mm;Nylon 66(UL) Tube 透明套管;φ3.0*20mm [10.50±0.5] [1.50±0.05] 1 8 *2 [195.00±0.3] [195.00±0.3] 2 *2 6* 6 2* 7 [ Φ 2.69±0.2] ※ I-PEX鉚壓後 開口尺寸、高度示意圖 [2.1±0.3] 15.5±0.22.20±0.3 2.80±0.3 361.01737.005 9 *2 92 泡棉背膠 (W)10.0*(L)10.0*(T)11mm X4 03/10-2023 變更線扣 X3 03/07-2023 更新外露線長 4 3 White; 距板邊出線長度= 60±5mm Black; 距板邊出線長度=65±5mm 2* 5 FILE NAME 6 5 A B 4 3 2 .XX ±0.1 CD ±0.2 ±0.5 ±1.0 ±2.0 .X X. XX. XXX. NO DRAWING CHECKED APPROVED 1 SIZESCALESHEET UNITREV mm X3 1/1 1 OF 1 E A 4 DESCRIPTION VENDER PART NO W.Y P/NO PART NAME 1 A BCDE 5 6 FG Q'TY REMARK 2 3 4 1 F REVDATE DESCRIPTION G MATERIAL P/N P/N REMARK CF-9633 WITHOUT THE WRITTEN CONSENT OF WHA YU. BE COPIED, REPRODUCED, OR GIVEN TO THIRD PARTIES ARE THE PROPERTY OF WHA YU AND AS SUCH MAY NOT THIS DRAWING, AND IT'S INHERANT DESIGN CONCEPTS, Wha Yu Group ENGINEERING DRAWING X1 New Issue Note: 1.Remove All Burrs. 產品不可有毛邊。 2.Break All Corners And Edges C0.15 Max. 所有彎折處的C角最大值為0.15mm。 3.The 3D Model Shall Control All Features Of This Part Not Defined On This Drawing. 未於此2D圖面定義的尺寸,請以實際3D圖面測量為準. 4.Metal Parts Must Be Supplied With Bright Lustrous Finish、 Clean & Free From Oil、Grease And Dirt. 金屬零件必須光澤明亮、乾淨、無多餘的潤滑油、油垢及污漬。 5.Critical To Function Dimension Are Mark With [X...]. 影響產品功能的重點尺寸標註,請參考中括號 [...] 內尺寸。 6.氣泡袋包裝, 產品不能變形。 1AL5052 T=1.5mm 100-40141533-AZ 鋁載盤 100-40141533-AZ 12/05-2022 鋁載盤 [1.50] [195.00±0.3] [195.00±0.3] [165.42±0.1] [141.42±0.1] 1.00 2.70 6 * 6 * 0.35 Select V ABC EPS EPE BAG CTN USR 0~6 6~30 30~120 120~300 300~450 450~600 DRAFT TOLERANCE CRITICAL DIM. MARK 1.50 X2變更孔徑 01/30-2023 X3 X3變更平整度 03/27-2023 Document Number:NE3-22075 Version:V 1.04 Released Date:2022/11/10 Prepared By:Anton Reviewed By:J.H. 1 Foxconn_CBRS_internal_B48_2port_ plane omni_6dBi Antenna test report Contents Revised History Specification Antenna Placement & Solution VSWR Results Isolation Results Test Setup for Radiation Pattern Measurement 2D Radiation Pattern Results 3D Radiation Pattern Results Results Summary (peak gain, efficiency ) 2 Revision History Released DateVersionRevised Record 2022/10/051.00Initial version 2022/10/141.01 Matchingcircuit / Radiation pattern improved : Cancel center hole of plastic part / Use copper(with conducted glue) to cover the hole 2022/10/241.02Antenna type : PCB / Top cover moved up 5mm 2022/11/031.03 Antenna type : PIFA / Top cover moved up 5mm Radiation pattern improved : Updated Antenna layout & Antenna position adjusted 2022/11/101.04 Antenna type : PCB Antenna finetune / new plastic part 3 Specification RF FunctionNumber of ANTFrequency BandRemark B481_23550~3700 MHz Requirements of Antenna Design Requirements of Measurement Test ItemSpecificationRemark VSWR<2 PolarizationHorizontal Peak gain>5dBi Efficiency>60% Radiation patternScale: +10~ -20dBi 4 Antenna Placement & Solution 5 Ant.1_1.…

Text truncated - open the document above for the full version.

TEL : 408 9043300 Page Number : 1 of 40 Issue Date : Jun. 05, 2023 Report Version : 02 WINNF-TS-0122 TESR REPORT Report No. : FG230329006 WINNF-TS-0122 Test Report FCC ID : 2AWNP-AP22-48 Equipment : 5G AP-Indoor (n48) Brand Name : CELONA Model Name : AP22 Applicant : Celona Inc. 900 E. Hamilton Avenue, Suite 200, Campbell, CA 95008, USA Manufacturer : Celona Inc. 900 E. Hamilton Avenue, Suite 200, Campbell, CA 95008, USA Standard : WINNF-TS-0122 Version V1.0.2 RF Interface : NR n48 The product was received on Mar. 26, 2023 and testing was performed from Mar. 28, 2023 to Apr. 26, 2023. We, Sporton International (USA) Inc., would like to declare that the tested sample has been evaluated in accordance with the test procedures given in WINNF-TS-0122 Version V1.0.2 and has been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval from Sporton International (USA) Inc., the test report shall not be reproduced except in full. Approved by: Lance Tang Sporton International (USA) Inc. 1175 Montague Expressway, Milpitas, CA 95035 TEL : 408 9043300 Page Number : 2 of 40 Issue Date : Jun. 05, 2023 Report Version : 02 WINNF-TS-0122 TESR REPORT Report No. : FG230329006 Table of Contents 1. Administration Data ----------------------------------------------------------------------------------------------------------- 4 1.1 Testing Laboratory ------------------------------------------------------------------------------------------------------- 4 2. General Information ----------------------------------------------------------------------------------------------------------- 4 2.1 Description of Equipment Under Test (EUT) ---------------------------------------------------------------------- 4 2.2 Protocol Test Summary ------------------------------------------------------------------------------------------------ 5 2.3 Measuring Equipment List --------------------------------------------------------------------------------------------- 6 3. Measurement Environment ------------------------------------------------------------------------------------------------- 7 3.1 Test configuration with Domain Proxy ------------------------------------------------------------------------------ 8 3.2 Standards ----------------------------------------------------------------------------------------------------------------- 8 4. Protocol Test Results --------------------------------------------------------------------------------------------------------- 9 4.1 [WINNF.FT.D.REG.6] Domain Proxy Single-Step registration for CBSD with CPI signed data ------ 9 4.2 [WINNF.FT.D.REG.9] Domain Proxy Missing Required parameters (responseCode 102) -----------10 4.3 [WINNF.FT.D.REG.11] Domain Proxy Pending registration (responseCode 200) ---------------------- 11 4.4 [WINNF.FT.D.REG.13] Domain Proxy Invalid parameters (responseCode 103) ------------------------12 4.5 [WINNF.FT.D.REG.15] Domain Proxy Blacklisted CBSD (responseCode 101) -------------------------13 4.6 [WINNF.FT.D.REG.17] Domain Proxy Unsupported SAS protocol version (responseCode 100) --14 4.7 [WINNF.FT.D.REG.19] Domain Proxy Group Error (responseCode 201) --------------------------------15 4.8 [WINNF.FT.C.GRA.1] Unsuccessful Grant responseCode=400 (INTERFERENCE) ------------------16 4.9 [WINNF.FT.C.GRA.2] Unsuccessful Grant responseCode=401 (GRANT_CONFLICT) ---------------17 4.10 [WINNF.FT.D.HBT.2] Domain Proxy Heartbeat Success Case (first Heartbeat Response) ----------18 4.11 [WINNF.FT.C.HBT.3] Heartbeat responseCode=105 (DEREGISTER) ------------------------------------21 4.12 [WINNF.FT.C.HBT.5] Heartbeat responseCode=501 (SUSPENDED_GRANT) in First Heartbeat Response ------------------------------------------------------------------------------------------------------------------------22 4.13 [WINNF.FT.C.HBT.6] Heartbeat responseCode=501 (SUSPENDED_GRANT) in Subsequent Heartbeat Response ------------------------------------------------------------------------------------------------------------------------23 4.14 [WINNF.FT.C.HBT.7] Heartbeat responseCode=502 (UNSYNC_OP_PARAM) -------------------------25 4.15 [WINNF.FT.D.HBT.8] Domain Proxy Heartbeat responseCode=500 (TERMINATED_GRANT) -----26 4.16 [WINNF.FT.C.HBT.9] Heartbeat Response Absent (First Heartbeat) --------------------------------------28 4.17 [WINNF.FT.C.HBT.10] Heartbeat Response Absent (Subsequent Heartbeat) ---------------------------29 4.18 [WINNF.FT.D.RLQ.2] Domain Proxy Successful Relinquishment ------------------------------------------30 4.19 [WINNF.FT.D.DRG.2] Domain Proxy Successful Deregistration ----------…
