CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2020-07-03> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AWNS-PM10 PM10 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, (Signed) Name / Title: AVRAM / CEO Company: ZT USA INC. Contact information / address : 82 PARKVILLE BROOKLYN, NEW YORK. Tel: 718-801-2111 Fax: 718-437-0499 E-Mail: [email protected]

ZT USA INC. 82 PARKVILLE BROOKLYN, NEW YORK. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 7/3/2020 To whom it may concern: We, ZT USA INC. the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AWNS- PM10 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, (Signed) Name / Title: AVRAM / CEO Company: ZT USA INC. Contact information / address : 82 PARKVILLE BROOKLYN, NEW YORK. Tel: 718-801-2111 Fax: 718-437-0499 E-Mail: [email protected]

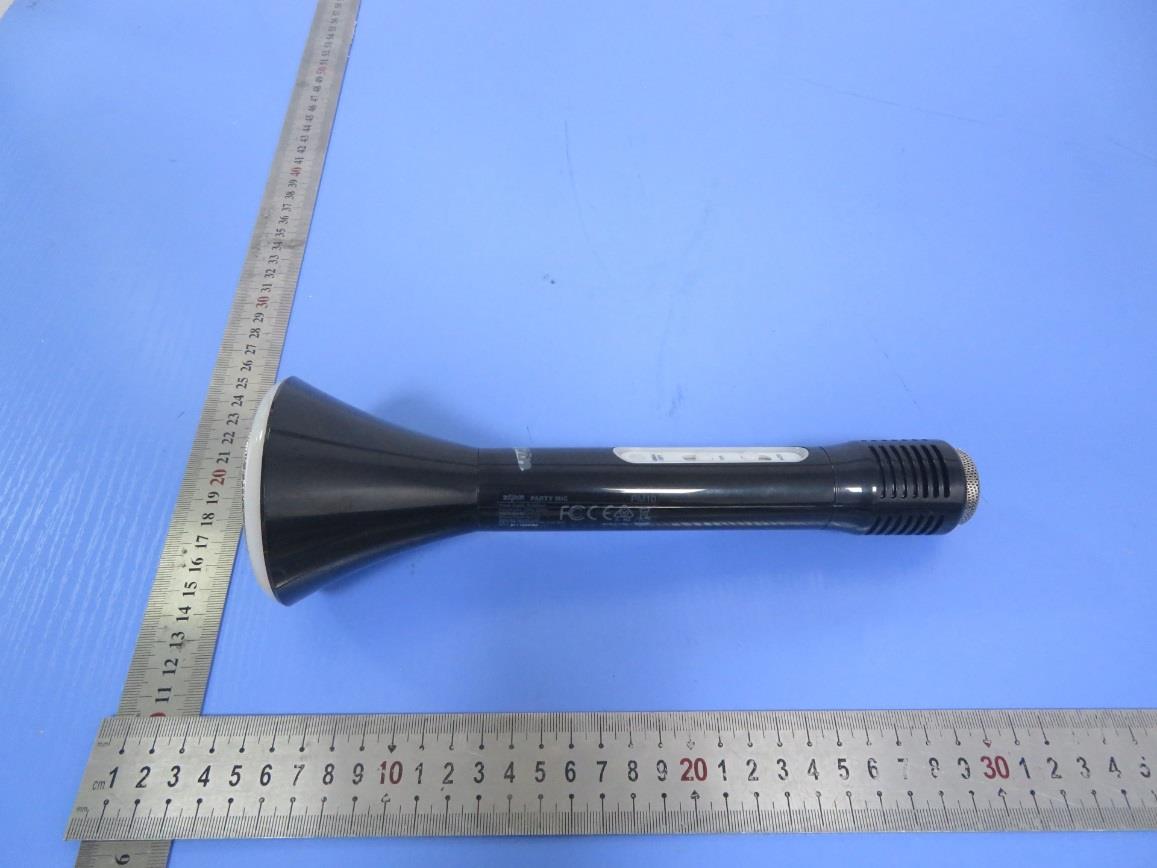

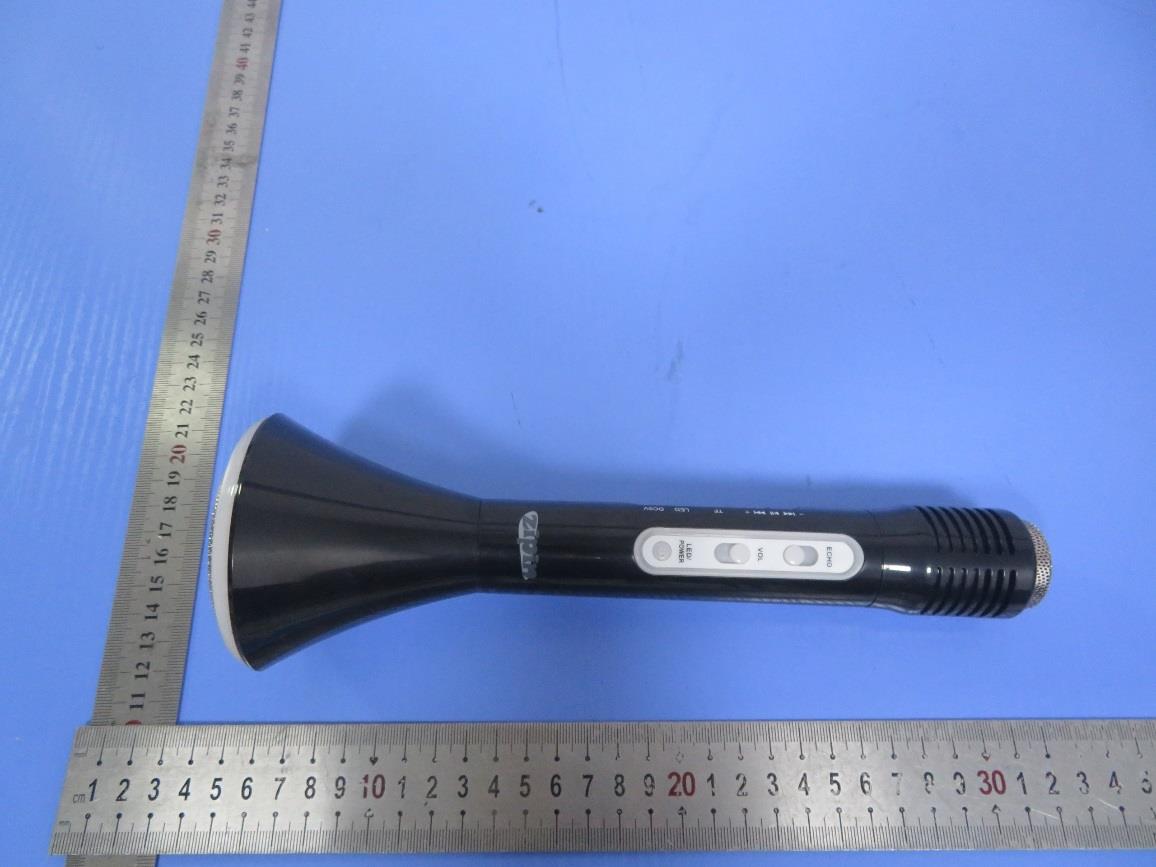

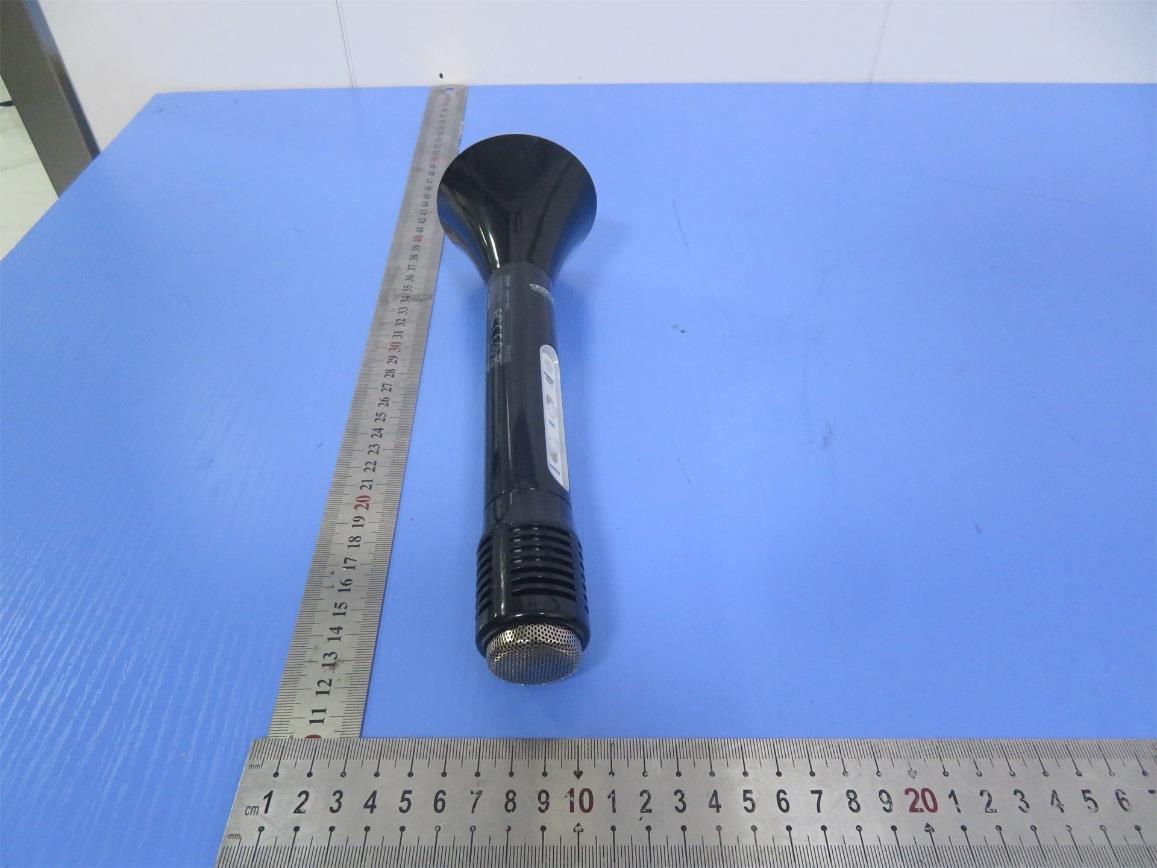

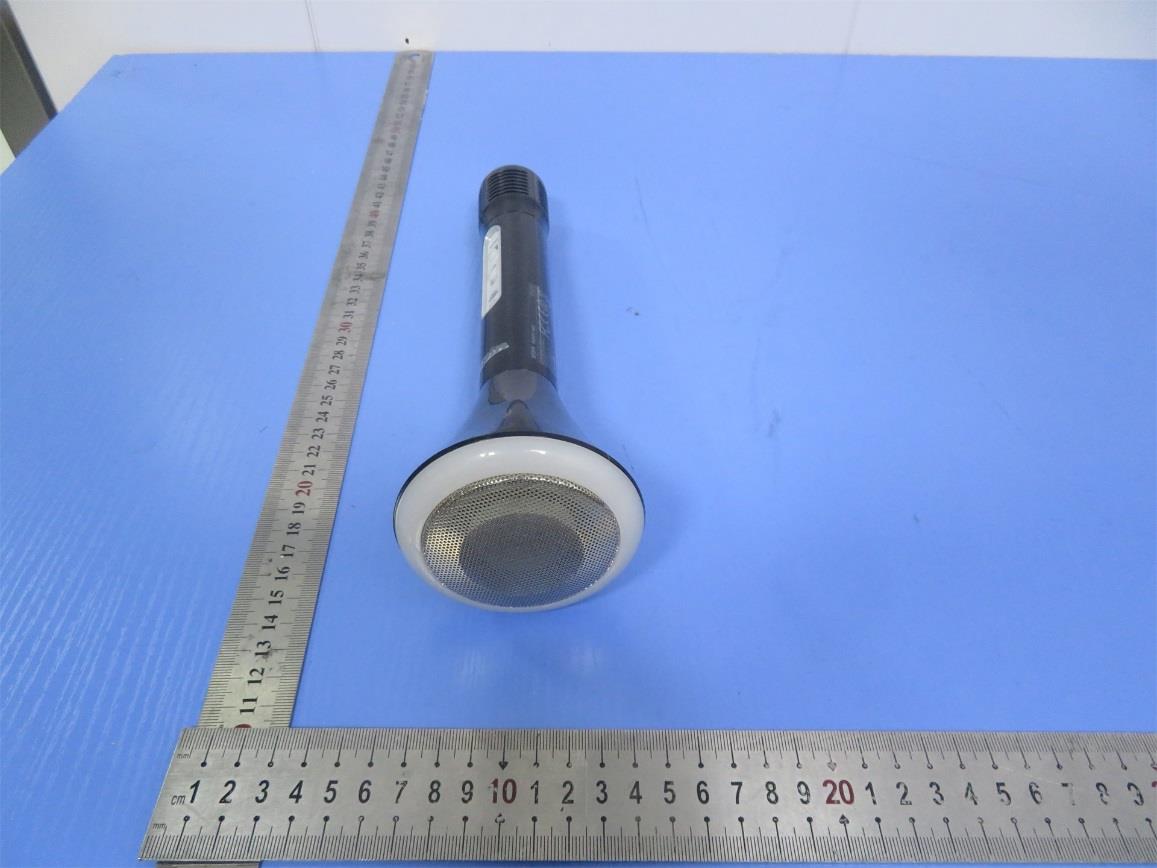

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 1. EXTERIOR PHOTOGRAPH Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 Fig.9 Fig.10

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L2.0cm*W1.5cm Label Location Bluetooth speaker Model No.: PM10 FCC ID: 2AWNS-PM10

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 Fig.3 Fig.4 BT Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 Fig.5 Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 FCC RF Exposure Evaluation 1. Product Information FCC ID : 2AWNS-PM10 Product name : Bluetooth speaker Test Model : PM10 Power supply : Input: DC 5V, 0.5A DC 3.7V by Li-ion Battery(800mAh) Bluetooth : 2402-2480MHz Channel Number : 79 channels for Bluetooth V5.0(DSS) Channel Spacing : 1MHz for Bluetooth V5.0(DSS) Modulation Type : GFSK, π/4-DQPSK for Bluetooth V5.0(DSS) Bluetooth Version : V5.0 Antenna Type : PCB Antenna Antenna Gain : -0.58dBi (maximum) Hardware version : GLD-BT636V1.0 Software version : GLD-BT636V1.0.0_AC6925B_(iDance PM10)_FF3C_ENGLISH.fw Exposure category : General population/uncontrolled environment EUT Type : Production Unit Device Type : Portable Device 2. Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b)The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results <BT Classics> Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 5.836 39 2441 5.364 78 2480 4.832 π/4DQPSK 0 2402 4.479 39 2441 5.577 78 2480 4.237 5. Manufacturing Tolerance <BT > GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 6.0 5.0 5.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 5.0 6.0 4.0 Tolerance ±(dB) 1.0 1.0 1.0 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page …

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 Report No.: LCS200511063AEA Page 1 of 31 Appendix A RF Test Data for BT V5.0(BDR/EDR) (Conducted Measurement) Product Name: Bluetooth speaker Trade Mark: N/A Test Model: PM10 Environmental Conditions Temperature: 23.5  C Relative Humidity: 54.2% ATM Pressure: 100.0 kPa Test Engineer: Li Huan Supervised by: Tom Liu A.1 Maxmum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH 5.836 30 PASS MCH 5.364 30 PASS HCH 4.832 30 PASS π/4DQPSK LCH 4.479 30 PASS MCH 5.577 30 PASS HCH 4.237 30 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 Report No.: LCS200511063AEA Page 2 of 31 A.2 20dB Bandwidth Mode Channel. 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 0.8409 Not Specified PASS MCH 0.8631 Not Specified PASS HCH 0.9274 Not Specified PASS π/4DQPSK LCH 1.277 Not Specified PASS MCH 1.275 Not Specified PASS HCH 1.278 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 Report No.: LCS200511063AEA Page 3 of 31 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 Report No.: LCS200511063AEA Page 4 of 31 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 Report No.: LCS200511063AEA Page 5 of 31 π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 Report No.: LCS200511063AEA Page 6 of 31 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 0.999 0.618 PASS MCH 0.980 0.618 PASS HCH 1.004 0.618 PASS π/4DQPSK LCH 1.314 0.852 PASS MCH 1.314 0.852 PASS HCH 1.302 0.852 PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 Report No.: LCS200511063AEA Page 7 of 31 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 Report No.: LCS200511063AEA Page 8 of 31 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 Report No.: LCS200511063AEA Page 9 of 31 π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 Report No.: LCS200511063AEA Page 10 of 31 A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N] Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS Test Graphs GFSK/Hop π/4DQPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 Report No.: LCS200511063AEA Page 11 of 31 A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdict GFSK DH5 LCH 0.48 106.7 0.051 0.4 PASS DH5 MCH 2.88 106.7 0.307 0.4 PASS DH5 HCH 2.88 106.7 0.307 0.4 PASS π/4DQPSK 2DH5 LCH 0.48 106.7 0.307 0.4 PASS 2DH5 MCH 2.88 106.7 0.307 0.4 PASS 2DH5 HCH 2.88 106.7 0.307 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 Report No.: LCS200511063AEA Page 12 of 31 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 Report No.: LCS200511063AEA Page 13 of 31 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 Report No.: LCS200511063AEA Page 14 of 31 π/4DQPSK _2DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 Report No.: LCS200511063AEA Page 15 of 31 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH 4.315 -37.031 -15.685 PASS MCH 5.624 -37.595 -14.376 PASS HCH 3.983 -37.209 -16.017 PASS π/4DQPSK LCH 3.915 -38.523 -16.085 PASS MCH 4.93 -37.697 -15.070 PASS HCH 3.482 -37.851 -16.518 PASS GFSK_LCH_Graphs Pref SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 Report No.: LCS200511063AEA Page 16 of 31 Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 Report No.: LCS200511063AEA Page 17 of 31 GFSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 Report No.: LCS200511063AEA Page 18 of 31 GFSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 Report No.: LCS200511063AEA Page 19 of 31 π/4DQPSK_LCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 Report No.: LCS200511063AEA Page 20 of 31 π/4DQPSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 Report No.: LCS200511063AEA Page 21 of 31 π/4DQPSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 Report No.: LCS200511063AEA Page 22 of 31 A.7 Band-edge for RF Conducted Emissions Mode Channel Carrier Frequency [MHz] Carrier Power [dBm] Frequency Hopping Max Spurious Level [dBm] Limit [dBm] Verdict GFSK LCH 2402 4.623 Off -48.908 -15.38 PASS 4.305 On -49.683 -15.7 PASS HCH 2480 4.239 Off -49.328 -15.76 PASS 4.070 On -48.074 -15.93 PASS π/4DQPSK LCH 2402 2.178 Off -49.584 -17.82 PASS 2.498 On -49.074 -17.5 PASS HCH 2480 3.608 Off -49.249 -16.39 PASS 3.102 On -48.513 -16.9 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 Report No.: LCS200511063AEA Page 23 of 31 Test Graphs GFSK/LCH/No Hop GFSK/LCH/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 Report No.: LCS200511063AEA Page 24 of 31 GFSK/HCH/No Hop GFSK/HCH/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 Report No.: LCS200511063AEA Page 25 of 31 π/4DQPSK/LCH/No Hop π/4DQPSK/LCH/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 Report No.: LCS200511063AEA Page 26 of 31 π/4DQPSK/HCH/No Hop π/4DQPSK/HCH/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 Report No.: LCS200511063AEA Page 27 of 31 A.8 Restrict-band band-edge measurements Test Mode Hopping Freq. Power [dBm] Gain Ground Factor E [dBuV/m] Detector Limit [dBuV/m] Verdict GFSK Off 2310.0 -43.57 2.0 0 53.66 PEAK 74 PASS Off 2310.0 -53.29 2.0 0 43.94 AV 54 PASS Off 2390.0 -41.9…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 Report No.: LCS200511063AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 36 FCC TEST REPORT FOR ZT USA INC. Bluetooth speaker Test Model: PM10 Prepared for : ZT USA INC. Address : 82 PARKVILLE BROOKLYN, NEW YORK. Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : May 18, 2020 Number of tested samples : 2 Sample No. : 200511063A-1, 200511063A-2 Serial number : Prototype Date of Test : May 18, 2020 ~ May 19, 2020 Date of Report : May 20, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 Report No.: LCS200511063AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 36 FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ...................... : LCS200511063AEA Date of Issue ........................................ : May 20, 2020 Testing Laboratory Name ................. : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ................................................ : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure ................ : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .............................. : ZT USA INC. Address ................................................ : 82 PARKVILLE BROOKLYN, NEW YORK. Test Specification Standard ............................................... : FCC CFR 47 PART 15 C (15.247) Test Report Form No. .......................... : LCSEMC-1.0 TRF Originator .................................... : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .......................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ....................... : Bluetooth speaker Trade Mark .......................................... : N/A Model/ Type reference ........................ : PM10 Ratings ................................................. : Input: DC 5V, 0.5A DC 3.7V by Li-ion Battery(800mAh) Result ................................................ : Positive Compiled by: Supervised by: Approved by: Jayden Zhuo / Administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 Report No.: LCS200511063AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 36 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200511063AEA May 20, 2020 Date of issue Type / Model........................... : PM10 EUT......................................... : Bluetooth speaker Applicant............................... : ZT USA INC. Address.................................. : 82 PARKVILLE BROOKLYN, NEW YORK. Telephone............................... : / Fax.......................................... : / Manufacturer........................ : ZT USA INC. Address................................... : 82 PARKVILLE BROOKLYN, NEW YORK. Telephone............................... : / Fax.......................................... : / Factory................................... : ZT USA INC. Address................................... : 82 PARKVILLE BROOKLYN, NEW YORK. Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 Report No.: LCS200511063AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 36 Revision History Revision Issue Date Revisions Revised By 000 May 20, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 Report No.: LCS200511063AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 36 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ....................................................................................................... 6 1.1 Description of Device (EUT) .................................................................................................................. 6 1.2 Support equipment List ........................................................................................................................... 6 1.3 External I/O Cable .................................................................................................................................. 6 1.4 Description of Test Facility .................................................................................................................... 6 1.5 Statement of the Measurement Uncertainty ............................................................................................ 7 1.6 Measurement Uncertainty…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 _______________________________________________________________________________________________ TEST SETUP PHOTOGRAPHS Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWNS-PM10 _______________________________________________________________________________________________ Photo of Conducted Emissions Measurement Fig. 3
