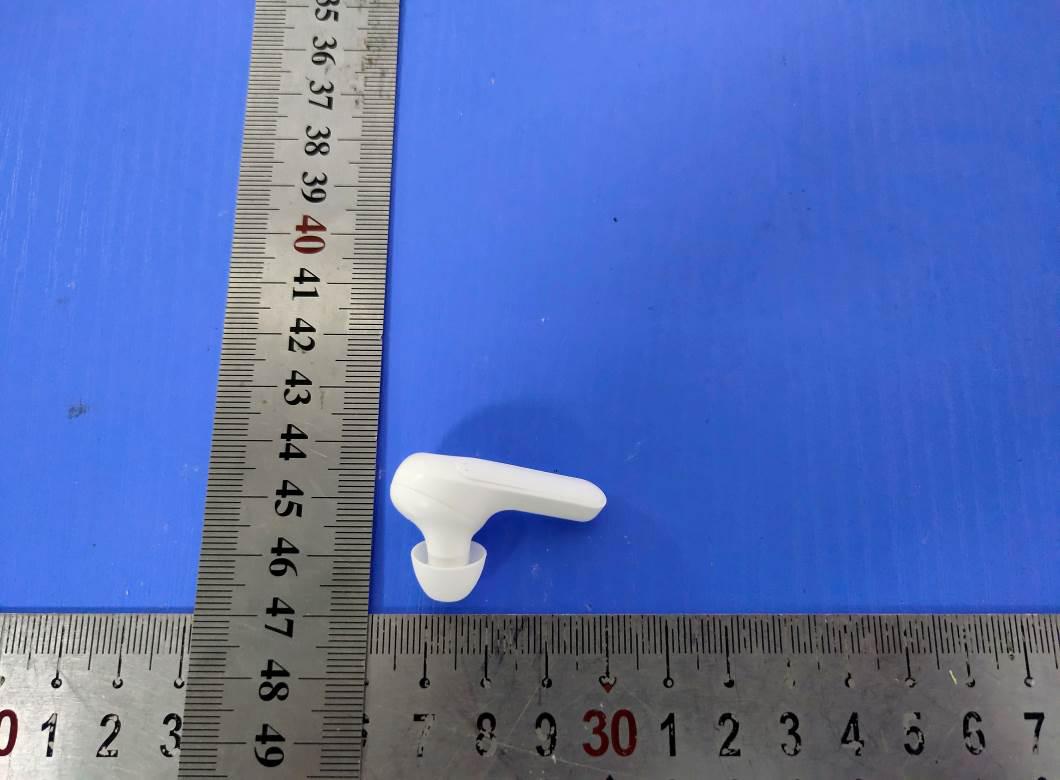

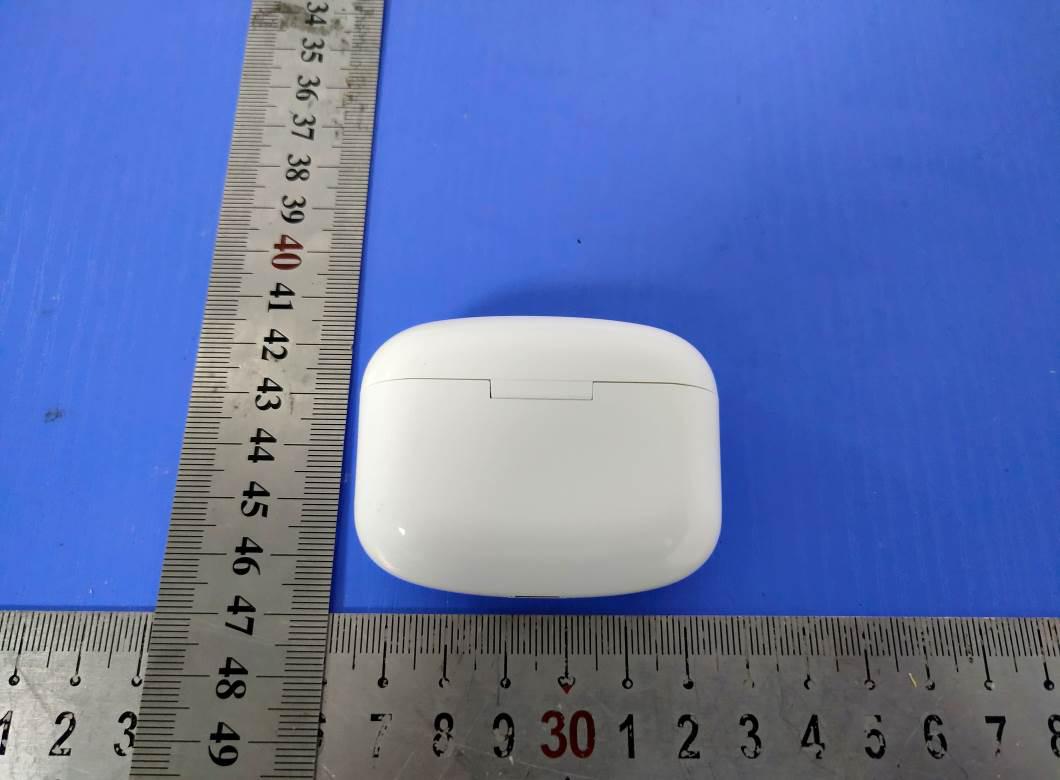

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWO9-X2 1.EXTERIORPHOTOGRAPHS Fig.1 Fig.2 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWO9-X2 Fig.3 Fig.4 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWO9-X2 Fig.5 Fig.6 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWO9-X2 Fig.7 Fig.8

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWO9-X2 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 1 of1 LabelandLocation Size:L1.0cm*W0.5cm LabelLocation BluetoothHeadset ModelNo.:X2 FCCID:2AWO9-X2

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWO9-X2 1.INTERIORPHOTOGRAPHS Fig.1 Fig.2 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWO9-X2 Fig.3 Fig.4 BTAntenna SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWO9-X2 Fig.5

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTDFCCID:2AWO9-X2 ___________________________________________________________________________ Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 1 of 3 FCCRFExposureEvaluation 1.ProductInformation FCCID:2AWO9-X2 ProductnameBluetoothHeadset ModelnumberX2 Powersupply DC3.7VbyLi-ionBattery(40mAh) ChargingCaseInput:DC5V,1A OperationfrequencyBluetooth:2402MHz-2480MHz ModulationType GFSK,π/4-DQPSK,8-DPSKforBluetoothV5.0(DSS) GFSKforBluetoothV5.0(DTS) ChannelNumber 79ChannelsforBluetoothV5.0(DSS) 40channelsforBluetoothV5.0(DTS) AntennaTypeCeramicAntenna AntennaGain2.5dBi(Max.) HardwareversionAB153X SoftwareversionV1.0.0 ExposurecategoryGeneralpopulation/uncontrolledenvironment EUTTypeProductionUnit DeviceTypeProtableDevice 2.EvaluationmethodandLimit AccordingtoKDB447498D01GeneralRFExposureGuidancev06Section4.3.1StandaloneSARtest exclusionconsiderations:“UnlessspecificallyrequiredbythepublishedRFexposureKDBprocedures, standalone1-gheadorbodyand10-gextremitySARevaluationforgeneralpopulationexposureconditions, bymeasurementornumericalsimulation,isnotrequiredwhenthecorrespondingSARTestExclusion Thresholdcondition,listedbelow,issatisfied.Thesetestexclusionconditionsarebasedonsource-based time-averagedmaximumconductedoutputpoweroftheRFchannelrequiringevaluation,adjustedfor tune-uptolerance,andtheminimumtestseparationdistancerequiredfortheexposureconditions.22The minimumtestseparationdistanceisdeterminedbythesmallestdistancefromtheantennaandradiating structuresoroutersurfaceofthedevice,accordingtothehostformfactor,exposureconditionsand platformrequirements,toanypartofthebodyorextremityofauserorbystander(see5)ofsection4.1). ToqualifyforSARtestexclusion,thetestseparationdistancesappliedmustbefullyexplainedandjustified bytheoperatingconfigurationsandexposureconditionsofthetransmitterandapplicablehostplatform requirements,typicallyintheSARmeasurementorSARanalysisreport,accordingtotherequiredpublished RFexposureKDBprocedures.WhennootherRFexposuretestingorreportingisrequired,astatementof justificationandcompliancemustbeincludedintheequipmentapproval,inlieuoftheSARreport,to qualifyfortheSARtestexclusion.Whenrequired,thedevicespecificconditionsdescribedintheother publishedRFexposureKDBproceduresmustbesatisfiedbeforeapplyingtheseSARtestexclusion provisions;forexample,handheldPTTtwo-wayradios,handsets,laptops&tabletsetc.23“ [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance,mm)]·[√f(GHz)] ≤3.0for1-gSARand≤7.5for10-gextremitySAR,where: •f(GHz)istheRFchanneltransmitfrequencyinGHz •PoweranddistanceareroundedtothenearestmWandmmbeforecalculation •Theresultisroundedtoonedecimalplaceforcomparison •3.0and7.5arereferredtoasthenumericthresholdsinthestep2below Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis≤50mmandfor transmissionfrequenciesbetween100MHzand6GHz.Whentheminimumtestseparationdistanceis<5 mm,adistanceof5mmaccordingtof)insection4.1isappliedtodetermineSARtestexclusion. SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTDFCCID:2AWO9-X2 ___________________________________________________________________________ Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 2 of 3 3.Referevaluationmethod ANSIC95.1–1999:IEEEStandardforSafetyLevelswithRespecttoHumanExposuretoRadioFrequencyElectromagnetic Fields,3kHzto300GHz. FCCKDBpublication447498D01GeneralRFExposureGuidancev06:MobileandPortableDevicesRFExposureProcedures andEquipmentAuthorizationPolicies. FCCCFR47part11.1310:Radiofrequencyradiationexposurelimits. FCCCFR47part22.1093:Radiofrequencyradiationexposureevaluation:portabledevices 4.ConductedPowerResults [BTMaxConductedPower] ModeChannelFrequency(MHz) AverageConductedOutput Power(dBm) GFSK 02402-4.122 392441-3.622 782480-3.900 π/4DQPSK 02402-1.397 392441-0.889 782480-1.301 8DPSK 02402-0.641 392441-0.075 782480-0.638 [BLEMaxConductedPower] ModeChannelFrequency(MHz) AverageConductedOutput Power(dBm) GFSK 02402-4.384 192440-3.822 392480-4.121 5.Manufacturingtolerance BT GFSK(Peak) ChannelChannel0Channel39Channel78 Target(dBm)-4.0-4.0-4.0 Tolerance±(dB)1.01.01.0 π/4DQPSK(Peak) ChannelChannel0Channel39Channel78 Target(dBm)-1.0-1.0-1.0 Tolerance±(dB)1.01.01.0 8DPSK(Peak) ChannelChannel0Channel39Channel78 Target(dBm)-1.00.0-1.0 Tolerance±(dB)1.01.01.0 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTDFCCID:2AWO9-X2 ___________________________________________________________________________ Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 3 of 3 BLE BTLE(Peak) ChannelChannel0Channel19Channel39 Target(dBm)-4.0-4.0-4.0 Tolerance±(dB)1.01.01.0 6.EvaluationResults BT Band/Modef(GHz) Antenna Distance (mm) RFoutputpower SARTestExclusion Threshold SARTest Exclusion dBmmW GFSK2.4415-3.00.501190.03<3.0Yes π/4DQPSK2.44150.01.00000.06<3.0Yes 8DPSK2.44151.01.25890.12<3.0Yes BLE Band/Modef(GHz) Antenna Distance (mm) RFoutputpower SARTestExclusion Threshold SARTest Exclusion dBmmW GFSK2.4405-3.0 0.50119 0.03<3.0Yes Remark: 1.Outputpowerincludingtuneuptolerance; 2.Whentheminimumtestseparationdistanceis<5mm,adistanceof5mmaccordingtof)insection4.1isappliedto determineSARtestexclusion. 7.Conclusion ThemeasurementresultscomplywiththeFCCLimitper47CFR2.1093fortheuncontrolledRFExposureand SARExclusionThresholdperKDB447498v06. .......................THEENDOFREPORT.........................

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWO9-X2ReportNo.:LCS200701198AEB Page1of14 AppendixB RFTestDataforBTLEV5.0(DTS)(ConductedMeasurement) ProductName:BluetoothHeadset TradeMark:QM TestModel:X2 EnvironmentalConditions Temperature: 22.7  C RelativeHumidity:53.1% ATMPressure:100.0kPa TestEngineer:JayLi Supervisedby:LiHuan B.1DutyCycle TestModeTestChannelAntDutyCycle[%]Verdict BTLE2440Ant1100PASS #imgrbble1hchnnav SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWO9-X2ReportNo.:LCS200701198AEB Page2of14 B.2MaximumConductedPeakOutputPower ModeChannelConductPeakPower[dBm]Limit[dBm]Verdict BTLELCH-4.38430PASS BTLEMCH-3.82230PASS BTLEHCH-4.12130PASS TestGraphs LCH MCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWO9-X2ReportNo.:LCS200701198AEB Page3of14 HCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWO9-X2ReportNo.:LCS200701198AEB Page4of14 B.3MaximumPowerSpectralDensity ModeChannelPSD[dBm/3KHz]Limit[dBm/3KHz]Verdict BTLELCH-19.7678PASS BTLEMCH-19.1368PASS BTLEHCH-19.6328PASS TestGraphs LCH MCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWO9-X2ReportNo.:LCS200701198AEB Page5of14 HCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWO9-X2ReportNo.:LCS200701198AEB Page6of14 B.46dBBandwidth ModeChannel6dBBandwidth[MHz]Limit[MHz]Verdict BTLELCH0.6846 ≥0.5 PASS BTLEMCH0.6878 ≥0.5 PASS BTLEHCH0.6870 ≥0.5 PASS TestGraphs LCH MCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWO9-X2ReportNo.:LCS200701198AEB Page7of14 HCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWO9-X2ReportNo.:LCS200701198AEB Page8of14 B.5RFConductedSpuriousEmissions ModeChannelPref[dBm]Max.Level[dBm]Limit[dBm]Verdict BTLELCH-4.802-37.668-24.802PASS BTLEMCH-4.304-37.133-24.304PASS BTLEHCH-4.558-36.705-24.558PASS BTLE_LCH_Graphs Pref/BTLE/LCH Puw/BTLE/LCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWO9-X2ReportNo.:LCS200701198AEB Page9of14 BTLE_MCH_Graphs Pref/BTLE/MCH Puw/BTLE/MCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWO9-X2ReportNo.:LCS200701198AEB Page10of14 BTLE_HCH_Graphs Pref/BTLE/HCH Puw/BTLE/HCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWO9-X2ReportNo.:LCS200701198AEB Page11of14 B.6Band-edgeforRFConductedEmissions ModeChannelCarrierPower[dBm] Max.SpuriousLevel [dBm] Limit[dBm]Verdict BTLELCH-4.857-49.403-24.86PASS BTLEHCH-4.545-49.186-24.55PASS TestGraphs LCH HCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWO9-X2ReportNo.:LCS200701198AEB Page12of14 B.7Restrict-bandband-edgemeasurements Test Mode Test Chann el AntFreq. Power [dBm] Gain Ground Factor E [dBuV/m] Detector Limit [dBuV/ m] Verdi ct BTLE 2402 Ant12310.0-41.882.5055.85PEAK74PASS Ant12310.0-53.152.5044.58AV54PASS Ant12390.0-43.062.5054.67PEAK74PASS Ant12390.0-52.872.5044.86AV54PASS 2480 Ant12483.5-42.912.5054.82PEAK74PASS Ant12483.5-52.352.5045.38AV54PASS Ant12500.0-42.382.5055.35PEAK74PASS Ant12500.0-52.132.5045.60AV54PASS SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWO9-X2ReportNo.:LCS200701198AEB Page13of14 Restrict-bandband-edgemeasurements_BTLE_2402_Ant1_PEAK Restrict-bandband-edgemeasurements_BTLE_2402_Ant1_AV SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWO9-X2ReportNo.:LCS200701198AEB Page14of14 Restrict-bandband-edgemeasurements_BTLE_2480_Ant1_PEAK Restrict-bandband-edgemeasurements_BTLE_2480_Ant1_AV

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWO9-X2ReportNo.:LCS200701198AEB Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page1of33 FCCTESTREPORT For ShenzhenQuanmengTechnologyCo.,Ltd. BluetoothHeadset TestModel:X2 AdditionalModelNo.:G1 Preparedfor:ShenzhenQuanmengTechnologyCo.,Ltd. Address:201,Unit2,no.1219,GuanguangRoad,GuihuaCommunity, GuanlanStreet,LonghuaDistrict,ShenzhenCity,518110 GuangdongProvince,China Preparedby:ShenzhenLCSComplianceTestingLaboratoryLtd. Address:101,201BldgA&301BldgC,JujiIndustrialParkShajingStreet, BaoanDistrict,Shenzhen,China Tel:(+86)755-82591330 Fax:(+86)755-82591332 Web:www.LCS-cert.com Mail:[email protected] Dateofreceiptoftestsample:July15,2020 Numberoftestedsamples:1 Serialnumber:Prototype DateofTest:July15,2020~July25,2020 DateofReport:July27,2020 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWO9-X2ReportNo.:LCS200701198AEB Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page2of33 FCCTESTREPORT FCCCFR47PART15C(15.247) ReportReferenceNo......................:LCS200701198AEB DateofIssue.......................................:July27,2020 TestingLaboratoryName..............:ShenzhenLCSComplianceTestingLaboratoryLtd. Address................................................:101,201BldgA&301BldgC,JujiIndustrialParkShajingStreet, BaoanDistrict,Shenzhen,China TestingLocation/Procedure............:FullapplicationofHarmonisedstandards■ PartialapplicationofHarmonisedstandards□ Otherstandardtestingmethod□ Applicant’sName.............................:ShenzhenQuanmengTechnologyCo.,Ltd. Address................................................:201,Unit2,no.1219,GuanguangRoad,GuihuaCommunity, GuanlanStreet,LonghuaDistrict,ShenzhenCity,518110 GuangdongProvince,China TestSpecification Standard..............................................: FCCCFR47PART15C(15.247) TestReportFormNo......................:LCSEMC-1.0 TRFOriginator....................................:ShenzhenLCSComplianceTestingLaboratoryLtd. MasterTRF.........................................:Dated2011-03 ShenzhenLCSComplianceTestingLaboratoryLtd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenLCSComplianceTestingLaboratoryLtd.isacknowledgedascopyrightownerandsourceofthe material.ShenzhenLCSComplianceTestingLaboratoryLtd.takesnoresponsibilityforandwillnot assumeliabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. EUTDescription...............................:BluetoothHeadset TradeMark..........................................:QM TestModel...........................................:X2 Ratings.................................................: DC3.7VbyLi-ionBattery(40mAh) ChargingCaseInput:DC5V,1A Result...................................................:Positive Compiledby:Supervisedby:Approvedby: JaydenZhuo/AdministratorsJinWang/TechniqueprincipalGavinLiang/Manager SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWO9-X2ReportNo.:LCS200701198AEB Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page3of33 FCC--TESTREPORT TestModel...............................:X2 EUT.........................................:BluetoothHeadset Applicant...............................:ShenzhenQuanmengTechnologyCo.,Ltd. Address..................................:201,Unit2,no.1219,GuanguangRoad,GuihuaCommunity, GuanlanStreet,LonghuaDistrict,ShenzhenCity,518110 GuangdongProvince,China Telephone...............................: Fax..........................................: Manufacturer........................:ShenzhenQuanmengTechnologyCo.,Ltd. Address...................................:201,Unit2,no.1219,GuanguangRoad,GuihuaCommunity, GuanlanStreet,LonghuaDistrict,ShenzhenCity,518110 GuangdongProvince,China Telephone...............................: Fax..........................................: Factory...................................:/ Address...................................:/ Telephone...............................: Fax..........................................: TestResultPositive Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetestlaboratory. TestReportNo.:LCS200701198AEB July27,2020 Dateofissue SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWO9-X2ReportNo.:LCS200701198AEB Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page4of33 RevisionHistory RevisionIssueDateRevisionsRevisedBy 000July27,2020InitialIssueGavinLiang SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWO9-X2ReportNo.:LCS200701198AEB Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page5of33 TABLEOFCONTENTS 1.GENERALINFORMATION .................................................................................................................................................... 6 1.1.DESCRIPTIONOFDEVICE(EUT) ........................................................................................................................................ 6 1.2.HOSTSYSTEMCONFIGURATIONLISTANDDETAILS .......................................................................................................... 6 1.3.EXTERNALI/OCABLE .......................................................................................................................................................... 6 1.4.DESCRIPTIONOFTESTFACILITY ........................................................................................................................................ 6 1.5.STATEMENTOFTHEMEASUREMENTUNCERTAINTY .......................................................................................................... 7 1.6.MEASUREMENTUNCERTAINTY ......................................…

Text truncated - open the document above for the full version.

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWO9-X2 _______________________________________________________________________________________________ 1.TESTSETUPPHOTOGRAPHS 1.1.PhotoofRadiatedEmissionsMeasurement Fig.1 Fig.2 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AWO9-X2 _______________________________________________________________________________________________ 1.2.PhotoofConductedEmissionsMeasurement Fig.3 Note:Theleftearphoneandtherightearphonearethesame.Thetestusestheleftearphone.
