2AWOA-CLTRF Module

Product Specification Revision V1.0 Date 2019-06-11 Model Name BL-M7668BU2-CLT ProductName RF Module Bilian Approve Field Engineer QC Sales Customer Approve Field Engineer QC Manufactory Purchasing 0 Table of Contents Revision History .......................................................................................... 1 1. Introduction ............................................................................................................. 1 1.1 General Description .............................................................................................. 1.2 Features ............................................................................................................... 1.3 Applications .......................................................................................................... 2. Functional Block Diagram ................................................................................... 2 3. Product Technical Specifications ....................................................................... 3 3.1 General Specifications .......................................................................................... 3.2 DC Power Consumption ....................................................................................... 3.3 RF Specifications .................................................................................................. 3.4Bluetooth RF Specification .................................................................................... 4. Pin Assignments .................................................................................................... 8 5.Typical Application Circuit .................................................................................... 9 6. Mechanical Specifications ................................................................................. 10 7. Others ..................................................................................................................... 11 7.1 Package Information ............................................................................................. 7.2 Storage Temperature and Humidity ...................................................................... 7.3 Recommended Reflow Profile .............................................................................. 1 Revision History Date Document Revision Product Revision Description 2019/06/11 1.0 V1.0 Preliminary release 1. Introduction 1.1 General Descriptio n The BL-M7668BU2-CLT is a highly integrated 2*2 802.11a/b/g/n/ac Wireless LAN (WLAN) network and bluetooth combo module. USB 1.0/1.1/2.0 interface. It combines a WLAN MAC, a 2T2R capable WLAN baseband, and bluetooth support 5.0 performance. The BL-M7668BU2-CLT module provides a complete solution for a high throughputperformance integrated wireless LAN and BT device. Figure 1 Top View Figure 2 Bottom View (7638&7668 use same pcb board) 1.2 Features l Operating Frequencies : 2.4~2.4835&5.15~5.835GHz l Host Interface is USB2.0 l IEEE Standards : IEEE 802.11a/b/g/n/ac l Wir eless data rate can reach up to 867Mbps l Bluetooth support 5.0/4.2 LE/4.1/3.0/2.1 l Antenna connected though IPEX connector l Po wer Supply:3.3V±0.3V 1.3 Applications l IP Camera l STB l Smart TV l E-book l Ot her devices which need to be supported by wireless network 2 2.Functional Block Diagram Figure 3 BL-M7668BU2-CLT block diagram 3 3 . Product Technical Specifications 3.1 General Specifications Item Description Product Name BL-M7668BU2-CLT Main Chip MT7668AU Host Interface USB 2.0 IEEE Standards IEEE 802.11a/b/g/n/ac Operating Frequencies 2.4~2.4835&5.15~5.835GHz Modulation WIFI: 802.11b: CCK, DQPSK, DBPSK 802.11g: 64-QAM,16-QAM, QPSK, BPSK 802.11n: 64-QAM,16-QAM, QPSK, BPSK 802.11ac: 256-QAM,64-QAM,16-QAM, QPSK, BPSK BT: 8DPSK,π/4DQPSK, GFSK Working Mode Infrastructure, Ad-Hoc Wireless Data Rate WIFI: 802.11b: 1, 2 ,5.5,11Mbps, 802.11g: 6,9,12,18,24,36,48,54Mbps, 802.11a: 6,9,12,18,24,36,48,54Mbps, 802.11n-2.4&5G HT20: MCS0~15, 6.5~144Mbps, 802.11n-2.4&5G HT40: MCS0~15, 13.5~300Mbps, 802.11ac-VHT20/40:MCS0~8 ,VHT80:MCS0~9reach up to 867Mbps, BT: 1Mbps for Basic Rate 2,3Mbps for Enhanced Date Rate Rx Sensitivity -95dBm (Min) TX Power 17.1dBm (Max) Antenna Type Connect though IPEX connector Dimension(L*W*H) 27*17.7*3.1mm (L*W*H) ，Tolerance: ±0.15mm Power Supply 3.3V±0.3V /900mA max Clock Source 40MHz Working Temperature -10°C to +70°C Storage Temperature -40°C to +85°C 4 ESD CAUTION: Although this module is designed to be as robust as possible, Electrostatic Discharge (ESD) can damage this module. It must be protected from ESD at all times and handled under the protection of ESD. 3.2 DC Power Consumption VDD=3.3V，Ta= 25 °C，unit: mA Supply current Typ Max RX sense mode(No Link) 65 100 802.11b 1Mbps 11Mbps Supply current Typ. Max. Typ. Max. Continuous TX mode 551 660 546 580 RX mode 52 108 56 105 802.11g 6Mbps 54Mbps Supply current Typ. Max. Typ. Max. Continuous TX mode 417 440 335 420 RX mode 56 98 57 100 802.11n HT20 MCS0 MCS7 Supply current Typ. Max. Typ. Max. Continuous TX mode 408 430 380 412 RX mode 65 100 70 95 802.11n HT20 MCS8 MCS15 Supply current Typ. Max. Typ. Max. Continuous TX mode 420 450 390 435 RX mode 82 105 90 110 802.11n HT40 MCS0 MCS7 Supply current Typ. Max. Typ. Max. Continuous TX mode 425 449 400 426 RX mode 75 102 80 95 802.11n HT40 MCS8 MCS15 Supply current Typ. Max. Typ. Max. Continuous TX mode 430 462 413 425 RX mode 95 108 86 103 5 802.11a 6Mbps54Mbps Supply currentTyp.Max.Typ.Max. Continuous TX mode702862765868 RX mode689472100 802.11n HT20(5G) MCS0MCS7 Supply currentTyp.Max.Typ.Max. Continuous TX mode721836700736 RX mode7510680105 802.11n HT40(5G)MCS0MCS15 Supply currentTyp.Max.Typ.Max. Continuous TX mode723831686721 RX mode8010590113 802.11nAC80(5G)MCS0MCS9 Supply currentTyp.Max.Typ.Max. Continuous TX mode712880692732 RX mode809592116 3.3RF Specifications TX Power&EVM WiFi-2.4G: EVM<-15dB@11b 11Mbps EVM<-25dB@11g 54Mbps EVM<[email protected] EV…

Text truncated - open the document above for the full version.

Shenzhen CLT Electronics Co., Ltd Room1001, CLT R&D Building, No.1Ganli 5th Road, Gankeng Community, Jihua Subdistrict, Longgang District, Shenzhen, China UNII Device Declaration Letter To whom it may concern: We have declared below featured for FCC equipment authorization, Device FCC ID: 2AWOA-CLT (1) DFS Device: Master Client with Radar detection capability N/A Client without radar detection capability, (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode capability Access point capability 2412-2462 Yes No Yes No Yes No Yes No 5180-5240 Yes No Yes No Yes No Yes No 5190-5230 Yes No Yes No Yes No Yes No 5210-5210 Yes No Yes No Yes No Yes No 5745-5825 Yes No Yes No Yes No Yes No 5755-5795 Yes No Yes No Yes No Yes No 5775-5775 Yes No Yes No Yes No Yes No (3) Country code selection ability Yes No If yes, pls explain how it was implemented: (4) Meet 15.202 requirement Yes No pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes cannot be modified by end user or an installer. Apply Does not apply (If apply, pls help to provide explanation on it was implement, and how software was controlled) Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name / Title: mingxin jiang / Engineer Company: Shenzhen CLT Electronics Co., Ltd Address: Room1001, CLT R&D Building, No.1Ganli 5th Road, Gankeng Community, Jihua Subdistrict, Longgang District, Shenzhen,China Phone: 13713553275 Fax: 0755-61881888 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2020-06-18> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AWOA-CLT BL-M7668BU2-CLT For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, (Signed) Name / Title: mingxin jiang / Engineer Company: Shenzhen CLT Electronics Co., Ltd Address: Room1001, CLT R&D Building, No.1Ganli 5th Road, Gankeng Community, Jihua Subdistrict, Longgang District, Shenzhen,China Phone: 13713553275 Fax: 0755-61881888 E-Mail: [email protected]

Shenzhen CLT Electronics Co., Ltd Room1001, CLT R&D Building, No.1Ganli 5th Road, Gankeng Community, Jihua Subdistrict, Longgang District, Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2020/06/18 To whom it may concern: We, Shenzhen CLT Electronics Co., Ltd the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AWOA-CLT including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, (Signed) Name / Title: mingxin jiang / Engineer Company: Shenzhen CLT Electronics Co., Ltd Address: Room1001, CLT R&D Building, No.1Ganli 5th Road, Gankeng Community, Jihua Subdistrict, Longgang District, Shenzhen,China Phone: 13713553275 Fax: 0755-61881888 E-Mail: [email protected]

Shenzhen CLT Electronics Co., Ltd Room1001, CLT R&D Building, No.1Ganli 5th Road, Gankeng Community, Jihua Subdistrict, Longgang District, Shenzhen,China Module Approval Request Letter 2020-06-18 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subjects: Limited Module Approval Request Letter The Device,FCC ID: 2AWOA-CLT, is seeking FCC authorization as a modular transmitter. The EUT meets the requirement for modular approval as detailed in FCC Public Notice DA 00-1407. Compliance to each of the requirement is described below: (a) The radio elements must have the radio frequency circuitry be shielded. Physical/discrete and tuning capacitors may be located external to the shield, but must be on the module assembly. The modular with a shield. (b) The module shall have buffered modulation/data input(s) (if such inputs are provided) to ensure that the module will comply with the requirements set out in the applicable RSS standard under conditions of excessive data rates or over-modulation. Yes. (c) The module shall have its own power supply regulation on the module. This is to ensure that the module will comply with the requirements set out in the applicable standard regardless of the design of the power supplying circuitry in the host device which houses the module. The modular has an onboard 3.3V regulator(integrated in MT7668AU). (d) The module shall comply with the provisions for external power amplifiers and antennas detailed in this standard. The equipment certification submission shall contain a detailed description of the configuration of all antennas that will be used with the module. The modular has a PFC antenna which comply with the antenna requirement of Section 15.203. (e) The module shall be tested for compliance with the applicable standard in a stand-alone configuration, i.e. the module must not be inside another device during testing. The modular was tested in a standalone configuration apart from host units. (f) The module shall comply with the Category I equipment labeling requirements and CFR § 15.212(a)(1)(vi). The modular has its own FCC ID number. (g) The module shall comply with any applicable FCC RF exposure requirement which are based on the intended use/configurations. Yes (h) The modular transmitter complies with all applicable FCC rules. Instructions for maintaining compliance are given in the user instructions. Yes If you have any questions, please feel free to contact us at the address shown below Sincerely, (Signed) Name / Title: mingxin jiang / Engineer Company: Shenzhen CLT Electronics Co., Ltd Address: Room1001, CLT R&D Building, No.1Ganli 5th Road, Gankeng Community, Jihua Subdistrict, Longgang District, Shenzhen,China Phone: 13713553275 Fax: 0755-61881888 E-Mail: [email protected]

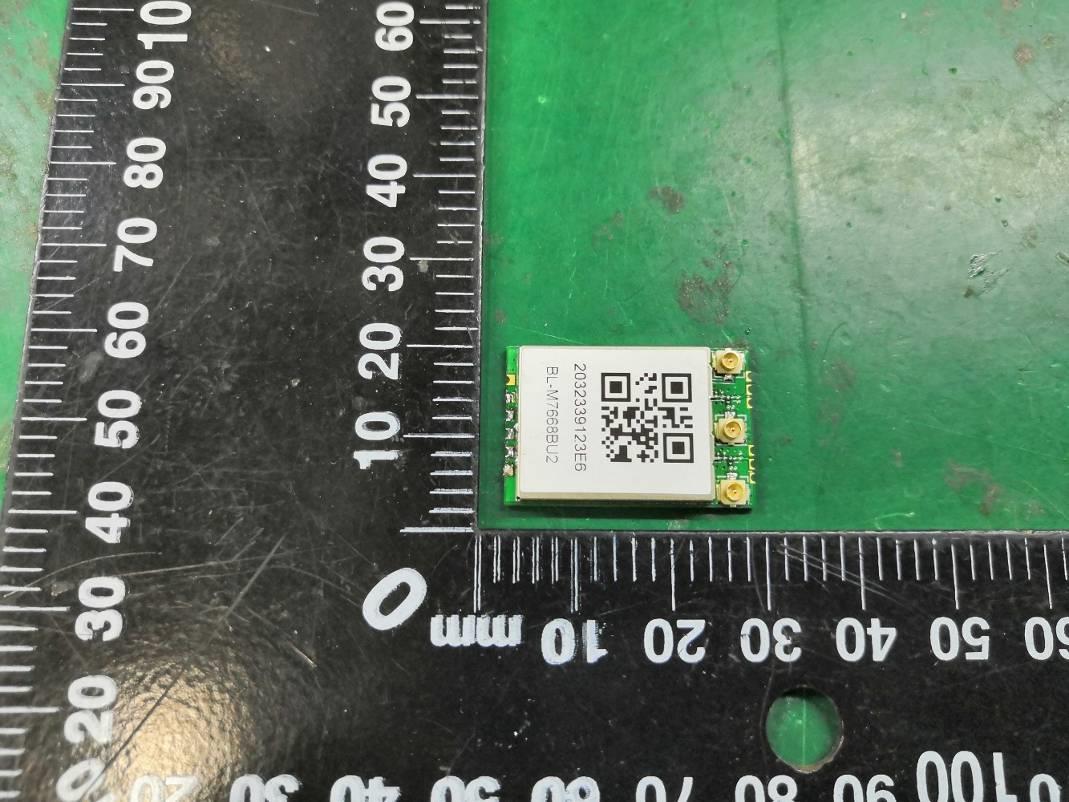

FCC ID : 2AWOA-CLT IC: 26180-CLT Fig. 1 Fig. 2 Antenna Ant. Port for BT ANT0 Ant. Port for WLAN ANT1 Ant. Port for WLAN ANT2 FCC ID : 2AWOA-CLT IC: 26180-CLT Fig. 3

FCC ID : 2AWOA-CLT IC: 26180-CLT _____________________________________________________________________________________________________ LABEL AND LOCATION (Size: L1.5cm x 1.0cm) Label Location Model No.: BL-M7668BU2-CLT FCC ID: 2AWOA-CLT IC: 26180-CLT

FCC ID : 2AWOA-CLT IC: 26180-CLT Fig. 1 Fig. 2 Ant. Port for BT ANT0 Ant. Port for WLAN ANT1 Ant. Port for WLAN ANT2 FCC ID : 2AWOA-CLT IC: 26180-CLT Fig. 3 Fig. 4

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong RF Exposure evaluation Report Reference No...................... : FCC ID. ............................................ : GTS20200507005-1-12 2AWOA-CLT Compiled by ( position+printed name+signature) . : File administrators Tracy Hu Supervised by ( position+printed name+signature) . : Test Engineer Moon Tan Approved by ( position+printed name+signature) . : Manager Simon Hu Date of issue .................................... : Jun.15, 2020 Representative Laboratory Name . : Shenzhen Global Test Service Co.,Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong, China Applicant’s name ............................ : Shenzhen CLT Electronics Co., Ltd Address ............................................ : Room1001, CLT R&D Building, No.1Ganli 5th Road, Gankeng Community, Jihua Subdistrict, Longgang District, Shenzhen Test specification ........................... : Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 v06 TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ...................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : RF Module Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen CLT Electronics Co., Ltd Model/Type reference ...................... : BL-M7668BU2-CLT Listed Models .................................. : N/A Modulation Type ............................... : IEEE 802.11a /802.11b/802.11g/802.11n/802.11ac GFSK,π/4-DQPSK,8DPSK Operation Frequency........................ : From 2402MHz-2480MHz, 2412MHz to 2462MHz, 5180MHz to 5240MHz, 5745MHz to 5825MHz Hardware Version ............................ : V1.0 Software Version .............................. : V1.0 Rating ............................................... : DC 3.3V Result ............................................... : PASS Report No.: GTS20200507005-1-12 Page 2 of 15 T E S T R E P O R T Test Report No. : GTS20200507005-1-12 Jun.15, 2020 ______________________________________________________________________________________________ Date of issue Equipment under Test : RF Module Model /Type : BL-M7668BU2-CLT List Models : N/A Applicant : Shenzhen CLT Electronics Co., Ltd Address : Room1001, CLT R&D Building, No.1Ganli 5th Road, Gankeng Community, Jihua Subdistrict, Longgang District, Shenzhen Manufacturer : Shenzhen CLT Electronics Co., Ltd Address : Room1001, CLT R&D Building, No.1Ganli 5th Road, Gankeng Community, Jihua Subdistrict, Longgang District, Shenzhen Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20200507005-1-12 Page 3 of 15 Contents 1. SUMMARY ....................................................................................................................................................... 4 1.1 EUT configuration .................................................................................................................................... 4 1.2 Product Description ................................................................................................................................. 4 2. TEST ENVIRONMENT ..................................................................................................................................... 5 2.1 Address of the test laboratory ................................................................................................................. 5 2.2 Test Facility ............................................................................................................................................. 5 2.3 Environmental conditions ........................................................................................................................ 5 2.4 Statement of the measurement uncertainty ............................................................................................ 5 3. METHOD OF MEASUREMENT ....................................................................................................................... 6 3.1 Applicable Standard ................................................................................................................................ 6 3.2 Requirement ............................................................................................................................................ 6 3.3 Limit ......................................................................................................................................................... 6 3.4 MPE Calculation Method ......................................................................................................................... 7 3.5 Antenna Information ................................................................................................................................ 7 4. CONDUCTED POWER RESULTS .................................................................................................................. 7 5. MANUFACT…

Text truncated - open the document above for the full version.

Sh enzhen Global Test Service Co.,Ltd. No .7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong F CC PART 15 SUBPART C TEST REPORT FC C PART 15.407 R eport Reference No. ..................... : FCC ID............................................. : GTS20200507005-1-11 2AWOA-CLT C ompiled by ( position+printed name+signature) . : File administrators Tracy Hu Su pervised by ( position+printed name+signature) . : Test Engineer Moon Tan Ap proved by ( position+printed name+signature) . : Manager Simon Hu D ate of issue .................................... : Jun.15, 2020 Representative Laboratory Name . : Shenzhen Global Test Service Co.,Ltd. N o.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong, China ... ......................... : Shenzhen CLT Electronics Co., Ltd Ad dress ............................................ : Room1001, CLT R&D Building, No.1Ganli 5th Road, Gankeng Community, Jihua Subdistrict, Longgang District, Shenzhen T est specification ........................... : St andard ........................................... : FCC Part 15.407: UNLICENSED NATIONAL INFORMATION INFRASTRUCTURE DEVICES T RF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ...................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. T est item description ..................... : RF Module T rade Mark ....................................... : N/A M anufacturer .................................... : Shenzhen CLT Electronics Co., Ltd Model/Type reference ...................... : BL-M7668BU2-CLT Lis ted Models .................................. : N/A O peration Frequency ........................ : From 5180MHz to 5240MHz/ 5745MHz to 5825MHz H ardware Version ............................ : V1.0 So ftware Version .............................. : V1.0 R ating ............................................... : DC 3.3V R esult ............................................... : PASS R eport No.: GTS20200507005-1-11 Page 2 of 97 T E S T R E P O R T T est Report No. : GTS20200507005-1-11 Jun.15, 2020 _ ___________________________________________________________________________________ Date of issue Eq uipment under Test : RF Module Model /Type : BL-M7668BU2-CLT List Models : N/A Applicant : Shenzhen CLT Electronics Co., Ltd Address : Room1001, CLT R&D Building, No.1Ganli 5th Road, Gankeng Community, Jihua Subdistrict, Longgang District, Shenzhen Manufacturer : Shenzhen CLT Electronics Co., Ltd Address : Room1001, CLT R&D Building, No.1Ganli 5th Road, Gankeng Community, Jihua Subdistrict, Longgang District, Shenzhen T est Result : PA SS T he test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. R eport No.: GTS20200507005-1-11 Page 3 of 97 Con tents R eport No.: GTS20200507005-1-11 Page 4 of 97 1 . T E S T S T A N D A R D S T he tests were performed according to following standards: FCC Rules Part 15.407: UNLICENSED NATIONAL INFORMATION INFRASTRUCTURE DEVICES. AN SI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KD B 789033 D02: GUIDELINES FOR COMPLIANCE TESTING OF UNLICENSED NATIONAL IN FORAMTION INFRASTRUCTURE (U-NII) DEVICES PART 15, SUBPART E R eport No.: GTS20200507005-1-11 Page 5 of 97 2 . S U M M A R Y 2 .1. General Remarks D ate of receipt of test sample : Jun.04, 2020 T esting commenced on : Jun.04, 2020 T esting concluded on : Jun.15, 2020 2 .2. Product Description Pr oduct Name RF Module T rade Mark N/A Model/Type reference BL-M7668BU2-CLT Lis t Models N/A M odel Declaration N/A Po wer supply: DC 3.3V Sa mple ID GTS20200507005-1-8# Bluetooth O peration frequency 2402-2480MHz C hannel Number 79 channels for Bluetooth (DSS) 40 channels for Bluetooth (DTS) C hannel Spacing 1MHz for Bluetooth (DSS) 2MHz for Bluetooth (DTS) M odulation Type -DQPSK, 8DPSK for Bluetooth (DSS) GFSK for Bluetooth (DTS) W IFI(2.4G Band) F requency Range 2412MHz ~ 2462MHz Channel Spacing 5MHz C hannel Number 11 Channel for 20MHz bandwidth(2412~2462MHz) 7 channels for 40MHz bandwidth(2422~2452MHz) M odulation Type 802.11b: DSSS; 802.11g/n: OFDM W IFI(5.2G Band) F requency Range 5180MHz ~ 5240MHz C hannel Number 4 channels for 20MHz bandwidth(5180-5240MHz) 2 channels for 40MHz bandwidth(5190~5230MHz) 1 channels for 80MHz bandwidth(5210MHz) M odulation Type 802.11a/n/ac: OFDM W IFI (5.8G Band) F requency Range 5745MHz ~ 5825MHz C hannel Number 5 channels for 20MHz bandwidth(5745-5825MHz) 2 channels for 40MHz bandwidth(5755~5795MHz) 1 channels for 80MHz bandwidth(5775MHz) M odulation Type 802.11a/n/ac: OFDM Antenna Description Three same PCB Antenna, but WLAN support MIMO technology ANT0 used for Bluetooth , 5.0dBi(Max.) for 2.4G Band ; ANT1 used for WIFI TX/RX, 5.0dBi(Max.) for 2.4G Band and 5.0dBi(Max.) for 5G Band ANT2 used for WIFI TX/RX, 5.0dBi(Max.) for 2.4G Band and 5.0dBi(Max.) for 5G Band R eport No.: GTS20200507005-1-11 Page 6 of 97 2 .3. Equipment Under Test Power supply system utilised Po wer supply voltage : 230 V / 50 Hz 12 0V / 60Hz 12 V DC 24 V DC O ther (specified in blank below) 2 .4. Short description of the Equipment under Test (EUT) T his is a RF Module. the EUT. 2.5. EUT operation mode T he application provider specific test software to con…

Text truncated - open the document above for the full version.

R eport No.: GTS20200507005-1-11 Page 52 of 97 Antenna 1: 99 %Bandwidth 80 2.11a 80 2.11n HT20 C H149 CH149 CH157 CH157 C H165 CH165 R eport No.: GTS20200507005-1-11 Page 53 of 97 99 %Bandwidth 80 2.11ac20 80 2.11n HT40 C H149 CH151 C H157 CH159 C H165 R eport No.: GTS20200507005-1-11 Page 54 of 97 99 %Bandwidth 80 2.11ac40 80 2.11ac80 C H151 CH155 CH159 R eport No.: GTS20200507005-1-11 Page 55 of 97 6dB Bandwidth 80 2.11a 80 2.11n HT20 C H149 CH149 CH157 CH157 C H165 CH165 R eport No.: GTS20200507005-1-11 Page 56 of 97 6dB Bandwidth 80 2.11ac20 80 2.11n HT40 C H149 CH151 CH157 CH159 C H165 R eport No.: GTS20200507005-1-11 Page 57 of 97 6dB Bandwidth 80 2.11ac40 80 2.11ac80 C H151 CH155 CH159 R eport No.: GTS20200507005-1-11 Page 58 of 97 Antenna 2: 99 %Bandwidth 80 2.11a 80 2.11n HT20 C H149 CH149 CH157 CH157 C H165 CH165 R eport No.: GTS20200507005-1-11 Page 59 of 97 99 %Bandwidth 80 2.11ac20 80 2.11n HT40 C H149 CH151 CH157 CH159 C H165 R eport No.: GTS20200507005-1-11 Page 60 of 97 99 %Bandwidth 80 2.11ac40 80 2.11ac80 C H151 CH155 C H159 R eport No.: GTS20200507005-1-11 Page 61 of 97 6dB Bandwidth 80 2.11a 80 2.11n HT20 C H149 CH149 CH157 CH157 C H165 CH165 R eport No.: GTS20200507005-1-11 Page 62 of 97 6dB Bandwidth 80 2.11ac20 80 2.11n HT40 C H149 CH151 CH157 CH159 C H165 R eport No.: GTS20200507005-1-11 Page 63 of 97 6dB Bandwidth 80 2.11ac40 80 2.11ac80 C H151 CH155 C H159 R eport No.: GTS20200507005-1-11 Page 64 of 97 4 .7. 26dBc Bandwidth T EST CONFIGURATION EU T SP ECTRUM ANALYZER TEST PROCEDURE Ac cording to KDB789033 D02 General UNII Test Procedures New Rules v01 for one of the following procedures may be used for Emission Bandwidth (EBW) measurement: a. Set RBW = 300 kHz (approximately 1% of the emission bandwidth). b. Set the video bandwidth (VBW) = 1000 KHz (VBW > RBW) c. Detector = Peak. d. Trace mode = max hold. e. Sweep = auto couple. f. Allow the trace to stabilize g. Measure the maximum width of the emission that is 26 dB down from the maximum of the emission. Compare this with the RBW setting of the analyzer. Readjust RBW and repeat measurement as needed until the RBW/EBW ratio is approximately 1%. Note: The automatic bandwidth measurement capability of a spectrum analyzer or EMI receiver may be employed if it implements the functionality described above. LIMIT N o Limits for 26dBc Bandwith TEST RESULTS T emperature 23 .6 H umidity 55 .7% Test Engineer Moon Tan Configurations IEEE 802.11a/n/ac R eport No.: GTS20200507005-1-11 Page 65 of 97 Antenna 1: T ype C hannel 99 %Bandwidth (MHz) 26dB Bandwidth ( MHz) L imit (KHz) R esult 80 2.11a 36 16.986 19.760 - Pass 40 16 .944 19.800 48 16 .959 19.680 80 2.11nHT20 36 17.873 20.280 - Pass 40 17 .833 20.160 48 17 .901 20.160 80 2.11ac20 36 17.740 20.160 - Pass 40 17 .709 20.240 48 17 .734 20.200 80 2.11n40 38 36.450 40.480 - Pass 46 36 .483 40.640 80 2.11ac40 38 36.618 46.000 - Pass 46 36 .807 60.400 80 2.11ac80 155 75.922 80.480 - Pass A ntenna 2: T ype C hannel 99 %Bandwidth (MHz) 26dB Bandwidth ( MHz) L imit (KHz) R esult 80 2.11a 36 16.656 19.920 - Pass 40 16 .628 19.880 48 16.681 19.840 802.11nHT20 36 17.864 20.120 - Pass 40 17.862 20.240 48 17 .884 20.120 80 2.11ac20 36 17.695 20.120 - Pass 40 17 .728 20.160 48 17 .740 20.240 80 2.11n40 38 36.460 40.400 - Pass 46 36 .503 40.960 80 2.11ac40 38 36.403 40.160 - Pass …
