Smart Wi-Fi Light Switch USER MANUAL Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Radiation Exposure Statement To comply with FCC RF exposure compliance requirements, this grant is applicable to only mobile configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be co- located or operating in conjunction with any other antenna or transmitter. FCC Warning This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any inte rference received, including interference that may cause undesired operation.

Shenzhen Orituo Technology Co.,Ltd. Add: 6F,YuanMeng Building,Minle Park,LongHua District, ShenZhen, China Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Dear Sir/Madam, We, Shenzhen Orituo Technology Co.,Ltd. Hereby declares the following statement for FCC, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product Name: smart light switch FCC ID: 2AWPE-LS01 Model Number(s): LS01, LS02, LS03, LS04, LS05, SW01, SW02, SW03, SW04 Sincerely, Name: Jazlyn Yang Company: Shenzhen Orituo Technology Co.,Ltd. Address: 6F,YuanMeng Building,Minle Park,LongHua District, ShenZhen, China Phone: 13149929921 Fax: 075533003601 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2020-09-16> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AWPE-LS01 SW01,LS05,LS04,LS03,LS02,LS01,SW02, SW03, SW04 heldbeinformationfollowingthethatrequestweabove,statedFor the product confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name: Jazlyn Yang Company: Shenzhen Orituo Technology Co.,Ltd. Address: 6F,YuanMeng Building,Minle Park,LongHua District, ShenZhen, China Phone: 13149929921 Fax: 075533003601 E-Mail: [email protected]

Shenzhen Orituo Technology Co.,Ltd. 6F,YuanMeng Building,Minle Park,LongHua District, ShenZhen, China Date: September 16, 2020 FCC ID: 2AWPE-LS01 Model Number: LS01, LS02, LS03, LS04, LS05, SW01, SW02, SW03, SW04 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Shenzhen Orituo Technology Co.,Ltd. declare that this EUT (FCC ID: 2AWPE-LS01) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name: Jazlyn Yang Title:/ Company: Shenzhen Orituo Technology Co.,Ltd. Address: 6F,YuanMeng Building,Minle Park,LongHua District, ShenZhen, China Phone: 13149929921 Fax : 075533003601 Email: [email protected]

Shenzhen Orituo Technology Co.,Ltd. 6F,YuanMeng Building,Minle Park,LongHua District, ShenZhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 09/16/2020 To whom it may concern: We, Shenzhen Orituo Technology Co.,Ltd. the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AWPE-LS01 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, (Signed) Name / Title: Jazlyn Yang Company: Shenzhen Orituo Technology Co.,Ltd. Address: 6F,YuanMeng Building,Minle Park,LongHua District, ShenZhen, China Phone: 13149929921 Fax: 075533003601 E-Mail: [email protected]

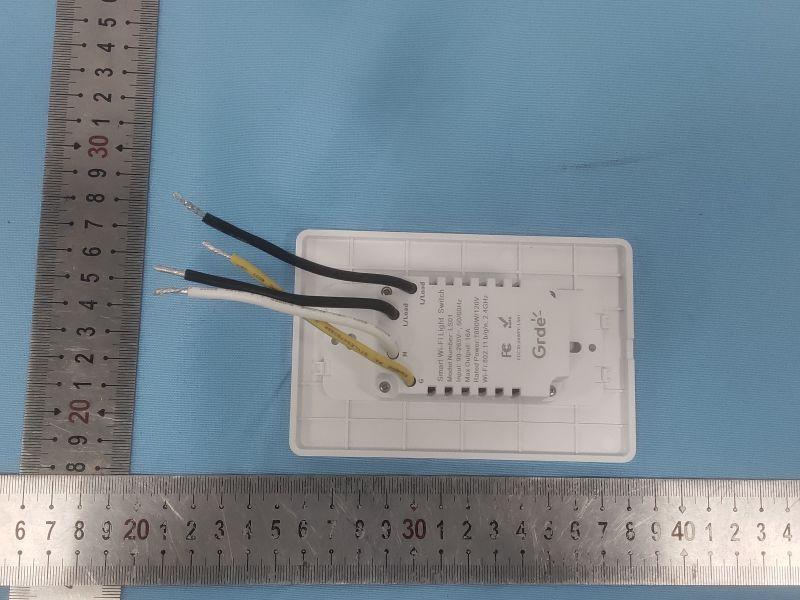

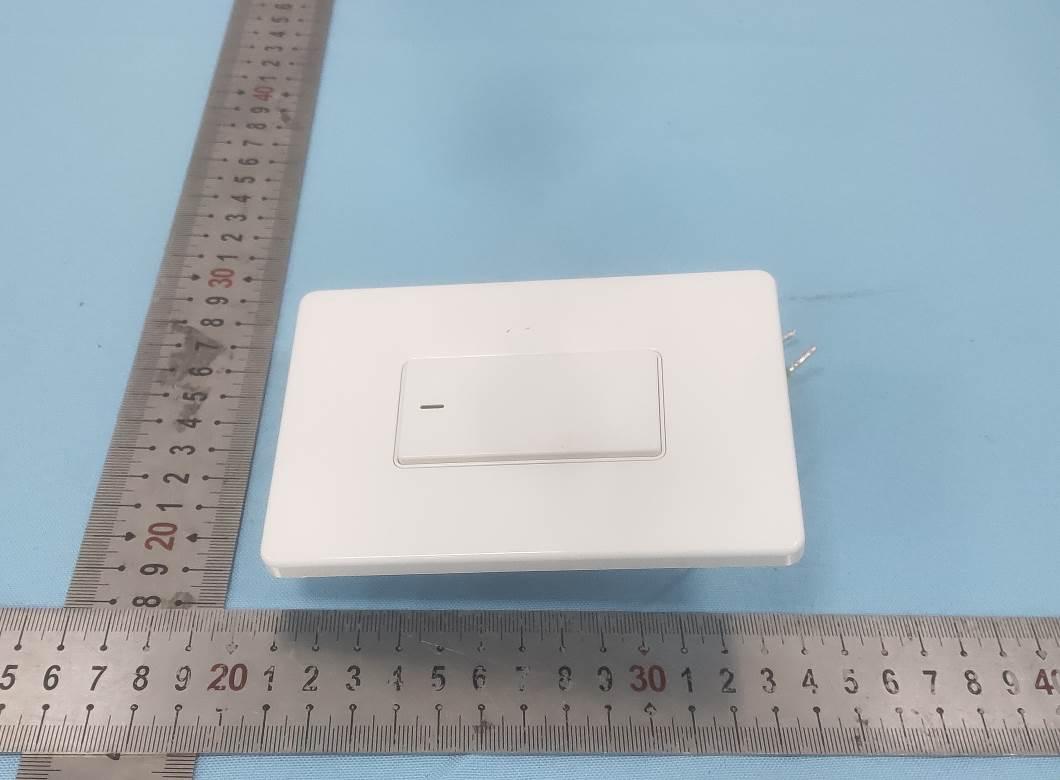

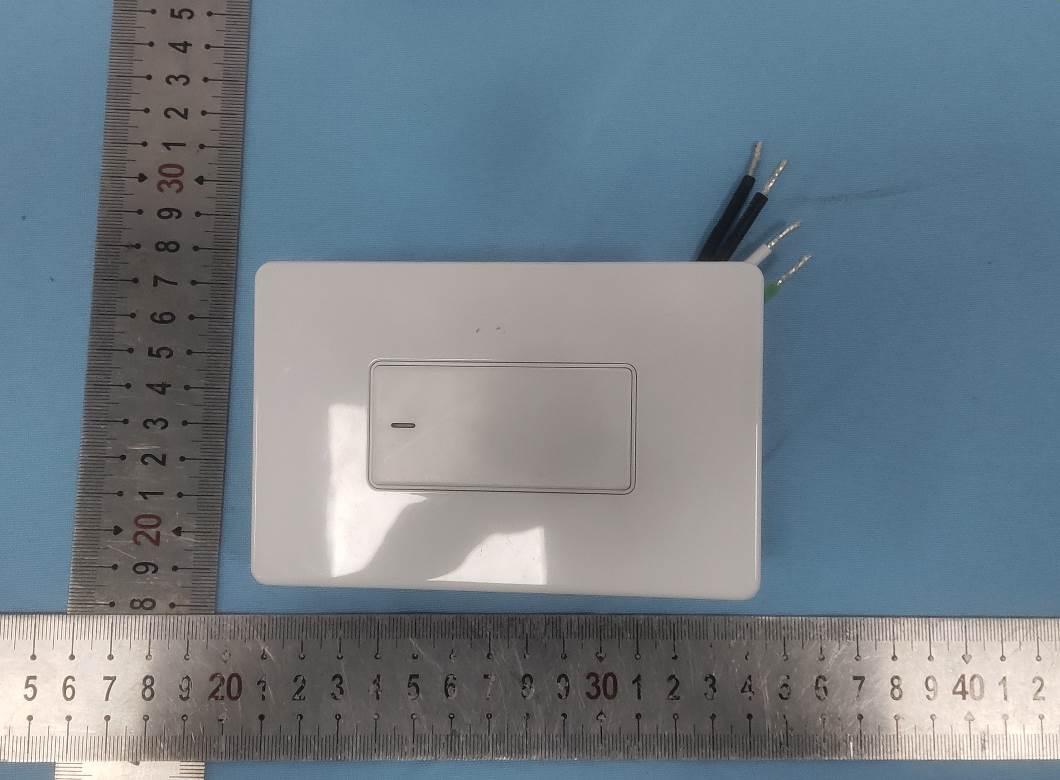

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 3 External Photos of the EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 3 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 3 Fig.5 Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 _____________________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 LABEL AND LOCATION (Size: L5.0m x3.5cm) Material: Tagboard Glue: adhesive sticker Font color: White Label color: Black Label Location

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 5 Internal Photos of the EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 5 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 5 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 5 Fig.7 Fig.8 BT/WIFI Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 5 of 5 Fig.9 Fig.10

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 Maximum Permissible Exposure Report 1. Product Information FCC ID: 2AWPE-LS01 Product name smart light switch Test Model LS01 Power supply Input: AC 90-265V, 50/60Hz, 16A Operation frequency 2.402-2.480GHz for Bluetooth 2.412-2.462GHz for 2.4G WIFI Antenna Type PCB Antenna Antenna Gain 1.0 dBi Hardware version / Software version / Channel Number 2MHz for Bluetooth V4.2 (BT LE) 11 channels for 20MHz bandwidth (2412~2462MHz) 7 channels for 40MHz bandwidth (2422~2452MHz) Channel Spacing 5MHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Device 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information C2M can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Notes Antenna PCB Antenna 2400 MHz –5850 MHz 1.0 dBi BT/WiFi Antenna 6. Conducted Power [BLE Max Conducted Power] Mode Channel Frequency(MHz) Average Conducted Output Power (dBm) GFSK 0 2402 5.271 19 2440 3.680 39 2480 3.796 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 [2.4GWIFI Max Conducted Power] Mode Channel Frequency (MHz) Max Conducted Power(dBm) IEEE 802.11b 1 2412 16.68 6 2437 17.11 11 2462 16.91 IEEE 802.11g 1 2412 22.50 6 2437 22.69 11 2462 20.66 IEEE 802.11n HT20 1 2412 21.16 6 2437 20.53 11 2462 18.77 IEEE 802.11n HT40 3 2422 21.09 6 2437 20.88 9 2452 19.48 7. Measurement Results BLE BT LE (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 5.0 3.0 3.0 Tolerance ±(dB) 1.0 1.0 1.0 2.4GWIFI IEEE 802.11b (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 17.0 17.0 17.0 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11g (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 22.0 22.0 20.0 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11n HT20 (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 21.0 20.0 18.0 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11n HT40 (Peak) Channel Channel 3 Channel 6 Channel 9 Target (dBm) 21.0 20.0 19.0 Tolerance ±(dB) 1.0 1.0 1.0 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 8. Evalu…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEA Page 1 of 14 Appendix A RF Test Data for BT LE 4.2(DTS) (Conducted Measurement) Product Name: smart light switch Trade Mark: Grde Test Model: LS01 Environmental Conditions Temperature: 24.5  C Relative Humidity: 53.6% ATM Pressure: 100.0 kPa Test Engineer: Kay Hu Supervised by: Li Huan A.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict BT LE 2440 Ant1 100 PASS #im grbble1hchnnav SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEA Page 2 of 14 A.2 Maximum Conducted Peak Output Power Mode Channel Conduct Peak Power[dBm] Limit [dBm] Verdict BT LE LCH 5.271 30 PASS BT LE MCH 3.680 30 PASS BT LE HCH 3.796 30 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEA Page 3 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEA Page 4 of 14 A.3 Maximum Power Spectral Density Mode Channel PSD [dBm/3KHz] Limit [dBm/3KHz] Verdict BT LE LCH -10.168 8 PASS BT LE MCH -11.666 8 PASS BT LE HCH -11.621 8 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEA Page 5 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEA Page 6 of 14 A.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict BT LE LCH 0.6792 ≥0.5 PASS BT LE MCH 0.6841 ≥0.5 PASS BT LE HCH 0.6729 ≥0.5 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEA Page 7 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEA Page 8 of 14 A.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict BT LE LCH 4.364 -36.895 -15.636 PASS BT LE MCH 2.714 -37.366 -17.286 PASS BT LE HCH 2.82 -37.533 -17.180 PASS BT LE_LCH_Graphs Pref/BT LE/LCH Puw/BT LE/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEA Page 9 of 14 BT LE_MCH_Graphs Pref/BT LE/MCH Puw/BT LE/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEA Page 10 of 14 BT LE_HCH_Graphs Pref/BT LE/HCH Puw/BT LE/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEA Page 11 of 14 A.6 Band-edge for RF Conducted Emissions Mode Channel Carrier Power[dBm] Max.Spurious Level [dBm] Limit [dBm] Verdict BT LE LCH 4.490 -49.854 -15.51 PASS BT LE HCH 3.087 -48.190 -16.91 PASS Test Graphs LCH HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEA Page 12 of 14 A.7 Restrict-band band-edge measurements Test Mode Test Chann el Ant Freq. Power [dBm] Gain Ground Factor E [dBuV/m] Detector Limit [dBuV/ m] Verdi ct BT LE 2402 Ant1 2310.0 -43.49 2.0 0 53.74 PEAK 74 PASS Ant1 2310.0 -53.33 2.0 0 43.90 AV 54 PASS Ant1 2390.0 -42.36 2.0 0 54.87 PEAK 74 PASS Ant1 2390.0 -52.62 2.0 0 44.61 AV 54 PASS 2480 Ant1 2483.5 -40.66 2.0 0 56.57 PEAK 74 PASS Ant1 2483.5 -50.82 2.0 0 46.41 AV 54 PASS Ant1 2500.0 -41.72 2.0 0 55.51 PEAK 74 PASS Ant1 2500.0 -52.30 2.0 0 44.93 AV 54 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEA Page 13 of 14 Restrict-band band-edge measurements_BT LE_2402_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2402_Ant1_AV SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEA Page 14 of 14 Restrict-band band-edge measurements_BT LE_2480_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2480_Ant1_AV

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEB Page 1 of 46 Appendix B RF Test Data for 2.4G WIFI (Conducted Measurement) Product Name: smart light switch Trade Mark: Grde Test Model: LS01 Environmental Conditions Temperature: 24.5  C Relative Humidity: 53.6% ATM Pressure: 100.0 kPa Test Engineer: Kay Hu Supervised by: Li Huan B.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict 11B 2437 Ant1 99.79 PASS 11G 2437 Ant1 98.74 PASS 11N20SISO 2437 Ant1 98.46 PASS 11N40SISO 2437 Ant1 98.00 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEB Page 2 of 46 Duty Cycle_11B_2437_Ant1 Duty Cycle_11G_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEB Page 3 of 46 Duty Cycle_11N20SISO_2437_Ant1 Duty Cycle_11N40SISO_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEB Page 4 of 46 B.2 Maximum Conducted Output Power Mode Channel Meas.Level [dBm] Limit [dBm] Verdict 11B LCH 16.68 30 PASS MCH 17.11 30 PASS HCH 16.91 30 PASS 11G LCH 22.50 30 PASS MCH 22.69 30 PASS HCH 20.66 30 PASS 11N20SISO LCH 21.16 30 PASS MCH 20.53 30 PASS HCH 18.77 30 PASS 11N40SISO LCH 21.09 30 PASS MCH 20.88 30 PASS HCH 19.48 30 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEB Page 5 of 46 B.3 Maximum Power Spectral Density Mode Channel Meas.Level [dBm/3KHz] Limit [dBm/3KHz] Verdict 11B LCH -9.990 8 PASS MCH -10.544 8 PASS HCH -9.128 8 PASS 11G LCH -9.863 8 PASS MCH -10.240 8 PASS HCH -11.748 8 PASS 11N20SISO LCH -10.909 8 PASS MCH -11.258 8 PASS HCH -13.020 8 PASS 11N40SISO LCH -13.298 8 PASS MCH -15.063 8 PASS HCH -13.878 8 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEB Page 6 of 46 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEB Page 7 of 46 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEB Page 8 of 46 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEB Page 9 of 46 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEB Page 10 of 46 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEB Page 11 of 46 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEB Page 12 of 46 B.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict 11B LCH 9.096 ≥0.5 PASS MCH 9.115 ≥0.5 PASS HCH 9.116 ≥0.5 PASS 11G LCH 10.12 ≥0.5 PASS MCH 12.55 ≥0.5 PASS HCH 11.33 ≥0.5 PASS 11N20SISO LCH 11.32 ≥0.5 PASS MCH 10.12 ≥0.5 PASS HCH 10.12 ≥0.5 PASS 11N40SISO LCH 30.09 ≥0.5 PASS MCH 32.53 ≥0.5 PASS HCH 31.35 ≥0.5 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEB Page 13 of 46 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEB Page 14 of 46 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEB Page 15 of 46 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEB Page 16 of 46 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEB Page 17 of 46 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEB Page 18 of 46 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEB Page 19 of 46 B.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdic t 11B LCH 4.749 -37.783 -15.251 PASS MCH 4.908 -37.789 -15.092 PASS HCH 4.926 -38.164 -15.074 PASS 11G LCH 6.467 -36.731 -13.533 PASS MCH 5.697 -38.013 -14.303 PASS HCH 4.455 -37.903 -15.545 PASS 11N20 SISO LCH 5.138 -38.351 -14.862 PASS MCH 4.77 -38.546 -15.230 PASS HCH 2.51 -38.209 -17.490 PASS 11N40 SISO LCH 0.76 -37.868 -19.240 PASS MCH 0.384 -37.692 -19.616 PASS HCH -0.993 -37.894 -20.993 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEB Page 20 of 46 11B_LCH_Graphs Pref/11B/LCH Puw/11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEB Page 21 of 46 11B_MCH_Graphs Pref/11B/MCH Puw/11B/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEB Page 22 of 46 11B_HCH_Graphs Pref/11B/HCH Puw/11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEB Page 23 of 46 11G_LCH_Graphs Pref/11G/LCH Puw/11G/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEB Page 24 of 46 11G_MCH_Graphs Pref/11G/MCH Puw/11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEB Page 25 of 46 11G_HCH_Graphs Pref/11G/HCH Puw/11G/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEB Page 26 of 46 11N20SISO_LCH_Graphs Pref/11N20SIS O/LCH Puw/11N20 SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEB Page 27 of 46 11N20SISO_MCH_Graphs Pref/11N20 SISO/MCH Puw/11N20 SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEB Page 28 of 46 11N20SISO_HCH_Graphs Pref/11N20 SISO/HCH Puw/11N20 SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEB Page 29 of 46 11N40SISO_LCH_Graphs Pref/11N40 SISO/LCH Puw/11N40 SISO/LCH SHENZHEN…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 33 FCC TEST REPORT For Shenzhen Orituo Technology Co.,Ltd. smart light switch Test Model: LS01 Additional Model No. : Please Refer To Page 6 Prepared for : Shenzhen Orituo Technology Co.,Ltd. Address : 6F,YuanMeng Building,Minle Park,LongHua District, ShenZhen, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : August 17, 2020 Number of tested samples : 2 Sample number 200831021A-1, 200831021A-2 Serial number : Prototype Date of Test : August 17, 2020 ~ September 02, 2020 Date of Report : September 08, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 33 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS200831021AEA Date of Issue .................................. : September 08, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : Shenzhen Orituo Technology Co.,Ltd. Address .......................................... : 6F,YuanMeng Building,Minle Park,LongHua District, ShenZhen, China Test Specification Standard ......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No.................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. .......................... : smart light switch Trade Mark ..................................... : Grde Test Model ...................................... : LS01 Ratings ........................................... : Input: AC 90-265V, 50/60Hz, 16A Result ............................................ : Positive Compiled by: Supervised by: Approved by: Vera Deng / Administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 33 FCC -- TEST REPORT Test Model............................... : LS01 EUT......................................... : smart light switch Applicant............................... : Shenzhen Orituo Technology Co.,Ltd. Address.................................. : 6F,YuanMeng Building,Minle Park,LongHua District, ShenZhen, China Telephone............................... : Fax.......................................... : Manufacturer........................ : Shenzhen Orituo Technology Co.,Ltd. Address................................... : 6F,YuanMeng Building,Minle Park,LongHua District, ShenZhen, China Telephone............................... : Fax.......................................... : Factory................................... : / Address................................... : / Telephone............................... : Fax.......................................... : Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200831021AEA September 08, 2020 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWPE-LS01 Report No.: LCS200831021AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 33 Revision History Revision Issue Date Revision…
