2AWQ6BT11BT11 Bluetooth Module

Specification for Bluetooth module Version V1.1| July 2020 BT11-V1.1(503) 1overview Introduction BT11 - V1.1（503） is a small bluetooth module based on TC35661SBG - 503. It can be easily integrated into the motherboard CB821, with functions of bluetooth communication. At the same time can connect a AnZhuoDuan equipment or IOS devices. Support bluetooth 2.0 and bluetooth 4.0 protocol, embedded within the PCB antenna port. The module is easy to use simple, function stability. Main Parameter： Voltage is 1.8V or 3.3V Support bluetooth 2.0 protocol and Bluetooth 4.0 protocol Operation Frequency:2402-2480MHz Maximum Peak Output Power:-12.11dBm packaging BT11-V1.1(503) Pin Definitions： Pin number Signal name Direction 1 TX output 2 RX input 3 CTS Flow Control 11 RESET Reset 12 3.3V Power 13 GND GND Ground 21 GND1 GND Ground 22 GND2 GND Ground 23 PIO0 NULL 25 PIO2 NULL 30 PIO7 NULL Dimensions BT11-V1.1(503) FCC Warning: FCC Statement: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help. The host product should have the proper label and to identify the host module within the product. Module when installed on the host product certification label should always be clearly. BT11-V1.1(503) INTEGRATION INSTRUCTIONS 1. This module has been tested and found to comply with the FCC Part15.247 for Modular Approval. 2. This Modular Approval is limited to OEM installation for mobile and fixed applications only. The antenna installation and operating configurations of this transmitter, including any applicable source-based time- averaging duty factor, antenna gain and cable loss must satisfy MPE categorical Exclusion Requirements of 2.1091. This modular should be installed and operated with minimum distance 20 cm between the radiator& your body. 3. The maximum antenna gain is 0dBi.For situations where the host manufacturer is responsible for an external connector, the integration instructions shall inform the installer that a unique antenna connector must be used on the Part 15 authorized transmitters used in the host product. 4. When the module is installed in the host device, the FCC ID label must be visible through a window on the final device or it must be visible when an access panel, door or cover is easily removed. If not, a second label must be placed on the outside of the final device that contains the following text: ―Contains FCC ID: 2AWQ6BT11 5. The Xiamen Apt Electronic Tech. Co., Ltd uses various test mode programs for test set up which operate separate from production firmware. Host integrators should contact Xiamen Apt Electronic Tech. Co., Ltd for assistance with test modes needed for module/host compliance test requirements. 6. The Xiamen Apt Electronic Tech. Co., Ltd Bluetooth module is FCC authorized for the FCC Part15.247 listed on the grant, and that the host product manufacturer is responsible for compliance to any other FCC rules that apply to the host not covered by the Bluetooth module grant of certification. If the grantee markets their product as being Part 15 Subpart B compliant, then the grantee shall provide a notice stating that the final host product still requires Part 15 Subpart B compliance testing with the Bluetooth module installed. 7. The module is limited to use in the host.the host FCC ID is 2AWQ6CB821,product name is thermal printer,main model is CB821-USEB. the limited module manufacturer reviews detailed test data or host designs prior to giving the host manufacturer approval.

QA-FR-170-B Xiamen Apt Electronic Tech. Co., Ltd Add:202,No.46 He Ning Li, Huli District,Xiamen China TEL: 18059295220 FAX: 0086-0592-5916062 E-mail: [email protected] FCC Authorization Date: 2020-7-21 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , Xiamen Apt Electronic Tech. Co., Ltd, Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature Printed Name: John Lee Title: Business manager

QA-FR-171-A Xiamen Apt Electronic Tech. Co., Ltd Add:202,No.46 He Ning Li, Huli District,Xiamen China TEL: 18059295220 FAX: 0086-0592-5916062 E-mail: [email protected] FCC Confidential Authorization Date: 2020-7-21 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AWQ6BT11 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Xiamen Apt Electronic Tech. Co., Ltd hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Printed Name: John Lee Title: Business manager

Xiamen Apt Electronic Tech. Co., Ltd Add:202,No.46 He Ning Li, Huli District,Xiamen China TEL: 18059295220 FAX: 0086-0592 -5916062 E-mail: [email protected] Limited Modular Approval Letter Date:2020-07-21 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 We, Xiamen Apt Electronic Tech. Co., Ltd, hereby request Modular Approval for Product: Bt11 Bluetooth module (Model number: BT11-V1.1(503), FCC ID: 2AWQ6BT11).The EUT meets most of the requirement for modular approval as detailed in FCC 15.212. the requirements is described below: 1.The modular transmitter has buffered modulation/data inputs, Buffered data inputs stage has been integrated in chip (Model:TC35661). 2.The modular transmitter has its own power supply regulation. Please refer to the Schematic. 3.Comply with the antenna requirements of Section 15.203 and 15.204(c), the modular have a PCB antenna permanently attached to the module, the maximum gain is 0dBi. 4.The EUT was not tested in a stand-alone configuration, the host FCC ID is 2AWQ6CB821 5 . The modular transmitter have a label on the modular, it has own FCC ID:2AWQ6BT11. 6 . Comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. The necessary explanation to be complied with this requirement is contained in the user manual, band please refers to the User Manual. 7 . Comply with any applicable RF exposure requirements in its final configuration. Sincerely, Signature: Printer Name: John Lee Title: Business manager 8.The modular are integrated into the host board.The module has no RF shielding, testing with host device.

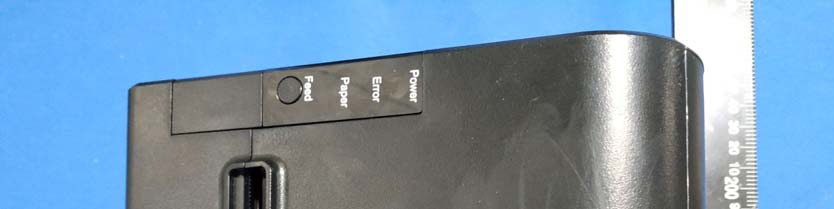

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Host

FCC ID:2AWQ6BT11

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Chip

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RXM200617053-00A Page 10 of 34 FCC §15.247 (i) & §1.1310 & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 15.247(i)and subpart §1.1310, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculation formula: Prediction of power density at the distance of the applicable MPE limit S = PG/4πR² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Calculated Data: Mode Frequency (MHz) Antenna Gain Conducted output power including Tune- up Tolerance Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric)(dBm)(mW) BDR 2402-24800 1.00 -120.06 20.00 0.00001 1.0 BLE 2402-24800 1.00 -120.06 20.00 0.00001 1.0 Result: The device meet FCC MPE at 20 cm distance

FCC PART 15.247 TEST REPORT For Xiamen Apt Electronic Tech. Co., Ltd 202,No.46 He Ning Li, Huli District,Xiamen China Report Type: Original Report Product Name: Bt11 Bluetooth module Re port Number: RXM200617053-00A Re port Date: 2020-07-20 Reviewed By: Ivan Cao Assistant Manager Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industry Area, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn FCC ID:2AWQ6BT11 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RXM200617053-00A Page 2 of 34 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 DECLARATIONS ............................................................................................................................................................ 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS ........................................................................................................ 7 SUPPORT CABLE LIST AND DETAILS ............................................................................................................................ 7 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 8 SUMMARY OF TEST RESULTS ............................................................................................................................... 9 FCC §15.247 (i) & §1.1310 & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ....................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 ANTENNA INFORMATION AND CONNECTOR CONSTRUCTION ..................................................................................... 11 FCC §15.207 (a)– AC LINE CONDUCTED EMISSIONS ...................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 EUT SETUP ................................................................................................................................................................ 12 EMI TEST RECEIVER SETUP ....................................................................................................................................... 12 TEST PROCEDURE ...................................................................................................................................................... 12 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 13 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 13 TEST DATA ................................................................................................................................................................ 14 FCC §15.209, §15.205, §15.247(d) - SPURIOUS EMISSIONS ................................................................................. 17 APPLICABLE STANDARD ............................................................................................................................................ 17 EUT SETUP ................................................................................................................................................................ 17 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP .............................................................................................. 18 TEST PROCEDURE ...................................................................................................................................................... 18 CORRECTED AMPLITUDE & MARGIN CALCULATION ..…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions Front View Conducted Emissions Side View Radiated Emission Below 1GHz View Radiated Emission Above 1GHz View
