Workers Approach Warning System Yoshikawa Kogyo Co., Ltd. User's Manual 1. About this system ～ Be sure to read this section before use.～ ・ This system can provide only warnings to drivers and workers, and the braking operations such as braking of vehicles must be performed by the driver. ・ It is impossible for this system only to prevent all accident. You must confirm the safety by sight as before. ・ Consult with us if you have a heart pacemaker or a medical device such as a life support device installed. ・ Radio wave interference in the surrounding area may cause the range of radio waves to change. We recommend measuring the radio wave environment in advance in the vicinity of electronic devices, power supply panels, cranes, and other heavy equipment. ・ The detection range varies depending on the installation environment and surrounding conditions. ・ After installation, confirm that the unit is operating correctly by following the operation check procedure. ・ Confirm proper operation according to the daily inspection procedure in the User's Manual. ・ Use in extremely high or low temperatures may cause malfunction or failure. Use within the operating temperature. ・ Due to legal restrictions, this product is prohibited from being used for applications other than those related to Safety operation of the vehicle. ・ It is illegal to disassemble or modify TAGs. ・ Specifications and appearance are subject to change without notice for improvement. Line-up No.Model NameModel number Power supply voltage Detection rangeNote 1DETECTOR YS-F-R023A DC 48V3 ～ 8m Power supply cable 5m included (stripped on one side) 3Speaker YS-F-S003A Up to 87dB, IP54 4Indicator lamp YS-F-V027A-R No.Model NameModel numberAlarm functionBatteriesNote 5ALERT-TAG YS-F-T003A Vib & BuzzerAAA 2pcs In the pocket or waistbelts 6STANDARD-TAG YS-F-T008A NoneCR2032Attached on the helmet. 2. Glossary NoTermMeaning 1 Detector It has a transmit function by a magnetic field, and an alarm function by receiving a radio signal from a TAG. It has a function to receive the magnetic field from the detector and a function to transmit radio waves. ALERT-TAG has a function to alert you. The magnetic field transmitted by the detector uses the 125kHz band. Stable sensing distance is achieved by using a magnetic field. The radio waves transmitted by the TAG use the 315MHz band. Transmitting radio waves from the TAG to the detector enables the detector to alert. They are used to define levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies (tools, dirt etc.) and moisture. As defined by International Standard EN 60529. IP6 * [0 to 6] Dust-proof 6: Dust does not enter the inside. IP*5 [0 to 8] Waterproof 5: low-pressure jets (6.3 mm) of directed water from any angle Noise that affects the radio waves received by the detector. In places where radio noise is present, the sensing distance that the detector alarms may be shortened. Noise affecting the magnetic field received by the TAG. In places where magnetic field noise is present, the detection distance of the TAG may be shortened. Ex. the power distribution boards, factory equipment and large motors. Indicates the unit of sound volume. Ex. ・ 90dB: Bulldozer, etc. in a noisy plant ・ 110dB: Automobile horn, etc. 12 dB 7 IP65 10 Radio wave noise 11 Magnetic field noise 2 TAG 3 Magnetic field 4 Radio waves 3. What is Worker Approach Warning System? This is a system that alerts people and vehicles to "dangerous situations" , when they are in close proximity with the technology of magnetic fields and electromagnetic waves. 1. A magnetic field (125KHz) is being transmitted from the detector. The direction of the magnetic field is transmitted in all directions by 360°, and the transmission range is an oval shape with the largest longitudinal direction. 2. Radio waves (315MHz) including "Detection signal" and "Magnetic field strength" are transmitted from the TAG in the area where the magnetic field from the detector reaches (max. 8m). 3. The detector sounds an alarm by determining the distance based on the magnetic field strength from the TAG. If you use ALERT-TAG, you can also alert from a TAG. Notes Detection range The detection area is 360 degrees in an oval. The oval shape depends on the orientation of the detector. Depending on the vehicle shape and environment, the detection area may not be an oval. Maximum detection range (e.g., 8m version outside detection range) Long side direction of the detector case: Set distance Short side direction of the detector case: Approx. 80% of the set distance Distance Attenuation in the Environmental conditions The sensing distance may be slightly reduced depending on the environmental conditions (effects of magnetic field noise or radio wave noise, structure of the building including reinforcement, etc.). e.g. 8m may be reduced to 6m. In this case, the setting of the detection distance by dialing decreases proportionally. Approx. 80% DETECTOR DetectionRange ■ DETECTOR (YS-F-R023A) Vent filter Do not touch it , because it is necessary to maintain the waterproof property. Fuse Use a mini glass tube fuse φ5mm 2A. Power Indicator Green lights up when the detector is turned on. Select RANGE switchThe maximum detection range can be set. SelectALERMswitchChange the alert sound . Antenna The radio signal receiving antenna is connected. Power connector (red) Connect the power cable (red). Speaker connector (green) Connects the speaker (green). Indicator Lamp connector (Blue) Connect the Indicator lamp (yellow) If the indicator lamp is not used, be sure to attach a protective cap to prevent dust into the unit. Fuse Power Indicator Vent filter Select alert sound Select Range Speaker connector Indicator lamp connector Power connector Antenna ALERM RANGEFUSE POWER SPEAKER POWERANTLAMP ■ STANDARD-TAG (YS-F-T008A) The operator carries it. ・ Alert function: None (The TAG itself does not alert) ・ Wearing the watch: Mounting the helmet or stori…

Text truncated - open the document above for the full version.

YOSHIKAWA KOGYO Co., Ltd. Model: YS-F-T008A FCC ID:2AWRK-YS-KT008 FRONT BACK YOSHIKAWA KOGYO Co., Ltd. Model: YS-F-T003A FCC ID:2AWRK-YS-KT008 BACK FRONT SIDE Silk letters are subject to change in final product

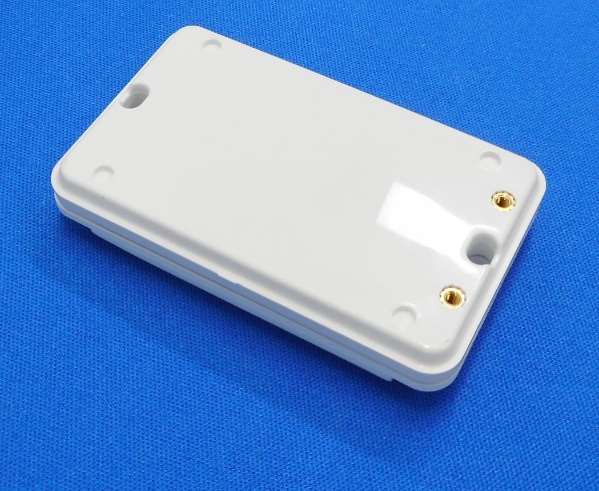

■ STANDARD-TAG (YS-F-T008A) ■ ALERT-TAG (YS-F-T003A) YOSHIKAWA KOGYO YS-F-T003A FCC ID: 2AWRK-YS-KT008 ON / OFF BatteryALERT 66.5 92 21 YOSHIKAWA KOGYO YS-F-T003A FCC ID: 2AWRK-YS-KT008 ON / OFF BatteryALERT 80mm 54.6mm 40 67 12.3 YOSHIKAWA KOGYO YS-F-T008A 000126 FCC ID:2AWRK-YS-KT008 Battery YOSHIKAWA KOGYO YS-F-T008A 000126 FCC ID:2AWRK-YS-KT008 Battery 31 32

YOSHIKAWA KOGYO Co., Ltd. Model: YS-F-T008A FCC ID:2AWRK-YS-KT008 FRONTBACK INSIDE Pattern Antenna YOSHIKAWA KOGYO Co., Ltd. Model: YS-F-T003A FCC ID:2AWRK-YS-KT008 FRONTBACK INSIDE Pattern Antenna

Test report No. : 13397625H-B-R1 Page : 1 of 16 Issued date : September 1, 2020 FCC ID : 2AWRK-YS-KT008 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Report Cover Page - 13-EM-F0429 Issue # 17.0 EMI TEST REPORT Test Report No. : 13397625H-B-R1 Applicant : YOSHIKAWA KOGYO Co.,Ltd. Type of EUT : STANDARD-TAG Model Number of EUT : YS-F-T008A FCC ID : 2AWRK-YS-KT008 Test regulation : FCC Part 15 Subpart B: 2020 Class A Test Result : Complied (Refer to SECTION 3.2) Date of test: July 2, 2020 Representative test engineer: Hiroyuki Furutaka Engineer Consumer Technology Division Approved by: Shinichi Miyazono Engineer Consumer Technology Division CERTIFICATE 5107.02 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above re gulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by the A2LA accreditation body. 6. This test report covers EMC technical requirements. It does not cover administrative issues such as Manual or non-EMC test related Requirements. (if applicable) 7. The all test items in this test report are conducted by UL Japan, Inc. Ise EMC Lab. 8. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. 9. The information provi ded from the customer for this report is identified in SECTION 1. 10. This report is a revised version of 13397625H-B. 13397625H-B is replaced with this report. Test report No. : 13397625H-B-R1 Page : 2 of 16 Issued date : September 1, 2020 FCC ID : 2AWRK-YS-KT008 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 13397625H-B Revision Test report No. Date Page revised Contents - (Ori ginal) 13397625H-B August 4, 2020 - - 1 13397625H-B-R1 September 1, 2020 P.6 Addition of the following sentence in Clause 3.1; * Also the EUT complies with FCC Part 15 Subpart C. 1 13397625H-B-R1 September 1, 2020 P.6 Update for FCC version in Clause 3.1; From FCC Part 15 final revised on May 26, 2020 and effective July 27, 2020 except 15.258 To FCC Part 15 final revised on June 26, 2020 and effective Jul y 27, 2020 1 13397625H-B-R1 September 1, 2020 P.6 Addition of “Part 15 Class A Digital Device” in Clasue 3.2. 1 13397625H-B-R1 September 1, 2020 P.9 Deletion of the following sentence from Clause 4.1; * It was confirmed by using checker that the EUT receives the signal from the transmitter (pair of EUT). 1 13397625H-B-R1 September 1, 2020 P.10 Deletion of the following sentence from Clause 5.4; For above 1 GHz, test antenna was aimed at the EUT for receiving the maximum signal and always kept within the illumination area of the 3 dB beamwidth of the antenna. 1 13397625H-B-R1 September 1, 2020 P.11 Deletion of the description on 6/24 in Section 5.5 Test report No. : 13397625H-B-R1 Page : 3 of 16 Issued date : September 1, 2020 FCC ID : 2AWRK-YS-KT008 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Reference: Abbreviations (Including words undescribed in this report) AAN Asymmetric Artificial Network ILAC International Laboratory Accreditation Conference AC Alternating Current ISED Innovation, Science and Economic Development Canada AM Amplitude Modulation ISN Impedance Stabilization Network AMN Artificial Mains Network ISO International Organization for Standardization Amp, AMP Amplifier JAB Japan Accreditation Board ANSI American National Standards Institute LAN Local Area Network Ant, ANT Antenna LCL Longitudinal Conversion Loss AP Access Point LIMS Laboratory Information Management System ASK Amplitude Shift Keying LISN Line Impedance Stabilization Network Atten., ATT Attenuator MRA Mutual Recognition Arrangement AV Average N/A Not Applicable BPSK Binary Phase-Shift Keying NIST National Institute of Standards and Technology BR Bluetooth Basic Rate NS No signal detect. BT Bluetooth NSA Normalized Site Attenuation BT LE Bluetooth Low Energy NVLAP National Voluntary Laboratory Accreditation Program BW BandWidth OBW Occupied Band Width C.F Correction Factor OFDM Orthogonal Frequency Division Multiplexing Cal Int Calibration Interval PK Peak CAV CISPR AV P LT long-term flicker severity CCK Complementary Code Keying POHC(A) Partial Odd Harmonic Current CDN Coupling Decoupling Network Pol., Pola. Polarization Ch., CH Channel PR-ASK Phase Reversal ASK CISPR Comite International Special des Perturbations Radioelectriques P ST short-term flicker severity Corr. Correction QAM Quadrature Amplitude Modulation CPE Customer premise equipment QP Quasi-Peak CW Continuous Wave QPSK Quadri-Phase Shift Keying DBPSK Differential BPSK r.m.s., RMS Root Mean Square DC Direct Current RBW Resolution Band Width DET Detector RE Radio Equipment D-factor Distance factor REV Reverse Dmax maximum absolute voltage change during an observation period RF Radio Frequency DQPSK Differential QPSK RFID Radio Frequency Identifier DSSS Direct Sequence Spread Spectrum RSS Radio Standards Specifications EDR Enhanced Data Rate Rx Receiving e.i.r.p., EIRP Equivalent Isotropically Radiated Power SINAD Ratio of (Signal + Noise + Distortion) to (Noise + Distortion) EM clamp Electromagnetic clamp S/N Signal to Noise ratio EMC ElectroMagnetic Compatibility SA, S/A Spectrum Analyzer EMI ElectroMagnetic Interference SG Signal Generator EMS ElectroMagnetic S…

Text truncated - open the document above for the full version.

Test report No. : 13397625H-B-R1 Page : 15 of 16 Issued date : September 1, 2020 FCC ID : 2AWRK-YS-KT008 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Radiated Emission Photo 1 Photo 2 Test report No. : 13397625H-B-R1 Page : 16 of 16 Issued date : September 1, 2020 FCC ID : 2AWRK-YS-KT008 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst Case Position Horizontal: X-axis / Vertical:X -axis X-axis Y-axis Z-axis End of Report
