2AWRO-8762Wireless Tablet

Quick Start Guide WHAT’S IN THE BOX - Device - Power adaptor - USB Cable CONNECTING DEVICE - To turn on your Device, press and release the power button. To put it in sleep mode, press and release the power button. - To turn off your Device, press and hold the power button until a message displays asking if you want to shut down. - Your device will be partially charged when you receive it. To charge your Device, connect one end of the USB cable into your and the other end into the power supply (included). - Connect the power supply into a nearby power outlet. CONNECTING DEVICE TO NETWORK - Tap the Quick Settings icon located on the Status bar to display settings for the most commonly performed tasks - Select your network form the list of displayed SSID - If required, enter the password REGISTERING YOUR DEVICE - To use many of the Device features, you must register it to your account. If you have not yet registered, please do so now. Prior to registering, connect to a Wi-Fi network by tapping the Quick Settings icon at the top of the Device, then Wi-Fi. Select the network you want to use. Once you are connected, tap the Quick Settings icon and select the My Account option to register. IMPORTANT PRODUCT INFORMATION For safety, compliance, recycling, and other important information regarding your Device, please refer to the Legal & Compliance section in the Settings menu of your Device.

T76N2B User Manual Product Information Safety and Compliance Information Using Your Device Around Other Electronic Devices The Device, uses, and can radiate radio frequency (RF) energy and, if not used in accordance with its instructions, may cause interference to radio communications and electronic equipment. External RF signals may affect improperly installed or inadequately shielded electronic operating systems, entertainment systems, and personal medical devices. While most modern electronic equipment is shielded from external RF signals, if in doubt, check with the manufacturer. For personal medical devices (such as pacemakers and hearing aids), consult with your physician or the manufacturer to determine if they are adequately shielded from external RF signals. There are some places where RF signals could constitute a hazard, such as health care facilities, and construction sites. If you are not sure, look around for signs indicating that two-way radios or mobile phones should be turned off. FCC Compliance Information Radio Frequency Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Changes or modifications that are not expressly approved by the party responsible for compliance could make the device no longer comply with the FCC Rules. Information on your device is on file with the FCC and can be found by inputting your device’s FCC ID, which can be found on the back of Device, into the FCC ID Search form available at transition.fcc.gov/oet/ea/fccid. IC Compliance Information Radio Frequency Information This device complies with Industry Canada’s license-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement." The device could automatically discontinue transmission in case of absence of information to transmit, or operational failure. Note that this is not intended to prohibit transmission of control or signaling information or the use of repetitive codes where required by the technology. This device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems. Les dispositifs fonctionnant dans la bande de 5 150 à 5 250 MHz sont réservés uniquement pour une utilisation à l'intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux. Information Regarding Exposure to Radio Frequency Energy This equipment complies with IC RSS-102 RF exposure limits set forth for an uncontrolled environment. Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. CAN ICES-3(B)/NMB-3(B) Recycling Product Properly In some areas, the disposal of certain electronic devices is regulated. Make sure you dispose of or recycle the Products in accordance with your local laws and regulations. For information about recycling the Products, go to www.amazon.com/devicesupport. Product Specifications Model Number: T76N2B, T76N2P Electrical Rating: 5VDC, 1.8A Operating temperature: 0°C to 35°C Connectivity: T76N2B --Dual Band Wi-Fi (2.4/5 GHz); 802.11 a/b/g/n/ac; BT BDR/EDR, BLE T76N2P--Dual Band Wi-Fi (2.4/5 GHz); 802.11 a/b/g/n/ac; BT BDR/EDR, BLE , Wireless charging RX Operation Frequency and Maximum Radiated Output Power: WiFi 2.4GHz (2412MHz-2472MHz): 20 dBm WiFi 5.2GHz (5180MHz-5240MHz): 23 dBm WiFi 5.3GHz (5260MHz-5320MHz): 20 dBm WiFi 5.6GHz (5500MHz-5700MHz): 20 dBm WiFi 5.8GHz (5745MHz-5825MHz): 14 dBm Bluetooth (2402-2480MHz): 15.5 dBm Bluetooth LE (2402-2480MHz): 9.9 dBm

CC USFCCReq 00530934 2020 TR Abyssal Plain LLC CASTLE HILLS 1100 NW LOOP 410, SUITE 700, SAN ANTONIO, TEXAS, 78213 November 23, 2020 FCC Authorization and Evaluation Division 7435 Oakland Mills Rd. Columbia, MD 21046-1609 RE: Confidential Treatment for FCC ID 2AWRO-8762 To whom it may concern: On behalf of Abyssal Plain LLC and its affiliates, I write to request the confidential treatment of the item described below, each of which are attached as exhibits to the equipment authorization application for FCC ID 2AWRO-8762. This request is made pursuant to 47 C.F.R. §0.457 and 47 C.F.R. §0.459. Short-Term Confidentiality We request 180 days of confidential treatment (from the date of grant of the equipment authorization for FCC ID 2AWRO-8762, for the following confidential materials contained in our application: • User Manual • Test setup photos • Internal photos • External photos These materials contain proprietary information about our device that is not publicly available, and we only share this information with third parties who are committed to maintaining the confidentiality of such information. Disclosure of this information prior to our marketing of our device would be detrimental to our business and impair our ability to successfully launch the device. Long-Term Confidentiality We request indefinite confidential treatment for the following confidential materials contained in our application: • Antenna Specifications • Schematics CC USFCCReq 00530934 2020 TR • UNII Device Software Security Description • Block diagram • Operation description These materials contain sensitive technical and design information about our device that we would only share on a need-to-know basis, subject to confidentiality agreements, even after we begin marketing and selling the device. If this information is disclosed, our competitors would gain an unfair commercial advantage over us by learning about our product design and development processes. This in turn would significantly harm our ability to compete in a highly competitive market space. Please let me know if you have any questions or concerns. Thank you in advance for your time and support of our request. Yours Truly, Brian T. Harrison Abyssal Plain LLC CASTLE HILLS 1100 NW LOOP 410, SUITE 700, SAN ANTONIO, TEXAS, 78213 [email protected] 302-691-6425

CC FCC Auth 00558712 2020 TR Date: December 14, 2020 To the Certification Body, Abyssal Plain LLC hereby authorizes Sporton International Inc., located at No. 52, Hwa Ya 1st Rd ., Hwa Ya Technology Park, Kwei-shan District, Taoyuan City, Taiwan, R.o.c., to provide and prepare all documentation relating to our product certification, including the signing of application forms for Model Name T76N2B (“Product”), FCC ID 2AWRO-8762 directly to the Certification Body on our behalf. Sporton International Inc. is also authorized under this letter to respond on our behalf directly to the Certification Body’s questions about the Product and reports as necessary to assist the Certification Body in the FCC certification. We further certify that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 862. This authorization is valid until further written notice from Abyssal Plain LLC. Sincerely, Abyssal Plain LLC By: Brian T. Harrison Title: President Address: CASTLE HILLS 1100 NW LOOP 410, SUITE 700, SAN ANTONIO, TEXAS, 78213 Telephone: 302-691-6425 Email: [email protected]

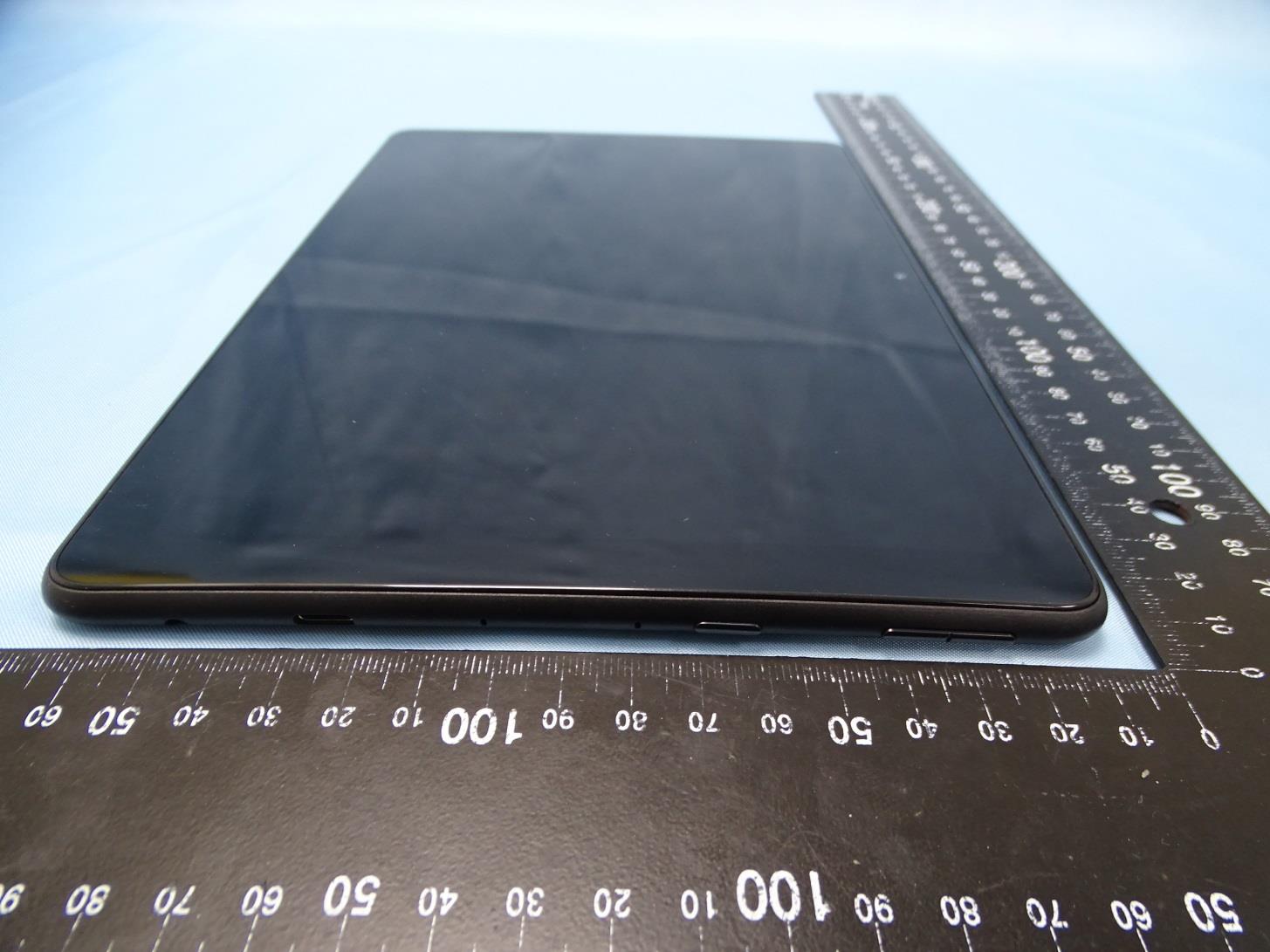

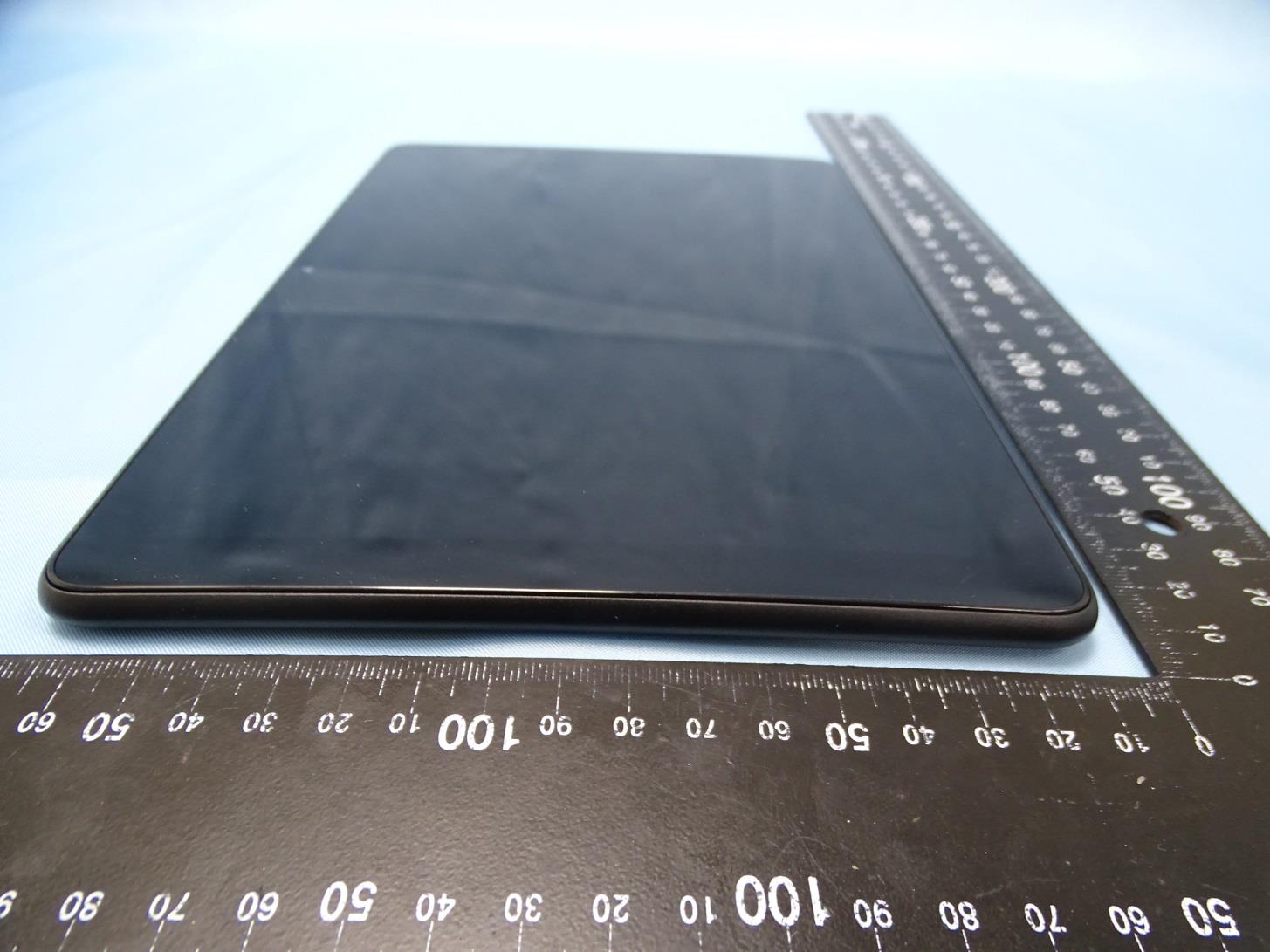

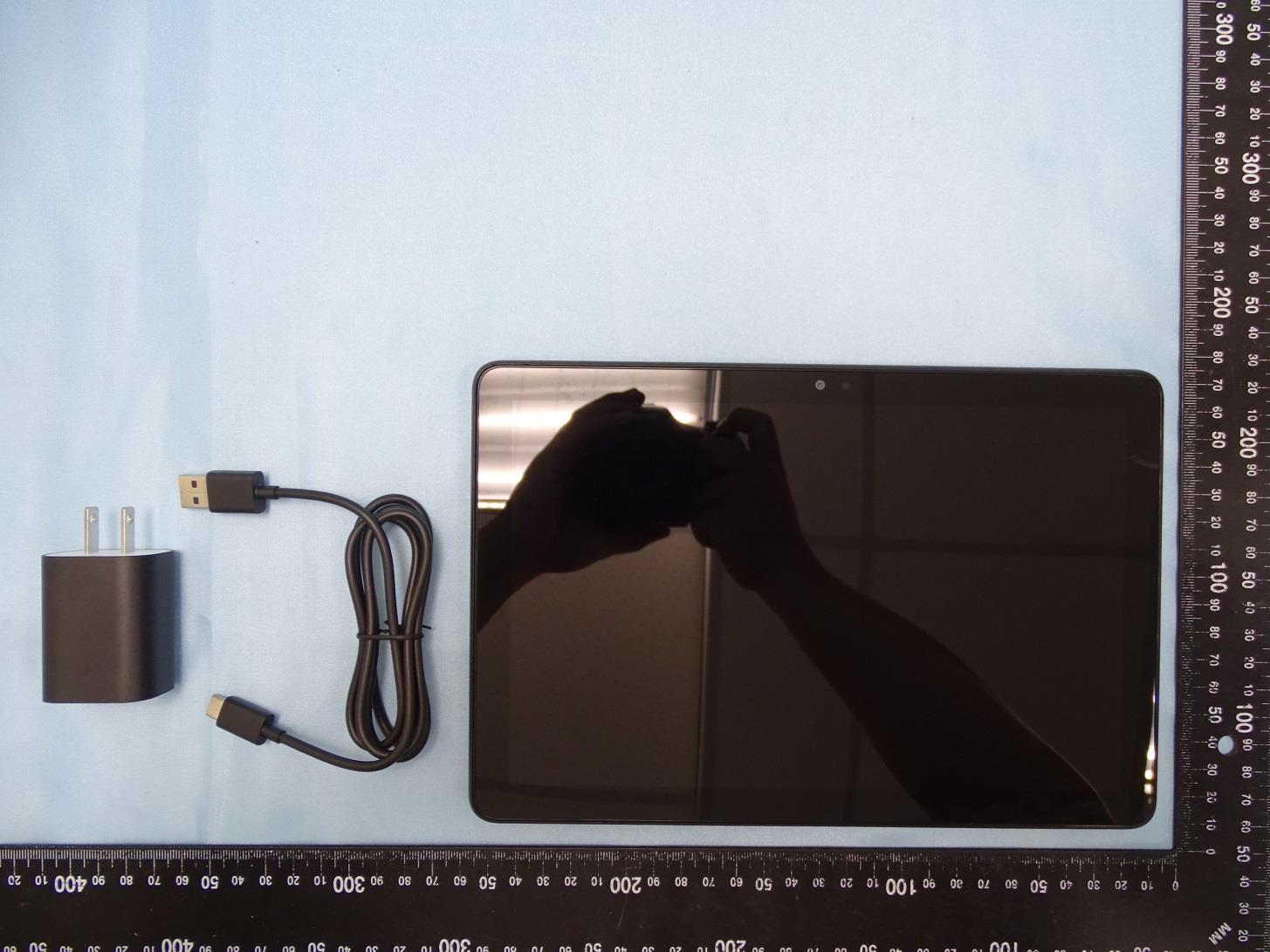

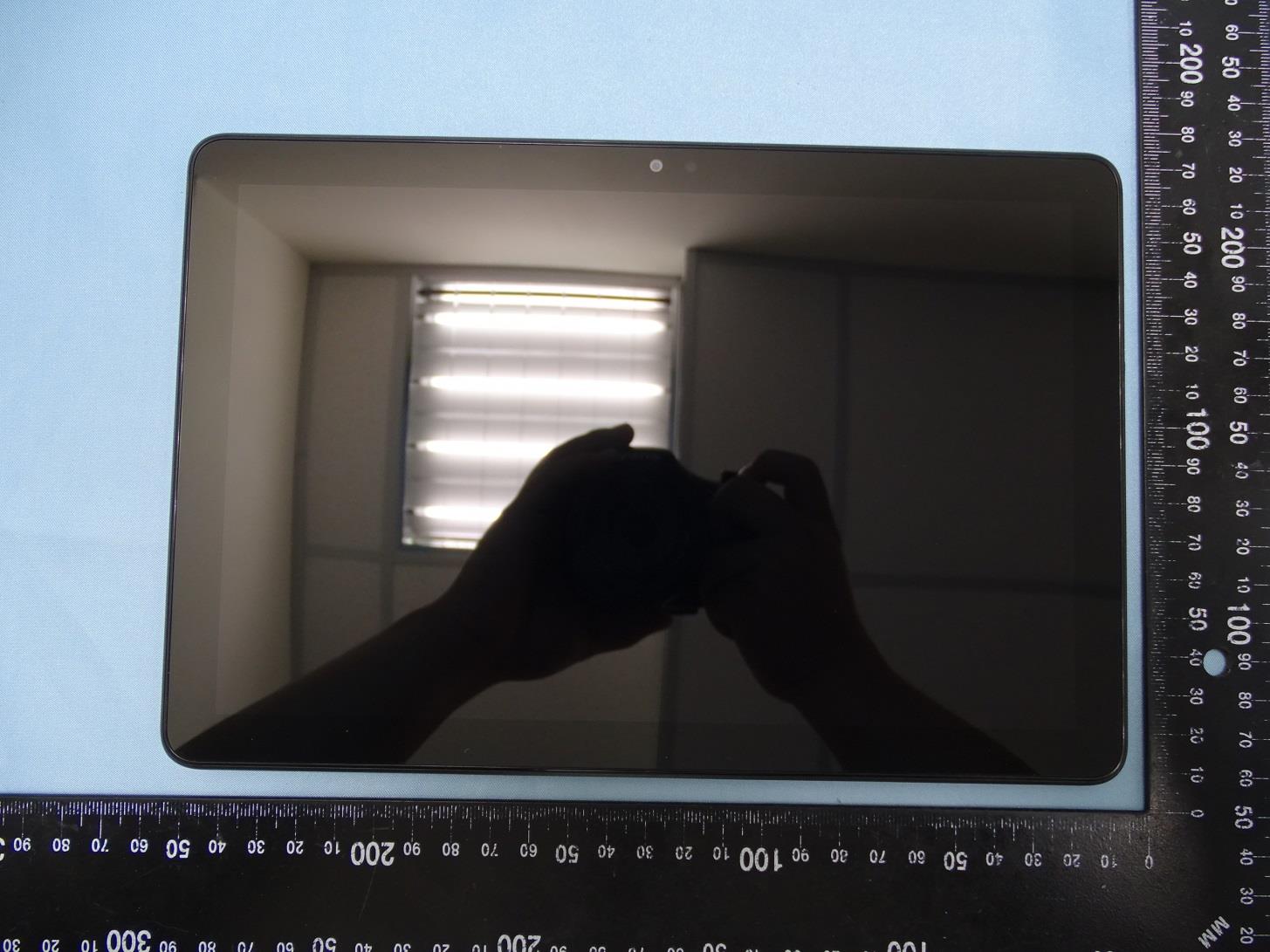

PHOTOGRAPHS OF EUT Report No.: EP072932-01 Model Name: T76N2B TEL : 886-3-327-3456 Page Number : 1 of 7 FAX : 886-3-328-4978 Issued Date : Dec. 22, 2020 Report Version : 01 720510 External Photograph of EUT PHOTOGRAPHS OF EUT Report No.: EP072932-01 Model Name: T76N2B TEL : 886-3-327-3456 Page Number : 2 of 7 FAX : 886-3-328-4978 Issued Date : Dec. 22, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072932-01 Model Name: T76N2B TEL : 886-3-327-3456 Page Number : 3 of 7 FAX : 886-3-328-4978 Issued Date : Dec. 22, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072932-01 Model Name: T76N2B TEL : 886-3-327-3456 Page Number : 4 of 7 FAX : 886-3-328-4978 Issued Date : Dec. 22, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072932-01 Model Name: T76N2B TEL : 886-3-327-3456 Page Number : 5 of 7 FAX : 886-3-328-4978 Issued Date : Dec. 22, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072932-01 Model Name: T76N2B TEL : 886-3-327-3456 Page Number : 6 of 7 FAX : 886-3-328-4978 Issued Date : Dec. 22, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072932-01 Model Name: T76N2B TEL : 886-3-327-3456 Page Number : 7 of 7 FAX : 886-3-328-4978 Issued Date : Dec. 22, 2020 Report Version : 01 ─────THE END────

Model No. T76N2B FCC ID: 2AWRO-8762 IC: 26254-8762 Label located on back of device

PHOTOGRAPHS OF EUT Report No.: EP072932-01 Model Name: T76N2B TEL : 886-3-327-3456 Page Number : 1 of 1 FAX : 886-3-328-4978 Issued Date : Dec. 22, 2020 Report Version : 01 ─────THE END──── 720510 Antenna Photograph of EUT

PHOTOGRAPHS OF EUT Report No.: EP072932-01 Model Name: T76N2B TEL : 886-3-327-3456 Page Number : 1 of 9 FAX : 886-3-328-4978 Issued Date : Dec. 22, 2020 Report Version : 01 720510 Internal Photograph of EUT PHOTOGRAPHS OF EUT Report No.: EP072932-01 Model Name: T76N2B TEL : 886-3-327-3456 Page Number : 2 of 9 FAX : 886-3-328-4978 Issued Date : Dec. 22, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072932-01 Model Name: T76N2B TEL : 886-3-327-3456 Page Number : 3 of 9 FAX : 886-3-328-4978 Issued Date : Dec. 22, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072932-01 Model Name: T76N2B TEL : 886-3-327-3456 Page Number : 4 of 9 FAX : 886-3-328-4978 Issued Date : Dec. 22, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072932-01 Model Name: T76N2B TEL : 886-3-327-3456 Page Number : 5 of 9 FAX : 886-3-328-4978 Issued Date : Dec. 22, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072932-01 Model Name: T76N2B TEL : 886-3-327-3456 Page Number : 6 of 9 FAX : 886-3-328-4978 Issued Date : Dec. 22, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072932-01 Model Name: T76N2B TEL : 886-3-327-3456 Page Number : 7 of 9 FAX : 886-3-328-4978 Issued Date : Dec. 22, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072932-01 Model Name: T76N2B TEL : 886-3-327-3456 Page Number : 8 of 9 FAX : 886-3-328-4978 Issued Date : Dec. 22, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072932-01 Model Name: T76N2B TEL : 886-3-327-3456 Page Number : 9 of 9 FAX : 886-3-328-4978 Issued Date : Dec. 22, 2020 Report Version : 01 ─────THE END────

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/11/2 System Check_Head_2450MHz DUT: D2450V2-736 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_201102 Medium parameters used f = 2450 MHz; σ = 1.794 S/m; ε r = 39.046; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：22.6 °C DASY5 Configuration - Probe: EX3DV4 - SN7346; ConvF(7.66, 7.66, 7.66) @ 2450 MHz; Calibrated: 2020/5/20 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn853; Calibrated: 2020/7/23 - Phantom: ELI v4.0_Mid; Type: QDOVA001AA; Serial: TP:1131 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (71x71x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 20.6 W/kg Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 111.4 V/m; Power Drift = -0.17 dB Peak SAR (extrapolated) = 24.6 W/kg SAR(1 g) = 12.5 W/kg; SAR(10 g) = 5.88 W/kg Maximum value of SAR (measured) = 20.2 W/kg 0 dB = 20.2 W/kg = 13.05 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/11/3 System Check_Head_2450MHz DUT: D2450V2-736 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_201103 Medium parameters used : f = 2450 MHz; σ = 1.819 S/m; ε r = 39.836; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3753; ConvF(7.12, 7.12, 7.12) @ 2450 MHz; Calibrated: 2020/6/25 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2020/6/4 - Phantom: ELI V4.0; Type: QD OVA 001 Bx; Serial: 1041 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=50mW/Area Scan (71x71x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 4.33 W/kg Pin=50mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 50.21 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 5.27 W/kg SAR(1 g) = 2.71 W/kg; SAR(10 g) = 1.32 W/kg Maximum value of SAR (measured) = 4.34 W/kg 0 dB = 4.33 W/kg = 6.36 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/10/30 System Check_Head_5250MHz DUT: D5GHzV2-1006 Communication System: CW; Frequency: 5250 MHz;Duty Cycle: 1:1 Medium: HSL_5G_201030 Medium parameters used : f = 5250 MHz; σ = 4.781 S/m; ε r = 36.389; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：22.6 °C DASY5 Configuration - Probe: EX3DV4 - SN3642; ConvF(4.43, 4.43, 4.43) @ 5250 MHz; Calibrated: 2020/4/29 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1311; Calibrated: 2020/8/25 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: 1029 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Pin=100mW/Area Scan (71x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 24.4 W/kg Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 81.92 V/m; Power Drift = -0.17 dB Peak SAR (extrapolated) = 35.7 W/kg SAR(1 g) = 8.7 W/kg; SAR(10 g) = 2.46 W/kg Maximum value of SAR (measured) = 22.1 W/kg 0 dB = 22.1 W/kg = 13.44 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/11/2 System Check_Head_5250MHz DUT: D5GHzV2-1006 Communication System: CW ; Frequency: 5250 MHz;Duty Cycle: 1:1 Medium: HSL_5G_201102 Medium parameters used : f = 5250 MHz; σ = 4.752 S/m; ε r = 36.289; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：22.6 °C DASY5 Configuration - Probe: EX3DV4 - SN7590; ConvF(5.57, 5.57, 5.57) @ 5250 MHz; Calibrated: 2020/4/14 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1311; Calibrated: 2020/8/25 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: 1029 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Pin=50mW/Area Scan (71x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 9.32 W/kg Pin=50mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 45.93 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 15.3 W/kg SAR(1 g) = 3.77 W/kg; SAR(10 g) = 1.05 W/kg Maximum value of SAR (measured) = 9.25 W/kg 0 dB = 9.25 W/kg = 9.66 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/10/30 System Check_Head_5600MHz DUT: D5GHzV2-1006 Communication System: CW; Frequency: 5600 MHz;Duty Cycle: 1:1 Medium: HSL_5G_201030 Medium parameters used: f = 5600 MHz; σ = 5.149 S/m; ε r = 35.841; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：22.6 °C DASY5 Configuration - Probe: EX3DV4 - SN3642; ConvF(4.19, 4.19, 4.19) @ 5600 MHz; Calibrated: 2020/4/29 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1311; Calibrated: 2020/8/25 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: 1029 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Pin=100mW/Area Scan (71x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 21.4 W/kg Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 71.44 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 35.6 W/kg SAR(1 g) = 8.54 W/kg; SAR(10 g) = 2.35 W/kg Maximum value of SAR (measured) = 21.4 W/kg 0 dB = 21.4 W/kg = 13.30 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/10/30 System Check_Head_5750MHz DUT: D5GHzV2-1006 Communication System: CW ; Frequency: 5750 MHz;Duty Cycle: 1:1 Medium: HSL_5G_201030 Medium parameters used: f = 5750 MHz; σ = 5.315 S/m; ε r = 35.624; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：22.6 °C DASY5 Configuration - Probe: EX3DV4 - SN3642; ConvF(4.17, 4.17, 4.17) @ 5750 MHz; Calibrated: 2020/4/29 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DA…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/11/2 #01_WLAN2.4GHz_802.11b 1Mbps_Bottom Face_0mm_Ch6;Ant 1 Communication System: 802.11b; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: HSL_2450_201102 Medium parameters used : f = 2437 MHz; σ = 1.781 S/m; ε r = 39.088; ρ = 3 1000 kg/m Ambient Temperature：23.6 °C; Liquid Temperature：22.6 °C DASY5 Configuration - Probe: EX3DV4 - SN7346; ConvF(7.66, 7.66, 7.66) @ 2437 MHz; Calibrated: 2020/5/20 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn853; Calibrated: 2020/7/23 - Phantom: ELI v4.0_Mid; Type: QDOVA001AA; Serial: TP:1131 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Area Scan (71x71x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 1.57 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 26.61 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 3.18 W/kg SAR(1 g) = 1.09 W/kg; SAR(10 g) = 0.457 W/kg Maximum value of SAR (measured) = 1.75 W/kg 0 dB = 1.75 W/kg = 2.43 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/10/30 #02_WLAN5GHz_802.11a 6Mbps_Bottom Face_0mm_Ch56;Ant 1 Communication System: 802.11a; Frequency: 5280 MHz;Duty Cycle: 1:1 Medium: HSL_5G_201030 Medium parameters used: f = 5280 MHz; σ = 4.81 S/m; ε r = 36.321; ρ = 1000 3 kg/m Ambient Temperature：23.6 °C; Liquid Temperature：22.6 °C DASY5 Configuration - Probe: EX3DV4 - SN3642; ConvF(4.43, 4.43, 4.43) @ 5280 MHz; Calibrated: 2020/4/29 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1311; Calibrated: 2020/8/25 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: 1029 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Area Scan (61x81x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 2.02 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 14.77 V/m; Power Drift = 0.15 dB Peak SAR (extrapolated) = 4.83 W/kg SAR(1 g) = 0.945 W/kg; SAR(10 g) = 0.252 W/kg Maximum value of SAR (measured) = 2.54 W/kg 0 dB = 2.02 W/kg = 3.05 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/10/30 #03_WLAN5GHz_802.11a 6Mbps_Bottom Face_0mm_Ch116;Ant 1 Communication System: 802.11a; Frequency: 5580 MHz;Duty Cycle: 1:1 Medium: HSL_5G_201030 Medium parameters used: f = 5580 MHz; σ = 5.121 S/m; ε r = 35.893; ρ = 1000 3 kg/m Ambient Temperature：23.6 °C; Liquid Temperature：22.6 °C DASY5 Configuration - Probe: EX3DV4 - SN3642; ConvF(4.19, 4.19, 4.19) @ 5580 MHz; Calibrated: 2020/4/29 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1311; Calibrated: 2020/8/25 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: 1029 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Area Scan (61x81x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 2.50 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 17.54 V/m; Power Drift = 0.13 dB Peak SAR (extrapolated) = 5.69 W/kg SAR(1 g) = 1.12 W/kg; SAR(10 g) = 0.302 W/kg Maximum value of SAR (measured) = 3.15 W/kg 0 dB = 2.50 W/kg = 3.98 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/10/30 #04_WLAN5GHz_802.11a 6Mbps_Bottom Face_0mm_Ch149;Ant 1 Communication System: 802.11a; Frequency: 5745 MHz;Duty Cycle: 1:1 Medium: HSL_5G_201030 Medium parameters used : f = 5745 MHz; σ = 5.308 S/m; ε r = 35.634; ρ = 1000 3 kg/m Ambient Temperature：23.6 °C; Liquid Temperature：22.6 °C DASY5 Configuration - Probe: EX3DV4 - SN3642; ConvF(4.17, 4.17, 4.17) @ 5745 MHz; Calibrated: 2020/4/29 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1311; Calibrated: 2020/8/25 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: 1029 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Area Scan (71x91x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 2.66 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 24.30 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 6.33 W/kg SAR(1 g) = 1.16 W/kg; SAR(10 g) = 0.314 W/kg Maximum value of SAR (measured) = 3.19 W/kg 0 dB = 3.19 W/kg = 5.04 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/11/3 #05_Bluetooth_1Mbps_Bottom Face_0mm_Ch0;Ant 1 Communication System: Bluetooth; Frequency: 2402 MHz;Duty Cycle: 1:1.302 Medium: HSL_2450_201103 Medium parameters used : f = 2402 MHz; σ = 1.755 S/m; ε r = 40.118; ρ = 3 1000 kg/m Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3753; ConvF(7.12, 7.12, 7.12) @ 2402 MHz; Calibrated: 2020/6/25 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2020/6/4 - Phantom: ELI V4.0; Type: QD OVA 001 Bx; Serial: 1041 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (71x71x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.297 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.945 V/m; Power Drift = -0.16 dB Peak SAR (extrapolated) = 0.370 W/kg SAR(1 g) = 0.141 W/kg; SAR(10 g) = 0.061 W/kg Maximum value of SAR (measured) = 0.262 W/kg 0 dB = 0.297 W/kg = -5.27 dBW/kg

~' In ColtDborstion with -TTL s P e a g ~ CALIBRATION LABORATORY Add: No.SI Xueyuan Road, Ha idian District, Beijing, 100191, China Tel: +86-10-62304633-2079 Fax: +86-10-62304633-2504 E -mail: [email protected] http://www.chinattl.cn Client Sporton Certificate No: Z18-60326 CALIBRATION CERTIFICATE Object D2450V2 - SN: 736 Calibration Procedure(s) FF-211-003-01 Calibration Procedures for dipole validation kits Calibration date: August31, 2018 This calibration Certificate documents the traceability to national standards, which realize the physical units of measurements(SI). The measurements and the uncertainties with confidence probability are given on the following pages and are part of the certificate. All calibrations have been conducted in the closed laboratory facility: environment temperature (22±3)"C and humidity<70%. Calibration Equipment used (M&TE critical for calibration) Primary Standards Power Meter NRVD Power sensor NRV-25 Reference Probe EX3DV4 DAE4 Secondary Standards Signal Generator E4438C NetworkAnalyzer E5071 C Calibrated by: Reviewed by: Approved by: ID# 102083 100542 SN 7464 SN 1524 ID# MY49071430 MY46110673 Name Zhao Jing Lin Hao Qi Dianyuan Cal Date(Calibrated by, Certificate No .) Scheduled Calibration 01-Nov-17 (CTTL, No.J17X08756) Oct-18 01-Nov-17 (CTTL, No.J17X08756) Oct-18 12-Sep-17(SPEAG,No.EX3-7464_Sep17) Sep-18 13-Sep-17(SPEAG,No.DAE4-1524_Sep17) Sep-18 Cal Date(Calibrated by, Certificate No.) Scheduled Calibration 23-Jan-18 (CTTL, No.J18X00560) Jan-19 24-Jan-18 (CTTL, No.J18X00561) Jan-19 Function $ ignature SAR Test Engineer ' :·, -~ {!· <.~ SAR Test Engineer .:_--~~:lb SAR Project Leader ~ Issued: September 3, 2018 This calibration certificate shall not be reproduced except in full without written approval of the laboratory. Certificate No: Z I 8-60326 Page I ofs •• ....._, In Collaboration with -TTL s p e a g ~ CALIBRATION LABORATORY Add: No.5 I Xueyuan Road, Haidian District, Beijing, I 00191, China Tel: +86-10-62304633-2079 Fax: +86-10-62304633-2504 E-mai l: [email protected] http://www.chinattl.cn Glossary: TSL ConvF N/A tissue simulating liquid sensitivity in TSL / NORMx,y,z not applicable or not meas ured Calibration is Performed According to the Following Standards: a) IEEE Std 1528-2013, "IEEE Recommended Practice for Determining the Peak Spatial-Averaged Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques ", June 2013 b) IEC 62209-1, "Measurement procedure for assessment of specific absorption rate of human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices-Part 1: Device used next to the ear (Frequency range of 300MHz to 6GHz)", July 2016 c) IEC 62209-2, " Procedure to measure the Specific Absorption Rate (SAR) For wireless communication devices used in close proximity to the human body (frequency range of 30MHz to 6GHz)", March 2010 d) KDB865664, SAR Measurement Requirements for 100 MHz to 6 GHz Additional Documentation: e) DASY4/5 Syst em Handbook Methods Applied and Interpretation of Parameters: • Measurement Conditions: Further details are available from the Validation Report at the end of the certificate. All figures stated in the certificate are valid at the frequency indicated. • Antenna Parameters with TSL: The dipole is mounted with the spacer to position its feed point exactly below the center marking of the flat phantom section, with the arms oriented parallel to the body axis. • Feed Point Impedance and Return Loss: These parameters are measured with the dipole positioned under the liquid filled phantom. The impedance stated is transformed from the measurement at the SMA connector to the feed point. The Return Loss ensures low reflected power. No uncertainty required. • Electrical Delay: One-way delay between the SMA connector and the antenna feed point. No uncertainty required. • SAR measured: SAR measured at the stated antenna input power. • SAR normalized: SAR as measured, normalized to an input power of 1 Wat the antenna connector. • SAR for nominal TSL parameters: The measured TSL parameters are used to calculate the nominal SAR result. T he reported uncertainty of measurement is stated as the standard uncertainty of Measurement multiplied by the coverage factor k=2, which for a normal distributi on Corresponds to a coverage probability of approximately 95%. Certificate No: 2 18-60326 Page 2 of8 In Coll11boration with s p e a g CALIBRATION LABORATORY Add: No.SI Xueyuan Road, Haidian District, Beijing, 100191, China Tel: +86-10-62304633-2079 Fax: +86-10-62304633-2504 E-mail: cttl @chinattl.com http://www.chinattl.cn Measurement Conditions DASY fi f svstem con 1Qurabon, as ar as not Q1ven on paQe 1. DASY Version DASY52 Extrapolation Advanced Extrapolation Phantom Triple Flat Phantom 5.1 C Distance Dipole Center -TSL 10mm Zoom Scan Resolution dx, dy, dz= 5 mm Frequency 2450 MHz ± 1 MHz Head TSL para…

Text truncated - open the document above for the full version.
