2AWRS-K959AWireless Keyboard

Wireless Keyboard K959A Introduction Thank you for selecting this product! Your 2.4 Ghz Wireless Optical Mouse&Keyboard sets uses a newly developed radio frequency 2.4GHz wireless technology that replaces the traditional wired mouse. Product features 1. Radio frequency: 2.4GHz. 2. The mouse will stop working once the receiver is pulled out of the USB port or when the computer is turned off. 3. The mini USB receiver can be stored in the body of the mouse. 4. Using the most recent technology for optical sensors, the mouse works on most surfaces. 5. Mouse resolution: 800-1200-1600DPI. 6. Mouse:2*AAA batteries, 3V/12mA. Keyboard:2*AAA batteries, 3V/5mA. 7. The working distance: 10 meters. 8. Compatible with Windows 7/8/10 and MAC OS. Installing the batteries (Mouse&Keyboard) Provide 2*AAA batteries 1. Open the battery cover; 2. Place the batteries taking into account the right polarity; Close the battery cover. Collecting the receiver 1. Detach the receiver from the battery jar of the mouse; 2. Plug the receiver into the USB port of the computer; 3. The mouse&Keyboard are ready for use. Caution Do not attempt to modify this item in any way. Do not let children play with this item. FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Dongguan yooey technology co., ltd. No.3 longyuan street, xiagan second industrial park, Chang'an, dongguan, China Statement Product: Wireless Keyboard Model: K959A Additional Model: MA-119-A, WFH-BLK-STK-12K, K959, K919, K919A, K929, K929A, K939, K939A, K949, K949A, K969, K969A Trademark : yooey We hereby state that All models above are identical in interior structure, electrical circuits and components, and just model names are different for the marketing requirement. Your assistance on this matter is highly appreciated. Yours sincerely, Signature： Date: 2021/05/20 Name: bin liu Company Name: Dongguan yooey technology co., ltd. Address: No.3 longyuan street, xiagan second industrial park, Chang'an, dongguan, China Tel / Fax: +86-0769-81886552/+86-0769-81886552 E-Mail: [email protected]

Dongguan yooey technology co., ltd. 2021-05-20 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act asAgent On our behalf, I appointShenzhen Tongce Testing Lab. / TCT Testing Industrial Park, Fuqiao 5th Industrial Zone, Fuhai Street, Bao'an District,Shenzhen, Guangdong, 518103, Peo ple's Republic of China (Name of Agent company name andaddress) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. Forinstanceswhereourauthorizedagentsignstheapplicationforcertificationonourbehalf,Iack nowledgethatallresponsibilityforcomplyingwiththetermsandconditionsforcertification,stillres ideswith Dongguan yooey technology co., ltd. / No.3 longyuan street, xiagan second industrial park, Chang'an, dongguan, China (Applicant Nameandaddress) <Signature> Name: bin liu Title: Manager Applicant Company: Dongguan yooey technology co., ltd.

Dongguan yooey technology co., ltd. 2021-05-20 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AWRS-K959A Product Name: Wireless Keyboard Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name: bin liu Title: Manager Company: Dongguan yooey technology co., ltd.

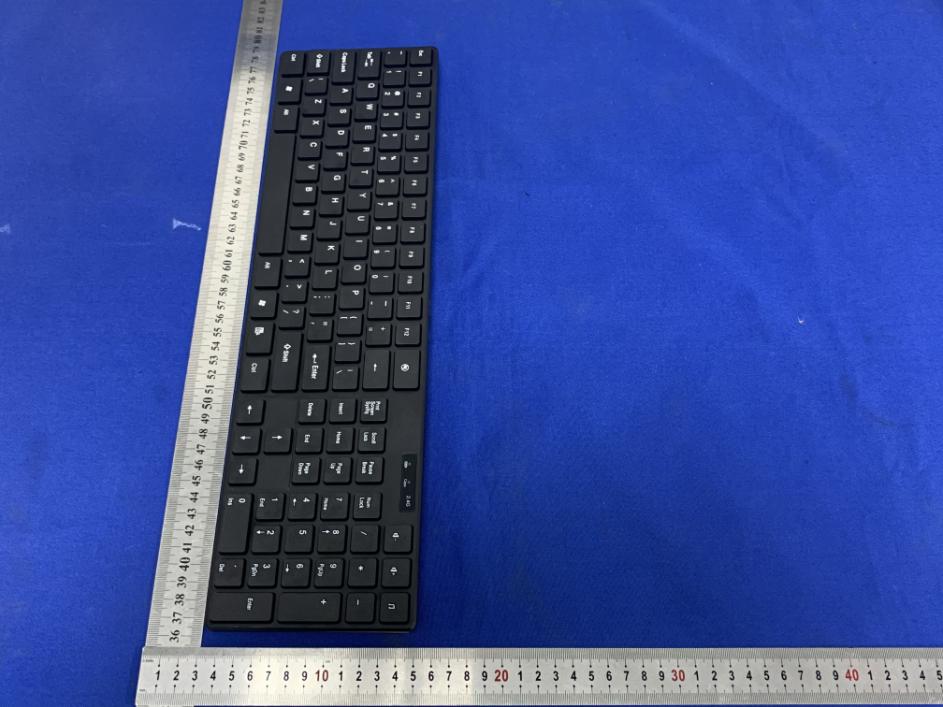

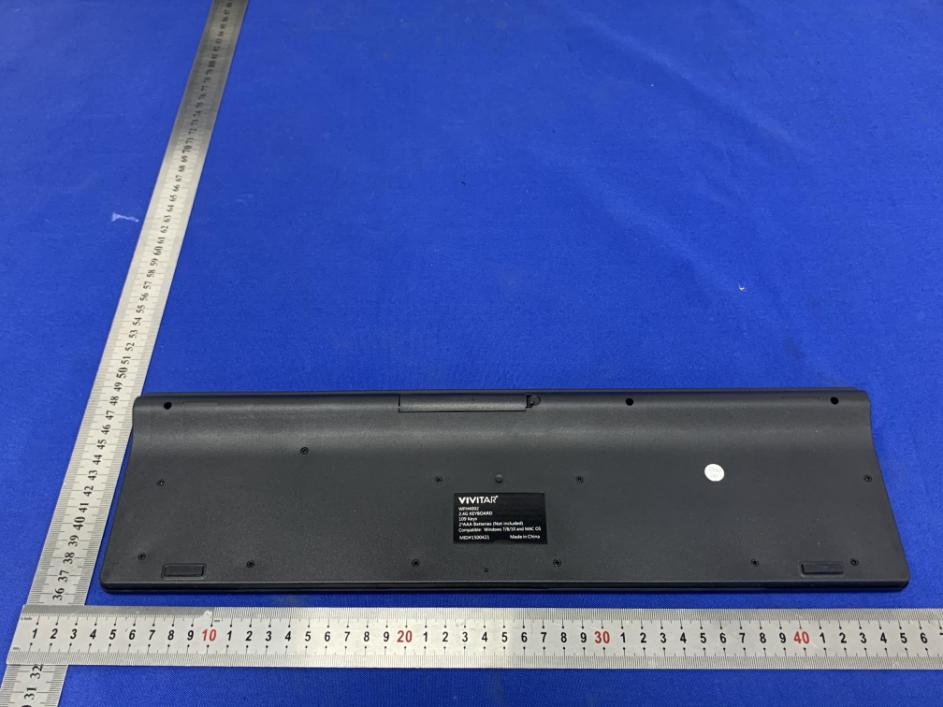

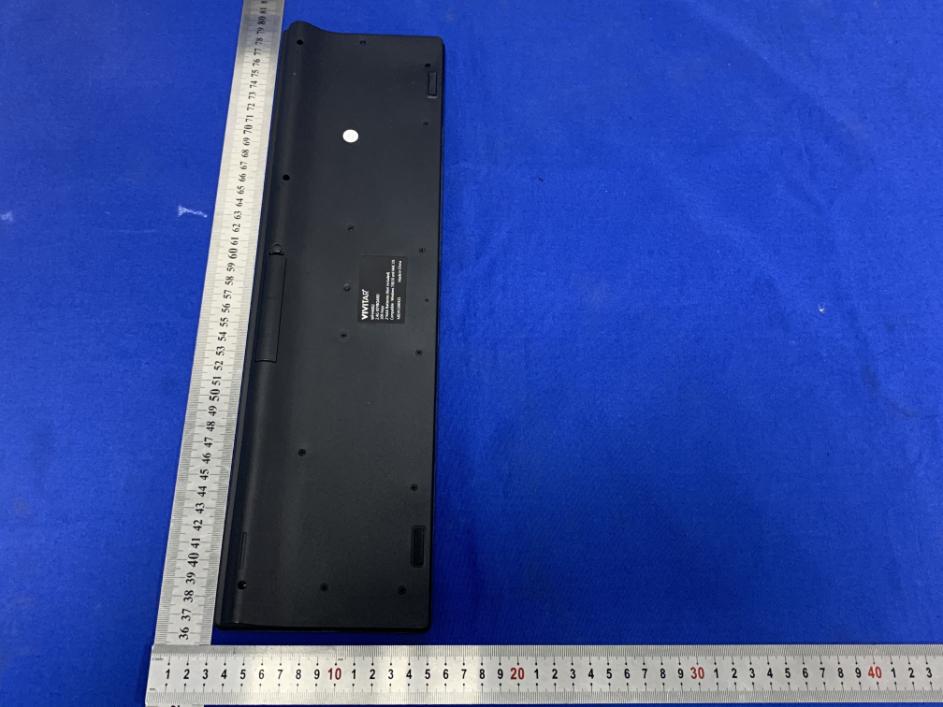

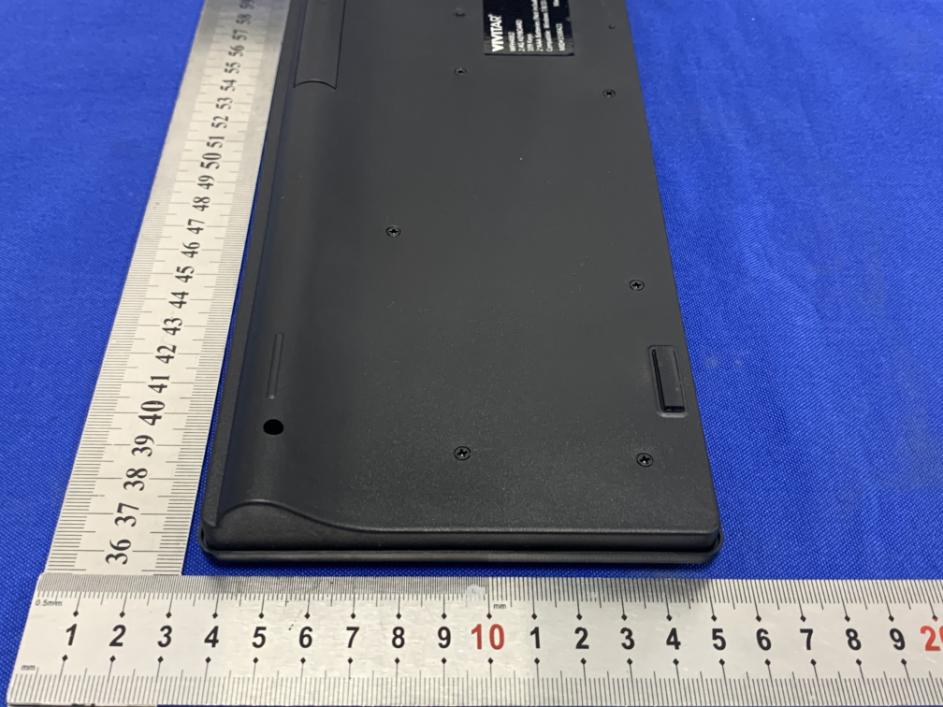

Page 1 of 3 Appendix B: Photographs of EUT Product: Wireless Keyboard Model: K959A External Photos Page 2 of 3 Page 3 of 3

Label Artwork and Location Model: K959A Label: Size: L*W=42*30mm Wireless Keyboard Model: K959A FCC ID: 2AWRS-K959A This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Location

Page 1 of 2 Appendix B: Photographs of EUT Product: Wireless Keyboard Model: K959A Internal Photos ANT Page 2 of 2

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m Sopt = (EXd) 2 /30 x gt Ant gain= -2 dBi ; so Ant numeric gain= 0.631 Field strength = 82.25 dBμV/m @3m So Pt={ [10 (82.25/20) /10 6 x3] 2 /30x0.631 }x1000 mW =0.08mW So (0.08mW/5mm)x √2.404 GHz = 0.0248 < 3 Then SAR evaluation is not required

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID: 2AWRS-K959A Product: Wireless Keyboard Model No.: K959A Additional Model No.: MA-119-A, WFH-BLK-STK-12K, K959, K919, K919A, K929, K929A, K939, K939A, K949, K949A, K969, K969A Trade Mark: yooey Report No.: TCT210511E003 Issued Date: May 17, 2021 Issued for: Dongguan yooey technology co., ltd. No.3 longyuan street, xiagan second industrial park, Chang'an, dongguan, China Issued By: Shenzhen Tongce Testing Lab TCT Testing Industrial Park, Fuqiao 5th Industrial Zone, Fuhai Street, Bao'an District, Shenzhen, Guangdong, 518103, People's Republic of China TEL: +86-755-27673339 FAX: +86-755-27673332 Note: This report shall not be reproduced except in full, without the written approval of Shenzhen Tongce Testing Lab. This document may be altered or revised by Shenzhen Tongce Testing Lab personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT210511E003 Page 2 of 31 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. Test Certification ..................................................................................... 3 2. Test Result Summary .............................................................................. 4 3. EUT Description ....................................................................................... 5 4. General Information ................................................................................. 7 4.1. Test Environment and Mode ................................................................................. 7 4.2. Description of Support Units ................................................................................ 7 5. Facilities and Accreditations .................................................................. 8 5.1. Facilities ................................................................................................................. 8 5.2. Location ................................................................................................................. 8 5.3. Measurement Uncertainty ..................................................................................... 8 6. Test Results and Measurement Data ..................................................... 9 6.1. Antenna Requirement ........................................................................................... 9 6.2. Conducted Emission ........................................................................................... 10 6.3. Radiated Emission Measurement ...................................................................... 11 6.4. 20dB Occupied Bandwidth ................................................................................. 23 Appendix A: Photographs of Test Setup Appendix B: Photographs of EUT Report No.: TCT210511E003 Page 3 of 31 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. Test Certification Product: Wireless Keyboard Model No.: K959A Additional Model No.: MA-119-A, WFH-BLK-STK-12K, K959, K919, K919A, K929, K929A, K939, K939A, K949, K949A, K969, K969A Trade Mark: yooey Applicant: Dongguan yooey technology co., ltd. Address: No.3 longyuan street, xiagan second industrial park, Chang'an, dongguan, China Manufacturer: Dongguan yooey technology co., ltd. Address: No.3 longyuan street, xiagan second industrial park, Chang'an, dongguan, China Date of Test: May 12, 2021 – May 14, 2021 Applicable Standards: FCC CFR Title 47 Part 15 Subpart C Section 15.249 ANSI C63.10:2013 The above equipment has been tested by Shenzhen Tongce Testing Lab and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By: Date: May 14, 2021 Kevin Huang Reviewed By: Date: May 17, 2021 Beryl Zhao Approved By: Date: May 17, 2021 Tomsin Report No.: TCT210511E003 Page 4 of 31 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. Test Result Summary Requirement CFR 47 Section Result Antenna Requirement §15.203 PASS AC Power Line Conducted Emission §15.207 N/A Field Strength of Fundamental §15.249 (a) PASS Spurious Emissions §15.249 (a) (d)/ §15.209 PASS Band Edge §15.249 (d)/ §15.205 PASS 20dB Occupied Bandwidth §15.215 (c) PASS Note: 1. Pass: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. Report No.: TCT210511E003 Page 5 of 31 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 3.EUT Description Product: Wireless Keyboard Model No.: K959A Additional Model No.: MA-119-A, WFH-BLK-STK-12K, K959, K919, K919A, K929, K929A, K939, K939A, K949, K949A, K969, K969A Trade Mark: yooey Operation Frequency: 2404MHz - 2478MHz Number of Channel: 75 Modulation Technology: GFSK Antenna Type: Internal Antenna Antenna Gain: -2dBi Power Supply: DC 3.0V Remark: All models above are identical in interior structure, electrical circuits and components, just model names are different for the marketing requirement. Note: The antenna gain listed in this report is provided by applicant, and the test laboratory is not responsible for this parameter. Report No.: TCT210511E003 Page 6 of 31 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Operation Frequency Each of Channel Channel Frequency Channel Frequency Channel Frequency Channel Frequency 0 2404MHz 19 2423MHz 38 2442MHz 57 2461MHz 1 2405MHz 20 2424MHz 39 2443MHz 58 2462MHz ... ... ... ... ... ... ... ... 9 2413MHz 28 2432MHz 47 24…

Text truncated - open the document above for the full version.

Page 1 of 1 Appendix A: Photographs of Test Setup Product: Wireless Keyboard Model: K959A Radiated Emission
