2AWSV52SL-WCPWireless Charging Pad

Article No.: 52SL-WCP  Double wireless charging pad fitted with two strong magnets for attaching to a metal surface.  Four holes at each corner for permanent fixture to non-metallic surface or wall  Supplied with USB-C charging cable and 5V 2A charging adaptor  With 5V 1A USB output  If required, either place the charging pad on a metallic surface using the magnets (on underside) to hold it in position or permanently fix it to a non-metallic surface or wall using the four 5mm diameter counter bored holes in each corner.  Connect charging base to wall socket using the cable and plug supplied. Turn on the power source and the LED on the top surface of the pad will light green indicating that the USB charging output is able to be used.  Place front face of light onto the front face of charging pad ensuring alignment of charging pads and magnets.  The LED on the top surface of the pad will light red indicating that the USB charging output socket is not able to be used.  Once the light indicates fully charged, remove from charging pad and disconnect pad power supply.  Keep the charging pad clean by wiping with a slightly damp cloth.  Store charging pad in a dry childproof are.  To reduce the risk of electric shock, burns or fire  Do not attempt to open, disassemble, modify or service the charging pad  Do not crush, puncture, or dispose of in fire or water Input voltage: 5V 2A Output (Wireless): 5V 1A Output (USB): 5V 1A Product Description: Specifications: Maintenance: Made in China Operation: Warning: FCC Warning Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

QA-FR-170-B 7/29/2014 Astro Pneumatic Tool Co. Add: 1230 Santa Anita Avenue, Suite E South El Monte, CA 91733 TEL: (800)221-9705 1258 FAX: 877-318-2194 Mail: [email protected] FCC Authorization (Date: 2020-07-03) FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, Astro Pneumatic Tool Co., hereby authorizes Bay Area Compliance Laboratories Corp. to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp. on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Print name: Chirs Pettit Title: Product Manager

QA-FR-171-A Astro Pneumatic Tool Co. Add: 1230 Santa Anita Avenue, Suite E South El Monte, CA 91733 TEL: (800)221-9705 1258 FAX: 877-318-2194 Mail: [email protected] FCC Confidential Authorization Date: 2020-07-03 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AWSV52SL-WCP In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Astro Pneumatic Tool Co., hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Print name: Chirs Pettit Title: Product Manager

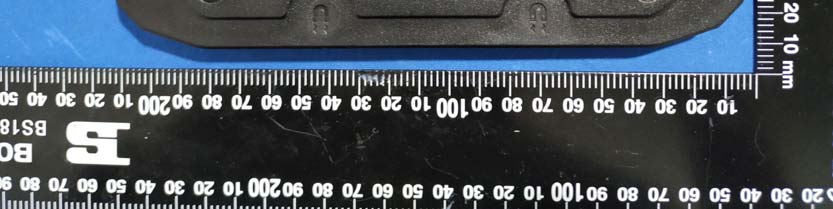

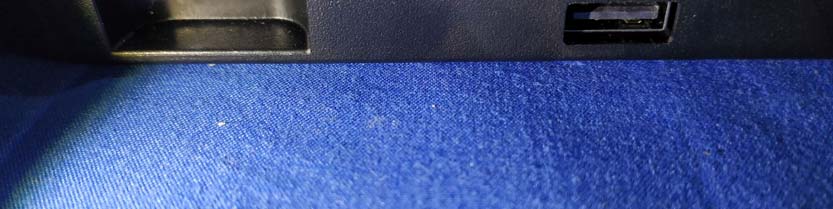

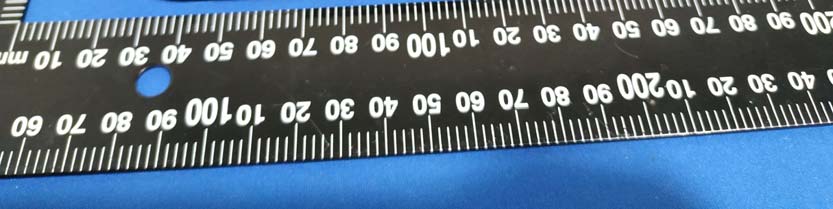

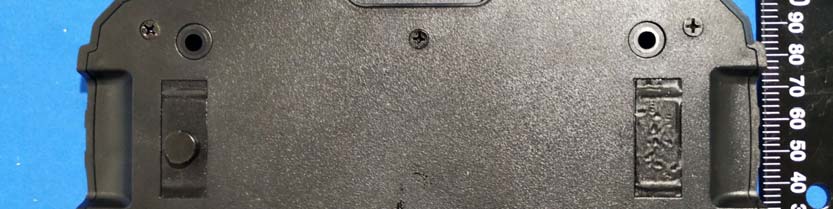

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

FCC ID: 2AWSV52SL-WCP FCC ID: 2AWSV52SL-WCP

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RXM200616050-00 Page 8 of 22 FCC §1.1310, §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart §1.1310, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According with KDB 680106 D01 RF Exposure Wireless Charging Apps v03 clause 3 c) According to 680106 D01 RF Exposure Wireless Charging App v03 clause 5 b) Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RXM200616050-00 Page 9 of 22 Block Diagram of Test Setup Note: 20 cm for Top test. Test Equipment List and Details Manufacturer Description Model Serial Number Calibration Date Calibration Due Date Narda Exposure Level TesterELT-400 N-0229 2019-11-15 2022-11-15 Narda B Field Probe ELT Probe 100cm2 M-0666 2019-11-15 2022-11-15 ETS-Lindgreen Isotropic Field ProbeHI-6005 6564158 2019-03-06 2021-03-06 * Statement of Traceability: Bay Area Compliance Laboratories Corp. (Dongguan) attests that all calibrations have been performed, traceable to National Primary Standards and International System of Units (SI). Test Data Environmental Conditions Temperature: 24.8°C Relative Humidity: 51 % ATM Pressure: 100.3 kPa Test Engineer: Jalon Liu Test Date: 2020-06-19 Test mode: Transmitting 15cm Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RXM200616050-00 Page 10 of 22 H-field Strength Frequency Range (kHz) Position A (A/m) Position B (A/m) Position C (A/m) Position D (A/m) Position E (A/m) 50% Limit (A/m) Limit Te s t (A/m) 110-215 0.085 0.078 0.097 0.096 0.121 0.815 1.63 Note: Test with 15cm distance from the center of the probe(s) to the edge of the device, 20 cm for top test. E-field Strength Frequency Range (kHz) Position A (V/m) Position B (V/m) Position C (V/m) Position D (V/m) Position E (V/m) 50% Limit (V/m) Limit Te s t (V/m) 110-215 1.37 1.622 2.288 1.344 1.717 307 614 Note: Test with 15cm distance from the center of the probe(s) to the edge of the device, 20 cm for top test. Result: Compliance Considerations of compliance 680106 D01 RF Exposure Wireless Charging App v03 clause 5 b: (1) Power transfer frequency is less than 1 MHz. Yes, the operation frequency is 110-215 kHz. (2) Output power from each primary coil is less than or equal to 15 watts. Yes, the maximum output power of each coil is 5 Watts. (3) The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils. The transfer system includes two coils, and system detect and allow coupling only between individual pairs of coils. (4) Client device is placed directly in contact with the transmitter. Yes, client device is placed directly in contact with the transmitter (5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). Yes, mobile exposure conditions only (6) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Yes, the test result for H and E-field strength less than 50% of the MPE limit.

FCC PART 15C TEST REPORT For Astro Pneumatic Tool Co. 1230 Santa Anita Avenue, Suite E South El Monte, CA 91733 FCC ID: 2AWSV52SL-WCP Report Type: Original Report Product Name: Wireless charging pad Re port Number: RXM200616050-00 Re port Date: 2020-07-15 Reviewed By: Ivan Cao Assistant Manager Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industry Area, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RXM200616050-00 Page 2 of 22 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 3 TEST METHODOLOGY .................................................................................................................................................. 3 MEASUREMENT UNCERTAINTY .................................................................................................................................... 4 TEST FACILITY ............................................................................................................................................................. 4 DECLARATIONS ............................................................................................................................................................ 4 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 JUSTIFICATION ............................................................................................................................................................. 5 EUT EXERCISE SOFTWARE .......................................................................................................................................... 5 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 5 SUPPORT CABLE LIST AND DETAILS ............................................................................................................................ 5 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 7 FCC §1.1310, §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ............................................................. 8 APPLICABLE STANDARD .............................................................................................................................................. 8 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 9 TEST EQUIPMENT LIST AND DETAILS ........................................................................................................................... 9 TEST DATA .................................................................................................................................................................. 9 FCC§15.203 - ANTENNA REQUIREMENT ............................................................................................................ 11 APPLICABLE STANDARD ............................................................................................................................................ 11 ANTENNA CONNECTED CONSTRUCTION .................................................................................................................... 11 FCC §15.207 – AC LINE CONDUCTED EMISSION ............................................................................................. 12 EUT SETUP ................................................................................................................................................................ 12 EMI TEST RECEIVER SETUP ....................................................................................................................................... 12 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 13 TEST PROCEDURE ...................................................................................................................................................... 13 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 13 TEST RESULTS SUMMARY .......................................................................................................................................... 14 TEST DATA ................................................................................................................................................................ 14 FCC §15.205 & §15.209 - RADIATED EMISSIONS TEST .................................................................................... 16 APPLICABLE STANDARD ............................................................................................................................................ 16 EUT SETUP ..................................................................................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions Front View Conducted Emissions Side View Radiated Emission Below 30M View Radiated Emission Above 30MHz View H-Filed Strength View To p Side(20cm) Front Side(15cm) Back Side(15cm) Left Side(15cm) Right Side(15cm) E-Filed Strength View To pSide(20cm) Front Side(15cm) Back Side(15cm) Left Side(15cm) Right Side(15cm)
