2AWSZ-SP103D Printer Display

10.1 Inch Android industrial panel computer Intamsys Technology Co., Ltd. 1.Parameters Product model WAR-101C-SP10 Basic parameters  CPU：Quad-core Cortex®-A9 ，frequency 1.4GHz  Memory：1GB DDR3  Flash：8GB NandFlash Display screen  Size：10.1 inch  Resolution：1280×800  Wide-temperature type，16000k colors or 24 true colors  LED backlight：lifetime > 25000 hours Touch screen Capacitance/Resistance touch screen Hardware interface  4 channel 3-wire RS-232 serial port（COM1,COM2,COM3,COM4）.  2 channel RS-485（COM1、COM2）multiplex as RS-232 （COM1、 COM2）.（Signal isolated as optional）  1 channel isolated CAN bus（optional）.  1 channel USB device interface,support ADB connect to PC to exchange date and debug application .  3 channel USB Host interface，support usual USB device such as mouse, keyboard, U disk ,etc.  1 channel 100M Ethernet interface.  1 channel SD/MMC slot,support MMC/mini SD card.  1 channel 3.5mm audio output interface.  1 channel WIFI interface.  1 channel DC 24V，industrial power solution，higher reliability. OS Android 4.4.2/Android 5.1 Defend degree IP65 (front panel) Working environment  power：DC 24V  working temperature：-10~60°C  storage temperature：-20~80°C  working humidity：10～90%RH Size  shell structure：plastic  panel size：275.00×181.00 （mm）  trepanning size：266.00×171 .00 （mm） Application area  industrial control，detection device，instruments and meters，security monitoring，medical apparatus and instruments, intelligent terminals embedded high-end application.  Support CAN bus network deployment. Software support  Support Eclipse、Android Studio、QT Creator、Visual Studio 2015/2017 development，support JAVA/C/C++/C# ,etc .  Easy change the user-defined splash screen. 2.Interface definition 1 ........................ 12 Pic 1 1. CANL 2. CANH 3. GND 4. COM3-RX of RS-232 5. COM3-TX of RS-232 6. COM4-RX of RS-232 7. COM4-TX of RS-232 8. COM2-485B 9. COM2-485A 10. GND 11. COM1-485B 12. COM1-485A 1 2 3 4 5 Pic 2 1. USB Slave interface （USB Device） 2. USB Host interface（USB host） 3. Stereo audio output interface 4. RS-232 interface (COM1,COM2) （isolated） 5. 100m Ethernet interface 2.1 RS-232 interface 4 channel serial port，support the highest-level baudrate 115200bps. The corresponding interface in Android system is COM1 ~ COM4. Specially COM1 and COM2 have 2 output type as RS-232 and RS-485. 2.2 RS-485 interface The corresponding port in Android system is COM1、COM2, and COM1/COM2 is a multiplexing of RS-232 interface ( COM1/COM2 ). Also, without terminal resistance inside ,pls specify once in need. 2.3 CAN Bus interface The function of Can-bus interface is optional . Also, without terminal resistance inside ,pls specify once in need. 2.4 Power interface Pic 3 3. Exterior size Exterior size：275x181x42 （mm） Trepanning size：266 x171 （mm） Pic 4 4. FCC statement Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. www.intamsys.com

SGS North America Inc. 620 Old Peachtree Road sutTE 100 Suwanee, Georgia 30024 United States Applicant Declaration Applicant Legal Business Name Intamsys Technology Co., Ltd Grantee Code Authorized Contact Name Aihua Cao Aihua [email protected] Contact Phone l, the undersigned, certi! that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.91 1(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC lD as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC's technical requirements. d) in accordance with 47 CFR 2.909 and KD8394321, the Applicant has read, understood and agrees to accept that they are the responsible par$ and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with 1SO17065, FCC KD8641163, FCC KDB610077, KD8394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant sDall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant sharr, upon request by SGS, at the Applicant's expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of | 988, 21 U.S.C. $862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a 'party' for these purposes. S) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Applicant Declaration Rev:0.0 APPlicantsisnature: r6.h,nq cM Print Name: Aihua Cao cannot be sisned bv an Aqent, it shall be siqned bv an authoizedrlatabasc 2AWSZ 3rd FIoor Building C9, No.3188 Xiupu Road, shanghai 201315 China 2AWSZ-SP10

TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 lnTA\fflSYS Date: 2020/11/10 Regarding FCC ID: 2AWSZ-SP10 To whom it may concern: We, the undersigned, hereby authorize Pa「lam Zhan to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by t he agent on OU「 behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U .S.C. 853(a). VVhere our agent signs t he application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North Ame「ica, Inc., still resides with lntamsys Technology Co., Ltd. This authorization is valid until further written notice from the applicant. Name (Printed): Aihua Cao Signature 和加 A 如 Title: Assistant General Manager On behalf of Company: lntamsys Technology Co., Ltd Telephone: +86-21-58463623 lntamsys Technology Co., Ltd. T: +86 21 5846 5932 3'" Floor, Building C9, No. 3188 Xiupu Road, Mail: [email protected] Pudong New District Shanghai, China www.intamsys.com

To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee , Georgia United States From: lntamsys Technology Co. , Ltd 3rd FIoor Building C9, No.3188 Xiupu Road, shanghai 201315 China lnT/AfflS YS Regarding: Confidentiali ty Request regarding application for FCC ID: 2AWSZ-SP10 LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission's rules , the applicant hereb y request confidential treatment of the documents listed below , associated with the certification application referenced above. Schematic ( s ) Block Diagrams Operational Desc「iptions The documents above contain proprieta ry information not released to the public. Public disclosure of this information may p rove harmful to the business of the applicant. Sincerely, Signature: {d; 妇少 Printed Name Aihua Cao Title: Assistant General Manager Company Name: lntamsys Technology Co., Ltd lntamsys Tec�nology Co., Ltd. T: +86 21 5846 5932 3 "' Floor, Building C9, No. 3188 Xiupu Road, Mail: [email protected] Pudong New District Shanghai, China www.intamsys.com

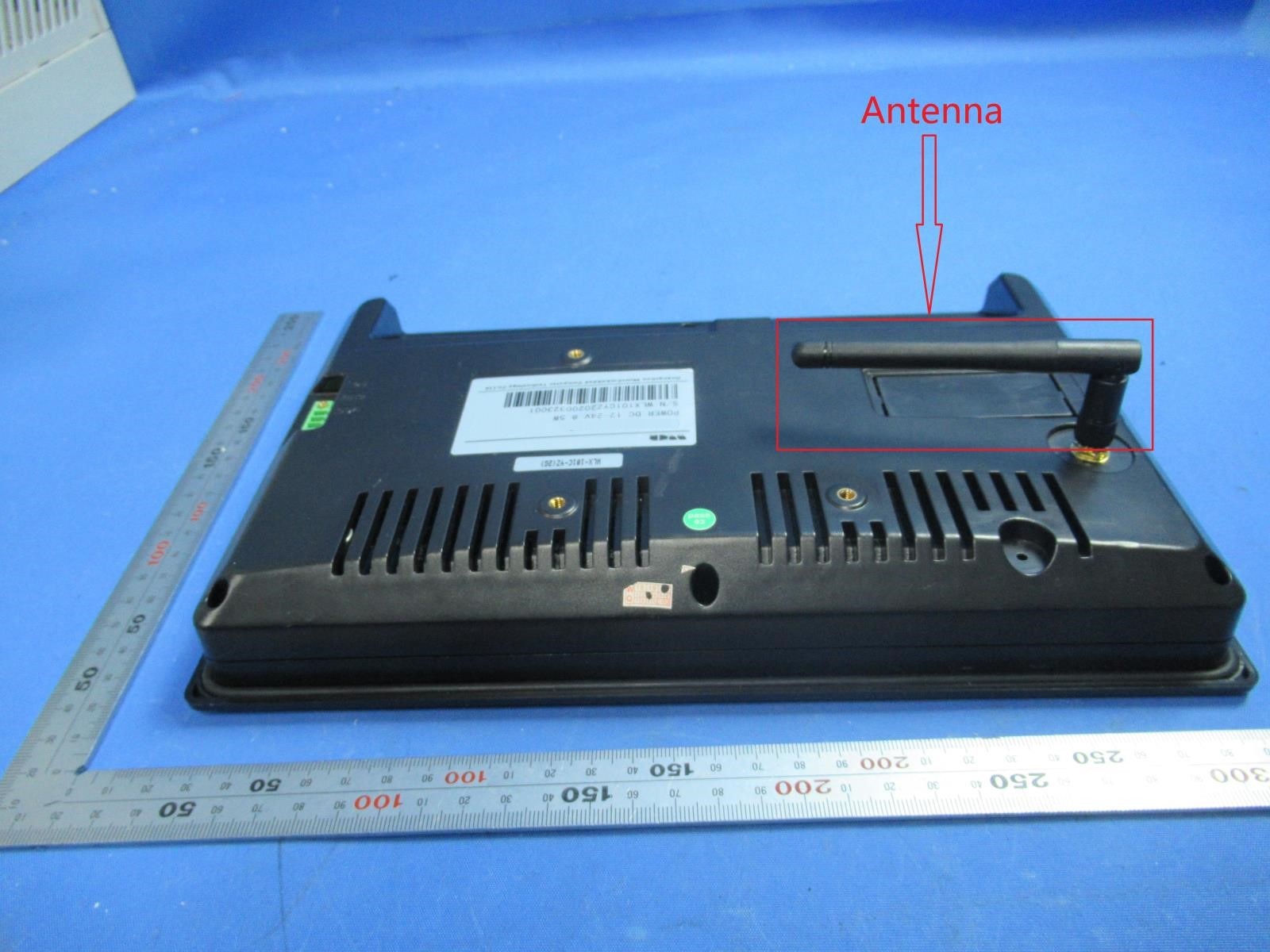

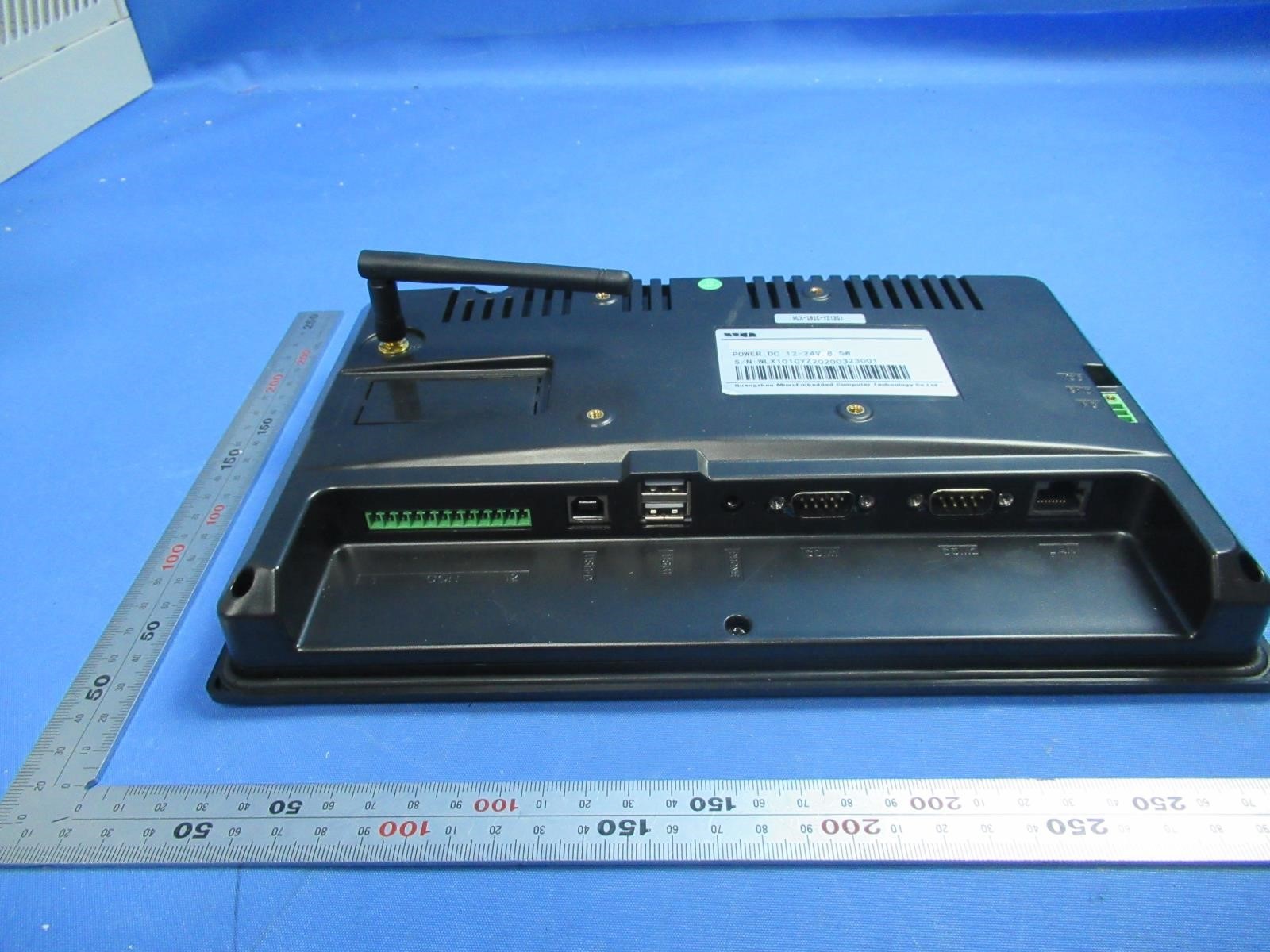

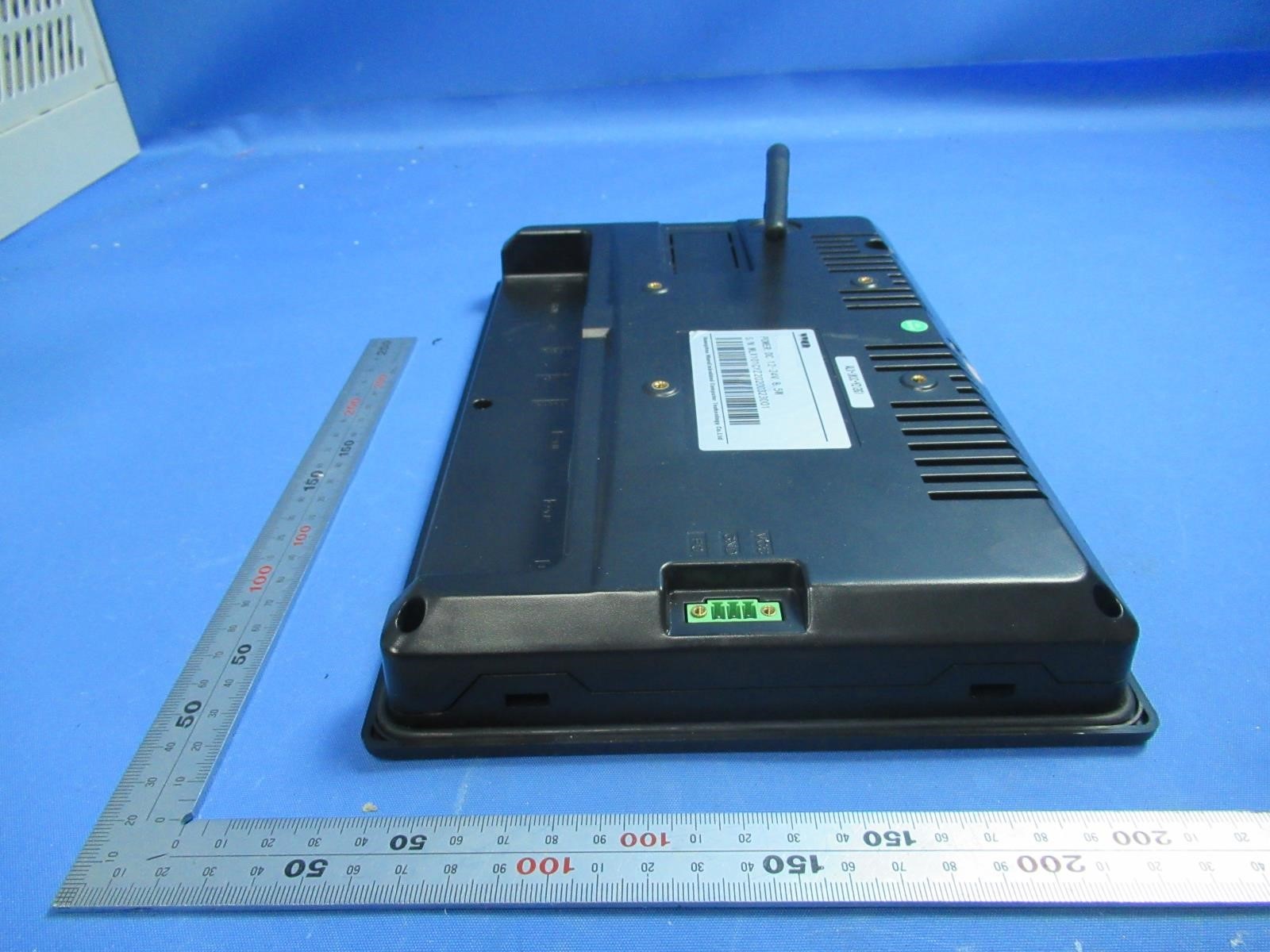

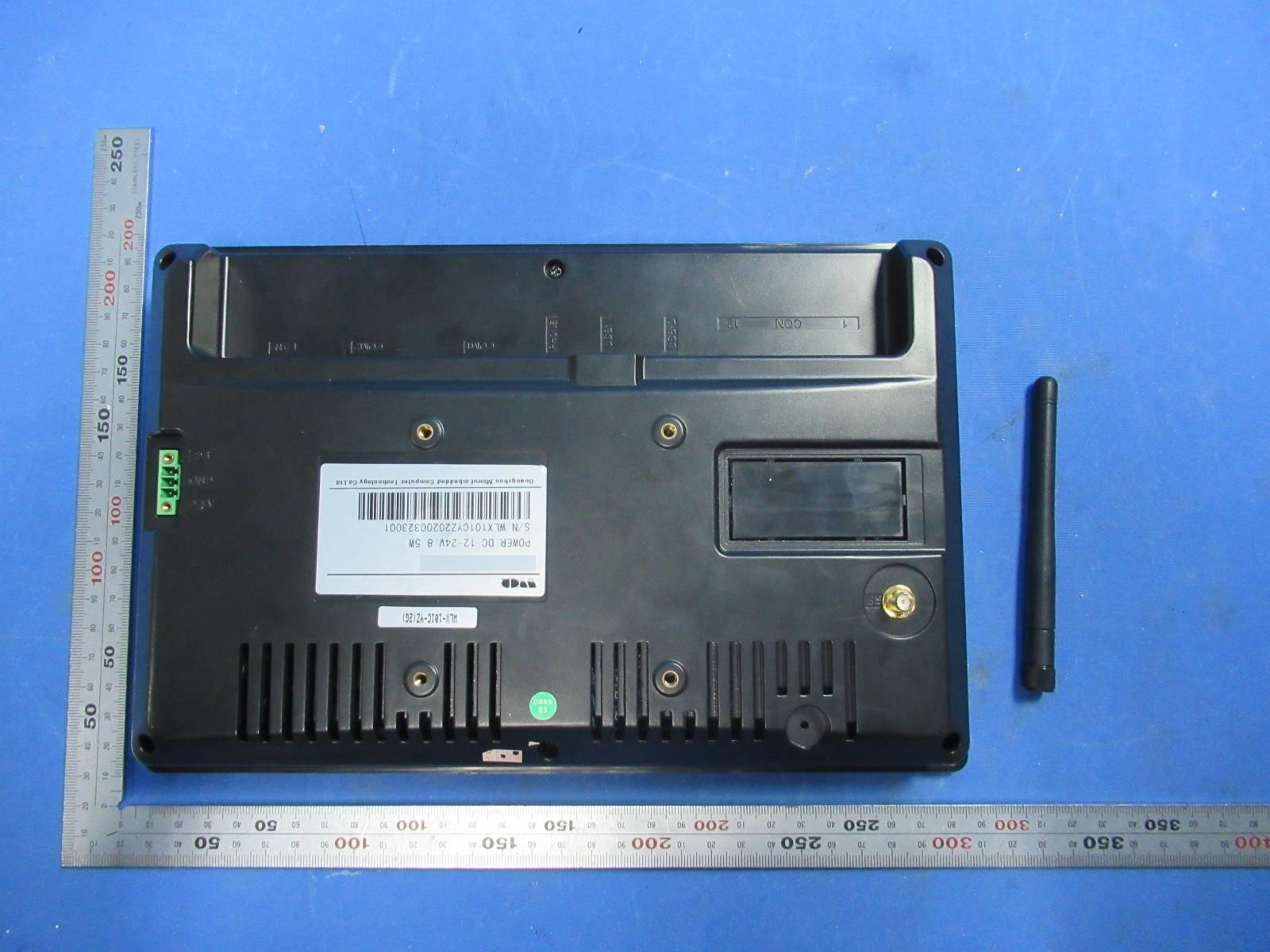

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 1 of 5 Page 1 of 5 External Photos Applicant: Intamsys Technology Co., Ltd Address of Applicant: 3rd FIoor Building C9, No.3188 Xiupu Road, shanghai 201315 China Equipment Under Test (EUT): Product Name: 3D Printer Display Model No.: WAR-101C-SP10 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 2 of 5 Page 2 of 5 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 3 of 5 Page 3 of 5 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 4 of 5 Page 4 of 5 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 5 of 5 Page 5 of 5 End

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 1 of 7 Page 1 of 7 Internal Photos Applicant: Intamsys Technology Co., Ltd Address of Applicant: 3rd FIoor Building C9, No.3188 Xiupu Road, shanghai 201315 China Equipment Under Test (EUT): Product Name: 3D Printer Display Model No.: WAR-101C-SP10 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 2 of 7 Page 2 of 7 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 3 of 7 Page 3 of 7 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 4 of 7 Page 4 of 7 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 5 of 7 Page 5 of 7 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 6 of 7 Page 6 of 7 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 7 of 7 Page 7 of 7 End

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200900744202 Page: 1 of 7 Parlam Zhan E&E Section Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. 1 Cover Page RF Exposure Evaluation Report Application No.: SHEM2009007442CR FCC ID: 2AWSZ-SP10 Applicant: Intamsys Technology Co., Ltd Address of Applicant: 3rd FIoor Building C9, No.3188 Xiupu Road, shanghai 201315 China Manufacturer: Intamsys Technology Co., Ltd Address of Manufacturer: 3rd FIoor Building C9, No.3188 Xiupu Road, shanghai 201315 China Factory: Intamsys Technology Co., Ltd Address of Factory: 3rd FIoor Building C9, No.3188 Xiupu Road, shanghai 201315 China Equipment Under Test (EUT): EUT Name: 3D Printer Display Model No.: WAR-101C-SP10 Standard(s) : FCC Rules 47 CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Date of Receipt: 2020-09-09 Date of Test: 2020-12-29 to 2021-01-05 Date of Issue: 2021-01-11 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200900744202 Page: 2 of 7 Revision Record Version Description Date Remark 00 Original 2021-01-11 / Authorized for issue by: Bill Wu / Project Engineer Parlam Zhan /Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200900744202 Page: 3 of 7 2 Contents Page 1 COVER PAGE ................................................................................................................................................. 1 2 CONTENTS ..................................................................................................................................................... 3 3 GENERAL INFORMATION........................................................................................................................... 4 3.1 GENERAL DESCRIPTION OF E.U.T. ......................................................................................................... 4 3.2 TEST LOCATION ....................................................................................................................................... 5 3.3 TEST FACILITY .......................................................................................................................................... 5 4 TEST STANDARDS AND LIMITS ............................................................................................................... 6 4.1 FCC RADIOFREQUENCY RADIATION EXPOSURE LIMITS: ......................................................................... 6 5 MEASUREMENT AND CALCULATION .................................................................................................... 6 5.1 MAXIMUM TRANSMIT POWER ................................................................................................................... 6 5.2 MPE CALCULATION ................................................................................................................................. 7 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200900744202 Page: 4 of 7 3 General Information 3.1 General Description of E.U.T. Power Supply: Antenna Gain: DC 24V 3dBi(Provided by client) Antenna Type: Dipole Antenna Channel Spacing: 5MHz Modulation Type: 802.11b: DSSS (CCK, DQPSK, DBPSK) 802.11g/n: OFDM (64QAM, 16QAM, QPSK, BPSK) Number of Channels: 802.11b/g/n(HT20):11 802.11n(HT40):7 Operation Frequency: 802.11b/g/n(HT20): 2412MHz to 2462MHz 802.11n(HT40): 2422MHz to 2452MHz SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200900744202 Page: 5 of 7 3.2 Test Location All tests were performed at: SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 588 West Jindu Road, Xinqiao, Songjiang, 201612 Shanghai, China. Tel: +86 21 6191 5666 Fax: +86 21 6191 5678 3.3 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • CNAS (No. CNAS L0599) CNAS has accredited SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. to ISO/IEC 17025:2017 General Requirements for the Competence of Testing and Calibration Laboratories (CNAS-CL01 Accreditation Criteria for the Competence of Testing and Calibration Laboratories) for the competence in the field of testing. • NVLAP (LAB CODE: 201034-0) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. is accredited by the Nati onal Voluntary Laboratory Accreditation Program (NVLAP). • FCC (Designation Number: CN5033) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. has been recognized as an accredited testing laboratory. Test Firm Registration Number: 479755. • ISED (CAB Identifier: CN0020) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. EMC Laboratory has been recognized by Innovation, Science and Economic Development Canada (ISED) as an accredited testing laboratory. ISED#: 8617A. • VCCI (Member No.: 3061) The 3m Semi-anechoic chamber and Shielded Room of SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. has been registered in accordance with the Regulations for Voluntary Control Measures with Registration No.: R-13868, C-14336, T- 12221, G-10830 respectively. SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200900744202 Page: 6 of 7 4 Test Standards and Limits 4.1 FCC Radiofrequency radiation exposure limits: According to§1.1310, the limit for general population/uncontrolle…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Appendix A for SHEM200900744201 1. Duty Cycle 1.1 Test Result Test Mode Channel Frequency(M Hz) TX Type ANT No. T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) 802.11b 2412 SISO 1 12.410 12.580 98.65 0.06 2437 SISO 1 12.420 12.570 98.81 0.05 2462 SISO 1 12.410 12.590 98.57 0.06 802.11g 2412 SISO 1 2.033 2.201 92.37 0.34 2437 SISO 1 2.063 2.224 92.76 0.33 2462 SISO 1 2.039 2.190 93.11 0.31 802.11n(HT20) 2412 SISO 1 1.890 2.058 91.84 0.37 2437 SISO 1 1.895 2.035 93.12 0.31 2462 SISO 1 1.896 2.047 92.62 0.33 802.11n(HT40) 2422 SISO 1 0.916 1.072 85.45 0.68 2437 SISO 1 0.916 1.082 84.66 0.72 2452 SISO 1 0.943 1.114 84.65 0.72 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. 1.2 Test Graph SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. 2. Bandwidth 2.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. 6dB Bandwidth Verdict Test Result (MHz) Limits (MHz) 802.11b 2412 SISO 1 10.077 ≥0.5 PASS 2437 SISO 1 10.091 ≥0.5 PASS 2462 SISO 1 10.071 ≥0.5 PASS 802.11g 2412 SISO 1 16.404 ≥0.5 PASS 2437 SISO 1 16.389 ≥0.5 PASS 2462 SISO 1 16.388 ≥0.5 PASS 802.11n(HT20) 2412 SISO 1 17.574 ≥0.5 PASS 2437 SISO 1 17.599 ≥0.5 PASS 2462 SISO 1 17.588 ≥0.5 PASS 802.11n(HT40) 2422 SISO 1 35.537 ≥0.5 PASS 2437 SISO 1 35.604 ≥0.5 PASS 2452 SISO 1 35.551 ≥0.5 PASS Test Mode Frequency (MHz) TX Type ANT No. 99% Occupied Bandwidth Test Result (MHz) 802.11b 2412 SISO 1 14.956 Only for Report Use 2437 SISO 1 14.923 Only for Report Use 2462 SISO 1 14.932 Only for Report Use 802.11g 2412 SISO 1 17.017 Only for Report Use 2437 SISO 1 16.861 Only for Report Use 2462 SISO 1 16.849 Only for Report Use 802.11n(HT20) 2412 SISO 1 17.891 Only for Report Use 2437 SISO 1 17.874 Only for Report Use 2462 SISO 1 17.902 Only for Report Use 802.11n(HT40) 2422 SISO 1 36.071 Only for Report Use 2437 SISO 1 36.013 Only for Report Use 2452 SISO 1 36.021 Only for Report Use SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. 2.2 Test Graph - 6dB Bandwidth SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. 2.3 Test Graph - 99% Occupied Bandwidth SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. 3. Maximum Conducted Output Power 3.1 Test Result Test Mode Frequency (MHz) Tx Type Measured Peak Output Power (dBm) Limits (dBm) Verdict Ant 1 802.11b 2412 SISO 17.95 30 PASS 2437 SISO 18.13 30 PASS 2462 SISO 17.98 30 PASS 802.11g 2412 SISO 17.50 30 PASS 2437 SISO 18.16 30 PASS 2462 SISO 18.02 30 PASS 802.11n(HT20) 2412 SISO 17.47 30 PASS 2437 SISO 18.07 30 PASS 2462 SISO 18.20 30 PASS 802.11n(HT40) 2422 SISO 16.99 30 PASS 2437 SISO 17.39 30 PASS 2452 SISO 17.57 30 PASS 3.2 Test Graph SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. 4. Maximum Power Spectral Density (PSD) 4.1 Test Result Test Mode Frequency (MHz) Tx Type Maximum Power Spectral Density (dBm/3KHz) Limits (dBm/3kHz) Verdict Ant 1 802.11b 2412 SISO -7.29 ≤8 PASS 2437 SISO -8.17 ≤8 PASS 2462 SISO -6.46 ≤8 PASS 802.11g 2412 SISO -15.08 ≤8 PASS 2437 SISO -15.42 ≤8 PASS 2462 SISO -14.85 ≤8 PASS 802.11n(HT20) 2412 SISO -15.49 ≤8 PASS 2437 SISO -14.44 ≤8 PASS 2462 SISO -15.53 ≤8 PASS 802.11n(HT40) 2422 SISO -17.91 ≤8 PASS 2437 SISO -17.26 ≤8 PASS 2452 SISO -17.53 ≤8 PASS

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200900744201 Page: 1 of 73 Parlam Zhan E&E Section Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. TEST REPORT Application No.: SHEM2009007442CR FCC ID: 2AWSZ-SP10 Applicant: Intamsys Technology Co., Ltd Address of Applicant: 3rd FIoor Building C9, No.3188 Xiupu Road, shanghai 201315 China Manufacturer: Intamsys Technology Co., Ltd Address of Manufacturer: 3rd FIoor Building C9, No.3188 Xiupu Road, shanghai 201315 China Factory: Intamsys Technology Co., Ltd Address of Factory: 3rd FIoor Building C9, No.3188 Xiupu Road, shanghai 201315 China Equipment Under Test (EUT): EUT Name: 3D Printer Display Model No.: WAR-101C-SP10 Standard(s) : 47 CFR Part 15, Subpart C 15.247 Date of Receipt: 2020-09-09 Date of Test: 2020-12-29 to 2021-01-05 Date of Issue: 2021-01-11 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200900744201 Page: 2 of 73 Revision Record Version Description Date Remark 00 Original 2021-01-11 / Authorized for issue by: Bill Wu / Project Engineer Parlam Zhan / Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200900744201 Page: 3 of 73 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.203 & 15.247(c) Customer Declaration Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Emissions at AC Power Line (150kHz-30MHz) 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.2 47 CFR Part 15, Subpart C 15.207 Pass Minimum 6dB Bandwidth 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.8.1 47 CFR Part 15, Subpart C 15.247a(2) Pass Conducted Peak Output Power 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.9.1 47 CFR Part 15, Subpart C 15.247(b)(3) Pass Power Spectrum Density 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.10.2 47 CFR Part 15, Subpart C 15.247(e) Pass Conducted Band Edges Measurement 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.13.3.2 47 CFR Part 15, Subpart C 15.247(d) Pass Conducted Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.11 47 CFR Part 15, Subpart C 15.247(d) Pass Radiated Emissions which fall in the restricted bands 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.10.5 47 CFR Part 15, Subpart C 15.209 & 15.247(d) Pass Radiated Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.4,6.5,6.6 47 CFR Part 15, Subpart C 15.209 & 15.247(d) Pass SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200900744201 Page: 4 of 73 3 Contents Page 1 COVER PAGE.............................................................................................................................................. 1 2 TEST SUMMARY ......................................................................................................................................... 3 3 CONTENTS .................................................................................................................................................. 4 4 GENERAL INFORMATION ......................................................................................................................... 5 4.1 DETAILS OF E.U.T.................................................................................................................................. 5 4.2 DESCRIPTION OF SUPPORT UNITS ........................................................................................................... 5 4.3 POWER LEVEL SETTING USING IN TEST: ................................................................................................... 5 4.4 MEASUREMENT UNCERTAINTY ................................................................................................................ 6 4.5 TEST LOCATION ..................................................................................................................................... 7 4.6 TEST FACILITY ....................................................................................................................................... 7 4.7 DEVIATION FROM STANDARDS ................................................................................................................ 7 4.8 ABNORMALITIES FROM STANDARD CONDITIONS ....................................................................................... 7 5 EQUIPMENT LIST ....................................................................................................................................... 8 6 RADIO SPECTRUM TECHNICAL REQUIREMENT ................................................................................... 9 6.1 ANTENNA REQUIREMENT ........................................................................................................................ 9 7 RADIO SPECTRUM MATTER TEST RESULTS ...................................................................................... 10 7.1 MINIMUM 6DB BANDWIDTH ................................................................................................................... 10 7.2 CONDUCTED PEAK OUTPUT POWER ...................................................................…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 1 of 4 Page 1 of 4 Test Setup Photos-FCC Applicant: Intamsys Technology Co., Ltd Address of Applicant: 3rd FIoor Building C9, No.3188 Xiupu Road, shanghai 201315 China Equipment Under Test (EUT): Product Name: 3D Printer Display Model No.: WAR-101C-SP10 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 2 of 4 Page 2 of 4 1 Contents Page 1 CONTENTS............................................................................................................... 2 2 EQUIPMENT UNDER TEST PICTURES ............................................................ 3 2.1 Radiated Emission Test Setup .......................................................................... 3 2.2 RF Conducted Test Setup ................................................................................. 4 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 3 of 4 Page 3 of 4 2 EQUIPMENT UNDER TEST PICTURES 2.1 Radiated Emission Test Setup 30MHz to 1GHz Above 1GHz SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 4 of 4 Page 4 of 4 2.2 RF Conducted Test Setup End
