Insertbatteries(tobedonebyanadult) •4xAAAbatteriesforthecar(Notincluded). ・Insertingbatteriesintocar: Openthebatterycompartmentwithascrewdriver(notincluded)andinsert4batteriesoftypeAAAaccordingtotheindicatedpolarity.Closethe compartmentlidandscrewittight. Operation •Turnonthevehiclebyswitchingthebuttonunderthecarto"ON". •Turnontheremotecontrollerbyswitchingthebuttononthebackto "ON”. •Theredlightwillbeonwhentheremotecontrolisturnedon. •Usethecontrolsticktocontrolthevehicletogoleftorright. •Usethecontrolsticktocontrolthevehicletogoforwardsorbackwards. •Afterusage,turnoffbothdevicesbyswitchingthebuttonsto"OFF". •Rechargeablebatteriesmustberemovedfromthetransmitterpriorto recharging. •Non-rechargeablebatteriesmaynotbecharged. •Rechargeablebatteriesmayonlybechargedunderthesupervisionofan adult. •Thecombinationofdifferenttypesofbatteriesaswellasnewandused batteriesmustbeavoided. •Onlyrecommendedbatteriesorthoseofanequivalenttypemaybeused. •Batteriesmustbeinsertedaccordingtothecorrectpolarity(+and-). •Depletedbatteriesmustberemovedfromthetransmitter. •Theconnectionterminalsmaynotbeshort-circuited. •Removethebatteriesfromthetransmitteriftheyarenottobeusedforan extendedperiodoftime. •Frequency:27MHz.IncompetitionwithotherRCcardifferent frequenciesarerecommended.Adultsupervision isrecommended.Agerecommendation:5+ ・ Notsuitableforchildrenbelowtheageof3,asthereisachoking hazardfromswallowablesmallparts. NOTE:Thisequipmenthasbeentestedandfoundtocomplywiththelimits foraClassBdigitaldevice,pursuanttoPart15oftheFCCRules.These limitsaredesignedtoprovidereasonableprotectionagainstharmful interferenceinaresidentialinstallation.Thisequipmentgenerates,usesand canradiateradiofrequencyenergyand,ifnotnstalledandusedin accordancewiththeinstructions,maycauseharmfulinterferencetoradio communications. However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioor televisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormore ofthefollowingmeasures: □Reorientorrelocatethereceivingantenna. □Increasetheseparationbetweentheequipmentandreceiver. □Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected. □Consultthedealeroranexperiencedradio/TVtechnicianforhelp. ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions: (1)thisdevicemaynotcauseharmfulinterference,and (2)thisdevicemustacceptanyinterferencereceivedjncludinginterferencethatmaycauseundesiredoperation. •2xAAbatteryfortheremotecontrol(Notincluded) ・Installationdespilesdanslaradiocommande: Openthebatterycompartmentwithascrewdriverandinsert2 batteriesoftypeAAbatteryaccordingtotheindicatedpolarity.Close thecompartmentlitandtightlyscrewittight.

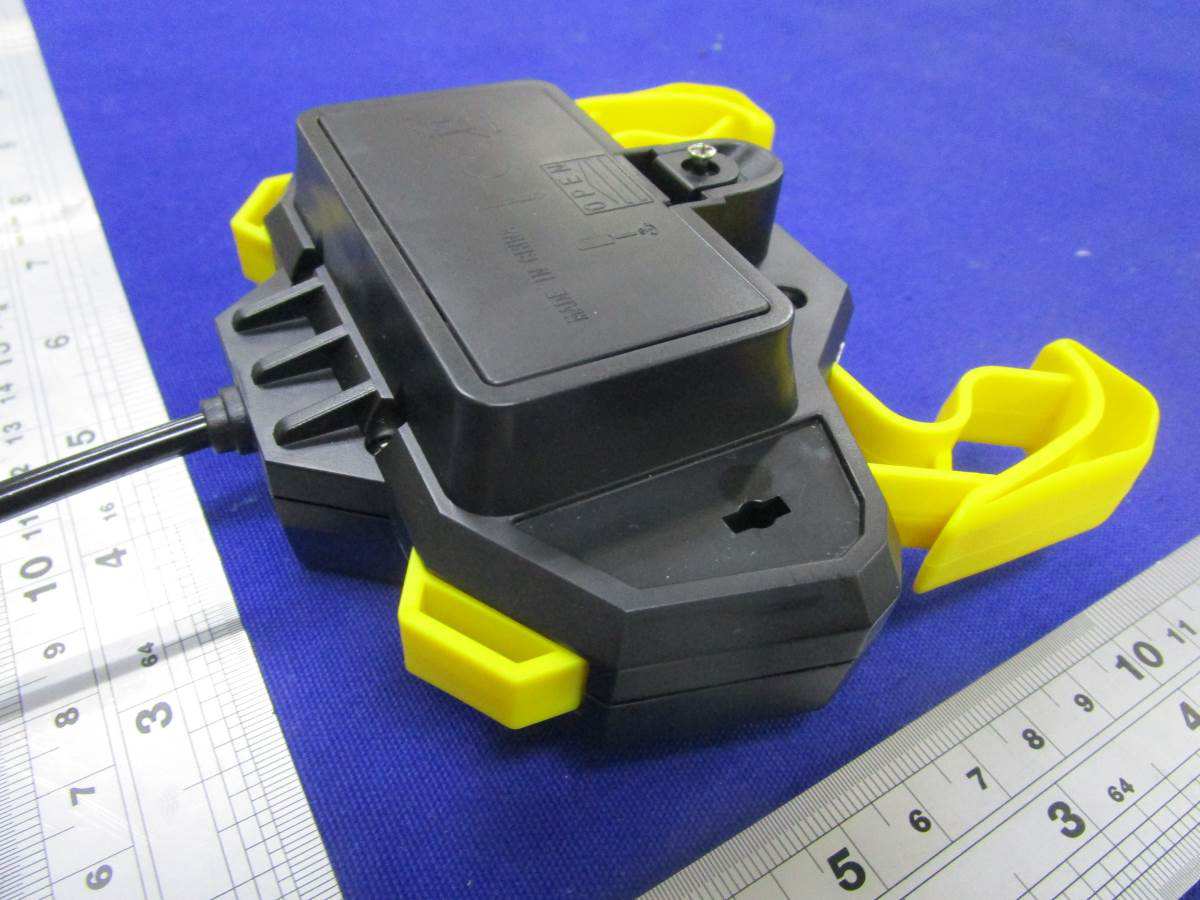

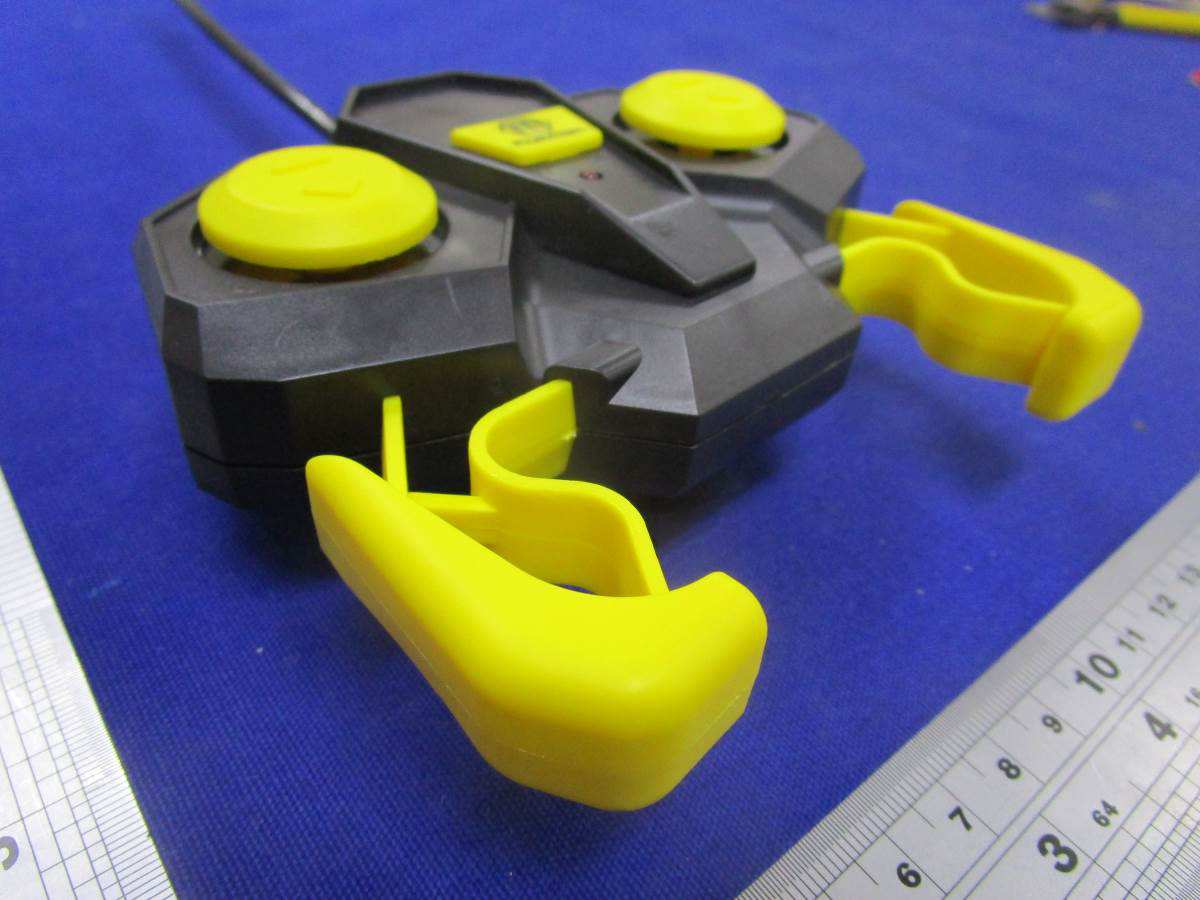

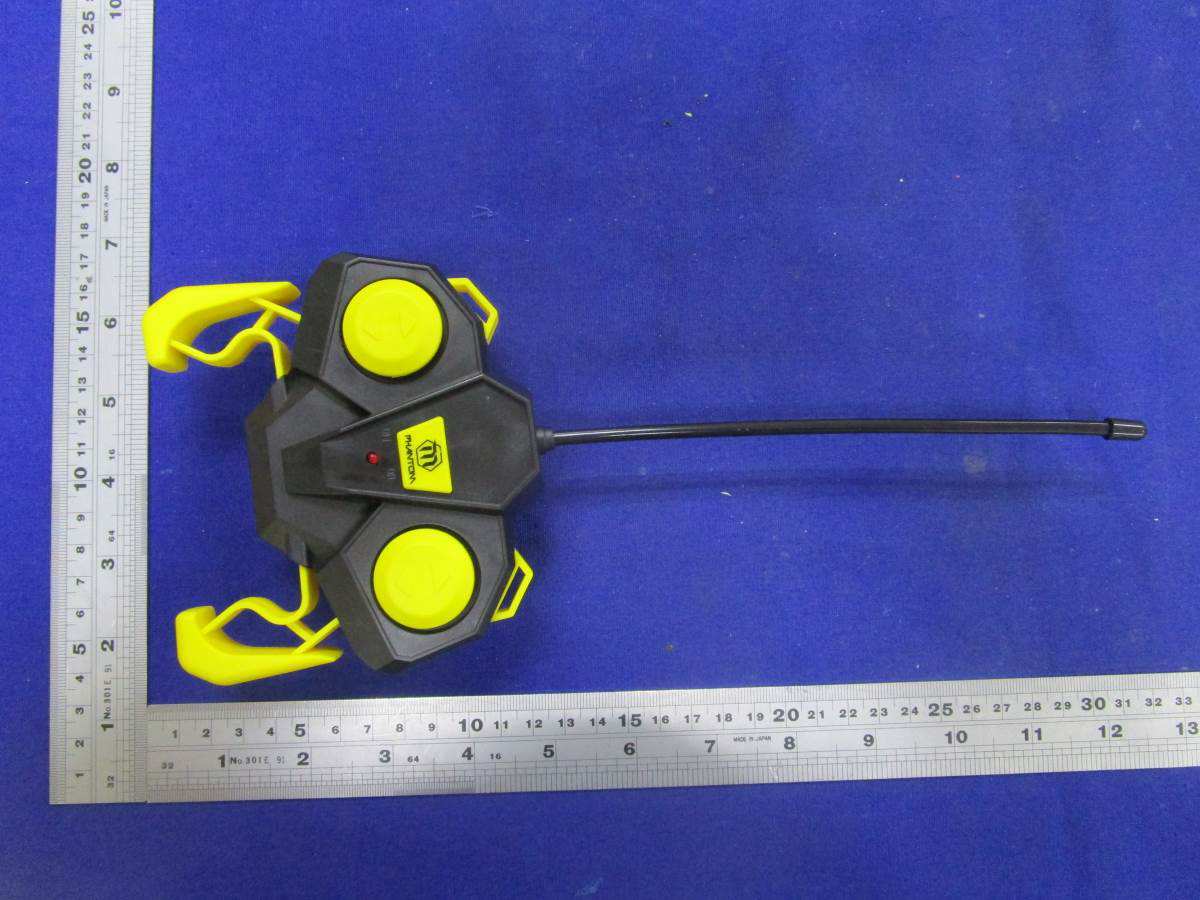

Page 1 of 2 EXTERNAL PHOTOS Page 2 of 2

Page 1 of 1 Label Artwork and Location 4mm 29mm SIZE: 29mm (W) x 4mm (H) FCC ID : 2AWTCDC097

Page 1 of 2 INTERNAL PHOTOS Page 2 of 2

1 INTERTEK TESTING SERVICES Analysis Report The equipment under test (EUT) is a transmitter for a Remote control car operating at 27.145 MHz which is controlled by a crystal. The EUT is powered by two 1.5V AA batteries. For more detail information pls. refer to the user manual. Antenna Type: integral antenna Antenna Gain: 0dBi Modulation Type: Pulse modulation The nominal conducted output power specified: -23.0dBm (+/- 3dB) The nominal radiated output power (e.r.p) specified: -25.15dBm (+/- 3dB) According to the KDB 447498: T he worst-case peak radiated emission for the EUT is 72.0dBuV/m at 3m in the frequency 27.145MHz The EIRP = [(FS*D) ^2 / 30] mW= -23.23dBm The ERP = EIRP – 2.15 = -25.38dBm which is within the production variation. The maximun conducted output power specified is -20.0dBm = 0.0100mW The source- based time-averaging conducted output power = 0.0100* Duty Cycle mW < 0.0100mW (Duty Cycle<100%) The SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = 474 * [1 + log(100/f(MHz)]/2 = 371.2 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. Transmitter Duty Cycle Calculation The duration of one cycle = 18.4783ms Effective period of the cycle 1.5217ms x 4 + 507.2μs x 10 = 11.1588ms DC =11.1588 ms / 18.4783ms =0.6039 or 60.39% FCC ID: 2AWTCDC097
