2AWTN-LY-825wireless microphone

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Warning: changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment The devices has been evaluated to meet general RF exposure requirementˈ the device can be used in portable exposure condition with restriction

Model difference declaration letter Differences Description We Enping Jes Audio Co.,Ltd state: Product： wireless microphone Model Name： LY-825, LY2D, LY3D, LY6D, LY8D, LY20, LY40D, LY-810D, LY-812, LY-802D, LY-816D, LY-817, LY-823D, LY-819D, LY-824D, LY-828, LY829, TH00, TH01L, TH02L, TH26, TH29, TH30, TB08, TB09, TB07, LY-40T The above product with same circuit, PCB layout, electrical parts, materials and wiring structures, Appearance shape, the materials of decorative accessories is same, only different color, Signatory Date: 2020-07-02 Signature Name: Xueying Zhang Title: CEO Company: Enping Jes Audio Co.,Ltd Address: No.A6-1,The Second District, Jiangmen Industrial Transfer Industrial Park, Enping City, Guangdong, China

Enping Jes Audio Co.,Ltd (July 02. 2020) MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR EUT: wireless microphone Model: LY-825, LY2D, LY3D, LY6D, LY8D, LY20, LY40D, LY-810D, LY-812, LY- 802D, LY-816D, LY-817, LY-823D, LY-819D, LY-824D, LY-828, LY829, TH00, TH01L, TH02L, TH26, TH29, TH30, TB08, TB09, TB07, LY-40T FCC ID: To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the -Schematic -Block diagram -Operation description required to be submitted with this application be permanently withheld from public review. the above documents are company proprietary information that could never get into the possession of your competition). Please contact me if there is any information you may need. Sincerely, Signature Name: Xueying Zhang Title: CEO Company: Enping Jes Audio Co.,Ltd Address: No.A6-1,The Second District, Jiangmen Industrial Transfer Industrial Park, Enping City, Guangdong, China

Enping Jes Audio Co.,Ltd (July 02. 2020) Eurofins MET Labs 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Flux Compliance Service Laboratory to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature Name: Xueying Zhang Title: CEO Company: Enping Jes Audio Co.,Ltd Address: No.A6-1,The Second District, Jiangmen Industrial Transfer Industrial Park, Enping City, Guangdong, China

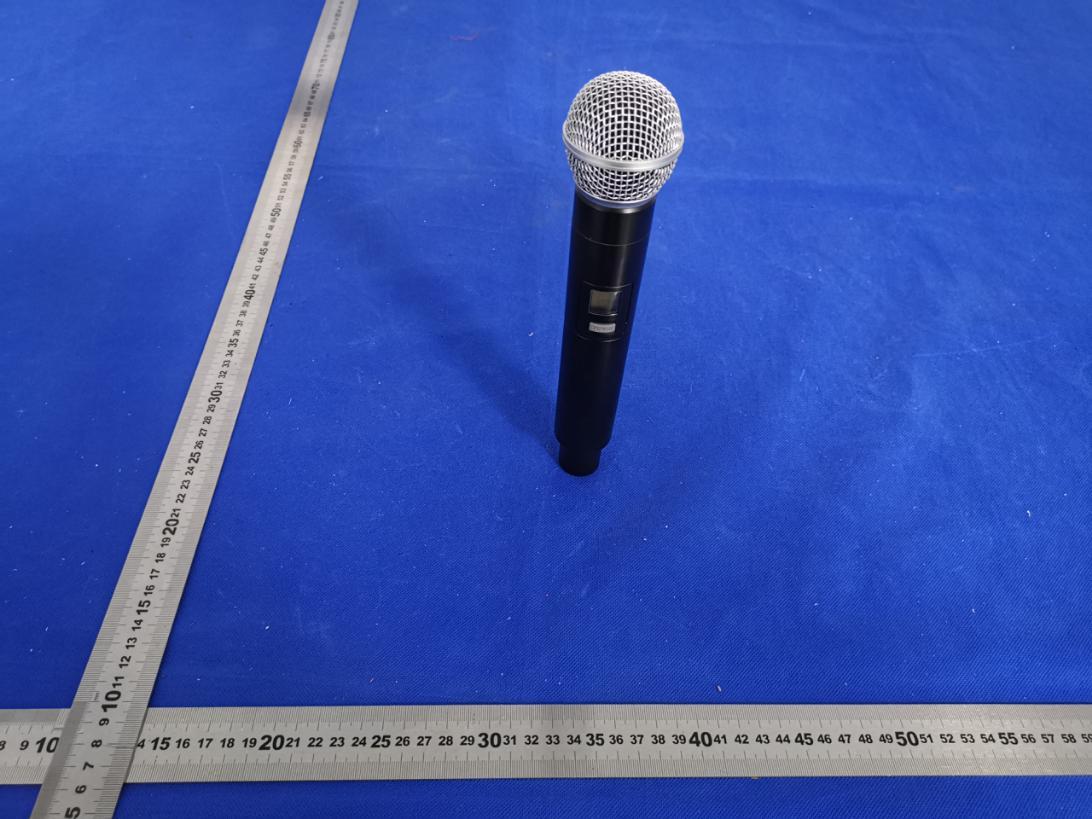

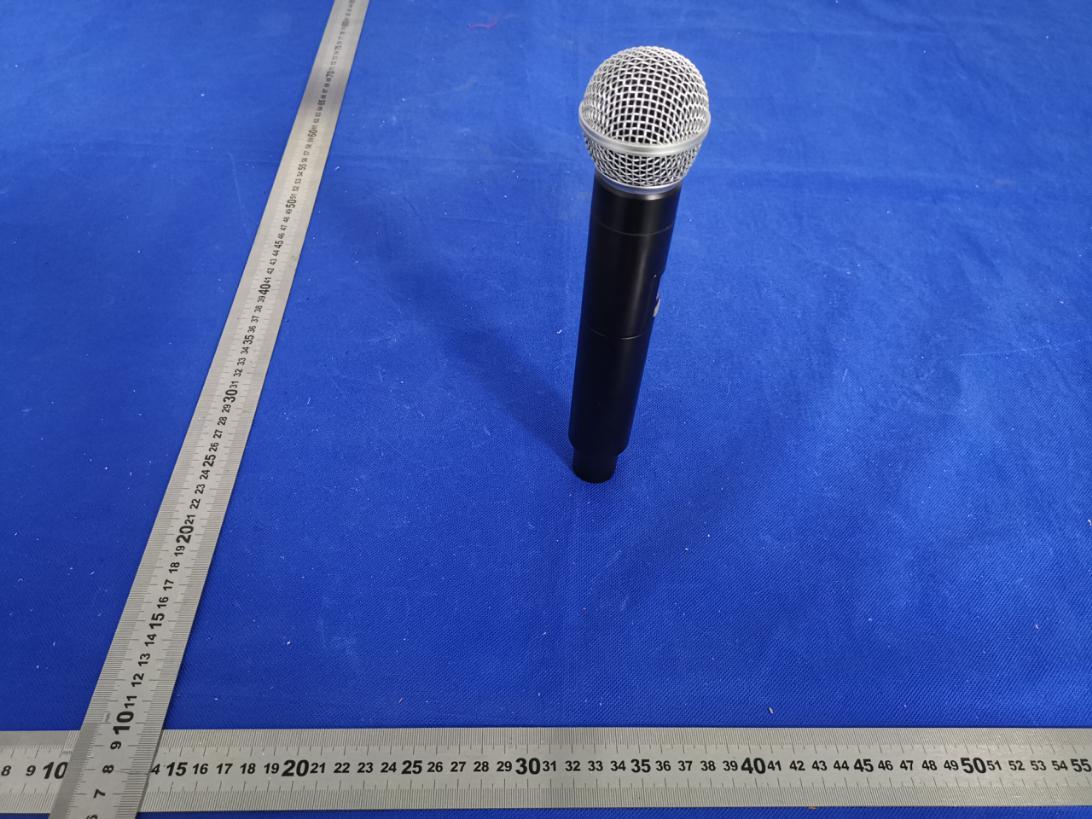

External photos Photo 1 Photo 2 Photo 3 Photo 4

Label and Label Location FCC ID: 2AWTN-LY-825 L*W: 15mm*6mm white font on a Black label

Internal photos Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Antenna Photo 7

FCC RF Exposure EUT Description: wireless microphone Model No.: LY-825, LY2D, LY3D, LY6D, LY8D, LY20, LY40D, LY-810D, LY-812, LY-802D, LY-816D, LY-817, LY-823D, LY-819D, LY-824D, LY-828, LY829, TH00, TH01L, TH02L, TH26, TH29, TH30, TB08, TB09, TB07, LY-40T FCC ID: 2AWTN-LY825 Equipment type: Portable Device 1. Test Procedure According to KDB 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)]·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. 2. Test Result of RF Exposure Evaluation Bluetooth CH/Frequency Output power（dBm/ mW） Channel A (512MHz- 526.7MHz) 7.250/5.31 Channel B (527MHz- 541.7MHz) 7.596/5.75 Turn-up power Mode Peak power range(dBm) wireless microphone 6.00-8.00 FCC exclusion condition as below: Channel A: [526.7 MHz, 7.25dBm/5.31mW) output power] (5.31mW /5mm) *[√0.5267(GHz)] =0.771<3.0 for 1-g SAR Conclusion: No SAR is required Channel B: [527.0 MHz, 7.596dBm/5.75mW) output power] (5.75mW /5mm) *[√0.527(GHz)] =0.835<3.0 for 1-g SAR Conclusion: No SAR is required

FCC RF Exposure Evaluation 1.Product Information FCC ID: 2AWTN-LY825 Product name wireless microphone Model number LY-825,LY2D, LY3D, LY6D, LY8D, LY20, LY40D, LY-810D, LY-812, LY-802D, LY-816D, LY-817, LY-823D, LY-819D, LY-824D, LY-828, LY829, TH00, TH01L, TH02L, TH26, TH29, TH30, TB08, TB09, TB07, LY-40T Power supply AA Battery*2 Modulation Type FM Antenna Type PCB Antenna Antenna Gain 1.0dBi Hardware version V1.0 Software version V1.0 Operation frequency Channel A: 512MHz~526.7MHz Channel B: 527MHz~541.7MHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Portable Device 2.Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: •f (GHz) is the RF channel transmit frequency in GHz •Power and distance are rounded to the nearest mW and mm before calculation •The result is rounded to one decimal place for comparison •3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. 3.Refer evaluation method ANSI C95.1–2019: IEEE Standard for Safety Levels with Respect to Human Exposure to Electric, Magnetic, and Electromagnetic Fields, 0 Hz to 300 GHz FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4.Conducted Power Results Test Mode Channel Frequency (MHz) Measured Maximum Peak Power(dBm) Limits (dBm) Verdict FM (Channel A) 01 512.0 6.216 24 PASS 26 519.5 6.679 50 526.7 7.250 FM (Channel B) 01 527.0 7.596 26 534.5 6.251 50 541.7 5.837 5.Manufacturing tolerance FM (Peak)-Channel A Channel Channel 01 Channel 26 Channel 50 Target (dBm) 7.0 7.0 7.0 Tolerance ±(dB) 1.0 1.0 1.0 FM (Peak)-Channel B Channel Channel 01 Channel 26 Channel 50 Target (dBm) 7.0 7.0 7.0 Tolerance ±(dB) 1.0 1.0 1.0 6.Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power SAR Test Exclusion Threshold SAR Test Exclusion dBm mW FM(Channel A) 0.5267 5 8.0 6.3 0.9144 < 3.0 Yes FM(Channel B) 0.5270 5 8.0 6.3 0.9146 < 3.0 Yes Remark: 1. Output power including tune up tolerance; 2. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 of KDB447498 is applied to determine SAR test exclusion. 7.Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06. .......................THE END OF REPORT.........................

FCC Test Report Report No: FCS202006009W01 Issued for Applicant: Enping Jes Audio Co.,Ltd Address: No.A6-1,The Second District, Jiangmen Industrial Transfer Industrial Park, Enping City, Guangdong, China Product Name: wireless microphone Brand Name: L&Y Model Name: LY-825 Series Model: LY2D, LY3D, LY6D, LY8D, LY20, LY40D, LY-810D, LY-812, LY-802D, LY-816D, LY-817, LY-823D, LY-819D, LY-824D, LY-828, LY829, TH00, TH01L, TH02L, TH26, TH29, TH30, TB08, TB09, TB07, LY-40T FCC ID: 2AWTN-LY825 Issued By: Flux Compliance Service Laboratory Add: Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.fcs-lab.com Page 2 of 38 Report No.:FCS202006009W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.fcs-lab.com TEST RESULT CERTIFICATION Applicant’s Name ................... : Enping Jes Audio Co.,Ltd Address .................................. : No.A6-1,The Second District, Jiangmen Industrial Transfer Industrial Park, Enping City, Guangdong, China Manufacture's Name .............. : Enping Jes Audio Co.,Ltd Address .................................. : No.A6-1,The Second District, Jiangmen Industrial Transfer Industrial Park, Enping City, Guangdong, China Product Description Product Name ........................ : wireless microphone Brand Name .......................... : L&Y Model Name ........................... : LY-825 Series Model........................... : LY2D, LY3D, LY6D, LY8D, LY20, LY40D, LY-810D, LY-812, LY-802D, LY-816D, LY-817, LY-823D, LY-819D, LY-824D, LY-828, LY829, TH00, TH01L, TH02L, TH26, TH29, TH30, TB08, TB09, TB07, LY-40T Test Standards ....................... : FCC Rules and Regulations Part 15 Subpart C section 15.236 Test Procedure ....................... : ANSI C63.10:2013 This device described above has been tested FCS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of FCS, this document may be altered or revised by FCS, personal only, and shall be noted in the revision of the document.. Date of Test ................................. : Date (s) of performance of tests : 15 Jun. 2020 ~ 28 Jun. 2020 Date of Issue ............................... : 28 Jun. 2020 Test Result ................................... : Pass Tested by : (Chris Chen) Reviewed by : (Jack Chen) Approved by : ( Andy yue) Page 3 of 38 Report No.:FCS202006009W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.fcs-lab.com Table of Contents Page 1. SUMMARY OF TEST RESULTS 5 1.1 TEST FACTORY 6 1.2 MEASUREMENT UNCERTAINTY 6 2. GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF THE EUT 7 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 11 2.4 EQUIPMENTS LIST 12 3 MAXIMUM RADIATED POWER 13 3.1 LIMIT 13 3.3 TEST SETUP 13 3.4 TEST RESULTS 13 4. OCCUPIED BANDWIDTH 16 4.1 LIMIT 16 4.2 TEST PROCEDURE 16 .4.3 TEST SETUP 16 4.4 TEST RESULTS 17 5 NECESSARY BANDWITH 20 5.1 LIMIT 20 5.2 TEST PROCEDURE 20 5.3 TEST SETUP 20 6. TRANSMITTER UNWANTED EMISSIONS 23 6.1 LIMIT 23 5.2 TEST PROCEDURE 23 5.3 TEST SETUP 23 6.4 TEST RESULTS 24 7. FREQUENCY STABILITY 32 7.1 LIMIT 32 7.2 TEST PROCEDURE 32 7.3 TEST SETUP 32 7.4 TEST RESULTS 33 Page 4 of 38 Report No.:FCS202006009W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.fcs-lab.com Revision History Rev. Issue Date Effect Page Contents 00 28 Jun. 2020 All Initial Issue Page 5 of 38 Report No.:FCS202006009W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.fcs-lab.com 1. SUMMARY OF TEST RESULTS FCC Part 15 Subpart C section 15.236 Standard Section Test Item Judgment Remark FCC Part 15.236(d) Maximum Radiated Power PASS -- FCC Part 15.236(f)(2) Occupied Bandwidth PASS -- FCC Part 15.236(g) Necessary bandwidth PASS -- FCC Part 15.236(f)(3) Frequency stability PASS -- FCC Part 15.236(g) Emission within the band and outside this band PASS -- FCC Part 207(a) Conducted Emission NA -- NOTE: (1)” N/A” denotes test is not applicable in this Test Report (2) All tests are according to ANSI C63.10:2013 Page 6 of 38 Report No.:FCS202006009W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.fcs-lab.com 1.1 TEST FACTORY Company Name: Flux Compliance Service Laboratory Address: Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Telephone: +86-769-27280901 Fax: +86-769-27280901 FCC Test Firm Registration Number: 514908 Designation number: CN0127 A2LA accreditation number：5545.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.71dB 2 Unwanted Emissions, conducted ±2.98 dB 3 Conducted Emission (9KHz-150KHz) ±4.13 dB 4 Conducted Emission (150KHz-30MHz) ±4.74 dB 5 All emissions,radiated(<1G) 30MHz-1000MHz ±3.2 dB 6 All emissions,radiated (1GHz -18GHz) ±3.66 dB 7 All emissions,radiated (18GHz -40GHz) ±4.31 dB Page 7 of 38 Report No.:FCS202006…

Text truncated - open the document above for the full version.

Blow 1GHz for radiated emission test setup Above 1GHz for radiated emission test setup
