2AWTO-2299TOY CAR MUSIC PLAYER

2299 Bluetooth Player feature description 1. Basic parameters of 2299 Bluetooth player ★Voltage range: 6V-13.5V ★Working current: 20MA-500mA ★Bluetooth reception distance: about 7 meters 2. 2299 Bluetooth player main functions A. It has the functions of U disk, Flash, AUX input and regular lights B. Definition of buttons: speaker/light, song, play pause/Bluetooth mode conversion C. Lighting control function 3, operation instructions A.storybutton: Short press this button in Flash mode is the function to play story content; short press this button in Bluetooth /U disk mode is the previous function; long press this button is the function to reduce the volume B. Play Pause/Bluetooth mode conversion button: Short press this button to play pause, long press this button to play Bluetooth mode conversion switch C. Music button: Short press this button in Flash mode is the function to play music content; short press this button in Bluetooth /U disk mode is the next function; long press this button is the function to increase volume D. Horn/light button: Short press this button to sound the horn, long press this button to control the light switch 4. Bluetooth connection method A. Long press the Pause/Bluetooth mode conversion button and hear the sound of "ding" to enter Bluetooth mode B. Open the bluetooth function of the mobile phone in the setting and selection of the mobile phone to search the Bluetooth of "HONGHUI" and manually click the pairing connection C. When you hear "ding Dong", it means that the Bluetooth has been successfully connected. Then you can play the music in the mobile phone through bluetooth FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interf erence in a residential in stallation. This equipment generates uses and ca n radiate radio frequency energy and, if not in stalled and used in accordance with the in structions, may cause harmful interf erence to radio communica tio ns. However, there is no guarantee that inter ference will not occur in a particular in stallation. If this equipment does cause harmful interf erence to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to corr ect the interference by one or more of the following measures: ‐‐ Reori ent or relocate the receiving antenna. ‐‐ Increase the separation between the equipment and receiver. ‐‐Connect the equipment into an outlet on a circuit different from that to which th e receiver is connected. ‐‐ Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to th e following two conditions: (1) This device may not ca use harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirement.

Zhengzhou Honghui Electronic Manufacture Co.,Ltd Agent Authorization Company: Zhengzhou Honghui Electronic Manufacture Co.,Ltd Address:No.20,4/F,Building 1,No36,Hongsong Road, High-tech Zone, Zhengzhou, China Product Name: TOY CAR MUSIC PLAYER Model Number(s ): 2299, T1, S1, D7, T3, 6188, 1200, T2, T7, G8 Product Description: TOY CAR MUSIC PLAYER We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Nov. 03, 2020 Name: Jack Wang Title: Manager Company: Zhengzhou Honghui Electronic Manufacture Co.,Ltd

Zhengzhou Honghui Electronic Manufacture Co.,Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Nov. 03, 2020 Subject; Request for Confidentiality FCC ID: 2AWTO-2299 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Jack Wang Title: Manager

Model Difference Declaration To Whom It May Concern, We, Zhengzhou Honghui Electronic Manufacture Co.,Ltd(TOY CAR MUSIC PLAYER) Trademark:N/A; Model Number: 2299, T1, S1, D7, T3, 6188, 1200, T2, T7, G8; All model’s the function, software and electric circuit are the same, only with a product color and model named different for commercial purpose. Test sample model: 2299 . Please contact me if you have any question. Name: Jack Wang Date: Nov. 03, 2020 Title: Manager Signature of applicant:

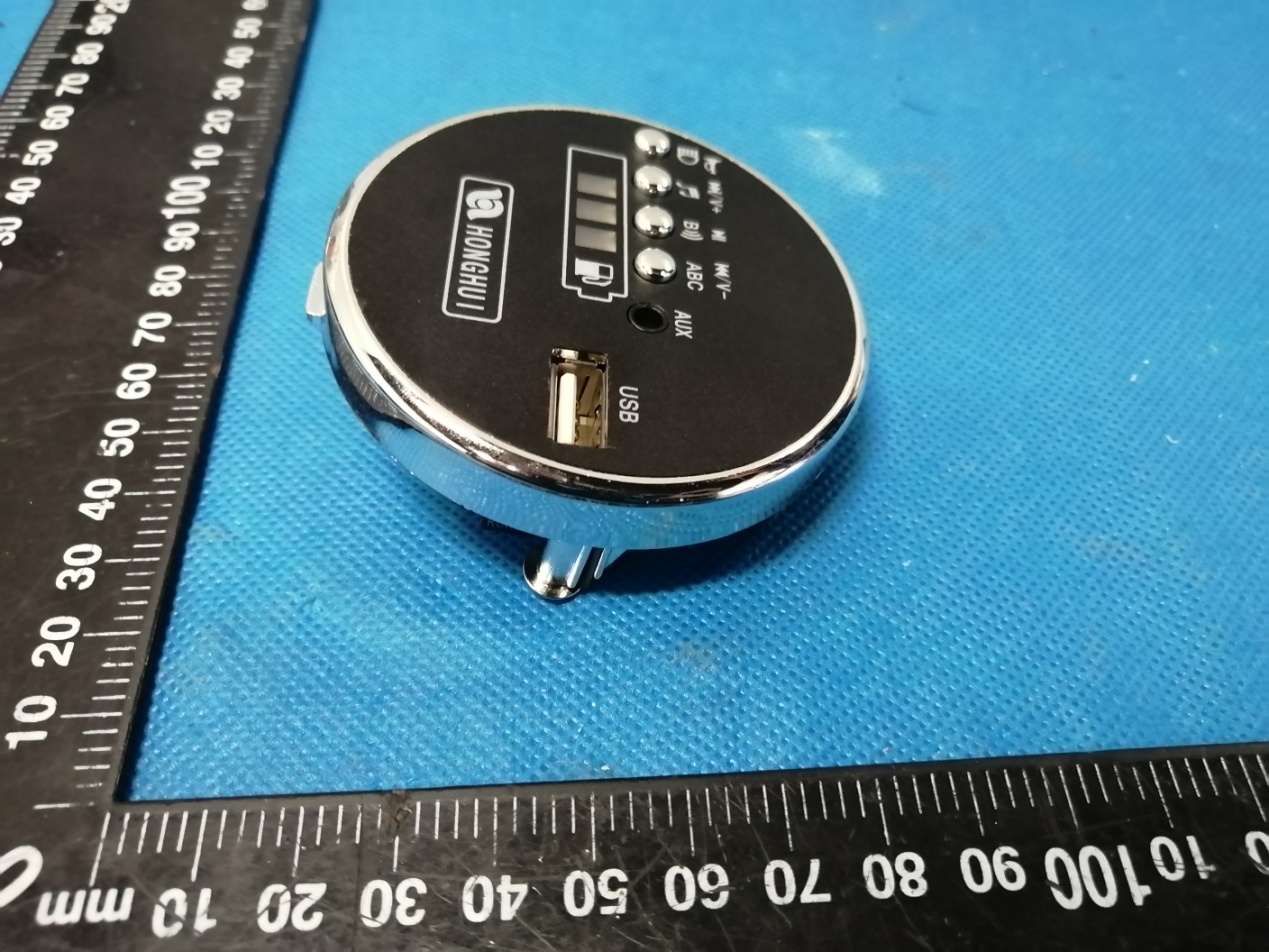

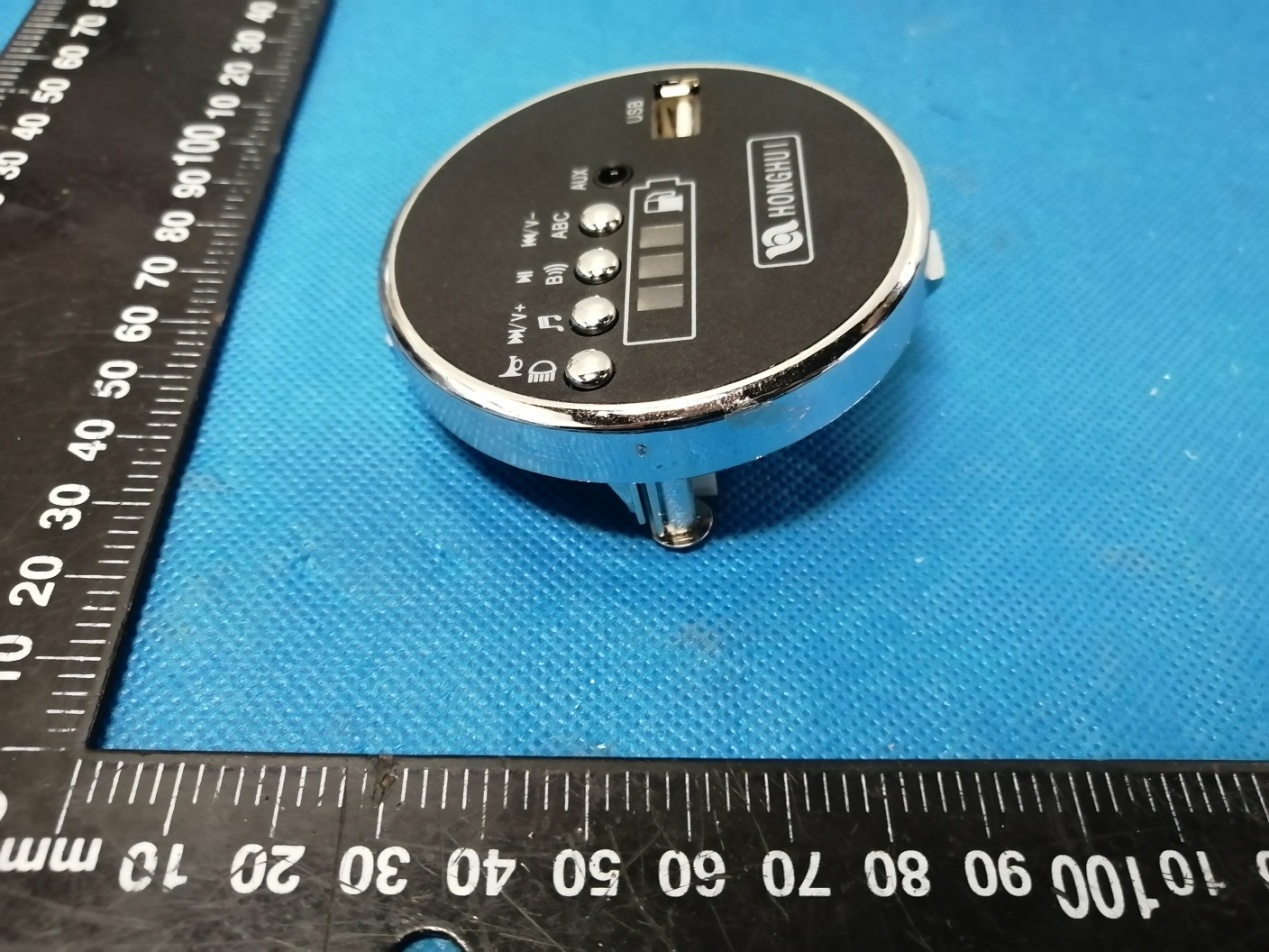

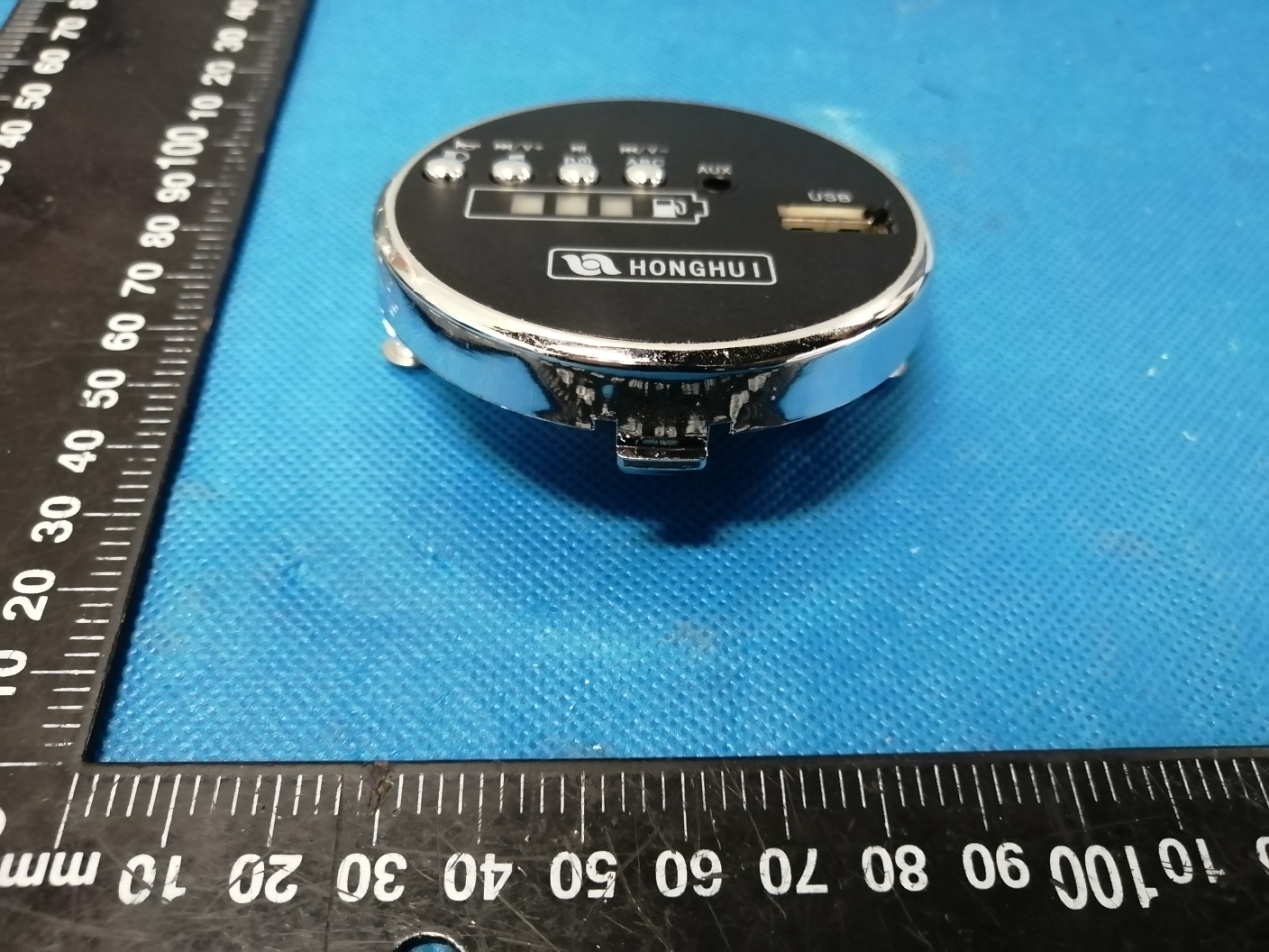

Annex A External Photos Report No.: HK2010213164-E Page 1 of 3 Report No.: HK2010213164-E Page 2 of 3 Report No.: HK2010213164-E Page 3 of 3

FCC ID LABEL: Ca. 5mm x 10mm Include in manual: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label Location FCC ID: 2AWTO-2299

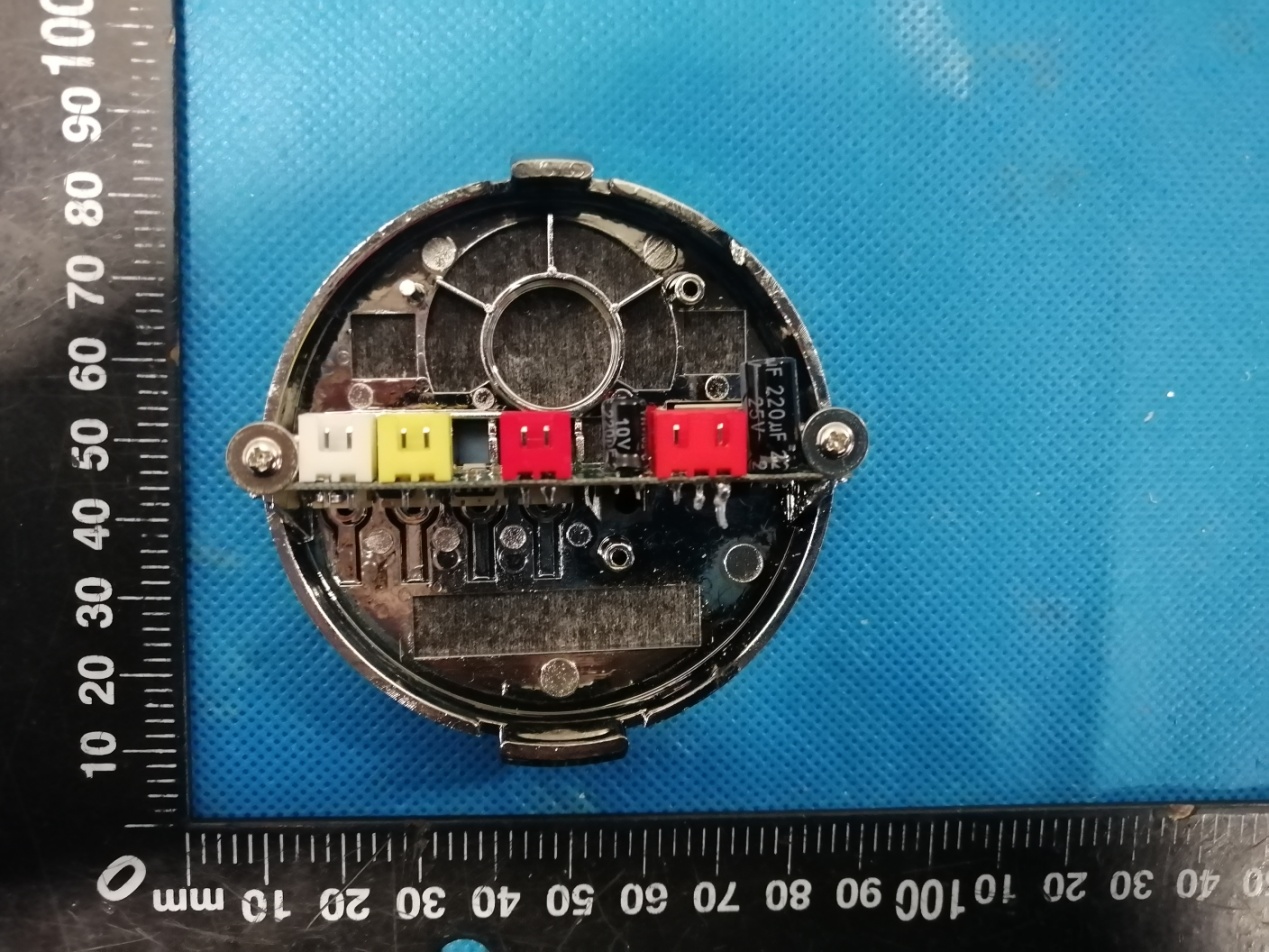

Annex B Internal Photos Report No.: HK2010213164-E Page 1 of 3 BT Antenna Report No.: HK2010213164-E Page 2 of 3

FCC RF Exposure EUT Description: TOY CAR MUSIC PLAYER Model No.: 2299 FCC ID: 2AWTO-2299 1. Limits According to KDB 447498 D01 General RF Exposure Guidance v06 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)]·[√ f(GHz)]≤3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, Where: Result=P/D*√F F= the RF channel transmit frequency in GHz P=Maximum turn‐up power in mw D=Min. test separation distance in mm 2. Test Result of RF Exposure Evaluation BT Frequency (MHz) Output power （dBm） Tune Up Power （dBm） Max Tune Up power dBm/mW Min test separati on distance mm Result Limit (mW/cm 2 ) S A R Te s t Exclusion 2480 -6.221 -6±1 -5 /0.32 5 0.1008 3.0 Pass Note: PK Output power= conducted power. Conducted power see the test report HK2010213164-E, antenna gain=-0.58dBi Per KDB 447498 D01, when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine RF Exposure test exclusion. The test exclusion threshold is 0.1008 which is<= 3, RF Exposure testing is not required. Note: Exclusion Thresholds Results=[(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f (GHz)] f(GHz) is the RF channel transmit frequency in GHz Distance=5mm

Page 1 of 43 Report No.: HK2010213164-E TEST REPORT FCC PART 15 SUBPART C 15.247 Test report On Behalf of Zhengzhou Honghui Electronic Manufacture Co.,Ltd For TOY CAR MUSIC PLAYER Model No.: 2299, T1, S1, D7, T3, 6188, 1200, T2, T7, G8 FCC ID: 2AWTO-2299 Prepared for : Zhengzhou Honghui Electronic Manufacture Co.,Ltd No.20,4/F,Building 1,No36,Hongsong Road, High-tech Zone, Zhengzhou, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China Date of Test: Oct. 23, 2020 ~ Oct. 30, 2020 Date of Report: Oct. 30, 2020 Report Number: HK2010213164-E Page 2 of 43 Report No.: HK2010213164-E TEST RESULT CERTIFICATION Applicant’s name ................. : Zhengzhou Honghui Electronic Manufacture Co.,Ltd Address ................................. : No.20,4/F,Building 1,No36,Hongsong Road, High-tech Zone, Zhengzhou, China Manufacture's Name ............ : Zhengzhou Honghui Electronic Manufacture Co.,Ltd Address ................................. : No.20,4/F,Building 1,No36,Hongsong Road, High-tech Zone, Zhengzhou, China Product description Trade Mark: N/A Product name ........................... : TOY CAR MUSIC PLAYER Model and/or type reference : 2299, T1, S1, D7, T3, 6188, 1200, T2, T7, G8 Standards ............................. : 47 CFR FCC Part 15 Subpart C 15.247 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests ............. : Oct. 23, 2020 ~ Oct. 30, 2020 Date of Issue ........................................... : Oct. 30, 2020 Test Result ............................................... : Pass Prepared by: Project Engineer Reviewed by: Project Supervisor Approved by: Technical Director Page 3 of 43 Report No.: HK2010213164-E Table of Contents Page 1. SUMMARY............................................................................................................................................................ 5 1.1. TEST STANDARDS ..................................................................................................................................................... 5 1.2. TEST DESCRIPTION ........................................................................................................................................................ 5 1.3. TEST FACILITY .............................................................................................................................................................. 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. GENERAL INFORMATION ....................................................................................................................................... 7 2.1. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 7 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 7 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 8 2.4. EQUIPMENTS USED DURING THE TEST .............................................................................................................................. 9 2.5. RELATED SUBMITTAL(S) / GRANT (S) .............................................................................................................................. 10 2.6. MODIFICATIONS ......................................................................................................................................................... 10 2.7. DESCRIPTION OF TEST SETUP ................................................................................................................................ 10 3. TEST CONDITIONS AND RESULTS ......................................................................................................................... 11 3.1. CONDUCTED EMISSIONS TEST ....................................................................................................................................... 11 3.2. RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 13 3.3. MAXIMUM PEAK CONDUCTED OUTPUT POWER ............................................................................................................... 24 3.4. 20DB BANDWIDTH ..................................................................................................................................................... 25 3.5. FREQUENCY SEPARATION ............................................................................................................................................. 28 3.6. NUMBER OF HOPPING FREQUENCY ................................................................................................................................. 30 3.7. TIME OF OCCUPANCY (DWELL TIME) .............................................................................................................................. 32 3.8. OUT‐OF‐BAND EMISSIONS ............................................................................................................................................ 35 3.9. PSEUDORANDOM FREQUENCY HOPPING SEQUENCE ..........................…

Text truncated - open the document above for the full version.

Test Model：2299 Radiated Emission
