2AWUN707559BRSBrookstone Aviator (Tri-Legged) RC Drone

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Innovative Designs, LLC Agent Authorization Company: Innovative Designs, LLC Address: 132 West 36th Street, Suite 800,New York,NY,10018,United States Product Name: Brookstone Aviator (Tri-Legged) RC Drone Model Number(s): 707559BRS Product Description: Brookstone Aviator (Tri-Legged) RC Drone We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-08-11 Name: Mary Anderson Company: Innovative Designs, LLC

Innovative Designs, LLC Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-08-11 Subject; Request for Confidentiality FCC ID: 2AWUN707559BRS To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely Innovative Designs, LLC Contact person: Mary Anderson

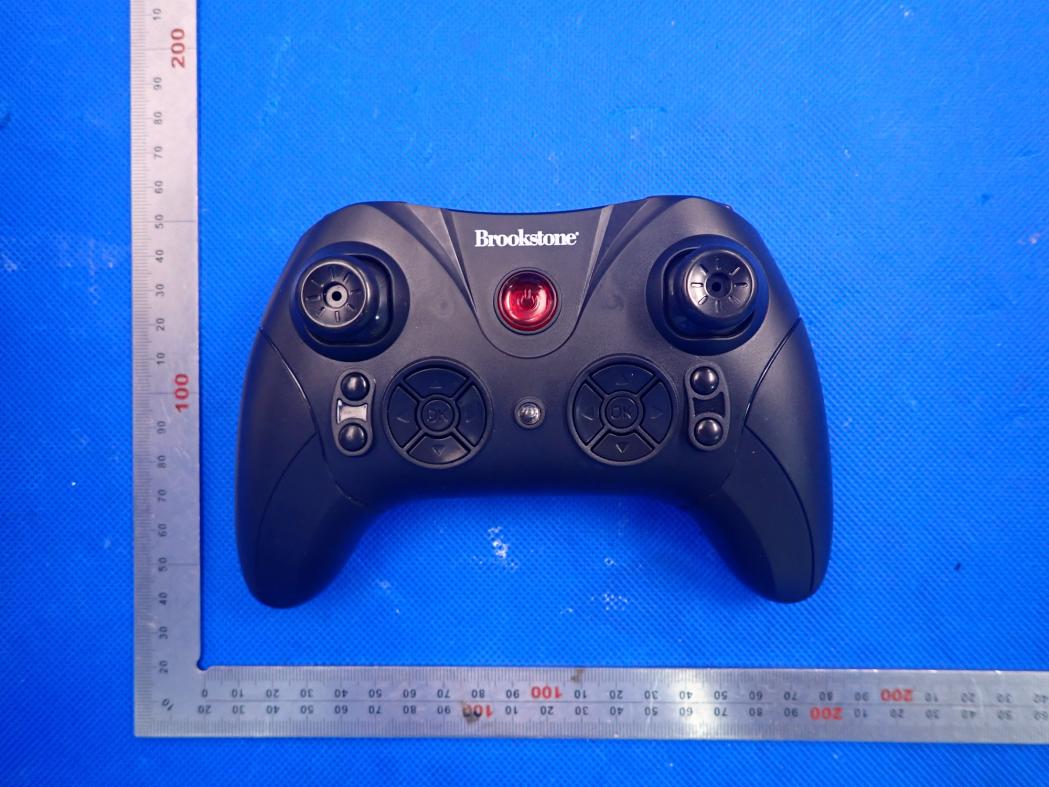

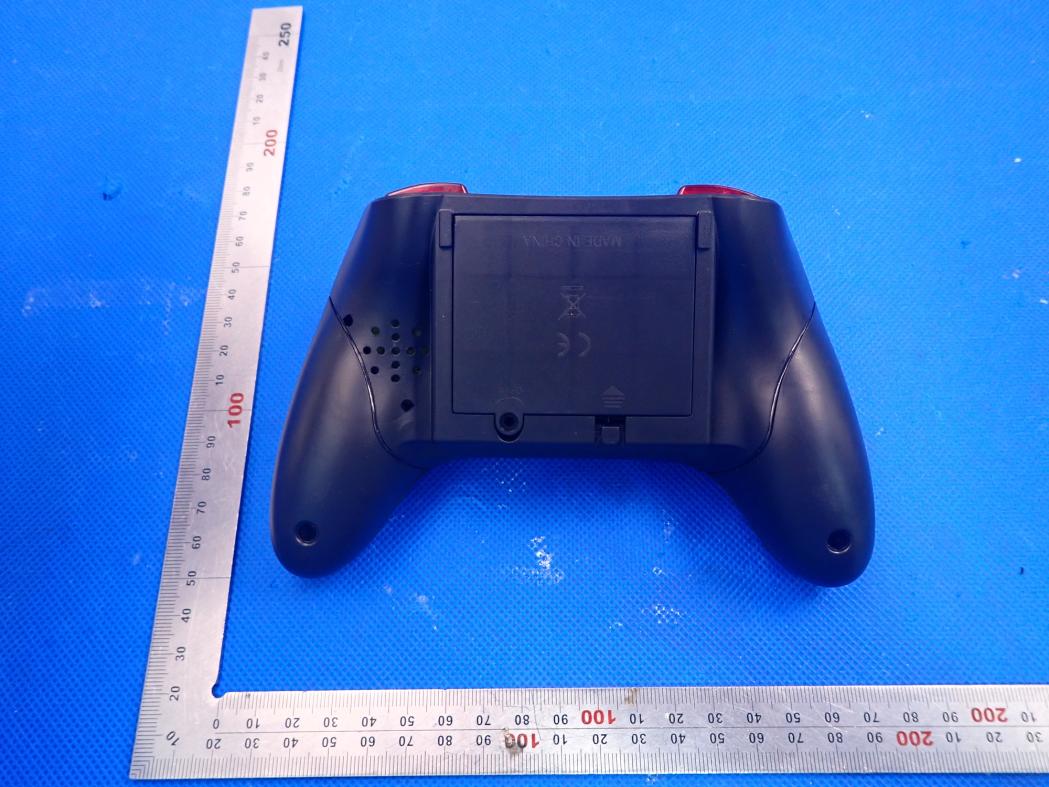

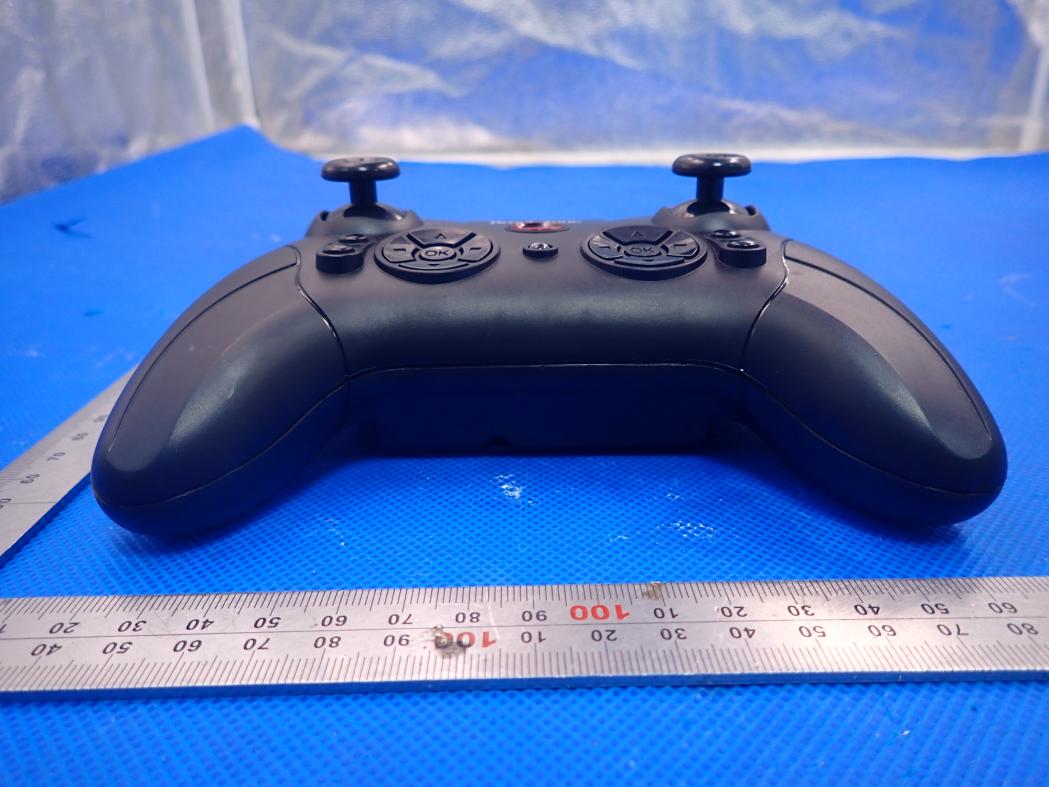

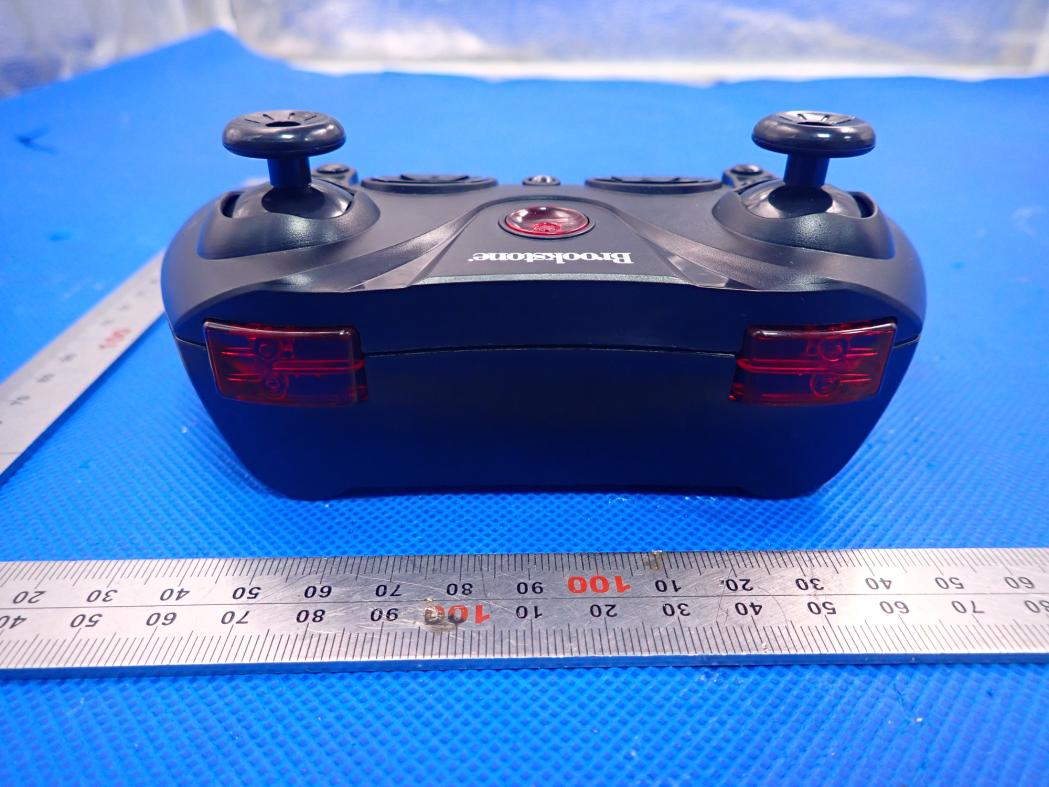

External Photos ALL VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location FCC ID: 2AWUN707559BRS

Internal Photos OPEN VIEW OF EUT-1 OPEN VIEW OF EUT-2 INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 Antenna

Page 1 of 35 FCC Test Report Report No.: AGC08279200701FE03 FCC ID : 2AWUN707559BRS APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Brookstone Aviator (Tri-Legged) RC Drone BRAND NAME : N/A MODEL NAME : 707559BRS APPLICANT : Innovative Designs, LLC DATE OF ISSUE : Jul. 31, 2020 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC02955200602FE03 Page 2 of 35 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jul. 31, 2020 Valid Initial Release Report No.: AGC02955200602FE03 Page 3 of 35 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY .................................................................................................................. 4 2. GENERAL INFORMATION .............................................................................................................................. 5 2.1. PRODUCT DESCRIPTION ........................................................................................................................ 5 2.2. TABLE OF CARRIER FREQUENCY .......................................................................................................... 5 4. DESCRIPTION OF TEST MODES ................................................................................................................... 7 5. SYSTEM TEST CONFIGURATION .................................................................................................................. 8 5.1. CONFIGURATION OF EUT SYSTEM ........................................................................................................ 8 5.2 EQUIPMENT USED IN TESTED SYSTEM ................................................................................................. 8 5.3. SUMMARY OF TEST RESULTS ................................................................................................................ 8 6. TEST FACILITY ................................................................................................................................................ 9 7. RADIATED EMISSION ................................................................................................................................... 10 7.1TEST LIMIT ................................................................................................................................................ 10 7.2. MEASUREMENT PROCEDURE ............................................................................................................. 11 7.3. TEST SETUP............................................................................................................................................ 13 7.4. TEST RESULT .......................................................................................................................................... 14 8. BAND EDGE EMISSION ................................................................................................................................ 20 8.1. MEASUREMENT PROCEDURE ............................................................................................................. 20 8.2 TEST SETUP............................................................................................................................................. 20 8.3 RADIATED TEST RESULT ........................................................................................................................ 20 9. 20DB BANDWIDTH ........................................................................................................................................ 25 9.1. MEASUREMENT PROCEDURE ............................................................................................................. 25 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 25 9.3. MEASUREMENT RESULTS .................................................................................................................... 26 APPENDIX A: PHOTOGRAPHS OF TEST SETUP .......................................................................................... 28 APPENDIX B: PHOTOGRAPHS OF THE EUT ................................................................................................. 29 Report No.: AGC02955200602FE03 Page 4 of 35 1. VERIFICATION OF CONFORMITY Applicant Innovative Designs, LLC Address 132 West 36th Street, Suite 800, New York, NY 10018, Unite States Manufacturer ZHI LE XING TOYS FACTORY Address Chenghai district, Shantou city, Guangdong province Factory ZHI LE XING TOYS FACTORY Address Chenghai district, Shantou city, Guangdong province Product Designation Brookstone Aviator (Tri-Legged) RC Drone Brand Name N/A Test Model 707559BRS Date of test Jul. 20, 2020 to Jul. 31, 2020 Deviation None Condition of Test Sample Normal Test Result Pass Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Attestation of Global Compliance (Shenzhen) Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC Rules Part 15.249. Prepared By Erik Yang (Project Engineer) Jul. 31, 2020 Reviewed By Max Zhang (Reviewer) Jul. 31, 2020 Approved By Forrest Lei (Authorized Officer) Jul. 31, 2020 Report No.: AGC02955200602FE03 Page 5 of 35 2. GENERAL INFORMATION 2.1. PRODUCT DESCRIPTION A major technical description of EUT is described as following Operation Frequency 2.430GHz - 2.478GHz Maximum field strength 98.16dBuV/m(peak)@3m 88.51dBuV/m(Average)@3m Modulation GFSK Number of channels 48 Antenna Gain 0dBi A…

Text truncated - open the document above for the full version.

Test Setup Photos FCC RADIATED EMISSION TEST SETUP BELOW 1GHZ FCC RADIATED EMISSION TEST SETUP ABOVE 1GHZ
