1 QB11-W Wireless Button Install Guide 2 Version V1.0 20260227 (V1.0 published 20260227) Firmware Firmware version can be verified on Verkada Command command.verkada.com. Product Models This install guide pertains to model QB11-W-HW. Document Details Document © Copyright 2026 Verkada Inc. All rights reserved. Verkada and the Verkada logo are registered trademarks or service marks of Verkada Inc. (“Verkada”). All other trademarks are the property of their respective owners. Verkada may make changes to this document at any time without notice. The information presented herein may be inaccurate or outdated, and Verkada is under no obligation to maintain it. ALL INFORMATION IS PROVIDED “AS-IS” AND WITHOUT ANY WARRANTIES, IMPLIED, EXPRESS, OR OTHERWISE. VERKADA DISCLAIMS LIABILITY FOR ALL DAMAGES, INCLUDING WITHOUT LIMITATION ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL, PUNITIVE, OR CONSEQUENTIAL DAMAGES, ARISING OUT OF USE OF THIS DOCUMENT. Any intellectual property rights relating to Verkada products are and shall remain Verkada’s exclusive property. Use of any Verkada product is subject to Verkada’s end user agreement or other executed agreement with Verkada. No license, either expressed or implied, to use or distribute any Verkada product is granted under this document. This document may not be sold, resold, licensed or sublicensed and may not be transferred without Verkada’s prior written consent. No part of this document may be reproduced in whole or in part without the express written consent of Verkada. 3 What’s in the Box Introduction What you’ll need ●Verkada VLink Hub ●A smartphone or laptop ●A working internet connection ●1/8 inch (3.2mm) drill bit for pilot holes ●#2 Phillips head screwdriver/driver bit ●Two L91 AA Batteries (included) Connect For easy registration and setup, scan the QR code on the product. If you prefer to manually register your product, please proceed to: verkada.com/start ButtonMount Plate (Attached to device) Mounting Tape for Button Wall Anchors (4 pcs) T10 Security Torx L-Key L91 AA Batteries (2 pcs) Wood Screws (4 pcs) 4 Overview Introduction LED Behaviors Solid Green Button was pressed and signal was received by hub. Blinking Amber Button was pressed, but signal has not been received by hub. Blinking Red Button is low on battery. Button Security Screw Mount Plate Status LED (Glow Through) Blinking Green Button was pressed and signal was received by hub. Blinking Red Button was pressed, but signal has not been received by hub. Install Mode only To enable Install mode, power cycle the device by removing the battery. 5 Technical Specifications Introduction Battery 2x non-rechargeable Energizer Ultimate Lithium L91 AA batteries (included). *5-year typical battery life. ConnectivityVLink transceiver with internal antenna (863MHz - 928MHz). RF Range ≥ 2000ft (600m) open field line of sight range when paired with any of Verkada’s VLink capable hubs (ex: BP32, BP52, BK22, BE32, WH32, WH52). Tamper DetectionYes, breakaway tab. Dimensions2.8in (L) x 2.8in (W) x 1in (H) / 70mm (L) x 70mm (W) x 26.3mm (H) Weight3.3oz / 95g Operating Temp. & Humidity 32°F-122°F / 0°C-50°C, 0-90% RH non-condensing 6 Mounting Positions Introduction Above surface Below surface Side of surface 7 Preparation Use the provided T10 Security Torx L-key to unscrew the security screw at the bottom of the product. Installation Swing the front of the sensor body away from the mount plate and disengage the hook at the top of the sensor mount. 8 Preparation Installation Test-mount the sensor to the desired surface using the included mounting tape. Remove the sensor body from the mount plate, use a drill to make pilot holes, and screw the sensor mount plate into place. Note: Screw mounting using the bottom left screw hole is required for the tamper detection to function. Using only adhesive will prevent tamper detection from triggering properly. The equipment is only suitable for mounting at heights 2 m or less. 9 Preparation Remove the battery pull tabs. Installation Engage the hook at the top of the sensor mount and swing the sensor module into place. Use the provided T10 Security Torx L-key to secure the security screw in place. 10 Compliance FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. FCC Radiation Exposure Statement : This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Any changes or modifica…

Text truncated - open the document above for the full version.

Grantee also Agent for Service of Process_FCC_Attestation Statements_Kiwa Page 1 of 2 RF_754_01 09- 02- 2023 [PLACE ON APPLICANT/COMPANY LETTERHEAD] U.S. Agent Designation for Service of Process (Applicant is Both Grantee and U.S. Agent) TO: Kiwa Nederland B.V. Wilmersdorf 50 7327 AC Apeldoorn Postbus 137 7300 AC Apeldoorn Netherlands ATTENTION: FCC Certification – Section 2.911(d)(7) Information This letter is to confirm that the Applicant will also serve as the U.S. Agent for Service of Process as required by 47 CFR 2.911(d)(7). The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The Applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information changes. Applicant & Agent Company name: Verkada Inc FRN: 0025887894 Grantee Code: 2AWUU Contact person name: Joey Gomez Agent name: Verkada Inc Street address: 405 E 4th Ave ZIP/City/State San Mateo, CA 94401, United States Telephone number: (510) 603-3943 Email address: [email protected] Signature Contact person*: Joey Gomez Date: 2/13/2026 Signature Agent*: Joey Gomez Date: 2/13/2026 Note *Must be signed by both the applicant, and agent on behalf Grantee also Agent for Service of Process_FCC_Attestation Statements_Kiwa Page 2 of 2 RF_754_01 09-02-2023 [PLACE ON APPLICANT/COMPANY LETTERHEAD] Revision Record Sheet: Revision Section number Page number Date Remark(s) issued by 01 09-02-2023 1 st version RvM Issued/modified by : Richard van de Meer Function : Certification assessor Revision : 01 Date : 09-02-2023 Verified by : Willem Jan Jong Function : Team Lead Date : 09-02-2023 Released by : Axel Gase Function : Manager Quality Assurance Date of release: : 09-02-2023

Covered list attestation FCC application letter Kiwa Page 1 of 2 RF_755_03 06-06-2024 [PLACE COMPANY LOGO HERE OR PUT ON COMPANY LETTERHEAD] Certification Application Attestation Statements Verkada Inc 405 E 4th Ave San Mateo, CA 94401 United States Subject: FCC ID: <2AWUU60B5901> To Whom It May Concern: Statement for 47 CFR section 2.911(d)(5)(i) [Verkada Inc] certifies that as of the date of the application the equipment for which authorization is sought is not “covered” equipment 1 prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, including affiliates or subsidiaries of the named companies, the applicant must include an explanation on why the equipment is not “covered” equipment. Additional Explanation: [Verkada Inc] ("the applicant") certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a).” Statement for 47 CFR section 2.911(d)(5)(ii) [Verkada Inc] (“the applicant”) certifies that, as of the date of the filing of this application, the applicant - is / - is not (3) identified on the Covered List as an entity producing “covered” equipment. Date: 2/13/2026 City: San Mateo Name (2) : Joey Gomez Function: Engineering Program Manager - Compliance Telephone number: (510) 603-3943 Email address: [email protected] 1 - The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist . (2): For FCC it must be the Grantee Code “owner” or the authorized agent. (3): double click on the appropriate box and select ‘’checked” then “OK” Covered list attestation FCC application letter Kiwa Page 2 of 2 RF_755_03 06- 06-2024 [PLACE COMPANY LOGO HERE OR PUT ON COMPANY LETTERHEAD] Signature: Revision Record Sheet: Revision Section number Page number Date Remark(s) issued by 01 07- 02- 2023 1 st version RvM 02 1 15- 02- 2023 Changed Applicant to Company and added “Subject: FCC ID: “ RvdM 03 1 06- 06- 2024 FRN added at certification application and included [Insert Company Name Here] for the statements RvdM Issued/modified by : Richard van de Meer Function : Certification assessor Revision : 03 Date : 06- 06- 2024 Verified by : Willem Jan Jong Function : Team Lead Date : 06- 06- 2024 Released by : Axel Gase Function : Manager Quality Assurance Date of release: : 06- 06- 2024

Declaration of Authorization We Name: Verkada Inc Address: 405 E 4th Ave City: San Mateo, CA 94401 Country: United States Declare that: Name Representative of agent: Daphne Liang (1) Agent Company name: SGS Compliance Certification Services Inc. Address: No. 168, Ln. 523, Sec. 3, Zhongzheng Rd., City: Rende Dist., Tainan City, 717017, Country Taiwan is authorized to apply for Certification of the following product(s): Product description: Wireless Button Type designation: QB11- W-HW Trademark: Validity/ expiry date on our behalf. Date: February 13, 2026 City: San Mateo, CA Name: Joey Gomez Function: Engineering Program Manager - Compliance Signature:

FCC, Request for non-disclosure Date: 18-08-2025 RF_501, Issue 12 Page 1 of 2 Company Name: Verkada Inc Address : 405 E 4th Ave City: San Mateo, CA 94401 Country: United States To: Kiwa Netherlands B.V., Dept. FCC TCB Wilmersdorf 50 7327 AC Apeldoorn The Netherlands Subject: Request for confidentiality FCC ID: 2AWUU60B5901 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (See notes below): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Date: 2/13/2026 Name and signature of applicant: Joey Gomez Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! The planned date should state in the RF731 application form. 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Kiwa NL B.V. at least 7 days before date of actual marketing or before expiration of the STC period FCC, Request for non-disclosure Date: 18-08-2025 RF_501, Issue 12 Page 2 of 2 Revision Record Sheet: Revision Section number Page number Date Remark(s) issued by 10 1 02-01-2023 History sheet added AG 11 1 & 2 23-06-2023 Corrected date and page# WJJ 12 all 18-08-2025 Kiwa logo change AG Issued/modified by : Axel Gase Function : Manager Quality Assurance Revision : 12 Date : 18-08-2025 Verified by : Willem Jan Jong Function : Team Lead Date : 18-08-2025 Released by : Axel Gase Function : Manager Quality Assurance Date of release: : 18-08-2025

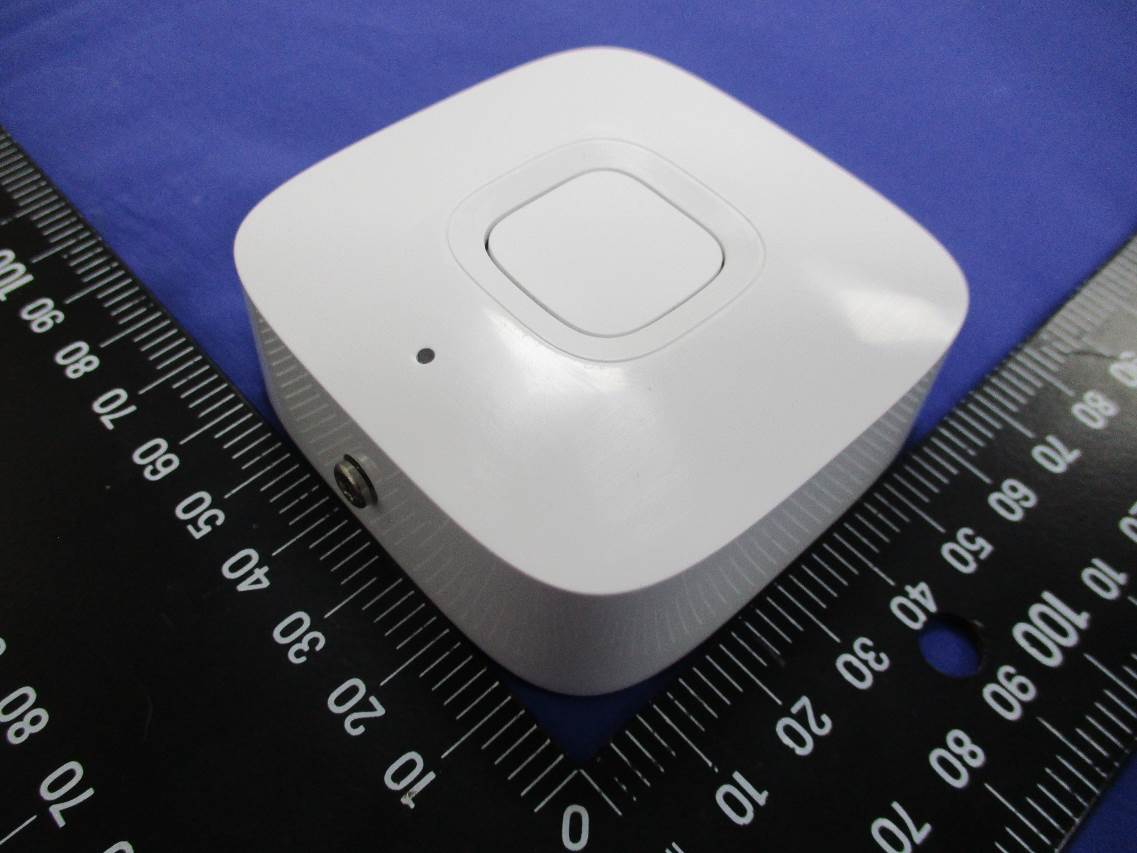

Pa ge: 61 / 65 Report No.: TMTN2603000208NR Rev.: 01 APPENDIX II EUT PHOTOS External Photo Model: QB11-W-HW

Pa ge: 62 / 65 Report No.: TMTN2603000208NR Rev.: 01 Internal Photo Model: QB11-W-HW Pa ge: 63 / 65 Report No.: TMTN2603000208NR Rev.: 01 Pa ge: 64 / 65 Report No.: TMTN2603000208NR Rev.: 01 Pa ge: 65 / 65 Report No.: TMTN2603000208NR Rev.: 01 ANTENNA

This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No: TM-2603000054P Page: 1 / 1 Report No.: TMWK2603000981KS FCC ID: 2AWUU60B5901 Rev.: 00 RF Exposure Conditions (Test Configurations) Evaluation is based on a minimum distance of 5mm from the antenna to the edge. Standalone SAR Test Exclusion Considerations According to KDB 447498 D01 General RF Exposure Guidance v06, since the Dedicated Host Approach is applied, the standalone SAR test exclusion procedure specified in KDB 447498 4.3.1 is applied. SAR Test Exclusion Calculations Frequency range: 915MHz ~ 915.7MHz Max. Tune-up Power: 20 dBm Duty Cycle:0.096 Pavg (dBm)=P(dBm)+10log10(Duty Cycle) 10log10(0.096) ≈ −10.18 dB Pavg=20−10.18=9.82 dBm According to 447498 D01 General RF Exposure Guidance v06 section 4.3.1, the 1-g SAR test exclusion thresholds at test separation distance ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] *·[√ f(GHz)] ≤ 3.0 Therefore, separate SAR testing is not required for SAR exemption evaluation. Note: 1. The tune-up power refers to the average power from test report TMTN2603000208NR, used for SAR test exclusion purposes. 2. The duty cycle is referenced from test report TMTN2603000208NR

Specification of Antenna Model No : QB11-W Antenna Type ：Trace on Board PIFA antenna Antena center Frequency: 915-915.7MHz Length Closed : N/A Length Open : 114.35 mm No. of element : N/A Antenna Gain : -0.6 dBi Antenna Efficiency : 53% Nominal Impedance : 50 Ω Antenna structure : Antenna Return Loss Antenna Efficiency: Antenna Gain: Antenna 3D pattern at 915 MHz : XZ-plane XY-plane

P roject No.: TM-2603000054P FCC ID: 2AWUU60B5901 Page: 1 / 65 Report No.: TMTN2603000208NR Rev.: 01 No. 168, Ln. 523, Sec. 3, Zhongzheng Rd., Rende Dist., Tainan City, 717017, Taiwan /台南市仁德區中正路三段523巷168號 t:(886-6) 5802-201 f:(886-6) 5802-202 www.sgs.com.tw Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com.tw/Terms-and-Conditions and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the Company. Any Compliance Certification Services Inc. 程智科技股份有限公司 Member of the SGS Group FCC 47 CFR PART 15 SUBPART C AND ANSI C63.10: 2020 TEST REPORT For Wireless Button Model: QB11-W-HW Brand: Verkada Issued for Verkada Inc 405 E. 4th Ave., San Mateo, California, United States, 94401 Issued by Compliance Certification Services Inc. Tainan Lab. No. 168, Ln. 523, Sec. 3, Zhongzheng Rd., Rende Dist., Tainan Cit y, 717017, Taiwan Issued Date: April 17, 2026 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Pa ge: 2 / 65 Report No.: TMTN2603000208NR Rev.: 01 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 April 10, 2026 Initial Issue ALL Gina Lin 01 April 17, 2026 See the following note rev.01 ALL Gina Lin Note: ※ Rev.00 Issue Date: April 10, 2026 Original report. ※ Rev.01 Issue Date: April 17, 2026 Corrected the version of ANSI C63.10. Pa ge: 3 / 65 Report No.: TMTN2603000208NR Rev.: 01 TABLE OF CONTENTS 1. TEST REPORT CERTIFICATION .............................................................................. 4 2. EUT DESCRIPTION ................................................................................................... 5 3. DESCRIPTION OF TEST MODES ............................................................................. 6 4. TEST METHODOLOGY ............................................................................................. 8 5. FACILITIES AND ACCREDITATIONS ....................................................................... 8 5.1 FACILITIES ............................................................................................................................ 8 5.2 EQUIPMENT .......................................................................................................................... 8 5.3 LABORATORY ACCREDITATIONS LISTINGS .................................................................... 8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ................................................................... 9 5.5 MEASUREMENT EQUIPMENT USED ................................................................................ 10 6. CALIBRATION AND UNCERTAINTY ...................................................................... 11 6.1 MEASURING INSTRUMENT CALIBRATION ...................................................................... 11 6.2 MEASUREMENT UNCERTAINTY ...................................................................................... 11 7. SETUP OF EQUIPMENT UNDER TEST .................................................................. 12 7.1 SETUP CONFIGURATION OF EUT .................................................................................... 12 7.2 SUPPORT EQUIPMENT ..................................................................................................... 12 7.3 EUT OPERATING CONDITION .......................................................................................... 12 8. APPLICABLE LIMITS AND TEST RESULTS .......................................................... 13 8.1 6DB BANDWIDTH ............................................................................................................... 13 8.2 MAXIMUM PEAK OUTPUT POWER ................................................................................... 16 8.3 DUTY CYCLE ...................................................................................................................... 19 8.4 POWER SPECTRAL DENSITY ........................................................................................... 22 8.5 CONDUCTED SPURIOUS EMISSION ................................................................................ 25 8.6 RADIATED EMISSIONS ...................................................................................................... 30 8.6.1 TRANSMITTER RADIATED SUPURIOUS EMSSIONS ..............................................................30 8.6.2 WORST-CASE RADIATED EMISSION BELOW 1 GHZ .............................................................34 8.6.3 TRANSMITTER RADIATED EMISSION ABOVE 1 GHZ ............................................................46 8.7 POWERLINE CONDUCTED EMISSIONS .......................................................................... 52 9. ANTENNA REQUIREMENT ..................................................................................... 55 9.1 STANDARD APPLICABLE ...........................…
