2AWVKH11BTGRCWireless Trackball Receiver

DUAL MODE WIRELESS TRACKBALL MOUSE H11BTG Innovation Redefined 0201 0304 QUICK START GUIDE Tesoro Technology Inc. warrants this product will be free from defects in material and manufacturing under normal use for one year from the date of purchase. The warranty does not cover defects caused by misuse or improper usage of the product. For more information, please visit our website at www.tesorotec.com FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. FCC CAUTION Changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Radiation Exposure Statement: The product comply with the FCC portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available. TS-H11BTG-RC FCC ID: 2AWVKH11BTGRC Wireless Trackball Receiver TS-H11BTG FCC ID: 2AWVKH11BTG Wireless Trackball Mouse PACKAGE CONTENTS FEATURES •H11BTG Wireless Trackball Mouse •2.4GHz receiver •AA battery •Quick Start Guide SYSTEM REQUIREMENTS • Windows 10 / Android 7.0 or later / Chrome OS / macOS 10.14~10.15 • Devices that support bluetooth or with a USB port • Internet connection for the software download •Bluetooth 5.0 Technology low latency and high efficiency •2.4Ghz / Bluetooth dual wireless connectivity mode •Up to 2400 DPI adjustment 800 / 1200 / 1600 / 2000 / 2400 DPI •Accuracy mode for precise and smooth tracking •Ergonomic design to reduce the burden of the wrist •Up to 9 button functions, important buttons can be customized through the software interface •Single AA battery can be used continuously for up to 120 hours •The left and right key Omron switch can be used up to 10 million times •Auto sleep function saves power •No mouse pad, save space •AES 128 editor security encryption •Compatible with Windows / Mac / IOS / Android SPECIFICATION Model numberTS-H11BTG ColorBlack / White Mode2.4G / Bluetoo th 5.0 SensorPAW3212 2400 DPI Swit chOMRON D2FC-F-7N Polling RateBT : 134Hz / 2.4G : 125Hz Memory Siz e DPIUp t o 2400 DPI DPI (Accur ac y Mode)150 DPI DPI Adjustment5+1 levels But ton F unc tion Windows / Android: 9 (Left、Right、Scroll wheel、Tilt Left、Tilt Right、Mode、DPI、For war d、Backwar d) Mac / IOS: 5 (L eft、Right、Scroll wheel、Mode、DPI) Pr ogr ammable Buttons6 Communication Rang e10m Dimensions133x109x52mm Weight (w/o Ba tter y)194g DEVICE LAYOUT •Left mouse button •Right mouse button •Scroll wheel •Left tilt-click •Right tilt-click •Power / Mode switch (2.4GHz / Bluetooth) •Forward button •Backward button •Precision •Cancel Precision •Ball button •DPI button A A E E E G G C C C D D B B H H F F F + + H H + C + BLUETOOTH PARING a. Slide down the mode switch to Bluetooth mode and the LED indicator will blink blue LED light for 6 times. b. Slide down the mode switch and Hold for 2 secs to enter the Bluetooth paring mode and the Indicator will start blinking blue LED light for 3 mins. c. When paring successfully the blue LED light will turn off. 2.4GHZ DONGLE INSTALLATION a. Connect the receiver to USB port of the PC. b. The PC will auto install the USB driver. c. Slide down the mode switch to the 2.4GHz mode and red LED light will blink for 6 times. WARRANTY 1 year limited manufacturer’s warranty. INTUITIVE SOFTWARE FOR MORE CUSTOMIZE SETTING (WINDOWS 10 OPERATION SYSTEM ONLY) a. Download the software from https://tesorotec.com/download-new/. b. Click the installation exe. file and follow the instruction to complete the software installation. THANK YOU FOR CHOOSING TESORO XXXXXXXXXXXXXXXXXXX 展開尺寸: W240 X H100 MM 折疊尺寸: W80 X H100 MM 材質:157g雙銅紙、雙面1C印刷、風琴折 公差: + / - 0.5mm 裁切線: 折線: 料號: W12BTG_QSG_Tesoro 正面 反面

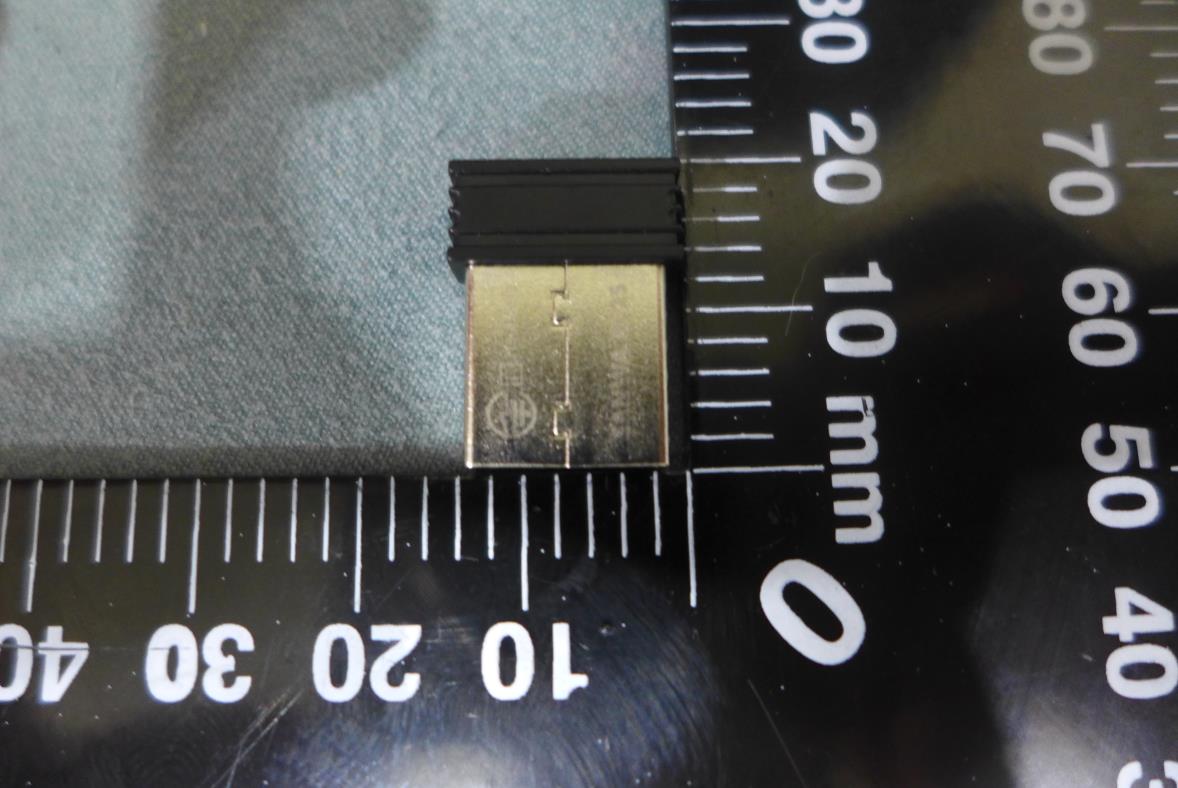

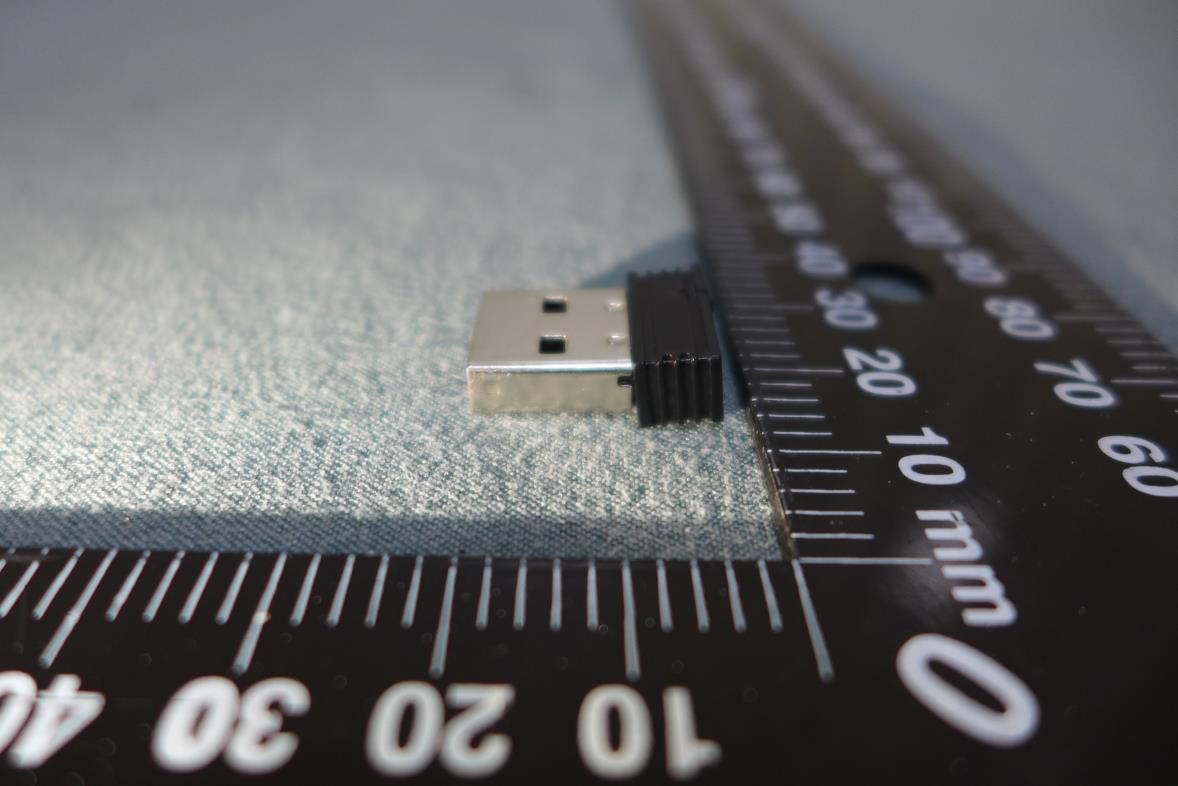

Appendix No.: EP-2007T121-1 APPENDIX-EUT PHOTOS Project No.: 2007T121 Page 1 of 6 FCC ID:2AWVKH11BTGRC Brand:TESORO Frequency:2405-2470MHz Appendix No.: EP-2007T121-1 APPENDIX-EUT PHOTOS Project No.: 2007T121 Page 2 of 6 Appendix No.: EP-2007T121-1 APPENDIX-EUT PHOTOS Project No.: 2007T121 Page 3 of 6

Dongle_SN Sticker_ Tesoro Size: W13mm x H5mm 公差：十/- 0.Smm 材質銅版紙80g、1色印刷 粘 性： 1kg/25mm min(90度剝窩測试頰格） 料 號 ：1階自制件78-100-0153-100S 2階采購件78-100-0153-000S 口裁切線 產品名直接同定印在上面 S/N說明 序 號 ＇｀ 年份 ＂ 代碼 S/N 貼紙位罩（上下左右置中於黃框處） BJ07 00001 生產年月 流水號 數字12 3 4 5 6 7 8 9 0 代碼 AB C D E F G H I J 20基）➔Al 20 甚）➔ BJ 2AWVKH11BTGRC Label Information Due to the size of the product, the FCC ID is located in the user’s manual and on the package. (According to FCC OET Response, tracking number: 527631.) •Bluetooth 5.0 Technology low latency and high efficiency •2.4Ghz / Bluetooth dual wireless connectivity mode •Up to 2400 DPI adjustment 800 / 1200 / 1600 / 2000 / 2400 DPI •Accuracy mode for precise and smooth tracking •Ergonomic design to reduce the burden of the wrist FEATURES Innovation Redefined www.tesorotec.com www.tesorotec-cn.com DUAL MODE WIRELESS TRACKBALL MOUSE H11BTG DUAL MODE WIRELESS TRACKBALL MOUSE H11BTG Bluetooth 5.0 2.4GHz Bluetooth 5.0 2.4GHz DUAL MODE WIRELESS TRACKBALL MOUSE H11BTG Bluetooth 5.0 2.4GHz DUAL MODE WIRELESS TRACKBALL MOUSE H11BTG This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Wireless Trackball Mouse TS-H11BTG FCC ID: 2AWVKH11BTG Wireless Trackball Receiver TS-H11BTG-RC FCC ID: 2AWVKH11BTGRC System Requirement: (Software) •Windows 10 Package Content: •Wireless Trackball Mouse •2.4GHz Wireless Receiver •User Quick Start Guide Compatible with: Designed by TESORO in California. Manufactured in China. 产地: 中国 制造商: TESORO (铁修罗) W12BTG_Box_Tesoro 成型尺寸: W145mm x H205mm x D66mm 公差: + - 1mm 材質: 350g單銅 、 啞膠+局部UV 、 4色印刷 料號: 25-700-0177-102S UV 0.5mm 压线 (透明) (透明) 20200629

Appendix No.: EP-2007T121-1 APPENDIX-EUT PHOTOS Project No.: 2007T121 Page 4 of 6 FCC ID:2AWVKH11BTGRC Brand:TESORO Frequency:2405-2470MHz Appendix No.: EP-2007T121-1 APPENDIX-EUT PHOTOS Project No.: 2007T121 Page 5 of 6 Appendix No.: EP-2007T121-1 APPENDIX-EUT PHOTOS Project No.: 2007T121 Page 6 of 6 Antenna

Report No.: BTL-FCCP-1-2007T121 Project No.: 2007T121 Page 1 of 39 Report Version: R01 FCC Radio Test Report FCC ID: 2AWVKH11BTGRC Report No. : BTL-FCCP-1-2007T121 Equipment : Wireless Trackball Receiver Model Name : TS-H11BTG-RC Brand Name : Tesoro Applicant : Tesoro Technology USA Inc. Address : 142N Milpitas Blvd #328 Milpitas, CA, 95035, USA Radio Function : Short Range Devices FCC Rule Part(s) : FCC Part15, Subpart C (15.249) Measurement Procedure(s) : ANSI C63.10-2013 Date of Receipt : 2020/7/24 Date of Test : 2020/7/24 ~ 2020/8/18 Issued Date : 2020/9/11 The above equipment has been tested and found in compliance with the requirement of the above standards by BTL Inc. Prepared by : Peter Chen, Engineer Approved by : Scott Hsu , Manager BTL Inc. No.18, Ln. 171, Sec. 2, Jiuzong Rd., Neihu Dist., Taipei City 114, Taiwan Tel: +886-2-2657-3299 Fax: +886-2-2657-3331 Web: www.newbtl.com Report No.: BTL-FCCP-1-2007T121 Project No.: 2007T121 Page 2 of 39 Report Version: R01 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-1-2007T121 Project No.: 2007T121 Page 3 of 39 Report Version: R01 CONTENTS REPORT ISSUED HISTORY 4 1 SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 1.3 TEST ENVIRONMENT CONDITIONS 6 1.4 DUTY CYCLE 7 2 GENERAL INFORMATION 8 2.1 DESCRIPTION OF EUT 8 2.2 TEST MODES 9 2.3 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 SUPPORT UNITS 10 3 AC POWER LINE CONDUCTED EMISSIONS TEST 11 3.1 LIMIT 11 3.2 TEST PROCEDURE 11 3.3 DEVIATION FROM TEST STANDARD 11 3.4 TEST SETUP 12 3.5 TEST RESULT 12 4 RADIATED EMISSIONS TEST 13 4.1 LIMIT 13 4.2 TEST PROCEDURE 14 4.3 DEVIATION FROM TEST STANDARD 14 4.4 TEST SETUP 14 4.5 EUT OPERATING CONDITIONS 15 4.6 TEST RESULT – 30 MHZ TO 1 GHZ 16 4.7 TEST RESULT – ABOVE 1 GHZ 16 5 BANDWIDTH TEST 17 5.1 APPLIED PROCEDURES / LIMIT 17 5.2 TEST PROCEDURE 17 5.3 DEVIATION FROM STANDARD 17 5.4 TEST SETUP 17 5.5 EUT OPERATION CONDITIONS 17 5.6 TEST RESULTS 17 6 LIST OF MEASURING EQUIPMENTS 18 7 EUT TEST PHOTO 19 8 EUT PHOTOS 19 APPENDIX A AC POWER LINE CONDUCTED EMISSIONS 20 APPENDIX B RADIATED EMISSIONS - 30 MHZ TO 1 GHZ 25 APPENDIX C RADIATED EMISSIONS - ABOVE 1 GHZ 28 APPENDIX D BANDWIDTH 38 Report No.: BTL-FCCP-1-2007T121 Project No.: 2007T121 Page 4 of 39 Report Version: R01 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. 2020/9/8 R01 Revised report to address TCB’s comments. 2020/9/11 Report No.: BTL-FCCP-1-2007T121 Project No.: 2007T121 Page 5 of 39 Report Version: R01 1 SUMMARY OF TEST RESULTS Test procedures according to the technical standards. FCC Part 15, Subpart C (15.249) Standard(s) Section Description Test Result Judgement Remark 15.207 AC Power Line Conducted Emissions APPENDIX A Pass ------ 15.205 15.209 15.249(a)(d) Radiated Emissions APPENDIX B APPENDIX C Pass ------ 15.215(c) Bandwidth APPENDIX D Pass ------ NOTE: (1) ”N/A” denotes test is not applicable in this Test Report. (2) The report format version is TP.1.1.1. Report No.: BTL-FCCP-1-2007T121 Project No.: 2007T121 Page 6 of 39 Report Version: R01 1.1 TEST FACILITY The test facilities used to collect the test data in this report: No. 68-1, Ln. 169, Sec. 2, Datong Rd., Xizhi Dist., New Taipei City 221, Taiwan The test sites and facilities are covered under FCC RN: 674415 and DN: TW0659. ☐ C05 ☐ CB08 ☐ CB11 ☐ CB15 ☐ CB16 ☐ SR06 No.18, Ln. 171, Sec. 2, Jiuzong Rd., Neihu Dist., Taipei City 114, Taiwan The test sites and facilities are covered under FCC RN: 270329 and DN: TW0030. ☒ C03 ☒ CB18 ☐ CB19 ☒ SR06 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expanded uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k = 2, providing a level of confidence of approximately 95 %. The measurement instrumentation uncertainty considerations contained in CISPR 16-4-2. The BTL measurement uncertainty is less than the CISPR 16-4-2 U cispr requirement. A. AC power line conducted emissions test: Test Site Method Measurement Frequency Range U (dB) C03 CISPR 150 kHz ~ 30 MHz 2.30 B. Radiated emiss…
