2AWVR-RS10White Noise Machine with Alarm Clock

RS10 User Manual please Email us at [email protected] If a faulty product is found when setting up Sound Machine with Alarm Clock 1 Year Warranty FCC Requirement Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. 15.21 Information to user The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the users authority to poerate the equipment.In cases where the manual is provided only in a form other than paper,such as on a computer disk or over the internet,the information required by this section may be included in the manual in that alternative form,provided the user can reasonably be expected to have the capability to access inofrmation in that form. [54 FR 17714,Apr.25,1989,as amended at 68 FR 68545,Dec.9,2003] only.Please keep plugged in! TIPS: 1. Battery backup is for saving TIME/ALARM settings Please read all the instructions carefully and keep this in a safe place for future reference. 1 INSTRUCTIONAL VIDEO: Please scan the QR code here to access the instructional video of this product. 2 • 1* Sound Machine with Alarm Clock • 1* 1.5m DC Adapter • 1* User Manual • 1* CR2032 Battery PACKAGE INCLUDE: AC, 100-240V, 50/60Hz. POWER SPECIFICATIONS: • 18 Soothing Sounds • 30 Levels Adjustable Volume • 7 Colorful Night Light • 0-100% Brightness Control For Display • 5 Alarm Sounds & 9 Minutes Snooze • Sleep Timer • Battery Backup(Only Memory Function) • 12/24H Mode FEATURES: FRONT VIEW 3 TOP VIEW ALARM SETTING AND ON/OFF VOLUME - FORWARD SLEEP TIMER TIME SETTING VOLUME + BACKWARD SOUND MACHINE ON/OFF SNOOZE/ NIGHTLIGHT ALARM AM Time BACK VIEW BOTTOM VIEW 4 DIMMER CONTROL (0-100%) POWER CONNECTOR BATTERY COMPARTMENT (Battery is built in already) 5 1. Plug the adapter into a standard household outlet, you will see 12:00 on the display and the machine is ready to be set. 2. Please remove the battery tab before use. GETTING STATRED Notice • If the display is “blank” after plugging in, please check whether the DISPLAY DIMMER on the back is at the HIGH position. • Under the battery power, the display will go blank and preset alarm will not go off. • Once the battery is removed and with an interruption of power, the TIME and ALARM need to be reset when the power comes back. 6 TIME SETTING 1. Press “ ” button to enter HOUR setting. The HOUR digits will flash on the display. Press the “ ” or “ ” button to advance to the correct hour. 2. Press the “ ” button to confirm and enter MINUTE setting. When the MINUTE digits flash, press the “ ” or “ ” button to advance to the correct minute. HOUR Flashes 7 3. Press the “ ” button to confirm and enter Time Format (12/24H) setting. Press “ ” or “ ” button to select time format. When using the 12-hour time format, AM/PM icon will appear on the display to suggest morning/afternoon time. 4. Press the “ ” button to confirm and exit the Time Setting Mode. MINUTE Flashes Notice The machine will exit automatically from the TIME setup mode if no action is taken within 5 seconds. (Action refers to pressing the desired button for setup) 8 ALARM SETTING 1. Press the “ ” button to enter ALARM HOUR setting. The HOUR digits will flash on the display. Press the “ ” or “ ” button to advance to the desired hour. 2. Press the “ ” button to confirm and enter ALARM MINUTE setting. The MINUTE digits will flash on the display. Press the “ ” or “ ” button to advance to the desired minute. HOUR Flashes 9 Notice The machine will exit automatically from the ALARM setup mode if no action is taken within 10 seconds. (Action refers to pressing the desired button for setup) MINUTE Flashes 3. Press the “ ” button to confirm and enter WAKE UP SOUND setting. A number will flash on the display. Press the “ ” or “ ” button to choose from #1) Bird chirping sound , #02) Piano sound, #03) Beep sound, #04) Ocean sound or #05) Brook sound. 4. Press the “ ” button to confirm and exit from Alarm Setting Mode. 10 ALARM VOLUME SETTING When sound machine is OFF, press the “ ” or “ ” button to select the volume level. (0-30 adjustable) A number will be shown on the display. Alarm Volume Notice When sound machine is OFF, this alarm sounds has a 5 second trial sound, you can confirm the ringtone you want in advance by pressing the “ ” or “ ” button. 11 When the alarm goes off, you have two options: 1. Press “ ” button to stop the alarm when it’s ringing. Alarm will go off on the next day. 2. Press “ ” button to snooze, the indica…

Text truncated - open the document above for the full version.

KERCHANTECHNOLOGYCO.,LIMITED ModelConfirmationLetter We,(KERCHANTECHNOLOGYCO.,LIMITED)certifytheproduct: WhiteNoiseMachinewithAlarmClock. ModelNo.:RS10,RS10V,RS10S,RS10B Theirelectricalcircuitdesign,layout,componentsusedandinternalwiringare identical,onlythecoloroftheproductisdifferent,sothemodelnameisalso different. Signiture: GranteeContact:JunhuaDan CompanyName:KERCHANTECHNOLOGYCO.,LIMITED Date:2022-7-7

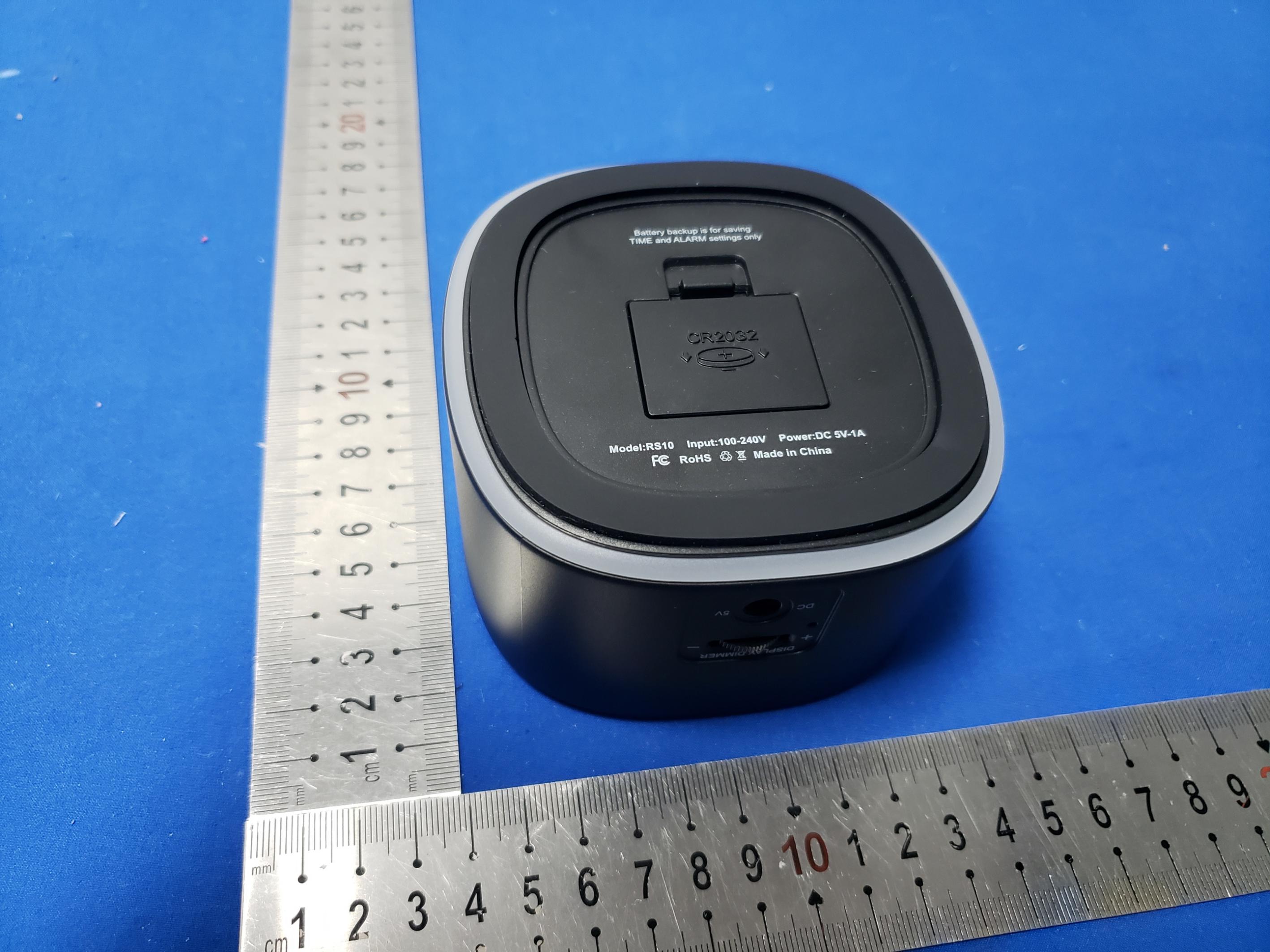

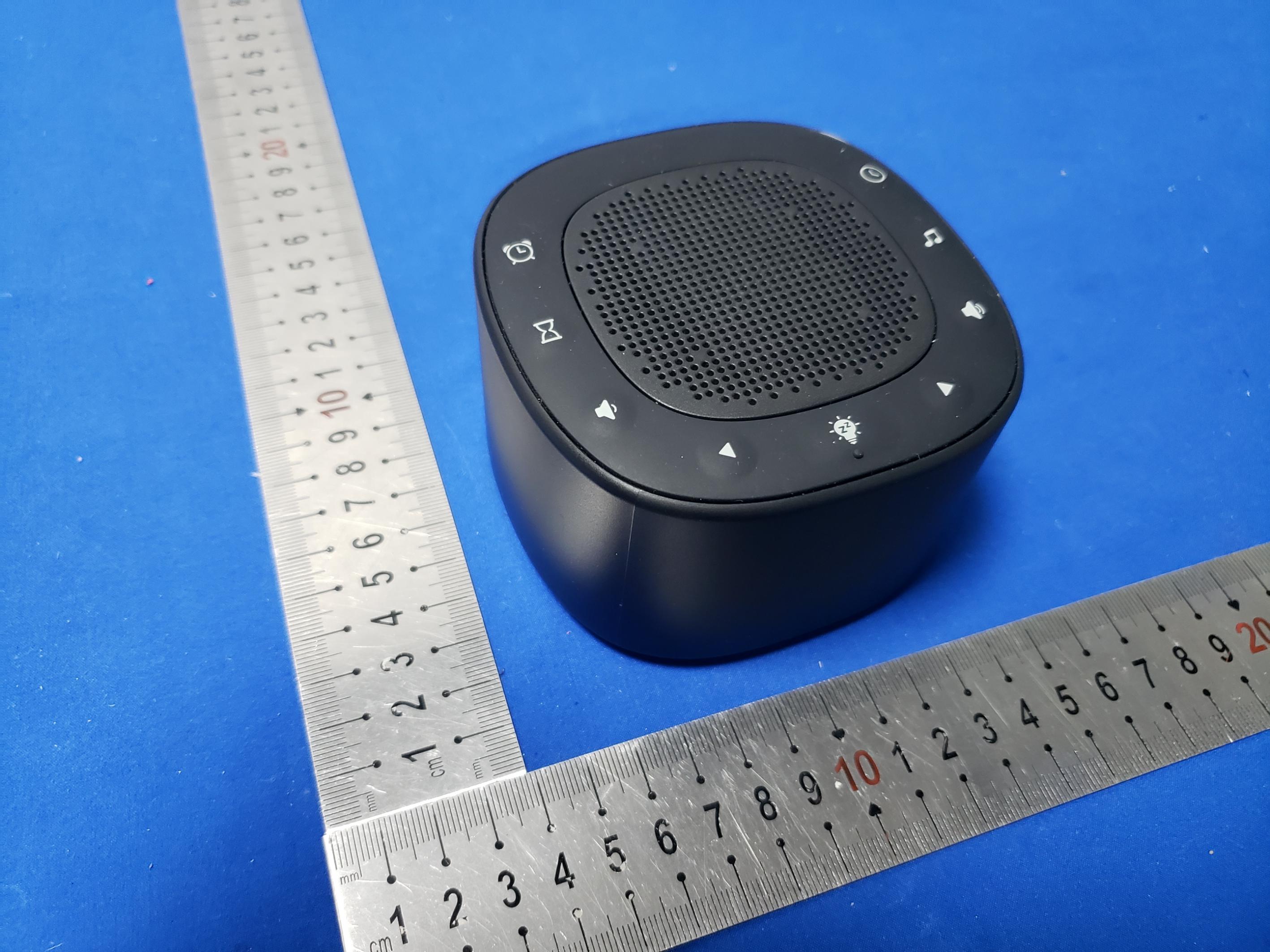

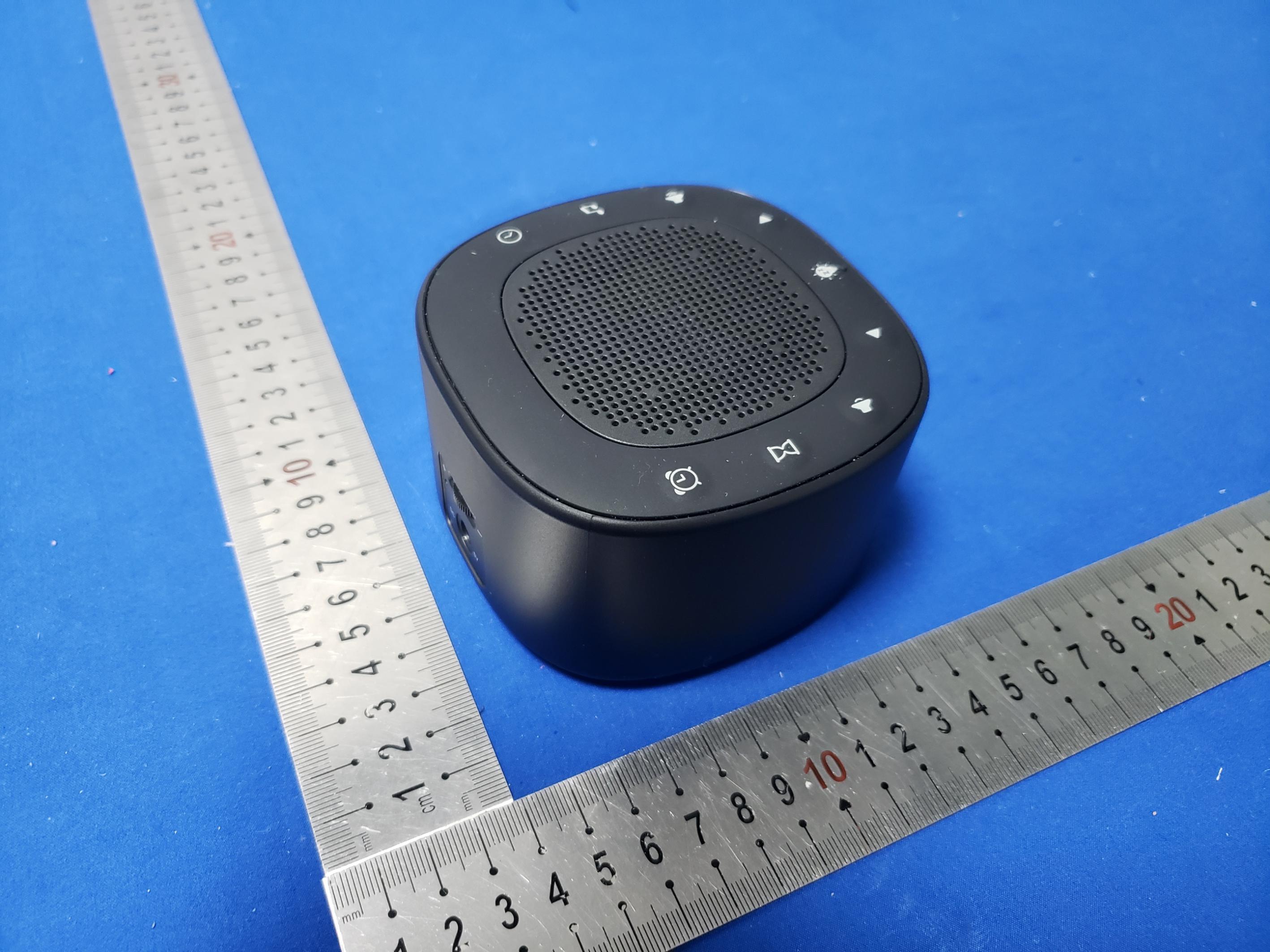

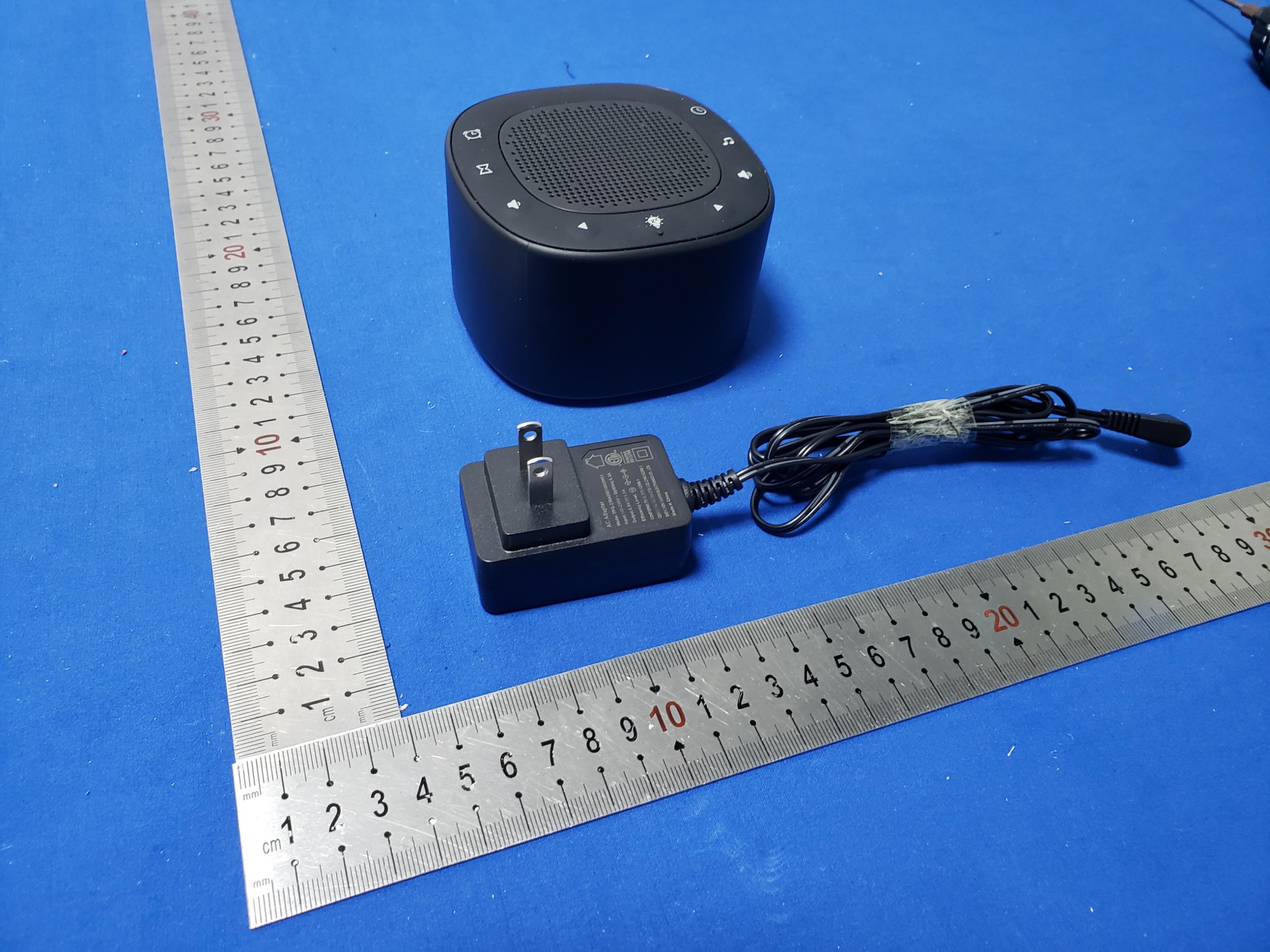

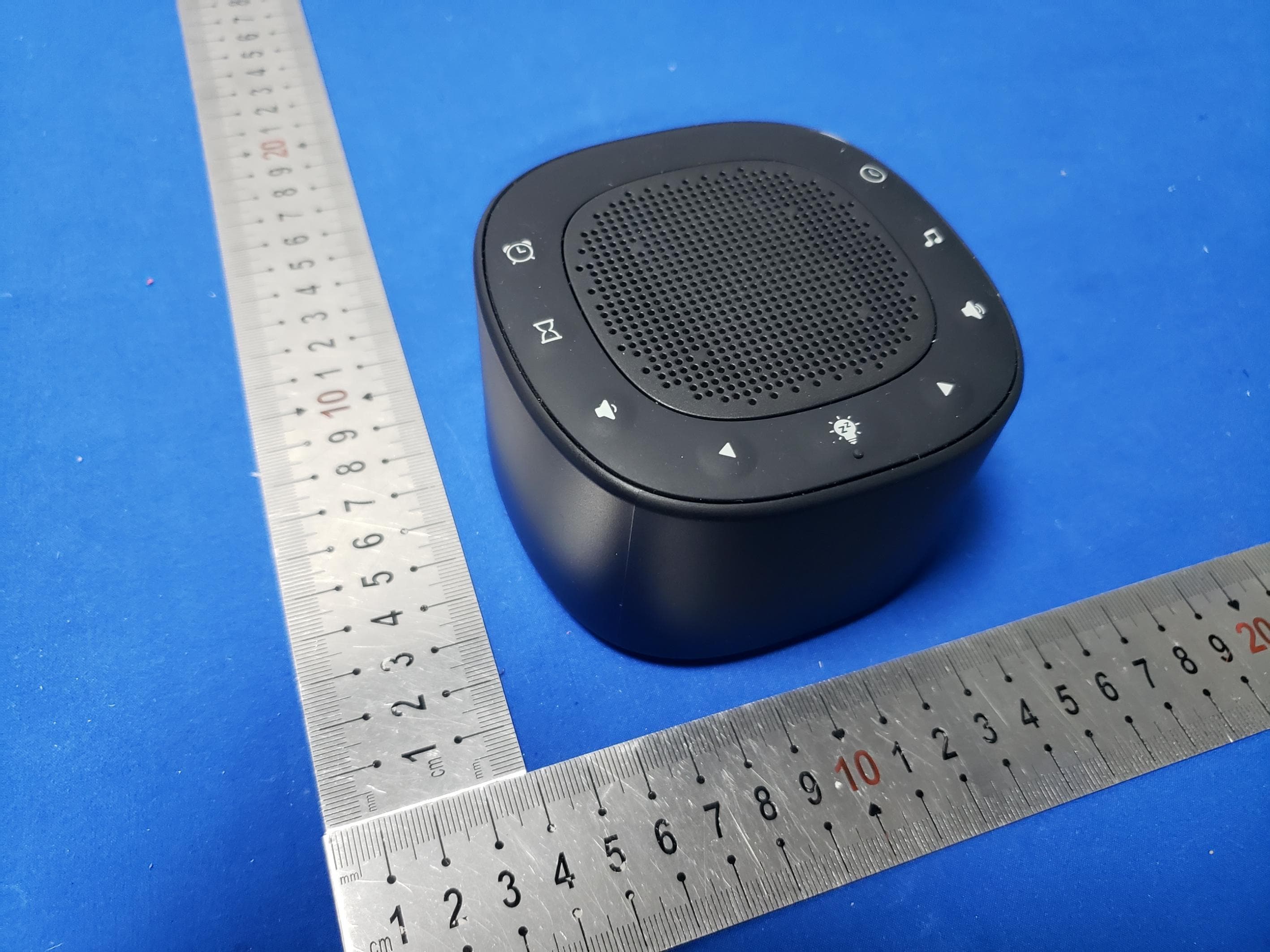

Externalphotos

RS10丝印潘通色：PANTONE Cool Gray 7C FCC ID:2AWVR-RS10 FCC ID:2AWVR-RS10

Internalphotos

ShenzhenHuaxiaTestingTechnologyCo.,Ltd. 1F.,BlockAofTongshengTechnologyBuilding,HuahuiRoad,DalangStreet,LonghuaDistrict, Shenzhen,China Telephone:+86-755-26648640 Fax:+86-755-26648637 Website:www.cqa-cert.com ReportTemplateVersion:V05 ReportTemplateRevisionDate:2021-11-03 TESTREPORT Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,Theresult(s)showninthisreportreferonlytothe sample(s)tested.WithoutwrittenapprovalofCQA,thisreportcan’tbereproducedexceptinfull. ReportNo.:CQASZ20220601100E Applicant:KERCHANTECHNOLOGYCO.,LIMITED AddressofApplicant: 5/F,BulidingB,shuangjinhuiIndustrialPark,Fu'yong,BaoanShenzhenChina. EquipmentUnderTest(EUT): EUTName:WhiteNoiseMachinewithAlarmClock. ModelNo.:RS10,RS10V,RS10S,RS10B TestModelNo.:RS10 BrandName:HOUSBAY FCCID:2AWVR-RS10 Standards:47CFRPart15,SubpartB,ClassB DateofReceipt:2022-6-29 DateofTest: 2022-6-29to2022-7-5 DateofIssue:2022-7-13 TestResult:PASS* *Intheconfigurationtested,theEUTcompliedwiththestandardsspecifiedabove TestedBy: (TimoLei) ReviewedBy: (KLiao) ApprovedBy: (JackAi) ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220601100E Page:2of23 Version RevisionHistoryofReport ReportNo.Version Description IssueDate CQASZ20220601100ERev.01 Initialreport 2022-7-13 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220601100E Page:3of23 1TestSummary TestItemTestRequirementTestmethodResult RadiatedEmission47CFRPart15BANSIC63.4-2014PASS ConductedEmission (150kHzto30MHz) 47CFRPart15BANSIC63.4-2014PASS Highestfrequencygeneratedorusedinthedevice oronwhichthedeviceoperatesortunes (MHz) UpperfrequencyofmeasurementRange (MHz) Below1.70530 1.705to1081000 108to5002000 500to10005000 Above10005thharmonicofthehighestfrequencyor40GHz, whicheverislower ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220601100E Page:4of23 2Contents Page 1VERSION...............................................................................................................................................................................2 2TESTSUMMARY.................................................................................................................................................................3 3CONTENTS...........................................................................................................................................................................4 4GENERALINFORMATION.................................................................................................................................................5 4.1CLIENTINFORMATION......................................................................................................................................................5 4.2GENERALDESCRIPTIONOFEUT...................................................................................................................................5 4.3TESTENVIRONMENTANDMODE......................................................................................................................................5 4.4DESCRIPTIONOFSUPPORTUNITS.....................................................................................................................................6 4.5TESTLOCATION...............................................................................................................................................................6 4.6DEVIATIONFROMSTANDARDS........................................................................................................................................6 4.7ABNORMALITIESFROMSTANDARDCONDITIONS...........................................................................................................6 4.8OTHERINFORMATIONREQUESTEDBYTHECUSTOMER...............................................................................................6 4.9MEASUREMENTUNCERTAINTY(95%CONFIDENCELEVELS,K=2)...............................................................................6 5EQUIPMENTLIST................................................................................................................................................................7 6TESTRESULTSANDMEASUREMENTDATA.............................................................................................................8 6.1CONDUCTEDEMISSIONS.................................................................................................................................................8 6.2RADIATEDEMISSION.....................................................................................................................................................12 APPENDIX1PHOTOGRAPHSOFTESTSETUP..........................................................................................................16 APPENDIX2PHOTOGRAPHSOFEUT...........................................................................................................................17 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220601100E Page:5of23 3GeneralInformation 3.1ClientInformation Applicant: KERCHANTECHNOLOGYCO.,LIMITED AddressofApplicant: 5/F,BulidingB,shuangjinhuiIndustrialPark,Fu'yong,BaoanShenzhen China. Manufacturer: KERCHANTECHNOLOGYCO.,LIMITED AddressofManufacturer: 5/F,BulidingB,shuangjinhuiIndustrialPark,Fu'yong,BaoanShenzhen China. Factory: ShenzhenKerchanTechnologyCo.,Limited AddressofFactory: 5/F,BulidingB,shuangjinhuiIndustrialPark,Fu'yong,BaoanShenzhen China. 3.2GeneralDescriptionofEUT ProductName: WhiteNoiseMachinewithAlarmClock. ModelNo.: RS10,RS10V,RS10S,RS10B TestModelNo.: RS10 TradeMark: HOUSBAY EUTPowerSupply:Input:100-240VPower:DC5V/1A TestMode: NormalworkingKeeptheEUTinNormalworking 3.3TestEnvironmentandMode OperatingEnvironment: RadiatedEmission Temperature: 25.5  C Humidity:53%RH AtmosphericPressure:1009mbar ConductedEmission Temperature: 25.5C Humidity:55%RH AtmosphericPressure:1009mbar Note: ModelNo.:RS10,RS10V,RS10S,RS10B OnlythemodelRS10wastested,theirelectricalcircuitdesign,layout,componentsusedandinternalwiringare i…

Text truncated - open the document above for the full version.

APPENDIX1PHOTOGRAPHSOFTESTSETUP RadiatedemissionTestSetup(30MHz ～ 1GHz) ConductedEmissionsTestSetup
