2AWVX-VKB3ZFord Ranger/Everest Wireless Charge Mat

Ford Ranger/Raptor & Everest 10W Wireless Charger User Manual FLA: AMKB3J-19J296-AA INTRODUCTION This Wireless Charger supports fast Qi Wireless Smart Phone Charging up to 10W. OPERATION When the vehicle’s ignition is activated, the Charger’s inbuilt status LED will illuminate blue to indicate the charger is in standby mode ready for charging. Place device centrally on the Charger to begin charging. The LED colour will change to green to indicate that charging has commenced, and you will receive a notification on your device to indicate that it is charging. If the device is positioned incorrectly, an incompatible device is placed on the charger or there are metallic objects like coins placed between the charger and the device, the LED will illuminate red indicate an error state. Remove the device, make sure the charger is free of any other materials and place the device centrally on the charger to re-commence charging. CAUTION: Do not charge if there are any metal objects placed between pad and your device. This may cause objects to become hot and result in burns. CLEANING The rubber mat can be removed from the charger for cleaning. Please clean with soapy water only and allow to dry before re-installing on the charger by pressing the rubber tabs in to the corresponding holes on the charger. NOTE This Wireless Charger will only charge devices that are compatible with Qi Wireless Charging. If unsure, please consult your device manufacturer. WARNINGS Wireless charging uses magnetic induction to charge your Phone. Do not place anything between your iPhone and the charger. Magnetic mounts, magnetic cases, or other objects between your iPhone and the charger might reduce performance or damage magnetic strips or RFID chips like those found in some credit cards, security badges, passports, and key fobs. If your phone case holds any of these sensitive items, remove them before charging or make sure that they are not between the back of your iPhone and the charger. If your Phone isn't charging or is charging slowly and your Phone has a thick case, metal case, or battery case, try removing the case. If your Phone vibrates—when it gets a notification, for example—your iPhone might shift in position. This can cause the charging mat to stop providing power to your Phone. If this happens often, consider turning off vibration, turning on Do Not Disturb or using a thin case to prevent movement. Your Phone might get slightly warmer while it charges. To extend the lifespan of your battery, if the battery gets too warm, software might limit the charge rate. Your Phone will charge at the fill rate again when the temperature drops. Your Phone will not charge wirelessly when connected to USB. SPECIFICATIONS Operating Voltage: 9-16V Charging Power: Up to 10W Charging Efficiency: >70% Working Temperature: -40°C to +80°C Application: All Ford Ranger & Raptor (PX3) and Everest models (UA2) [email protected] www.directed.com.au NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Directed Electronics OE Pty Ltd Agent Authorization Company: Directed Electronics OE Pty Ltd Address: 115-119 Link Road, Melbourne Airport, Victoria, 3045, Australia Product Name: Ford Ranger/Everest Wireless Charge Mat Model Number(s): VKB3Z-19A464-B Product Description: Ford Ranger/Everest Wireless Charge Mat We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-08-04 Name: Les Battyanyi Company: Directed Electronics OE Pty Ltd

Directed Electronics OE Pty Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-07-28 Subject; Request for Confidentiality FCC ID: 2AWVX-VKB3Z To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely Directed Electronics OE Pty Ltd Contact person: Les Battyanyi

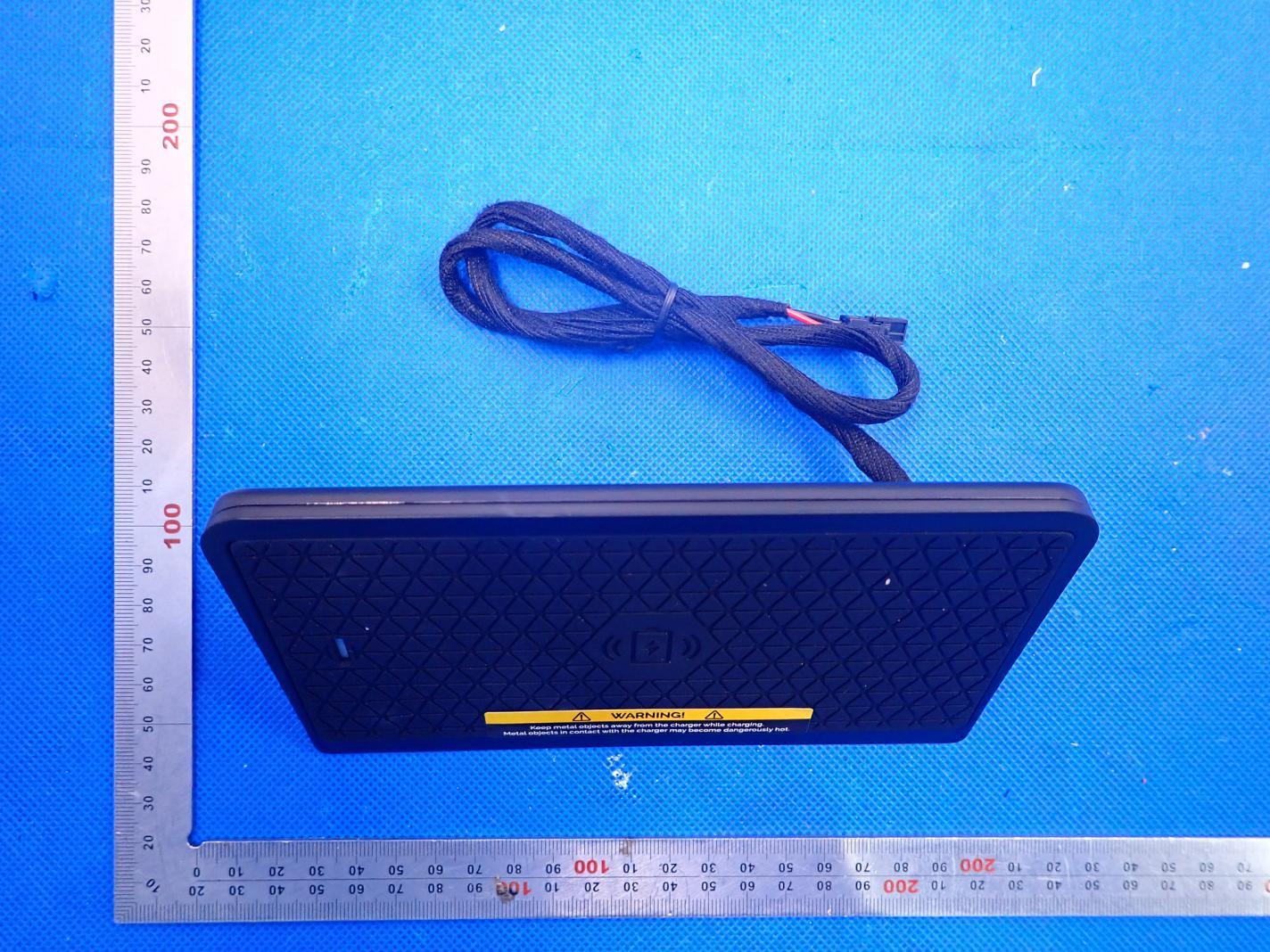

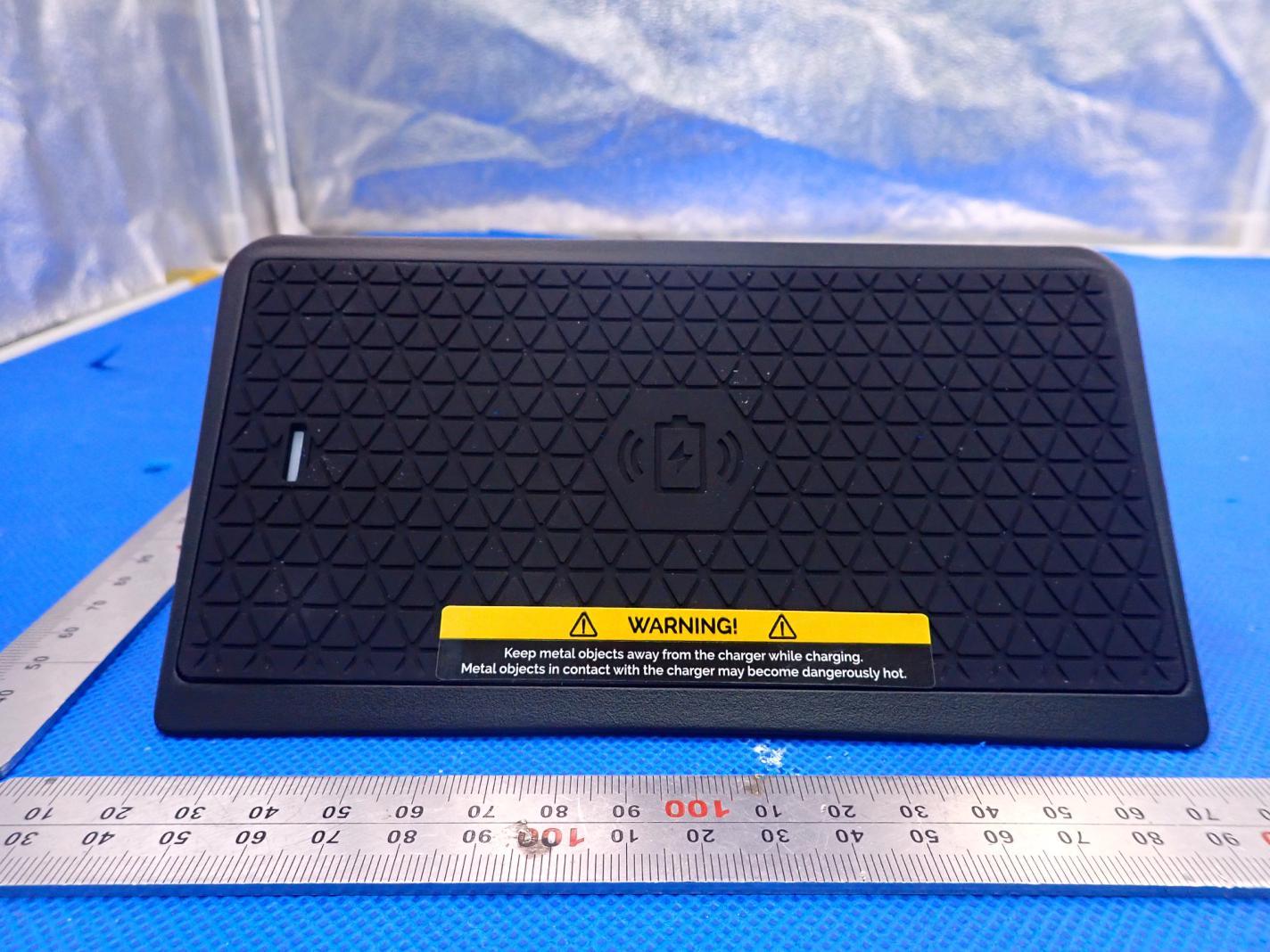

External Photos ALL VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

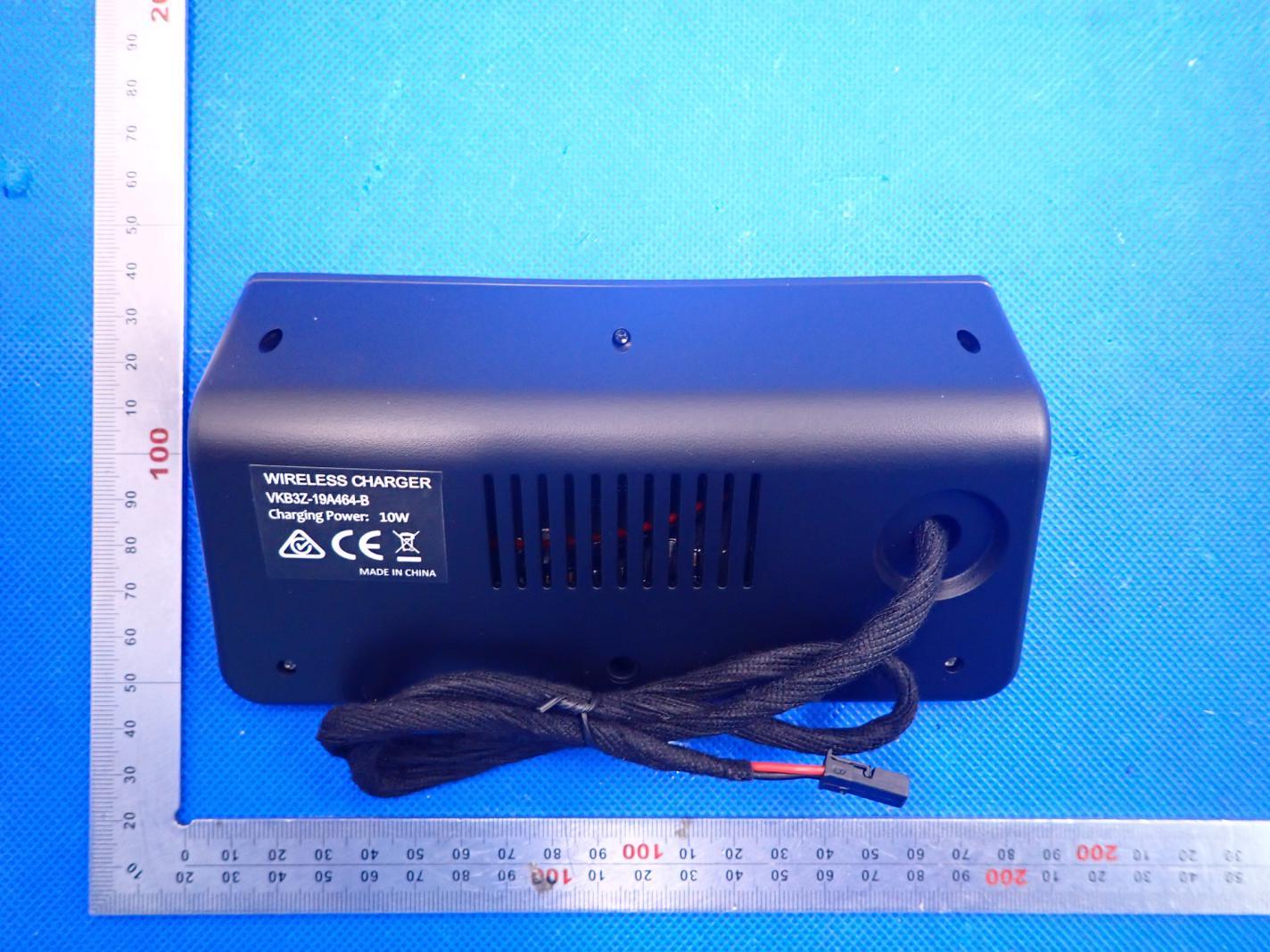

FCC ID Label Location FCC ID: 2AWVX-VKB3Z

Internal Photos OPEN VIEW OF EUT-1 OPEN VIEW OF EUT-2 INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 Antenna INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5

Xindao B.V. P.O. Box 3082, 2280 GB, Rijswijk, The Netherlands Declaration Letter Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 8/10/2020 FCC ID: Pursuant to KDB 680106 of the Directed Electronics OE Pty Ltd hereby declare our product which is an inductive wireless power transfer applications that meet all of the following requirements are not required to submit a KDB inquiry for devices approved usinga PAG for equipment approved using certification to address RF exposure compliance. 1) Power transfer frequency is 0.110-0.205MHz which is less than1 MHz 2) Output power from each primary coil is 10W which is less than 15 watts 3) The transfer system includes only single primary coils. 4) Client device is placed directly in contact with the transmitter 5) The EUT is a mobile device. 6) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Yours sincerely, Company Officer: Telephone Number: Email:

Page 1 of 14 RF Exposure Report Report No.: AGC09770200704FH03 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Ford Ranger/Everest Wireless Charge Mat BRAND NAME : Directed MODEL NAME : VKB3Z-19A464-B APPLICANT : Directed Electronics OE Pty Ltd DATE OF ISSUE : Jul. 27, 2020 STANDARD(S) : KDB680106 D01 RF Exposure Wireless Charging Base App v03 REPORT VERSION : V1.0 Attestation of Global Compliance(Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC09770200704FH03 Page 2 of 14 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jul. 27, 2020 Valid Initial Release Report No.: AGC09770200704FH03 Page 3 of 14 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 4 2. GENERAL INFORMATION ............................................................................................................................ 5 2.1. PRODUCT DESCRIPTION ..................................................................................................................... 5 3. DESCRIPTION OF TEST MODES................................................................................................................. 6 4. SYSTEM TEST CONFIGURATION ............................................................................................................... 6 5. TEST FACILITY ............................................................................................................................................. 7 6. RADIO FREQUENCY (RF) EXPOSURE TEST ............................................................................................. 8 6.1. LIMITS ..................................................................................................................................................... 8 6.2. TEST SETUP ........................................................................................................................................... 8 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ......................................................................................... 11 Report No.: AGC09770200704FH03 Page 4 of 14 1. VERIFICATION OF CONFORMITY Applicant Directed Electronics OE Pty Ltd Address 115-119 Link Road, Melbourne Airport, Victoria, 3045, Australia Manufacturer Directed Electronics OE Pty Ltd Address 115-119 Link Road, Melbourne Airport, Victoria, 3045, Australia Factory Directed Electronics OE Pty Ltd Address 115-119 Link Road, Melbourne Airport, Victoria, 3045, Australia Product Designation Ford Ranger/Everest Wireless Charge Mat Brand Name Directed Test Model: VKB3Z-19A464-B Date of test Jul. 07, 2020 to Jul. 27, 2020 Deviation No any deviation from the test method Condition of Test Sample Normal Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Attestation of Global Compliance(Shenzhen) Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in KDB680106 D01. The results of testing in this report apply to the product/system which was tested only. Prepared By Sky Dong (Project Engineer) Jul. 27, 2020 Reviewed By Max Zhang (Reviewer) Jul. 27, 2020 Approved By Forrest Lei (Authorized Officer) Jul. 27, 2020 Report No.: AGC09770200704FH03 Page 5 of 14 2. GENERAL INFORMATION 2.1.PRODUCT DESCRIPTION A major technical description of EUT is described as following Operation Frequency 110-205 kHz Test Frequency 145kHz Maximum field strength 67.95dBuV/m(PK)@3m Number of channels 1 Antenna Designation Coil Antenna (Met 15.203 Antenna requirement) Hardware Version V1.0 Software Version V1.0 Power Supply DC 12V by battery Report No.: AGC09770200704FH03 Page 6 of 14 3. DESCRIPTION OF TEST MODES NO. TEST MODE DESCRIPTION 1 Wireless charging Mode(Full load) 2 Wireless charging Mode(Half load) 3 Wireless charging Mode(Null load) Note: 1. The mode 1 was the worst case and only the data of the worst case record in this report. 2. The antenna 1, antenna 2 and antenna 3 can't work at the same time and each antenna has been tested. The antenna 2 is the worst case and recorded in the report. 4. SYSTEM TEST CONFIGURATION Item Equipment Model No. ID or Specification Remark 1 Ford Ranger/Everest Wireless Charge Mat VKB3Z-19A464-B 2AWVX-VKB3Z EUT 2 Battery N300 DC 12V AE 3 Wireless Load N/A 10W AE Report No.: AGC09770200704FH03 Page 7 of 14 5. TEST FACILITY TEST EQUIPMENT LIST Description Manufacturer Model S/N Cal. Date Cal. Due Broadband Field Meter Narda Safety Test Solutions GmbH ELT-400 J-0004 Jul.02,2020 Jul.01,2021 Probe FHP Narda Safety Test Solutions GmbH 2300/90.10 J-0015 Jul.02,2020 Jul.01,2021 TestSite Attestation of Global Compliance(Shenzhen) Co., Ltd Location 1-2/F,Building19,JunfengIndustrialPark,ChongqingRoad,HepingCommunity,FuhaiSt reet,Bao'anDistrict,Shenzhen,Guangdong,China Designation Number CN1259 FCC Test Firm Registration Number 975832 A2LA Cert. No. 5054.02 Description Attestation of Global Compliance(Shenzhen) Co., Ltd is accredited by A2LA Report No.: AGC09770200704FH03 Page 8 of 14 6. RADIO FREQUENCY(RF) EXPOSURETEST 6.1. LIMITS For devices designed for typical desktop applications, such a wireless charging pads, RF exposure evaluation should be conducted assuming a user separation distance of 15 cm. E and H field strength measurements or numerical modeling may be used to demonstrate compliance. Measurements should be made from all sides and the top of the primary/client pair, with the 15 cm measured from the center of the probe(s) to the edge of the device. Emissions between 100 kHz to 300 kHz should be assessed versus the limits at 300 kHz in Table 1 of Section 1.1310: 614 V/m and 1.63 A/m. 6.2. TEST SETUP Note: Position A: Front of EUT; Position B: Left o…

Text truncated - open the document above for the full version.

Page 1 of 26 FCC Test Report Report No.: AGC09770200704FE04 FCC ID : 2AWVX-VKB3Z APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Ford Ranger/Everest Wireless Charge Mat BRAND NAME : Directed MODEL NAME : VKB3Z-19A464-B APPLICANT : Directed Electronics OE Pty Ltd DATE OF ISSUE : Jul. 27, 2020 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC09770200704FE04 Page 2 of 26 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jul. 27, 2020 Valid Initial Release Report No.: AGC09770200704FE04 Page 3 of 26 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 4 2. GENERAL INFORMATION ............................................................................................................................ 5 2.1. PRODUCT DESCRIPTION ..................................................................................................................... 5 3. MEASUREMENT UNCERTAINTY ................................................................................................................. 6 4. DESCRIPTION OF TEST MODES ................................................................................................................. 7 5. SYSTEM TEST CONFIGURATION ............................................................................................................... 8 5.1. CONFIGURATION OF EUT SYSTEM ..................................................................................................... 8 5.2. EQUIPMENT USED IN EUT SYSTEM ..................................................................................................... 8 5.3. SUMMARY OF TEST RESULTS .............................................................................................................. 8 6. TEST FACILITY ............................................................................................................................................. 9 7. RADIATED EMISSION ................................................................................................................................. 10 7.1TEST LIMIT ............................................................................................................................................. 10 7.2. MEASUREMENT PROCEDURE ............................................................................................................ 11 7.3. TEST SETUP ......................................................................................................................................... 12 7.4. TEST RESULT ....................................................................................................................................... 13 8. 20DB BANDWIDTH ..................................................................................................................................... 16 8.1. MEASUREMENT PROCEDURE ........................................................................................................... 16 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 16 8.3. MEASUREMENT RESULTS .................................................................................................................. 17 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ........................................................................................ 18 APPENDIX B: PHOTOGRAPHS OF EUT ....................................................................................................... 19 Report No.: AGC09770200704FE04 Page 4 of 26 1. VERIFICATION OF CONFORMITY Applicant Directed Electronics OE Pty Ltd Address 115-119 Link Road, Melbourne Airport, Victoria, 3045, Australia Manufacturer Directed Electronics OE Pty Ltd Address 115-119 Link Road, Melbourne Airport, Victoria, 3045, Australia Factory Directed Electronics OE Pty Ltd Address 115-119 Link Road, Melbourne Airport, Victoria, 3045, Australia Product Designation Ford Ranger/Everest Wireless Charge Mat Brand Name Directed Test Model VKB3Z-19A464-B Date of test Jul. 07, 2020 to Jul. 27, 2020 Deviation No any deviation from the test method Condition of Test Sample Normal Test Result Pass Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Attestation of Global Compliance (Shenzhen) Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with Section 15.207, 15.209, 15.203 of the FCC Part 15, Subpart C Rules. The results of testing in this report apply to the product/system which was tested only. Prepared By Sky Dong (Project Engineer) Jul. 27, 2020 Reviewed By Max Zhang (Reviewer) Jul. 27, 2020 Approved By Forrest Lei (Authorized Officer) Jul. 27, 2020 Report No.: AGC09770200704FE04 Page 5 of 26 2. GENERAL INFORMATION 2.1. PRODUCT DESCRIPTION A major technical description of EUT is described as following Operation Frequency 110-205 kHz Test Frequency 145kHz Maximum field strength 67.95dBuV/m(PK)@3m Modulation FSK Number of channels 1 Antenna Gain 0dBi Antenna Designation Coil Antenna (Met 15.203 Antenna requirement) Hardware Version V1.0 Software Version V1.0 Power Supply DC 12V by battery Report No.: AGC09770200704FE04 Page 6 of 26 3. MEASUREMENT UNCERTAINTY The uncertainty is calculated using the methods suggested in the “Guide to the Expression of Uncertainty in measurement” (GUM) published by CISPR and ANSI. - Uncertainty of Conducted Emission, Uc = ±3.2 dB - Uncertainty of Radiated Emis…

Text truncated - open the document above for the full version.

Report No.: AGC09770200704FE04 Page 22 of 26 RIGHT VIEW OF EUT OPEN VIEW OF EUT-1 Report No.: AGC09770200704FE04 Page 23 of 26 OPEN VIEW OF EUT-2 INTERNAL VIEW OF EUT-1 Report No.: AGC09770200704FE04 Page 24 of 26 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 Antenna 1 Antenna 2 Antenna 3 Report No.: AGC09770200704FE04 Page 25 of 26 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5 INTERNAL VIEW OF EUT-6 Report No.: AGC09770200704FE04 Page 26 of 26 ----END OF REPORT---- Conditions of Issuance of Test Reports 1. All samples and goods are accepted by the Attestation of Global Compliance (Shenzhen) Co., Ltd (the “Company”) solely for testing and reporting in accordance with the following terms and conditions. The company provides its services on the basis that such terms and conditions constitute express agreement between the company and any person, firm or company requesting its services (the “Clients”). 2. Any report issued by Company as a result of this application for testing services (the “Report”) shall be issued in confidence to the Clients and the Report will be strictly treated as such by the Company. It may not be reproduced either in its entirety or in part and it may not be used for advertising or other unauthorized purposes without the written consent of the Company. The Clients to whom the Report is issued may, however, show or send it, or a certified copy thereof prepared by the Company to its customer, supplier or other persons directly concerned. The Company will not, without the consent of the Clients, enter into any discussion or correspondence with any third party concerning the contents of the Report, unless required by the relevant governmental authorities, laws or court orders. 3.The Company shall not be called or be liable to be called to give evidence or testimony on the Report in a court of law without its prior written consent, unless required by the relevant governmental authorities, laws or court orders. 4. The non-CMA report issued by AGC is only permitted to be used by the client as internal reference use and shall not be used for public demonstration purpose. 5. In the event of the improper use of the report as determined by the Company, the Company reserves the right to withdraw it, and to adopt any other additional remedies which may be appropriate. 6. Samples submitted for testing are accepted on the understanding that the Report issued cannot form the basis of, or be the instrument for, any legal action against the Company. 7. The Company will not be liable for or accept responsibility for any loss or damage however arising from the use of information contained in any of its Reports or in any communication whatsoever about its said tests or investigations. 8.Clients wishing to use the Report in court proceedings or arbitration shall inform the Company to that effect prior to submitting the sample for testing. 9. The Company is not responsible for recalling the electronic version of the original report when any revision is made to them. The Client assumes the responsibility to providing the revised version to any interested party who uses them. 10. Subject to the variable length of retention time for test data and report stored hereinto as otherwise specifically required by individual accreditation authorities, the Company will only keep the supporting test data and information of the test report for a period of six years. The data and information will be disposed of after the aforementioned retention period has elapsed. Under no circumstances shall we provide any data and information which has been disposed of after retention period. Under no circumstances shall we be liable for damage of any kind, including (but not limited to) compensatory damages, lost profits, lost data, or any form of special, incidental, indirect, consequential or punitive damages of any kind, whether based on breach of contract of warranty, tort (including negligence), product liability or otherwise, even if we are informed in advance of the possibility of such damages.

Test Setup Photos FCC RADIATED EMISSION TEST SETUP BELOW 1GHZ
