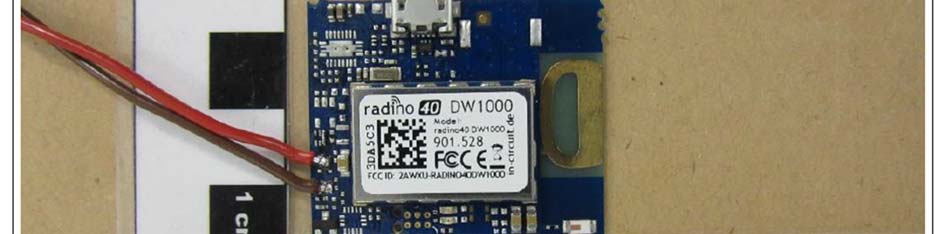

2AWXURADINO40DW1000The In-Circuit radino40 DW1000 combines Nordic Semiconductors nRF52840 microcontroller and Decawaves DW1000 UWB radio chip in a small form-factor EMC-compliant module.

In-Circuit GmbH Boltenhagener Str. 124 D-011109 Dresden Document-Nr: 3051000 165A001 Datasheet DW1000 Page 1 / 15 The In-Circuit radino DW1000 combines Nordic Semiconductor's nRF528440 microprocessor and Decawave's DW1000 Transceiver in a small form-factor EMC- compliant module. The DW1000 integrates UWB and Bluetooth ® functionality. It can be used in two-way-ranging or TDOA location systems to locate assets to a precision of 10 cm. DW1000 Features ● UWB Transeiver DW1000 by Decawave ● IEEE802.15.4-2011 UWB compliant ● Supports 6 RF bands from 3.5 GHz to 6.5 GHz ● Data rates of 110 kbps, 850 kbps, 6.8 Mbps ● nRF521840 by Nordic Semiconductors ● 32-bit ARM® Cortex®-M4 CPU with FPU, 64 MHz ● 1 Mbyte Flash, 256 kbyte RAM ● Dynamic multiprotocol-transceiver: ● Bluetooth 5 / Bluetooth Low Energy ● IEEE 802.15.4/Thread ● ANT/ANT+ ● Proprietary 2,4 GHz ● 4x4 channel pwm unit with EasyDMA ● 12 bit 200 ksps ADC ● 5x 32 bit timer with counter mode ● USB 2.0, I²C, QSPI, SPI, UART, NFC-A ● Qadrature decoder (QDEC) ● 3x RTC ● 37 GPIOs Applications ● Precision real time location systems (RTLS) using two-way ranging or TDOA schemes in a variety of markets: ● Healthcare ● Consumer ● Industrial ● Other ● Location aware wireless sensor networks For more information visit: htp://www.in-circuit.de/ htp://www.radino.cc/ In-Circuit GmbH Boltenhagener Str. 124 D-011109 Dresden Document-Nr: 3051000 165A001 Datasheet DW1000 Page 2 / 15 Radio Section – DW1000 Overview The In-Circuit DW1000 combines a nRF528440 microprocessor and the DW1000 RF Transceiver. Despite its small form factor, the DW1000 ofers great connectivity. Many GPIOs and interfaces (USB 2.0, I²C, QSPI, SPI, UART, NFC-A) of the nRF528440 can be connected to external circuitry. QSPI Micro Controller Section of SPI USB UART I 2 C NFC Bluetooth ® nRF521840 37 GPIOs In-Circuit GmbH Boltenhagener Str. 124 D-011109 Dresden Document-Nr: 3051000 165A001 Datasheet DW1000 Page 3 / 15 Pinout Pins seen from top side Pin1 Botom View Pin1 Top View Pins seen from botom side In-Circuit GmbH Boltenhagener Str. 124 D-011109 Dresden Document-Nr: 3051000 165A001 Datasheet DW1000 Page 4 / 15 radino Pin Name NRF528440 aQFN73Pin/Name DW1000 Port/Name Description / Function 1P0.17AD12/P0.17-GPIO 2P0.15AD10/P0.15-GPIO 3P0.14AC9/P0.14-GPIO 4P0.12U1/P0.12/ TRACEDATA1 -GPIO; Trace bufer TRACEDATA[1] 5P0.07M2/P0.07/ TRACECLK -GPIO; Trace bufer clock 6P0.03B13/P0.03/AIN1-GPIO (low-freq.); Analog input 7P0.05K2/P0.05/AIN3-GPIO; Analog input 8P0.29A10/P0.29/AIN5-GPIO (low-freq.); Analog input 9P0.31A8/P0.31/AIN7-GPIO (low-freq.); Analog input 10P0.01F2/P0.01/XL2-GPIO; Analog input; Connection for 32.768 kHz crystal 11ResetAC13/P0.18/ RESET -GPIO; nRF521840 reset 12GNDB7/VSS-Ground 13P0.06L1/P0.06-GPIO; (RXD) 14P0.08N1/P0.08-GPIO; (TXD) 15VDDVDDVDDPower supply 16P0.13/BSLAD8/P0.13-GPIO 17USB-AD4/D--USB-D- 18USB+AD6/D+-USB-D+ 19P0.09L24/P0.09/NFC1-GPIO (low-freq.); NFC antenna input 20P0.10J24/P0.10/NFC2-GPIO (low-freq.); NFC antenna input 21 BT_ANT →H23/ANT-Bluetooth Antenna connection 22P1.07P23/P1.07-GPIO (low-freq.) 23P1.05T23/P1.05 -GPIO (low-freq.) 24P1.03V23/P1.03 -GPIO (low-freq.) 25P1.01Y23/P1.01-GPIO (low-freq.) 26P1.00AD22/P1.00/ TRACEDATA0 -GPIO (low-freq.); Trace bufer TRACEDATA[0], SWO 27 DEC_PWR needs at least 47μF ceramic to GND Pin List In-Circuit GmbH Boltenhagener Str. 124 D-011109 Dresden Document-Nr: 3051000 165A001 Datasheet DW1000 Page 5 / 15 radino Pin Name NRF528440 aQFN73Pin/Nam e DW1000 Port/Name Description / Function 28GNDVSSVSSGround 29DEC_RFneeds at least 47μF ceramic to GND 30GNDVSSVSSGround 31 DW_ANT -Balun→ 17/PF_N,16/RF_P Antenna pin DW1000 32GNDVSSVSSGround 33P0.16AC11/P0.16-GPIO 34SYNCP2/P1.0829/SYNC/GPIO7GPIO; DW1000 external synchronization 35VDDIO-31/VDDIO, 42/VDDIO GPIO; Trace bufer clock 36P0.11T2/P0.11-GPIO 37P0.02A12/P0.02/AIN0-GPIO (low-freq.); Analog input 38P0.04J1/P0.04/AIN2-GPIO; Analog input 39P0.28B11/P0.28/AIN4-GPIO (low-freq.); Analog input 40P0.30B9/P0.30/AIN6-GPIO (low-freq.); Analog input 41P0.00D2/P0.0/XL1-GPIO; Analog input; Connection for 32.768 kHz crystal 42P0.27H2/P0.27-GPIO 43P0.26G1/P0.26-GPIO 44P1.09R1/P1.09/ TRACEDATA3 -GPIO; Trace bufer TRACEDATA[3] 45VUSBAD2/VBUS-Power supply 46SWCLKAA24/SWDCLK-Serial wire debug clock input 47SWDIOAC24/SWDIO-Debug serial data 48GNDVSSVSSGround 49GNDVSSVSSGround 50EXTCLK-3/EXTCLK/XTAL1DW1000 reference crystal input 51P1.02W24/P1.02-GPIO (low-freq.) 52P1.04U24/P1.04-GPIO (low-freq.) 53P1.06R24/P1.06-GPIO (low-freq.) In-Circuit GmbH Boltenhagener Str. 124 D-011109 Dresden Document-Nr: 3051000 165A001 Datasheet DW1000 Page 6 / 15 Signal Name NRF528440 aQFN73Pin/Name DW1000 Port/Name Description / Function RF_SSAD16/P0.2024/SPICSDW1000 SPI chip select RF_SCKAC15/P0.1941/SPICLKDW1000 SPI clock RF_MOSIAC19/P0.2339/SPIMOSIDW1000 SPI data output RF_MISOAC17/P0.2140/SPIMISODW1000 SPI data input RF_RSTB17/P1.1227/RSTDW1000 reset pin SYNCP2/P1.0829/SYNC/GPIO7DW1000 external synchronization RFIRQAD20/P0.2445/IRQ/GPIOP8DW1000 interrupt request output RF_WAKEUPB19/P1.1123/WAKEUPDW1000 wake up RXOKLEDAC21/P0.2538/GPIO0/ RXOKLED DW1000 GPIO; can be configured to indicate reception of a good frame SFDLEDAD18/P0.2237/GPIO1/SFDLEDDW1000 GPIO; can be configured to indicate SFD discovery RXLEDA20/P1.1036/GPIO2/RXLEDDW1000 GPIO; can be configured to indicate RXmode TXLEDA16/P1.1335/GPIO3/TXLEDDW1000 GPIO; can be configured to indicate TXmode Interconnection The nRF521840 and the DW1000 are connected internally. The interconnections are listed below. In-Circuit GmbH Boltenhagener Str. 124 D-011109 Dresden Document-Nr: 3051000 165A001 Datasheet DW1000 Page 7 / 15 Interconnection diagram N R F 5 2 1 8 4 0 D W 1 0 0 0 P 0 . 2 0 P 0 . 1 9 P 0 . 2 3 P 0 . 2 1 P 1 . 1 2 P 0 . 2 5 P 0 . 2 2 P 1 . 1 0 P 1 . 1 3 P 1 . 0 8 P 0 . 2 4 P 1 . 1 1 S P I C S S P I C L K S P I M O S I S P I M I S O R S T S Y N C I R Q W A K E U P R X O K L E D S F D L E D R X L E D T X L E D 100 kΩ 100 kΩ In-Circuit GmbH Boltenhagener St…

Text truncated - open the document above for the full version.

Integration instructions for host product manufacturers according to KDB 996369 D03 OEM Manual v01 2.2 List of applicable FCC rules 47 CFR Part 15 Subpart C §15.247 47 CFR Part 15 Subpart F §15.519 2.3 Specific operational use conditions External antenna: “Decawave WB003” Operating temperature: -40 to 85 °C Supply voltage: 2.8 – 3.6V 2.4 Limited module procedures not applicable Not a “limited module”. 2.5 Trace antenna designs The antenna trace must be kept as short as possible. The antenna feed of the PCB antenna “Decawave WB003” must be placed as close as possible to pin 31 of the radino40 module. The PCB antenna must be placed on the TOP layer of the carrier PCB. 2.6 RF exposure considerations The radino40 DW1000 BLE and UWB transmitters meets all requirements for SAR or RF Exposure, intended or unintended, under FCC rules. The BLE radio falls well below the limit determined for <5mm separation (a “body-worn” device) and, for a UWB radio operating above 6GHz, there are currently no exposure limits specified. If the final host / module combination is intended for use as a portable device the host manufacturer is responsible for separate evaluations/approvals for the SAR requirements from FCC Part 2.1093 and RSS-102. 2.7 Antennas Model No. of antenna: Decawave WB003 Type of antenna: Ultra-wideband Omni-directional Planar antenna, integrated on the carrier PCB according to reference design. The mounting of the antenna is fixed to the radio module and no other antenna should be used. 2.8 Label and compliance information The final end product must be labeled in a visible area with the following Contains FCC ID: 2AWXURADINO40DW1000 2.9 Information on test modes and additional testing requirements Testing of the host product with all the transmitters installed is recommended, to verify that the host product meets all the applicable FCC rules. The radio spectrum and RF Exposure is to be investigated with all the transmitters in the final host product functioning to determine that no emissions exceed the radino40 DW1000 highest limit permitted for any one individual transmitter as required by Section 2.947(f). A formal application for certification submission containing the results of this investigation is not required. The host manufacturer is responsible to ensure that when their product operates as intended it does not have any emissions present that are out of compliance that were not present when the transmitters were tested individually. If the host product uses any transmitters that have not been FCC certified as modular transmitter, it is necessary to obtain the required certification for that transmitter. Host products using a modular transmitter are subject to all the applicable individual technical rules as well as to the general conditions of operation in Sections 15.5, 15.15, and 15.29 to not cause interference. 2.10 Additional testing, Part 15 Subpart B disclaimer This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter.

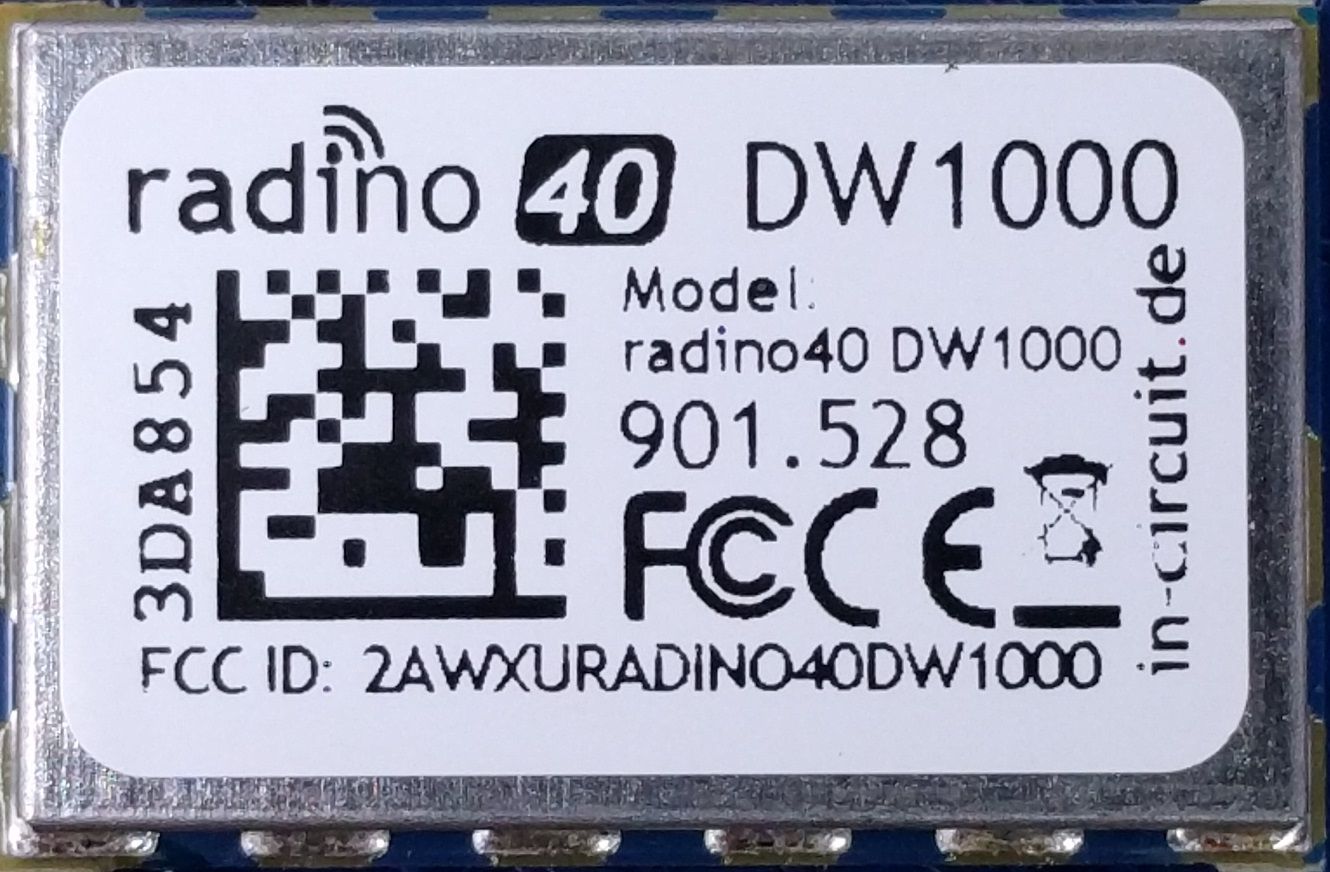

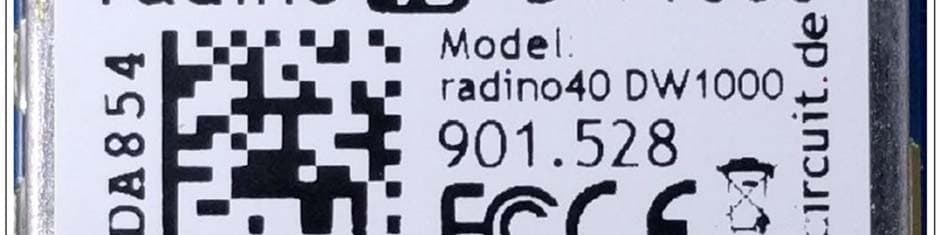

FCC ID: 2AWXURADINO40DW1000 G0M‐2006‐9089 FCC ID: 2AWXURADINO40DW1000 G0M‐2006‐9089 FCC ID: 2AWXURADINO40DW1000 G0M‐2006‐9089 FCC ID: 2AWXURADINO40DW1000 G0M‐2006‐9089

FCC ID: 2AWXURADINO40DW1000 G0M‐2006‐9089

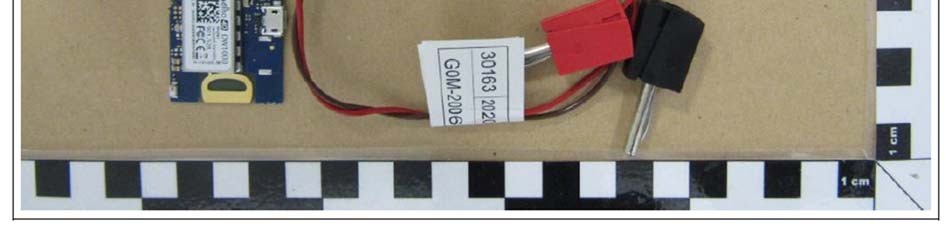

Test Report No.: G0M-2006-9089-TFC091MP-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 1 of 16 RF-EXPOSURE REPORT FCC 47 CFR Part 2.1091 ISED RSS-102 Maximum permissible exposure Report Reference No G0M-2006-9089-TFC091MP-V01 Testing Laboratory Eurofins Product Service GmbH Address Storkower Str. 38c 15526 Reichenwalde Germany Accreditation DAkkS - Registration number : D-PL-12092-01-03 (ISED) ISED Testing Laboratory site: 3470A-2 DAkkS - Registration number : D-PL-12092-01-04 (FCC) FCC Filed Test Laboratory, Reg.-No.: 96970 Applicant In-Circuit GmbH Address Boltenhagener Str. 124 01109 Dresden GERMANY Test Specification According to FCC/ISED rules Standard FCC 47 CFR 2.1091 ISED RSS-102 Non-Standard Test Method None Equipment under Test (EUT): Product Description radio module with integrated microcontroller (nRF52840), BLE and UWB interface (DW1000) Model(s) radino40 DW1000 Additional Model(s) None Brand Name(s) None Hardware Version(s) A Software Version(s) A FCC-ID 2AWXURADINO40DW1000 IC N/A Test Result PASSED Test Report No.: G0M-2006-9089-TFC091MP-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 3 of 16 VERSION HISTORY Version History Version Issue Date Remarks Revised By 01 2020-08-06 Initial Release Test Report No.: G0M-2006-9089-TFC091MP-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 4 of 16 ABBREVIATIONS AND ACRONYMS Acronyms Acronym Description EIRP Equivalent Isotropic Radiated Power EUT Equipment Under Test MPE Maximum Permissible Exposure N/A Not applicable Test Report No.: G0M-2006-9089-TFC091MP-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 5 of 16 REPORT INDEX 1 Equipment (Test Item) Under Test................................................................................................... 6 1.1 Reference Documents ................................................................................................................................... 7 1.2 Power density radiation sources.................................................................................................................... 8 1.3 Field strength radiation sources .................................................................................................................... 8 1.4 Concurrent Sources ...................................................................................................................................... 8 2 Result Summary ................................................................................................................................. 9 3 RF-Exposure classification ............................................................................................................ 10 4 RF-Exposure limits .......................................................................................................................... 11 5 RF-Exposure Evaluation ................................................................................................................. 12 6 Single Source Evaluation Results - FCC ...................................................................................... 13 7 Single Source Evaluation Results - ISED ..................................................................................... 14 8 Concurrent Evaluation Results - FCC ........................................................................................... 15 9 Concurrent Evaluation Results - ISED .......................................................................................... 16 Test Report No.: G0M-2006-9089-TFC091MP-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 6 of 16 1 Equipment (Test Item) Under Test Description radio module with integrated microcontroller (nRF52840), BLE and UWB interface (DW1000) Model radino40 DW1000 Additional Model(s) None Brand Name(s) None Serial Number(s) Not specified Hardware Version(s) A Software Version(s) A PMN N/A HVIN N/A FVIN N/A HMN N/A FCC-ID 2AWXURADINO40DW1000 IC N/A Equipment type End Product Environment General public Test Report No.: G0M-2006-9089-TFC091MP-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 7 of 16 1.1 Reference Documents Document Type Document No. Issued by Date Test Report (FCC/ISED) – FCC 47 CFR § 15.247 + ISED RSS-247 Issue 2 (February 2017) – Bluetooth Low Energy G0M-2006-9089- TFC247BL-V01 Eurofins Product Service GmbH 2020-08-03 Test Report (FCC/ISED) – FCC 47 CFR § 15.519 + ISED RSS-220 Issue 1, Amendment 1 (July 2018) – Ultra Wide Band G0M-2006-9089- TFC15FUW-V01 Eurofins Product Service GmbH 2020-08-05 Test Report No.: G0M-2006-9089-TFC091MP-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 8 of 16 1.2 Power density radiation sources Mode Operating Frequency [MHz] Maximum conducted power [dBm] Maximum radiated power [dBm EIRP] Maximum duty cycle [%] Maximum antenna gain [dBi] Maximum antenna diameter [cm] Bluetooth Low Energy 2402 -1.7 -1.2 64 0.5 N/A Ultra Wide Band 6489.6 -8.5 -6.3 100 2.2 N/A Comment: None. 1.3 Field strength radiation sources None. 1.4 Concurrent Sources Concurrent operating conditions Bluetooth Low Energy + Ultra Wide Band Comment: None. Test Report No.: G0M-2006-9089-TFC091MP-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 9 of 16 2 Result Summary FCC MPE Evaluation - Single radiation sources Product Standard Reference Requirement Reference Method Mode Distance [m] Verdict 47 CFR 2.1091 Maximum permissible exposure FCC KDB 447498 Bluetooth Low Energy 0.20 PASS 47 CFR 2.1091 Maximum permissible exposure FCC KDB 447498 Ultra Wide Band 0.20 PASS Comment: None. ISED MPE Evaluation - Single radiation sources Product Standard Reference Requirement Reference Method Mode Distance [m] Verdict ISED RSS-102 Maximum permissible exposure ISED RSS-102 Bluet…

Text truncated - open the document above for the full version.

Test Report No.: G0M-2006-9089-TFC093PEX-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 1 of 17 RF-EXPOSURE REPORT FCC 47 CFR Part 2.1093 FCC 47 CFR Part 1.1310 ISED RSS-102 RF-Exposure evaluation of portable equipment Report Reference No G0M-2006-9089-TFC093PEX-V01 Testing Laboratory Eurofins Product Service GmbH Address Storkower Str. 38c 15526 Reichenwalde Germany Accreditation DAkkS - Registration number : D-PL-12092-01-03 (ISED) ISED Testing Laboratory site: 3470A-2 DAkkS - Registration number : D-PL-12092-01-04 (FCC) FCC Filed Test Laboratory, Reg.-No.: 96970 Applicant In-Circuit GmbH Address Boltenhagener Str. 124 01109 Dresden GERMANY Test Specification According to FCC/ISED rules Standard FCC 47 CFR 2.1093 FCC 47 CFR 1.1013 ISED RSS-102 Issue 5 Non-Standard Test Method None Equipment under Test (EUT): Product Description radio module with integrated microcontroller (nRF52840), BLE and UWB interface (DW1000) Model(s) radino40 DW1000 Additional Model(s) None Brand Name(s) None Hardware Version(s) A Software Version(s) A FCC-ID 2AWXURADINO40DW1000 IC n/a Test Result PASSED Test Report No.: G0M-2006-9089-TFC093PEX-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 3 of 17 VERSION HISTORY Version History Version Issue Date Remarks Revised By 01 2020-10-13 Initial Release Test Report No.: G0M-2006-9089-TFC093PEX-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 4 of 17 ABBREVIATIONS AND ACRONYMS Acronyms Acronym Description EIRP Equivalent Isotropic Radiated Power ERP Effective Radiated Power EUT Equipment Under Test LPE Low Power Exclusion Test Report No.: G0M-2006-9089-TFC093PEX-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 5 of 17 REPORT INDEX 1 Equipment (Test Item) Under Test................................................................................................... 6 1.1 Reference Documents ................................................................................................................................... 7 1.2 Standalone radiation sources ........................................................................................................................ 8 1.3 Concurrent Sources ...................................................................................................................................... 8 2 Result Summary ................................................................................................................................. 9 3 RF-Exposure classification ............................................................................................................ 10 4 RF-Exposure limits and exclusion thresholds ............................................................................ 11 4.1 SAR limits .................................................................................................................................................... 11 4.2 SAR standalone test exclusion threshold .................................................................................................... 11 4.3 SAR concurrent test exclusion threshold ..................................................................................................... 12 4.4 RF-Exposure Limits ..................................................................................................................................... 13 5 RF-Exposure Evaluation ................................................................................................................. 14 6 Single Source Evaluation Results – FCC Bluetooth LE ............................................................. 15 7 Single Source Evaluation Results – ISED Bluetooth LE ............................................................ 15 8 Single Source Evaluation Results – FCC Ultra Wide Band ....................................................... 16 9 Single Source Evaluation Results – ISED Ultra Wide Band ...................................................... 16 10 Concurrent Evaluation Results - FCC ........................................................................................... 17 11 Concurrent Evaluation Results - ISED .......................................................................................... 17 Test Report No.: G0M-2006-9089-TFC093PEX-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 6 of 17 1 Equipment (Test Item) Under Test Description radio module with integrated microcontroller (nRF52840), BLE and UWB interface (DW1000) Model radino40 DW1000 Additional Model(s) None Brand Name(s) None Serial Number(s) Not specified Hardware Version(s) A Software Version(s) A PMN n/a HVIN n/a FVIN n/a HMN n/a FCCID 2AWXURADINO40DW1000 IC n/a Equipment type End Product Environment General public Use case Body worn Test Report No.: G0M-2006-9089-TFC093PEX-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 7 of 17 1.1 Reference Documents Document Type Document No. Issued by Date Test Report (FCC/ISED) – FCC 47 CFR § 15.247 + ISED RSS-247 Issue 2 (February 2017) – Bluetooth Low Energy G0M-2006-9089- TFC247BL-V01 Eurofins Product Service GmbH 2020-08-03 Test Report (FCC/ISED) – FCC 47 CFR § 15.519 + ISED RSS-220 Issue 1, Amendment 1 (July 2018) – Ultra Wide Band G0M-2006-9089- TFC15FUW-V01 Eurofins Product Service GmbH 2020-08-03 Test Report No.: G0M-2006-9089-TFC093PEX-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 8 of 17 1.2 Standalone radiation sources Standalone radiation sources Mode Operating Frequency [MHz] Maximum conducted power [dBm] Maximum radiated power [dBm EIRP] Maximum duty cycle [%] Antenna distance to body [mm] Bluetooth LE 2402 -1.7 -1.2 64 5.0 ULtra Wide Band 6489.6 -8.5 -6.3 100 5.0 Comment: 1.3 Concurrent Sources Concurrent operating conditions Bluetooth LE + ULtra Wide Ba…

Text truncated - open the document above for the full version.

Test Report No.: G0M-2006-9089-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 1 of 65 EMC TEST REPORT FCC 47 CFR Part 15B, ISED ICES-003 Issue 6 Report Reference No G0M-2006-9089-EF0115B-V01 Testing Laboratory Eurofins Product Service GmbH Address Storkower Str. 38c 15526 Reichenwalde Germany Accreditation DAkkS - Registration number : D-PL-12092-01-03 (ISED) ISED Testing Laboratory site: 3470A-2 DAkkS - Registration number : D-PL-12092-01-04 (FCC) FCC Filed Test Laboratory, Reg.-No.: 96970 Applicant In-Circuit GmbH Address Boltenhagener Str. 124 01109 Dresden GERMANY Test Specification Standard(s) 47 CFR Part 15 Subpart B ISED ICES-003 Issue 6 ANSI C63.4:2014+A1:2017 Non-Standard Test Method None Equipment under Test (EUT): Product Description radio module with integrated microcontroller (nRF52840), BLE and UWB interface (DW1000) Model(s) radino40 DW1000 Additional Model(s) None Brand Name(s) None Hardware Version(s) A Software Version(s) A FCC-ID 2AWXURADINO40DW1000 IC n/a Test Result PASSED Test Report No.: G0M-2006-9089-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 3 of 65 ABBREVIATIONS AND ACRONYMS Acronyms Acronym Description EUT Equipment Under Test FCC Federal Communications Commission ISED Innovation, Science and Economic Development Canada T NOM Nominal operating temperature V NOM Nominal supply voltage Test Report No.: G0M-2006-9089-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 4 of 65 VERSION HISTORY Version History Version Issue Date Remarks Revised By 01 2020-07-28 Initial Release Test Report No.: G0M-2006-9089-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 5 of 65 REPORT INDEX 1 Equipment (Test Item) Under Test................................................................................................... 6 1.1 Equipment Ports ............................................................................................................................................ 7 1.2 Equipment Photos - External ......................................................................................................................... 8 1.3 Support Equipment ...................................................................................................................................... 11 1.4 Operational Modes ...................................................................................................................................... 12 1.5 EUT Configuration ....................................................................................................................................... 13 1.6 Sample emission level calculation ............................................................................................................... 14 2 Result Summary ............................................................................................................................... 15 2.1 Test Conditions and Results - Radiated emissions acc. to ANSI C63.4 ...................................................... 16 2.2 Test Conditions and Results - Conducted emissions acc. to ANSI C63.4 ................................................... 56 Test Report No.: G0M-2006-9089-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 6 of 65 1 Equipment (Test Item) Under Test Description radio module with integrated microcontroller (nRF52840), BLE and UWB interface (DW1000) Model radino40 DW1000 Additional Model(s) None Brand Name(s) None Serial Number(s) unspecified Hardware Version(s) A Software Version(s) A FCC-ID 2AWXURADINO40DW1000 IC n/a Class Class B Equipment type Table top Highest internal frequency [MHz] 63897.6 Supply Voltage V NOM 3.3V DC AC/DC-Adaptor None Manufacturer In-Circuit GmbH Boltenhagener Str. 124 01109 Dresden GERMANY Test Report No.: G0M-2006-9089-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 7 of 65 1.1 Equipment Ports Name Type Attributes Comment DC Power DC Count: Direction: Service only: 1 In No Description: AC AC mains power input/output port DC DC power input/output port BAT DC power input port connected to external battery IO Input/Output port TP Telecommunication port NE Non-electrical port Test Report No.: G0M-2006-9089-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 8 of 65 1.2 Equipment Photos - External EUT + Evaluation board TOP EUT + Evaluation board BOTTOM Test Report No.: G0M-2006-9089-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 9 of 65 EUT UWB Antenna TOP EUT UWB Antenna BOTTOM Test Report No.: G0M-2006-9089-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 10 of 65 EUT Label + BTLE Antenna Test Report No.: G0M-2006-9089-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 11 of 65 1.3 Support Equipment Product Type Device Manufacturer Model Comment AE Carrier board In-Circuit GmbH 901.327E radino Spider RP-SMA Customer support equipment AE Battery TADRIAN Batteries TLP-93111/A/IT3 - AE AC/DC adaptor sonero MW3K10GS/X- PS020 - Description: AE Auxiliary Equipment SIM Simulator MON Monitoring Equipment CBL Connecting Cable Comment: Test Report No.: G0M-2006-9089-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 12 of 65 1.4 Operational Modes Mode # Description 1 Bluetooth Low Energy transmission with 50 beacons / second 2 UWB transmission on Ch.: 2, with 1000 packets / second 3 UWB transmission on Ch.: 5, with 1000 packets / second Comment: Test Report No.: G0M-2006-9089-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 13 of 65 1.5 EUT Configuration Configuration # Des…

Text truncated - open the document above for the full version.

Test Report No.: G0M-2006-9089-TFC15FUW-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 1 of 67 RADIO REPORT FCC 47 CFR Part 15F ISED Canada RSS-220 Ultra Wide Band Devices Report Reference No G0M-2006-9089-TFC15FUW-V01 Testing Laboratory Eurofins Product Service GmbH Address Storkower Str. 38c 15526 Reichenwalde Germany Accreditation DAkkS - Registration number : D-PL-12092-01-03 (ISED) ISED Testing Laboratory site: 3470A-2 DAkkS - Registration number : D-PL-12092-01-04 (FCC) FCC Filed Test Laboratory, Reg.-No.: 96970 Applicant In-Circuit GmbH Address Boltenhagener Str. 124 01109 Dresden GERMANY Test Specification 47 CFR Part 15F RSS-220, Issue 1 + A1, 2018-07 RSS-Gen, Issue 5, Amendment 1, 2019-03 Non-Standard Test Method None Equipment under Test (EUT): Product Description radio module with integrated microcontroller (nRF52840), BLE and UWB interface (DW1000) Model(s) radino40 DW1000 Additional Model(s) None Brand Name(s) None Hardware Version(s) A Software Version(s) A FCC-ID 2AWXURADINO40DW1000 IC N/A Test Result PASSED Test Report No.: G0M-2006-9089-TFC15FUW-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 3 of 67 VERSION HIS…

Text truncated - open the document above for the full version.
