2AWYH-GMR5-MOBAnalog transceiver

GMR5-M P.N. GMR5-M Thank you for purchasing a Rugged Radios 2-Way Radio. This radio was pre-programmed and fully optimized before being shipped to you. Please use caution before changing any settings on this radio. For questions, please call the Rugged Radios Tech Department at 888-541-7223. Rugged Radios This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this deivce does not cause harmful interference. USAGE TIPS ----------------------------------------------------------------------------- 2 UNPACKING & CHECKING EQUIPMENT ------------------------------------------------- 3 CONFIGURATION ----------------------------------------------------------------------- 4 ACCESSORY INSTALLATION ----------------------------------------------------------- 7 GETTING FAMILIAR -------------------------------------------------------------------- 9 OPERATION MODES -------------------------------------------------------------------- 14 MENU ---------------------------------------------------------------------------------- 15 DETAILED FUNCTION DESCRIPTION --------------------------------------------------- 17 ADVANCED FUNCTIONS ---------------------------------------------------------------- 22 TECHNICAL PARAMETERS ------------------------------------------------------------- 25 WARRANTY REGISTRATION ------------------------------------------------------------ 27 FCC NOTICE The GMR5-M Radio operates on GMRS (General Mobile Radio Service) frequencies which require a Federal Communications Commission (FCC) license. You must be licensed prior to operating on channels 1-7, 15-22 or RP15-22, and RUGGED which comprise the GMRS channels of the GMR5-M. Serious penalties may result from unlicensed use of GMRS channels in violation of FCC rules as stipulated in the Communications Act Sections 501 and 502 (amended). You will be issued a call sign by the FCC that should be used for station identification when operating your radio on GMRS channels. You should also cooperate by engaging in permissible transmissions only, avoiding channel interference with other GMRS users, and being prudent with the length of your transmission time. To obtain a license or inquire about the license application, contact the FCC at 1-888-CALL-FCC or visit the FCC website at http://www.fcc.gov and request form 605. Contents RF exposure waring: For a transmitter that can only be operated with an FCC license,warnings concerning compliance with applicable licensing requirements and information concerning license application procedures. This equiment complies with FCC radiation exposure limits (duty cycle up to 50%) set forth for an uncontrolled environment. This equipment shall be installed and operated with minimum distance 42.5cm between the radiator & body. Usage TipsUnpacking & Checking Equipment 0203 Please read the following instructions. Failure to comply with these instructions may be dangerous or violate the law. Check your package for the items listed below. If any items are missing or damaged during shipment, contact your dealer. GMR5-M Radio Power AdapterMounting ClipUser Manual Radio MountSpeaker MicMagnetic Roof Mount Antenna • Obey local government regulations. Improper use may be punishable by law. • Turn off the radio before entering flammable or explosive areas. • Do not charge or change the battery in flammable or explosive areas. • Turn off the radio before getting close to blasting zones or detonation areas. • Do not use a radio with a damaged antenna. Touching a damaged antenna may cause heat injury. • Do not attempt to open the radio. Maintenance work should be done by technical experts only. • To avoid trouble caused by electromagnetic interference or electromagnetic compatibility, please turn off the radio in places with "Do Not Use Wireless Equipment" displayed, such as hospitals or other healthcare facilities. • In cars with airbags, do not keep the radio within the scope of airbag deployment. • Do not store the radio under direct sunlight or in hot areas. • When transmitting with the radio, always remain at least 42.5cm from the antenna. • If the radio appears or smells burnt or emits smoke, shut off power immediately and contact your local dealer. • Transmitting for an extended period of time may cause the radio to overheat and potentially harm the user. GMR5-M P.N. GMR5-M 1-10 BFG RLY 0405 Example of Radio Placement • Antenna should be mounted as high up on the vehicle as possible, centered on the roof if possible. • Carefully route the coax cable as to not have any pinches or coils. NOTE: Avoid interaction between the coax cable and power cables. To get the best range from the external whip antenna(50 ) ConfigurationAntenna Placement MAGNETIC ROOF MOUNT ANTENNA SPEAKER MICRADIO POWER ADAPTER should be used. Ant gain : 0-1.5dBi (Max) Power Adapter 0607 1) Fit the supplied power adapter into the trough, then slide it toward the top of the radio to insert it completely (in the direction the of arrowhead below) 2) Push the power adapter lock to release the power adapter and slide it toward the bottom of the radio to remove it (in the direction the of arrowhead below) Mounting Clip 1. Align the two holes of the mounting clip with the two holes of the radio and affix them with the supplied M2.5x5 screws. Loosen the screws to remove the mounting clip. 2. Secure the GMR5-M to the radio mount as shown. 0809 Speaker MicGetting Familiar With the radio turned off, open the cover of the microphone/speaker jack and insert the speaker mic plug into the jack. Remote Antenna Connector Internal Speaker Volume Dial Keypad Busy/TX Internal Microphone Indicator turns green while receiving and red during transmission or emergency alarm. Toggles tranceiver power on/off and adjusts audio levels. BAT TEXIT FM 1-10 BFG RLY : Up & Down Arrow Keys : Locks & Unlocks Radio : Displays Battery Voltage : Enter & Exit FM Mode : Exit Key Functions & Menus PTT Mounting Clip Microphone/Speaker Jack Power Ada…

Text truncated - open the document above for the full version.

Rugged Radios Agent Authorization Company: Rugged Radios Address: 951 E Grand Ave, Arroyo Grande, California 93420, United States Product Name: Analog transceiver Model Number(s): GMR5-M Product Description: Analog transceiver We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-11-18 Name: Steve Gonzalez Company: Rugged Radios

Rugged Radios Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-11-18 Subject; Request for Confidentiality FCC ID: 2AWYH-GMR5-MOB To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely Steve Gonzalez Rugged Radios

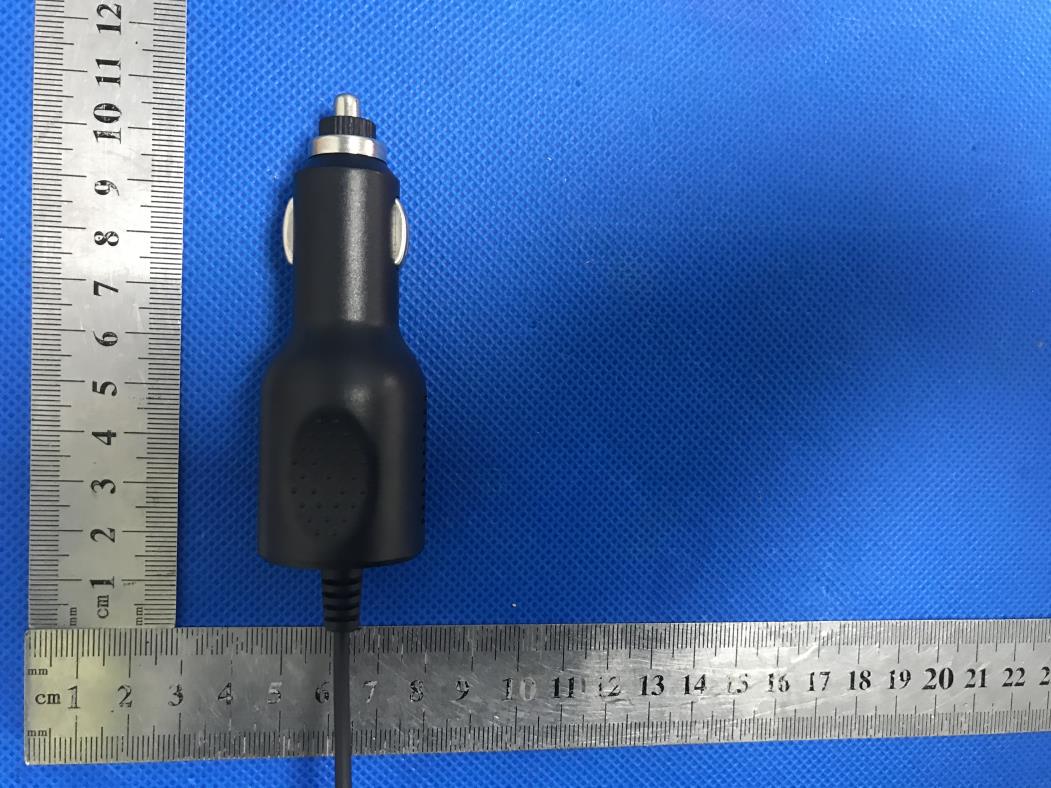

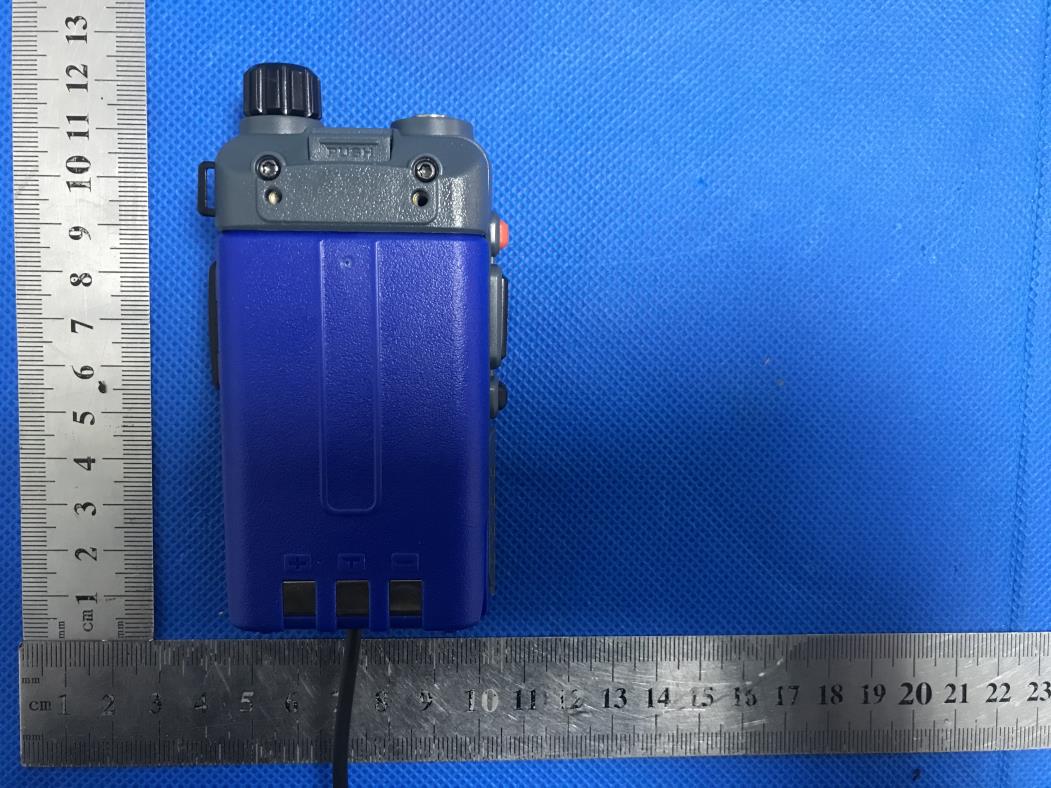

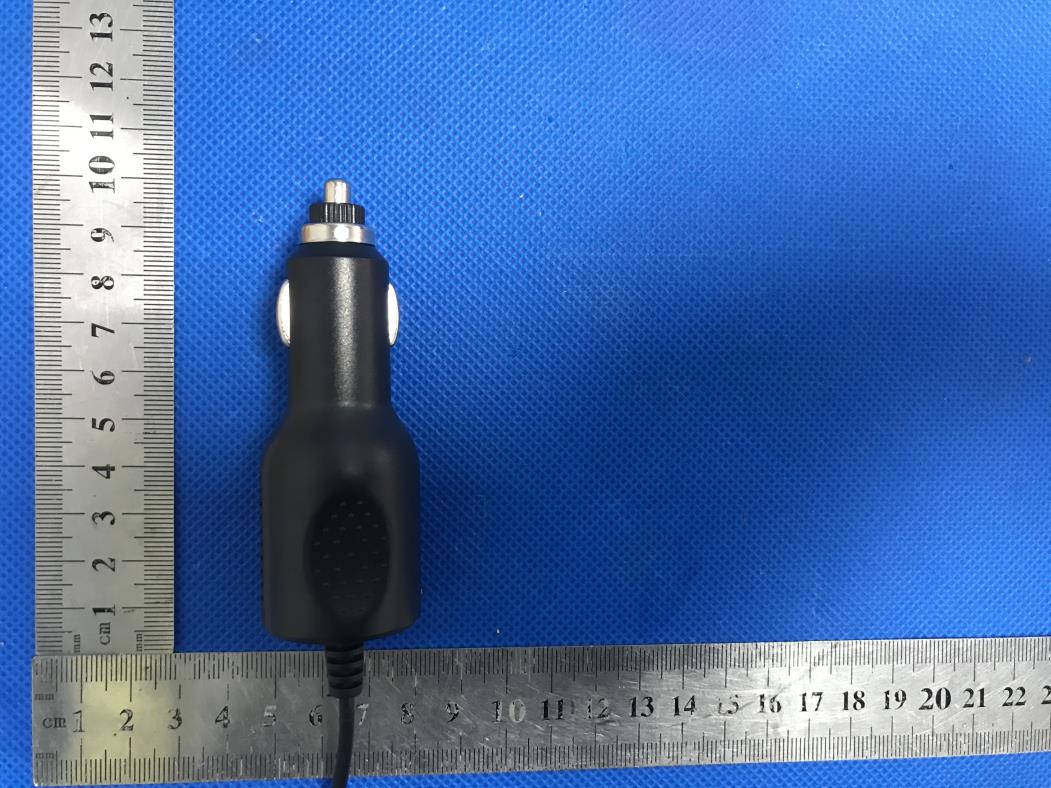

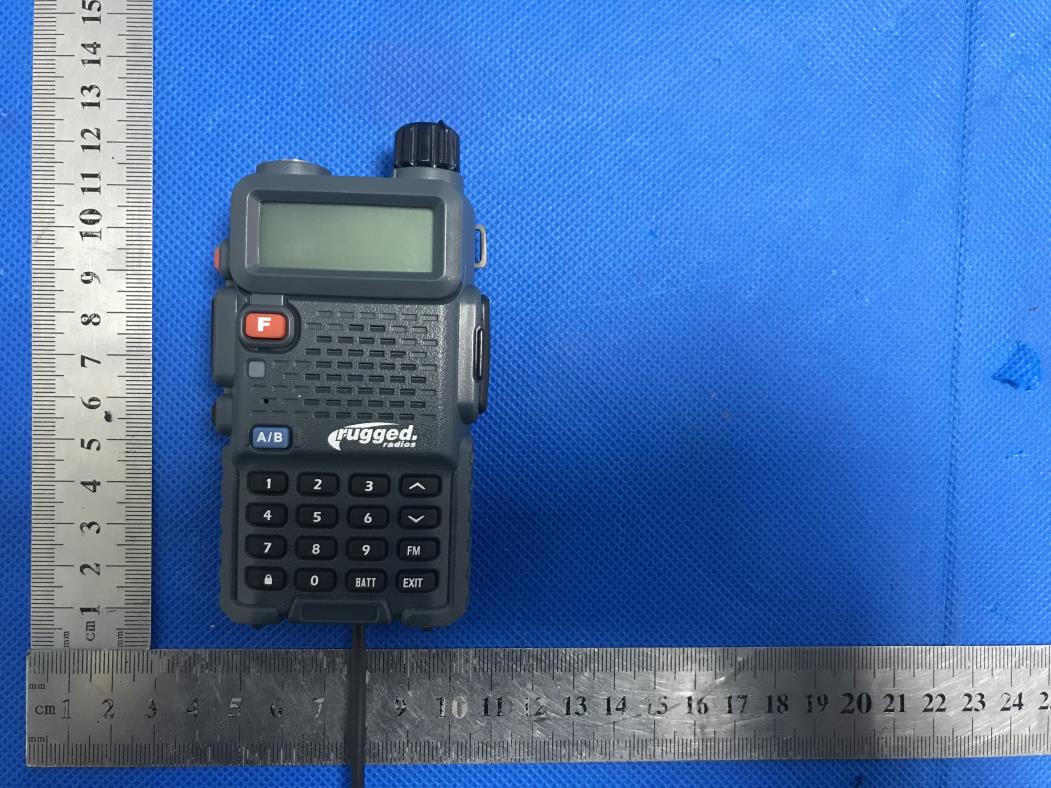

External Photos TOTAL VIEW OF EUT Part I TOP VIEW OF EUT Antenna BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT Part 2 TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT Part 3 TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location FCC ID: 2AWYH-GMR5-MOB

Internal Photos Part I OPEN VIEW OF EUT(FIGURE 1) OPEN VIEW OF EUT(FIGURE 2) OPEN VIEW OF EUT(FIGURE 3) INTERNAL VIEW OF EUT(FIGURE 1) INTERNAL VIEW OF EUT(FIGURE 2) INTERNAL VIEW OF EUT(FIGURE 3) INTERNAL VIEW OF EUT(FIGURE 4) INTERNAL VIEW OF EUT(FIGURE 5) INTERNAL VIEW OF EUT(FIGURE 6) INTERNAL VIEW OF EUT(FIGURE 7) INTERNAL VIEW OF EUT(FIGURE 8) INTERNAL VIEW OF EUT(FIGURE 9) INTERNAL VIEW OF EUT(FIGURE 10) Part 2 OPEN VIEW OF EUT(FIGURE 1) INTERNAL VIEW OF EUT(FIGURE 1) INTERNAL VIEW OF EUT(FIGURE 2) Part 3 OPEN VIEW OF EUT(FIGURE 1) OPEN VIEW OF EUT(FIGURE 2) INTERNAL VIEW OF EUT(FIGURE 1) INTERNAL VIEW OF EUT(FIGURE 2)

RF EXPOSURE EVALUATION 1. TEST RESULT CERTIFICATION Applicant Rugged Radios Address 951 E Grand Ave, Arroyo Grande, CA 93420 manufacturer Rugged Radios Address 951 E Grand Ave, Arroyo Grande, CA 93420 Factory Rugged Radios Address 951 E Grand Ave, Arroyo Grande, CA 93420 Product Designation: Analog transceiver Brand Name: Rugged Radios Test Model: GMR5-M FCC ID: 2AWYH-GMR5-MOB Date of Test: Nov. 12, 2020~Nov. 13, 2020 2. TECHNICAL INFORMATION A major technical description of EUT is described as following: Operation Frequency GMRS: 462.5625MHz -462.7125MHz(5W) 462.5500MHz -462.7250MHz(5W) 467.5500MHz -467.7250MHz(5W) Modulation FM Antenna Designation Detachable Antenna type External antenna Output power 5W Antenna gain 1.5dBi Power Supply DC 13.8V Channel List: CH. No CH. Freq Power CH. No CH. Freq Power 1 462.5625 5W 16 462.5750 5W 2 462.5875 17 462.6000 3 462.6125 18 462.6250 4 462.6375 19 462.6500 5 462.6625 20 462.6750 6 462.6875 21 462.7000 7 462.7125 22 462.7250 8 -- -- 23 467.5500 5W 9 -- 24 467.5750 10 -- 25 467.6000 11 -- 26 467.6250 12 -- 27 467.6500 13 -- 28 467.6750 14 -- 29 467.7000 15 462.5500 5W 30 467.7250 3. RF EXPOSURE MEASUREMENT 3.1 INTRODUCTION Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. The 1992 ANSI/IEEE standard (See Listed limit table) specifies a minimum separation distance of 20 cm for performing reliable field measurements to determine adherence to MPE limits. If the minimum separation distance between a transmitter and nearby persons is more than 20 cm under normal operating conditions, compliance with MPE limits may be determined at such distance from the transmitter. When applicable, operation instructions and prominent warning labels may be used to alert the exposed persons to maintain a specified distance from the transmitter or to limit their exposure durations and usage conditions to ensure compliance. 3.2 FCC LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE Frequency Range (MHz) E-field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (Minutes) 0.3 -- 1.34 614 1.63 (100)* 30 1.34 -- 30 824/f 2.19/f (180/f 2 )* 30 30 -- 300 27.5 0.073 0.2 30 300 -- 1500 -- -- f/1500 30 1500 -- 100,000 -- -- 1.0 30 *Note: 1. f= Frequency in MHz * Plane-wave Equivalent Power Density 2.The averaging time for General Population/Uncontrolled exposure to fixed transmitters is not applicable for mobile and portable transmitters. See 47 CFR §§2.1091 and 2.1093 on source-based time-averaging requirement for mobile and portable transmitters. 4. CLASSIFICATION OF THE ASSESSMENT METHODS According to user manual, The antenna of the product, under normal use condition is at least 42.5 cm away from the body of the user. Warning statement to the user for keeping at least 42.5 cm separation distance and the prohibition of operating to a person has been printed on the user’s manual. So, this product under normal use is located on electromagnetic far field between the human body. S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. EUT OPERATION CONDITION Make the EUT to transmit at channel 4 , channel 12 and channel 20 individually. 6. TEST RESULTS Note: report the worst result in this part Antenna Gain=1.5dBi (Numeric 1.41), π=3.141, Duty cycle=50% Frequency Tune-up Tolerance Max tune-up Max tune-up Power Density Power Density Limit Result MHz dBm dBm mW mW/cm 2 mW/ cm 2 Pass/Fail 462.6375 36±1 37 5012 0.3114 0.312 Pass Note: 1.The output power is refer to AGC02931201101FE10. 2.Correct Power=Output Power*Duty cycle. 3.According to the user manual, the minimum separate distance which used for MPE calculate is 42.5cm.

Page 1 of 54 FCC Test Report Report No.:AGC02931201101FE10 FCC ID : 2AWYH-GMR5-MOB PRODUCT DESIGNATION : Analog transceiver BRAND NAME : Rugged Radios MODEL NAME : GMR5-M APPLICANT : Rugged Radios DATE OF ISSUE : Nov. 13, 2020 STANDARD(S) : FCC Part 95 Rules REPORT VERSION : V 1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.:AGC02931201101FE10 Page 2 of 54 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / Nov. 13, 2020 Valid Initial release Report No.:AGC02931201101FE10 Page 3 of 54 VERIFICATION OF COMPLIANCE Applicant Rugged Radios Address 951 E Grand Ave, Arroyo Grande, CA 93420 manufacturer Rugged Radios Address 951 E Grand Ave, Arroyo Grande, CA 93420 Factory Rugged Radios Address 951 E Grand Ave, Arroyo Grande, CA 93420 Product Designation Analog transceiver Brand Name Rugged Radios Test Model GMR5-M Deviation No any deviation from the test method Condition of Test Sample Normal Date of Test Nov. 12, 2020~Nov. 13, 2020 Test Result PASS Report Template AGCRT-US-PTT/RF WE HEREBY CERTIFY THAT: The above equipment was tested by Attestation of Global Compliance (Shenzhen) Co., Ltd. The data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in TIA/EIA 603-E. The sample tested as described in this report is in compliance with the FCC Rules Part 95 requirements. The test results of this report relate only to the tested sample identified in this report. Prepared By Donjon Huang (Project Engineer) Nov. 13, 2020 Reviewed By Calvin Liu (Reviewer) Nov. 13, 2020 Approved By Forrest Lei Authorized Officer Nov. 13, 2020 Report No.:AGC02931201101FE10 Page 4 of 54 TABLE OF CONTENTS 1. GENERAL INFORMATION ............................................................................................................................ 6 1.1 PRODUCT DESCRIPTION ..................................................................................................................... 6 1.2 RELATED SUBMITTAL(S) / GRANT (S).................................................................................................. 8 1.3 TEST METHODOLOGY. ........................................................................................................................... 8 1.4 ADDRESS OF THE TEST LABORATORY ............................................................................................... 8 1.5 TEST FACILITY ........................................................................................................................................ 8 1.6 SPECIAL ACCESSORIES ........................................................................................................................ 9 1.7 EQUIPMENT MODIFICATIONS ............................................................................................................... 9 2. SYSTEM TEST CONFIGURATION ............................................................................................................. 10 2.1 EUT CONFIGURATION ......................................................................................................................... 10 2.2 EUT EXERCISE ..................................................................................................................................... 10 2.3 CONFIGURATION OF TESTED SYSTEM ............................................................................................ 10 2.4 MEASUREMENT UNCERTAINTY ........................................................................................................... 11 3. SUMMARY OF TEST RESULTS ................................................................................................................. 12 4. DESCRIPTION OF TEST MODES ............................................................................................................... 14 5. FREQUENCY TOLERANCE ........................................................................................................................ 15 5.1 PROVISIONS APPLICABLE ................................................................................................................... 15 5.2 MEASUREMENT PROCEDURE ............................................................................................................ 15 5.3 TEST SETUP BLOCK DIAGRAM ........................................................................................................... 16 5.4TEST RESULT ......................................................................................................................................... 17 6. EMISSION BANDWIDTH ............................................................................................................................. 19 6.1 PROVISIONS APPLICABLE ................................................................................................................... 19 6.2 MEASUREMENT PROCEDURE ............................................................................................................ 19 6.3 TEST SETUP BLOCK DIAGRAM ........................................................................................................... 20 6.4 MEASUREMENT RESULT ..................................................................................................................... 23 7. UNWANTED RADIATION ............................................................................................................................ 25 7.1 PROVISIONS APPLICABLE ................................................................................................................... 25 7.2 MEASUREMENT PROCEDURE ............................................................................................................ 25 7.3 TEST SETUP BLOCK DIAGRAM ........................................................................................................... 27 7.4 MEASUREMENT RESULTS: ....................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos RADIATED EMISSION TEST SETUP RADIATED EMISSION ABOVE 1G TEST SETUP CONDUCTED TEST SETUP
