2AWYH-H1RBDMR Digital Transceiver

Rugged Radios 951 E Grand Ave, Arroyo Grande, CA 93420 [email protected] (888) 541-7223 R1 Our RUGGED RADIOS radio generators RF electromag netic energy during transmit mode.This radio is designed for and classified as Ā Occupational Use Only ā ,meaning it must be used only during the course of employment by individuals aware of the hazards,and the ways To Minimize Such hazards. This radio is NOT intended for use by the Ā General Population ā in an uncontrolled environment. This radio has been tested and complies with the FCC RF exposure limits for Ā Occupational Use Only ā .Inaddition, our RUGGED RADIOS radio complies with the following Standards and Guidelines with regard to RF energy and electromagnetic energy levels and evaluation of such levels for exposure to humans: ---IEEE Std. 1528:2013 and KDB447498, Evaluati ng Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields. ---American National Standards Institute (C95.1-1992), IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. ---American National Standards Institute (C95.3 -1992), IEEE Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields-RF and Microwave. The information listed above provides the user with the information needed to make him or her aware of RF exposure, and what to do to as-sure that this radio operates with the FCC RF exposure limits of this radio. Electromagnetic Interference/Compatibility During transmissions,RUGGED RADIOS radio generates RF energy that can possibly cause interference with other devices or systems. To avoid such interf erence, turn off the radio in areas where signs are posted to do so. DO NOT operate the transmitter in areas that are sensitive to electromagnetic radiation such as hospitals, aircraft,and blasting sites. Occupational/Controlled Use The radio transmitter is used in situations in which persons are exposed as consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Attention: This radio complieswith IEEE and ICNIRP exposure limits for occupational/controlled RF exposure emvironment at operating duty factors of up to 50% an d is authorized by the FCC for occupational use only. An appropriate warning lable is affixed to all units. In order to comply with RF exposure requirements, a minimum distance of 2.5cm must be maintained when held-to-face, and body-worn operations are restricted to the approved original acessories (belt clip)a minimum distance of 0 cm. Do not use this device when antenna shows obvious damages. This product is compliance to FCC RF Exposure requirements and refers to FCC website https://apps.fcc.gov/oetcf/eas/reports/GenericSearch.cfm search for FCC ID: 2AWYH-H1RB to gain further information include SAR Values. NOTE: To get the best range from the external whip antenna(50 ) Ω should be used. Ant gain : 0-1.2dBi (Max). The use of non-original antennas is prohibited. %JHJUBM
%BUB
SBUF 9600bps

RUGGED RADIOS Agent Authorization Company: RUGGED RADIOS Address: 951 E Grand Ave, Arroyo Grande, CA 93420 Product Name: DMR Digital Transceiver Model Number(s): R1 Product Description: DMR Digital Transceiver We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-11-23 Name: Steve Gonzalez Company: RUGGED RADIOS

Rugged Radios ___________________________________________________________________________________________ Date: 2020-11-29 FCC Part90 Letter FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: FCC ID: 2AWYH-H1RB Dear Sir/Madam, This equipment meets the requirements of the FCC Rules, Parts 90.203(e) and (g), as applicable hereby declare that the Time Divison Multiple Access(TDMA) technology provides two Paths in 12.5K channel bandwidth,thus meeting the one voice path per 6.25K of spectrum requirement. This radio also provides data rate at 9600bps in 12.5K channel bandwidth,and meet the minimum data rate at 4800bps in 6.25K channel bandwidth. Sincerely Yours, Signature: ___________________________ Steve Gonzalez Rugged Radios

RUGGED RADIOS Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-11-09 Subject; Request for Confidentiality FCC ID: 2AWYH-H1RB To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely RUGGED RADIOS Contact person: Steve Gonzalez

Rugged Radios Nov. 15, 2020 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division Subject: Extended Frequencies Justification for Certification of Transmitter with FCC ID: 2AWYH-H1RB Dear Sir/Madam, This transmitter was designed to operate in following frequency ranges: 136-174&400-480MHz To aid equipment authorization in other countries which accept the United States FCC Grant for Certification, Rugged Radios is requesting that the FCC lists the frequencies 136-174&400-480MHz, under FCC Rule Parts 22 and 90 on the FCC Grant. Rugged Radios attests that the Is DMR Digital Transceiver will not be marketed to USA users with the frequency band which is not allowed by the rule part 22 and 90. Per the FCC’s KDB634817 guidance, as an alternative to listing the exact frequencies, we acknowledge that it’s a violation of the FCC Rules if this device operates on unauthorized frequencies. Also, equipment programming is the responsibility of Authorized Service Personnel, the Is DMR Digital Transceiver complies with 47 CFR Part 90.203(e), in that the operator cannot directly program the transmit frequencies using the normally accessible external controls. Please contact me if you require any additional information. Sincerely Yours, Signature: ____________________ Contact person: Steve Gonzalez Rugged Radios Frequency Range (MHz） FCC Rule Part Frequency Range (MHz） FCC Rule Part 136-150.8 For Federal 400-406 For Federal 150.8-152.855 FCC Part90/ FCC Part22 406.1-450 FCC Part90 152.855-154 FCC Part90 450-454 FCC Part90 154-156.2475 FCC Part90 454-455 FCC Part22 157.1875-157.45 FCC Part90 455-460 FCC Part90 / FCC Part22 157.45-161.575 FCC Part90 / FCC Part22 460-462.5375 FCC Part90 161.575-161.625 FCC Part22 462.7375-467.5375 FCC Part90 161.625-161.775 FCC Part22 467.7375-470 FCC Part90 161.755-161.9625 FCC Part90 470-480 FCC Part90/ FCC Part22 162.0375-173.2 FCC Part90 - - 173.2-173.4 FCC Part90 - - 173.4-174 For Federal - -

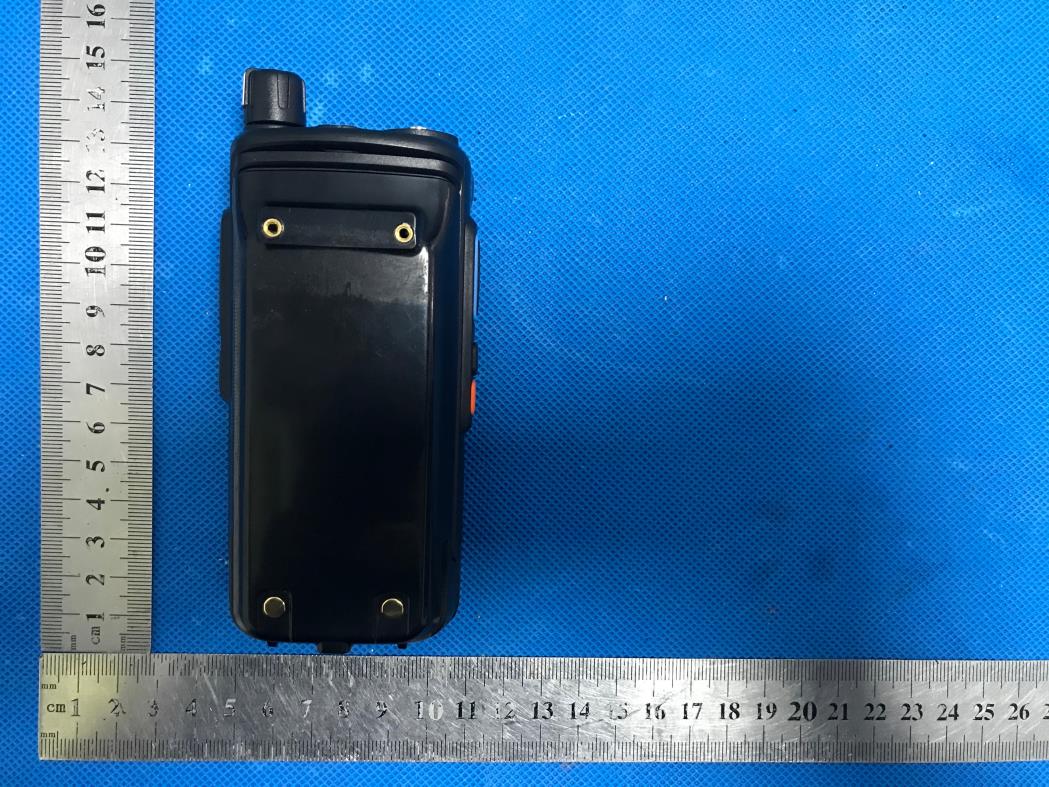

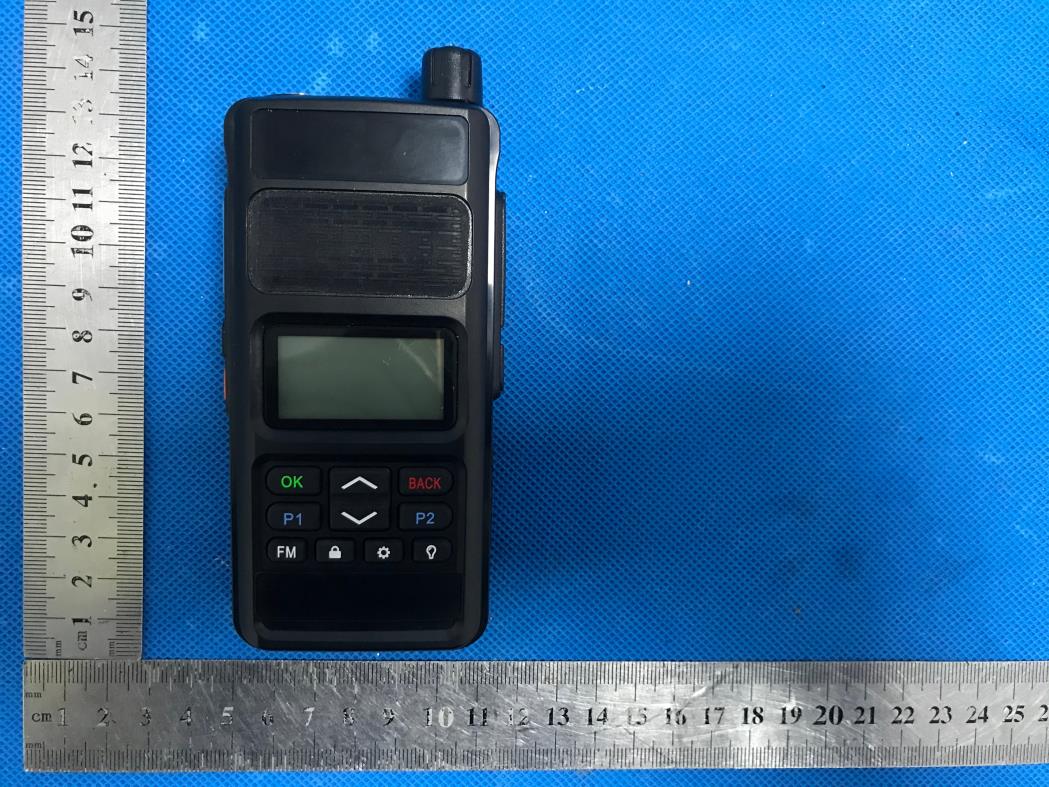

External Photos WHOLE VIEW OF EUT TOP VIEW OF EUT Antenna BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location FCC ID: 2AWYH-H1RB

Internal Photos OPEN VIEW-1 OF EUT OPEN VIEW-2 OF EUT OPEN VIEW-3 OF EUT INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT INTERNAL VIEW-3 OF EUT INTERNAL VIEW-4 OF EUT INTERNAL VIEW-5 OF EUT INTERNAL VIEW-6 OF EUT INTERNAL VIEW-7 OF EUT INTERNAL VIEW-8 OF EUT INTERNAL VIEW-9 OF EUT

Page 1 of 22 CALIBRATION DATA PROBE CALIBRATION DATA Page 2 of 22 Page 3 of 22 Page 4 of 22 Page 5 of 22 Page 6 of 22 Page 7 of 22 Page 8 of 22 Page 9 of 22 Page 10 of 22 DAE CALIBRATION DATA Page 11 of 22 Page 12 of 22 Page 13 of 22 Page 14 of 22 Page 15 of 22 DIPOLE CALIBRATION DATA Page 16 of 22 Page 17 of 22 Page 18 of 22 Page 19 of 22 Page 20 of 22 Page 21 of 22 Page 22 of 22

Page 1 of 40 SAR Test Report Report No.: AGC02931200704FH01 FCC ID : 2AWYH-H1RB PRODUCT DESIGNATION : DMR Digital Transceiver BRAND NAME : Rugged Radios MODEL NAME : R1 APPLICANT : Rugged Radios DATE OF ISSUE : Nov. 05,2020 STANDARD(S) : IEEE Std. 1528:2013 FCC 47 CFR Part 2§2.1093:2013 IEEE Std C95.1 ™-2005 IEC 62209-1: 2016 REPORT VERSION : V1.0 Attestation of Global Compliance(Shenzhen) Co., Ltd. Report No.: AGC02931200704FH01 Page 2 of 40 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / Nov. 05,2020 Valid Initial Release Report No.: AGC02931200704FH01 Page 3 of 40 Test Report Applicant Name Rugged Radios Applicant Address 951 E Grand Ave, Arroyo Grande, CA 93420 Manufacturer Name Rugged Radios Manufacturer Address 951 E Grand Ave, Arroyo Grande, CA 93420 Factory Name Rugged Radios Factory Address 951 E Grand Ave, Arroyo Grande, CA 93420 Product Designation DMR Digital Transceiver Brand Name Rugged Radios Model Name R1 EUT Voltage DC7.4 V Applicable Standard IEEE Std. 1528:2013 FCC 47 CFR Part 2§2.1093:2013 IEEE Std C95.1 ™-2005 IEC 62209-1: 2016 Test Date Nov. 02,2020 Report Template AGCRT- US -PTT/SAR (2018-02-02) Note: The results of testing in this report apply to the product/system which was tested only. Prepared By Jack Gui (Project Engineer) Nov. 02,2020 Reviewed By Angela Li (Reviewer) Nov. 05,2020 Approved By Forrest Lei (Authorized Officer) Nov. 05,2020 Report No.: AGC02931200704FH01 Page 4 of 40 TABLE OF CONTENTS 1. SUMMARY OF MAXIMUM SAR VALUE ....................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................ 6 2.1. EUT DESCRIPTION ...................................................................................................................................... 6 3. SAR MEASUREMENT SYSTEM ..................................................................................................................... 7 3.1. THE DASY5 SYSTEM USED FOR PERFORMING COMPLIANCE TESTS CONSISTS OF FOLLOWING ITEMS.................... 7 3.2. DASY5 E-FIELD PROBE .............................................................................................................................. 8 3.3. DATA ACQUISITION ELECTRONICS DESCRIPTION ............................................................................................. 8 3.4. ROBOT ....................................................................................................................................................... 9 3.5. LIGHT BEAM UNIT ....................................................................................................................................... 9 3.6. DEVICE HOLDER ....................................................................................................................................... 10 3.7. MEASUREMENT SERVER ............................................................................................................................ 10 3.8. PHANTOM ............................................................................................................................................... 11 4. SAR MEASUREMENT PROCEDURE .......................................................................................................... 12 4.1. SPECIFIC ABSORPTION RATE (SAR) ........................................................................................................... 12 4.2. SAR MEASUREMENT PROCEDURE ............................................................................................................. 13 5. TISSUE SIMULATING LIQUID ..................................................................................................................... 15 5.1. THE COMPOSITION OF THE TISSUE SIMULATING LIQUID ................................................................................... 15 5.2. TISSUE DIELECTRIC PARAMETERS FOR HEAD AND BODY PHANTOMS .............................................................. 15 5.3. TISSUE CALIBRATION RESULT ..................................................................................................................... 16 6. SAR SYSTEM CHECK PROCEDURE ......................................................................................................... 17 6.1. SAR SYSTEM CHECK PROCEDURES ........................................................................................................... 17 7. EUT TEST POSITION ................................................................................................................................... 19 7.1. BODY WORN POSITION .............................................................................................................................. 19 8. SAR EXPOSURE LIMITS ............................................................................................................................ 20 9. TEST FACILITY ........................................................................................................................................... 21 10. TEST EQUIPMENT LIST ........................................................................................................................... 22 11. MEASUREMENT UNCERTAINTY .............................................................................................................. 23 12. POWER MEASUREMENT .......................................................................................................................... 27 13. TEST RESULTS ........................................................................................................................................ 28 13.1. SAR TEST RESULTS SUMMARY ................................................................................................................ 28 APPENDIX A. SAR SYSTEM CHECK DATA .......................................…

Text truncated - open the document above for the full version.

Ref : ACR.262.3.20.MVGB.A SHENZHEN STS TEST SERVICES CO., LTD. 1/F, BUILDING 2, ZHUOKE SCIENCE PARK,No.190, CHONGQING ROAD, FUYONG STREET, BAO’ AN DISTRICT, SHENZHEN,GUANGDONGCHINA MVG COMOSAR REFERENCE DIPOLE FREQUENCY: 450 MHZ SERIAL NO.: SN 30/14 DIP0G450-330 07/14/2020 Summary: This document presents the method and results from an accredited SAR reference dipole calibration performed in MVG. using the CALIPROBE test bench. for use with a MVG COMOSAR system only. The test results covered by accreditation are traceable to the International System of Units(SI). SAR Reference Dipole Calibration Report Calibrated at MVG Z.I. de la pointe du diable Technopôle Brest Iroise - 295 avenue Alexis de Rochon 29280 PLOUZANE - FRANCE Calibretion date: 07/14/2020 Page: 1/11 SAR REFERENCE DIPOLE CALIBRATION REPORT Ref: ACR.262.3.20.MVGB.A Name Function Date Signature Prepared by : Jérôme LUC Technical Manager 7/28/2020 Checked by : Jérôme LUC Technical Manager 7/28/2020 Approved by : Yann Toutain Laboratory Director 7/28/2020 Customer Name Distribution : Shenzhen STS Test Services Co., Ltd. Issue Date Modifications A 7/28/2020Initial release Page: 2/11 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vH This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. Name Jérôme LUC SAR REFERENCE DIPOLE CALIBRATION REPORT Ref: ACR.262.3.20.MVGB.A TABLE OF CONTENTS 1 Introduction ................................................................................................................ 4 2 Device Under Test ..................................................................................................... 4 3 Product Description ................................................................................................... 4 3.1 General Information _______________________________________________________ 4 4 Measurement Method ................................................................................................ 5 4.1 Return Loss Requirements __________________________________________________ 5 4.2 Mechanical Requirements ___________________________________________________ 5 5 Measurement Uncertainty .......................................................................................... 5 5.1 Return Loss ______________________________________________________________ 5 5.2 Dimension Measurement ___________________________________________________ 5 5.3 Validation Measurement ____________________________________________________ 5 6 Calibration Measurement Results .............................................................................. 6 6.1 Return Loss and Impedance In Head Liquid ____________________________________ 6 6.2 Return Loss and Impedance In Body Liquid ____________________________________ 6 6.3 Mechanical Dimensions ____________________________________________________ 6 7 Validation measurement ............................................................................................ 7 7.1 Head Liquid Measurement __________________________________________________ 7 7.2 SAR Measurement Result With Head Liquid ____________________________________ 8 7.3 Body Liquid Measurement __________________________________________________ 9 7.4 SAR Measurement Result With Body Liquid __________________________________ 10 8 List of Equipment .................................................................................................... 11 Page: 2/11 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vH T his document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. Page: 3/11 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vH This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. SAR REFERENCE DIPOLE CALIBRATION REPORT Ref: ACR.262.3.20.MVGB.A 1 INTRODUCTION This document contains a summary of the requirements set forth by the IEEE 1528, OET 65 Bulletin C and CEI/IEC 62209 standards for reference dipoles used for SAR measurement system validations and the measurements that were performed to verify that the product complies with the fore mentioned standards. 2 DEVICE UNDER TEST Device Under Test Device Type COMOSAR 450 MHz REFERENCE DIPOLE Manufacturer MVG Model SID450 Serial Number SN 30/14 DIP0G450-330 Product Condition (new / used) New A yearly calibration interval is recommended. 3 PRODUCT DESCRIPTION 3.1 GENERAL INFORMATION MVG’s COMOSAR Validation Dipoles are built in accordance to the IEEE 1528, OET 65 Bulletin C and CEI/IEC 62209 standards. The product is designed for use with the COMOSAR test bench only. Figure 1 – MVG COMOSAR Validation Dipole Page: 4/11 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vH This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. SAR REFERENCE DIPOLE CALIBRATION REPORT Ref: ACR.262.3.20.MVGB.A 4 MEASUREMENT METHOD The IEEE 1528, OET 65 Bulletin C and CEI/IEC 62209 standards provide requirements for reference dipoles used for system validation measurements. The following measurements were performed to verify that the product complies with the fore mentioned standards. 4.1 RETURN LOSS REQUIREMENTS The dipole used for SAR system validation measurements and checks must have a return loss of -20 dB or better. Th…

Text truncated - open the document above for the full version.

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. ShenZhen STS Test Services Co.,Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] FCC SAR TEST REPORT Report No.: STS2011095H01 Issued for Rugged Radios 951 E Grand Ave, Arroyo Grande, CA 93420 Product Name: DMR Digital Transceiver Brand Name: Rugged Radios Model Name: R1 Series Model: N/A FCC ID: 2AWYH-H1RB Test Standard: ANSI/IEEE Std. C95.1 FCC 47 CFR Part 2 ( 2.1093) IEEE 1528: 2013 Max. Report SAR (1g): Face up : 1.636 W/kg Back side: 3.495 W/kg S T L A B S Page 2 of 39 Report No.: STS2011095H01 Test Report Certification Applicant’s name ................. : Rugged Radios Address ................................. : 951 E Grand Ave, Arroyo Grande, CA 93420 Manufacture's Name ............ : Rugged Radios Address ................................. : 951 E Grand Ave, Arroyo Grande, CA 93420 Product description Product name ........................ : DMR Digital Transceiver Brand Name ........................... : Rugged Radios Model name ......................... : R1 Series Model .......................... : N/A Standards ............................. : ANSI/IEEE Std. C95.1 IEEE 1528:2013 FCC 47 CFR Part 2 ( 2.1093) The device was tested by Shenzhen STS Test Services Co., Ltd. in accordance with the measurement methods and procedures specified in KDB 865664 The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Date of Test ........................................... : Date (s) of performance of tests ............. : 12 Nov. 2020 Date of Issue .......................................... : 13 Nov. 2020 Test Result .............................................. : Pass Testing Engineer : ( Aaron Bu) Technical Manager : (Sean She) Authorized Signatory : (Vita Li) Page 3 of 39 Report No.: STS2011095H01 Table of Contents 1. General Information 5 1.1 EUT Description 5 1.2 Test Environment 6 1.3 Test Factory 6 2. Test Standards and Limits 7 3. SAR Measurement System 8 3.1 Definition of Specific Absorption Rate (SAR) 8 3.2 SAR System 8 4. Tissue Simulating Liquids 11 4.1 Simulating Liquids Parameter Check 11 5. SAR System Validation 13 5.1 Validation System 13 5.2 Validation Result 13 6. SAR Evaluation Procedures 14 7. EUT Test Position 15 8. Uncertainty 16 8.1 Measurement Uncertainty 16 8.2 System validation Uncertainty 17 9. Conducted Power Measurement 18 Test Result 18 Analog 18 Digital 18 10. EUT And Test Setup Photo 19 10.1 EUT Photo 19 10.2 Setup Photo 23 11. SAR Result Summary 25 12. Equipment List 28 Appendix A. System Validation Plots 29 Appendix B. SAR Test Plots 31 Appendix C. Probe Calibration and Dipole Calibration Report 39 Page 4 of 39 Report No.: STS2011095H01 Revision History Rev. Issue Date Report No. Effect Page Contents 00 13 Nov. 2020 STS2011095H01 ALL Initial Issue Note: Format version of the report -V01 Page 5 of 39 Report No.: STS2011095H01 1. General Information 1.1 EUT Description Equipment DMR Digital Transceiver Brand Name Rugged Radios Model name R1 Series Model N/A Model Difference N/A Device Category Portable Product stage Production unit RF Exposure Environment Occupational/Controlled Hardware Version V2.1.4 Software Version Ver 1.0 Frequency Range 400-480MHz Channel Spacing 12.5KHz Max. Reported SAR(1g): With 50% duty cycle Mode Frequency(MHz) Face up (W/kg) Back Side (W/kg) Analog (5W) 400.025 1.606 3.480 448.025 1.621 3.482 479.975 1.636 3.495 Analog (1W) 400.025 0.624 1.392 448.025 0.629 1.409 479.975 0.619 1.363 Digital (5W) 400.025 0.813 1.564 448.025 0.816 1.564 479.975 0.815 1.522 Digital (1W) 400.025 0.177 0.331 448.025 0.172 0.311 479.975 0.181 0.331 Modulation Type: FM&4FSK Antenna Specification: External Antenna Note: 1. The EUT battery must be fully charged and checked periodically during the test to ascertain uniform power Page 6 of 39 Report No.: STS2011095H01 1.2 Test Environment Ambient conditions in the SAR laboratory: Items Required Temperature (°C) 18-25 Humidity (%RH) 30-70 1.3 Test Factory ShenZhen STS Test Services Co.,Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC Registration No.: 625569 A2LA Certificate No.: 4338.01 IC Registration No.: 12108A Page 7 of 39 Report No.: STS2011095H01 2. Test Standards and Limits No. Identity Document Title 1 47 CFR Part 2 Frequency Allocations and Radio Treaty Matters; General Rules and Regulations 2 ANSI/IEEE Std. C95.1-1992 IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz 3 IEEE Std. 1528-2013 Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques 4 FCC KDB 447498 D01 v06 Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies 5 FCC KDB 865664 D01 v01r04 SAR Measurement 100 MHz to 6 GHz 6 FCC KDB 865664 D02 v01r02 RF Exposure Reporting 7 FCC KDB 643646 D001 SAR Test Reduction Considerations for Occupational PTT Radios (A). Limits for Occupational/Controlled Exposure (W/kg) Whole-Body Partial-Body Hands, Wrists, Feet and Ankles 0.4 8.0 20.0 (B). Limits for General Population/Uncontrolled Exposure (W/kg) Whole-Body Partial-Body Hands, Wrists, Feet and Ankles 0.08 1.6 4.0 NOTE: Whole-Body SAR is averaged over the entire body, partial-body SAR is averaged over any 1 gram of tissue defined as a tissue volume in the shape of a cube. SAR for han…

Text truncated - open the document above for the full version.

Page 1 of 199 FCC Part 90& Part 22 Rules Test Report Report No.: AGC02931200704FE10 FCC ID : 2AWYH-H1RB PRODUCT DESIGNATION : DMR Digital Transceiver BRAND NAME : RUGGED RADIOS MODEL NAME : R1 APPLICANT : RUGGED RADIOS DATE OF ISSUE : Nov. 27, 2020 STANDARD(S) : FCC Part 90 Rules FCC Part 22 Rules REPORT VERSION : V 1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC02931200704FE10 Page 2 of 199 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Nov. 27, 2020 Valid Initial Release Report No.: AGC02931200704FE10 Page 3 of 199 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE ............................................................................................................ 5 2. GENERAL INFORMATION ......................................................................................................................... 6 2.1PRODUCT DESCRIPTION ................................................................................................................ 6 2.2 RELATED SUBMITTAL(S) / GRANT (S) ............................................................................................ 9 2.3 TEST METHODOLOGY .................................................................................................................... 9 2.4 TEST FACILITY ................................................................................................................................. 9 2.5 SPECIAL ACCESSORIES ................................................................................................................. 9 2.6 EQUIPMENT MODIFICATIONS ........................................................................................................ 9 3. SYSTEM TEST CONFIGURATION .......................................................................................................... 10 3.1EUT CONFIGURATION .................................................................................................................... 10 3.2 EUT EXERCISE .............................................................................................................................. 10 3.3 GENERAL TECHNICAL REQUIREMENTS ..................................................................................... 10 3.4CONFIGURATION OF TESTED SYSTEM ........................................................................................ 11 3.5 MEASUREMENT UNCERTAINTY ................................................................................................... 12 4. SUMMARY OF TEST RESULTS .............................................................................................................. 13 5. DESCRIPTION OF TEST MODES ........................................................................................................…
