2AWYP-TX0301The Wireless Remote Controller

The wireless remote controller Manual（TX0301） 1. Main technical specifications: Voltage: DC6V Working Current: ≤3mA Quiescent Current: <1.0uA Transmission Frequency: 433.92±0.075MHZ 2. How to use: Press “Start” to switch on generator Press “Stop” to switch off generator 3. Notes： Do not let the wireless remote controller suffer violent vibration. Do not expose the wireless remote controller to liquid or other moist environment. Keep it away from direct sunshine. The wireless remote controller will twist under heat. FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. FCC warning: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the IC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. IC warning - English: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. - French: Le présentappareilestconforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitationestautorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareildoit accepter tout brouillageradioélectriquesubi, mêmesi le brouillageest susceptible d'encompromettre le fonctionnement.

Rev 11/ (SHAO Federal Authori Confid e Pursua n treatmen Exhibi t Block D Descript The ab o the publ unjustifi The ap p applicat for this Sincere l huan ch SHAO /20/07 OXING SI Communic zation and E entiality Req nt to Section nt of inform t Type Diagram, Sc tion ove material lic. The pub fied benefits plicant unde tion and all application ly, hen/engin OXING SIY IYUAN T cations Com Evaluation quest regard ns 0.457 and mation accom hematics, O ls contain tr blic disclosu s to its comp erstands that accompany . neer YUAN TE TECHNOL mmission Division ding applica d 0.459 of th mpanying th Operational rade secrets ure of these petitors. t pursuant to ying docume ECHNOL LOGY CO ation for cer he Commis his applicat Fi l Blo De and propri e e materials m o Section 0. entation wil OGY CO O., LTD.) rtification o sion’s Rul e ion as outlin le Name ock Diagram escriptionc.pd etary inform may be harm .457 of the ll not be ma ., LTD. f FCC ID: 2 es, we hereb ned below: m.pdf, Schem df mation not c mful to the a Rules, discl ade before th 2AWYP-T by request co matics.pdf , O customarily applicant an losure of th he date of th TX0301 onfidential Operation released to nd provide is he Grant

Z:\ Fe A 14 C D S U T W be al ef T h ap A of S i h u SH \2020\siyuan(思源 ederal Com Authorizati 435 Oakla Columbia, M Date: July 2 UBJECT: o Whom I We, the und ehalf, to a ll acts carr ffect as ac his is to ad pplicant, a Anti-Drug A f federal b incerely, uan chen/e HAOXIN 源)\EN200615032 mmunicat ion and Ev and Mills R MD 2104 28, 2020 FCC Ap p It May Co dersigned, apply to th ried out by ts of our o dvise that are not sub Act of 198 benefits pu engineer NG SIYUA 2W(ES20061502 tions Com valuation D Road 46 plication f oncern: , hereby a e Federal y EMTEK own. we are i n bject to a d 88, 21 US ursuant to AN TECHN 0W)\2.Technical mmission Division for 2AWY authorize T Commun K(NINGBO n full comp denial of f SC853a, an that sectio NOLOGY l Document\Timc YP-TX030 Tony Wei ications C O) CO., L pliance wi federal ben nd no part on. Y CO., LT co\POA.docx 01 at EMTE Commissio LTD. on ou ith the An nefits purs ty to the ap TD. K(NING B on on our e ur behalf s ti- Drug A suant to Se pplication BO) CO., L equipmen shall have Abuse Act ection 530 n is subject LTD. on o nt. Any an the same t. We, the 01 of the t to a deni our nd e ial

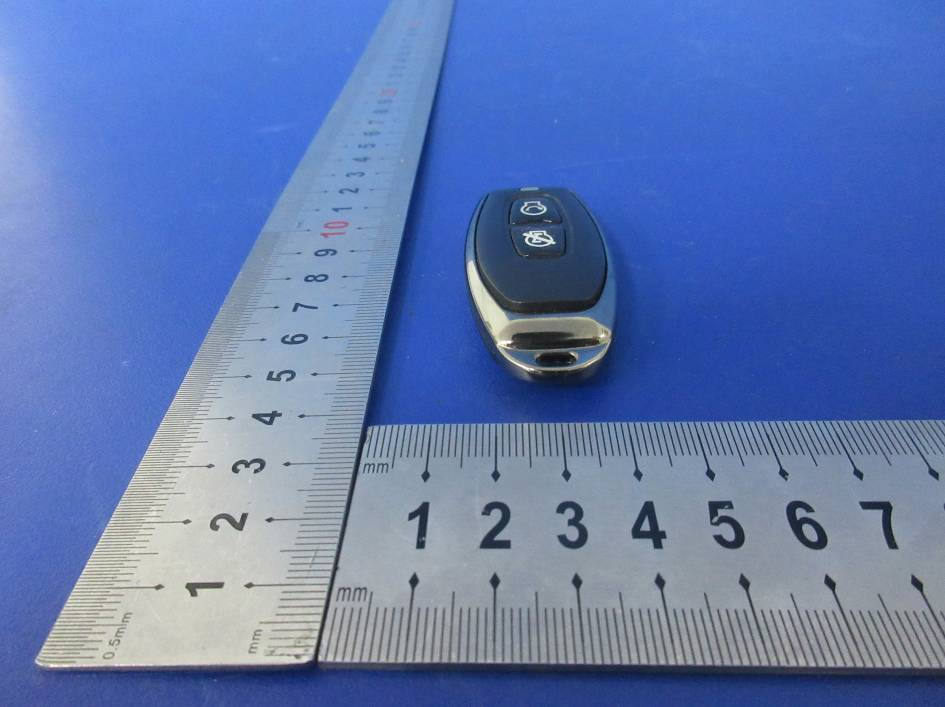

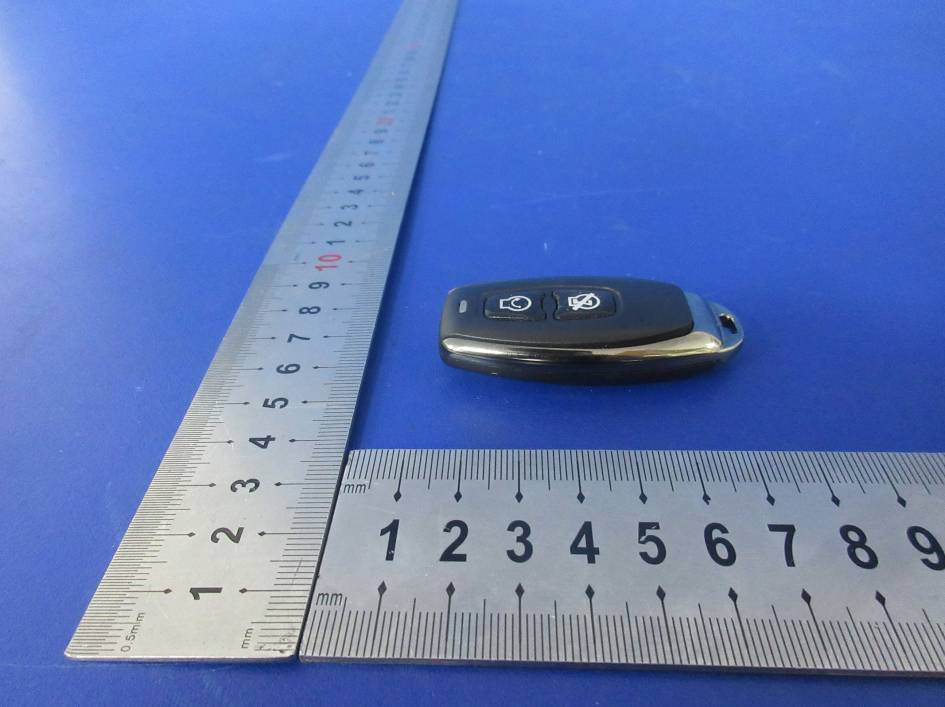

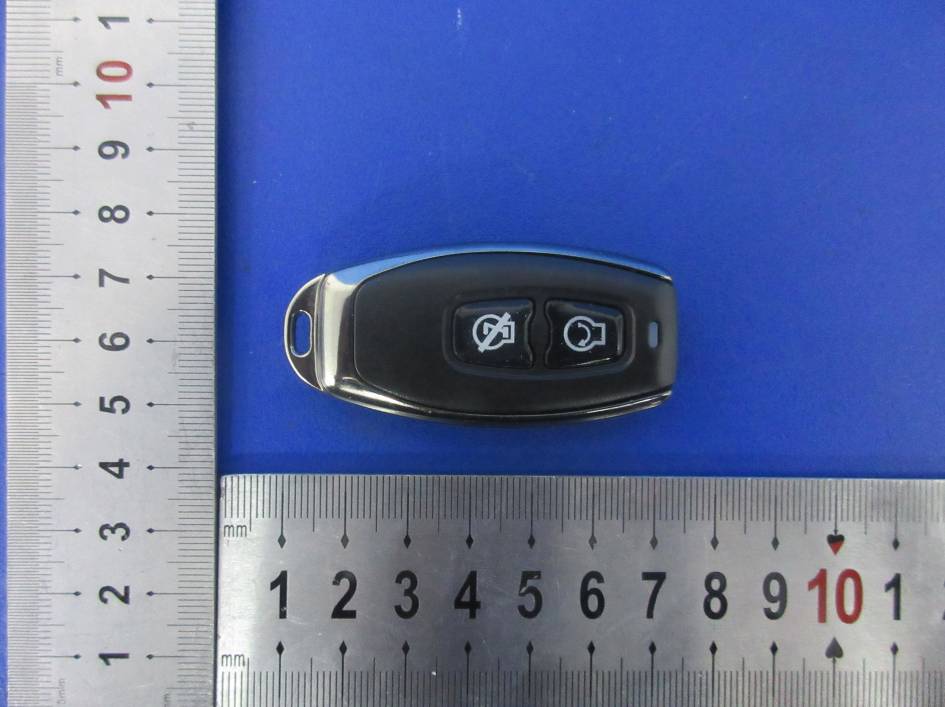

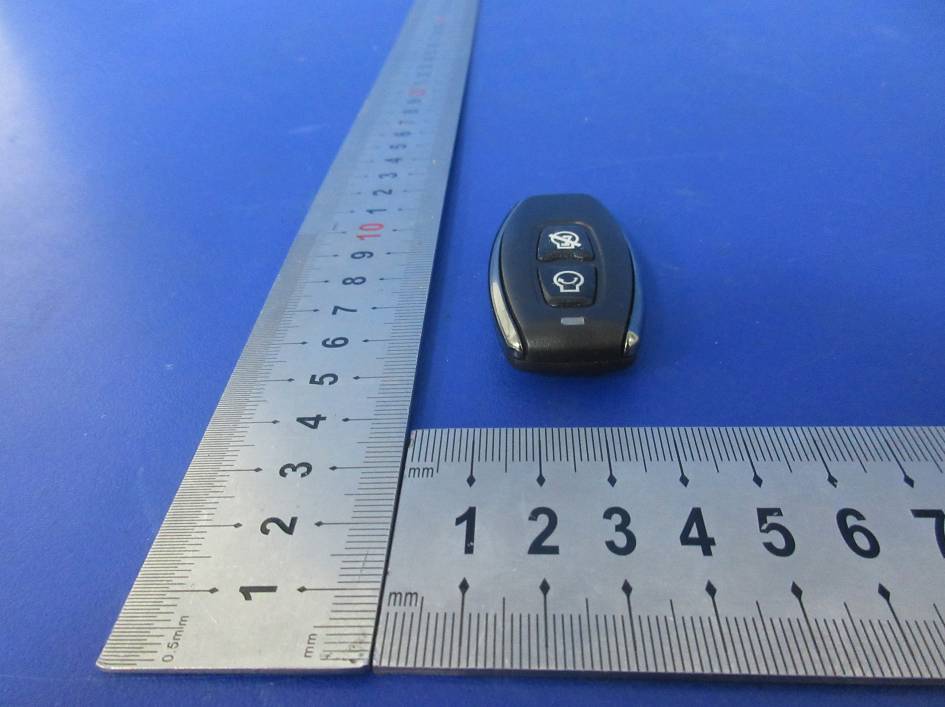

External photos: ---The End---

Model NO: TX0301 FCC ID:2AWYP-TX0301 IC ID:21223-TX0301 Label Location

Internal photos: ---The End--- Antenna

Report No.ES200615020W Page 1 of 28 Ver.1.0 TEST REPORT $二维码$ Product Name : The wireless remote controller Model Number : TX0301 FCC ID : 2AWYP-TX0301 Prepared for : SHAOXING SIYUAN TECHNOLOGY CO., LTD. Address : ChangfengIndustial Zone, Pingshui new city, Keqiao District, Shaoxing, Zhejiang, China Prepared by : EMTEK (SHENZHEN) CO., LTD. Address : Building 69,Majialong Industry Zone,Nanshan District, Shenzhen, Guangdong, China Tel: (0755) 26954280 Fax: (0755) 26954282 Report Number : ES200615020W Date(s) of Tests : June 10,2020 to July 26,2020 Date of issue : July 27, 2020 Report No.ES200615020W Page 2 of 28 Ver.1.0 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ............................................................................................................. 3 2 EUT TECHNICAL DESCRIPTION ........................................................................................................... 4 3 SUMMARY OF TEST RESULT ................................................................................................................ 5 4 TEST METHODOLOGY ........................................................................................................................... 6 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS .................................................................. 6 4.2 MEASUREMENT EQUIPMENT USED ............................................................................................ 6 4.3 DESCRIPTION OF TEST MODES ................................................................................................... 7 5 FACILITIES AND ACCREDITATIONS ..................................................................................................... 8 5.1 FACILITIES ...................................................................................................................................... 8 5.2 LABORATORY ACCREDITATIONS AND LISTINGS ....................................................................... 8 6 TEST SYSTEM UNCERTAINTY .............................................................................................................. 9 7 SETUP OF EQUIPMENT UNDER TEST ............................................................................................... 10 7.1 RADIO FREQUENCY TEST SETUP 1 ........................................................................................... 10 7.2 RADIO FREQUENCY TEST SETUP 2 ........................................................................................... 10 7.3 CONDUCTED EMISSION TEST SETUP ........................................................................................ 11 7.4 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ........................................................... 12 7.5 SUPPORT EQUIPMENT ................................................................................................................ 12 8 TEST REQUIREMENTS ......................................................................................................................... 13 8.1 OCCUPIED BANDWIDTH.............................................................................................................. 13 8.2 FREQUENCY STABILITY .............................................................................................................. 15 8.3 RADIATED SPURIOUS EMISSION ............................................................................................... 16 8.4 TRANSMISSION REQUIREMEN .................................................................................................. 24 8.5 CONDUCTED EMISSIONS TEST ................................................................................................. 26 8.6 ANTENNA APPLICATION .............................................................................................................. 27 Report No.ES200615020W Page 3 of 28 Ver.1.0 1 TEST RESULT CERTIFICATION Applicant : SHAOXING SIYUAN TECHNOLOGY CO., LTD. Address : ChangfengIndustial Zone, Pingshui new city, Keqiao District, Shaoxing, Zhejiang, China Manufacturer : SHAOXING SIYUAN TECHNOLOGY CO., LTD. Address : ChangfengIndustial Zone, Pingshui new city, Keqiao District, Shaoxing, Zhejiang, China EUT : The wireless remote controller Model Name : TX0301 Trademark : SIYUAN Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C PASS The above equipment was tested by EMTEK (SHENZHEN) CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 2 and Part 15.231 The test results of this report relate only to the tested sample identified in this report. Date of Test : June 10,2020 to July 26,2020 Prepared by : SewenGuo /Editor Reviewer : Joe Xia/Editor Approve & Authorized Signer : Lisa Wang/Manager Report No.ES200615020W Page 4 of 28 Ver.1.0 2 EUT TECHNICAL DESCRIPTION Characteristics Description Product: The wireless remote controller Model Number: TX0301 Modulation: ASK modulation Operating Frequency Range(s): 433.92±0.075MHZ Number of Channels: 1 channel Max Transmit Power: 81.05dBuV/m Antenna Type : PCB Antenna Antenna Gain: 2.0 dBi Power supply: DC 6V Temperature Range -20°C ~ +70°C Note: for more details, please refer to the User’s manual of the EUT. Report No.ES200615020W Page 5 of 28 Ver.1.0 3 SUMMARY OF TEST RESULT FCC PartClause Test Parameter Verdict Remark 15.231(c) Occupied Bandwidth PASS 15.231(d) Frequency stabilityN/A 15.231(b) Radiated Spurious Emissions PASS 15.231(b) Transmission Requirement PASS 15.203 Antenna Requirement PASS 15.207(a) Conducted Emission N/A NOTE1: N/A (Not Applicable) RELATED SUBMITTAL(S) / GRANT(S): This submittal(s) (test report) is intended for FCC ID: 2AWYP-TX0301 filing to comply with Section 15.231of the…
