2AWZKHD22C24GTTOY RC TOYLAND TRAIN

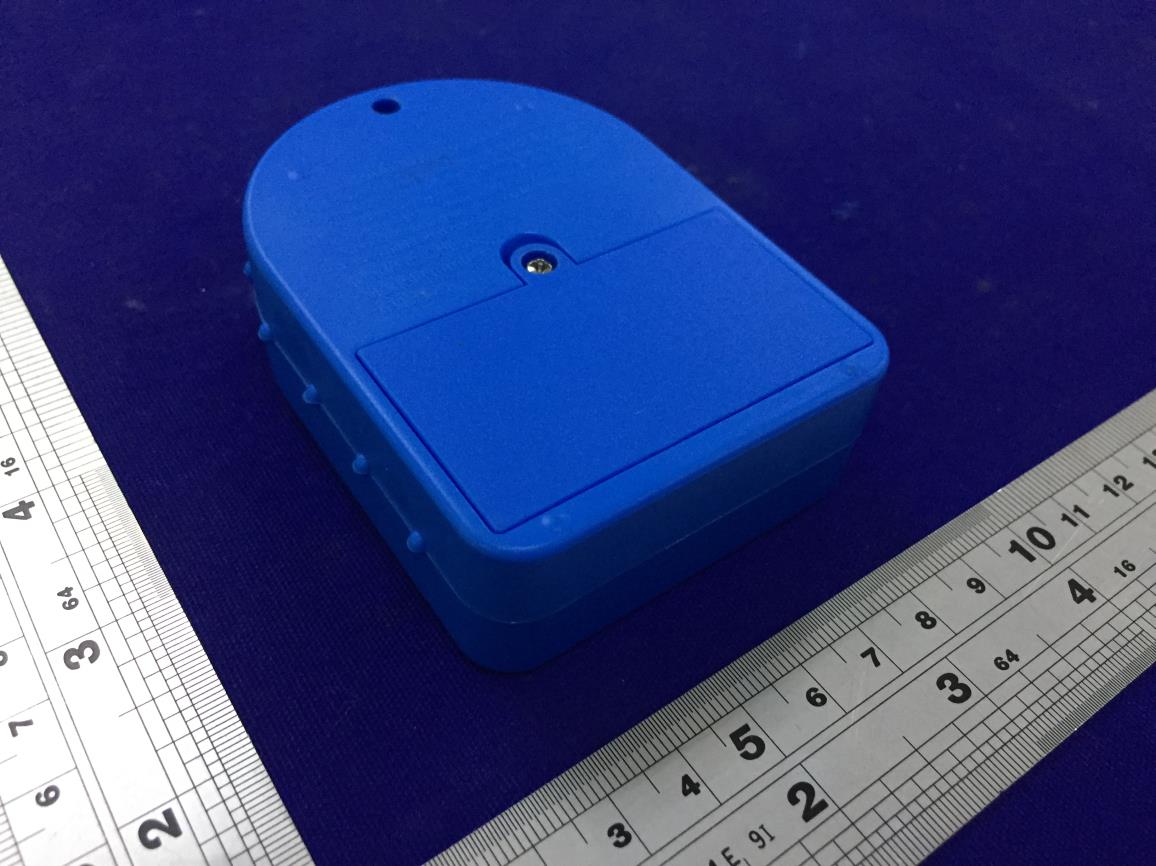

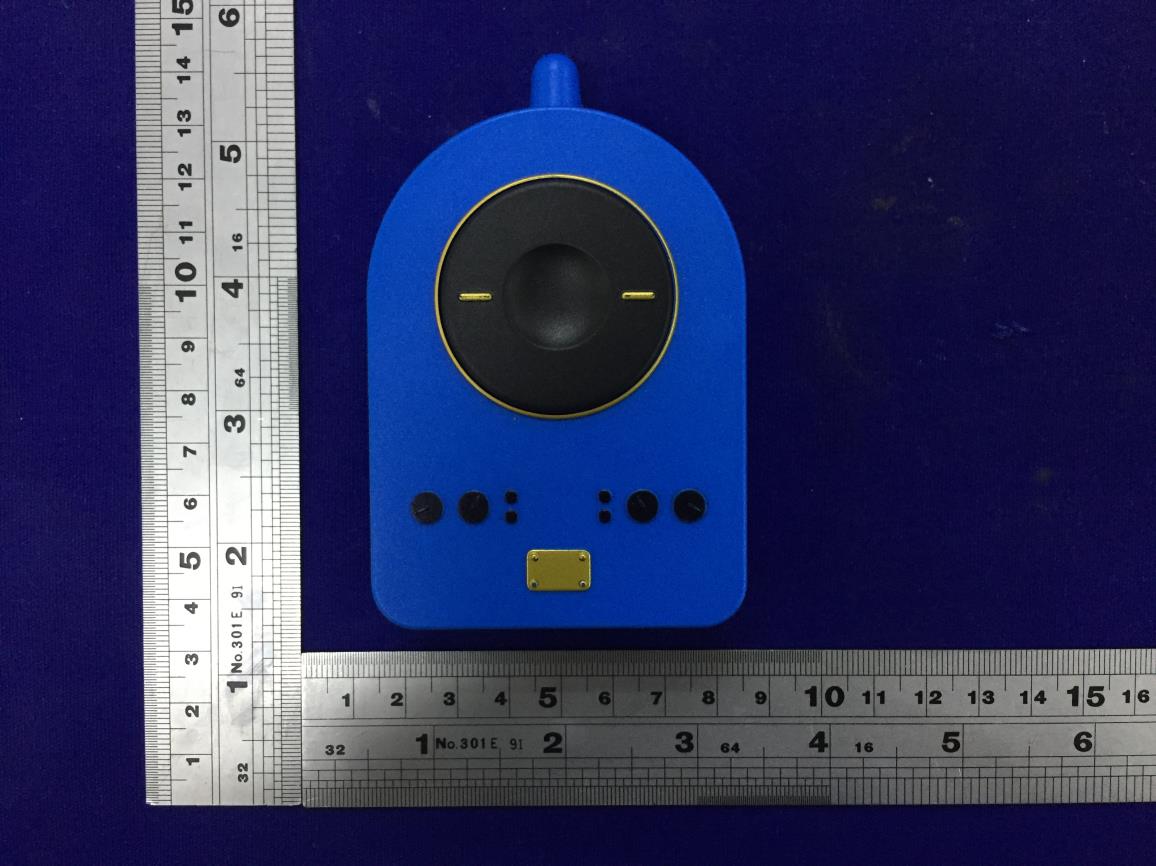

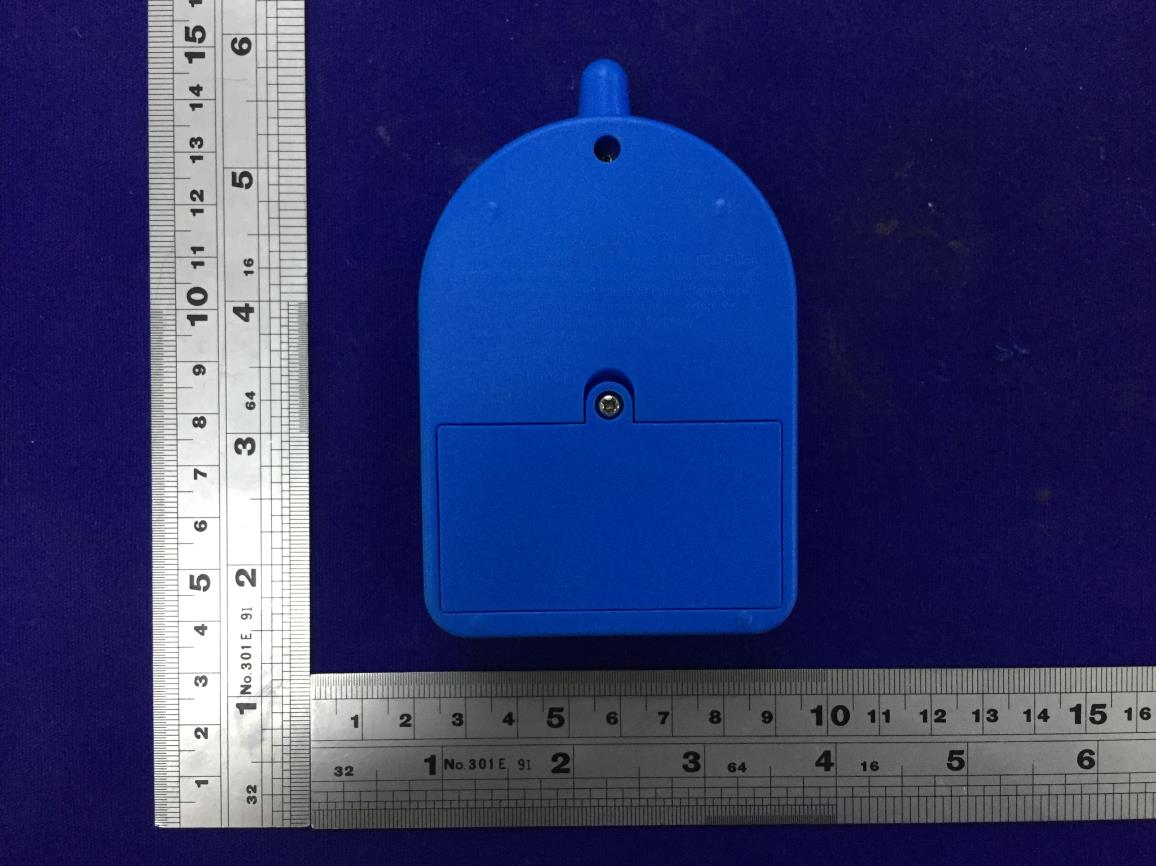

Page 1 of 2 External Photos Page 2 of 2

Label Artwork and Location SIZE: 34mm (W) x 2mm (H) SIZE: 48mm (W) x 14mm (H) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Page 1 of 2 Internal Photos Page 2 of 2

INTERTEK TESTING SERVICES RF Exposure The equipment under test (EUT) is a Toy RC Toyland Train operating at 2.4G Band. The EUT can be powered by DC 3.0V (2 x 1.5V AA batteries).For more detail information pls. refer to the user manual. Antenna Type: Integral antenna Modulation Type: GFSK Antenna Gain: 0dBi The nominal conducted output power specified: 0.0 dBm (±3dB) The nominal radiated output power (e.i.r.p) specified: 0.0 dBm (±3dB) According to the KDB 447498: The Maximum peak radiated emission for the EUT is 97.5 dBμV/m at 3m in the frequency 2453MHz The EIRP = [(FS*D) ^2 / 30] mW = 2.27dBm which is within the production variation. The Minimum peak radiated emission for the EUT is 95.4 dBμV/m at 3m in the frequency 2442MHz The EIRP = [(FS*D) ^2 / 30] mW = 0.17dBm which is within the production variation. The maximum conducted output power specified is 3dBm= 1.995mW The SAR Exclusion Threshold Level: 푃 th (mW) = ERP 20cm * (푑/20cm) 푥 (X= ) = 3060 * (0.5/20) 1.9 mW = 2.72 mW Since max. power of the source-based time-averaging conducted output power and effective radiated power (ERP) is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. FCC ID: 2AWZKHD22C24GT

GUANGDONG HENGDI TECHNOLOGY CORP.,LTD. TEST REPORT SCOPE OF WORK FCC TESTING– MODEL:1016244 REPORTNUMBER GZHH00457314-001 ISSUE DATE JUL 25, 2022 PAGES 24 DOCUMENT CONTROL NUMBER FCC ID 249_C © 2017 INTERTEK Intertek Report No.:GZHH00457314-001 This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Service Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community GuanHu Subdistrict, LongHua District, Shenzhen, People’s Republic of China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Version: 01-November-2017 Page:1 of 24 FCC ID 249_C Test Report GUANGDONG HENGDI TECHNOLOGY CORP.,LTD. Application for Certification FCC ID: 2AWZKHD22C24GT Toy RC Toyland Train Model: 1016244 Additional Model No.: 1012121, 101XXXX (where XXXX can be digits 0000-9999 which represent different customers) Brand Name: Geoffrey's Toy Box 2.4GHz Transmitter Report No.: GZHH00457314-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-20] Prepared and Checked by: Approved by: Sign on file Terry Tang Assistant Supervisor Peter Kang Technical Supervisor Date: Jul 25, 2022 Intertek Report No.:GZHH00457314-001 Version: 01-November-2017 Page:2 of 24 FCC ID 249_C Test Report MEASUREMENT/TECHNICAL REPORT This report concerns (check one:) Original Grant X Class II Change Equipment Type: DXX - Part 15 Low Power Communication Device Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [10-1-20Edition] provision. Report prepared by: Terry Tang Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community GuanHu Subdistrict, LongHua District, Shenzhen, People’s Republic of China Tel / Fax: 86-755-86016288/86-755-86016751 Intertek Report No.:GZHH00457314-001 Version: 01-November-2017 Page:3 of 24 FCC ID 249_C Test Report Table of Contents 1.0 Summary of Test Result ..................................................................................... 4 2.0 General Description ............................................................................................ 5 2.1Product Description ............................................................................................. 5 2.2Related Submittal(s) Grants ................................................................................ 5 2.3Test Methodology ................................................................................................ 5 2.4Test Facility ........................................................................................................ 5 3.0 System Test Configuration ................................................................................. 6 3.1 Justification ........................................................................................................ 6 3.2EUT Exercising Software ..................................................................................... 6 3.3Special Accessories ............................................................................................ 6 3.4Equipment Modification ....................................................................................... 6 3.5 Measurement Uncertainty .................................................................................. 6 3.6 Support Equipment List and Description ............................................................. 6 4.0Emission Results ................................................................................................. 7 4.1 Radiated Test Results ........................................................................................ 7 4.1.1 Field Strength Calculation ................................................................................ 7 4.1.2 Radiated Emission Configuration Photograph .................................................. 8 4.1.3Radiated Emissions .......................................................................................... 8 4.1.4 Transmitter Spurious Emissions .................................................................... 11 5.0 Equipment Photographs ................................................................................... 15 6.0Product Labelling ............................................................................................... 15 7.0Technical Specifications .................................................................................... 15 8.0Instruction Manual ............................................................................................. 15 9.0Miscellaneous Information ................................................................................ 16 9.1 Bandedge Plot ...............................................................…

Text truncated - open the document above for the full version.

Page 1 of 2 Radiated Photos Up to 1GHz (The EUT placed at the center of the turntable) Page 2 of 2 Above 1GHz (The EUT placed at the center of the turntable)
