2AX2S-INS-CUBE2.4GHz WIFI IP CAMERA

INS Cube Camera 2M FHD IP Ver. 1.0 / 2022.11 User’s Manual_Install Part Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. Contents INTRODUCTION Important Safety Informa�on Product & Accessories Part Name 03 07 08 INSTALLATION Installa�on Cabling Inser�ng / Removing an SD Memory Card 09 11 12 SPECIFICATION Dimension FCC Instruc�ons 13 14 Specifica�on06 POWER 1. Use only standardized adapter s wri�en in the manual. Incorrect connec�on of the power source can cause fire, electric shock, or failure. 2. If there is smoke or a str ange smell from the power source, disconnect the power immediately and contact the service center or purchasing office. If you con�nue to use it as it is, it can cause fire and electric shock. 3. Disconnect the power plug from the outlet befor e connec�ng to the power terminal block. INSTALLATION 1. Install it according to the temperature and humidity envir onment suitable for the product specifica�ons. Otherwise, it can cause fire and electric shock. 2. Thunder and lightning can cause problems with the camera. When installing, be careful to minimize damage caused by lig htning such as grounding. 3. Do not place conduc�ve materials (driver s, coins, metal s�cks, etc.) and water -filled containers on the camera. It causes injuries caused by fire, electric shock, and falling. 4. If you want t o move the installed product, turn off the power and move it or reinstall it. Otherwise, it can cause fir e and electric shock. 5. Do not install it in places where there is a lot of moisture, dust, soot, etc. It causes fire and electric shock . 6. Avoid places where direct sunlight comes in or where heat comes out, such as hea�ng appliances. It causes fire and electric shock. CLEANING 1. Do not spray water directly on each part of the product when cleaning. It causes fire and electric shock. POWER 1. Use the power line a�er fixing it firmly to the power connec�on terminal. Incomplete connec�on can cause a fire. 2. Do not extend the adapter output cable. If you need to install the power cable extension, please contact the service center. 3. Use insulated power for PoE connected external power . INSTALLATION 1. It is recommended not to touch the lens when installing the product as the factor y ships with a focus adjustment completed during the manufacturing comple�on inspec�on phase. 2. Avoid installing cameras facing bright lights like sunlight. Causes damage to the image senso r. 3. Make sure it safe and securely when installing camera on the wall or ceilling. This can cause injury by the fall. 4. Do not connect mul�ple cameras to one adapter. Excess capacity causes abnormal heat and fire. 5. Wear protec�ve gloves when installing/uninstalling the camera. This causes burns caused by high temperature on the surface of the product. 6. Don't drop or shock the product. Please stay away from places where vibra�on is sever e or magnet types are pr esent. 7. Install it in a well-ven�lated place. This can cause fire and failure. CLEANING 1. Wipe the contaminated surface with a clean, so�, dry cloth or wet the so�, dry cloth to prevent water from flowing, then wipe the contaminated area. Safety Instruction These instruc�ons are intended to ensure that the user can use the product correctly to avoid danger or property loss. If the product is not func�oning properly or damaged, contact the service center or purchasing office. Warnings Serious injury or death may be caused if any of these warnings are neglected. Cautions Injury or equipment damage may be caused if any of these cautions are eglected. Installa�on and Use Precau�ons 1. The ba�er y (ba�er y pack or equipped ba�er y) must not be exposed to excessive heat such as sunlight, fire, etc. 2. Do not disassemble the camera at your discre�on. 3. If you for cefully install the product with excessive force, malfunc�on can damage the camera. 4. Do not punch or shake the camera and be careful not to damage the camera with careless storage or malfunc�on. 5. Be car eful not to install the camera in a rainy or humid place, and do not leave it in a wet place. 6. Installing or using the product in water can cause serious product failure. 7. Do not install the product if there is chemical or vapor in the place where the product is installed, or if it can be generated. 8. Be car eful not to get chemicals on the surface of the product when installing the product. Chemical solvents such as cleaning agents and adhesive components can cause fatal damage to the surface of the product. 9. Do not install it near the kitchen or cooking table as edible oil such as soybean oil can also cause product damage and deforma�on. It can cause product damage. 10. Be car eful not to get f or eign substances on the Micro SD car d terminal. If there is any for eign substance, wipe it with a so� cloth. 11. Data will not be saved at the end of the life of the Micro SD car d. In this case, pu rchase a new Micro SD car d. 12. Moisture may occur in the glass of the camera when the new product box is opened (or when the product is ini�ally running). The generated moisture is removed by a Gore vent a�ached to the camera within hours of the power connec�on. 13. For products enclosed with a desiccant or car d-type absorbent, please install it accor ding to the manual. 14. Use only with cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. 15. Unplug this apparatus when a cart is used. Use cau�on when moving the cart/apparatus combina�on to avoid injury from �p-over. Disposal of Old Appliances 1. The symbol marked in the product, will follow and cover ed by the Europe Direc�ve 2002/95/EC. 2. All electornic disposal of was te is differ enct by the government or locally, so so it need to check. 3. The correct disposal of your old appliance will help prevent poten�al nega�ve consequences for the environment and human health. 4. For more detailed informa�on about disposal…

Text truncated - open the document above for the full version.

CPRO Electronics Co., Ltd. #605, 234, Galmachi-ro, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Tel. +82-70-8633-8754 / Fax. +82-31-735-5453 Date: November 01, 2022 Dear Sir/Madam Re: Letter of Similarity We, CPRO Electronics Co., Ltd., declare the differences for between original model and variant models. -Product: 2.4GHz WIFI IP CAMERA -Model name: INS-CUBE -Variant Model name: NST12-22-R  Variant Model is simplified derivation based on model name. The H/W version and PCB design are same. And the other thing is same. Sincerely Yours, Name: JongKwang Choi Title: General Manager

CPRO Electronics Co., Ltd. #605, 234, Galmachi-ro, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Date: September 02, 2022 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (2.4GHz WIFI IP CAMERA/INS-CUBE /2AX2S-INS-CUBE) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the (below list) required to be submitted with this application be permanently withheld from public review. Permanent Confidential Request -. Schematics -. Block Diagram -. Operational Description -. Part list SPECIFY REASON FOR REQUEST (i.e. the above documents are company proprietary information that could never get into the possession of your competition). Please contact me if there is any information you may need. Sincerely, Jon gkwang Choi / General Manager

CPRO Electronics Co., Ltd. #605, 234, Galmachi-ro, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Date: September 02, 2022 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (2.4GHz WIFI IP CAMERA/INS-CUBE /2AX2S-INS-CUBE) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the (below list) required to be submitted with this application be short-term Confidentiality for a period of 180 days after grant is issued. Short-Term Confidential Request -. External Photos -. Internal Photos -. Test set-up photo -. User Manual SPECIFY REASON FOR REQUEST (i.e. These documents contain detailed system and equipment descriptions and related information about the product, which we considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, we feel that this information would be of benefit to our competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Jongkwang Choi / General Manager

CPRO Electronics Co., Ltd. #605, 234, Galmachi-ro, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Date: September 02, 2022 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Ms. Hyowon Jeong/Staff of Eurofins KCTL Co., Ltd. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Jongkwang Choi / General Manager

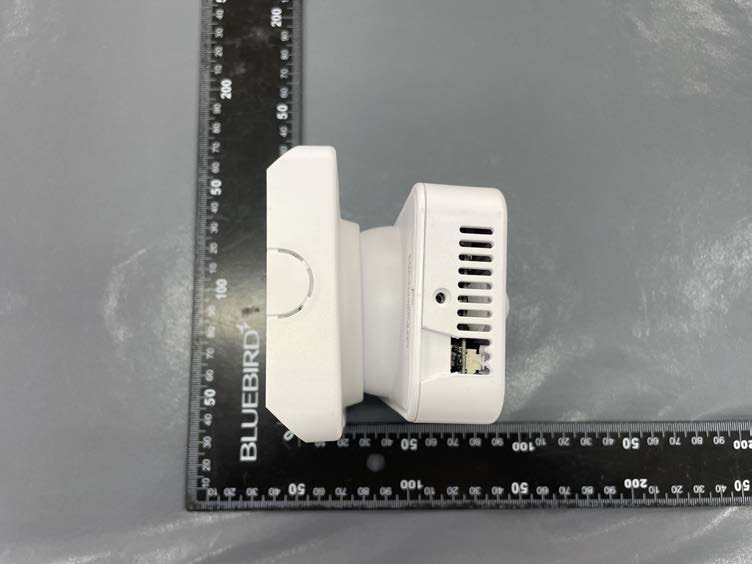

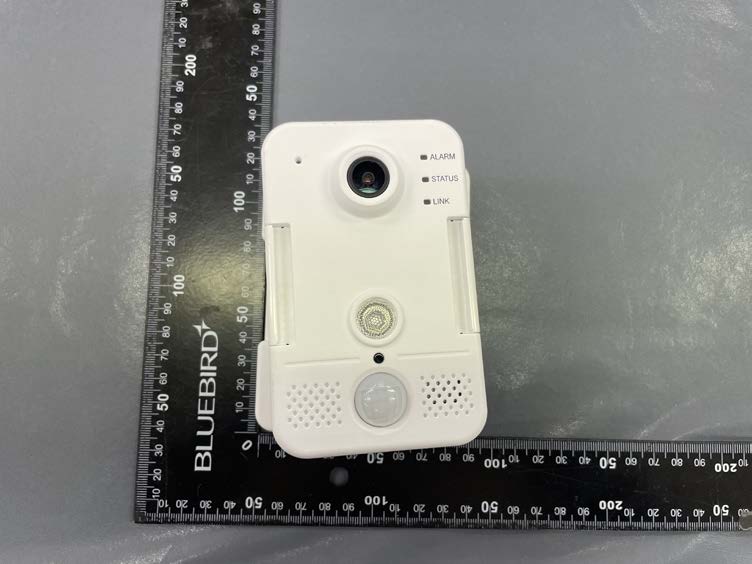

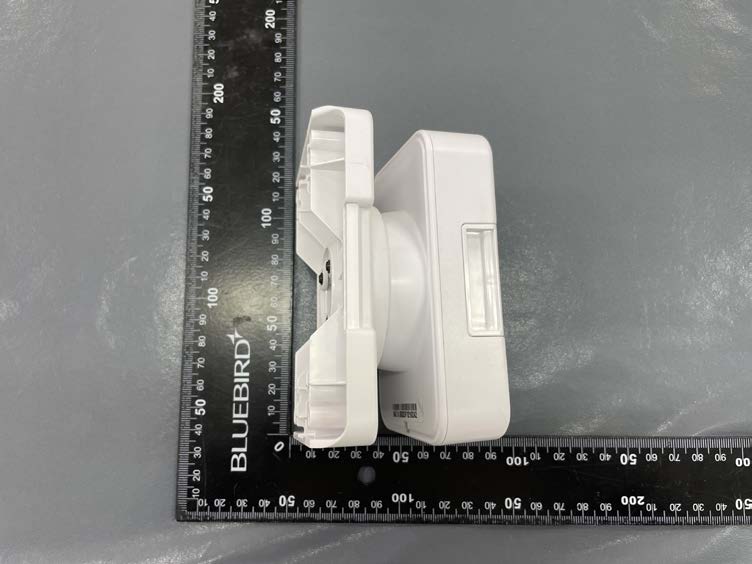

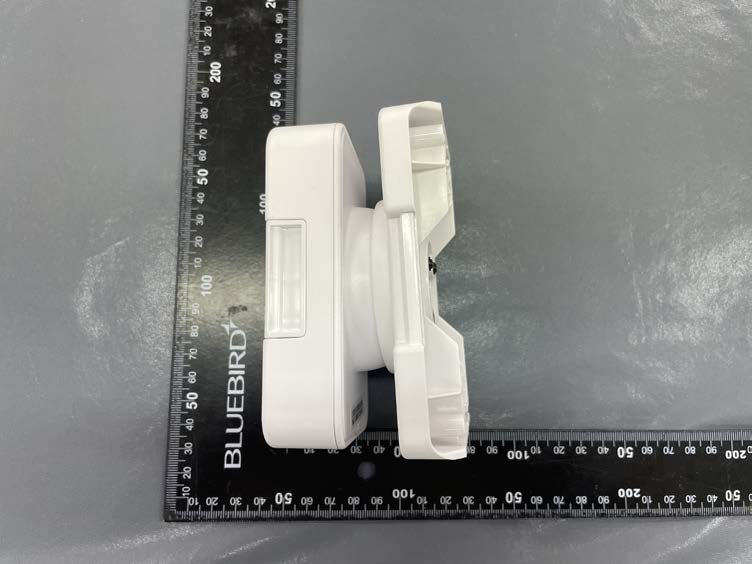

This test report shall not be reproduced, except in full, without the written approval External photos of EUT This test report shall not be reproduced, except in full, without the written approval This test report shall not be reproduced, except in full, without the written approval

PRODUCT LABEL MAC LABEL UNIT BOX LABEL S/N 1925000000001 MODEL INS-CUBE UK CA DI STRIBUTED BY OPTEX INCORORATED MADE I N VI ETNAM CODE 00000 7 88924 00000 8 INS-CUBE 00000 CARTON BOX LABEL UK CA INS-CUBE Power In put : DW12V5.0W, PoE (IEEE 802.3af)11.5W 2.4GHz WIFI IP CAMERA Mi ni-j ack/Termi nal : 12VDC ±10% FCC ID:2AX2S-INS-CUBE MADE IN VIETNAM DISTRI BUTED BY OPTEX INCORORATED MAC a ddre ss xxxxxxxxxxxxx I P a ddress xxxxxxxxxxxx S/N: xxxxxxxxxxxxxx UK CA Product Label 37*17 Gift box Label 100*50 Carton Label 90*120 S/N 1925000000001 MODEL INS-CUBE UK CA DI STRIBUTED BY OPTEX INCORORATED MADE I N VI ETNAM INS-C UBE Power In put : DW12V5.0W, PoE (IEEE 802.3af)11.5W 2.4GHz WIFI IP CAMERA Mi ni-j ack/Termi nal : 12VDC ±10% FCC ID:2AX2S-INS-CUBE MADE IN VIETNAM DISTRIBUTED BY OPTEX INCORORATED MAC a ddre ss xxxxxxxxxxxxx I P a ddress xxxxxxxxxxxx S/N: xxxxxxxxxxxxxx INS-C UBE CODE 00000 00000 7 88924 00000 8 UK CA Product Label 37*17 Gift box Label 100*50 Carton Label 90*120 S/N 1925000000001 MODEL NST12-22-R UK CA DI STRIBUTED BY OPTEX INCORORATED MADE I N VI ETNAM NST12-22-R Power In put : DW12V5.0W, PoE (IEEE 802.3af)11.5W 2.4GHz WIFI IP CAMERA Mi ni-j ack/Termi nal : 12VDC ±10% FCC ID:2AX2S-INS-CUBE MADE IN VIETNAM DISTRIBUTED BY OPTEX INCORORATED MAC a ddre ss xxxxxxxxxxxxx I P a ddress xxxxxxxxxxxx S/N: xxxxxxxxxxxxxx NST12-22-R CODE 00000 00000 7 88924 00000 8

This test report shall not be reproduced, except in full, without the written approval Internal photos of EUT This test report shall not be reproduced, except in full, without the written approval This test report shall not be reproduced, except in full, without the written approval This test report shall not be reproduced, except in full, without the written approval This test report shall not be reproduced, except in full, without the written approval This test report shall not be reproduced, except in full, without the written approval This test report shall not be reproduced, except in full, without the written approval

This test report shall not be reproduced, except in full, without the written approval * RF Exposure FCC ID: 2AX2S-INS-CUBE 1. Regulation Regulation This document is prepared to show compliance with the RF Exposure requirements as required in §1.1310 of the FCC rules and Regulations. The limit for Maximum Permissible Exposure (MPE), specified in FCC §1.1310, is listed in Table 1-1. According to FCC §1.1310: the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b). Table 1 – Limits for Maximum Permissible Exposure (MPE) Frequency Range (㎒) Electric Field Strength [V/m] Magnetic Field Strength [A/m] Power Density [㎽/㎠] Averaging Time [minute] (A) Limits for Occupational / Controlled Exposure 0.3 ~ 3.0 614 1.63 *100 6 3.0 ~ 30 1842/f 4.89/f *900/f 2 6 30 ~ 300 61.4 0.163 1.0 6 300 ~ 1 500 / / f/300 6 1 500 ~ 15 000 / / 5 6 (B) Limits for General Population / Uncontrolled Exposure 0.3 ~ 1.34 614 1.63 *100 30 1.34 ~ 30 824/f 2.19/f *180/f 2 30 30 ~ 300 27.5 0.073 0.2 30 300 ~ 1 500 / / f/1 500 30 1 500 ~ 15 000 / / 1.0 30 f=frequency in ㎒, *= plane-wave equivalent power density Per the guidance of KDB 680106, the E-field and H-field limits shown in the table above are extended down to 100 ㎑ in Appendix C): 1) For test separation distances > 50 ㎜ and < 200 ㎜, the power threshold at the corresponding test separation distance at 100 ㎒ in step b) is multiplied by [1 + log(100/f(㎒))] 2) For test separation distances ≤ 50 ㎜, the power threshold determined by the equation in c) 1) for 50 ㎜ and 100 ㎒ is multiplied by ½ 3) SAR measurement procedures are not established below 100 ㎒. When SAR test exclusion cannot be applied, a KDB inquiry is required to determine SAR evaluation requirements for any SAR test results below 100 ㎒ to be acceptable. This test report shall not be reproduced, except in full, without the written approval 2. Result MPE (Maximum Permissive Exposure) Prediction Predication of MPE limit at a given distance: Equation from page 18 of OET Bulletin 65, Edition 97-01 () SPGRRPGS ππ4 4 2 =⇒= S = power density [㎽/㎠] P = Power input to antenna [㎽] G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna [㎝] RF Exposure Compliance Issue The information should be included in the user’s manual: This appliance and its antenna must not be co-located or operation is conjunction with any other antenna or transmitter. A minimum separation distance of 20 ㎝ must be maintained between the antenna and the person for this appliance to satisfy the RF exposure requirements. Note. 1. The power density P d (5th column) at a distance of 20 ㎝ calculated from the friis transmission Formula is far below the limit of 1 ㎽/㎠. 2. Unequal antenna gains, with equal transmit powers. For antenna gains given by G1, G2, ..., GN ㏈i (i) If transmit signals are correlated, then Directional gain = 10 log[(10G 1 /20 + 10G 2 /20 + ... + 10G N /20)2/NANT] ㏈ i [Note the “20”s in the denominator of each exponent and the square of the sum of terms; the object is to combine the signal levels coherently.] This test report shall not be reproduced, except in full, without the written approval Calculation Result of RF Exposure [DC 12 V] WLAN (2.4 ㎓) Mode Frequency [㎒] Max Tune-up Power [㏈m] Max Tune-up Power [㎽] Ant Gain [㏈i] Power density at 20 ㎝ [㎽/㎠] Limit [㎽/㎠] 802.11b 2 412 -3.00 0.50 1.40 0.000 14 1.00 2 437 -2.00 0.63 1.40 0.000 17 1.00 2 462 -2.00 0.63 1.40 0.000 17 1.00 802.11g 2 412 -3.00 0.50 1.40 0.000 14 1.00 2 437 -3.00 0.50 1.40 0.000 14 1.00 2 462 -3.00 0.50 1.40 0.000 14 1.00 802.11n_HT20 2 412 -3.00 0.50 1.40 0.000 14 1.00 2 437 -3.00 0.50 1.40 0.000 14 1.00 2 462 -3.00 0.50 1.40 0.000 14 1.00 802.11n_HT40 2 422 -4.00 0.40 1.40 0.000 11 1.00 2 437 -4.00 0.40 1.40 0.000 11 1.00 2 452 -3.00 0.50 1.40 0.000 14 1.00 This test report shall not be reproduced, except in full, without the written approval [PoE 48 V] WLAN (2.4 ㎓) Mode Frequency [㎒] Max Tune-up Power [㏈m] Max Tune-up Power [㎽] Ant Gain [㏈i] Power density at 20 ㎝ [㎽/㎠] Limit [㎽/㎠] 802.11b 2 412 -3.00 0.50 1.40 0.000 14 1.00 2 437 -2.00 0.63 1.40 0.000 17 1.00 2 462 -2.00 0.63 1.40 0.000 17 1.00 802.11g 2 412 -3.00 0.50 1.40 0.000 14 1.00 2 437 -3.00 0.50 1.40 0.000 14 1.00 2 462 -3.00 0.50 1.40 0.000 14 1.00 802.11n_HT20 2 412 -3.00 0.50 1.40 0.000 14 1.00 2 437 -3.00 0.50 1.40 0.000 14 1.00 2 462 -3.00 0.50 1.40 0.000 14 1.00 802.11n_HT40 2 422 -4.00 0.40 1.40 0.000 11 1.00 2 437 -4.00 0.40 1.40 0.000 11 1.00 2 452 -3.00 0.50 1.40 0.000 14 1.00

귀중 CPRO TEL 경기도 성남시 분당구 야탑동 342-1 리더스빌딩 808호 031-703-5191신청회사명우노텔(주) 주소 부장 / 박성수 이사/ 김영도 사장 / 류대원 14.Oct.2022. 14.Oct.2022. 구분 협 력 업 체 14.Oct.2022. 입 안 심 사 결 정 결 정 구분 입 안 심 사 C P R O 승인 유효기간승인일로부터 까지 N01CMAAD-PK1-G100U 규 격 PCB Mounted Embedded Antenna 적용 모델 CODE-NO APPROVAL REPORT (승인원) 품 명 Airgain Embedded Antenna Engineering Data Sheet Profile Series N01CMAAD 3611 Valley Centre Drive, Suite 150 San Diego, CA 92130 USA Tel: +1 760 579 0200 Fax: +1 760 579 0892 Information: [email protected] Sales: [email protected] Support: [email protected] Page 2 Proprietary and Confidential Doc. # 3012C-02-00-001-1 Rev. 1.1 Airgain N01CMAAD Engineering Data Sheet Revision History (Required) Revision Date Note 3012C-02-00-002-1 Rev 1.0 June 15, 2020 Preliminary Datasheet 1.0 3012C-02-00-002-1 Rev 1.1 August 11,2022 Released Disclaimers The information in this document is provided in connection with Airgain Antenna products and is proprietary and confidential. Airgain may make changes at any time, without notice. Please verify with Airgain before finalizing a product design. Page 3 Proprietary and Confidential Doc. # 3012C-02-00-001-1 Rev. 1.1 Airgain N01CMAAD Engineering Data Sheet Contents 1. Airgain N01CMAAD Embedded Antenna...................................................................................................... 4 2. Features ............................................................................................................................................................ 4 3. Specifications and Interface ............................................................................................................................. 5 4. Radiation Patterns ............................................................................................................................................ 5 5. Dimensions ...................................................................................................................................................... 7 6. ROHS............................................................................................................................................................... 7 7. Feature and Options Information ..................................................................................................................... 7 7.1 Part Number Conventions ............................................................................................................................... 8 7.2 Part Number Example ..................................................................................................................................... 8 8. Cable Data Sheet ............................................................................................................................................. 9 9. RELIABILITY TEST .................................................................................................................................... 10 9.1 Environment test ............................................................................................................................................ 10 9.2 Mechanical test .............................................................................................................................................. 10 10. VSWR Naked Test ........................................................................................................................................ 11 Figures Figure 1: Model N01CMAAD Embedded Antenna ............................................................................................................ 4 Figure 2: Model N01CMAAD Measurement axes .............................................................................................................. 5 Figure 3: Model N01CMAAD Radiation Patterns at 2.44 GHz .................................................................................... 6 Figure 4: Model N01CMAAD Pre-applied Tape Dimensions ....................................................................................... 7 Figure 5: N01CMAAD with connector or stripped cable ................................................................................................. 8 Page 4 Proprietary and Confidential Doc. # 3012C-02-00-001-1 Rev. 1.1 Airgain N01CMAAD Engineering Data Sheet 1. Airgain N01CMAAD Embedded Antenna The Model N01CMAAD Embedded Antenna provides a high efficiency, 2.4GHz band embedded antenna solution for Wi-Fi and ISM band applications, such as WLAN products. As embedded antenna solutions become the focus of next generation wireless product design, the Model N01CMAAD provides the flexibility of an embedded antenna with top performance. The Model N01CMAAD Embedded Antenna is a center fed version of its predecessor, the N01CMAAD, allowing it to fit in spaces where center feeding is better suited. It is designed to accommodate most WLAN access point applications, such as routers and gateways and can be easily integrated into an ID package design. 2. Features The Airgain N01CMAAD embedded antenna includes the following features: • IEEE 802.11 /b/g/n/ standards • Single 2.4GHz Band operation • Case mount • 1.4 dBi peak gain @2.44 GHz • High efficiency • Quick integration Figure 1: Model N01CMAAD Embedded Antenna Page 5 Proprietary and Confidential Doc. # 3012C-02-00-001-1 Rev. 1.1 Airgain N01CMAAD Engineering Data Sheet 3. Specifications and Interface Standard IEEE 802.11 b/g/n Frequency range 2.4 to 2.49 GHz Peak gain 1.4 dBi @2.44 GHz, VSWR < 2:1 Feed impedance 50 ohms Power handling 30 dBm Interface 50 ohms, 1.13 mm diameter, micro coax cable (available with optional U.FL-compatible cable connector and/or cable-mounted EMI ferrites) Antenna dimensions 24 x 10 x 0.8 mm Weight 0.78 g Temperature range Operating: -40° C to +75° C (-40° F to +167° F) Storage: -40° C to +85° C (-40° F to +185° F) Humidity range 0% to 95% non-condensing 4. Radiation Patterns Figure 2: Model N01CMAAD Measurement axes X Z Y Page 6 Propriet…

Text truncated - open the document above for the full version.

verify No.718741892982 Eurofins KCTL Co.,Ltd. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR22-SRF0021 Page (2) of (90) KCTL-TIR001-003/7 (220705) KP22-05444 REPORT REVISION HISTORY Date Revision Page No 2023-01-09 Originally issued - This report shall not be reproduced except in full, without the written approval of Eurofins KCTL Co.,Ltd. This document may be altered or revised by Eurofins KCTL Co.,Ltd. personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by Eurofins KCTL Co.,Ltd. will constitute fraud and shall nullify the document. This test report is a general report that does not use the KOLAS accreditation mark and is not related to KS Q ISO/IEC 17025 and KOLAS accreditation. General remarks for test reports Statement concerning the uncertainty of the measurement systems used for the tests (may be required by the product standard or client) Internal procedure used for type testing through which traceability of the measuring uncertainty has been established: Procedure number, issue date and title: Calculations leading to the reported values are on file with the testing laboratory that conducted the testing. Statement not required by the standard or client used for type testing Eurofins KCTL Co.,Ltd. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR22-SRF0021 Page (3) of (90) KCTL-TIR001-003/7 (220705) KP22-05444 CONTENTS 1. General information ......................................................................................................4 2. Device information ........................................................................................................4 2.1. Information about derivative model .........................................................................4 2.2. Frequency/channel operations................................................................................5 2.3. Duty Cycle Factor ...................................................................................................6 3. Antenna requirement ....................................................................................................8 4. Summary of tests ..........................................................................................................9 5. Measurement uncertainty ........................................................................................... 10 6. Measurement results explanation example ................................................................ 11 7. Test results ................................................................................................................. 12 7.1. Maximum Peak Output Power .............................................................................. 12 7.2. Peak Power Spectral Density ............................................................................... 16 7.3. 6㏈ Bandwidth(DTS Channel Bandwidth) ............................................................ 22 7.4. Spurious Emission, Band Edge and Restricted bands .......................................... 28 7.5. Conducted Spurious Emission .............................................................................. 78 7.6. AC Conducted emission ....................................................................................... 87 8. Measurement equipment ............................................................................................ 90 Eurofins KCTL Co.,Ltd. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR22-SRF0021 Page (4) of (90) KCTL-TIR001-003/7 (220705) KP22-05444 1. General information Client : CPRO Electronics Co., Ltd. Address : #605, 234, Galmachi-ro, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Manufacturer : CPRO Electronics Co., Ltd. Address : #605, 234, Galmachi-ro, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Laboratory : Eurofins KCTL Co.,Ltd. Address : 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea Accreditations : FCC Site Designation No: KR0040, FCC Site Registration No: 687132 VCCI Registration No. : R-20080, G-20078, C-20059, T-20056 CAB Identifier: KR0040, ISED Number: 8035A KOLAS No.: KT231 2. Device information Equipment under test : 2.4㎓ WIFI IP CAMERA Model : INS-CUBE Derivative Model : NST12-22-R Frequency range : 2 412 ㎒ ~ 2 462 ㎒ (802.11b/g/n_HT20) 2 422 ㎒ ~ 2 452 ㎒ (802.11n_HT40) Modulation technique : DSSS (802.11b) OFDM (802.11g/n_HT20/HT40) Number of channels : 11 ch (802.11b/g/n_HT20) 7 ch (802.11n_HT40) Power source : DC 12 V, PoE 48 V Antenna specification : PCB Mounted Embedded Antenna Antenna gain : 1.4 ㏈i Software version : A7.2.2_20220916_INS_CUBE_ESTI Hardware version : NST12-22-R-R1 Operation temperature : -20 °C ~ 50 °C 2. 1. Information about derivative model Variant Model is simplified derivation based on model name. The H/W version and PCB design are same. And the other thing is same Eurofins KCTL Co.,Ltd. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR22-SRF0021 Page (5) of (90) KCTL-TIR001-003/7 (220705) KP22-05444 2. 2. Frequency/channel operations This device contains the following capabilities: WIFI (802.11b/g/n_HT20/HT40) Ch. Frequency (㎒) 01 2 412 . . . . 06 2 437 . . . . 11 2 462 Table 2.2.1. 802.11b/g/n_HT20 mode Ch. Frequency (㎒) 03 2 422 . . . . 06 2 437 . . . . 09 2 452 Table 2.2.2. 802.11n_HT40 mode Eurofins KCTL Co.,Ltd. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR22-SRF0021 Page (6) of (90) KCTL-TIR001-003/7 (220705) KP22-05444 2. 3. Duty Cycle Factor Test mode Period (㎳) T on time (㎳) Duty cycle Duty cycle Factor(㏈) (Linear) (%) DC 12 V 802.…

Text truncated - open the document above for the full version.

This test report shall not be reproduced, except in full, without the written approval Test setup photos - 9 ㎑ ~ 30 ㎒ - 30 ㎒ ~ 1 ㎓ This test report shall not be reproduced, except in full, without the written approval - 1 ㎓~ 18 ㎓ - 18 ㎓ ~ 26.5 ㎓ This test report shall not be reproduced, except in full, without the written approval - Conducted Emisson_DC 12 V This test report shall not be reproduced, except in full, without the written approval - Conducted Emisson_PoE 48 V
