2AX2T-WXCpositioning anti-lost device

Over view introduction Lucid Tag integrates with Apple's Find My network , providing a secure and user-friendly solution for tracking belongings. It effor tlessly locates keys, wallets, and more using Apple Find My Network , prioritizing security. Designed for user convenience, Lucid Tag simplifies daily life. Say goodbye to lost items with Lucid Tag and Apple's Find My network , experiencing a future of enhanced item tracking and peace of mind. Trust Lucid Tag to redefine how you manage essentials effor tlessly HOW TO PAIR Note: iOS or macOS with the latest version. ( Figure 1 ) ( Figure 2 ) ( Figure 3 ) 1.1 Place the Lucid Tag next to your Apple device like iPhone. 1.2 Turn on Bluetooth on iPhone and connect to Internet. 1.3 Press the finder side button, hear one beep to power on. 1.4 Open the 'Find My ' app 1.5 In 'Find My ' app, click on Add Item - Other Suppor t Items. As shown in Figure 1 1.6 Click 'Continue'. As shown in Figure 2 1.7 Name your Finder and click 'Continue'. As shown in Figure 3 1.8 Select emoticons. 1.9 Click 'Continue', then click 'Finish' to complete. Batter y Lucid Tag Contains a coin shaped batter y. During the product's lifespan, it may be necessar y to replace the batter y. By obser ving the correct negative and positive connections, only replace batteries of the same type (CR2032) and rating. Batter y replacement: 2.1Twist to open the back cover. 2.2Replace a new batter y. 2.3Twist to close the back cover. ADDITIONAL TIPS 3.1 To switch from active mode to Disable mode (Airplane mode), simply remove the batter y. 3.2 To switch from Disable mode (Airplane mode) to working mode, reinstall the batter y. The Lucid Tag will be successfully paired af ter this. 3.3 Press and hold the button until you hear 1 prompt tone, followed by 2 consecutive prompt tones, and then 3 consecutive indicator tones. Continue to press for 5 seconds. When you hear a long indicator tone, release the button to restore the device to its factor y settings.. 3.4 To remove the Lucid Tag from your Apple devices, open the Find My app, select 'items,' find the device, and scroll down to click on 'Remove this device. 3.5 If the Lucid Tag fails to connect to the Find My app, follow the instructions in section 3.3 to per form a factor y reset, and then restar t the pairing process. Impor tant matters The Lucid Finder contains delicate electronic par ts, including a batter y. To avoid damage, loss of function, or potential harm, please refrain from dropping, hitting, puncturing, crushing, disassembling, exposing it to extreme heat or liquids, or placing it in areas with a high concentration of industrial chemicals. WARNING:Do not swallow the batter y; there is a chemical bum hazard Choking Hazard Warning The Lucid Tag, its batter y compar tment door, the batter y itself, and the case may pose a choking hazard or cause injur y to small children. Please keep these items out of reach of young children Medical Device Interference The Lucid Tag contains components and radios that emit electromagnetic fields, as well as magnets. These elements may potentially inter fere with pacemakers, defibrillators, or other medical devices. To ensure safety, maintain a safe distance between your medical device and the Lucid Tag. We strongly advise consulting your physician and the manufacturer of your medical device for information that is specific to your situation. If you suspect that the Lucid Tag is inter fering with your pacemaker, defibrillator, or any other medical device, discontinue its use immediately. Impor tant Handling Guidelines It's normal for the Lucid Tag to show discoloration with regular use. To clean it, use a sof t, dr y, lint-free cloth. Avoid applying FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. LUCID TAG Portable Locator Device TX02 100.00 mm 18.00 mm 100.00 mm LUCID TAG Portable Locator Device LUCID TAG Portable Locator Device LUCID TAG Portable Locator Device Global positioning 全球定位 Ultra-long battery 超长续航 Lucid Tag integrates with Apple's Find My network, providing a secure and user-friendly s o l u t i o n f o r t r a c k i n g b e l o n g i n g s . I t effortlessly locates keys, wallets, and more using Apple Find My Network, prioritizing security. Designed for user convenience, Lucid Tag simplifies daily life. Say goodbye to lost items with Lucid Tag and Apple's Find My network, experiencing a future of enhanced item tracking and peace of mind. Trust Luci…

Text truncated - open the document above for the full version.

Hoco technology development (SHENZHEN) co.,Ltd U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: ANTEK SERVICE INC Address: 901 N PENNSYLVANIA ST STE 0 DENVER, CO 80203 FRN: 0033437609 Tel.: 01 303-8006306 Email: [email protected] Signed by: Shirley Kwok This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: 2024/11/22 Signed by (Printed Name/Title): The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: Hoco technology development (SHENZHEN) co.,Ltd Grantee Code: 2AX2T FCC ID: 2AX2T-WXC FRN: 0030146666 Contact Name: ZHU WENFU Address: Rm 408, Block A, Weidonglong Business Building, 2125 Meilong Road, Tsinghua Community, Longhua Street, Longhua District, Shenzhen, P. R. China Telephone No: 0755-82904792 Email: [email protected] Applicant Signature: Date: 2024/11/22 Signed by (Printed Name/Title): ZHU WENFU / engineer

Hoco technology development (SHENZHEN) co.,Ltd 2024/11/22 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2AX2T-WXC) [Hoco technology development (SHENZHEN) co.,Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) ZHU WENFU Hoco technology development (SHENZHEN) co.,Ltd 2024/11/22 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2AX2T-WXC) [Hoco technology development (SHENZHEN) co.,Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) ZHU WENFU

Hoco technology development (SHENZHEN) co.,Ltd 2024/11/22 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: positioning anti-lost device Trademark: MODEL: E91, E92, E93, E94, E95, E96, E97, E98, E99, E100, E101, E102, E103, E104, E105, E106, E107, E108, E109, E110 FCC ID: 2AX2T-WXC To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title: ZHU WENFU / engineer Contact information / address: Rm 408, Block A, Weidonglong Business Building, 2125 Meilong Road, Tsinghua Community, Longhua Street, Longhua District, Shenzhen, P. R. China

Hoco technology development (SHENZHEN) co.,Ltd 2024/11/22 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION EUT NAME: positioning anti-lost device Trademark: MODEL: E91, E92, E93, E94, E95, E96, E97, E98, E99, E100, E101, E102, E103, E104, E105, E106, E107, E108, E109, E110 FCC ID: 2AX2T-WXC To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title: ZHU WENFU / engineer Contact information / address: Rm 408, Block A, Weidonglong Business Building, 2125 Meilong Road, Tsinghua Community, Longhua Street, Longhua District, Shenzhen, P. R. China

Hoco technology development (SHENZHEN) co.,Ltd 2024/11/22 EUT NAME: positioning anti-lost device Trademark: MODEL: E91, E92, E93, E94, E95, E96, E97, E98, E99, E100, E101, E102, E103, E104, E105, E106, E107, E108, E109, E110 FCC ID: 2AX2T-WXC All the model are the same circuit and RF module, except model names. Sincerely Client’s signature: Client’s name / title: ZHU WENFU / engineer Contact information / address: Rm 408, Block A, Weidonglong Business Building, 2125 Meilong Road, Tsinghua Community, Longhua Street, Longhua District, Shenzhen, P. R. China

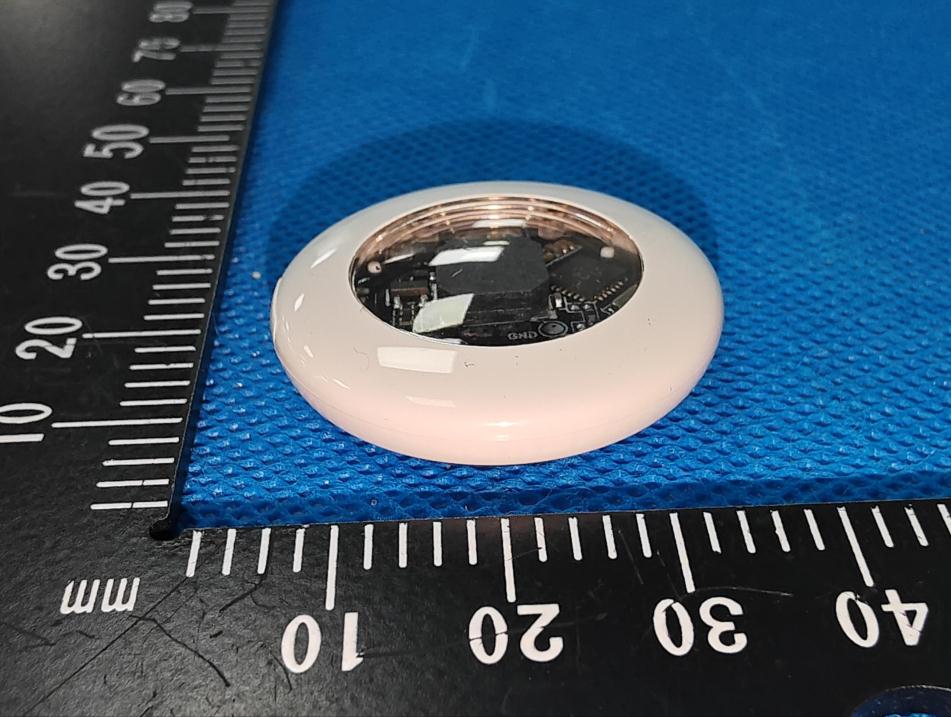

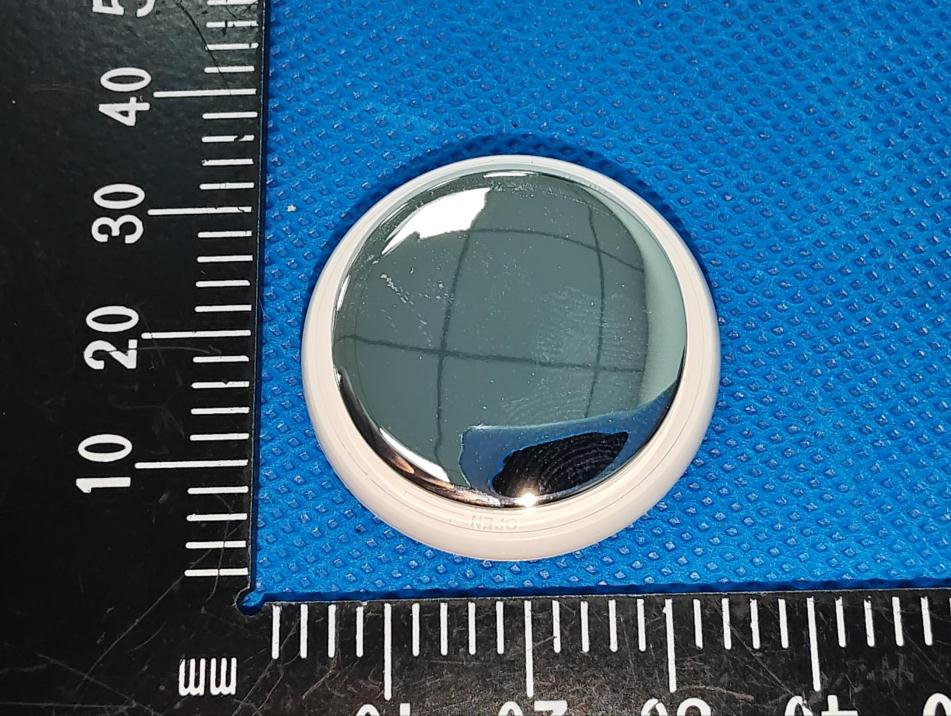

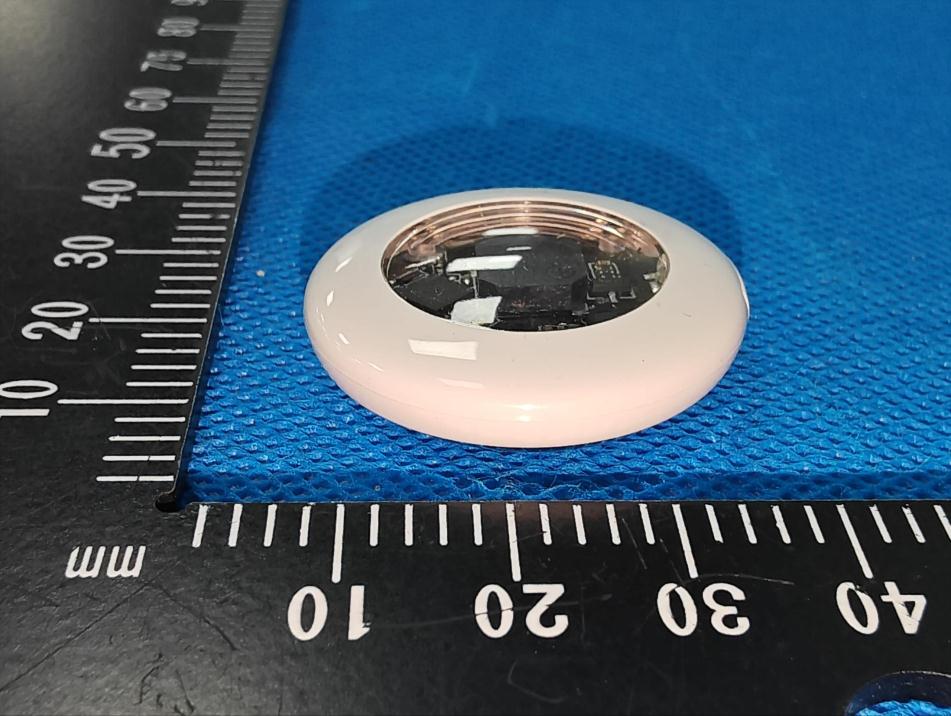

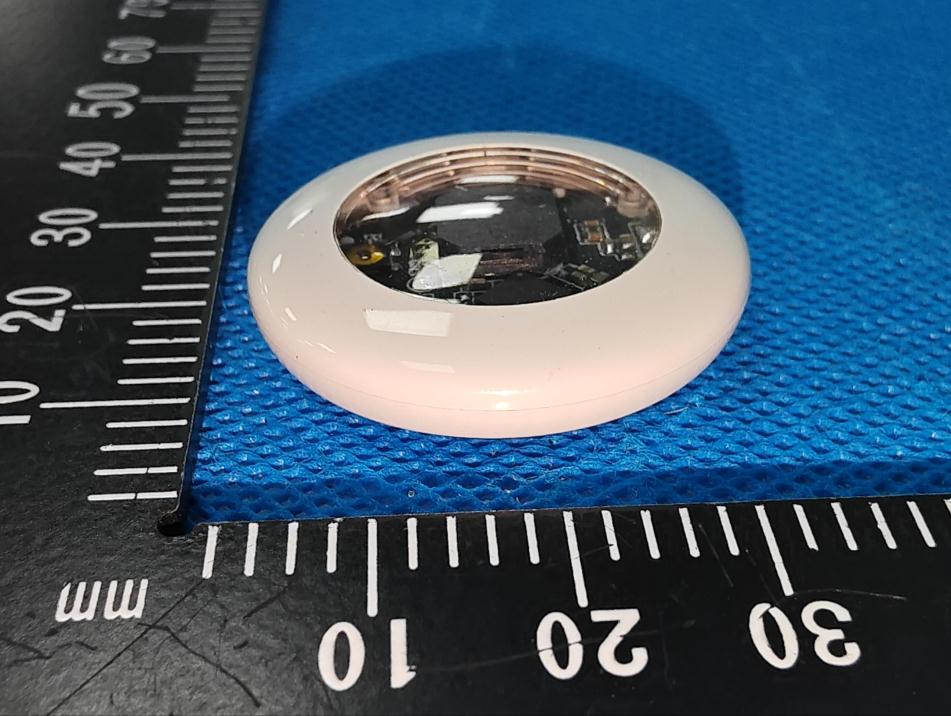

External Photos

Size:9*1mm FCC ID: 2AX2T-WXC Label location

Internal Photos Antenna

FCC ID: 2AX2T-WXC RF exposure evaluation §2.1093 Radiofrequency radiation exposure evaluation: Portable Devices. According to§15.247(i) and§1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidance. The 1-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation When the minimum test separation distance is < 5 mm, a distance of 5 mm according is applied to determine SAR test exclusion. The result is rounded to one decimal place for comparison GFSK Modulation Frequency (MHz) Max. Power (dBm) Max. Tune up Power (dBm) Max. Tune up Power (mW) Test distance (mm) Result exclusion thresholds for 1-g SAR GFSK 2480 5.58 6.0 3.98 5 1.25 3.0 Conclusion: For the max result: 1.25W/Kg ≤ FCC Limit 3.0 for 1g SAR.

PengBanXingYeShenZhenTechnologyCo.,Ltd Address：Room608,Building4,1970ScienceandTechnologyTown,MinzhiStreet,LonghuaDistrict,Shenzhen. UNLESSOTHERSPECIFIEDTOLERANCESON： X＝±X.X＝±X.XX＝ ANGLES＝ ± HOLEDIA＝ ± PengBanXingYeShenZhenTechnologyCo.,Ltd SCALE：N/AUNIT：mm THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFPBXY TECHNOLOGYLimitedANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY:SeraCHECKEDBY:XD DESIGNEDBY:SeraAPPROVEDBY:XD TITLE：CHIP2450-3216Specification DOCUMENT NO. 3216 SPECREV. P1 产品规格承认书 SPECIFICATIONS 客户: CUSTOMER: 产品名称: DESCRIPTION:Bipolarantenna 客户型号: CUSTOMERPARTNo: 产品型号: OURMODELNO:PBX3216HC01 日期: DATE: 确认签字,盖章后请返回承认书一份 PLEASERETURNTOUSONECOPYOF“SPECIFICATIONFORAPPROVAL” WITHYOURAPPROVEDSIGNATURES ApprovedLiuFeiAuditLiuFeiMakingLiuXiaoMei CustomerAcknowledgesSignature Date PengBanXingYeShenZhenTechnologyCo.,Ltd Address：Room608,Building4,1970ScienceandTechnologyTown,MinzhiStreet,LonghuaDistrict,Shenzhen. UNLESSOTHERSPECIFIEDTOLERANCESON： X＝±X.X＝±X.XX＝ ANGLES＝ ± HOLEDIA＝ ± PengBanXingYeShenZhenTechnologyCo.,Ltd SCALE：N/AUNIT：mm THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFPBXY TECHNOLOGYLimitedANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY:SeraCHECKEDBY:XD DESIGNEDBY:SeraAPPROVEDBY:XD TITLE：CHIP2450-3216Specification DOCUMENT NO. 3216 SPECREV. P1 PBX3216HC01Specification OperatingTemp.:-40 °C ~+85 °C 1.FEATURES: ●Lightweight,compact ●Widebandwidth,lowcost ●Built-inantennawithhighgain 2.APPLICATIONS: ●Bluetooth,WirelessLAN,MobileTV ●HomeRFSystem,etc 3.PRODUCTIDENTIFICATION (1)(2)(3) (1)Producttype:MultilayerchipAntenna (2)CenterFrequency:2450MHz (3)ExternalDimensions(L×W)(mm):3.2*1.6 4.SHAPEANDDIMENSIONS: LWHA 3.2±0.21.6±0.2 0.52±0.10.4±0.1 CH IP45 032 2 16 PengBanXingYeShenZhenTechnologyCo.,Ltd Address：Room608,Building4,1970ScienceandTechnologyTown,MinzhiStreet,LonghuaDistrict,Shenzhen. UNLESSOTHERSPECIFIEDTOLERANCESON： X＝±X.X＝±X.XX＝ ANGLES＝ ± HOLEDIA＝ ± PengBanXingYeShenZhenTechnologyCo.,Ltd SCALE：N/AUNIT：mm THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFPBXY TECHNOLOGYLimitedANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY:SeraCHECKEDBY:XD DESIGNEDBY:SeraAPPROVEDBY:XD TITLE：CHIP2450-3216Specification DOCUMENT NO. 3216 SPECREV. P1 Testplatereferencesize ： Company ： mm PengBanXingYeShenZhenTechnologyCo.,Ltd Address：Room608,Building4,1970ScienceandTechnologyTown,MinzhiStreet,LonghuaDistrict,Shenzhen. UNLESSOTHERSPECIFIEDTOLERANCESON： X＝±X.X＝±X.XX＝ ANGLES＝ ± HOLEDIA＝ ± PengBanXingYeShenZhenTechnologyCo.,Ltd SCALE：N/AUNIT：mm THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFPBXY TECHNOLOGYLimitedANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY:SeraCHECKEDBY:XD DESIGNEDBY:SeraAPPROVEDBY:XD TITLE：CHIP2450-3216Specification DOCUMENT NO. 3216 SPECREV. P1 Holepunchingreferencediagram APPLICATIONGUIDE 5.SPECIFICATIONS: *Testcondition:Testboardsize90*40mm Matchingcircuit:Pimatchingcircuitwillberequired PengBanXingYeShenZhenTechnologyCo.,Ltd Address：Room608,Building4,1970ScienceandTechnologyTown,MinzhiStreet,LonghuaDistrict,Shenzhen. UNLESSOTHERSPECIFIEDTOLERANCESON： X＝±X.X＝±X.XX＝ ANGLES＝ ± HOLEDIA＝ ± PengBanXingYeShenZhenTechnologyCo.,Ltd SCALE：N/AUNIT：mm THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFPBXY TECHNOLOGYLimitedANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY:SeraCHECKEDBY:XD DESIGNEDBY:SeraAPPROVEDBY:XD TITLE：CHIP2450-3216Specification DOCUMENT NO. 3216 SPECREV. P1 6.ElectricalCharacteristics: Returnloss Standingwaveratio MarkFrequencyVSWR 12400MHz1.513 22440MHz1.068 32480MHz1.464 PengBanXingYeShenZhenTechnologyCo.,Ltd Address：Room608,Building4,1970ScienceandTechnologyTown,MinzhiStreet,LonghuaDistrict,Shenzhen. UNLESSOTHERSPECIFIEDTOLERANCESON： X＝±X.X＝±X.XX＝ ANGLES＝ ± HOLEDIA＝ ± PengBanXingYeShenZhenTechnologyCo.,Ltd SCALE：N/AUNIT：mm THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFPBXY TECHNOLOGYLimitedANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY:SeraCHECKEDBY:XD DESIGNEDBY:SeraAPPROVEDBY:XD TITLE：CHIP2450-3216Specification DOCUMENT NO. 3216 SPECREV. P1 RadiationPattern TheGainpatternismeasuredinFAR-fieldchamber.DUTisplacedonthetableofrotator,a standardhornantennaandVectorNetworkAnalyzerisusedtocollectdata. ◎Efficiency Maximumgain PengBanXingYeShenZhenTechnologyCo.,Ltd Address：Room608,Building4,1970ScienceandTechnologyTown,MinzhiStreet,LonghuaDistrict,Shenzhen. UNLESSOTHERSPECIFIEDTOLERANCESON： X＝±X.X＝±X.XX＝ ANGLES＝ ± HOLEDIA＝ ± PengBanXingYeShenZhenTechnologyCo.,Ltd SCALE：N/AUNIT：mm THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFPBXY TECHNOLOGYLimitedANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY:SeraCHECKEDBY:XD DESIGNEDBY:SeraAPPROVEDBY:XD TITLE：CHIP2450-3216Specification DOCUMENT NO. 3216 SPECREV. P1 ◎ 3DGainPattern(2400MHz) ◎ 3DGainPattern(2440MHz) ◎ 3DGainPattern(2480MHz) PengBanXingYeShenZhenTechnologyCo.,Ltd Address：Room608,Building4,1970ScienceandTechnologyTown,MinzhiStreet,LonghuaDistrict,Shenzhen. UNLESSOTHERSPECIFIEDTOLERANCESON： X＝±X.X＝±X.XX＝ ANGLES＝ ± HOLEDIA＝ ± PengBanXingYeShenZhenTechnologyCo.,Ltd SCALE：N/AUNIT：mm THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFPBXY TECHNOLOGYLimitedANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY:SeraCHECKEDBY:XD DESIGNEDBY:SeraAPPROVEDBY:XD TITLE：CHIP2450-3216Specification DOCUMENT NO. 3216 SPECREV. P1 7.EnvironmentalCharacteristics (1)ReliabilityTest (2)StorageCondition (a)Atwarehouse: Thetemperatureshouldbewithin0~30°Candhumidityshouldbelessthan60%RH. Theproductshouldbeusedwithin1yearfromthetimeofdelivery. (b)Onboard: Thetemperatureshouldbewithin-40~85°Candhumidityshouldbelessthan85%RH. (3)OperatingTemperatureRange Operatingtemperaturerange:-40 °C to+1…

Text truncated - open the document above for the full version.

No.：BCTC/RF-EMC-005 Page: 1 of 50 Edition：B.2 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2410690941E Applicant: Hoco technology development (SHENZHEN) co.,Ltd Product Name: positioning anti-lost device Test Model: E91 Tested Date: 2024-10-21 to 2024-12-04 Issued Date: 2024-12-04 Report No.: BCTC2410690941E No.：BCTC/RF-EMC-005 Page: 2 of 50 Edition：B.2 FCC ID: 2AX2T-WXC The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: positioning anti-lost device Trademark: Model/Type Reference: E91 E92, E93, E94, E95, E96, E97, E98, E99, E100, E101, E102, E103, E104, E105, E106, E107, E108, E109, E110 Prepared For: Hoco technology development (SHENZHEN) co.,Ltd Address: Rm 408, Block A, Weidonglong Business Building, 2125 Meilong Road, Tsinghua Community, Longhua Street, Longhua District, Shenzhen, P. R. China Manufacturer: Hoco technology development (SHENZHEN) co.,Ltd Address: Rm 408, Block A, Weidonglong Business Building, 2125 Meilong Road, Tsinghua Community, Longhua Street, Longhua District, Shenzhen, P. R. China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2024-10-21 Sample Tested Date: 2024-10-21 to 2024-12-04 Issue Date: 2024-12-04 Report No.: BCTC2410690941E Test Standards: FCC Part15.247 ANSI C63.10-2013 Test Results: PASS Remark: This is Bluetooth BLE radio test report. Tested by: Approved by: Min Zhi Cheng/ Project Handler Zero Zhou/Reviewer Report No.: BCTC2410690941E No.：BCTC/RF-EMC-005 Page: 3 of 50 Edition：B.2 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 9 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List ........................................................................................................ 10 4.5 Test Mode ........................................................................................................... 10 4.6 Table of parameters of text software setting ....................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test procedure .................................................................................................... 13 6.4 EUT Operating Conditions .................................................................................. 13 6.5 Test Result .......................................................................................................... 13 7. Radiated Emissions ............................................................................................. 14 7.1 Block Diagram Of Test Setup .............................................................................. 14 7.2 Limit .................................................................................................................... 15 7.3 Test procedure .................................................................................................... 16 7.4 EUT operating Conditions ................................................................................... 17 7.5 Test Result .......................................................................................................... 17 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 22 8.1 Block Diagram Of Test Setup .............................................................................. 22 8.2 Limit .................................................................................................................... 22 8.3 Test Procedure ................................................................................................... 23 8.4 EUT Operating Conditions .................................................................................. 24 8.5 Test Result .......................................................................................................... 24 9. Power Spectral Density Test ............................................................................... 25 9.1 Block Diagram Of Test Setup .............................................................................. 25 9.2 Limit ........................................................................................................…

Text truncated - open the document above for the full version.

Report No.: BCTC2410690941E No.：BCTC/RF-EMC-005 Page: 49 of 50 Edition：B.2 15. EUT Test Setup Photographs Radiated Measurement Photos
