2AX3E-CAPERV0101Smart shopping cart

www.caper.ai Caper Smart Cart Product Specifications www.caper.ai Content 1. Overview ................................................................................................................................... 3 2. Dimensions ................................................................................................................................. 4 3. Hardware Specifications ............................................................................................................. 5 3.1. Electrical characteristics................................................................................................ 5 3.2. Hardware Architecture ......................................................................................................... 5 3.3. Hardware Modules ............................................................................................................... 6 3.4. Characteristics ....................................................................................................................... 7 4. Material ....................................................................................................................................... 7 www.caper.ai 1. Overview The Caper Smart Cart is the first AI-powered shopping cart that lets grocery shoppers skip checkout lines. Shoppers scan the barcode, toss the item inside, pay and go! With the help of 3 high resolution cameras and weight sensors that constantly train the CV algorithm, the Caper Cart is continuously learning. Soon no barcode scanning will take place, as the smarter cart will instantly recognize each and every product that enters the basket. The Caper Cart is made up of three essential components: the cart frame, the front unit and the top unit (screen encasing). The front unit is a simple structure that rests at the rail guard in front of the cart frame, it consists of 2 cameras and an LED. The screen encasing and the front unit can be removed from the frame. It is held together by a series of screws found beneath the components. www.caper.ai 2. Dimensions The Caper smart shopping cart is 116 x 61 x 124 cm (L x W x H) including the screen unit, and 116 x 61 x 106 cm (L x W x H) with just the frame alone. Figure 1 shows measured in millimeters showing the full width of the cart. Figure 1. Hardware dimensions Figure 2. Nested dimensions Each Caper cart is 116 cm long. Each additional cart adds about 38cm. Figure 2 shows a measurement of 4 carts nesting together, in millimeters. www.caper.ai 3. Hardware Specifications 3.1. Electrical characteristics MIN MAX UNIT Charging Voltage 15 20 V Storage temperature -40 70 °C Working temperature -20 40 °C Working voltage 12V ESD Air±8K Contact±4K V 3.2. Hardware Architecture RK3399 LCD 10.1 inch MIPI Load cell ADC Board FL-CAM LCD-CAM FR-CAM USB HUB USB2.0 USB2.0 Charging Board USB HUB G- sensor BAT RGB LED USB2.0 USB2.0 USB2.0 USB2.0 I2C PMU USB USB USB MIPI I2C WIFI&BT Module SDIO 2.4GHz WIFI&BT 5GHz WIFI www.caper.ai 3.3. Hardware Modules Figure 3. Hardware modules front view Load cell&PMU&Battery Conductive casters SD Camera Indicator LED Figure 4. Figure 3. Hardware modules side view www.caper.ai 3.4. Characteristics CPU RK3399 Operating system Android 7.1 Charger input voltage 100V - 240V Charging condition 16V 3A Battery output 11.1V 2A Battery life 24 hours (stand by), 18hours(assume 10 hours of usage) Battery capacity 11.1V 28Ah Switch 2 switches Speaker 8Ohm, 3W Indicators Multi-color LED shopping status indicator in front unit. 3 color LED charging indicator in base unit Camera 2MP WIFI distance 30-50M WIFI standard 802.11 a/b/g/n/ac Barcode UPC-A/UPC-E/EAN Barcode scan angle Elevation angle 45°, Inclination angle 45° Barcode resolution 4 mil Display 10.1 Inch TFT display, 1280*800, 600 nit Weight scale 35kg/50lbs Weight accuracy ±1g Operating Ambient Temperature -20°C to 40°C Operating Ambient Humidity 10% to 90% Debug port USB type A port 4. Material Shell material ABS/PC Shell color Matte white/grey Frame material Iron tube Frame color Glossy grey Frame finish Powder coating Side panel PC PCB requirements PCB thickness 1.6mm, green www.caper.ai FCC Warning This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interferenceto radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: · Reorient or relocate the receiving antenna. · Increase the separation between the equipment and receiver. · Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. · Consult the dealer or an experienced radio/TV technician for help. Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

FCC Software Configuration Control Declaration Rev1.1 Sbot Technologies Inc. FCC Software Configuration Control Declaration Date: 2020-12-29 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Product Name: Smart shopping cart Model Numbers: Caper-V010.1 Regarding FCC Country Code Selection guidelines identified in KDB 594280 D01 Software Configuration Control v02r01. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Name: Yilin Huang Date: 2020-12-29 Title: VP of Hardware Signature of applicant

<Sbot Technologies Inc.> Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2020-12-29 Subject; Request for Confidentiality FCC ID: 2AX3E-CAPERV0101 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements For U-NII Devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Yilin Huang Title: VP of Hardware

Sbot Technologies Inc. Letter of Authorization Company: Sbot Technologies Inc. Address: 230 W 39th St, New York, NY 10018,United States Product Name: Smart shopping cart Model Number: Caper-V010.1 FCC Identifier: 2AX3E-CAPERV0101 We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Yilin Huang Date: 2020-12-28 Title: VP of Hardware Signature of applicant:

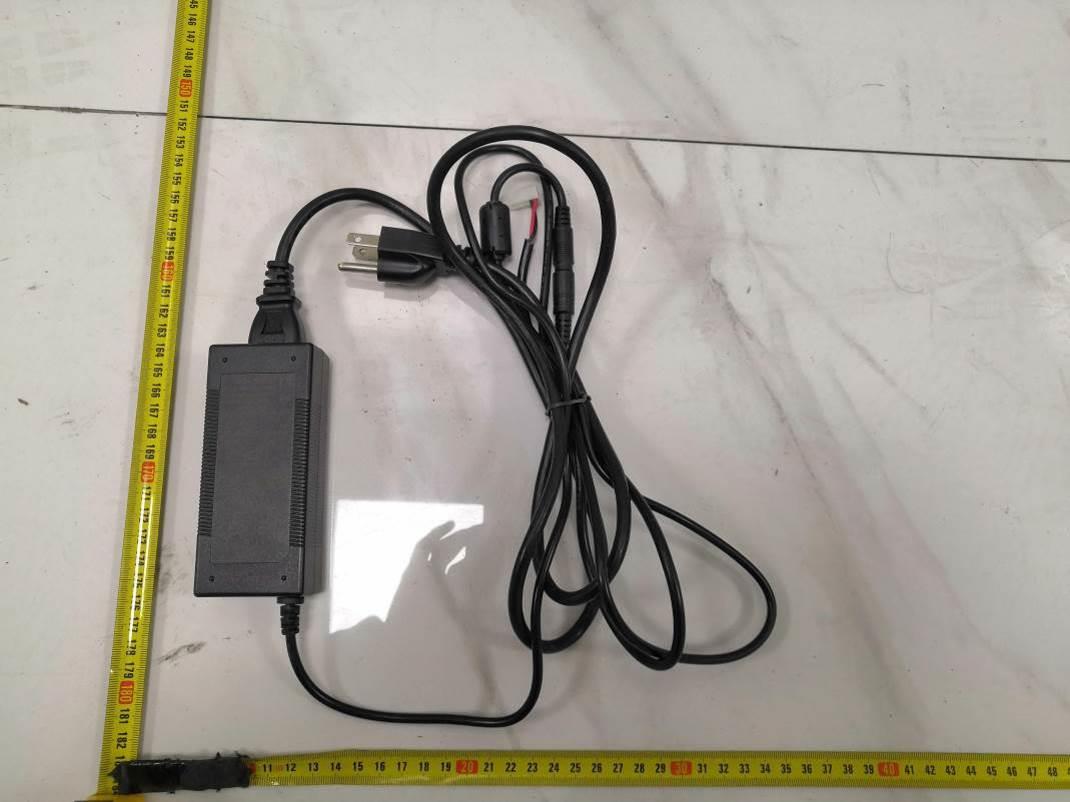

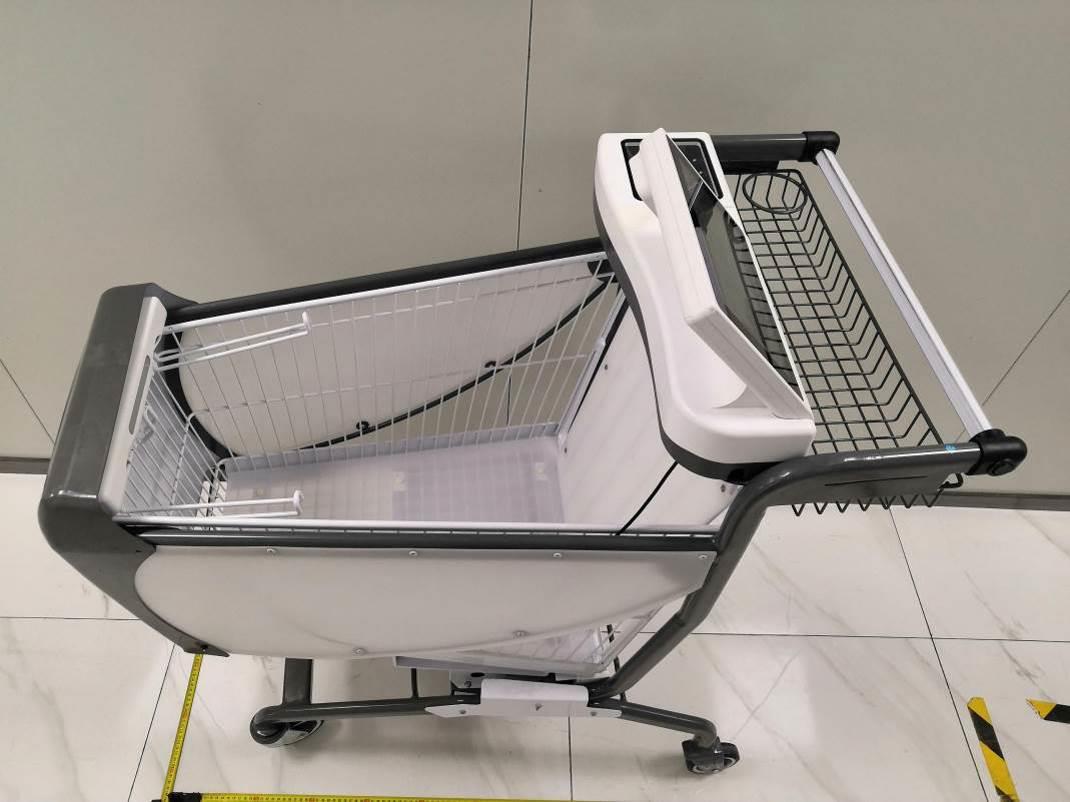

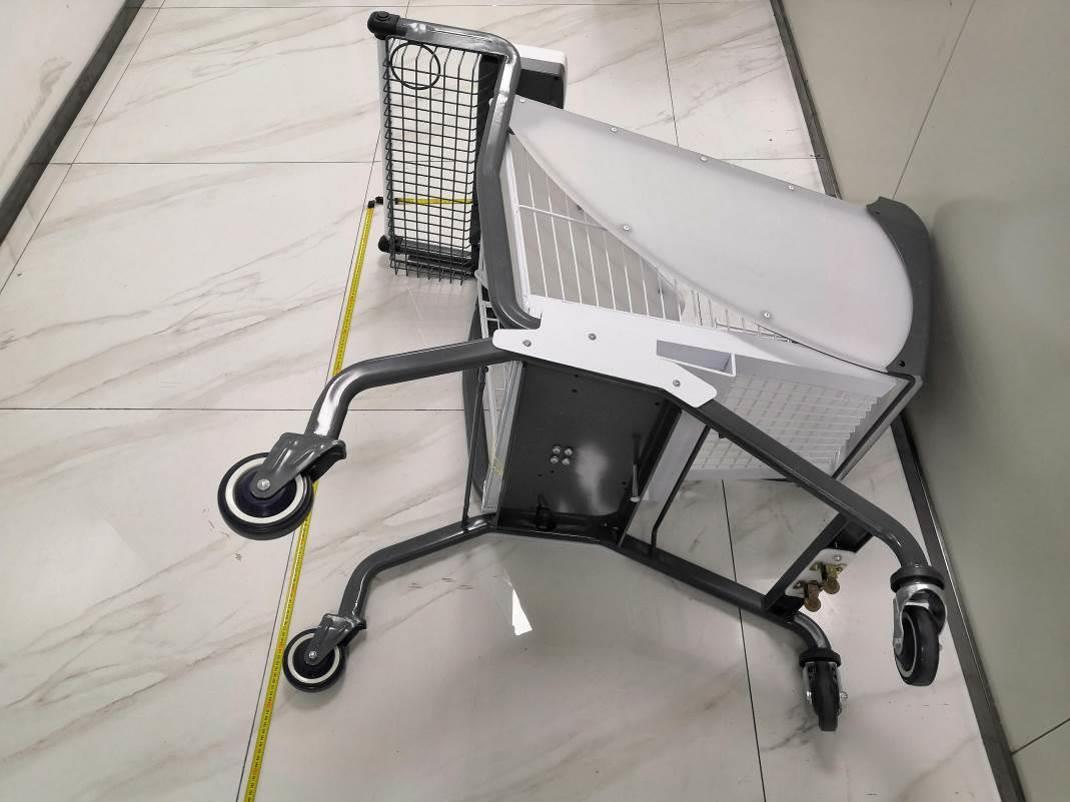

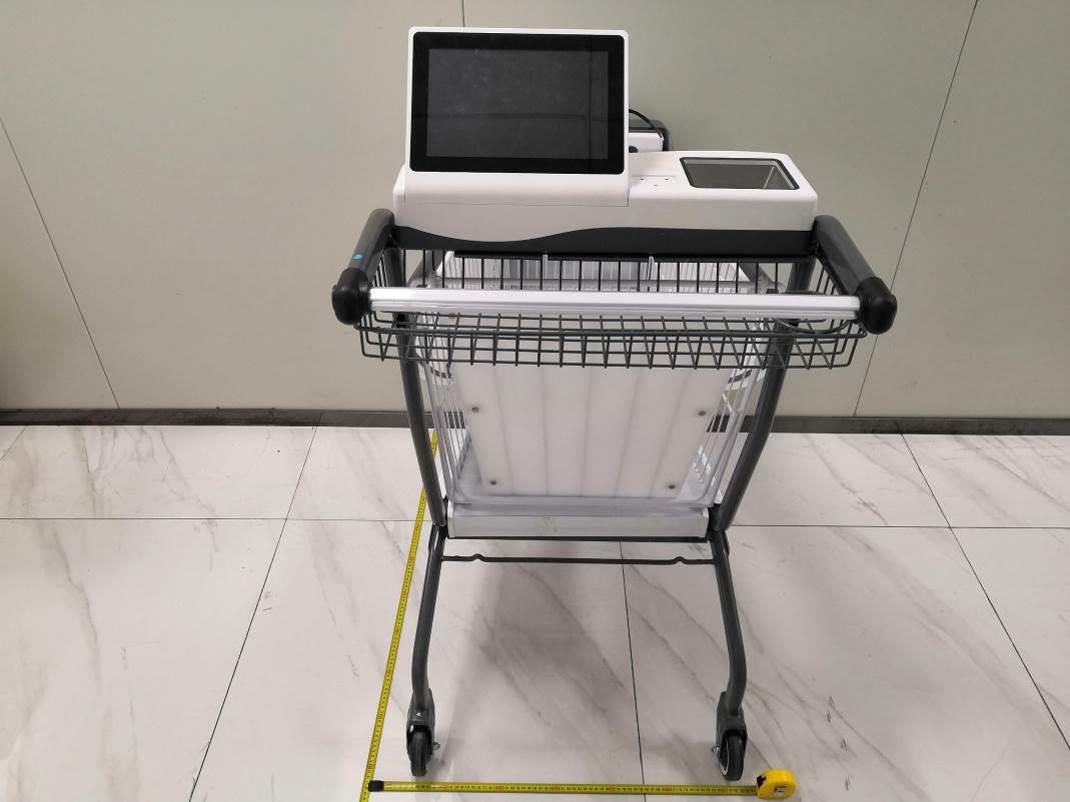

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 1. EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Fig. 7 Fig. 8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Fig. 9 Fig. 10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Fig. 11 Fig. 12 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Fig. 13 Fig. 14

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L2.0cm*W1.5cm Label Location FCC ID: 2AX3E-CAPERV0101

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 1. INTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 \ WIFI(2.4G Band), WIFI(5.2G Band), WIFI(5.8G Band) Antenna（ANT 2） Bluetooth, WIFI(2.4G Band), WIFI(5.2G Band), WIFI(5.8G Band) Antenna（ANT 1） SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Fig. 7 Fig. 8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Fig. 9 Fig. 10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Fig. 11 Fig. 12 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Fig. 13 Fig. 14 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Fig. 15 Fig. 16 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Fig. 17 Fig. 18 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Fig. 19 Fig. 20

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 17 Maximum Permissible Exposure Report 1. Product Information FCC ID: 2AX3E-CAPERV0101 Product name Smart shopping cart Test Model Caper-V010.1 Model List No. Caper-V010.1 Power Supply DC 11.1V By Battery(28Ah) Recharged By DC 16V 3A Adapter parameters Input: AC 100-240V 50/60Hz 1.5A Output: DC 16V 3A Bluetooth Operation frequency 2402MHz-2480MHz Bluetooth Version Bluetooth V4.1 Channel Number 79 channels for Bluetooth V4.1 (BT Classics) 40 channels for Bluetooth V4.1 (BT LE) Channel Spacing 1MHz for Bluetooth V4.1 (BT Classics) 2MHz for Bluetooth V4.1 (BT LE) Modulation Type GFSK, π/4-DQPSK, 8-DPSK for V4.1 (BT Classics) GFSK for Bluetooth V4.1 (BT LE) WIFI(2.4G Band) Frequency Range 2412MHz-2462MHz Channel Spacing 5MHz Channel Number 11 channels for 20MHz bandwidth (2412~2462MHz) Modulation Type IEEE 802.11b: DSSS (CCK,DQPSK,DBPSK); IEEE 802.11g/n: OFDM (64QAM, 16QAM, QPSK, BPSK) WIFI(5.2G Band) Frequency Range 5180MHz-5240MHz Channel Number 4 channels for 20MHz bandwidth (5180-5240MHz) 2 channels for 40MHz bandwidth (5190~5230MHz) 1 channels for 80MHz bandwidth (5210MHz) Modulation Type IEEE 802.11a/n/ac: OFDM(64QAM, 16QAM, QPSK, BPSK) WIFI(5.3G Band) Frequency Range 5260MHz-5320MHz Channel Number 4 channels for 20MHz bandwidth (5260-5320MHz) 2 channels for 40MHz bandwidth (5270~5310MHz) 1 channels for 80MHz bandwidth (5290MHz) Modulation Type IEEE 802.11a/n/ac: OFDM(64QAM, 16QAM, QPSK, BPSK) WIFI(5.5G Band) Frequency Range 5500MHz-5700MHz Channel Number 11 channels for 20MHz bandwidth (5500-5700MHz) 5 channels for 40MHz bandwidth (5510~5670MHz) 3 channels for 80MHz bandwidth (5530~5690MHz) Modulation Type IEEE 802.11a/n/ac: OFDM(64QAM, 16QAM, QPSK, BPSK) WIFI(5.8G Band) Frequency Range 5745MHz-5825MHz Channel Number 5 channels for 20MHz bandwidth (5745-5825MHz) 2 channels for 40MHz bandwidth (5755~5795MHz) 1 channels for 80MHz bandwidth (5775MHz) Modulation Type IEEE 802.11a/n/ac: OFDM(64QAM, 16QAM, QPSK, BPSK) Antenna Type ANT 1: Internal Antenna, used for Bluetooth TX/RX, WIFI TX/RX, 1.72dBi(Max.) for Bluetooth and WIFI 2.4G, 2.0 dBi(Max.) for WIFI 5G Band ANT 2: Internal Antenna, used for WIFI TX/RX, 1.72 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 17 dBi(Max.) for WIFI 2.4G , 2.0 dBi(Max.) for WIFI 5G Band Hardware version V010.1 Software version V1.0 Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Fixed Equipment 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 17 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 6…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Report No.: LCS201020006AEE Page 1 of 41 Appendix E RF Test Data for 5.2G WLAN (Conducted Measurement) Product Name: Smart shopping cart Trade Mark: Caper Test Model: Caper-V010.1 Environmental Conditions Temperature: 25  C Relative Humidity: 50% ATM Pressure: 100.0 kPa Test Engineer: CRAL FU Supervised by: Li Huan E.1 Duty Cycle Test Mode Test Frequency (MHz) Duty Cycle (%) 10log(1/x) Factor (dB) 1/B Minimum VBW(KHz) 11A 5200 97.00 0.13 0.01 11N20 SISO 5200 96.90 0.14 0.01 11N40 SISO 5190 93.74 0.28 0.01 11AC20 SISO 5200 96.82 0.14 0.01 11AC40 SISO 5190 93.81 0.28 0.01 11AC80 SISO 5210 88.15 0.55 0.01 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Report No.: LCS201020006AEE Page 2 of 41 On Time and Duty Cycle IEEE 802.11a IEEE 802.11n HT20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Report No.: LCS201020006AEE Page 3 of 41 IEEE 802.11n HT40 IEEE 802.11AC20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Report No.: LCS201020006AEE Page 4 of 41 IEEE 802.11 AC40 IEEE 802.11AC80 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Report No.: LCS201020006AEE Page 5 of 41 E.2 Maximum Conduct Output Power Test Mode Channel Frequency (MHz) AVG Conducted Power (dBm) Duty Cycle Factor( dB) Report Conducted Power(dBm) Limit (dBm) Verdict 11A 36 5180 10.39 0.13 10.52 24 Pass 40 5200 14.49 0.13 14.62 Pass 48 5240 14.51 0.13 14.64 Pass 11N20 SISO 36 5180 14.11 0.14 14.25 24 Pass 40 5200 14.22 0.14 14.36 Pass 48 5240 14.09 0.14 14.23 Pass 11N40 SISO 38 5190 13.83 0.28 13.83 24 Pass 46 5230 13.77 0.28 14.05 Pass 11AC20 SISO 36 5180 13.97 0.14 14.11 24 Pass 40 5200 14.48 0.14 14.62 Pass 48 5240 14.23 0.14 14.37 Pass 11AC40 SISO 38 5190 13.92 0.28 14.20 24 Pass 46 5230 14.13 0.28 14.40 Pass 11AC80 SISO 42 5210 13.46 0.55 14.01 24 Pass Maximum Conducted Output Power IEEE 802.11a / Channel 36 / 5180MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Report No.: LCS201020006AEE Page 6 of 41 IEEE 802.11a / Channel 40 / 5200MHz IEEE 802.11a / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Report No.: LCS201020006AEE Page 7 of 41 Maximum Conducted Output Power IEEE 802.11n20 / Channel 36 / 5180MHz IEEE 802.11n20 / Channel 40 / 5200MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Report No.: LCS201020006AEE Page 8 of 41 IEEE 802.11n20 / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Report No.: LCS201020006AEE Page 9 of 41 Maximum Conducted Output Power IEEE 802.11n40 / Channel 38 / 5190MHz IEEE 802.11n40 / Channel 46 / 5230MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Report No.: LCS201020006AEE Page 10 of 41 IEEE 802.11ac20 / Channel 36 / 5180MHz IEEE 802.11ac20 / Channel 40 / 5200MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Report No.: LCS201020006AEE Page 11 of 41 IEEE 802.11ac20 / Channel 48 / 5240MHz IEEE 802.11ac40 / Channel 38 / 5190MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Report No.: LCS201020006AEE Page 12 of 41 IEEE 802.11ac40 / Channel 46 / 5230MHz IEEE 802.11ac80 / Channel 42 / 5210MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Report No.: LCS201020006AEE Page 13 of 41 E.3 Power Spectral Density Test Mode Channe l Frequenc y (MHz) Power Density (dBm/MHz) Duty Cycle Factor(d B) Report Power Density (dBm/MHz) Limit (dBm/MH z) Verdic t 11A 36 5180 0.29 0.13 0.42 11 Pass 40 5200 4.56 0.13 4.69 Pass 48 5240 4.55 0.13 4.68 Pass 11N2 0 SISO 36 5180 3.42 0.14 3.56 11 Pass 40 5200 3.82 0.14 3.96 Pass 48 5240 3.83 0.14 3.97 Pass 11N4 0 SISO 38 5190 -0.28 0.28 -0.28 11 Pass 46 5230 0.72 0.28 1.00 Pass 11AC 20 SISO 36 5180 3.53 0.14 3.67 11 Pass 40 5200 4.00 0.14 4.14 Pass 48 5240 3.53 0.14 3.67 Pass 11AC 40 SISO 38 5190 -0.13 0.28 0.16 11 Pass 46 5230 0.35 0.28 0.62 Pass 11AC 80 SISO 42 5210 -3.15 0.55 -2.60 11 Pass Power Spectral Density IEEE 802.11a / Channel 36 / 5180MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Report No.: LCS201020006AEE Page 14 of 41 IEEE 802.11a / Channel 40 / 5200MHz IEEE 802.11a / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Report No.: LCS201020006AEE Page 15 of 41 Power Spectral Density IEEE 802.11n20 / Channel 36 / 5180MHz IEEE 802.11n20 / Channel 40 / 5200MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Report No.: LCS201020006AEE Page 16 of 41 IEEE 802.11n20 / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Report No.: LCS201020006AEE Page 17 of 41 Power Spectral Density IEEE 802.11n40 / Channel 38 / 5190MHz IEEE 802.11n40 / Channel 46 / 5230MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Report No.: LCS201020006AEE Page 18 of 41 IEEE 802.11ac20 / Channel 36 / 5180MHz IEEE 802.11ac20 / Channel 40 / 5200MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Report No.: LCS201020006AEE Page 19 of 41 IEEE 802.11ac20 / Channel 48 / 5240MHz IEEE 802.11ac40 / Channel 38 / 5190MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Report No.: LCS201020006AEE Page 20 of 41 IEEE 802.11ac40 / Channel 46 / 5230MHz IEEE 802.11ac80 / Channel 42 / 5210MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Report No.: LCS201020006AEE Page 21 of 41 E.4 Emission Bandwidth Test Mode Channel Frequency (MHz) 26dB Bandwidth (MHz) Limit (MHz) Verdict 11A 36 5180 21.29 No Limit Pass 40 5200 21.43 Pass 48 5240 21.25 Pass 11N20 SISO 36 5180 21.66 No Limit Pass 40 5200 21.46 Pass 48 5240 21.42 Pass 11N40 SISO 38 5190 39.99 No Limit Pass 46 5230 40.06 Pass 11AC20 SISO 36 5180 21.54 No Limi Pass 40 5200 21.40 Pass 48 …

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Report No.: LCS201020006AEF Page 1 of 41 Appendix F RF Test Data for 5.2G WLAN (Conducted Measurement) Product Name: Smart shopping cart Trade Mark: Caper Test Model: Caper-V010.1 Environmental Conditions Temperature: 25  C Relative Humidity: 50% ATM Pressure: 100.0 kPa Test Engineer: CRAL FU Supervised by: Li Huan F.1 Duty Cycle Test Mode Test Frequency (MHz) Duty Cycle (%) 10log(1/x) Factor (dB) 1/B Minimum VBW(KHz) 11A 5200 97.09 0.13 0.01 11N20 SISO 5200 96.9 0.14 0.01 11N40 SISO 5190 93.92 0.27 0.01 11AC20 SISO 5200 96.83 0.14 0.01 11AC40 SISO 5190 93.99 0.27 0.01 11AC80 SISO 5210 88.5 0.53 0.01 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Report No.: LCS201020006AEF Page 2 of 41 On Time and Duty Cycle IEEE 802.11a IEEE 802.11n HT20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Report No.: LCS201020006AEF Page 3 of 41 IEEE 802.11n HT40 IEEE 802.11AC20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Report No.: LCS201020006AEF Page 4 of 41 IEEE 802.11 AC40 IEEE 802.11AC80 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Report No.: LCS201020006AEF Page 5 of 41 F.2 Maximum Conduct Output Power Test Mode Channel Frequency (MHz) AVG Conducted Power (dBm) Duty Cycle Factor( dB) Report Conducted Power(dBm) Limit (dBm) Verdict 11A 36 5180 14.19 0.13 14.32 24 Pass 40 5200 14.31 0.13 14.44 Pass 48 5240 14.04 0.13 14.17 Pass 11N20 SISO 36 5180 14.26 0.14 14.4 24 Pass 40 5200 14.13 0.14 14.27 Pass 48 5240 14.17 0.14 14.31 Pass 11N40 SISO 38 5190 14.04 0.27 14.31 24 Pass 46 5230 13.74 0.27 14.02 Pass 11AC20 SISO 36 5180 13.99 0.14 14.13 24 Pass 40 5200 14.09 0.14 14.23 Pass 48 5240 13.96 0.14 14.1 Pass 11AC40 SISO 38 5190 13.95 0.27 14.22 24 Pass 46 5230 13.97 0.27 14.24 Pass 11AC80 SISO 42 5210 13.53 0.53 14.06 24 Pass Maximum Conducted Output Power IEEE 802.11a / Channel 36 / 5180MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Report No.: LCS201020006AEF Page 6 of 41 IEEE 802.11a / Channel 40 / 5200MHz IEEE 802.11a / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Report No.: LCS201020006AEF Page 7 of 41 Maximum Conducted Output Power IEEE 802.11n20 / Channel 36 / 5180MHz IEEE 802.11n20 / Channel 40 / 5200MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Report No.: LCS201020006AEF Page 8 of 41 IEEE 802.11n20 / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Report No.: LCS201020006AEF Page 9 of 41 Maximum Conducted Output Power IEEE 802.11n40 / Channel 38 / 5190MHz IEEE 802.11n40 / Channel 46 / 5230MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Report No.: LCS201020006AEF Page 10 of 41 IEEE 802.11ac20 / Channel 36 / 5180MHz IEEE 802.11ac20 / Channel 40 / 5200MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Report No.: LCS201020006AEF Page 11 of 41 IEEE 802.11ac20 / Channel 48 / 5240MHz IEEE 802.11ac40 / Channel 38 / 5190MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Report No.: LCS201020006AEF Page 12 of 41 IEEE 802.11ac40 / Channel 46 / 5230MHz IEEE 802.11ac80 / Channel 42 / 5210MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Report No.: LCS201020006AEF Page 13 of 41 F.3 Power Spectral Density Test Mode Channe l Frequenc y (MHz) Power Density (dBm/MHz) Duty Cycle Factor(d B) Report Power Density (dBm/MHz) Limit (dBm/MH z) Verdic t 11A 36 5180 3.72 0.13 3.85 11 Pass 40 5200 3.64 0.13 3.77 Pass 48 5240 3.47 0.13 3.60 Pass 11N2 0 SISO 36 5180 3.43 0.14 3.57 11 Pass 40 5200 3.66 0.14 3.80 Pass 48 5240 3.34 0.14 3.48 Pass 11N4 0 SISO 38 5190 0.17 0.27 0.44 11 Pass 46 5230 0.76 0.27 1.04 Pass 11AC 20 SISO 36 5180 3.33 0.14 3.47 11 Pass 40 5200 3.15 0.14 3.29 Pass 48 5240 3.16 0.14 3.30 Pass 11AC 40 SISO 38 5190 0.54 0.27 0.81 11 Pass 46 5230 0.24 0.27 0.51 Pass 11AC 80 SISO 42 5210 -2.86 0.53 -2.33 11 Pass Power Spectral Density IEEE 802.11a / Channel 36 / 5180MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Report No.: LCS201020006AEF Page 14 of 41 IEEE 802.11a / Channel 40 / 5200MHz IEEE 802.11a / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Report No.: LCS201020006AEF Page 15 of 41 Power Spectral Density IEEE 802.11n20 / Channel 36 / 5180MHz IEEE 802.11n20 / Channel 40 / 5200MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Report No.: LCS201020006AEF Page 16 of 41 IEEE 802.11n20 / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Report No.: LCS201020006AEF Page 17 of 41 Power Spectral Density IEEE 802.11n40 / Channel 38 / 5190MHz IEEE 802.11n40 / Channel 46 / 5230MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Report No.: LCS201020006AEF Page 18 of 41 IEEE 802.11ac20 / Channel 36 / 5180MHz IEEE 802.11ac20 / Channel 40 / 5200MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Report No.: LCS201020006AEF Page 19 of 41 IEEE 802.11ac20 / Channel 48 / 5240MHz IEEE 802.11ac40 / Channel 38 / 5190MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Report No.: LCS201020006AEF Page 20 of 41 IEEE 802.11ac40 / Channel 46 / 5230MHz IEEE 802.11ac80 / Channel 42 / 5210MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Report No.: LCS201020006AEF Page 21 of 41 F.4 Emission Bandwidth Test Mode Channel Frequency (MHz) 26dB Bandwidth (MHz) Limit (MHz) Verdict 11A 36 5180 21.30 No Limit Pass 40 5200 21.27 Pass 48 5240 21.25 Pass 11N20 SISO 36 5180 21.45 No Limit Pass 40 5200 21.67 Pass 48 5240 21.47 Pass 11N40 SISO 38 5190 39.94 No Limit Pass 46 5230 40.08 Pass 11AC20 SISO 36 5180 21.44 No Limi Pass 40 5200 21.44 Pass 48 5240 21…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX3E-CAPERV0101 Report No.: LCS201020006AEG Page 1 of 41 Appendix G RF Test Data for 5.3G WLAN (Conducted Measurement) Product Name: Smart shopping cart Trade Mark: Caper Test Model: Caper-V010.1 Environmental Conditions Temperature: 25  C Relative Humidity: 50% ATM Pressure: 100.0 kPa Test Engineer: CRAL FU Su…
