2AX5HJRN-260KIT controller for asset tracking

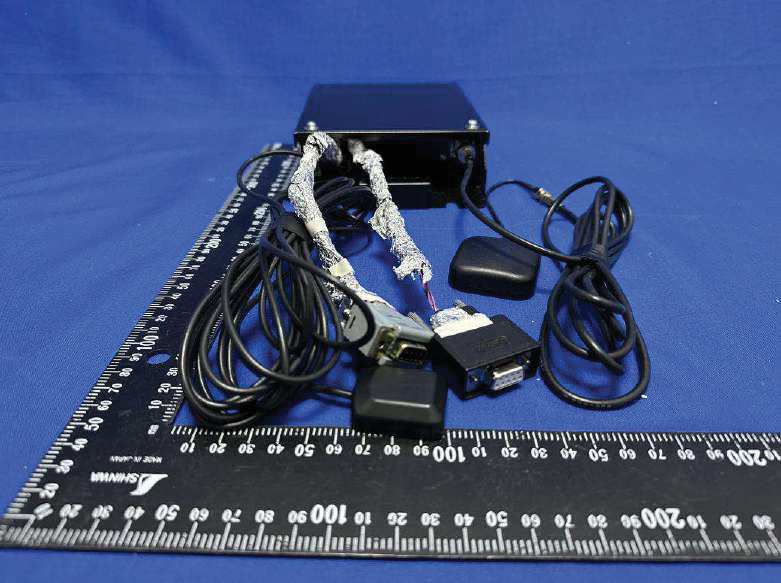

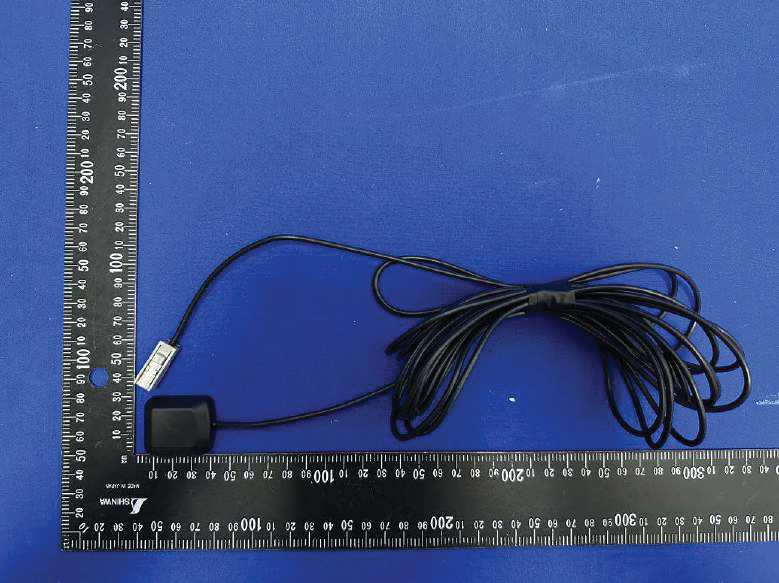

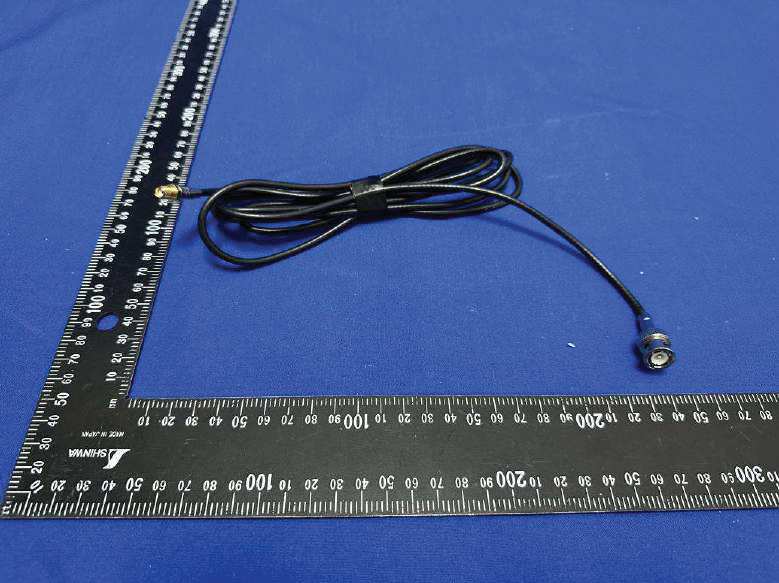

1/22 IT Controller JRN-260K (IRIDIUM Satellite Communication) LE-236562 IT Controller JRN-260K (IRIDIUM Satellite Communication) Product Introduction Rel . 1.00 Doc# : LE-236562 Date: July 18, 2023 @Copyright JRC Mobility Inc. Locator Products Group Products Development Department 2/22 IT Controller JRN-260K (IRIDIUM Satellite Communication) LE-236562 INDEX 1. Introduction ................................................................................................................................ 3 2. Composition ............................................................................................................................... 4 3. Function...................................................................................................................................... 5 4. Product specification ................................................................................................................. 6 5. Block Diagram .........................................................................................................................12 6. Interface ...................................................................................................................................13 7. Equivalent circuit .....................................................................................................................14 8. Outline ......................................................................................................................................15 9. Handling precautions ..............................................................................................................16 3/22 IT Controller JRN-260K (IRIDIUM Satellite Communication) LE-236562 1. Introduction "IT Controller JRN-260K" used IRIDIUM Satellite is a vehicle small terminal to have the GPS measure -ment function and the IRIDIUM Satellite communication function, and to use it for management and positional information track / theft pursuit etc. of the vehicle. As a communications protocol SMTP/e-mail protocol are mounted. The terminal made by the QUAKE’s Q4000 is installed. The main specification is presented as follows. No. Items JRN-260K 1 Communication module IRIDIUM Module（Q4000）is installed. PSK Modulation (Satellite Communication) 2 Data Rate Uplink: 50kbps Downlink: 50kbps 4 Communication Antenna Magnetic mount iridium antenna 5 Battery The lithium ion rechargeable battery is installed. 6 Current and Voltage 23mA or less (Power saving mode) / 24V 7 Weight 1,500g or less 4/ 22 IT Controller JRN-260K (IRIDIUM Satellite Communication) LE-236562 2. Composition 2.1. Items No. Equipment Model Quantity Remarks 1 IT Controller JRN-260K 1 (1) IRIDIUM Module Q4000 (QUAKE GLOBAL) 1162-5000 1 (2) Battery Pack NBB-2000 14.4V 1900mAh Rechargeable Battery 1 2 GPS Antenna NAY-3930G (YOKOWO) 1 3 Communication Antenna IAA.01.0151111 (Taoglas) 1 4 Extension Cable SMAJ-2.5DSQFB-BNCP-2150 1 2.2. Overview Controller and Power block IRIDIUM Module Global IT Controller Fuse 5A Communication Antenna GPS Antenna Cable to BATTERY of Vihicle to External Controller Extension Cabl SMA 5/22 IT Controller JRN-260K (IRIDIUM Satellite Communication) LE-236562 3. Function (1) Operation in ACC OFF executes the following. -1. Send data in daytime and nighttime. -2. Response to calling from the server. -3. Acquisition of information on the actual location by GPS, and Generation of warning outside area. (2) St orage of operation data (3) Timer Even if the main source of power is cut, the date and time are maintained. (4) Backup The rechargeable battery is installed. (1 4.4V / 1900mAh) (5) Serial communication ports 4800bps (DTE), 115200bps (monitor) (6) GPS function Present location is acquired. (WGS84) (7) IRIDIUM satellite communication (8) Software rewriting function A software rewriting is done by using the monitor port. (9) Serial communications with the external equipment are done by the serial commands. (10) Communication protocol It transmits to the mail server by the e-mail. 6/22 IT Controller JRN-260K (IRIDIUM Satellite Communication) LE-236562 4. Product specification 4.1. Common Specification No. Items Specification performance 1 Power supply voltage Voltage range DC+20 to +32V Range of voltage where IRIDIUM terminal (Q4000) can be transmitted: DC+20V to +32V 2 Battery pack The lithium ion rechargeable battery 14.4V / 1900mAh 3 Current Communication: Average current Less than 1.2A / 24V Idle: Less than 23mA/24V (Power-saving mode) ACC_OFF: 5mA or less /24V (ACC of linkage) 4 Circumference environment Operation: -20 to +60 degree C Preservation: -40 to +85 degree C Humidity of operation: 0 to 90% (don't dew) At use in battery, Operation: -20 to +60 degree C Preservation: -20 to +65 degree C Humidity of operation: 0 to 90% (don't dew) 5 Environment (Charge) 0 to +40 degree C 6 Dimension 136.4(W)×220.0(D)×43.6(H) mm 7 Weight 1,500g or less 8 Case material SPCC ISO 3574：1999 Cold-reduced carbon steel of commercial and drawing qualities (MOD) 4.2. Serial Interface Specification No． Items Specification performance １ Data transmission Half duplex start-stop synchronization ２ Signal level RS-232C ３ Speed 4800bps ４ Frame length Variable-length ５ Data Length 8 bit ６ Start bit 1 bit ７ Parity None ８ Stop 1 bit 7/22 IT Controller JRN-260K (IRIDIUM Satellite Communication) LE-236562 4.3. GPS Receiver Specification No． Items Specification performance 1 Receiving Satellite GPS 2 Receiving system Max 23channel （high-speed search channel） 3 Received frequency 1575.42MHz(L1)､C/A code 4 Land survey system WGS-84 （Default） 5 Time system UTC 6 Positioning accuracy Position 5.3m 2DRMS Speed 0.04m/sec. RMS Direction Less than 0.14° RMS (Speed60km/h) 7 Speed 1 sec typ 8 T.T.F.F (Without signal discontinuation) Open skies Hot start: 3 sec typ. / 15sec max Warm start: 33 sec typ. / 55sec max Cold start: 40 sec typ. / 60sec max 8/22 IT Controller JRN-260K (IRIDIUM Satellite Communication) LE-236562 4.4. GPS Antenna No． It…

Text truncated - open the document above for the full version.

Kotaro Maruyama

Date: 05/09/2023 TUV SUD BABT UNLIMITED Octagon House Concorde Way Segensworth North Fareham Hampshire PO15 5RL United Kingdom Dear Sir or Madam, We, QUAKE GLOBAL, INC., 4711 Viewridge Avenue, Suite 150 San Diego, CA 92123 USA, hereby permit JRC Mobility Inc., AKANO CENTRAL PARK EAST, 10-1, Nakano 4-chome, Nakano-ku, Tokyo, 164-8570 Japan, to use the following files of Q4000 module, for their FCC application of JRN-260K, IT controller (FCC ID: 2AX5HJRN-260K). ・Block Diagram ・Schematics (Circuit Diagram) ・Parts List (BOM) Yours sincerely, Name: David Mitchell Title: Vice President of Customer Support Email: [email protected]

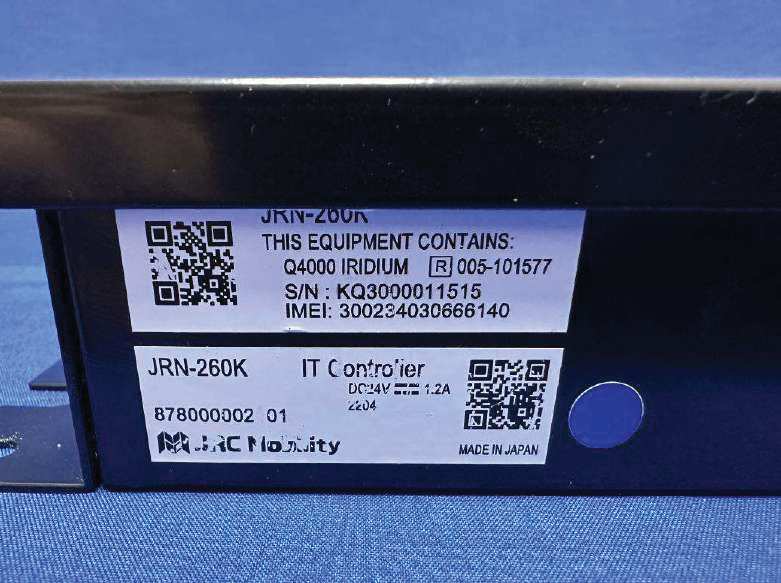

Model Name: JRN-260K FCC ID: 2AX5HJRN-260K IC: 26609-JRN260K Label Design (unit: mm) EOD

Model Name: JRN-260K FCC ID: 2AX5HJRN-260K IC: 26609-JRN260K Label Location Information (Unit:mm) EOD

MRT Technology (Suzhou) Co., Ltd Report No.: 2304RSU029-U2 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 2023-06-26 Template Version:0.0 1 of 10 RF Exposure Evaluation Declaration FCC ID: 2AX5HJRN-260K Applicant: JRC Mobility, Inc. Product: IT Controller Model No.: JRN-260K Brand Name: JRC Mobility FCC Classification: Licensed Non-Broadcast Station Transmitter (TNB) FCC Rule Part(s): FCC Part 2.1091 Received Date: 2023-04-14 Result: Complies Reviewed By: Jame Yuan Approved By: Robin Wu The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2304RSU029-U2 2 of 10 Revision History Report No. Version Description Issue Date Note 2304RSU029-U2 V01 Initial Report 2023-06-26 Valid Report No.: 2304RSU029-U2 3 of 10 CONTENTS Description Page 1. General Information ................................................................................................................................ 4 1.1. Applicant ........................................................................................................................................ 4 1.2. Manufacturer ................................................................................................................................. 4 1.3. Testing Facility ............................................................................................................................... 4 1.4. Product Information ....................................................................................................................... 5 1.5. Device Classification ..................................................................................................................... 5 1.6. Applied Standards ......................................................................................................................... 5 2. RF Exposure Evaluation ......................................................................................................................... 6 2.1. Test Limits ..................................................................................................................................... 6 2.2. MPE Exemptions ........................................................................................................................... 7 2.3. Calculated Result ........................................................................................................................ 10 Report No.: 2304RSU029-U2 4 of 10 1. General Information 1.1. Applicant JRC Mobility, Inc. NAKANO CENTRAL PARK EAST 10-1, Nakano 4-chome, Nakano-ku, Tokyo 164-8570, Japan 1.2. Manufacturer JRC Mobility, Inc. NAKANO CENTRAL PARK EAST 10-1, Nakano 4-chome, Nakano-ku, Tokyo 164-8570, Japan 1.3. Testing Facility Test Site – MRT Suzhou Laboratory Laboratory Location (Suzhou - Wuzhong) D8 Building, No.2 Tian’edang Rd., Wuzhong Economic Development Zone, Suzhou, China Laboratory Location (Suzhou - SIP) 4b Building, Liando U Valley, No.200 Xingpu Rd., Shengpu Town, Suzhou Industrial Park, China Laboratory Accreditations A2LA: 3628.01 CNAS: L10551 FCC: CN1166 ISED: CN0001 VCCI: R-20025 G-20034 C-20020 T-20020 R-20141 G-20134 C-20103 T-20104 Test Site – MRT Shenzhen Laboratory Laboratory Location (Shenzhen) 1G, Building A, Junxiangda Building, Zhongshanyuan Road West, Nanshan District, Shenzhen, China Laboratory Accreditations A2LA: 3628.02 CNAS: L10551 FCC: CN1284 ISED: CN0105 Test Site – MRT Taiwan Laboratory Laboratory Location (Taiwan) No. 38, Fuxing 2nd Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C.) Laboratory Accreditations TAF: L3261-190725 FCC: 291082, TW3261 ISED: TW3261 Report No.: 2304RSU029-U2 5 of 10 1.4. Product Information Product Name IT Controller Model No. JRN-260K Satellite Specification 1616 ~ 1626.5 MHz Power Supply: DC 24V Battery Specification: 14.4V/1900mAh Antenna Type Magnetic Mount Iridium Antenna Antenna Gain 4.17dBi Note: The information of EUT was provided by the manufacturer, and the accuracy of the information shall be the responsibility of the manufacturer. 1.5. Device Classification According to the user manual, the antenna of this device is at least 20cm away from the body of the user, this device is classified as a Mobile Device. So, the RF exposure evaluation requirements of § 2.1091 for mobile device exposure conditions subject to MPE limits. 1.6. Applied Standards According to the specifications of the manufacturer, the EUT must comply with the requirements of the following standards: ⚫ FCC Part 2.1091 & KDB 447498 D04 Interim General RF Exposure Guidance v01 Report No.: 2304RSU029-U2 6 of 10 2. RF Exposure Evaluation 2.1. Test Limits According to FCC §1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in §1.1307(b) Limits For Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 0.3-3.0 614 1.63 *(100) ≤6 3.0-30 1842/f 4.89/f *(900/f 2 ) <6 30-300 61.4 0.163 1.0 <6 300-1,500 -- -- f/300 <6 1,500-100,000 -- -- 5 <6 (B) Limits for General Population/ Uncontrolled Exposures 0.3-1.34 614 1.63 *(100) <30 1.34-30 824/f 2.19/f *(180/f 2 ) <30 30-300 27.5 0.073 0.2 <30 300-1,500 -- -- f/1500 <30 1,500-100,000 -- -- 1.0 <30 f= frequency in MHz. * = Plane-wave equivalent power density. Report No.: 2304RSU029-U2 7 of 10 2.2. MPE Exemptions For single RF sources (i.e., any single fixed RF source, mobile device, or portable device, as defined in paragraph §1.1307(b)(2) of this section): A single RF source is exempt i…
