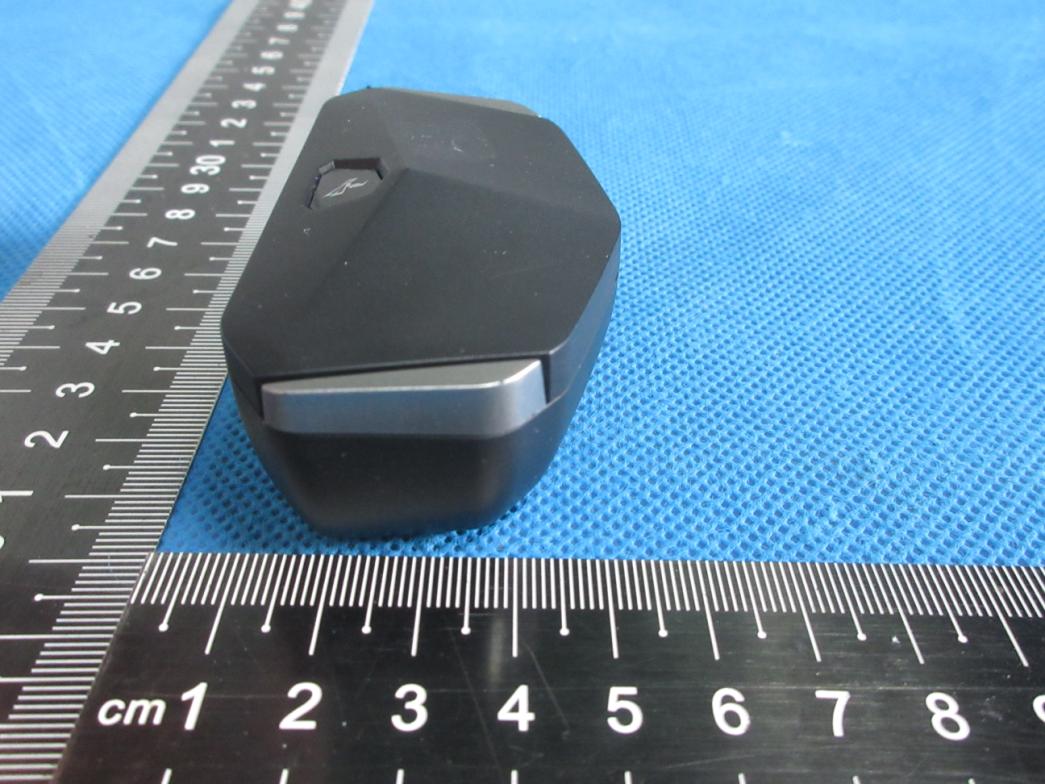

S20101401705 Model: GX501 Photo 1 Photo 2 S20101401705 Model: GX501 Photo 3 Photo 4 S20101401705 Model: GX501 Photo 5 Photo 6 S20101401705 Model: GX501 Photo 7 Photo 8 S20101401705 Model: GX501 Photo 9 Photo 10 S20101401705 Model: GX501 Photo 11 Photo 12 S20101401705 Model: GX501 Photo 13 Photo 14

S20101401705 Model: GX501 Photo 1 Photo 2 S20101401705 Model: GX501 Photo 3 Photo 4 RX ANT S20101401705 Model: GX501 Photo 5 Photo 6 S20101401705 Model: GX501 Photo 7 Photo 8 S20101401705 Model: GX501 Photo 9 Photo 10 S20101401705 Model: GX501 Photo 11 Photo 12 ANT S20101401705 Model: GX501 Photo 13 Photo 14 S20101401705 Model: GX501 Photo 15 Photo 16 S20101401705 Model: GX501 Photo 17 Photo 18 ANT S20101401705 Model: GX501 Photo 19 Photo 20

GuangdongSomicTechnologyCo.,LtdDongguanBranch DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.:GX501 FCCID: 2AX5Y-GX501 fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsforinternalantennatype(s) describedbelow: BT&BLE ModelNo.ofantenna:N/A Typeofantenna: FPCAntenna Gainoftheantenna:2dBi Frequencyrange:2402-2480MHz Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Companyname:GuangdongSomicTechnologyCo.,LtdDongguanBranch Address:No.9,LianxinRoad,Xiawei,ShangjiaoCommunity,Chang'anTown, City:DongguanCity, ZIP/Postalcode: Country: China Name:XiaoYuanLiDate: 2020/11/24 Signature: version01

FCC ID: 2AX5Y-GX501 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BT: Left Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion 2.402 7.605.757±186.31<51.955763.00YES 2.441 7.505.627±186.31<51.971583.00YES 2.480 5.743.755±163.98<51.253883.00YES 2.402 4.933.115±163.98<51.234003.00YES 2.441 6.164.136±175.01<51.566083.00YES 2.480 4.853.055±163.98<51.253883.00YES 2.402 5.363.446±175.01<51.553523.00YES 2.441 6.554.526±175.01<51.566083.00YES 2.480 5.203.316±175.01<51.578543.00YES GFSK π/4- DQPSK 8-DPSK BLE: Left Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion 2.402 4.172.615±163.98<51.234003.00YES 2.440 3.622.304±153.16<50.987933.00YES 2.480 4.953.135±163.98<51.253883.00YES GFSK （1M） BT: Right Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion 2.4027.03 5.057±186.31<51.955763.00YES 2.4416.59 4.567±186.31<51.971583.00YES 2.4805.59 3.626±175.01<51.578543.00YES 2.4024.87 3.075±163.98<51.234003.00YES 2.4416.12 4.096±175.01<51.566083.00YES 2.4804.79 3.015±163.98<51.253883.00YES 2.4025.33 3.416±175.01<51.553523.00YES 2.4416.56 4.537±186.31<51.971583.00YES 2.4805.1 3.246±175.01<51.578543.00YES GFSK π/4- DQPSK 8-DPSK BLE Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion 2.4024.08 2.565±163.98<51.234003.00YES 2.4403.55 2.264±153.16<50.987933.00YES 2.4804.89 3.085±163.98<51.253883.00YES GFSK (1M) Conclusion: For the max result : 1.97158 ≤ 3.0 for 1g SAR, No SAR is required. Signature: Date: 2020-11-28 NAME AND TITLE (Please print or type): Alex li /Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China.

Report No.: S20101401705002 Version.1.2 Page 1 of 59 RADIO TEST REPORT FCC ID: 2AX5Y-GX501 Product: TWS Earphones Trade Mark: SOMIC Model No.: GX501 Family Model: N/A Report No.: S20101401705002 Issue Date: 12 Nov.2020 Prepared for Guangdong Somic Technology Co.,Ltd Dongguan Branch No.9,Lianxin Road,Xiawei,Shangjiao Community, Chang'an Town,Dongguan City, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel:400-800-6106 , 0755-3699-5508 Website:http://www.ntek.org.cn Report No.: S20101401705002 Version.1.2 Page 2 of 59 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES..................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ........................................................................................................... 9 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ....................................................................... 9 6.2 SUPPORT EQUIPMENT............................................................................................................................... 10 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 11 7 TEST REQUIREMENTS .................................................................................................................................... 13 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 13 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 16 7.3 6DB BANDWIDTH ....................................................................................................................................... 28 7.4 PEAK OUTPUT POWER .............................................................................................................................. 30 7.5 POWER SPECTRAL DENSITY ................................................................................................................... 32 7.6 CONDUCTED BAND EDGE MEASUREMENT......................................................................................... 34 7.7 SPURIOUS RF CONDUCTED EMISSIONS................................................................................................ 35 7.8 ANTENNA APPLICATION .......................................................................................................................... 36 8 TEST RESULTS ................................................................................................................................................... 37 8.1 MAXIMUM CONDUCTED OUTPUT POWER ....................................................................................................... 37 8.2 OCCUPIED CHANNEL BANDWIDTH .................................................................................................................. 41 8.3 MAXIMUM POWER SPECTRAL DENSITY LEVEL ............................................................................................... 45 8.4 BAND EDGE .................................................................................................................................................... 49 8.5 CONDUCTED RF SPURIOUS EMISSION ............................................................................................................. 53 Report No.: S20101401705002 Version.1.2 Page 3 of 59 1 TEST RESULT CERTIFICATION Applicant's Name .................... : Guangdong Somic Technology Co.,Ltd Dongguan Branch Address ..................................... : No.9,Lianxin Road,Xiawei,Shangjiao Community, Chang'an Town,Dongguan City, China Manufacturer's Name .............. : Guangdong Somic Technology Co.,Ltd Dongguan Branch Address ..................................... : No.9,Lianxin Road,Xiawei,Shangjiao Community, Chang'an Town,Dongguan City, China Product description Product name .............................. : TWS Earphones Model and/or type reference ..... : GX501 Family Model ............................... : N/A Measurement Procedure Used: APPLICABLE STANDARDS APPLICABLE STANDARD/ TEST PROCEDURE TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C KDB 174176 D01 Line Conducted FAQ v01r01 ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 Complied This device described above has been tested by Shenzhen NTEK Testing Technology Co., Ltd., and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK Testing Technology Co., Ltd., this document may be altered o…

Text truncated - open the document above for the full version.

S20101401705 FCC ID: 2AX5Y-GX501 Radiated Measurement Photos (Left) S20101401705 FCC ID: 2AX5Y-GX501 Radiated Measurement Photos (Right) S20101401705 FCC ID: 2AX5Y-GX501 Conducted Measurement Photos
