2AX63FF-CDP001-P2On-site Command and Dispatch Center

User manual Introduction LED Roof Display is a new mobile media platform that displays ads and news stories. Unlike traditional media, the LED Roof Display can intelligently switch ads based on location and traffic information via a built-in GPS module. The brightness can be adjusted for different times of day and environment to make the content more readable. Zao Tech Confidential 01 –Remove top cover screw caps (8x) 1 Zao Tech Confidential 2 02 –Remove top cover fixing screws (8x) Zao Tech Confidential 3 03 –Remove top cover Zao Tech Confidential 4 04 –Remove panel release button covers @system bottom side (2x) Refer to next slide for how to operate button constrain mechanism Zao Tech Confidential 5 05 –Turn the button constrain mechanism 90 o clock-wise Mechanism at lock stateMechanism at release state P.S. Only when the mechanism is at release state, the panel release buttons can be pushed down to unlock LED panel module Zao Tech Confidential 6 06 –Push down the release buttons and flip up LED panel module(both sides) Zao Tech Confidential 7 07 –Flip up LED panel modules (both sides) U-bolt fixing block (2x) Power cable Zao Tech Confidential 08 –Flip up supporting rods at both sides to support LED panel modules (4x) 8 Power cable Zao Tech Confidential 09 –Thule bar cover assembly explode view and power cable routing 9 Power cable Bar bottom cover (this part is assembled in the last step) Bar top cover Zao Tech Confidential 10 10 –Locate & fix Firefly unit onto car roof (No bar bottom cover in this step) Adjust power cable length This step is a bit tricky Use M6 screws (8x) to fix U-boltand main frame Torque force = ?? U-bolt (2x) Zao Tech Confidential 11–Bottom view of Firefly unit assembly (No bar bottom cover in this step) 11 Power cable Zao Tech Confidential 12 –Thule bar cover assembly and cable routing 12 Power cable from Firefly After power cable length is adjusted, snap bar bottom cover onto top cover and fix them with M3 self-tapping screws (12x) This portion should be as short as possible Zao Tech Confidential 13 13 –Flip down LED panel modules (both sides) Flip down the LED panel modules and push them hard enough until they locked on locking mechanism (Hear the “Click” sound to make sure the panels are locked, see next side for detail description) Power cable Zao Tech Confidential 14 –Locking mechanism (both sides) 14 Bracket is pushed up by pin when insertingPin is locked by bracket when it is fully inserted Zao Tech Confidential Mechanism at release state 15 -Turn the button constrain mechanism 90 o counter-clock-wise 15 Mechanism at lock state P.S. Only when the mechanism is at lock state, the button cover can be assembled back without any interference Zao Tech Confidential 16 –Assemble the button cover back (Reverse step of step –04) 16 Zao Tech Confidential 17 –Assemble the top cover back (Reverse step of step –02 & 03) 17 Zao Tech Confidential 18–Power cable terminal connection indication 18 1. ACC (light RED) : Ignite switch 2. T (light BLUE) : Taxi medallion backlit 3. L (light GREY) : Left directional light 4. R (dark RED) : Right directional light 5. + (Thick, RED) : Main power cable 6. –(Thick, BLACK) : Ground cable LED Roof Display is integrated with a smart controller system. Equiped with a high-resolution and high- brightness smart LED panel, the panel communicates regularly with a fixed commuter audience every day, and the interaction on the street will appreciate the value of your advertising. The main structure uses high quality materials and parts to ensure stability in the moving environment. Intelligent circuit design and power connections as well as overvoltage and overcurrent protection features ensure the highest performance of LED panels and the entire system. The smart module of Model FF-CDP001-P2 (Model name), It supports a Triple-band UMTS (B2,B4,B5) HSDPA(Category 24), HSUPA(Category 6), LTE Band 2/4/5/7/12/13/17, Release 10,Cat 4 and not support CA, also supports IEEE 802.11b/g/n，GPS, GPS's operating frequency is 1575.42MHz. Module use Qualcomm’s MSM8909 chip which include Digital Baseband controller, Analog Baseband controller and Modem Processing subsystems. FCC Statement: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any inter ference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.

Company: Guangdong BYD Energy-saving Technology Co.,Ltd. Add: BYD Industrial Park,Xiangshui River,Daya Bay,Huizhou City,Guangdong Province,China Tel: +86-752-5118888 Fax: 0752-5535583 E-mail: [email protected] Date: 2021-02-01 FEDER AL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, The RF chip, model: WCN3660B installed in our product Led roof display, model: FF-CDP001-P2, FCC ID: 2AX63FF-CDP001-P2, this chip supports 2.4GWi-Fi, 5G Wi-Fi, Bluetooth. For use in America and this chip only supports 2.4GWi-Fi. The 5G Wi-Fi and Bluetooth was disabled to use by manufacture in the software, the end user has no capability to activate it. The RF chip, model: MSM8909 installed in our product Led roof display, model: FF-CDP001-P2, FCC ID: 2AX63FF-CDP001-P2, this chip supports GSM, WCDMA, LTE function. For use in America and this chip only supports WCDMA band 2/4/5, LTE band 2/4/5/7/12/13/17. The GSM and other WCDMA, LTE bands was disabled to use by manufacture in the software, the end user has no capability to activate it. Signature: Printed Name: Junhua Ying Title: Project director

Company Name: Guangdong BYD Energy-saving Technology Co.,Ltd. Add: BYD Industrial Park,Xiangshui River,Daya Bay,Huizhou City,Guangdong Province,China Tel: +86-752-5118888 Fax: 0752-5535583 E-mail: [email protected] FCC Confidential Authorization Date: 2020-11-24 FEDERAL COMMUNICATIONS COMMISSIONS Auth orization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AX63FF-CDP001-P2 To: whom it may concern, In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Guangdong BYD Energy -saving Technology Co.,Ltd. hereby requests long-term confidential treatment of information accompanying this application as outlined below: Block Diagram Schematics Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature: P rinted Name: Junhua Ying Title: Project director Parts List/Tune up procedure

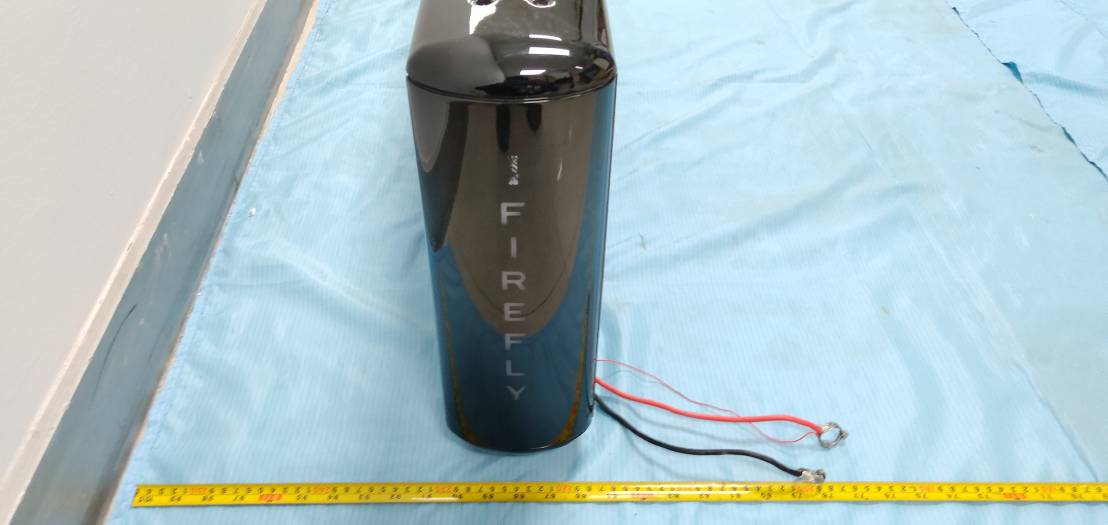

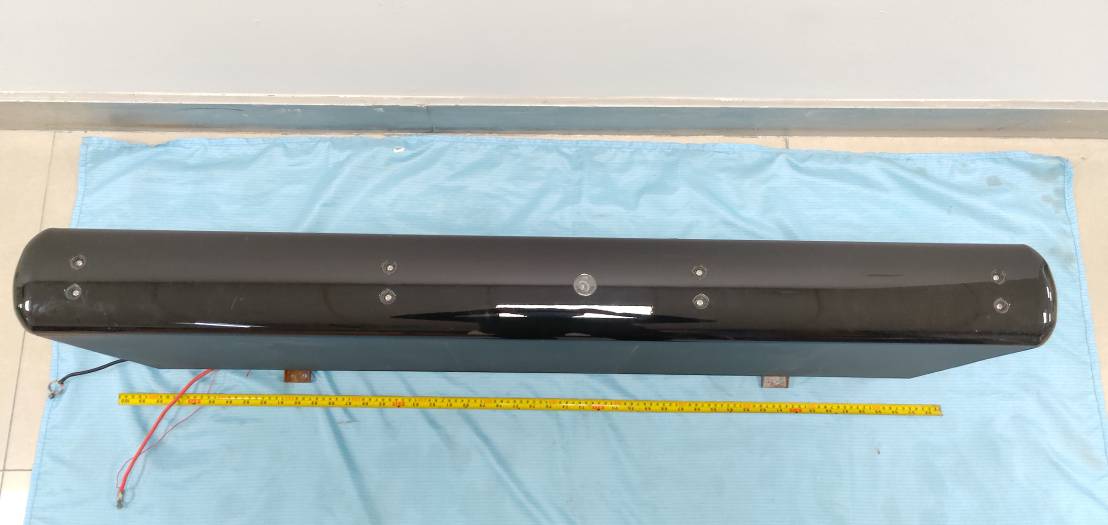

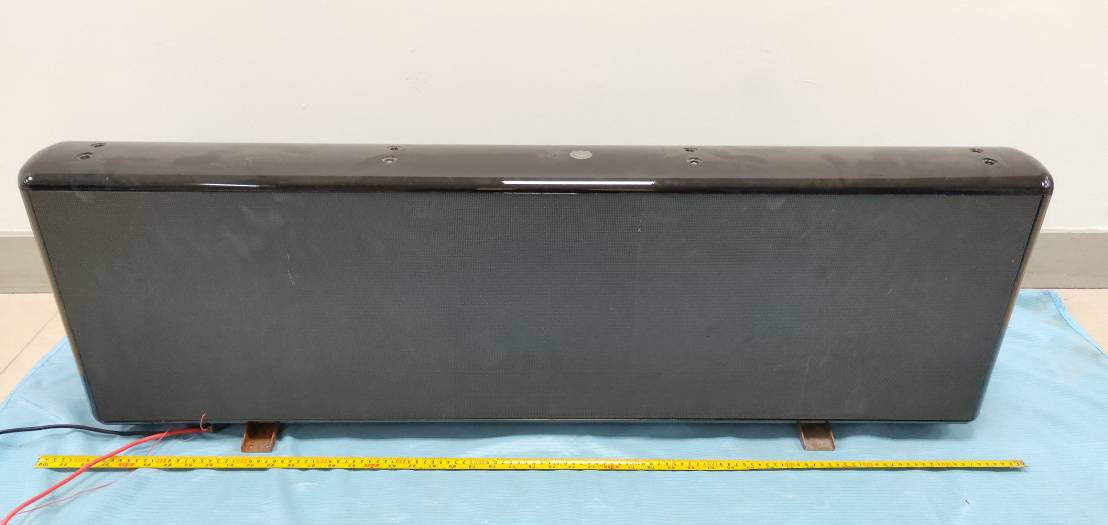

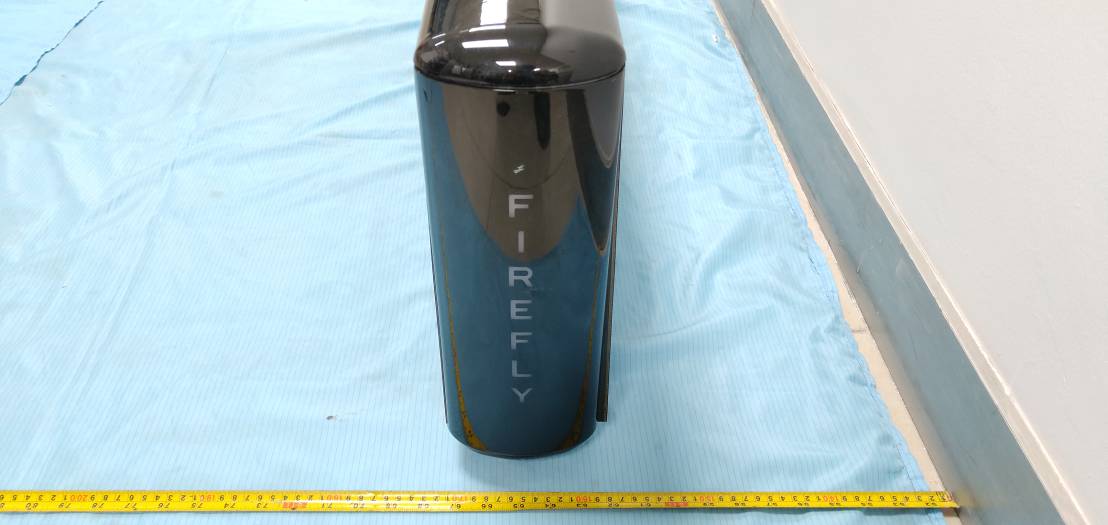

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSH201124050-RF Page 1 of 3 EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSH201124050-RF Page 2 of 3 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSH201124050-RF Page 3 of 3

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSH201124050-RF EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSH201124050-RF Page 1 of 10 EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Wifi Antenna WCDMA & LTE Antenna Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSH201124050-RF Page 2 of 10 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSH201124050-RF Page 3 of 10 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSH201124050-RF Page 4 of 10 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSH201124050-RF Page 5 of 10 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSH201124050-RF Page 6 of 10 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSH201124050-RF Page 7 of 10 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSH201124050-RF Page 8 of 10 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSH201124050-RF Page 9 of 10 WCDMA&LTE Antenna Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSH201124050-RF Page 10 of 10 Wi-Fi Antenna

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSH201124050-00B FCC Part 27, FCC Part 22H/24E Page 9 of 341 FCC §1.1310 & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 1.1310 and subpart 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (Minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Result Calculated Formulary: Predication of MPE limit at a given distance S = 2 4R PG  S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW). G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain. R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSH201124050-00B FCC Part 27, FCC Part 22H/24E Page 10 of 341 Mode Frequency (MHz) Antenna Gain Max Tune Up Conducted Power Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric)(dBm)(mW) Wi-Fi 2412-2462 5.0 3.16 16.5 44.67 20 0.028 1.0 WCDMA Band 2 1850-1910 0 1.0 23.0 200 20 0.040 1.0 WCDMA Band 4 1710-1755 0 1.0 23.0 200 20 0.040 1.0 WCDMA Band 5 824-849 0 1.0 23.0 200 20 0.040 0.549 LTE Band 2 1850-1910 0 1.0 23.0 200 20 0.040 1.0 LTE Band 4 1710-1755 0 1.0 23.0 200 20 0.040 1.0 LTE Band 5 824-849 0 1.0 23.0 200 20 0.040 0.549 LTE Band 7 2500-2570 0 1.0 23.0 200 20 0.040 1.0 LTE Band 12 699-716 0 1.0 23.0 200 20 0.040 0.466 LTE Band 13 777-787 0 1.0 23.0 200 20 0.040 0.518 LTE Band 17 704-716 0 1.0 23.0 200 20 0.040 0.469 Note: 1. the tune up conducted power was declared by the applicant 2. the Wi-Fi, WCDMA/LTE can transmit at the same time. So the worst simultaneous transmitting consideration: The ratio=MPE Wi-Fi /limit + MPE LTE /limit =0.028/1.0+0.040/0.466=0.114＜1.0 To maintain compliance with the FCC’s RF exposure guidelines, place the equipment at least 20cm from nearby persons. Result: Compliance
