2AX6E-MINI11TD-LTE/LTE FDD/WLAN terminal

TD-LTE/LTE FDD/WLAN terminal SEL832/Mini11 User Manual ◎ Appearance and function description ◎ Signal light status and Tag information ◎ SIM card install When the device is power off,please follow the picture below to insert the standard SIM card. ◎Application scenario ◎ Using instruction ① Plug and play The device is connected to PC through USB interface.After the driver is automatically and correctly installed,it will be identified as the network card. It can be used directly without through WiFi list. The automatic driver installation support OS windows 7/8/10. ② Connect through WiFi When both green and blue lights on,choose the SSID match this device from your WiFi list and enter the correct password to use. ③ WEB UI access After connecting to WiFi,enter the following URL in the browser: http:/192.168.43.1. Then you can change the parameters of WiFi and do APN settings. ◎ Cautions Please read the following precautions before using: 1. Input voltage requirements: DC +5V/≥1A . 2. Handle with care and keep the product in a clean and dust-free place. 3. Do not drop,throw,bend or disassemble the product. 4. Do not put it in the place with moisture,water or other liquids. 5. Please do not put it in the place with high temperature or flammable gas. 6. Do not use this product in the aircraft and places where WiFi is required to turned off. 7. Do not allow children to use this product without guidance,keep it out of touch of children. 8. Operating ambient temperature: -10 ~ 50°C；humidity：10 ~ 90%. ◎ Packing list TD-LTE/LTE FDD/WLAN terminal 1PCS User Manual 1PCS FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: · Reorient or relocate the receiving antenna. · Increase the separation between the equipment and receiver. · Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. · Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specific Absorption Rate (SAR) information: This TD-LTE/LTE FDD/WLAN terminal meets the government's requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. FCC RF Exposure Information and Statement the SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types: TD-LTE/LTE FDD/WLAN terminal has also been tested against this SAR limit. This device was tested for typical body-worn operations with the back of the Tablet pc kept 10mm from the body. To maintain compliance with FCC RF exposure requirements, use accessories that maintain an 0mm separation distance between the user's body and the back of the TD-LTE/LTE FDD/WLAN terminal. The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided.

Shenzhen Strong Rising Electronics Co., Ltd. Dongguan Branch Agent Authorization Company: Shenzhen Strong Rising Electronics Co., Ltd. Dongguan Branch Address: Room301, Building4, No.2, QingpingRoad, Qinghutou, TangxiaTown, DongguanCity, Guangdong Province, China Product Name: TD-LTE/LTE FDD/WLAN terminal Trade Mark: N/A Model Number(s): Mini11, SEL832 FCC ID: 2AX6E-MINI11 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-12-17 Name: Candy Chen Title: General Manager Company: Shenzhen Strong Rising Electronics Co., Ltd. Dongguan Branch

Shenzhen Strong Rising Electronics Co., Ltd. Dongguan Branch Date: 2020-12-17 To: MiCOM Labs Inc 575 Boulder Court, Pleasanton, California 94566, USA Dear Sir/Madam, We, Shenzhen Strong Rising Electronics Co., Ltd. Dongguan Branch Hereby declares the following statement for MiCOM Labs Inc, PCB board, structure and internal of these model(s) are the same, Only models name is different for these models: Product name: TD-LTE/LTE FDD/WLAN terminal Trade Mark: N/A Model No.: Mini11, SEL832 Sincerely, Signature: Date: 2020-12-17 Name: Candy Chen Title: General Manager Company: Shenzhen Strong Rising Electronics Co., Ltd. Dongguan Branch

Shenzhen Strong Rising Electronics Co., Ltd. Dongguan Branch Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-12-17 Subject; Request for Confidentiality FCC ID: 2AX6E-MINI11 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements For U-NII Devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Candy Chen Title: General Manager

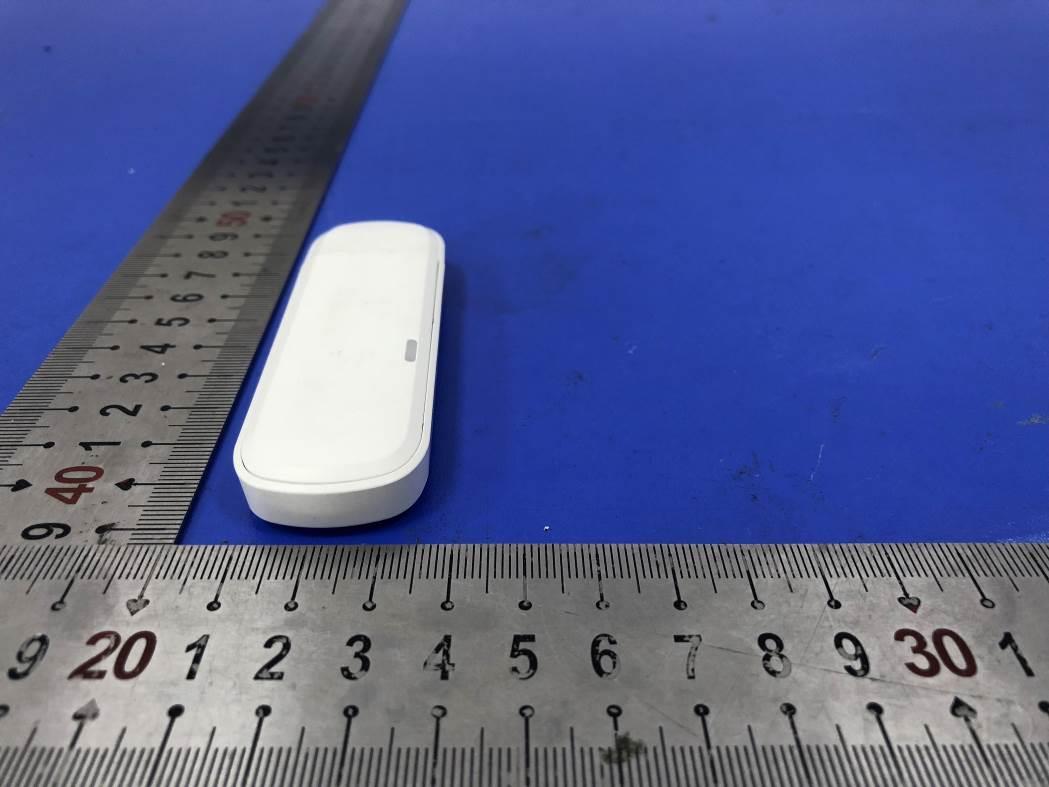

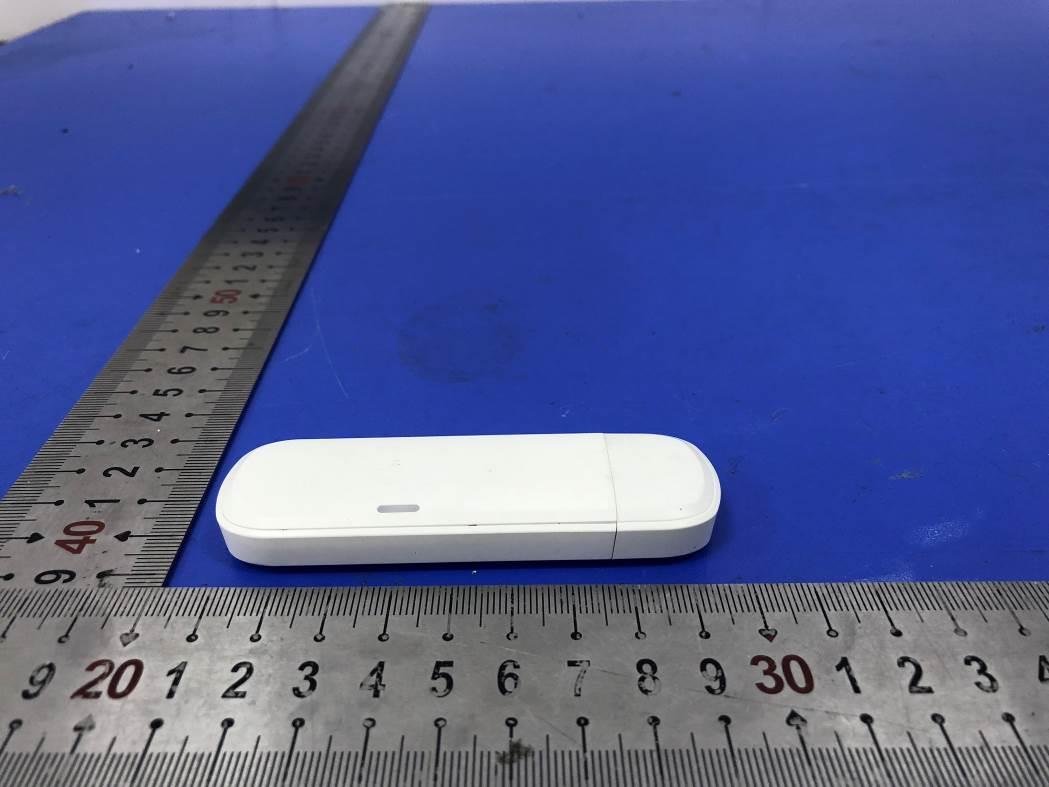

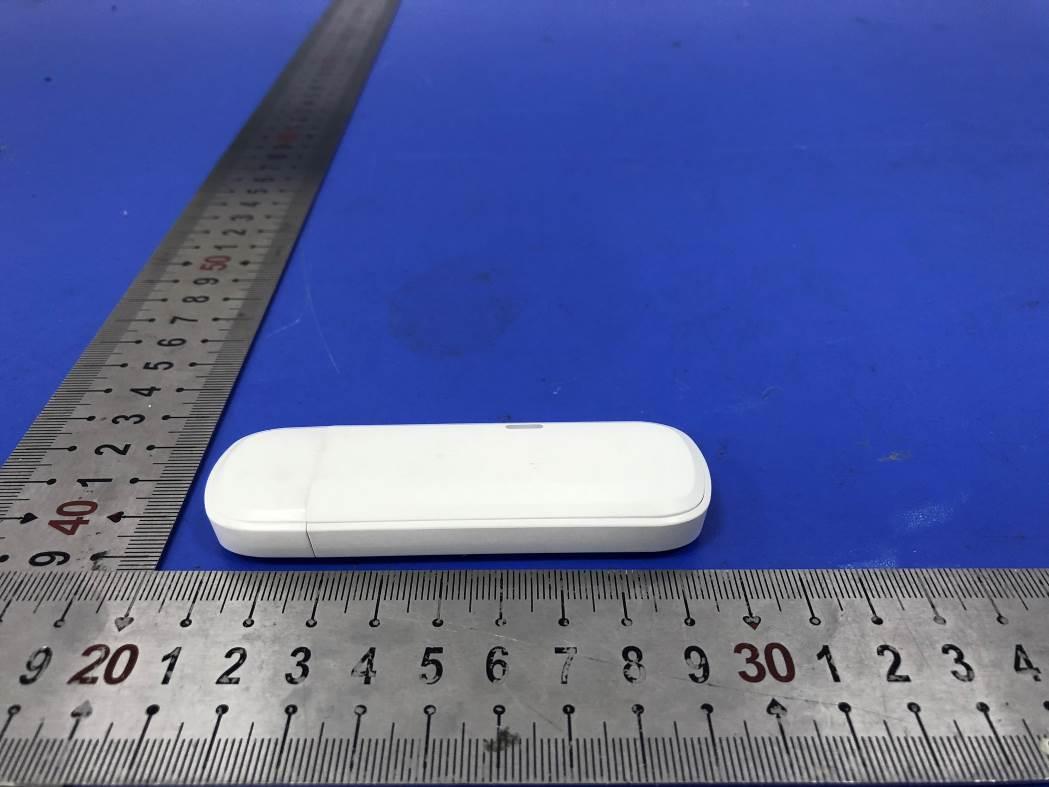

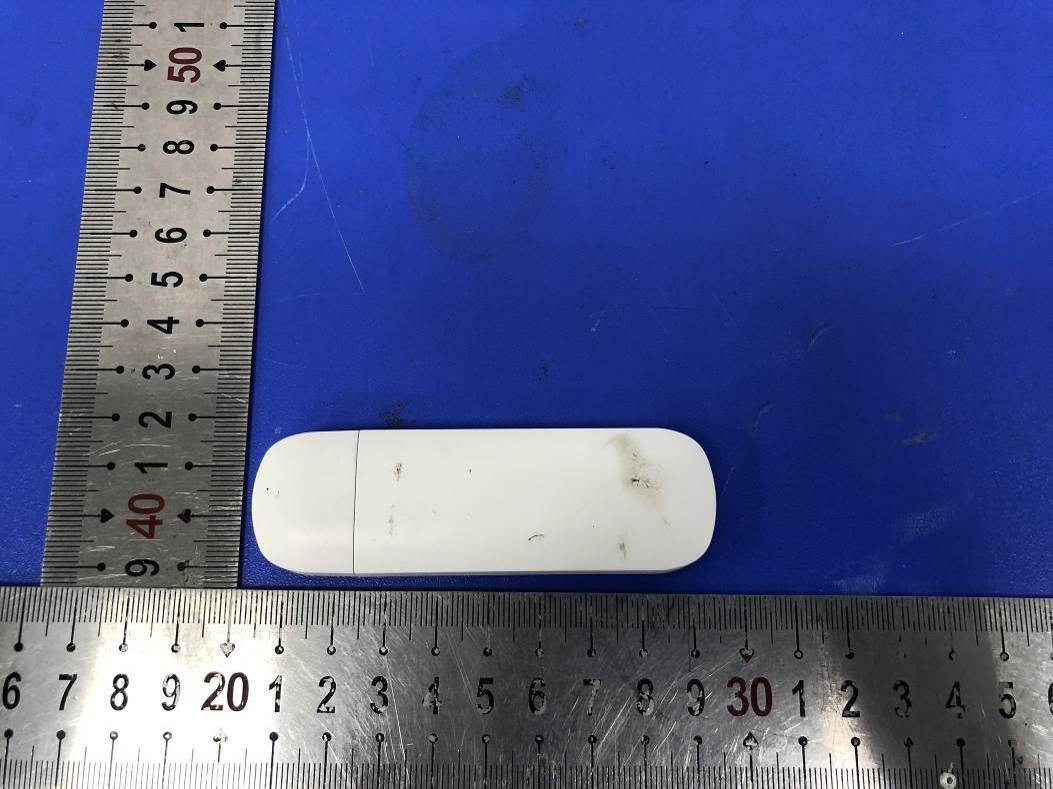

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX6E-MINI11 EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX6E-MINI11 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX6E-MINI11 Fig. 5 Fig. 6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX6E-MINI11 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L 2.0cm*W1.0cm Label Location TD-LTE/LTE FDD/WLAN terminal Model No.: Mini11 FCC ID: 2AX6E-MINI11

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX6E-MINI11 INTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 WCDMA/LTE MIAN ANT WLAN ANT WCDMA/LTE Diversity ANT SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX6E-MINI11 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX6E-MINI11 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX6E-MINI11 Fig. 7 Fig. 8

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX6E-MINI11 Report No.:LCS200831153AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laborator y Ltd. Page 1 of 141 SAR TEST REPORT For Shenzhen Strong Rising Electronics Co., Ltd. Dongguan Branch TD-LTE/LTE FDD/WLAN terminal Test Model: Mini11 Additional Model No. : SEL832 Prepared for : Shenzhen Strong Rising Electronics Co., Ltd. Dongguan Branch Address : Room301, Building4, No.2, QingpingRoad, Qinghutou, TangxiaTown, DongguanCity, Guangdong Province, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (86)755-82591330 Fax : (86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : October 19, 2020 Number of tested samples : 1 Serial number : Prototype Date of Test : October 19, 2020 ~ December 04, 2020 Date of Report : December 08, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX6E-MINI11 Report No.:LCS200831153AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laborator y Ltd. Page 2 of 141 SAR TEST REPORT Report Reference No. ................. : LCS200831153AEB Date Of Issue ................................ : December 08, 2020 Testing Laboratory Name ........... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure ......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ........................ : Shenzhen Strong Rising Electronics Co., Ltd. Dongguan Branch Address ......................................... : Room301, Building4, No.2, QingpingRoad, Qinghutou, TangxiaTown, DongguanCity, Guangdong Province, China Test Specification: Standard ........................................ : IEEE Std C95.1-2019& IEEE Std 1528™-2013 & FCC Part 2.1093 Test Report Form No. ................... : LCSEMC-1.0 TRF Originator............................... : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ................................... : Dated 2014-09 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes noresponsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ................. : TD-LTE/LTE FDD/WLAN terminal Trade Mark .................................... : N/A Model/Type Reference .................. : Mini11 Operation Frequency .................... : WCDMA Band II/IV/V; LTE2,4,5,12,17,41;WLAN2.4G Modulation Type ............................ : SEL832 Ratings .......................................... : DC 5V/1A Result .......................................... : Positive Compiled by: Supervised by: Approved by: Ping Li/ File administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX6E-MINI11 Report No.:LCS200831153AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laborator y Ltd. Page 3 of 141 SAR -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200831153AEB December 08, 2020 Date of issue Type / Model......................... : Mini11 EUT....................................... : TD-LTE/LTE FDD/WLAN terminal Applicant.............................. : Shenzhen Strong Rising Electronics Co., Ltd. Dongguan Branch Address.................................. : Room301, Building4, No.2, QingpingRoad, Qinghutou, TangxiaTown, DongguanCity, Guangdong Province, China Telephone.............................. : / Fax......................................... : / Manufacturer....................... : Shenzhen Strong Rising Electronics Co., Ltd. Dongguan Branch Address.................................. : Room301, Building4, No.2, QingpingRoad, Qinghutou, TangxiaTown, DongguanCity, Guangdong Province, China Telephone.............................. : / Fax......................................... : / Factory.................................. : Shenzhen Strong Rising Electronics Co., Ltd. Dongguan Branch Address.................................. : Room301, Building4, No.2, QingpingRoad, Qinghutou, TangxiaTown, DongguanCity, Guangdong Province, China Telephone.............................. : / Fax......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX6E-MINI11 Report No.:LCS200831153AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laborator y Ltd. Page 4 of 141 Revison History Revision Issue Date Revisions Revised By 000 December 08, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AX6E-MINI11 Report No.:LCS200831153AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laborator y Ltd. Page 5 of 141 TABLE OF CONTENTS 1. TEST STANDARDS AND TEST DESCRIPTION .....................................................................................................................6 1.1. TEST STAND…
