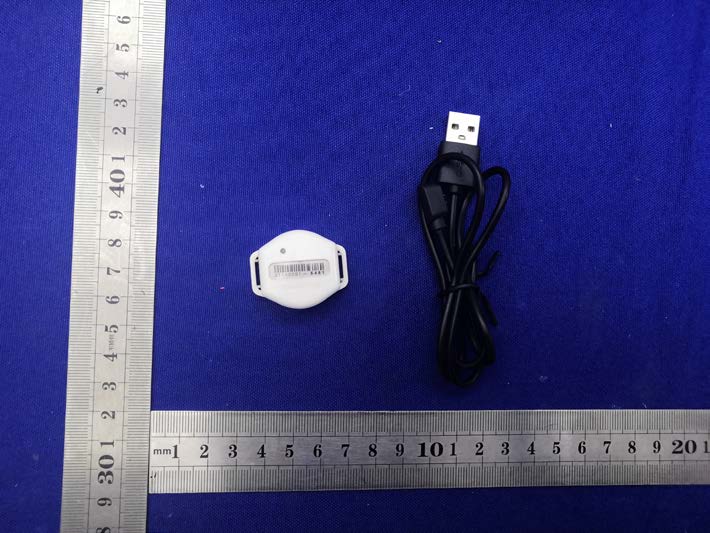

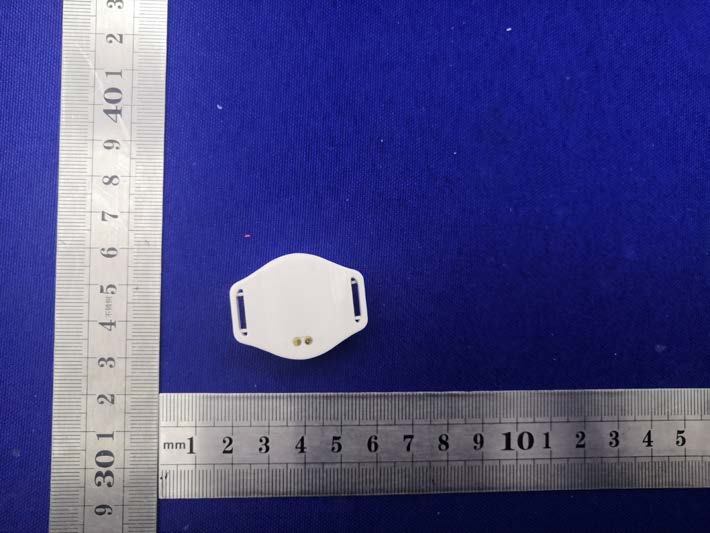

2AX8K-B610Infant Tag

1 Baby label B610+ instruction manual 1. Overview ....................................................................................................................................... 2 1.1 background .......................................................................................................................... 2 1.2 application fields and objects .............................................................................................. 2 1.3 use environment .................................................................................................................. 2 1.4 technical features ................................................................................................................. 2 2. Main technical parameters and functions ...................................................................................... 3 2.1 technical indicators ............................................................................................................. 3 2.2 overall dimensions .............................................................................................................. 3 2.3 main function description .................................................................................................... 3 3.Use and operation........................................................................................................................... 4 3.1 wearing steps and methods.................................................................................................. 4 3.2 working state indication ...................................................................................................... 6 4.Common troubleshooting ............................................................................................................... 6 5. Maintenance and precautions ........................................................................................................ 7 1. Overview 1.1 background Baby tag b610 + is an active electronic tag specially used in infant anti-theft system.It not only has the characteristics of waterproof, anti falling off and anti cutting, but also can realize the accurate positioning of the baby and the matching function with the nurse and the mother, so as to provide all-round protection for the baby and provide more efficient management for the hospital. 1.2 application fields and objects This product is suitable for major hospitals, combined with Yihui baby anti-theft system, to provide a full range of anti-theft monitoring for newborn infants. 1.3 use environment Serial number index parameter 1 temperature operation -10°C ～ +50°C Storage -40°C ～ +85°C 2 Shock / drop 10～55Hz X,Y and Z axis 3 humidity operation 5% ～ 95% Storage 10% ～ 90% 1.4 technical features  Exquisite ergonomic design  Precise positioning, movement monitoring and mother infant matching  Rechargeable, real-time voltage monitoring, low power automatic alarm  Wristband cutting alarm, label falling off alarm  Ipx7 waterproof, can be repeated cleaning, water can work normally  Passed the high standard FDA certification, without any allergic reaction  In line with gb9175-88, GB8702-88 national radiation safety standards 2. Main technical parameters and functions 2.1 technical indicators Serial number index parameter 1 Communication frequency 433MHZ 2 Communication distance >20M (sight distance) 3 Working current <50uA 4 Battery life Charging times ≥ 300 times Each charge can work for more than 7 days 5 Battery Specification 80mAh 6 Dimensions (L * w * h) 34.5mm*27.5mm*14.5mm 2.2 overall dimensions Mechanical dimension (L * w * h): 34.5mm * 27.5mm * 14.5mm 2.3 main function description  Heartbeat signal: the label sends a heartbeat signal every certain time;  Low voltage alarm: when the battery voltage is lower than the preset value, the background software will get the current battery voltage information of the tag and remind the user that the label is in the low voltage state;  Cut alarm: when the wristband is connected, if the wristband is disconnected due to falling off or cutting, the label will send an alarm signal;  Low frequency precise positioning: when the label is within the positioning range of the locator, the positioning signal will be sent continuously. When the label goes out of the designated access control range, the exit alarm will be triggered;  Skin sensing: when wearing a label, the label itself can sense whether the label is in contact with the skin;  Motion detection: it can detect whether the tag is still or moving;  Mother infant pairing: with the use of mother label, mother infant pairing can be realized. 3.Use and operation 3.1 wearing steps and methods Step 1: open the package and take out the wristband. The color of the wristband is optional (usually blue for boys and pink for girls) Step 2: insert one end of the wristband into the interface on one side of the label according to the direction shown by the arrow at one end of the wristband Step 3: put the baby label on the baby's ankle: Step 4: insert the other end of the wristband into the interface on the other side of the label, and adjust the length so that the bottom of the label just contacts the skin Step 5: cut off the wristband beyond the interface with scissors 3.2 working state indication  Heartbeat signal: the label sends heartbeat signal every 15 seconds, and the blue indicator light flashes once;  Low voltage alarm: when the battery voltage of the label is lower than 2.4V, the red indicator light flashes continuously;  Wearing instructions: when the label is worn, the red indicator light flashes once, and the buzzer sends out a sound;  Cutting alarm: if the wrist strap falls off or is cut off, the blue indicator light of the label flashes continuously for 10 times (lasting for 5 s), and the buzzer sends out three beeps at the same time;  Low frequency precise positioning: when the locator is within the positioning range, the blu…
