2AXAMWA512GMWLAN AP/Router

C COVER WA512G Series Industrial IEEE 802.11a/b/g/n/ac Wireless Mesh AP/Client Nov.2020 V.1.3 2 WoMaster WA512G Industrial Dual Radio 2.4G+5GHz Concurrent Wireless Mesh AP/Client User Manual Copyright Notice © WoMaster. All rights reserved. About This Manual This user manual is intended to guide a professional installer to install and to configure the WoMaster Industrial Wireless MESH AP/Client. It includes procedures to assist you in avoiding unforeseen problems. NOTE: Only qualified and trained personnel should be involved with installation, inspection, and repairs of this router. Disclaimer WoMaster reserves the right to make changes to this Manual or to the product hardware at any time without notice. Information provided here is intended to be accurate and reliable. However, it might not cover all details and variations in the equipment and does not claim to provide for every possible contingency met in the process of installation, operation, or maintenance. Should further information be required or should particular problem arise which are not covered sufficiently for the user’s purposes, the matter should be referred to WoMaster. Users must be aware that updates and amendments will be made from time to time to add new information and/or correct possible unintentional technical or typographical mistakes. It is the user’s responsibility to determine whether there have been any such updates or amendments of the Manual. WoMaster assumes no responsibility for its use by the third parties. WoMaster Online Technical Services At WoMaster, you can use the online service forms to request the support. The submitted forms are stored in server for WoMaster team member to assign tasks and monitor the status of your service. Please feel free to write to [email protected] if you encounter any problems. 3 TABLE OF CONTENTS COVER................................................................................................................................................................................................. 1 TABLE OF CONTENTS ....................................................................................................................................................................... 3 DECLARATION OF CONFORMITY ................................................................................................................................................... 6 SAFETY PRECAUTION ....................................................................................................................................................................... 8 1. INTRODUCTION ......................................................................................................................................................................... 12 1.1 OVERVIEW ................................................................................................................................................ 12 1.2 MAJOR FEATURES ....................................................................................................................................... 13 2. INSTALLATION ............................................................................................................................................................................ 14 2.1 WA512G (IP67 HOUSING) .......................................................................................................................... 14 2.1.1 Dimension ............................................................................................................................................. 14 2.1.2 Product Appearance.............................................................................................................................. 14 2.2.3 Product Package ................................................................................................................................... 15 2.2.4 Interface Installation ............................................................................................................................. 15 2.2.4.1 Wiring Power Input ............................................................................................................................ 16 2.2.4.2 Wiring Antenna .................................................................................................................................. 17 2.2.4.3 Wiring Waterproof Connector ............................................................................................................ 18 2.2.5 Mounting the AP ................................................................................................................................... 19 2.2.6 LED ........................................................................................................................................................ 20 2.2 WA512G-D (DIN-RAIL) ............................................................................................................................. 21 2.2.1 Dimension ............................................................................................................................................. 21 2.2.2 Product Appearance.............................................................................................................................. 21 2.2.3 Product Package (WA512G-D)............................................................................................................... 22 2.2.4 Interface Installation ............................................................................................................................. 22 2.2.4.1 Wiring Power Input ............................................................................................................................ 22 2.2.4.2 Wiring the Ground ............................................................................................................................. 23 2.2.5 Mounting the AP .................................…

Text truncated - open the document above for the full version.

WOM ASIA CO., LTD FCC Declaration Letter 2020-11-25 To: FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Professional Installation Statement for FCC ID: 2AXAMWA512GM Product Name: WLAN AP/Router Model(s) Name: WA512GM-D; WA512GM-IP67 Dear Sir or Madam, Please be notified that we, the undersigned, state that our device requires professional installation based on the following reasons: 1. This device will not be sold to the general public, it will be sold to specific dealers only. 2. This device requires controlled installation location and antenna by professional installers. 3. The device requires professional configuration for use. Please help to deal with it and contact me if you have any question. Sincerely Yours, Or well Hsieh / CTO WOM ASIA CO., LTD 4F., NO.86-2, YIWEN 1ST ST., TAOY UAN DIST., TAOYUAN, 33045, TAIWAN (R.O.C.) TEL: +886-2-55964238 E-mail : Or we ll.h @wo mtek.com

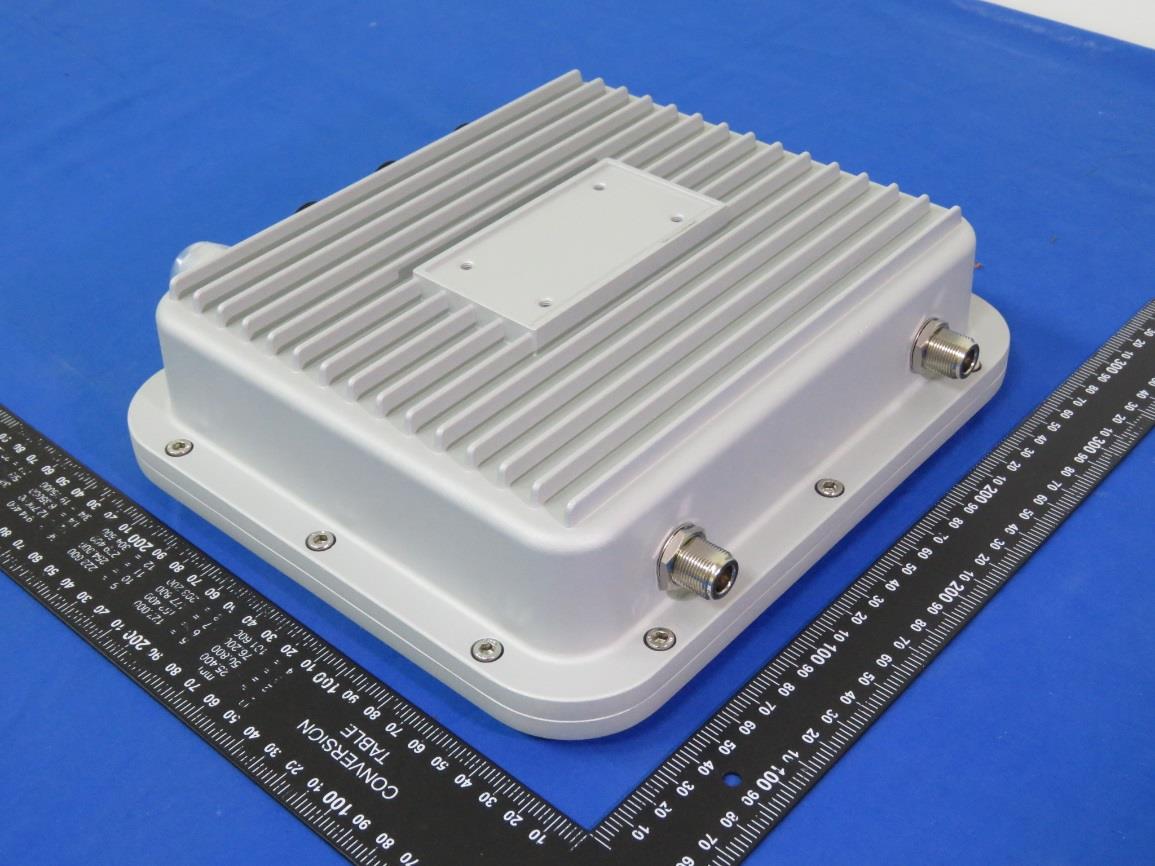

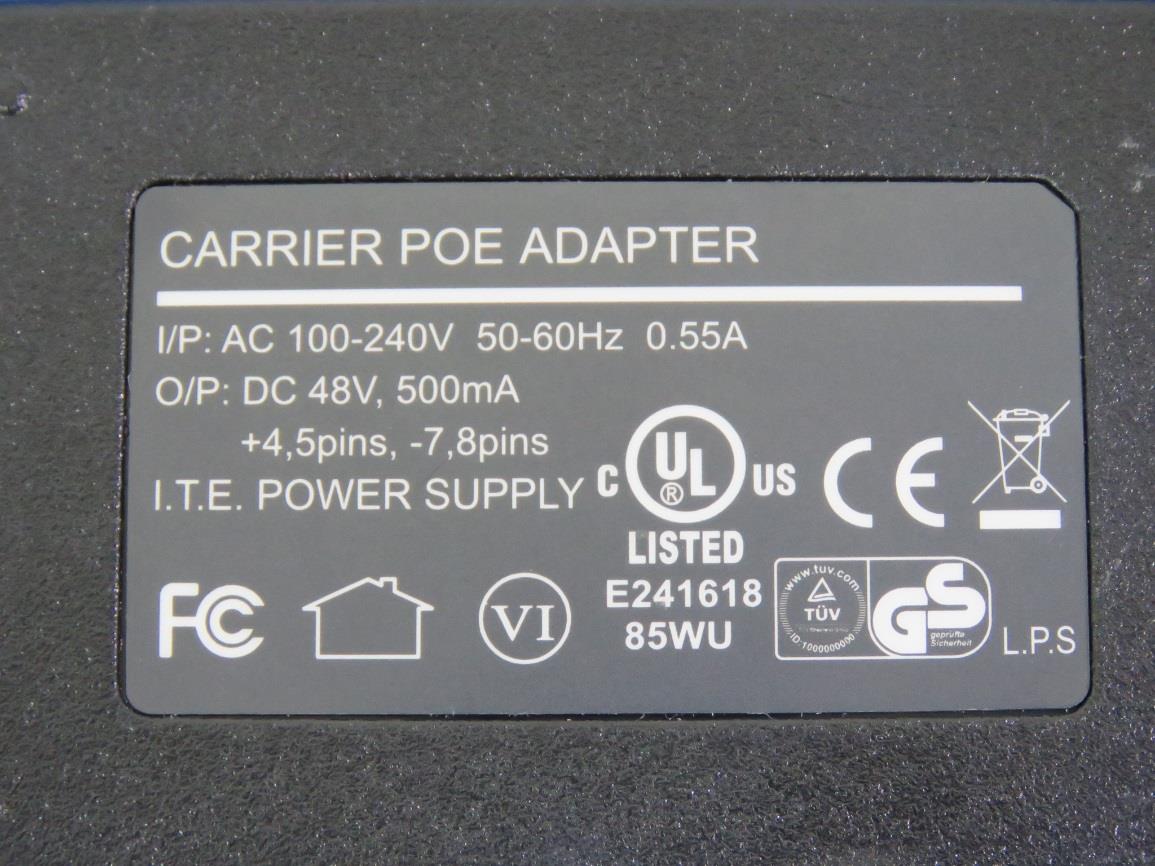

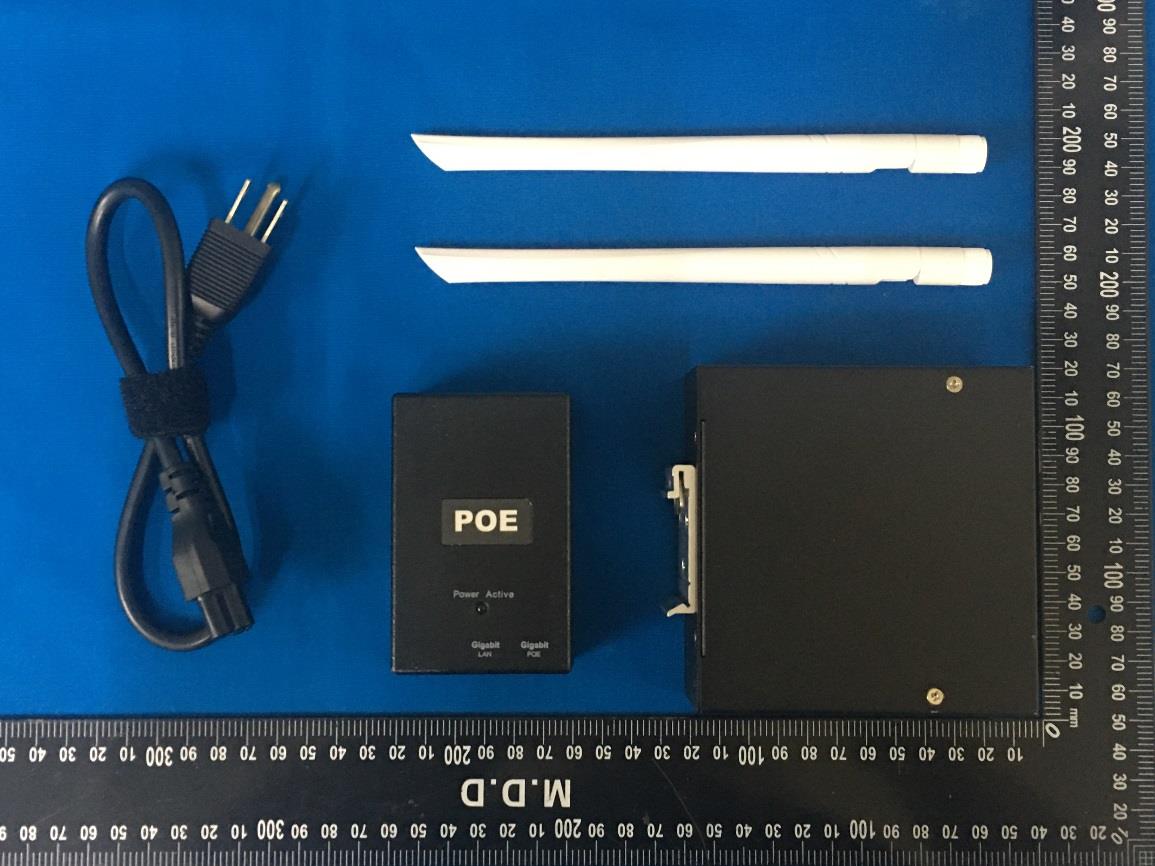

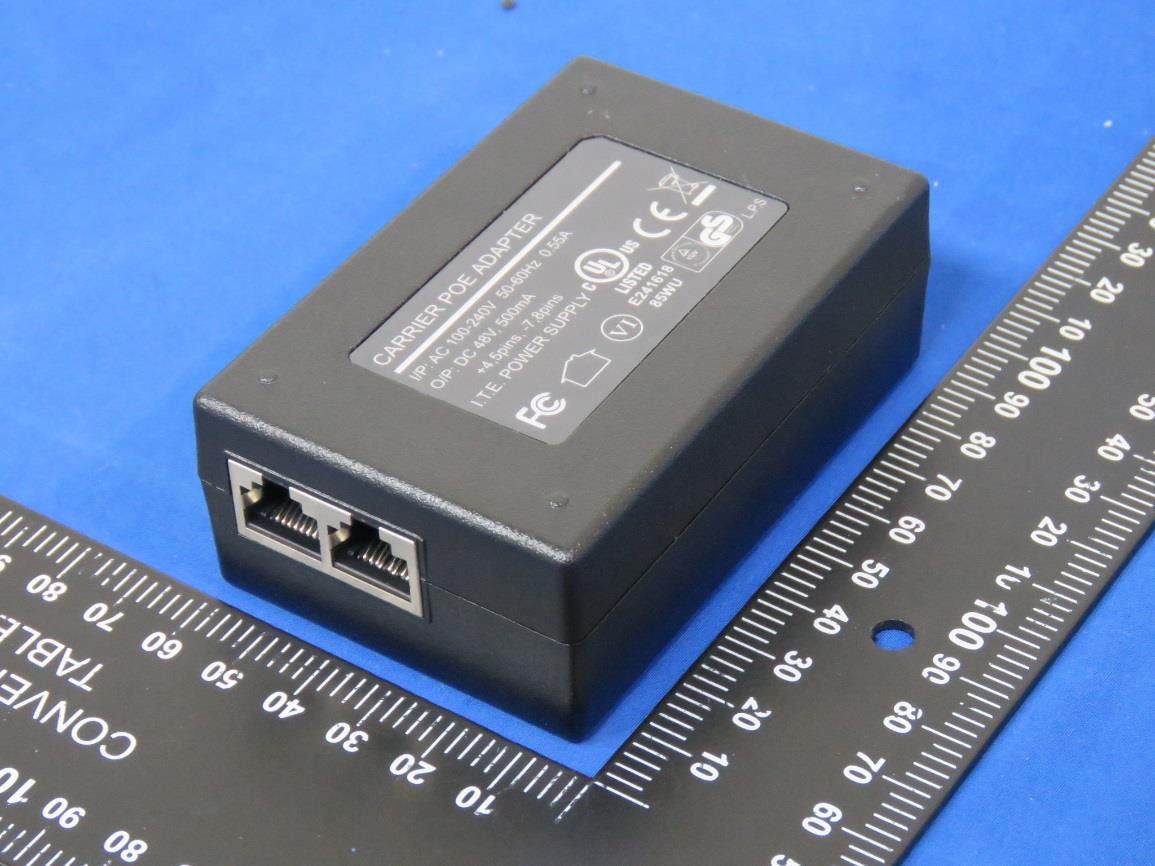

Bay Area Compliance Laboratories Corp. (Linkou Laboratory) Project No.: RXZ200708002-00 Page 1 of 9 External Photographs WA512GM-IP67 Bay Area Compliance Laboratories Corp. (Linkou Laboratory) Project No.: RXZ200708002-00 Page 2 of 9 Bay Area Compliance Laboratories Corp. (Linkou Laboratory) Project No.: RXZ200708002-00 Page 3 of 9 WA512GM-D Bay Area Compliance Laboratories Corp. (Linkou Laboratory) Project No.: RXZ200708002-00 Page 4 of 9 Bay Area Compliance Laboratories Corp. (Linkou Laboratory) Project No.: RXZ200708002-00 Page 5 of 9 Bay Area Compliance Laboratories Corp. (Linkou Laboratory) Project No.: RXZ200708002-00 Page 6 of 9 Bay Area Compliance Laboratories Corp. (Linkou Laboratory) Project No.: RXZ200708002-00 Page 7 of 9 Bay Area Compliance Laboratories Corp. (Linkou Laboratory) Project No.: RXZ200708002-00 Page 8 of 9 Bay Area Compliance Laboratories Corp. (Linkou Laboratory) Project No.: RXZ200708002-00 Page 9 of 9

Bay Area Compliance Laboratories Corp. (Linkou Laboratory) Project No.: RXZ200708002-00 Page 1 of 7 Internal Photographs WA512GM-IP67 Bay Area Compliance Laboratories Corp. (Linkou Laboratory) Project No.: RXZ200708002-00 Page 2 of 7 WA512GM-D Bay Area Compliance Laboratories Corp. (Linkou Laboratory) Project No.: RXZ200708002-00 Page 3 of 7 Bay Area Compliance Laboratories Corp. (Linkou Laboratory) Project No.: RXZ200708002-00 Page 4 of 7 Bay Area Compliance Laboratories Corp. (Linkou Laboratory) Project No.: RXZ200708002-00 Page 5 of 7 Bay Area Compliance Laboratories Corp. (Linkou Laboratory) Project No.: RXZ200708002-00 Page 6 of 7 WA512GM-IP67; WA512GM-D use the same board Chain 1 Chain 0 Bay Area Compliance Laboratories Corp. (Linkou Laboratory) Project No.: RXZ200708002-00 Page 7 of 7 Module (Chip)

Bay Area Compliance Laboratories Corp.(Linkou Laboratory) Report No.: RXZ200708002-00C Page 11 of 53 4 FCC §1.1310, §2.1091, §15.407(f) - Maximum Permissible Exposure (MPE) 4.1 Applicable Standard According to §15.407(f), U-NII devices are subject to the radio frequency radiation exposure requirements specified in § 1.1307(b), and 2.1091 of this chapter, as appropriate. All equipment shall be considered to operate in a "general population/uncontrolled" environment. Applications for equipment authorization of devices operating under this section must contain a statement confirming compliance with these requirements for both fundamental emissions and unwanted emissions. Technical information showing the basis for this statement must be submitted to the Commission upon request Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculated Formulary: Predication of MPE limit at a given distance S = PG/4R² = power density (in appropriate units, e.g. mW/cm2); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); For simultaneously transmit system, the calculated power density should comply with: 4.2 RF Exposure Evaluation Result MPE Evaluation: Mode Frequency Range (MHz) Antenna Gain Target Power Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric) (dBm) (mW) Wi-Fi 2.4G 2412-2462 4.35 2.7227 29.00 794.3282 20 0.4305 1.0 UNII-1 5150-5250 8.16 6.5464 17.00 50.1187 20 0.0653 1.0 UNII-3 5745-5850 6.87 4.8641 22.00 158.4893 20 0.1534 1.0 The Wi-Fi 2.4G and 5G can transmit simultaneously: =S 2.4G /Slimit 2.4G + S 5G /Slimit 5G = 0.4305 + 0.1534 = 0.5839 <1.0 Result: MPE evaluation of single and simultaneous transmission meet the requirement of standard.

FCC Part 15.407 TEST REPORT For WOM ASIA CO., LTD 4F., NO.86-2, YIWEN 1ST ST., TAOYUAN DIST., TAOYUAN, 33045, TAIWAN (R.O.C.) FCC ID: 2AXAMWA512GM Report Type Original Report Product Name: WLAN AP/Router Model Name: WA512GM-D Series Model Name: WA512GM-IP67 Report Number : RXZ200708002-00C Report Date : 2020/09/24 Reviewed By : Zeus Chen Prepared By: Bay Area Compliance Laboratories Corp.(Linkou Laboratory) No. 6, Wende 2Rd., Guishan Dist., Taoyuan City 33382, Taiwan (R.O.C.) Tel: +886 (3)3961072; Fax: +886 (3) 3961027 www.bacl.com.tw Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Linkou Laboratory) Bay Area Compliance Laboratories Corp.(Linkou Laboratory) Report No.: RXZ200708002-00C Page 2 of 53 Revision History Revision Report Number Issue Date Description 1.0 RXZ200708002-00C 2020/09/24 Original Report Bay Area Compliance Laboratories Corp.(Linkou Laboratory) Report No.: RXZ200708002-00C Page 3 of 53 TABLE OF CONTENTS 1 GENERAL INFORMATION ................................................................................................................................ 4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 1.2 OPERATION CONDITION OF EUT ........................................................................................................................... 5 1.3 OBJECTIVE ......................................................................................................................................................... 5 1.4 MEASUREMENT UNCERTAINTY .............................................................................................................................. 5 1.5 TEST FACILITY .................................................................................................................................................... 5 2 SYSTEM TEST CONFIGURATION ....................................................................................................................... 6 2.1 DESCRIPTION OF TEST CONFIGURATION .................................................................................................................. 6 2.2 SUPPORT EQUIPMENT AND EXTERNAL CABLE LIST ..................................................................................................... 7 2.3 BLOCK DIAGRAM OF TEST SETUP ........................................................................................................................... 8 2.4 DUTY CYCLE ...................................................................................................................................................... 8 2.5 ENVIRONMENTAL CONDITIONS AND TEST DATE ........................................................................................................ 9 3 SUMMARY OF TEST RESULTS ......................................................................................................................... 10 4 FCC §1.1310, §2.1091, §15.407(F) - MAXIMUM PERMISSIBLE EXPOSURE (MPE) ............................................ 11 4.1 APPLICABLE STANDARD ...................................................................................................................................... 11 4.2 RF EXPOSURE EVALUATION RESULT ..................................................................................................................... 11 5 FCC §15.203 – ANTENNA REQUIREMENTS ...................................................................................................... 12 5.1 APPLICABLE STANDARD ...................................................................................................................................... 12 5.2 ANTENNA LIST AND DETAILS ............................................................................................................................... 12 6 FCC §15.207 - AC LINE CONDUCTED EMISSIONS ............................................................................................. 12 6.1 APPLICABLE STANDARD ...................................................................................................................................... 13 6.2 EUT SETUP AND TEST PROCEDURE ...................................................................................................................... 13 6.3 TEST EQUIPMENT LIST AND DETAILS ..................................................................................................................... 14 6.4 TEST DATA AND TEST PLOT................................................................................................................................. 15 7 FCC §15.209, §15.205 & §15.407(B) – UNWANTED EMISSION ........................................................................ 16 7.1 APPLICABLE STANDARD ...................................................................................................................................... 16 7.2 EUT SETUP AND TEST PROCEDURE ...................................................................................................................... 18 7.3 TEST EQUIPMENT LIST AND DETAILS ..................................................................................................................... 19 7.4 TEST DATA AND TEST PLOT................................................................................................................................. 20 8 FCC §15.407(A)(E) –EMISSION BANDWIDTH AND OCCUPIED BANDWIDTH .................................................... 29 8.1 APPLICABLE STANDARD ...................................................................................................................................... 29 8.2 TEST PROCEDURE ........................................................................................................................…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp.(Linkou Laboratory) Report No.: RXZ200708002-00 Page 1 of 5 EUT Setup Photographs WA512GM-IP67 Conduction Bay Area Compliance Laboratories Corp.(Linkou Laboratory) Report No.: RXZ200708002-00 Page 2 of 5 Radiated Emission (Below 1 GHz) Bay Area Compliance Laboratories Corp.(Linkou Laboratory) Report No.: RXZ200708002-00 Page 3 of 5 Radiated Emission (Above 1 GHz) Bay Area Compliance Laboratories Corp.(Linkou Laboratory) Report No.: RXZ200708002-00 Page 4 of 5 WA512GM-D Conduction Bay Area Compliance Laboratories Corp.(Linkou Laboratory) Report No.: RXZ200708002-00 Page 5 of 5 Radiated Emission (Below 1 GHz)
